Lot No. 4

‘MITSUBISHI-HITACHI’ (PRIMETALS) 2,300 mm Wide Hot Strip Mill

Make: ‘MITSUBISHI-HITACHI’ (PRIMETALS) 2,300 mm

Hot Strip Mill

The Hot Strip Mill at JFE Steel’s Keihin district stands as a testament to cutting-edge steel production technology, boasting the capability to manufacture Japan's widest hot-rolled steel strip. Commissioned in 1979, the mill has been continually upgraded throughout the years to maintain its competitive edge. Production ceased in September 2023, leaving behind a legacy of excellence.

It features a Pair Cross Shift Mill for adaptive roll gap control to optimize thickness and shape. A key enhancement was the integration of a Sizing Press in 2009, which allows for variable strip widths while using slabs of constant width. This not only increases the productivity of the slab caster and reheating furnace upstream but also expands the range of products that can be manufactured efficiently.

Capable of rolling slabs measuring up to 2,300 mm in width, with thicknesses ranging from 160 to 250 mm, the Keihin HSM has an annual production capacity of approx. 4,000,000 tons. The mill processed low-carbon steel into a variety of products, from thin sheets for automotive bodies to thicker plates for line pipe applications.

Make: CHUGAIROKOGYO (Reheating Furnace)
           MITSUBISHI-HITACHI-IHI (Rolling Mill)
Year of manufacture: 1979 (upgrades in 2000s, 2010s and 2020s)
Mothballed since: Ceased production in September 2023
Production capacity: approx. 4,000,000 tons per year (330,000 tons per month)
Rolling direction: Left to right (left hand line)
Processed material: Low carbon steel
Slab width: 600 – 2,300 mm
Slab thickness: 160 – 250 mm
Slab length: 5.0 – 9.1 meters
Slab weight: max. 36,000 kg
Strip width: 600 – 2,300 mm
Strip thickness: 1.2 – 25.4 mm
Strip length: up to 1,900 meters
Coil inner diameter: 762 mm
Coil outer diameter: max. 2,050 mm
Coil weight: max. 36,000 kg
Rolling speed: up to 1,159 mpm

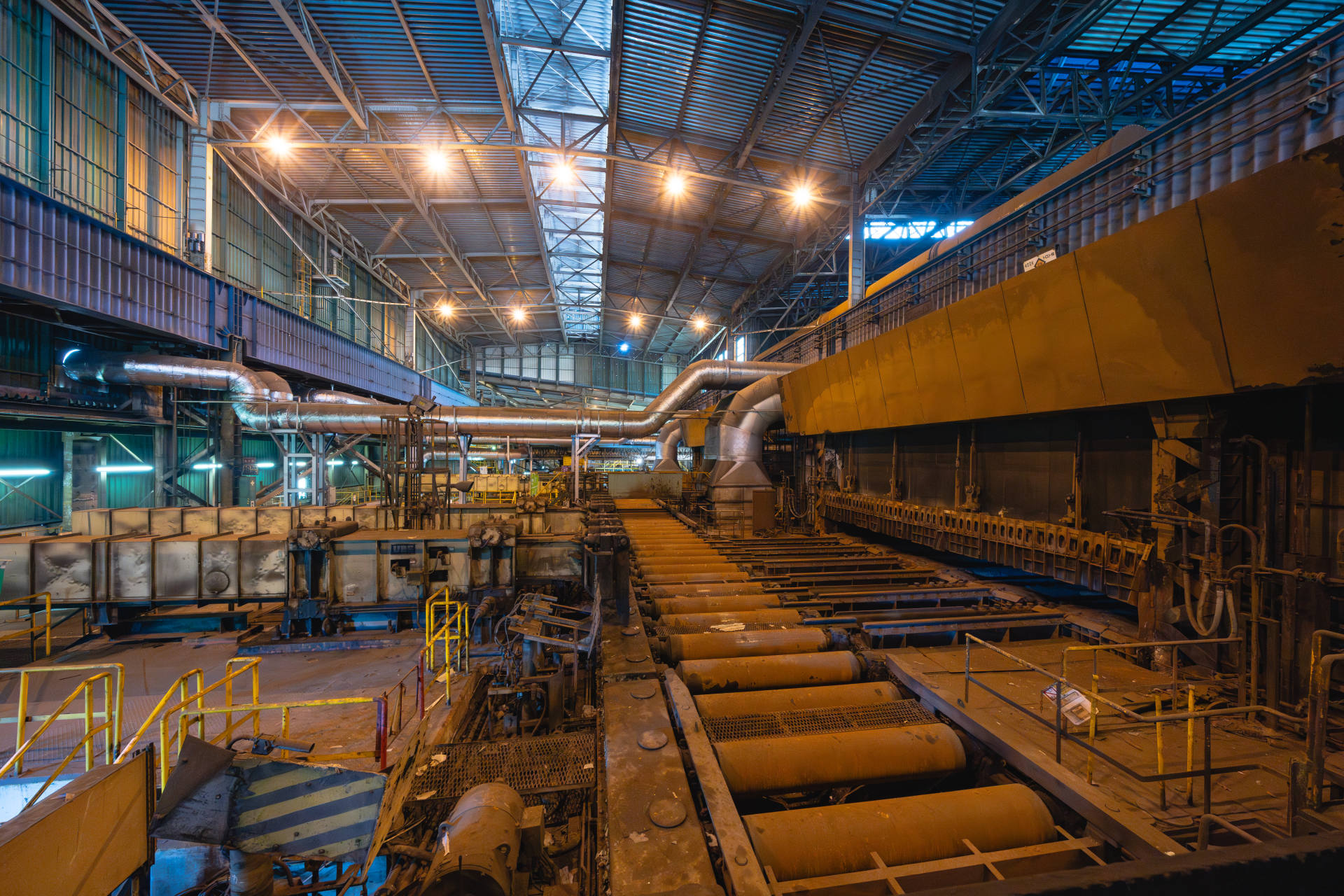

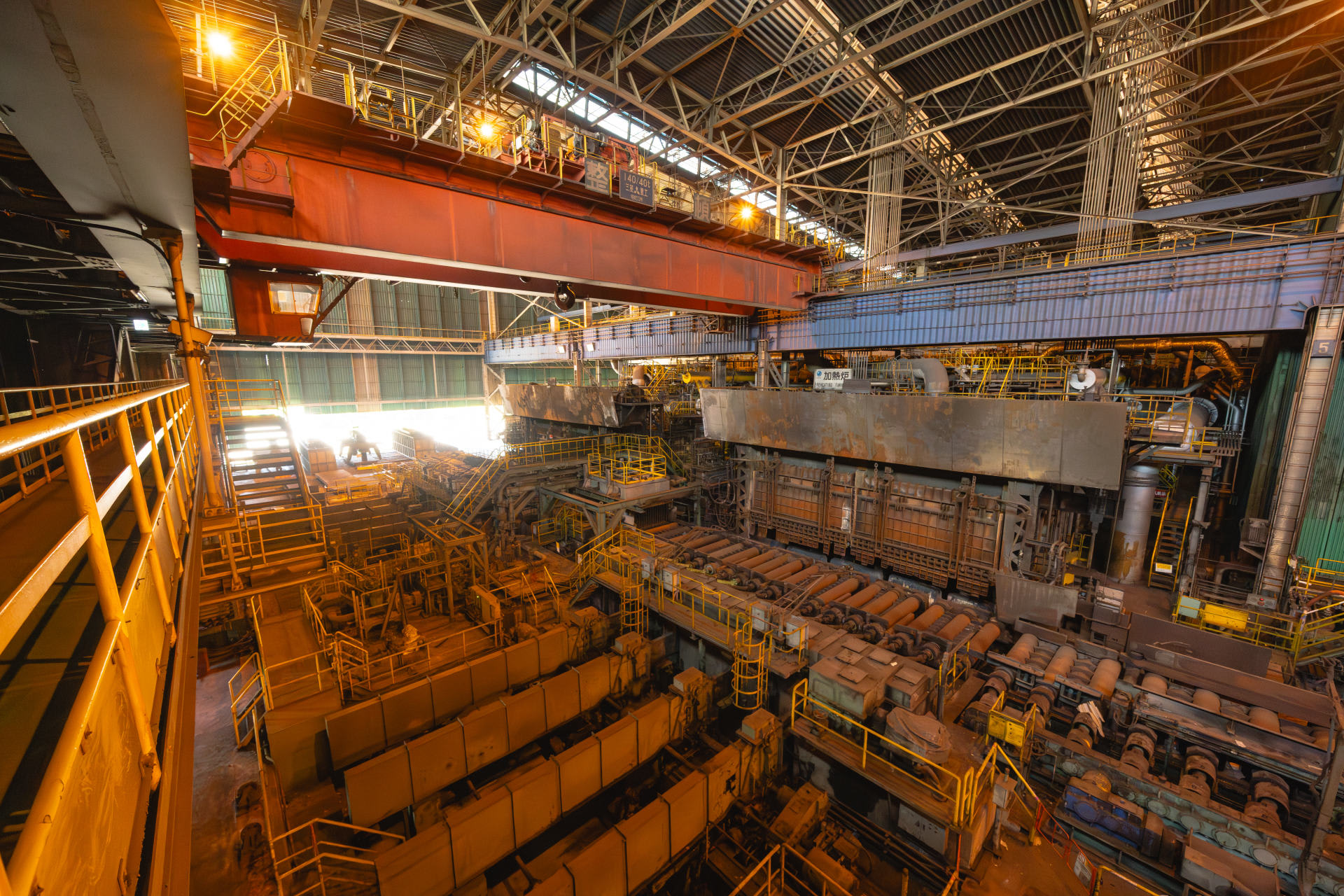

REHEATING FURNACE
Make: CHUGAIROKOGYO
Purpose: Up to 1,200 °C slabs reheating
No. furnaces: 2
Type:  Walking Beam (WB)
Capacity: 300 tph each
Dimensions: 57 meters length
                      9.8 meters width
Burners: 12 units per furnace
                 Axial flow + regeneration
                 Mixed gas fuel

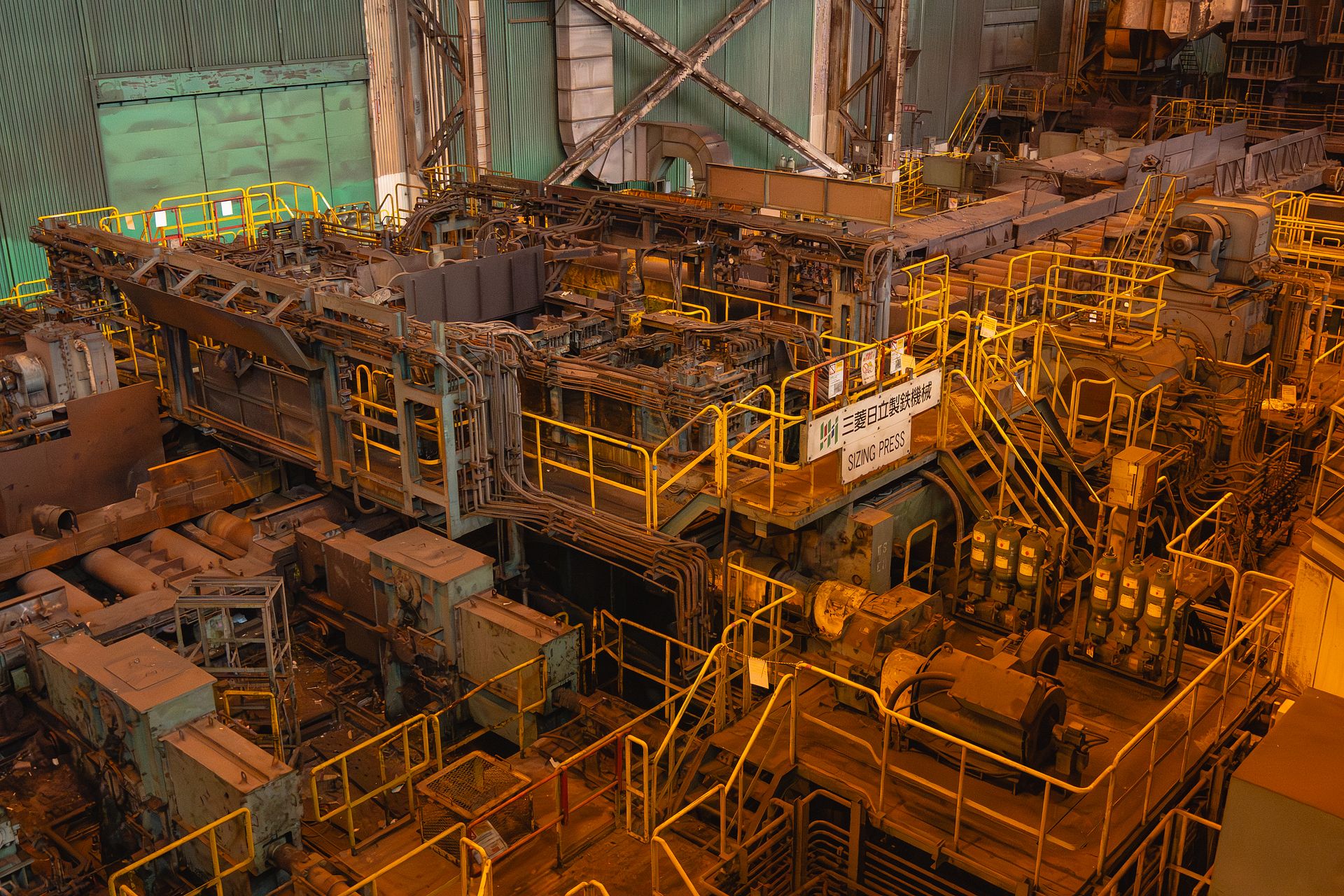

SIZING PRESS
Make: MITSUBISHI HEAVY INDUSTRIES (2009)
Purpose: Enables a variety of widths with constant width of slabs (increase of caster and RHF productivity)
Width Reduction Capability: max. 370mm
Pressure Reduction Mechanism: Electric Screw Nut Type
Press Speed: 20 mpm
Main Machine: 3,400 kW
Number of mold stages: 2 stages
Conveyance speed: 150 mph

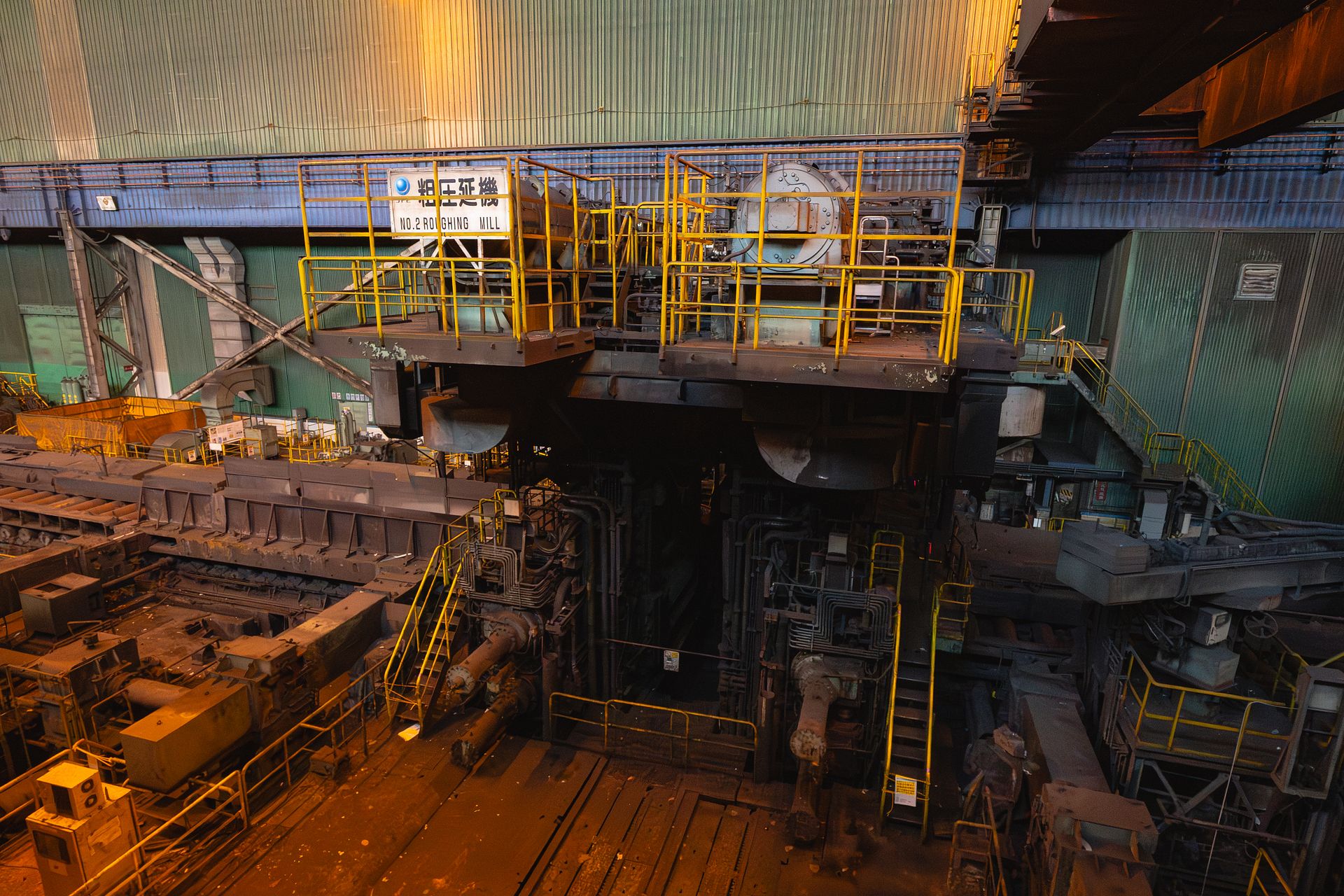

ROUGHING MILL ‘R2’
Make: IHI
Purpose: Rolled stock size reduction from 250 to 60 mm
Width is adjusted by vertical edge rolls
Type: 4-Hi Reversible, entry and exit edger
Main motor: AC 8,000 kW x 2
Max. load: 4,500 tons

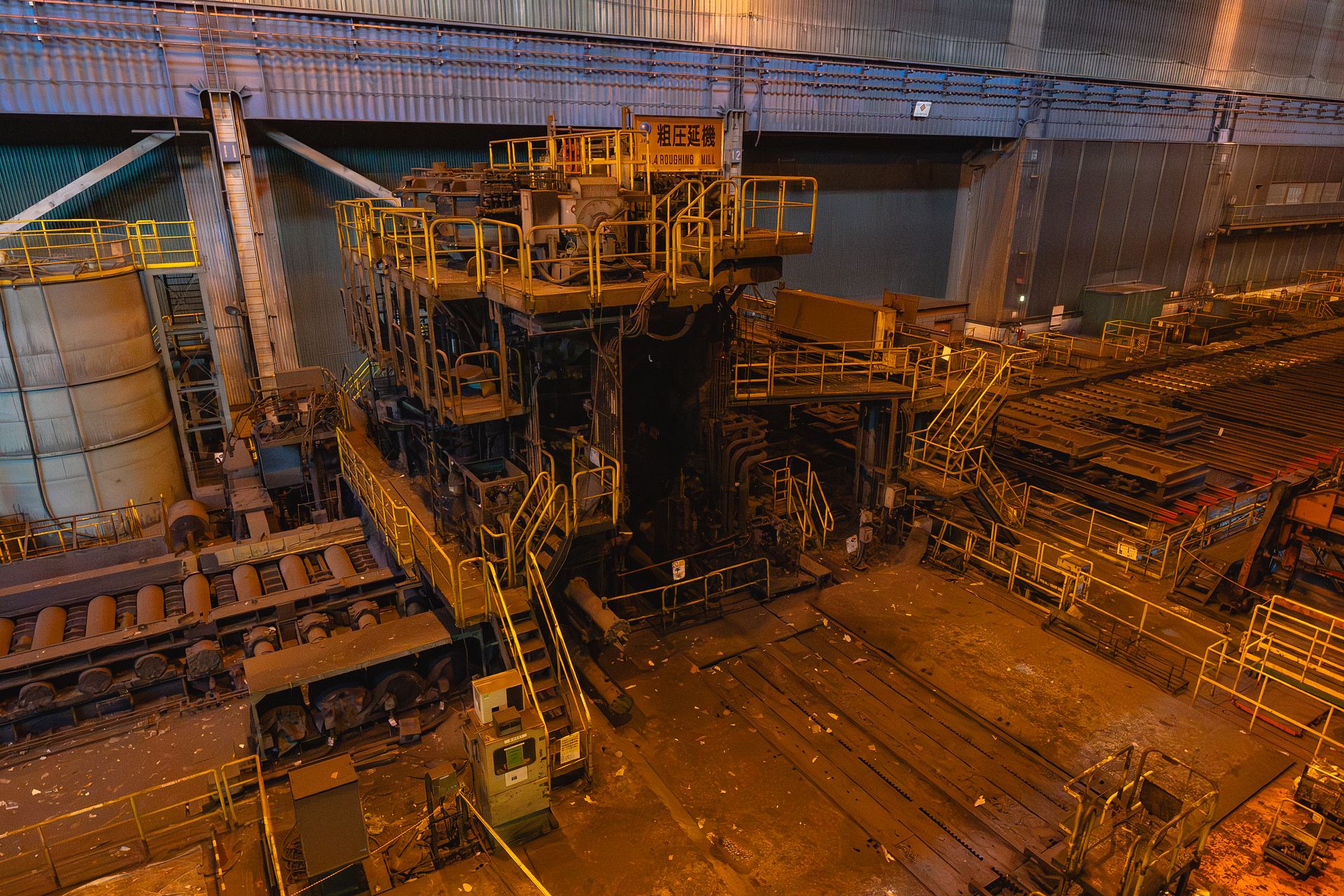

ROUGHING MILL ‘R4’
Make: IHI
Purpose: Rolled stock size reduction from 60 to 40 mm
Type: 4-Hi Non-Reversible, entry edger
Main motor: AC 10,000 kW x 1
Max. load: 4,500 tons
Edge heater: C-type inductor type

CROPSHEAR and DESCALER
Make: MITSUBISHI-HITACHI
Purpose: Rolled stock end cropping and scale removal
Type: Crank shear
Cutting force: 656 tons
Motor capacity: DC 1,200 kW x 2
Updates: Crankshaft and gear updated in June 2015
Auxiliary equipment: Gamma Ray detector, Major Ring Roll
Chute Waste Disposal, CS Conveyor, Pit, Riff Mug
Descaler: 150 kg/cm² pressurized water jet scale removal

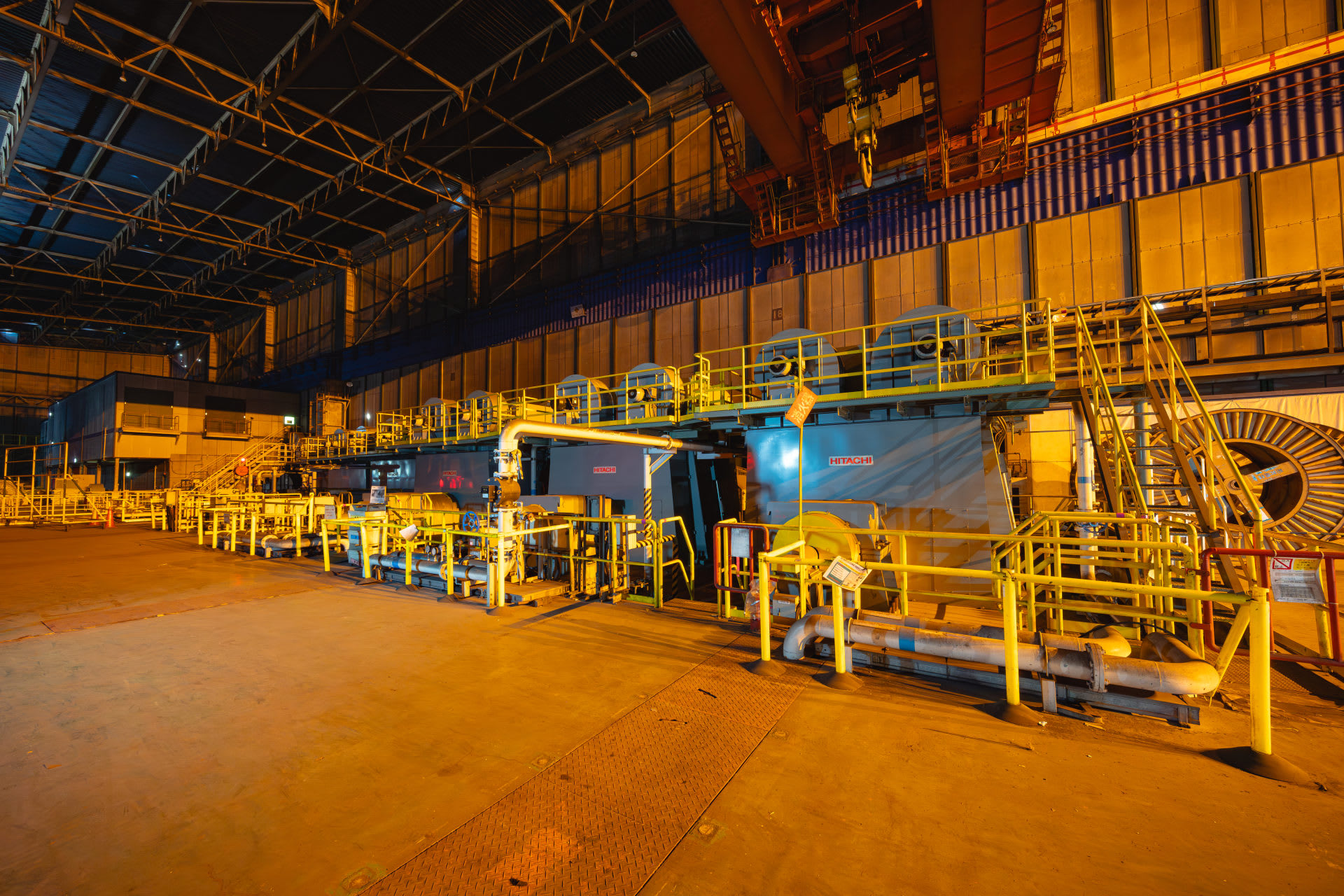

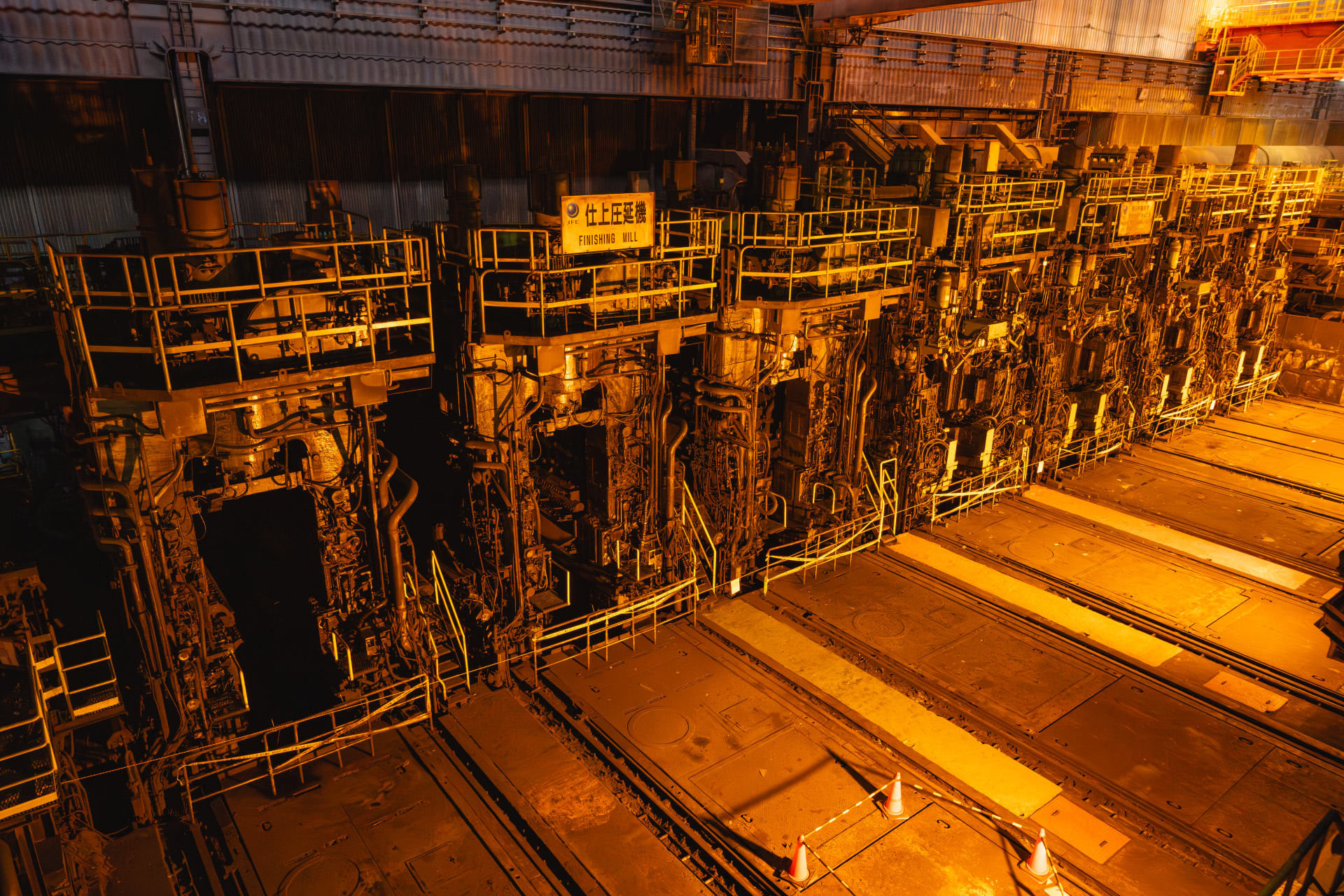

FINISHING MILL (F1~F7)
Make: MITSUBISHI HEAVY INDUSTRIES
Purpose: Rolled stock size reduction from 40 down to
                1.2 – 25.4 mm
Type:  4-Hi Continuous
Max. load: 5,000 tons
Rolling force: 5,900 kN/mm
Main motor: DC 8,400 kW (F1 and F2 stands)
                     AC 10,000 kW (F3 stand)
                    DC 8,400 kW (F4, F5 and F6 stands)
                      AC 8,400 kW (F7 stand)

RUN-OUT TABLE
Purpose: Hot strip is cooled by coolant water
Jetting device (top): 14,320 L/min flow rate per bank
Jetting device (bottom): 10,910 L/min flow rate per bank

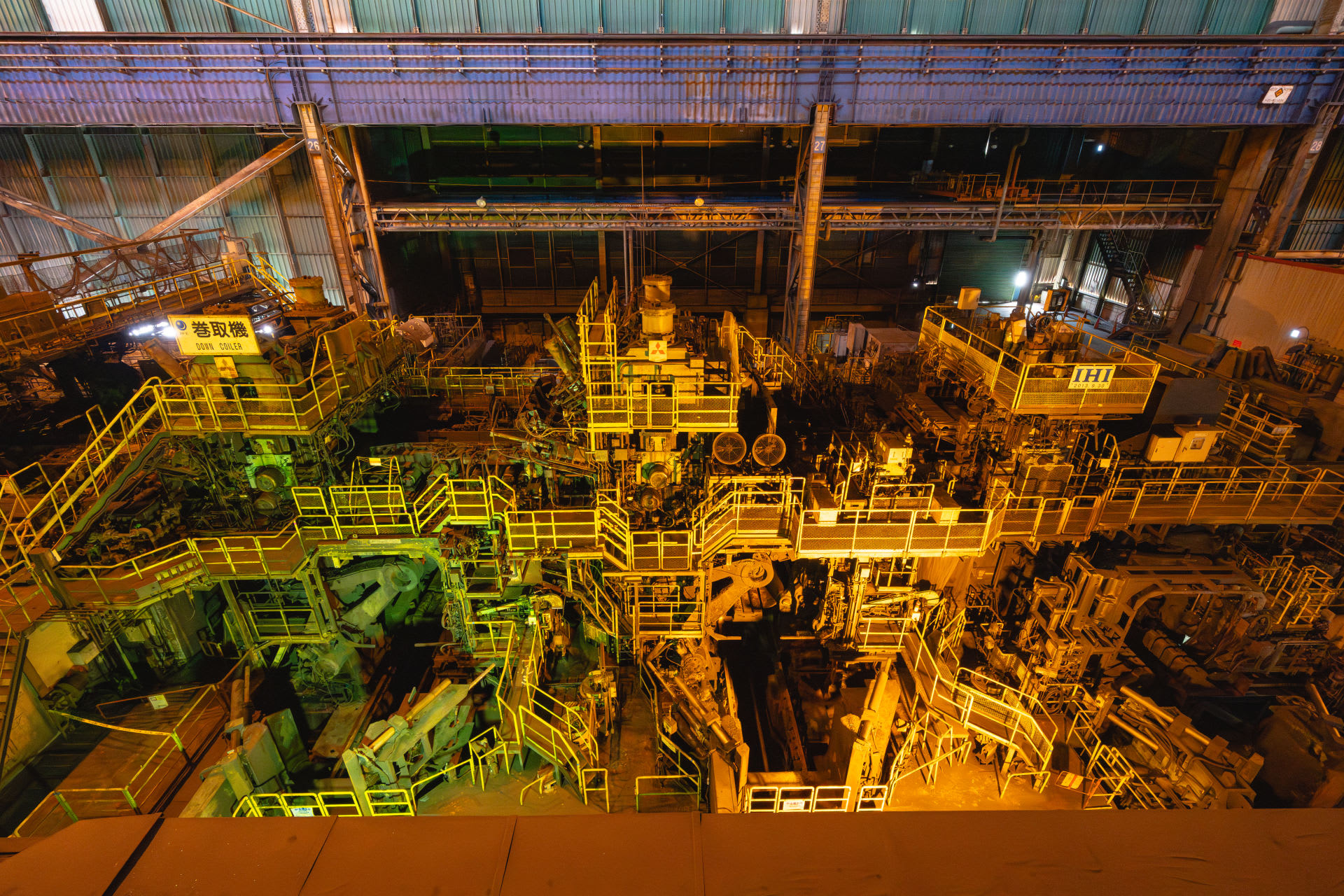

DOWN COILER
Make: MITSUBISHI HEAVY INDUSTRIES x 2 (1979) #1 & #2
IHI x 1 (2013) #3
Purpose: Strip coiling and transferring to yard area
Type: 3-unit frame type
Coiling speed: max. 1,159 mpm

AUXILIARY SYSTEMS
Water collection pumps:   6- Vertical swirl type
                                             0.4 MPa discharge Pressure
                                             75 m³/min discharge flow

Purge pump:                      2- Horizontal spiral discharge
                                            650 m³/H flow rate; 200 meters lift
                                            560 kW motor capacity

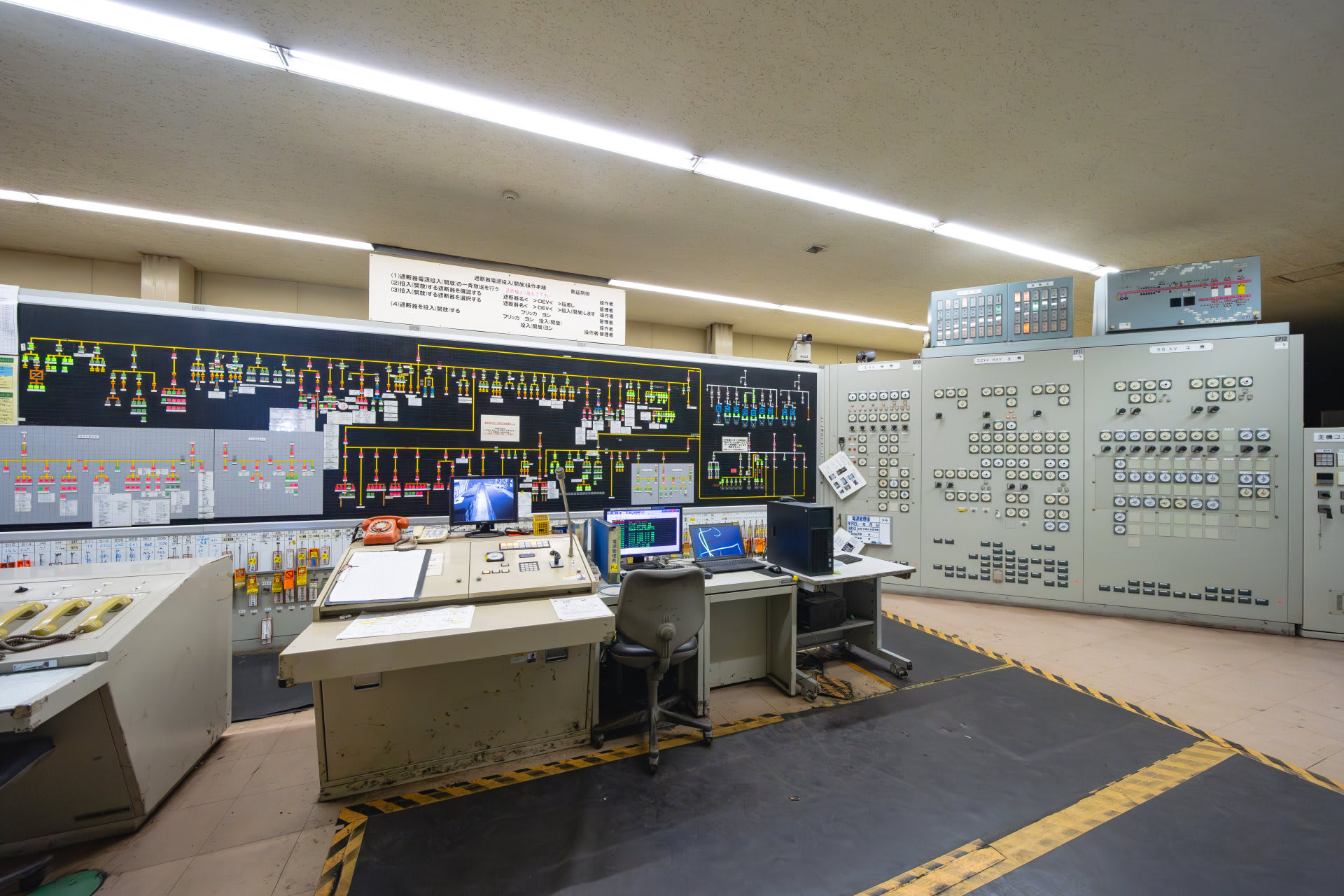

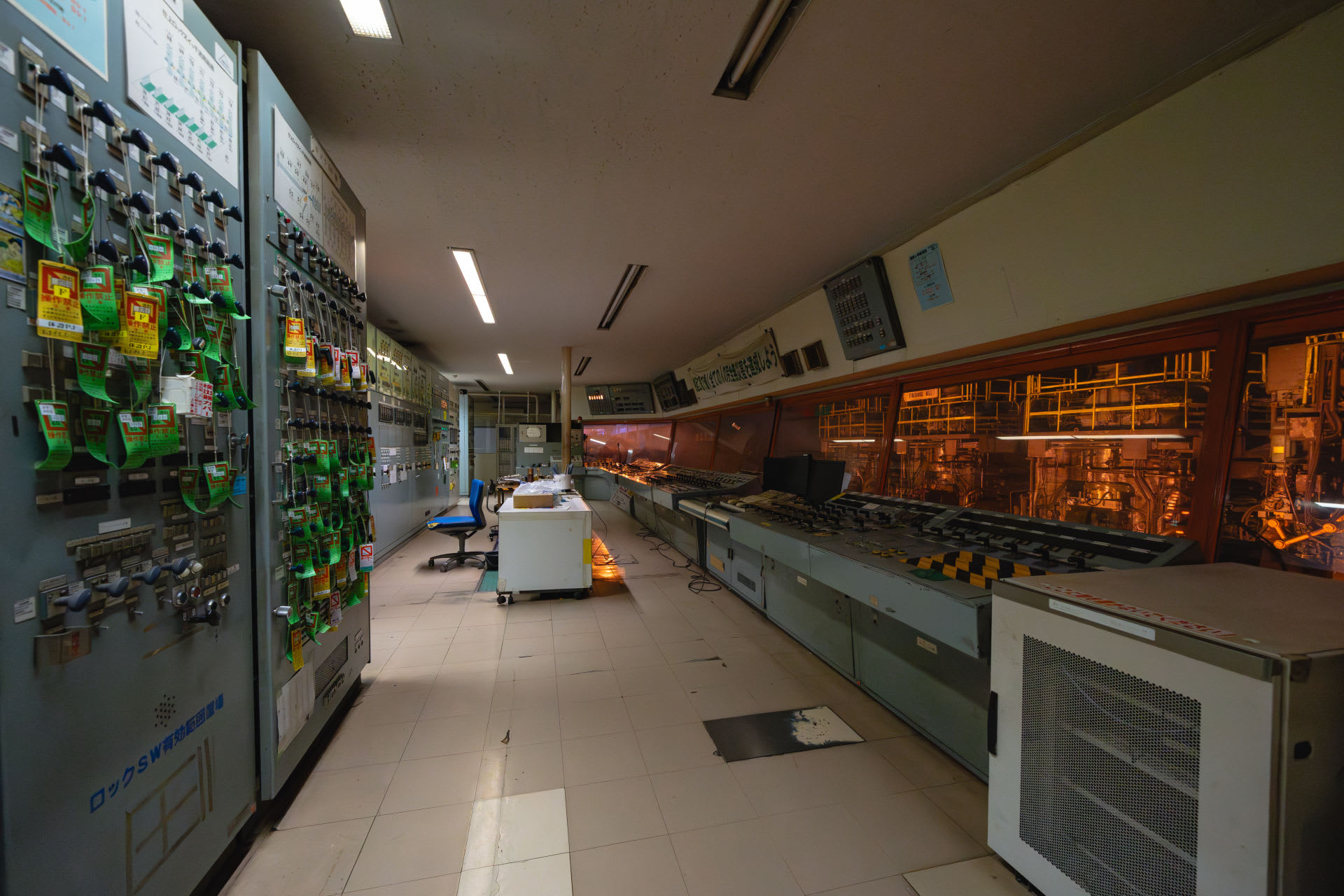

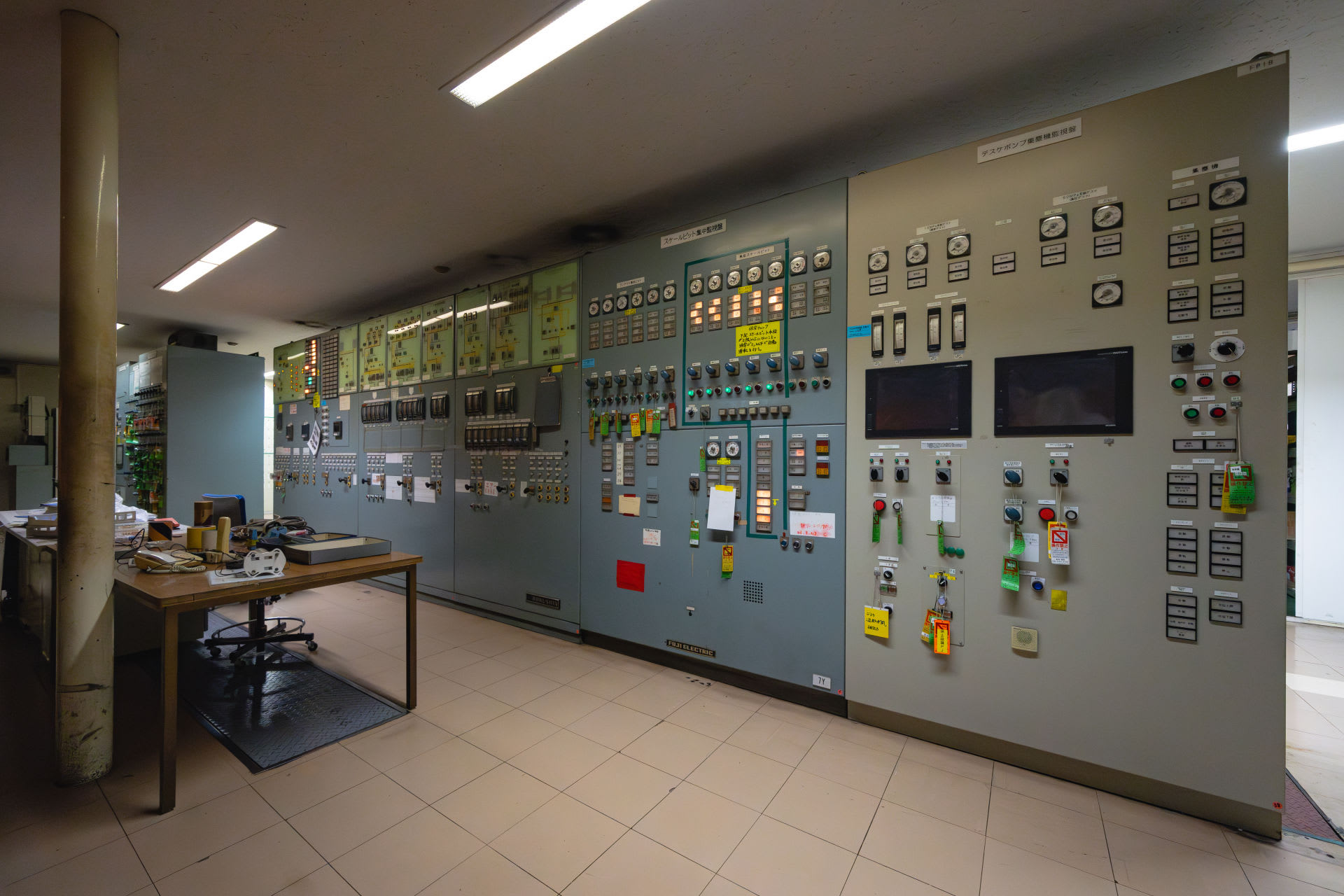

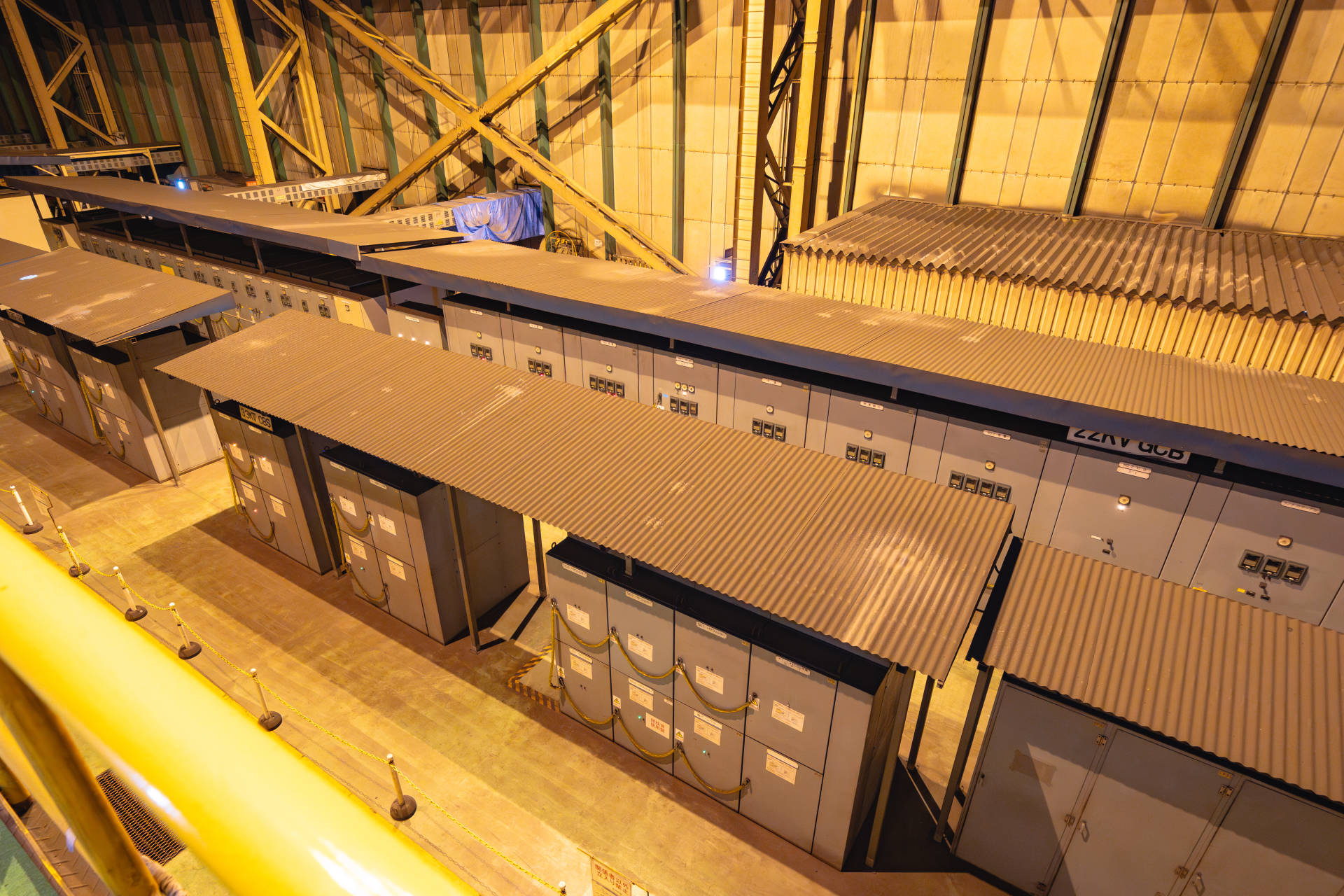

ELECTRICAL & AUTOMATION

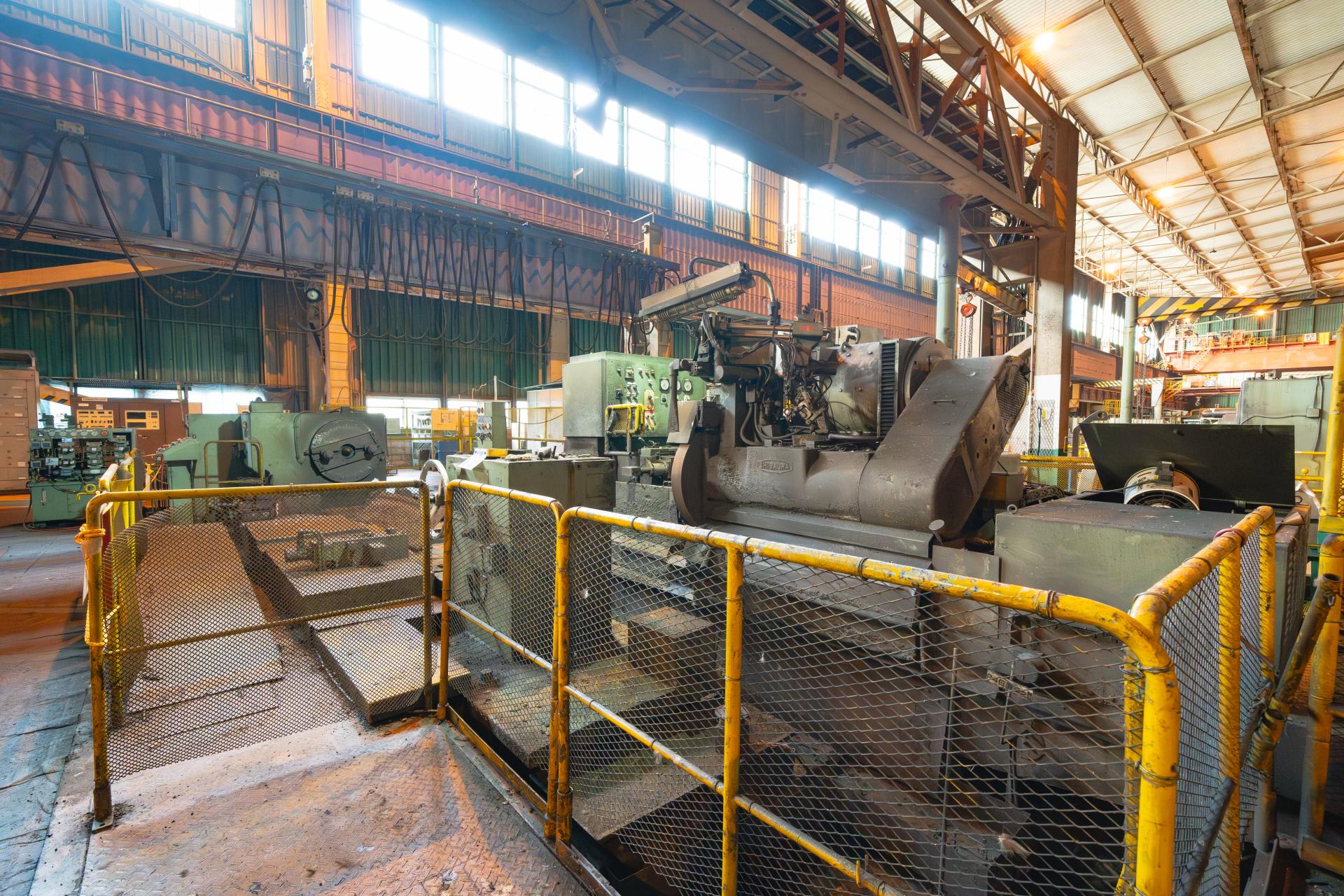

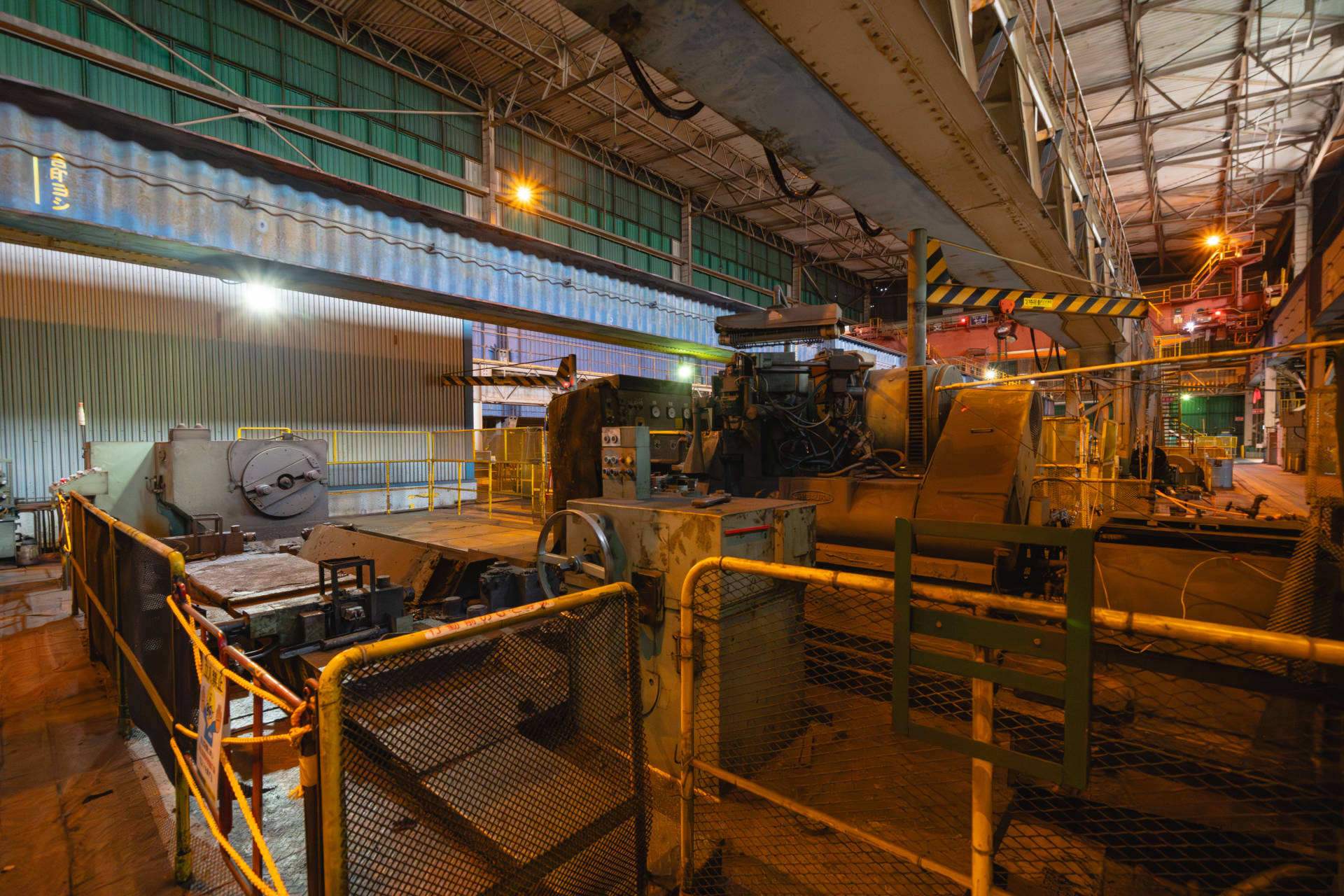

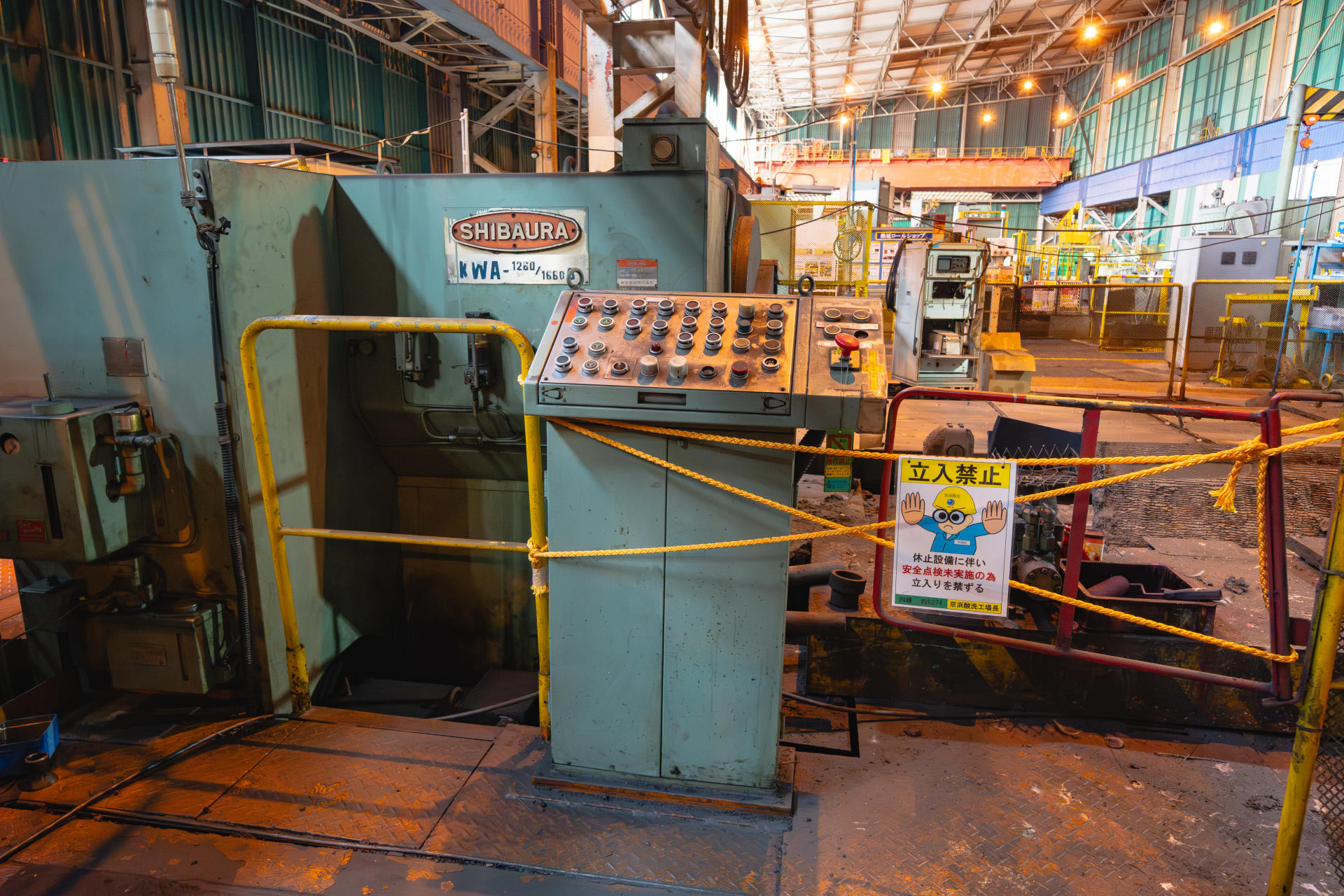

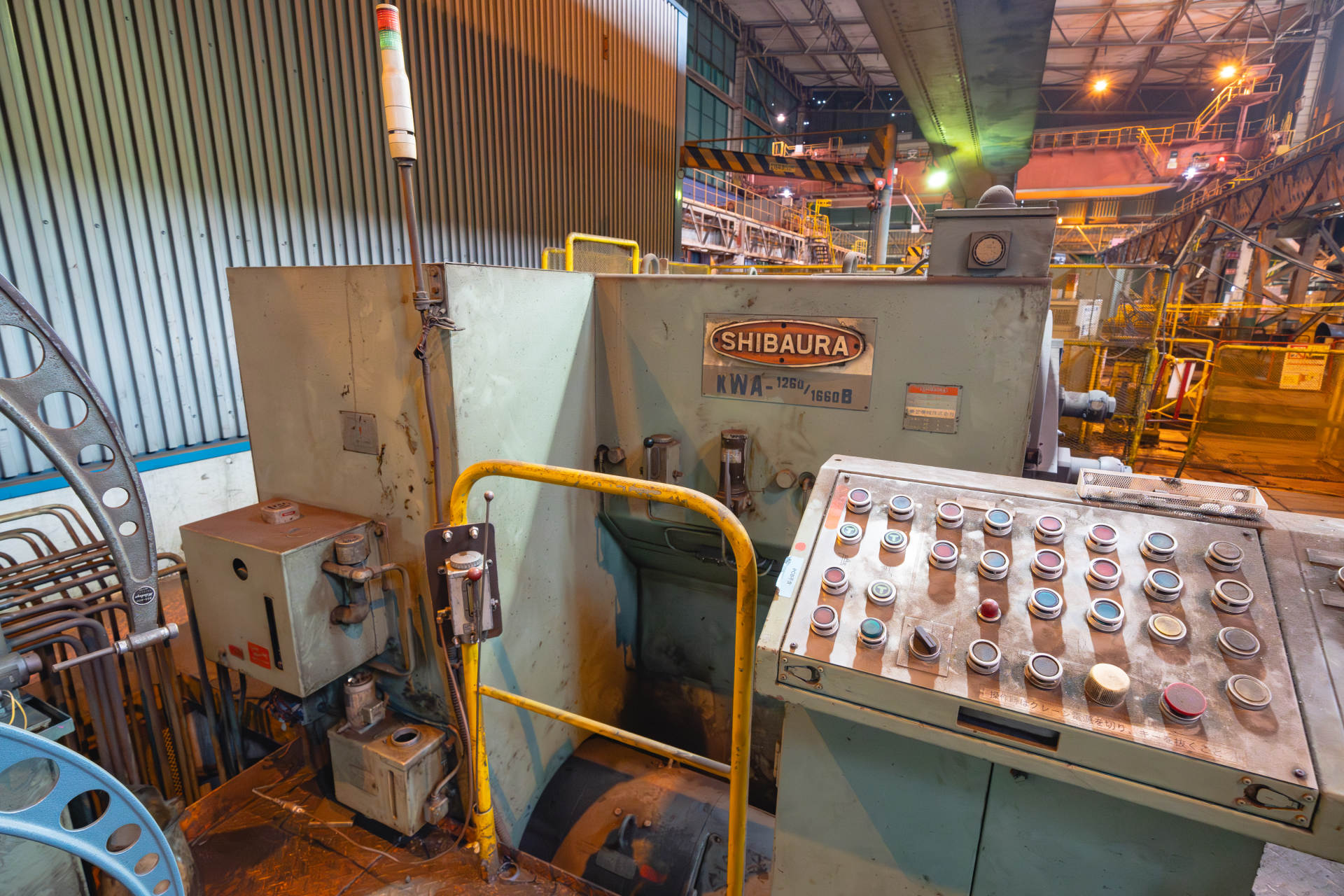

WORKSHOP

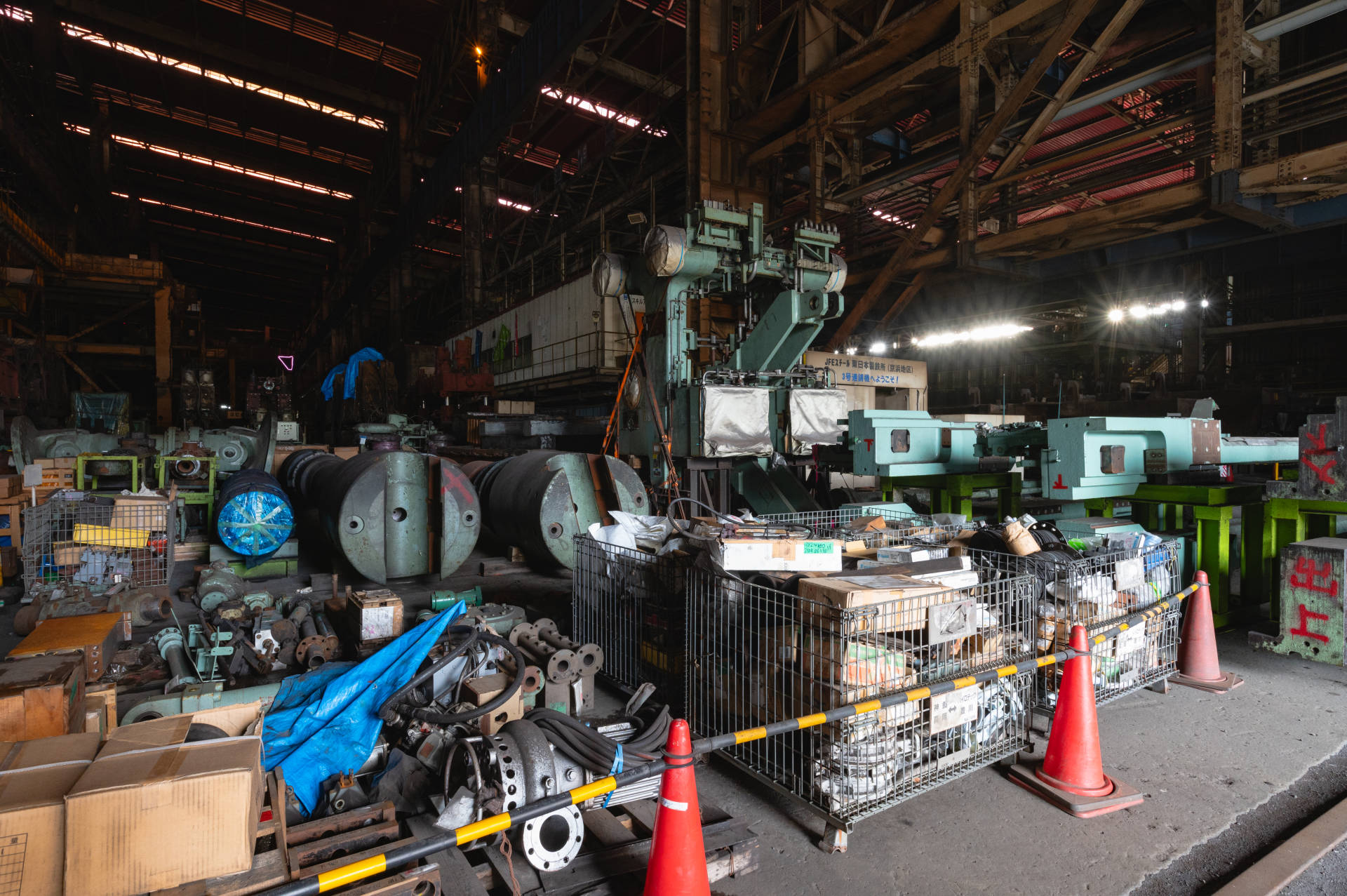

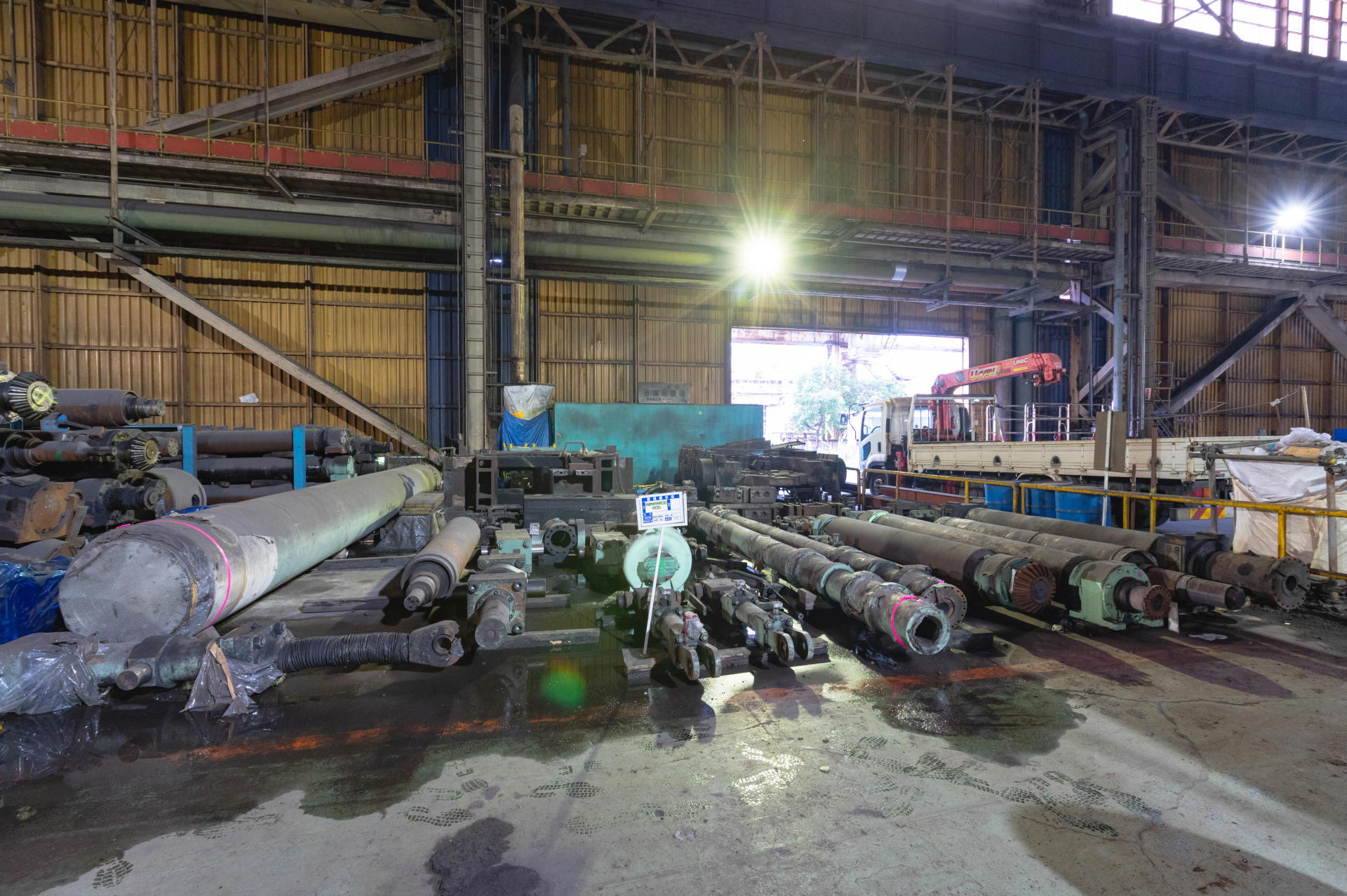

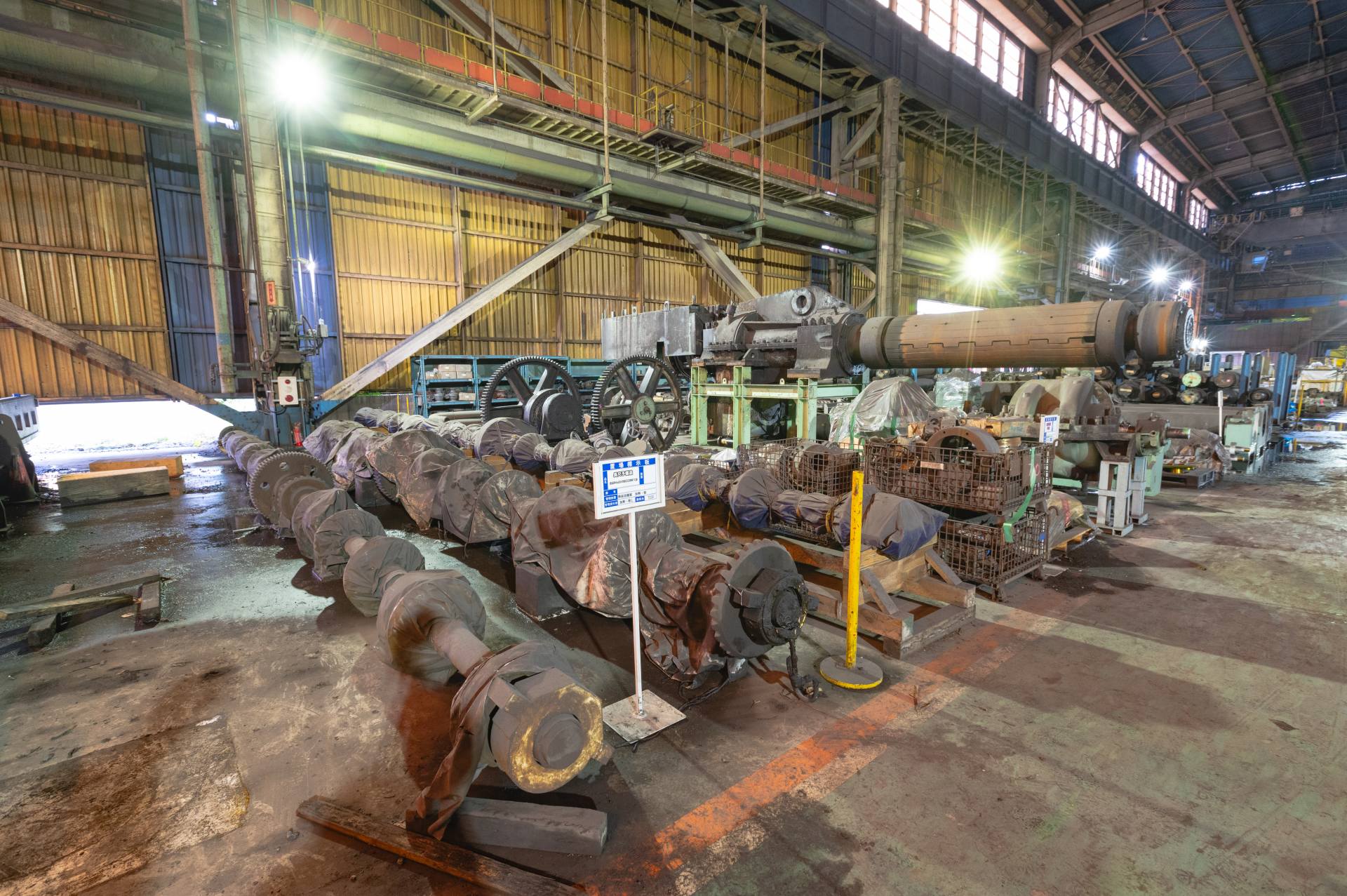

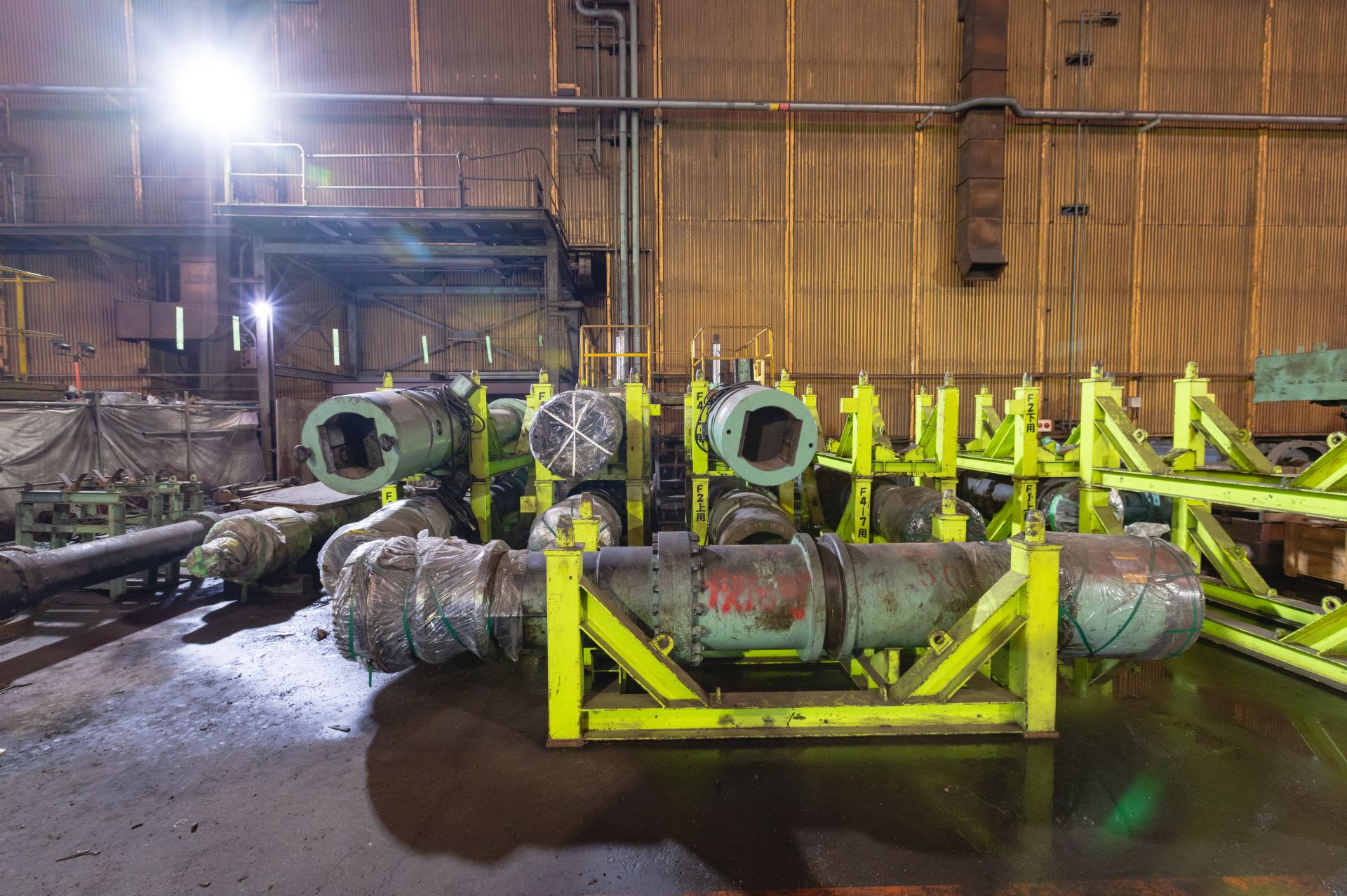

SPARE PARTS
A spare parts list can be made available on demand.

***A more detailed description of the line and scope list is available on demand.
