‘IHI-MITSUBISHI’ Continuous Galvanizing Line with Skin Pass Mill
The Continuous Galvanizing Line No. 2, built in 1985 and featuring equipment from IHI, Mitsubishi Heavy Industries, and Daido-EFCO, delivers high-quality galvanized steel for various applications. With a line length of approximately 228 meters and a production capacity of 144,000 tons per year, it efficiently processes low-carbon steel coils with widths ranging from 610 to 1,220 mm and thicknesses of 0.15 to 0.8 mm. Production ceased in December 2016.
Equipped with a high-capacity furnace and air knife wiping system for coating control. The skin pass mill adds superior surface quality, while the tension reel provides consistent coil handling.
Make: DAIDO-EFCO (Furnace)
IHI (Galvanizing and Overall Equipment)
MITSUBISHI HEAVY INDUSTRIES (Skin Pass Mill)
Year of manufacture: 1985
Mothballed since: Ceased production in December 2016
Production capacity: 144,000 tons per year
Line length: 228 meters approximately
Line direction: Left to right (left-hand line)
Processed material: Low-carbon steel
Strip width: 610 – 1,220 mm
Strip thickness: 0.15 – 0.8 mm
Strip length: 800 meters
Coil weight: max. 36,000 kg
Line speed: up to 120 mpm
Furnace output: max. 20 tph
Zinc pot: 2,150 x 4,710 mm liquid level; 2,230 mm depth
Air knife (wiping) system:
- Fixed nozzle gap
- 0 to 20° (normal range: 5 to 15°) nozzle angle
- 0.3 ~ 1.5 mm slit gap
- 1,500 mm nozzle effective width
- 20 – 250 g/m² zinc coating weight
- Kerosene combustion exhaust injection gas
- 0 – 0.5 kgf/cm2 pressure
- 2,200 Nm3/h flow rate
- 450 – 600 ℃ temperature

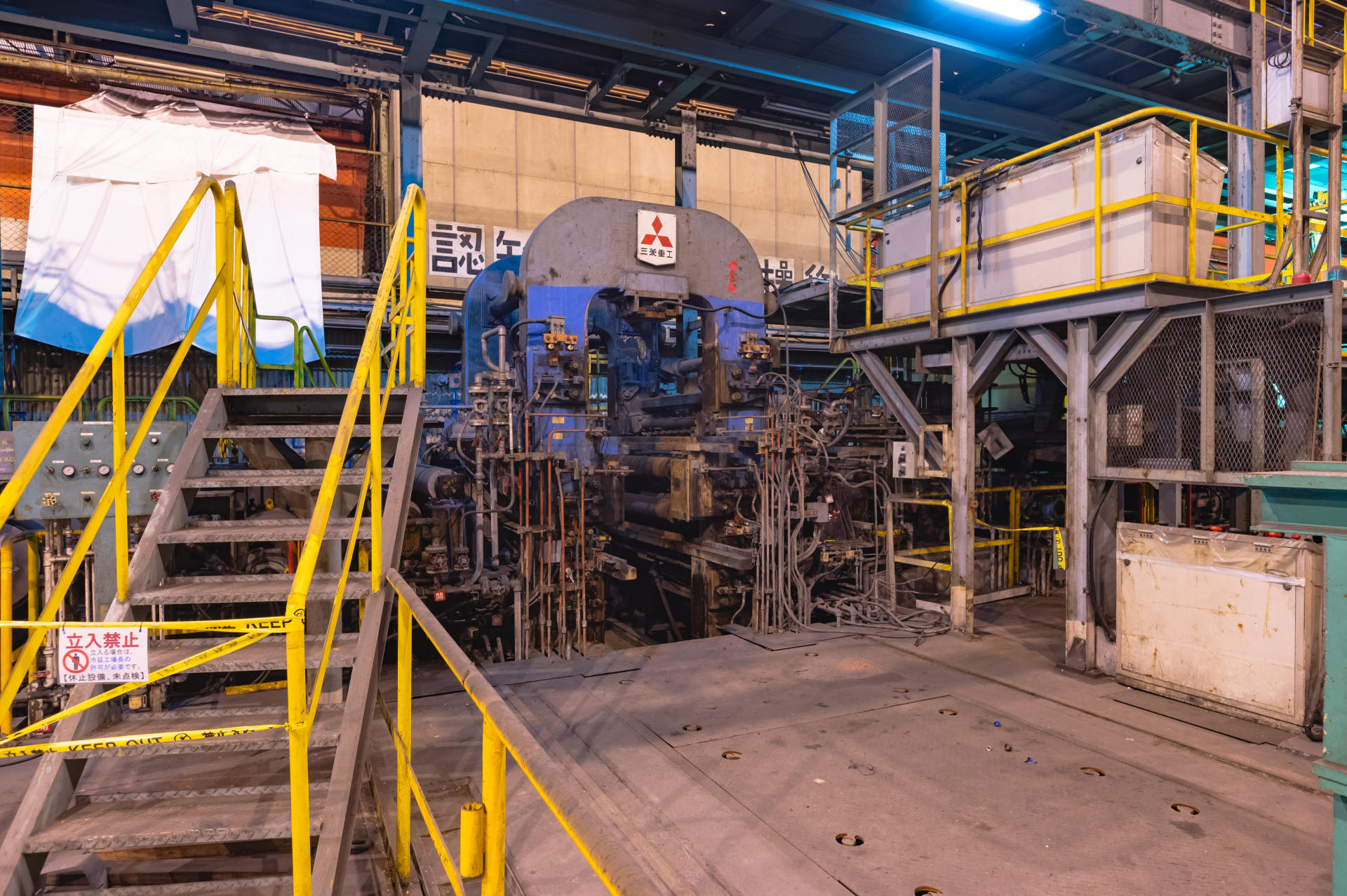

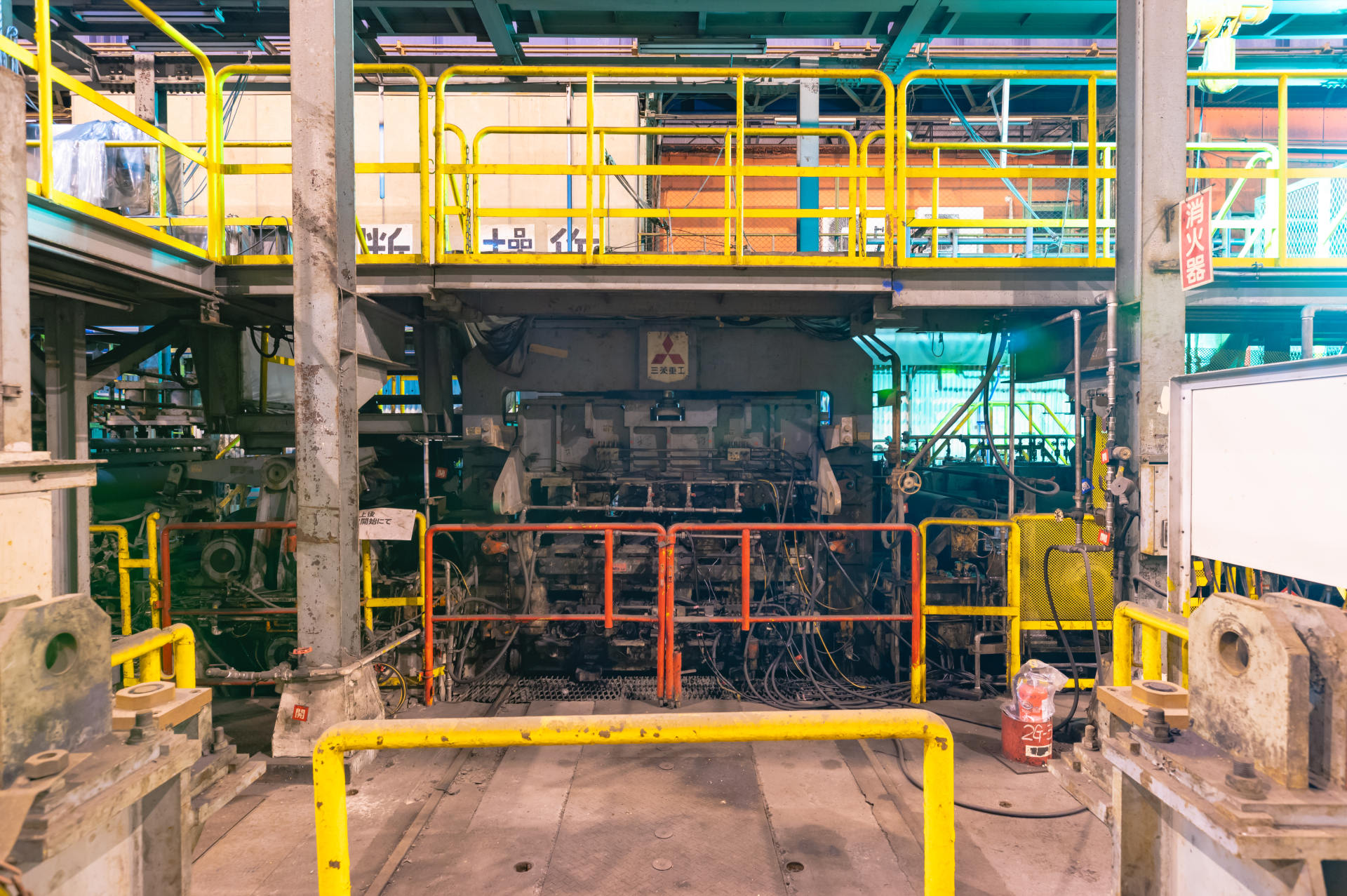

Skin Pass Mill: 4-Hi non-reversible stand
500 tons rolling force
***A more detailed description of the line and scope list is available on demand.
