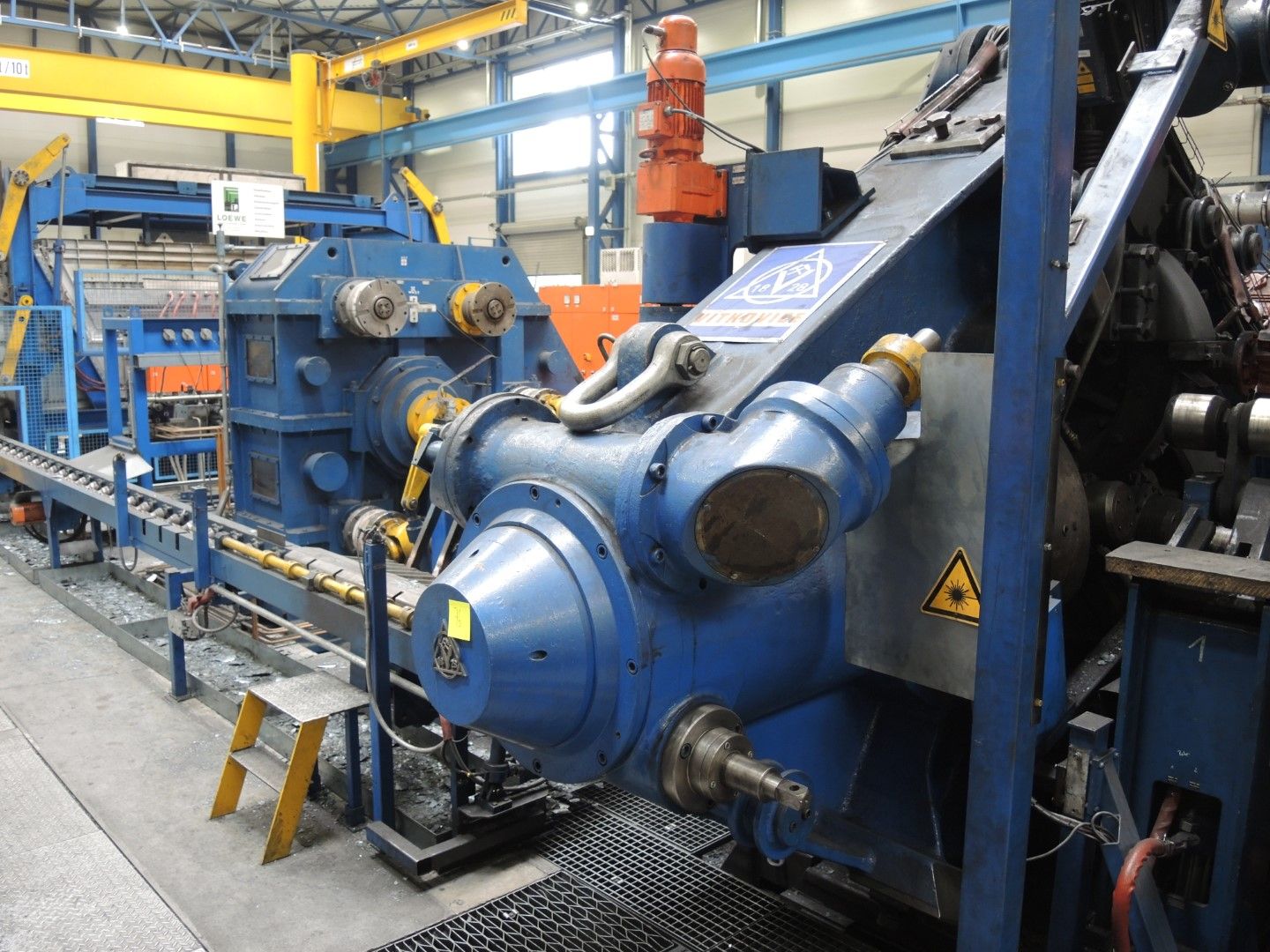

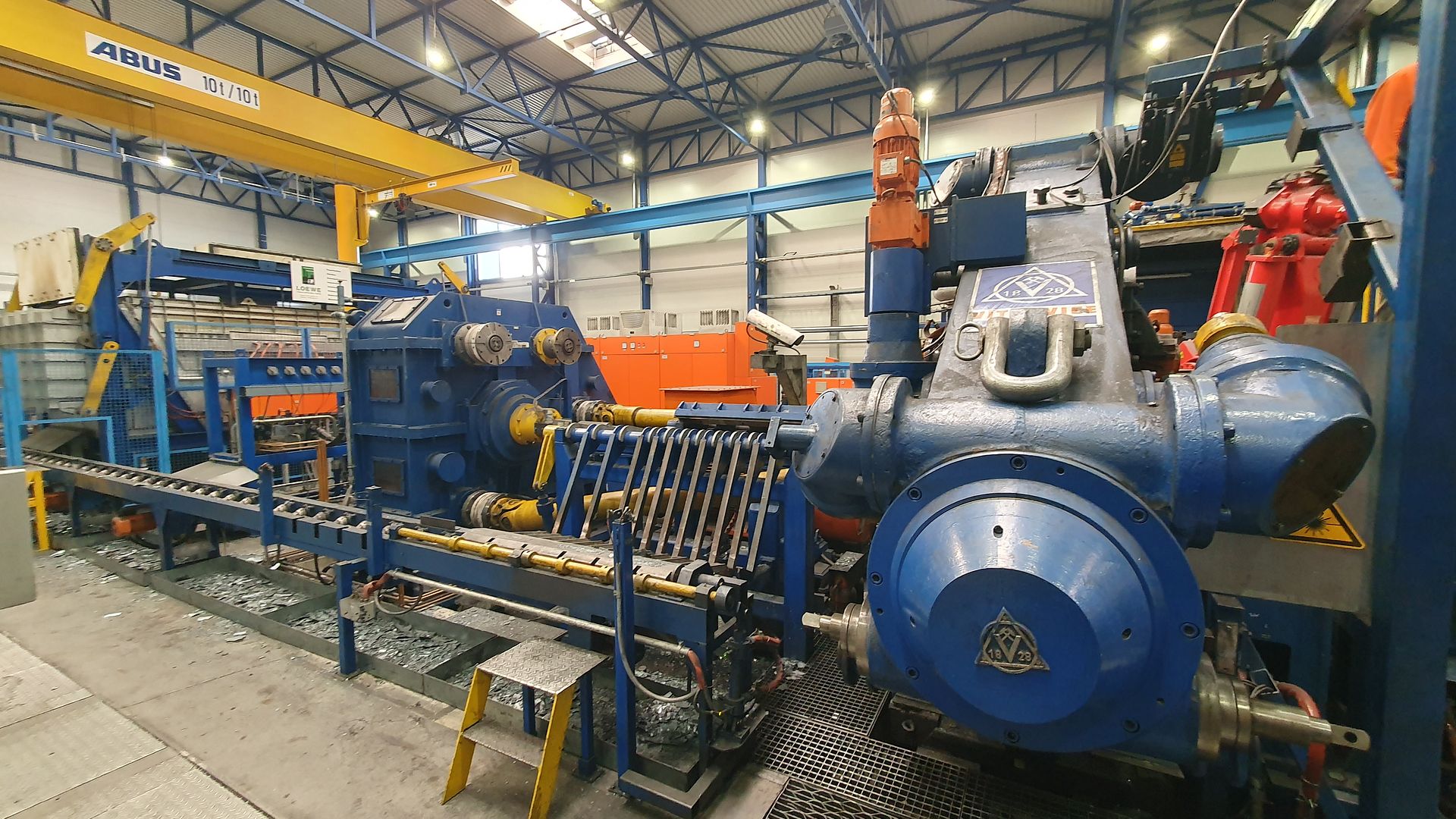

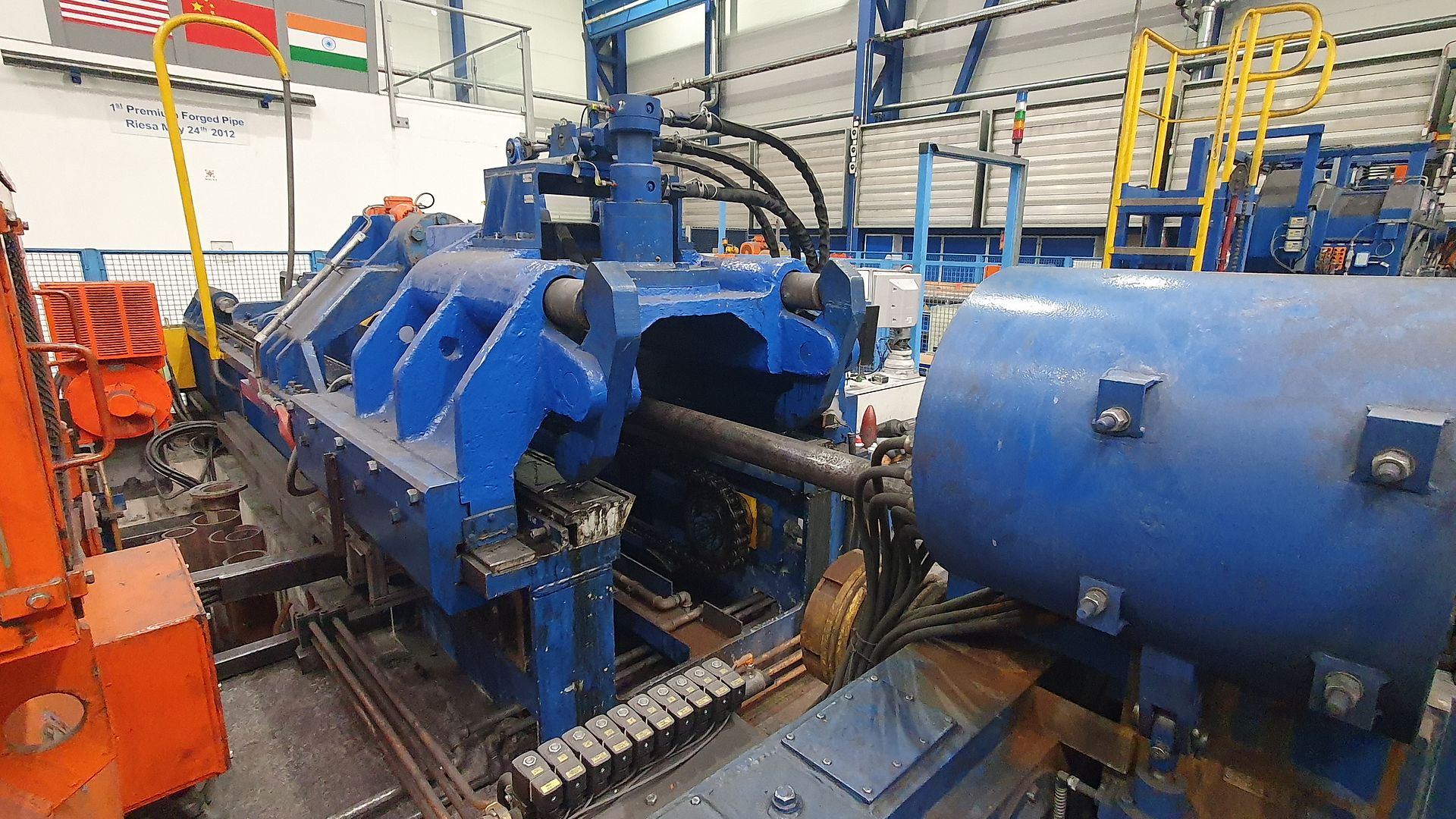

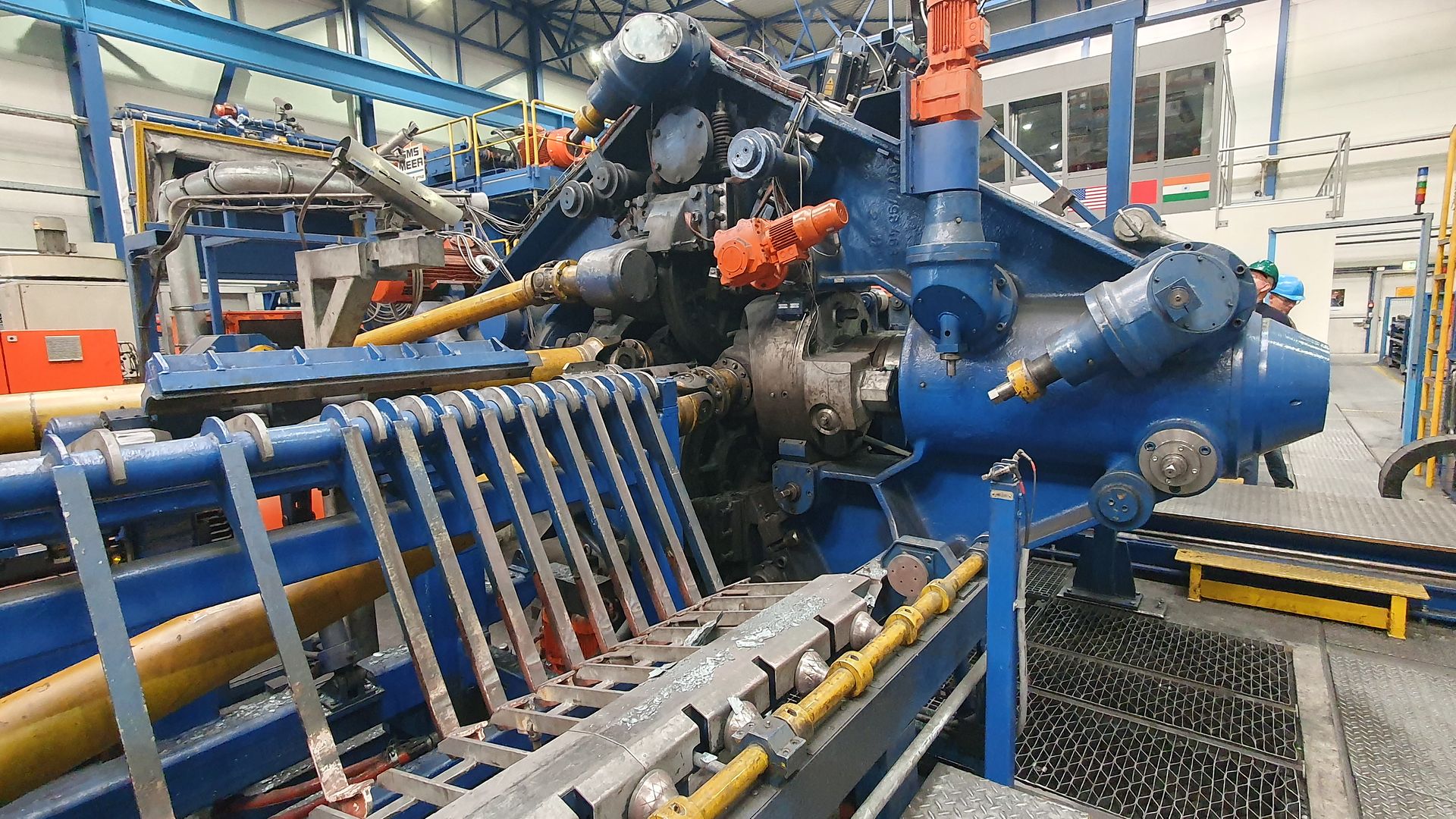

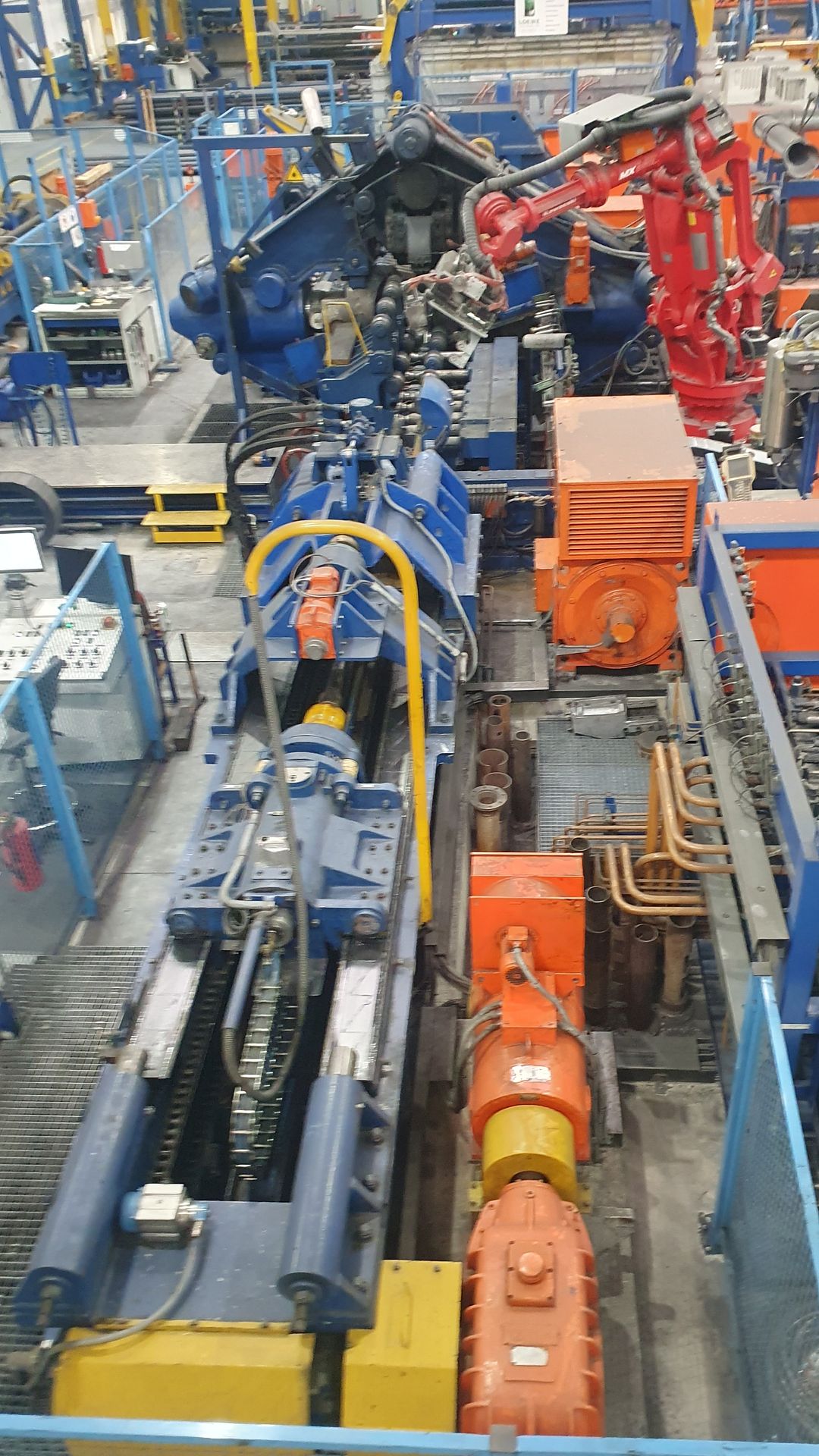

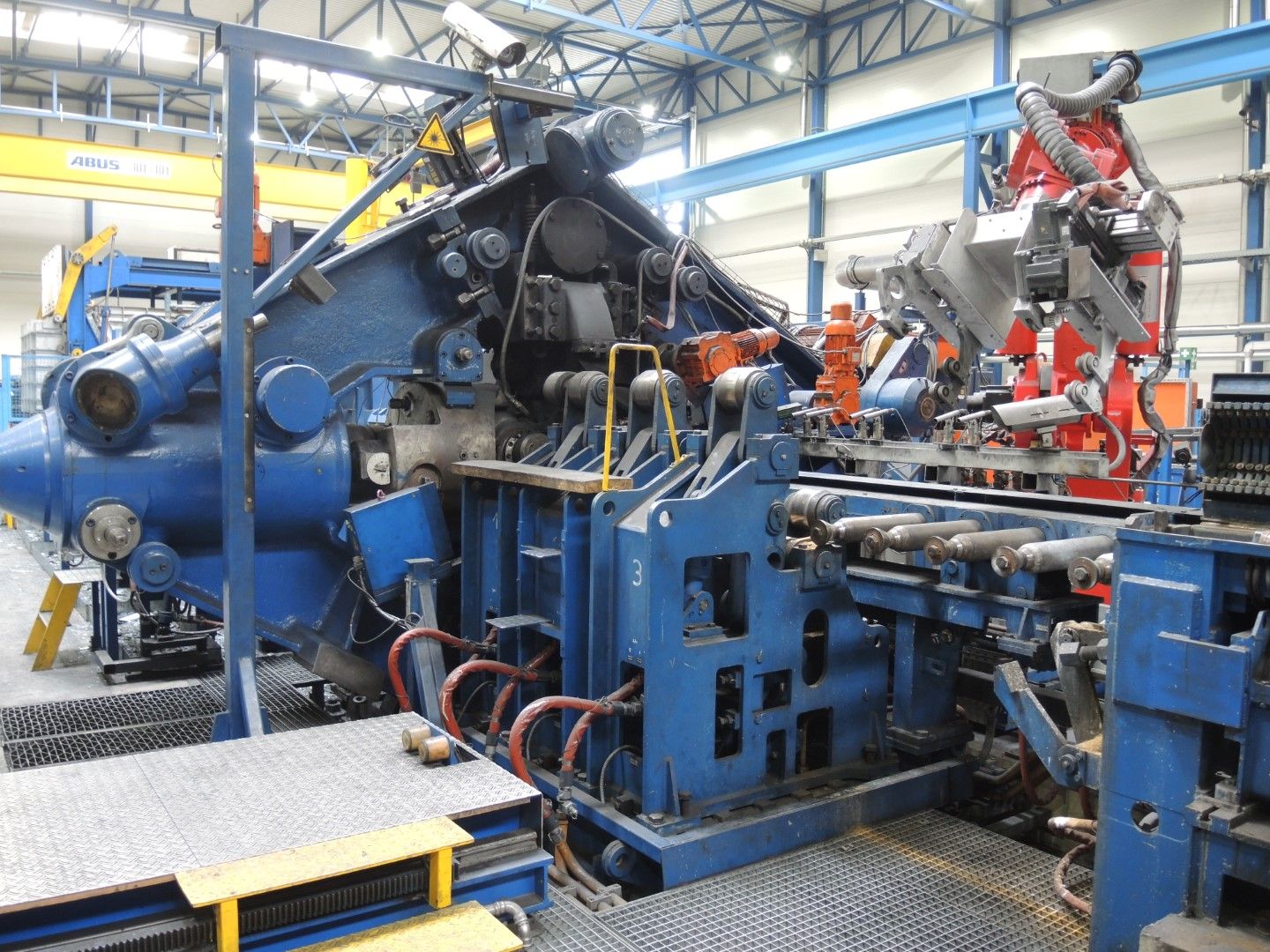

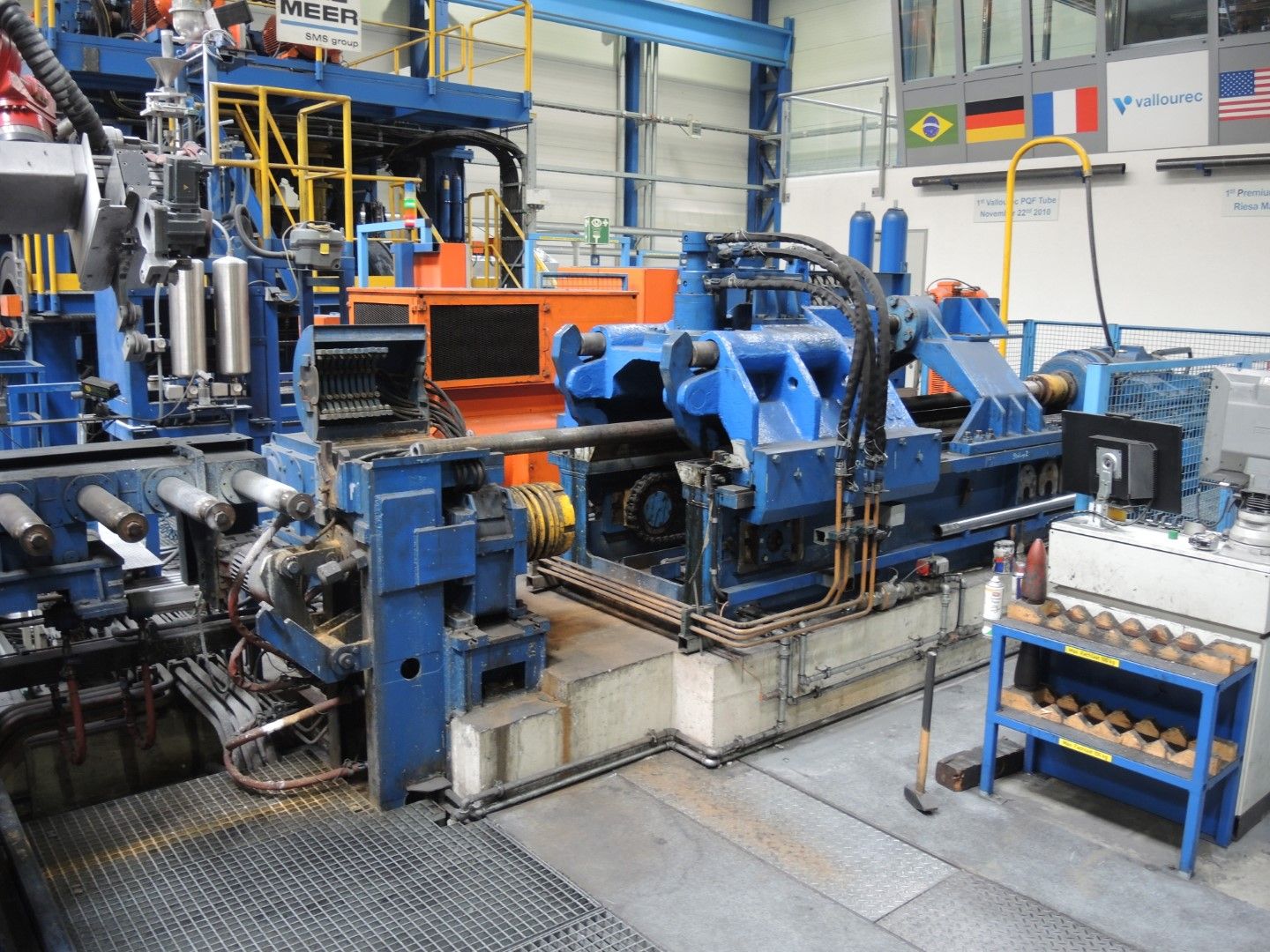

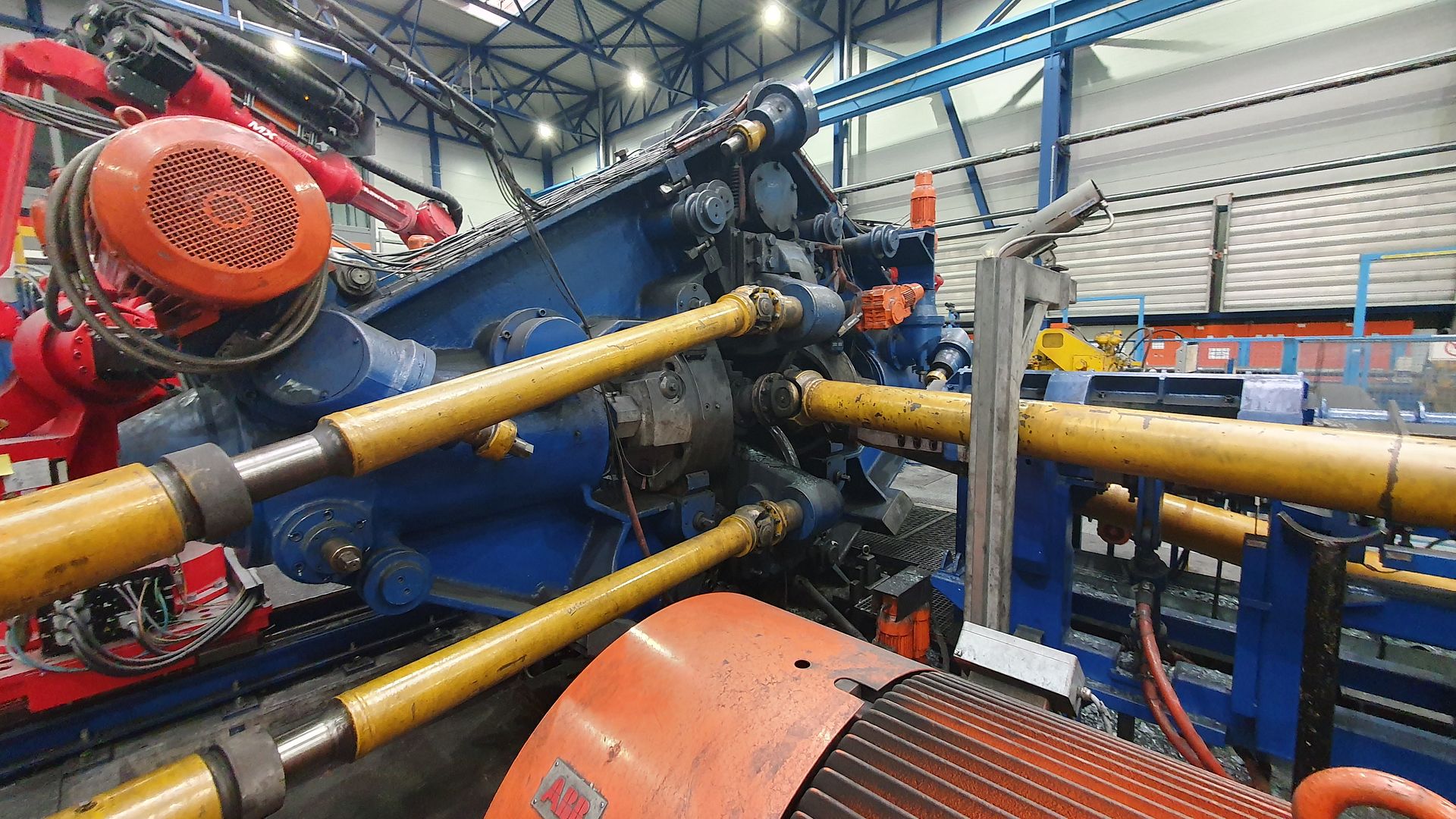

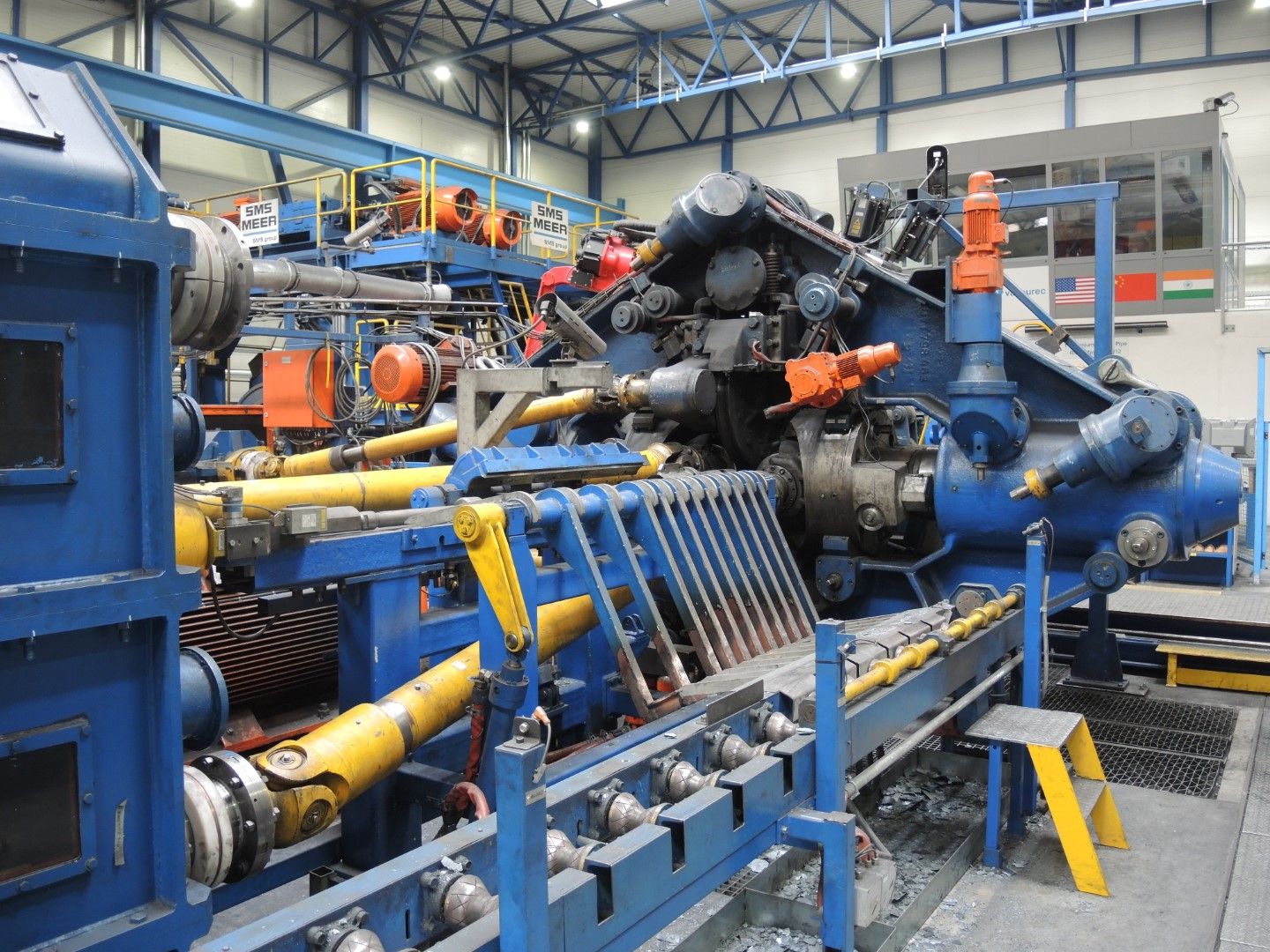

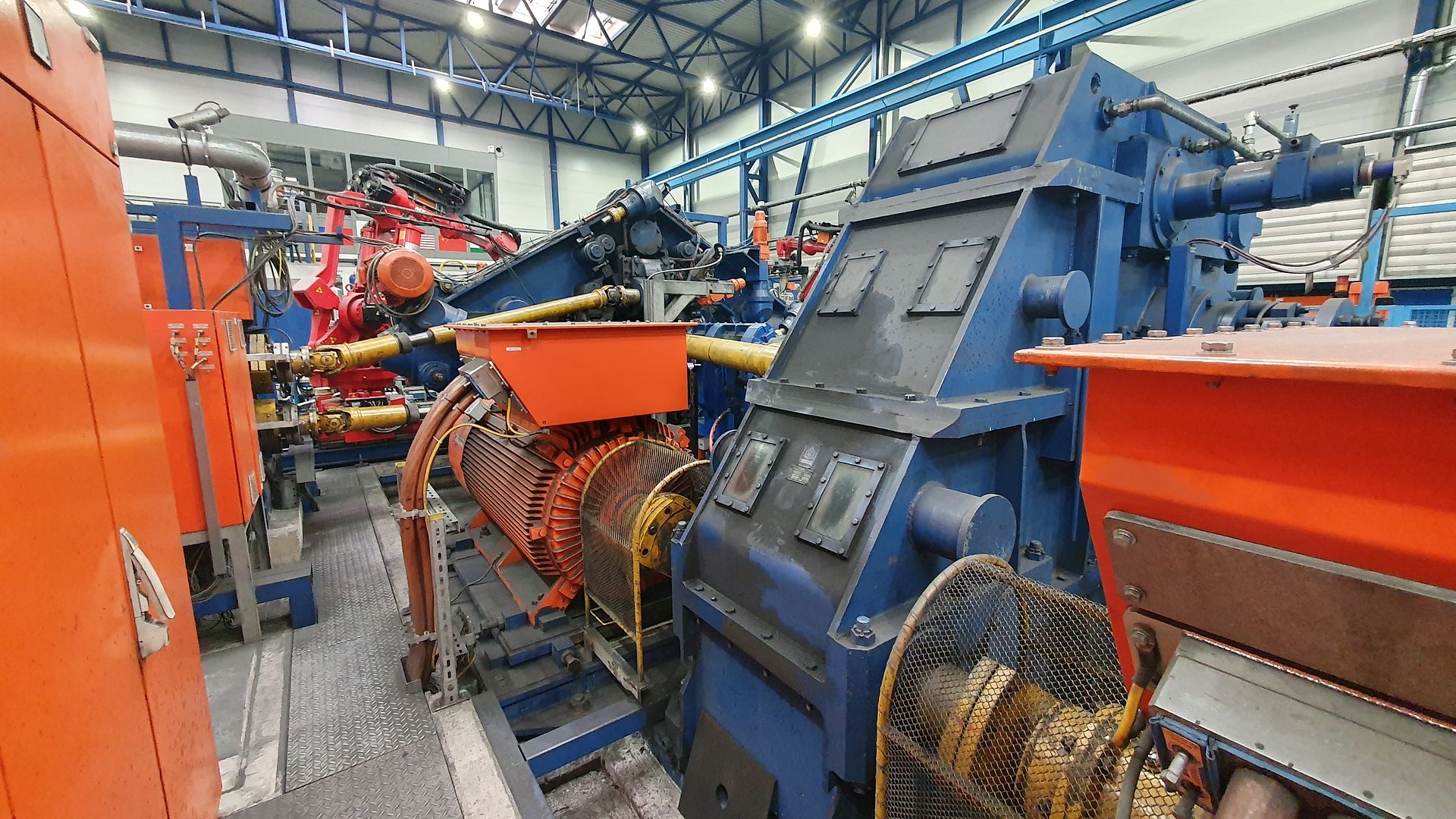

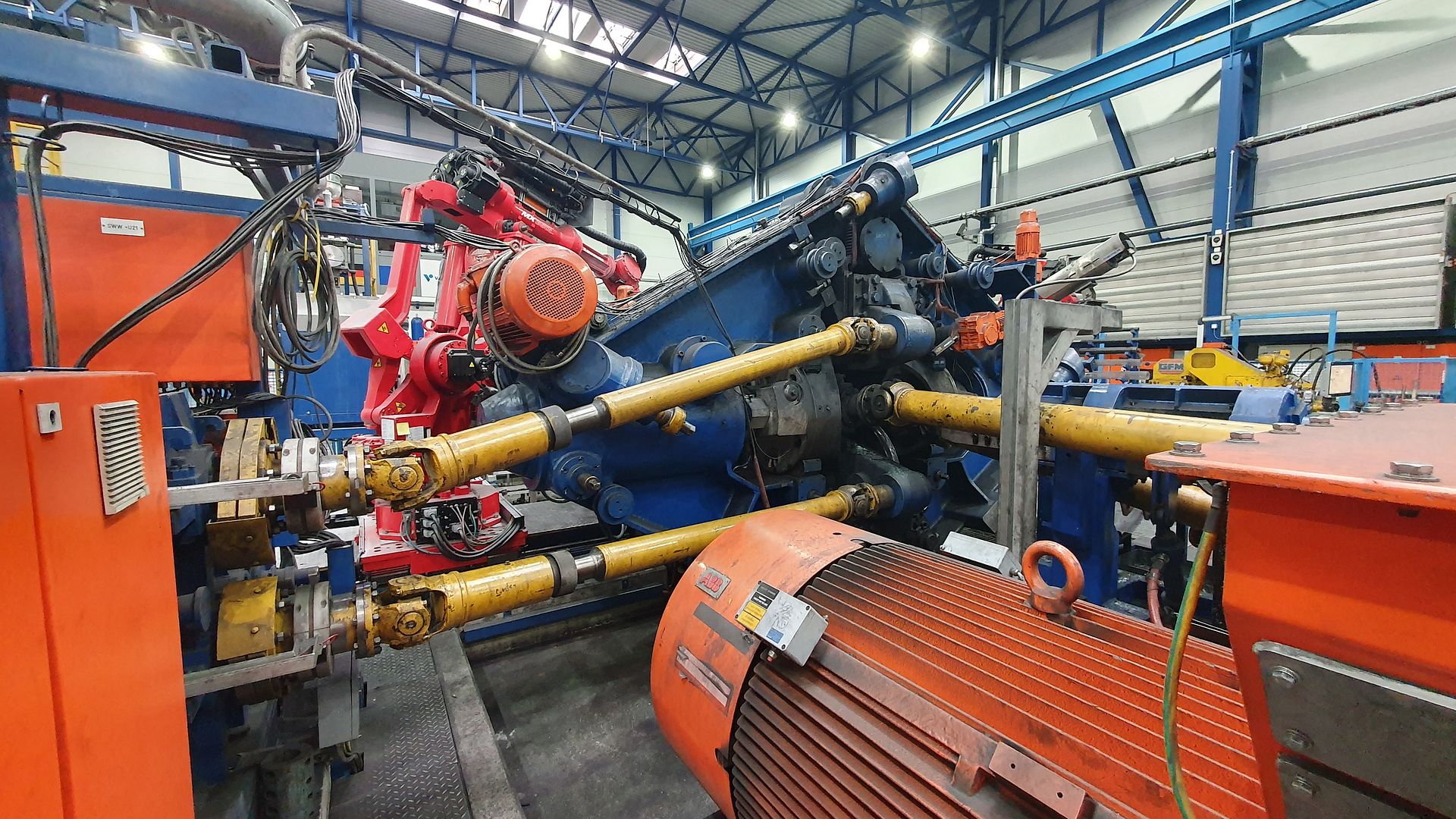

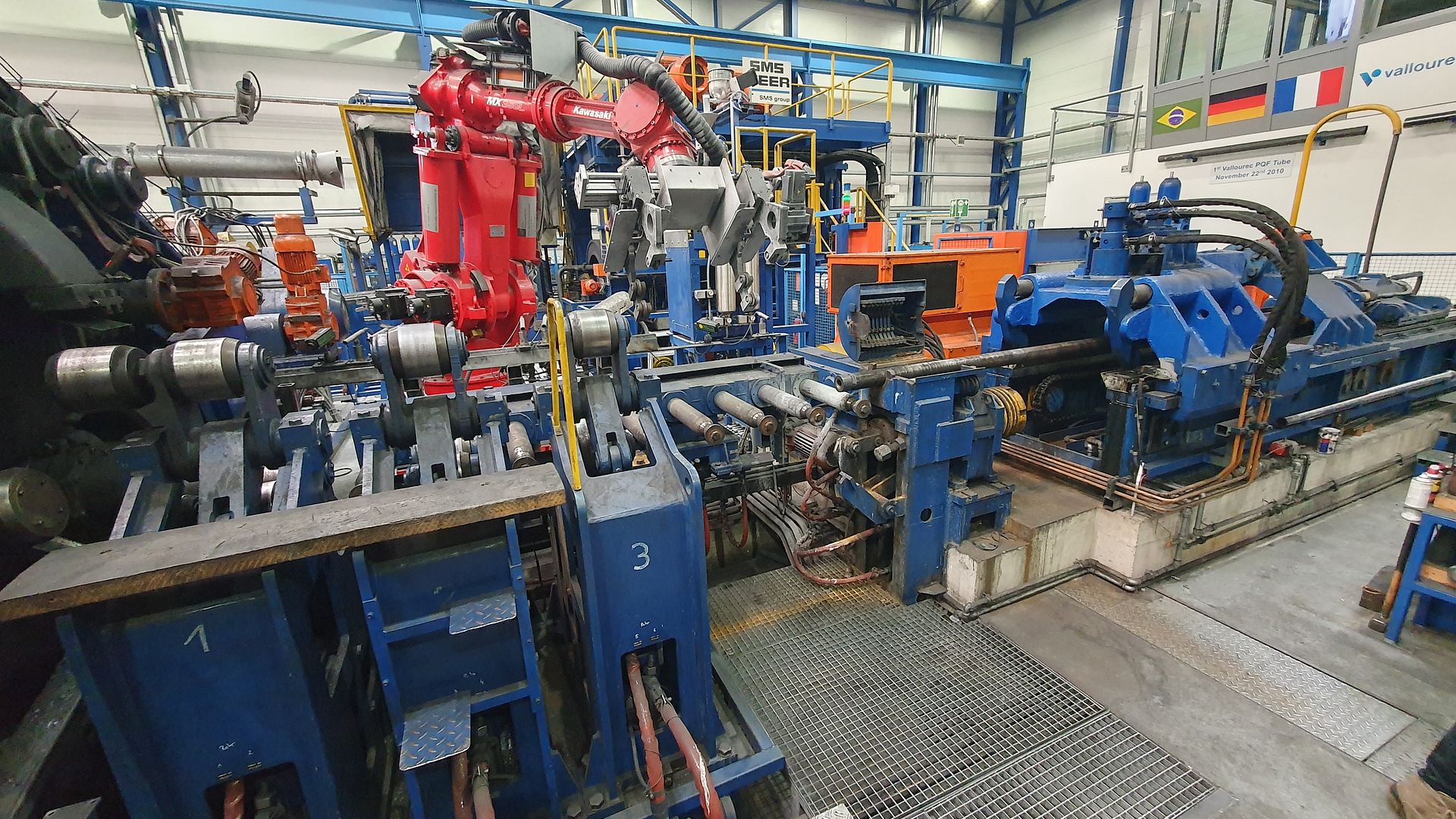

Universal Cross-Roll Piercing and Elongating Test Mill "Vitkovice"
Universal Cross-Roll Piercing and Elongating Test Mill "Vitkovice"

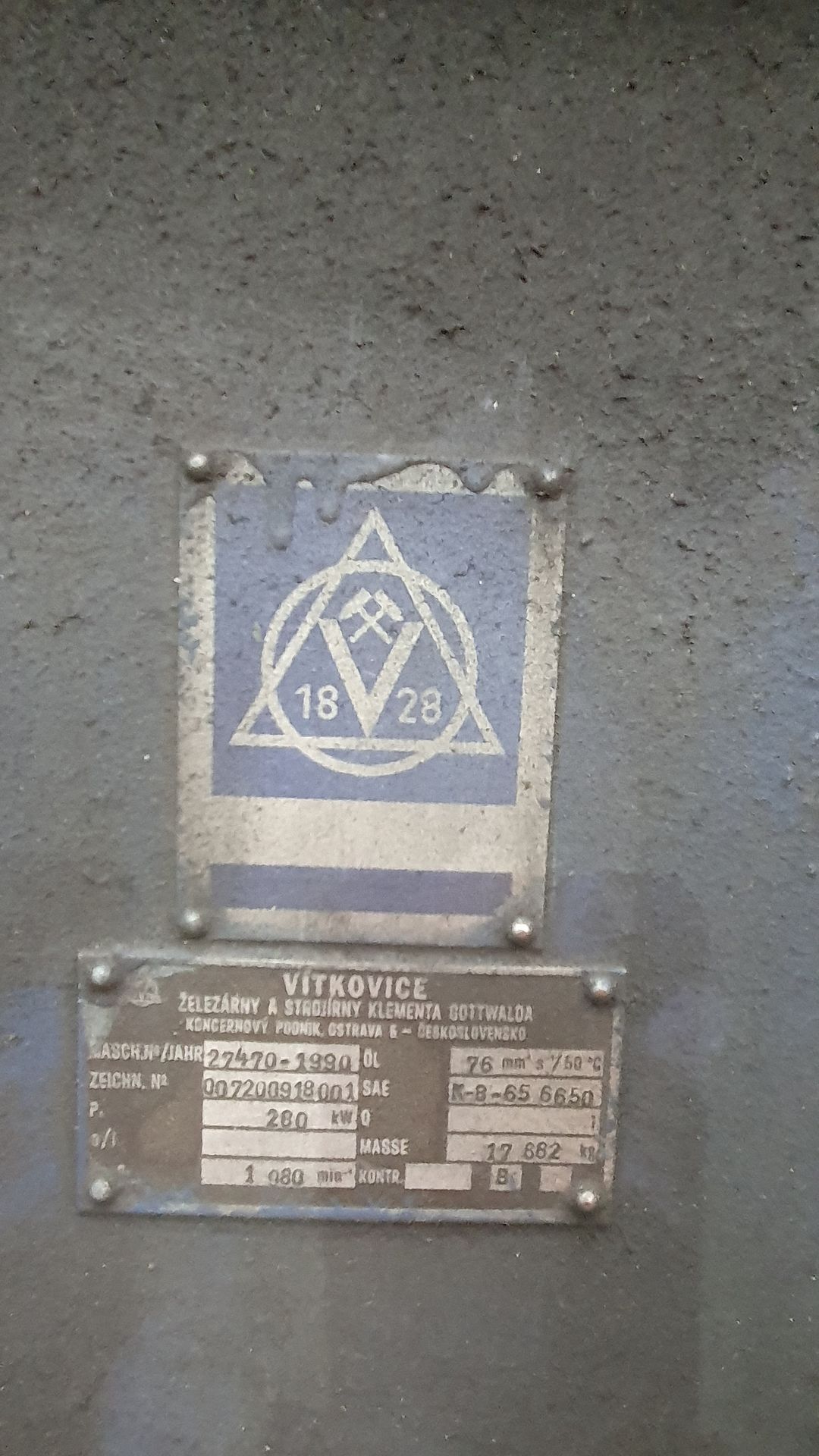

YOM: 1988
New set up 2012

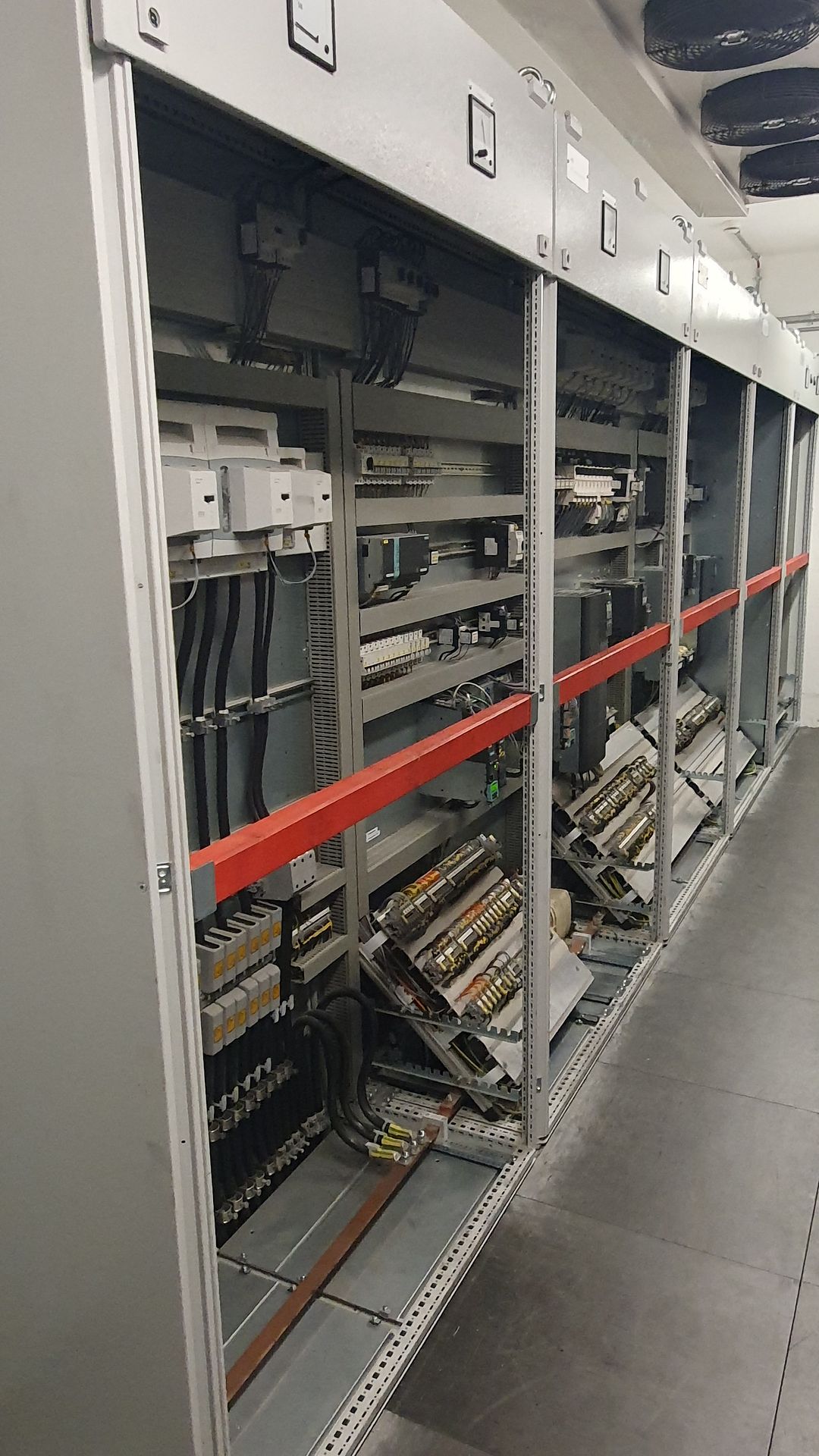

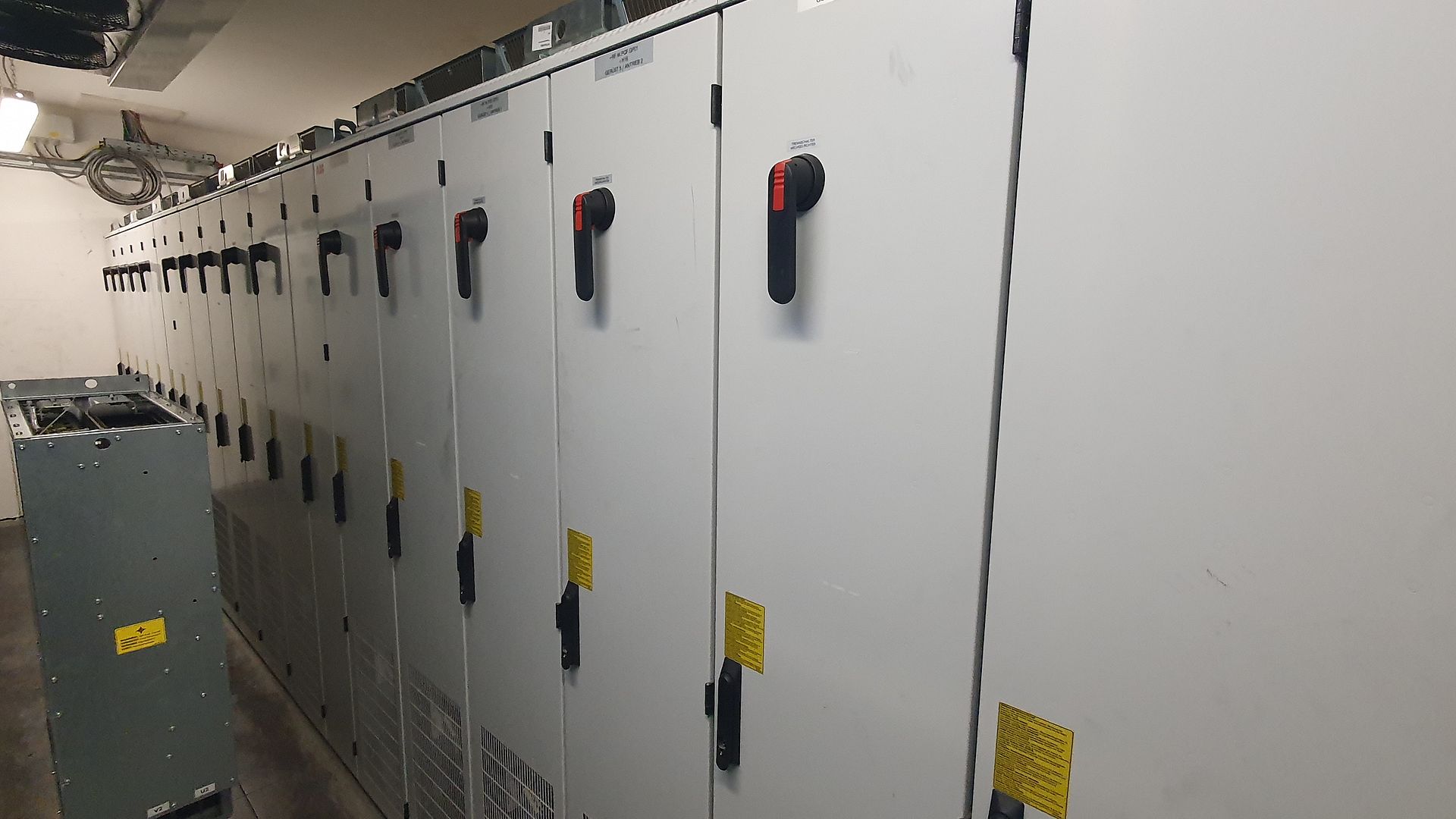

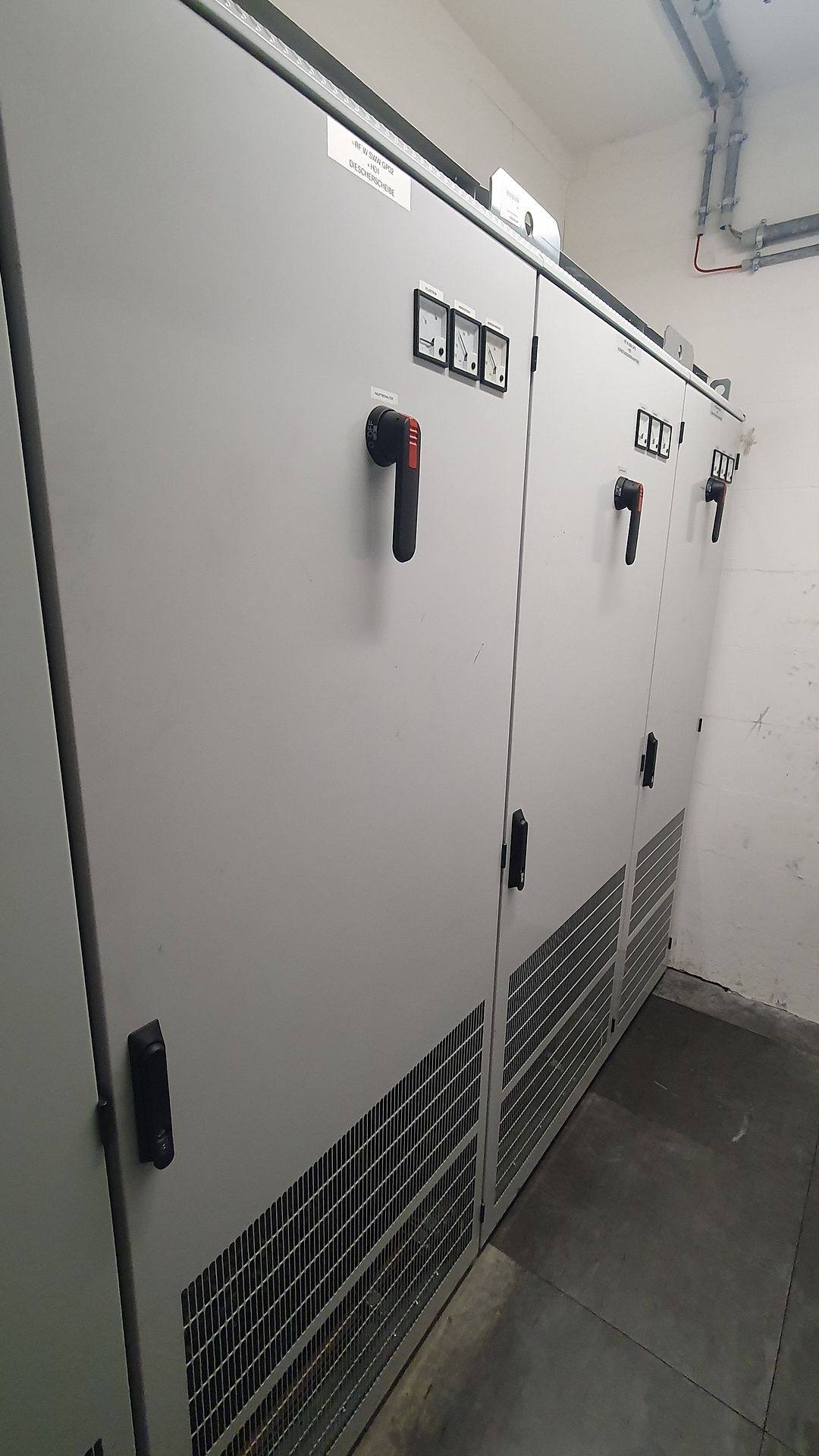

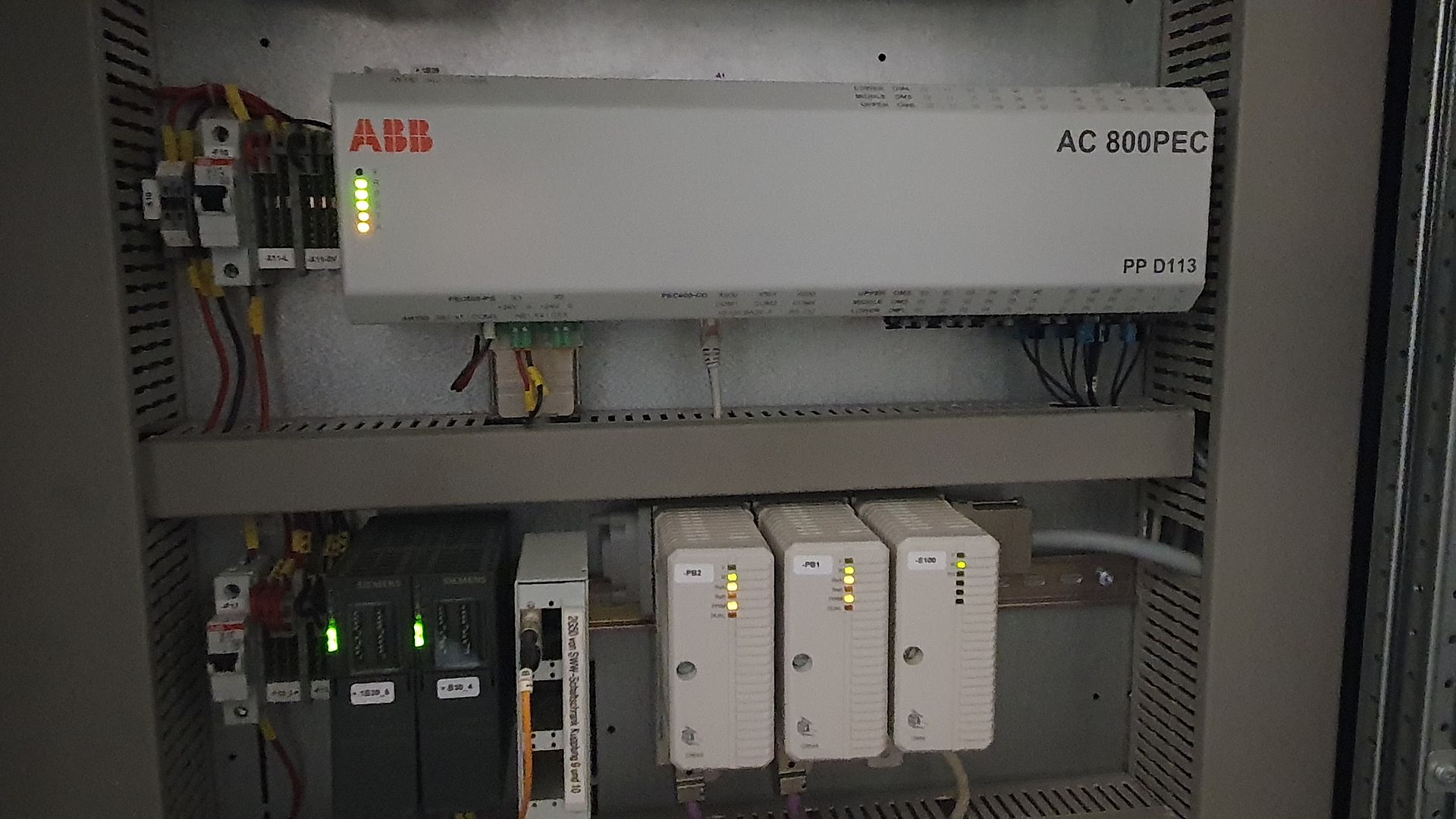

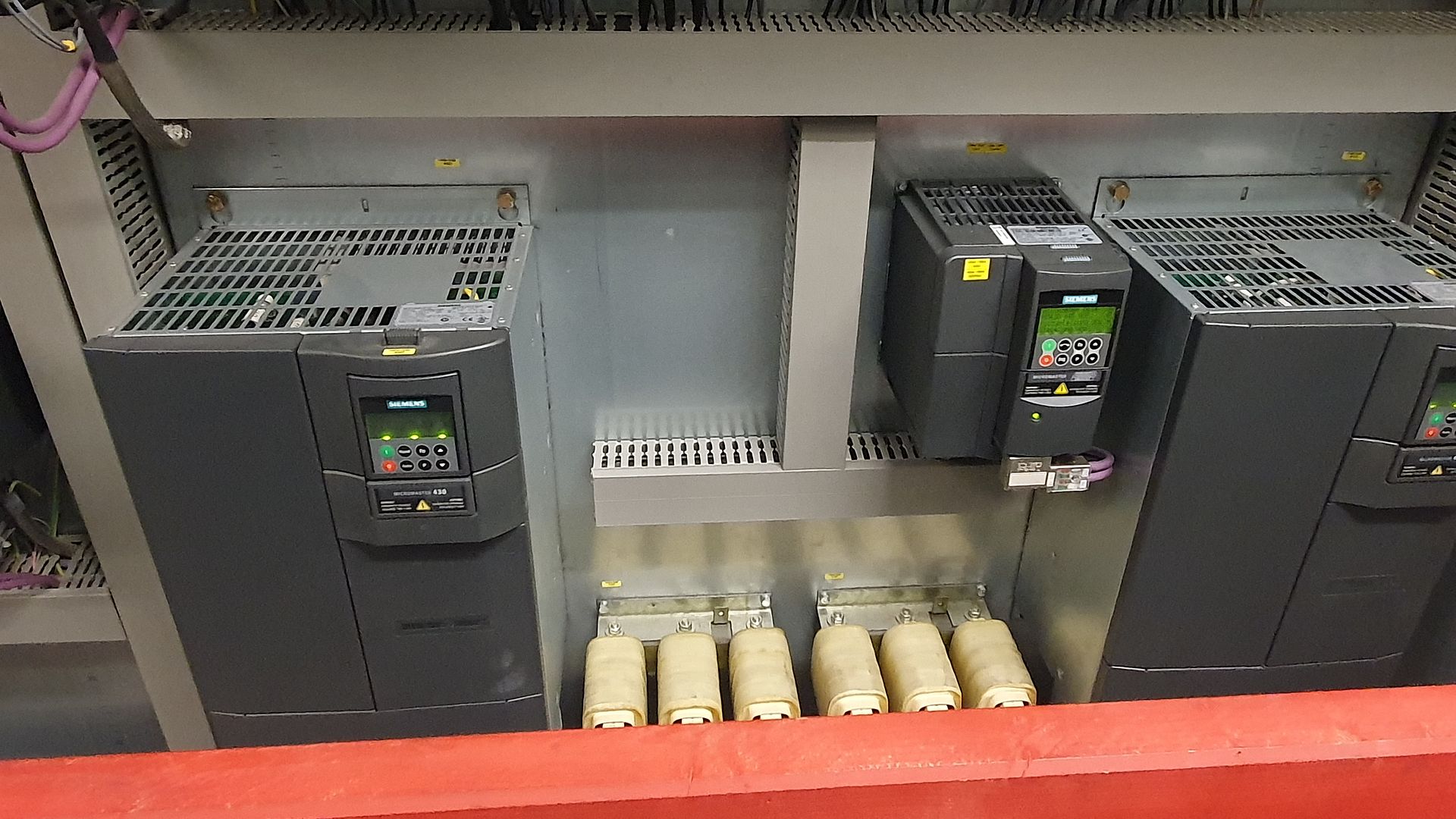

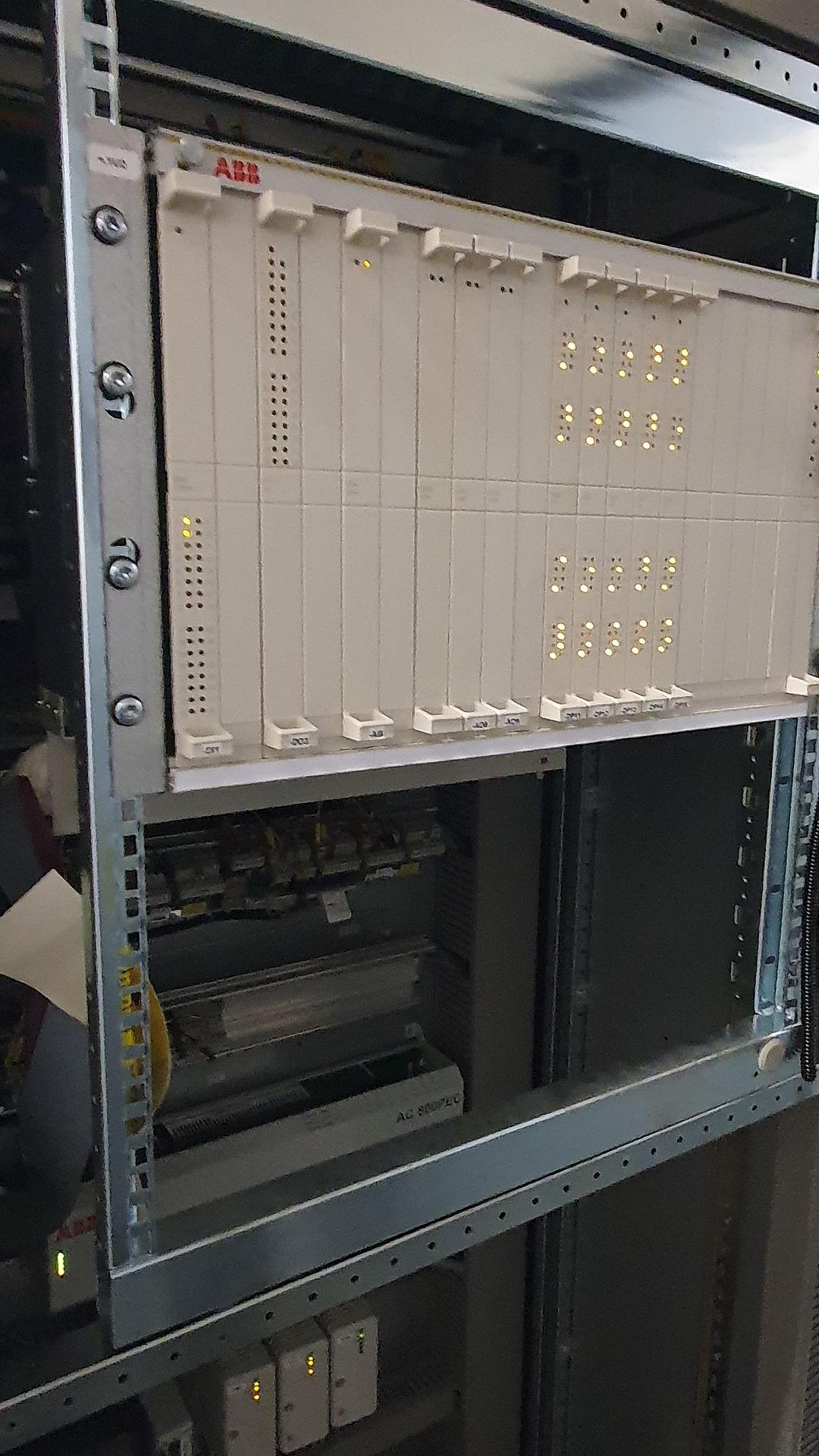

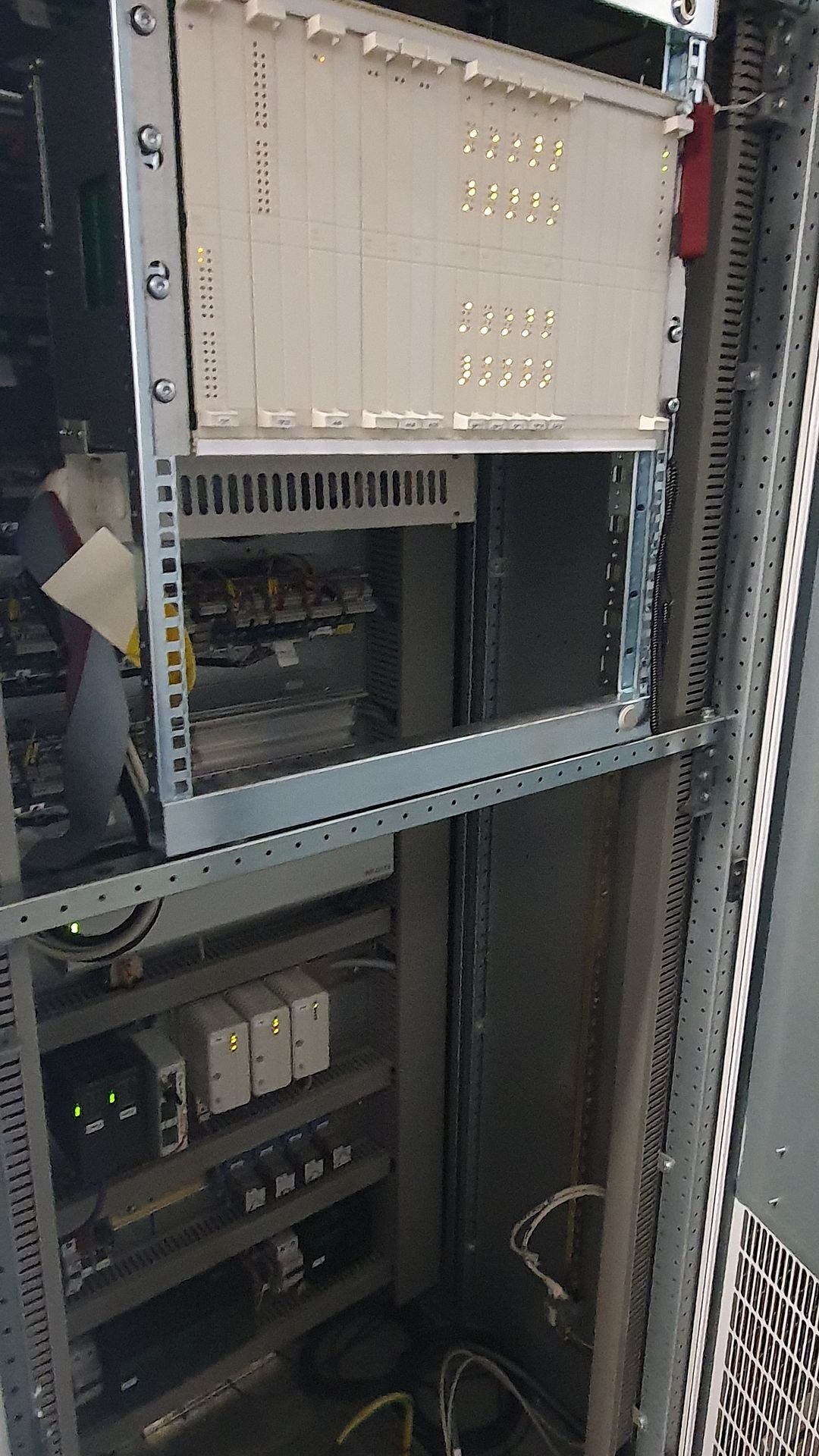

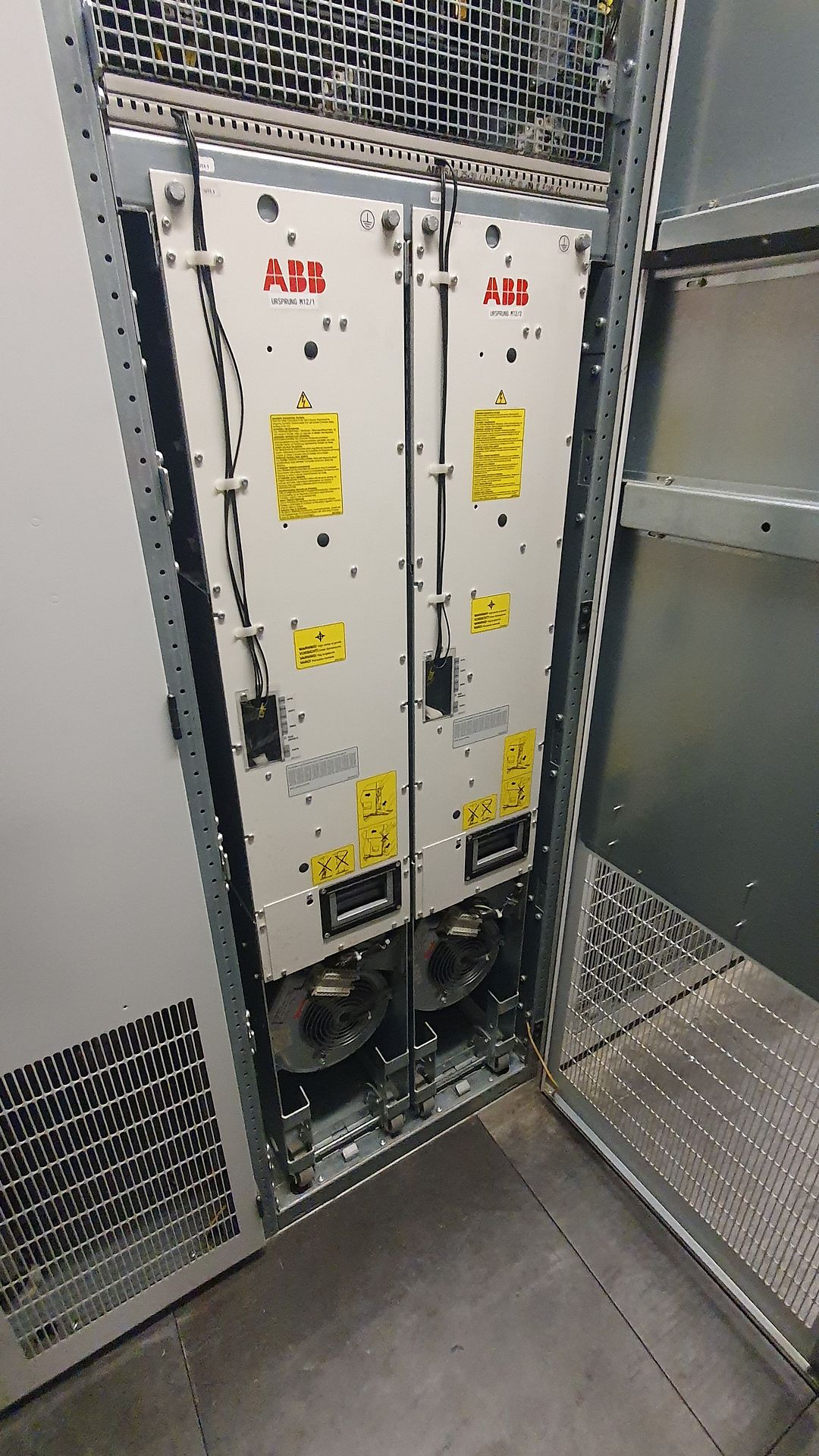

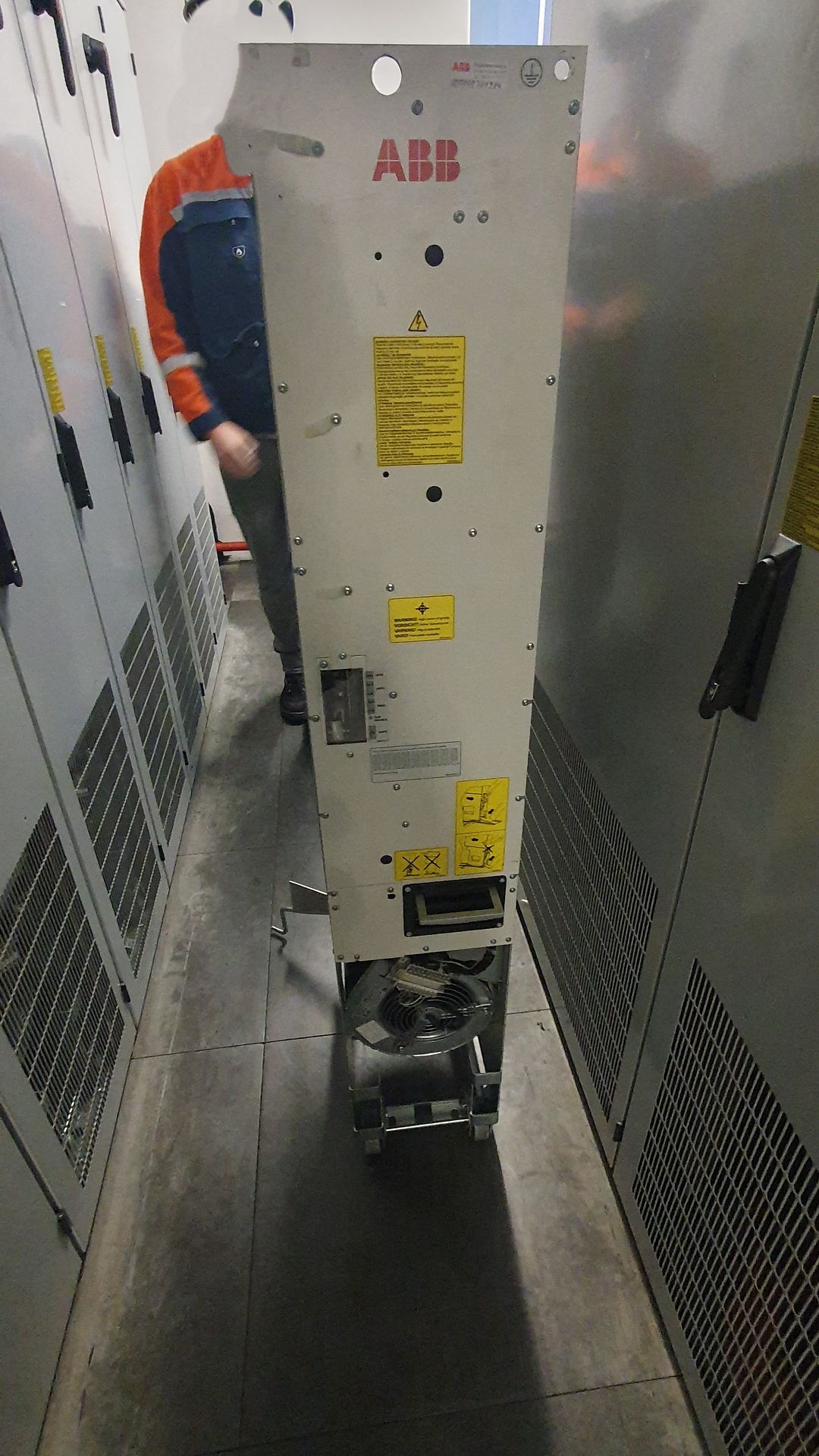

Control ABB 800PEC
Siemens S7
Roll diameter 340 to 420mm
Body length 350mm

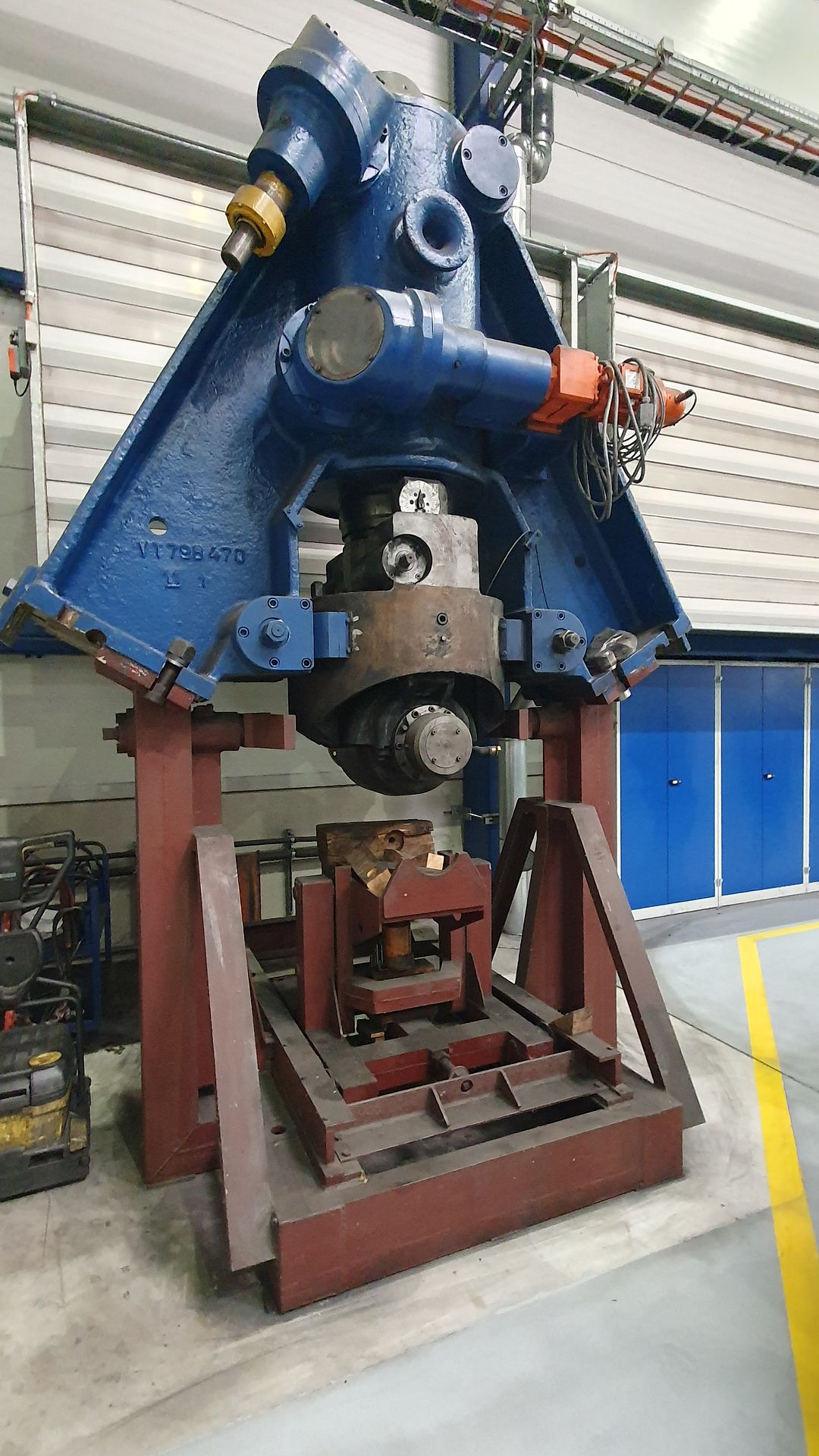

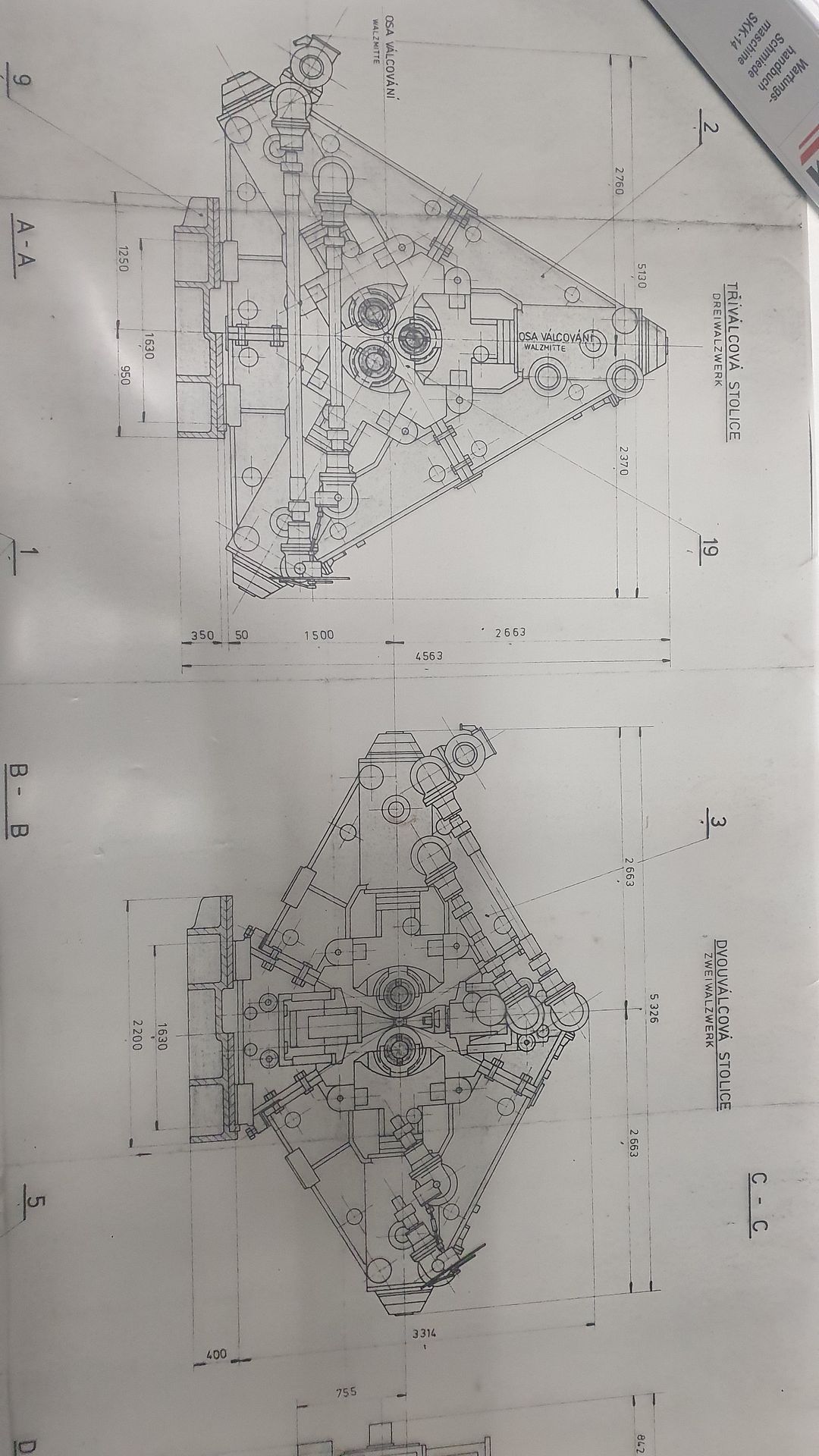

Feed angle: two roll arrangement 0 to 17 degrees, three roll arrangement 0 to 15 degrees
Angle of conic, divergent, or convergent: two roll arrangements 0 to5 degrees, three roll arrangements 0 to 7,5 degrees

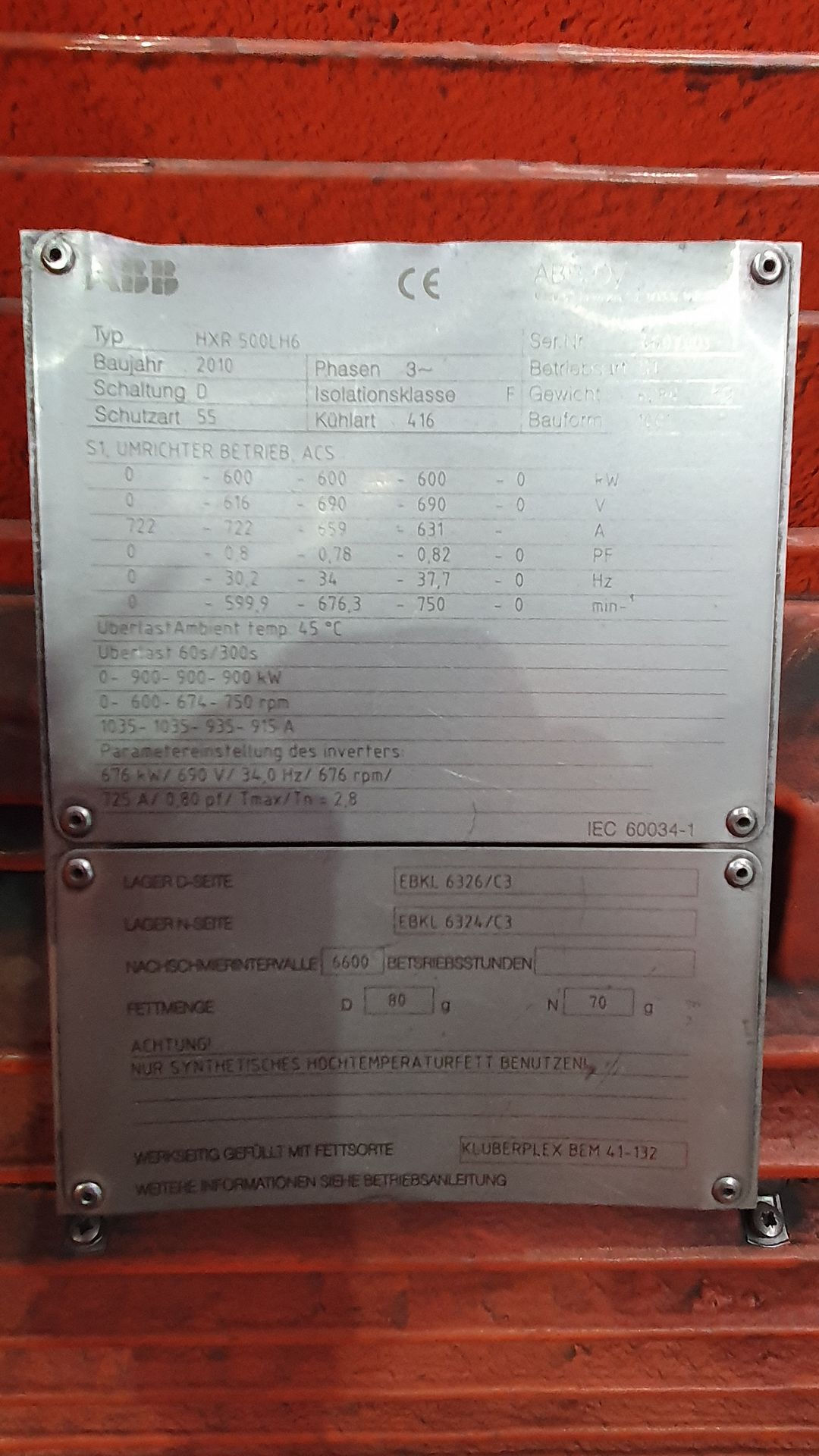

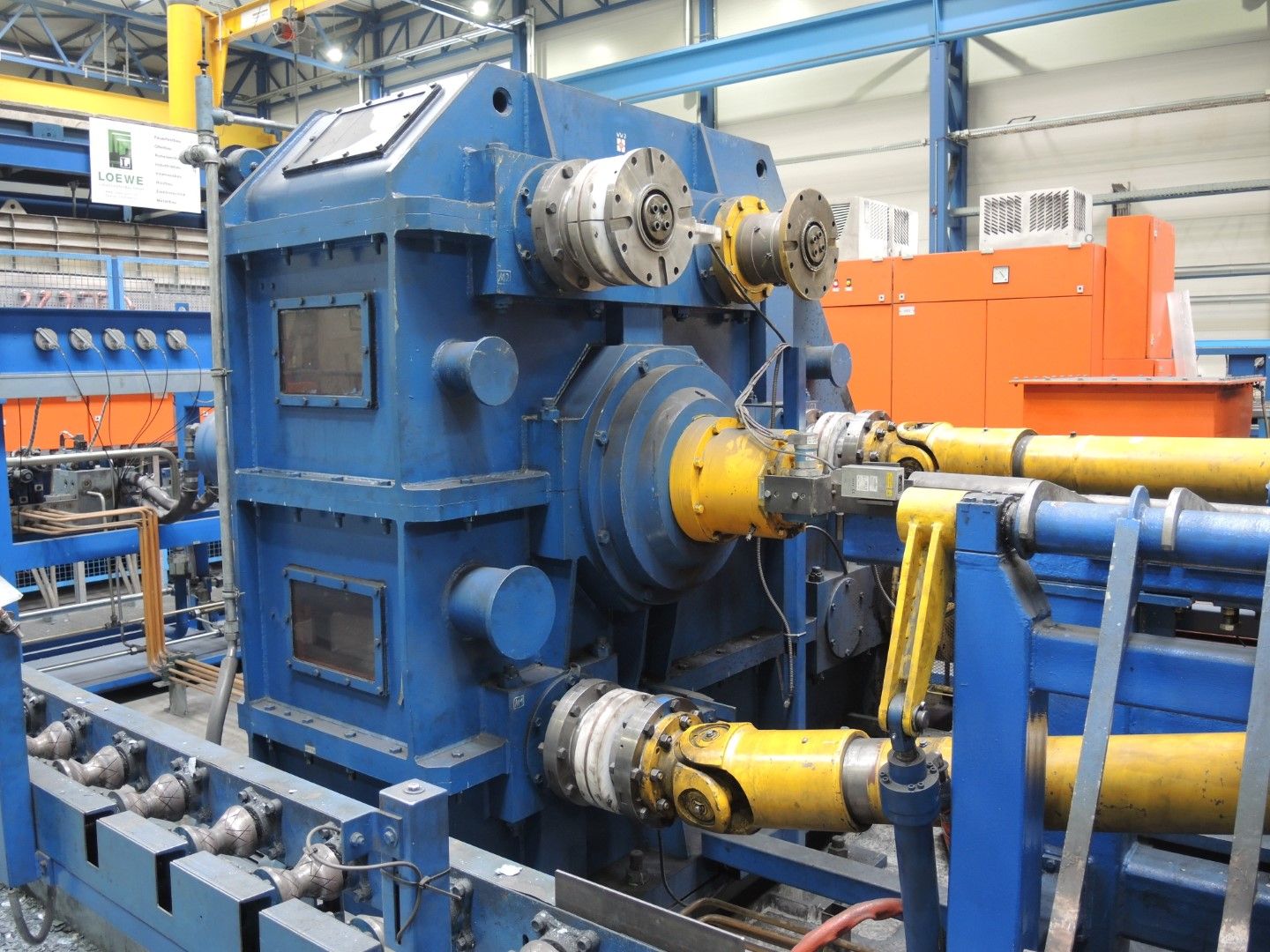

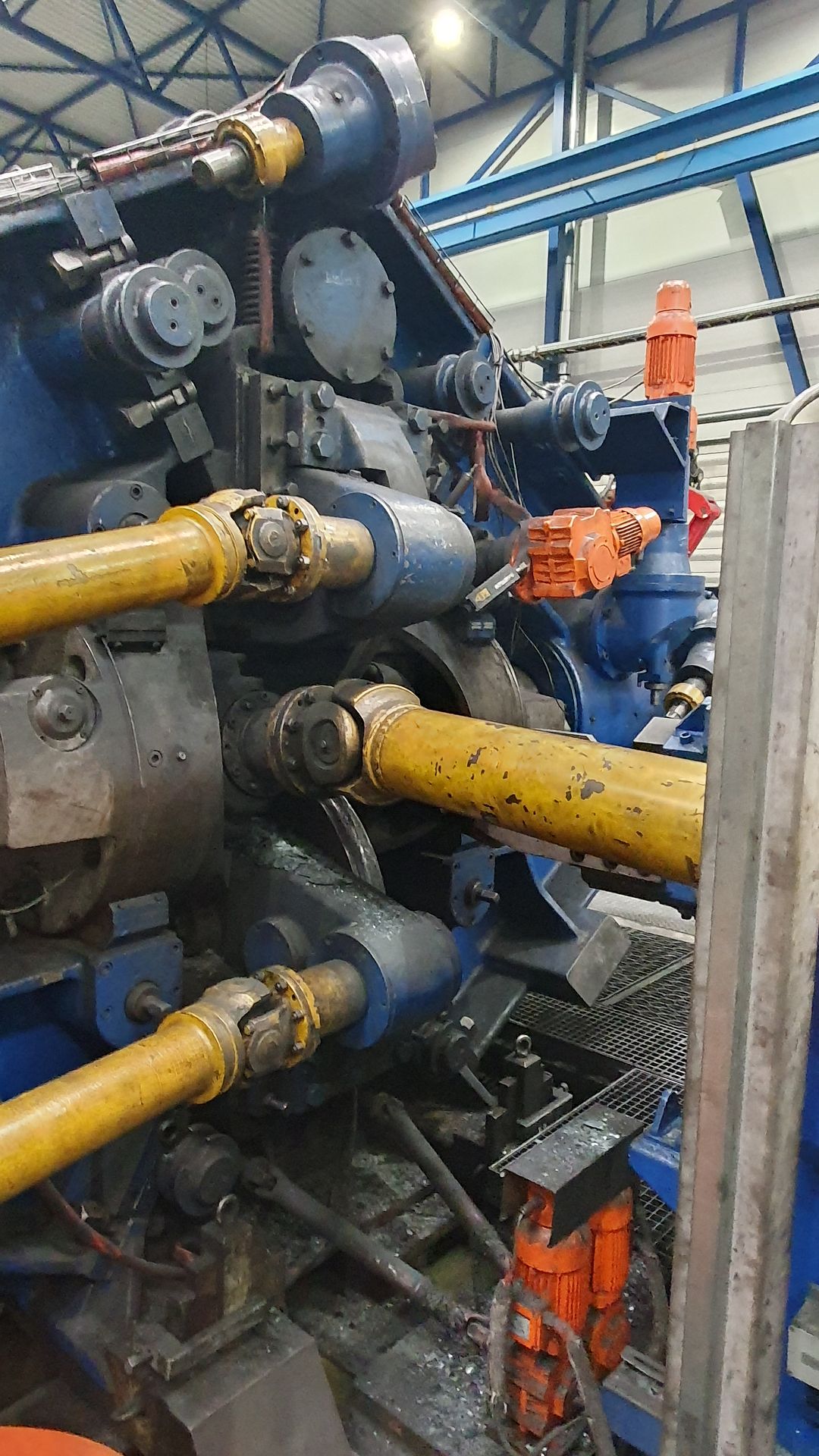

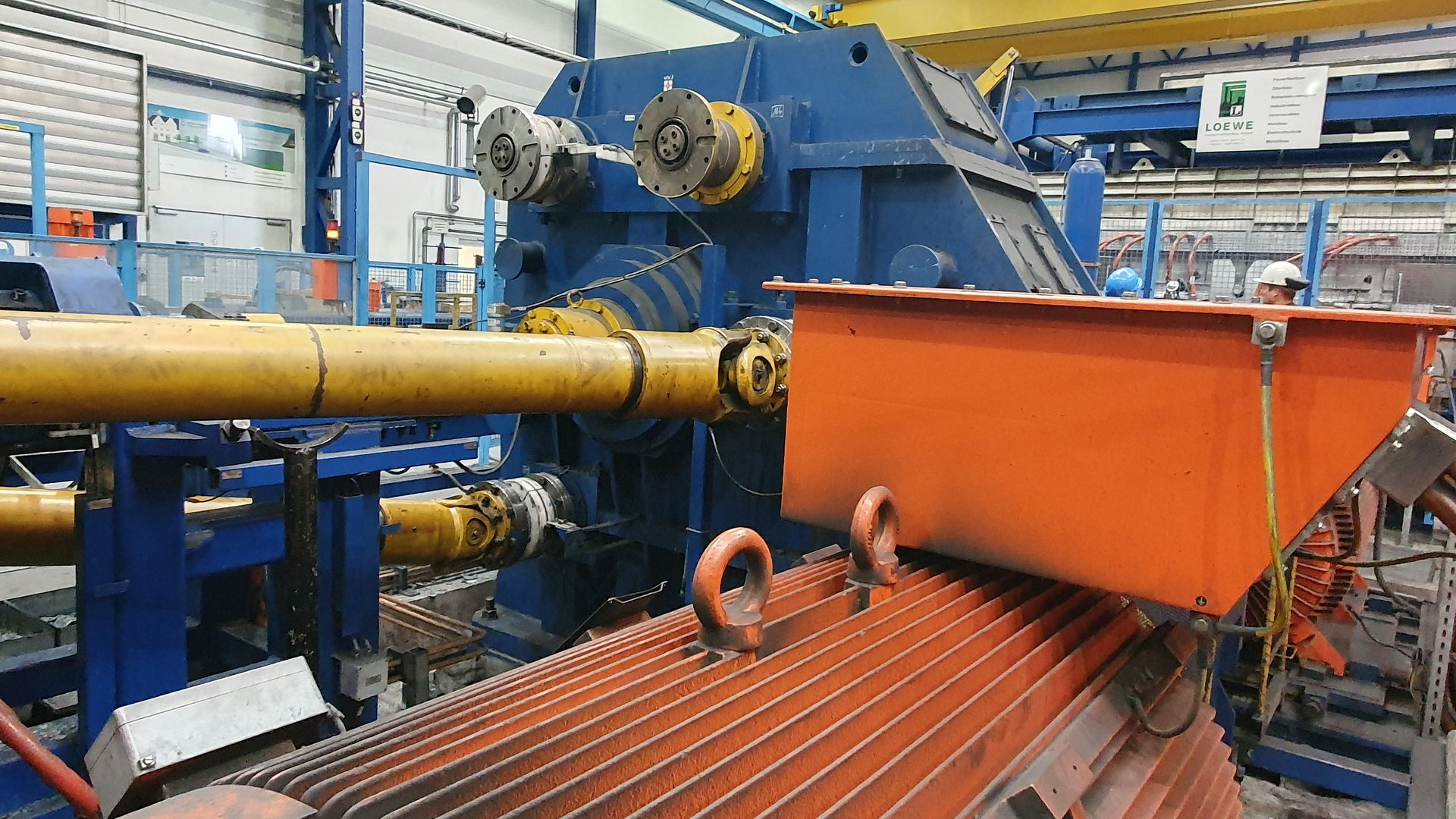

Drive power of motors 2x280kw ABB Motors HXR500LH6 from 2010
Roll force max 650 kN per roll
Roll torque max 55 kNm per roll
Rotational speed of rolls 72to 225 rpm
Length of initial material 550 to 1000 mm
Diameter of initial material 70 to 133 mm
Rolled length max 2700 mm
Equipped with:

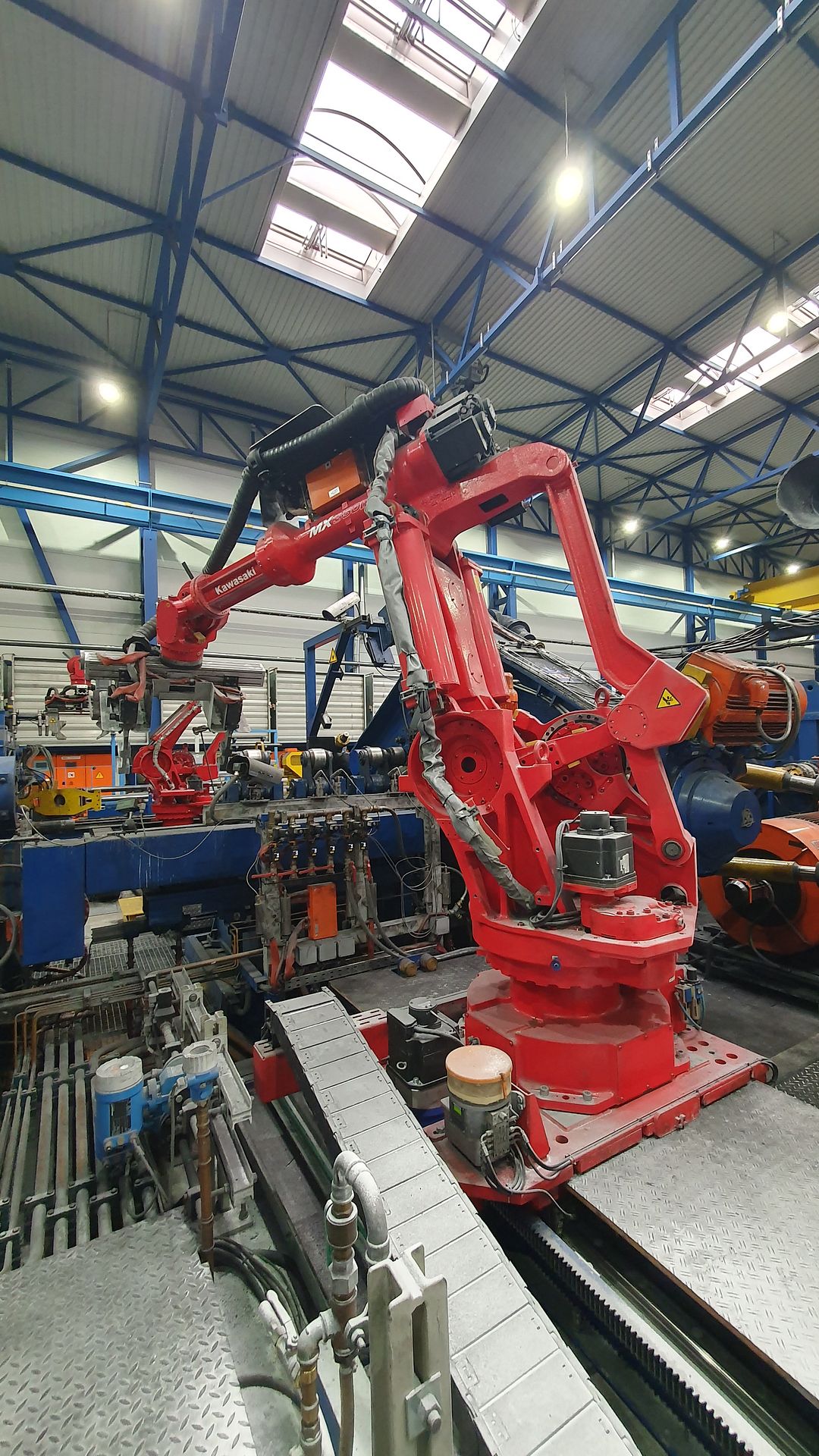

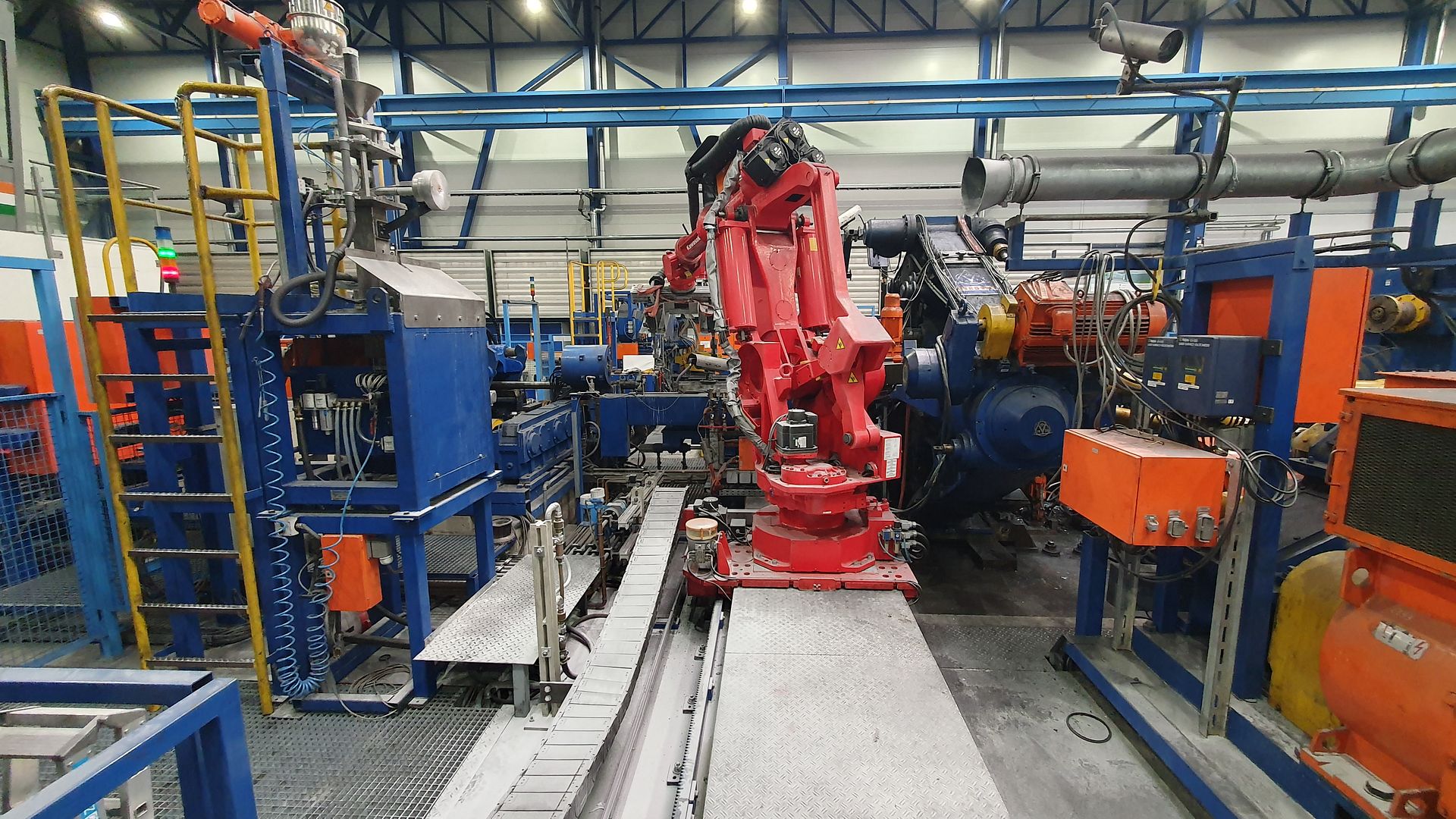

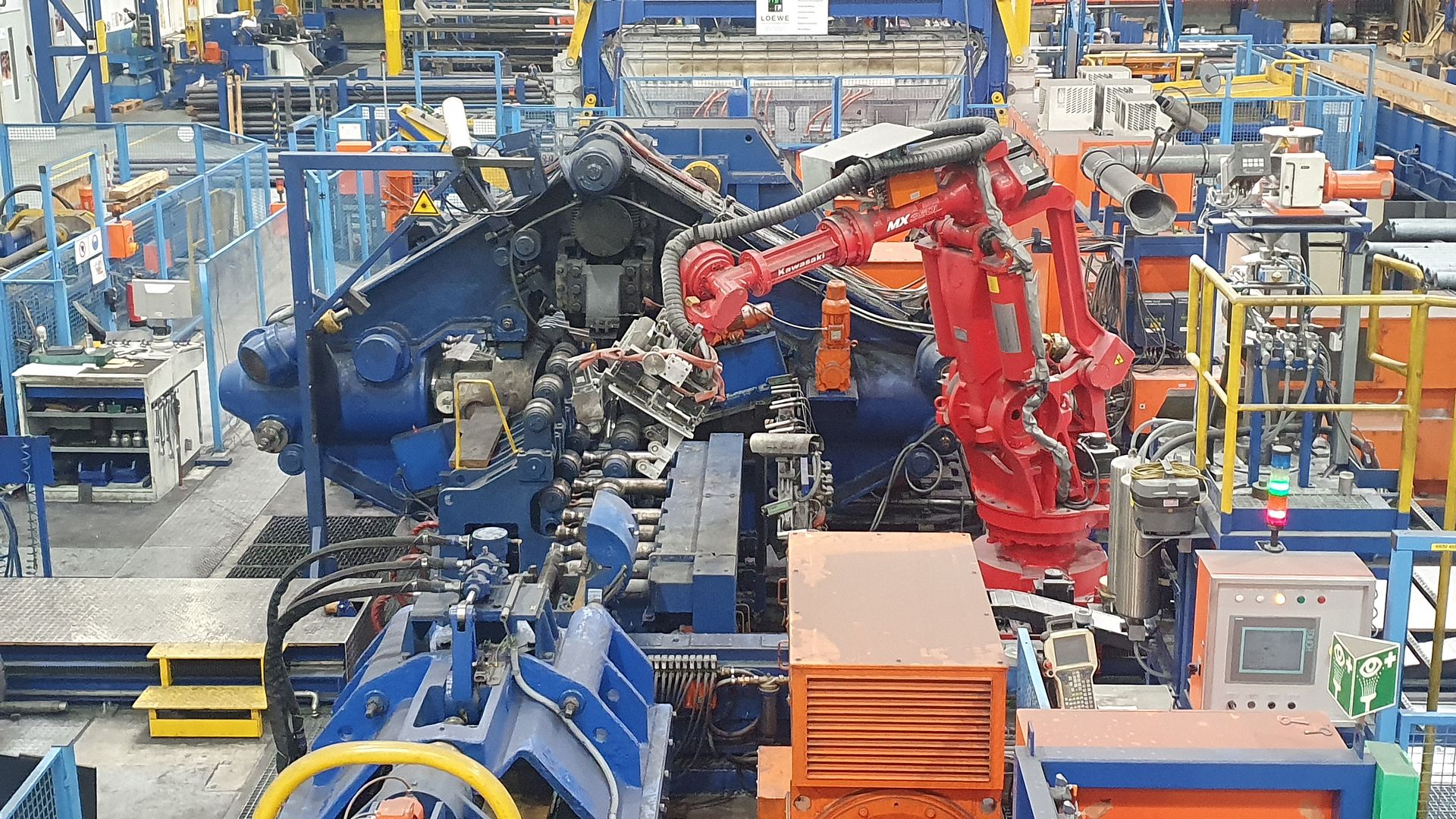

1. Kawasaki MX 350L
(Lot 46-2)
YOM 10-2009
Model 044F-D001
Serial: MX3500051
2. Pyrometer 2pcs
(from Lot 54)
Luma Sense IS 140 MB 16 Laser-PL
600°C zo 1600°C
3. Pyrometer 1pc.
(from Lot 55)
LumaSense IPE 140 MB12 Laser-PL
50°C to 1200°C
4. Speed Measurements 2pcs.
(from Lot 56)
Polytec LSV-300
1,5m distance
5. Diameter Measurement 1 pc.
(from Lot 58)
Zumbach ODAC-310DP
Max OD: 300mm
6. Length Measurements 1pc.
(Lot 59)
ASTECH LIXUS-i PN 8192

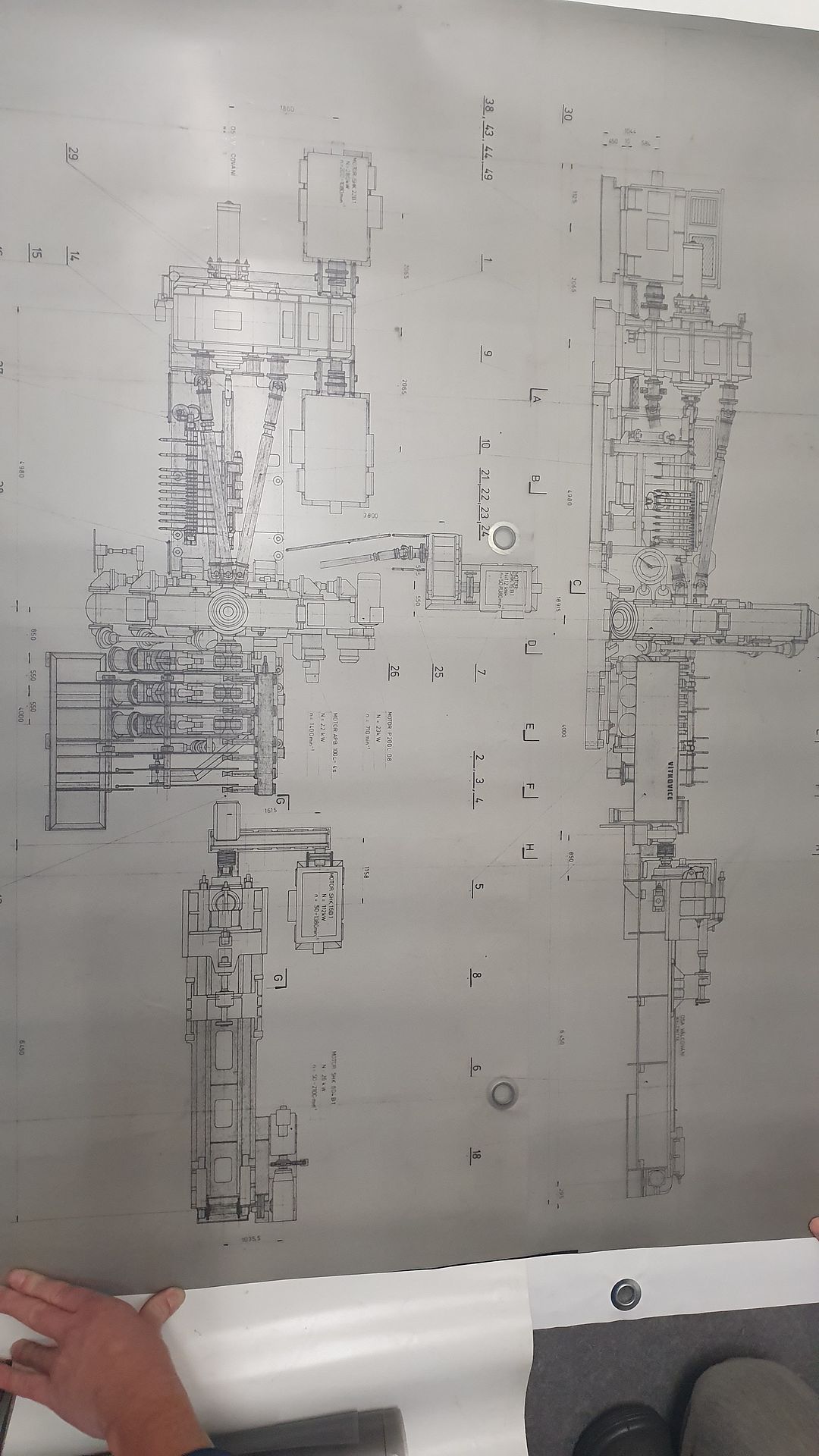

Download Documents
