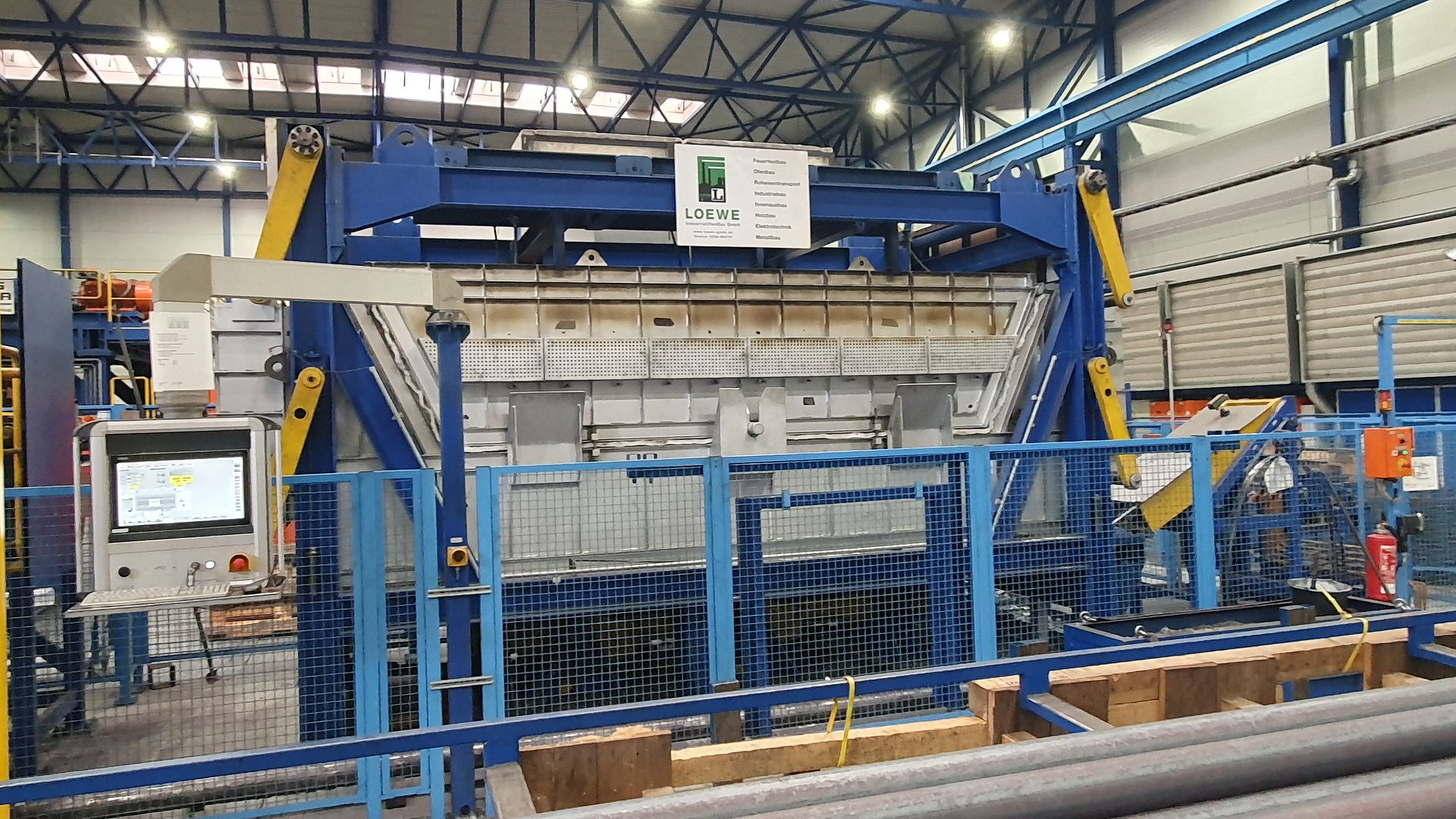

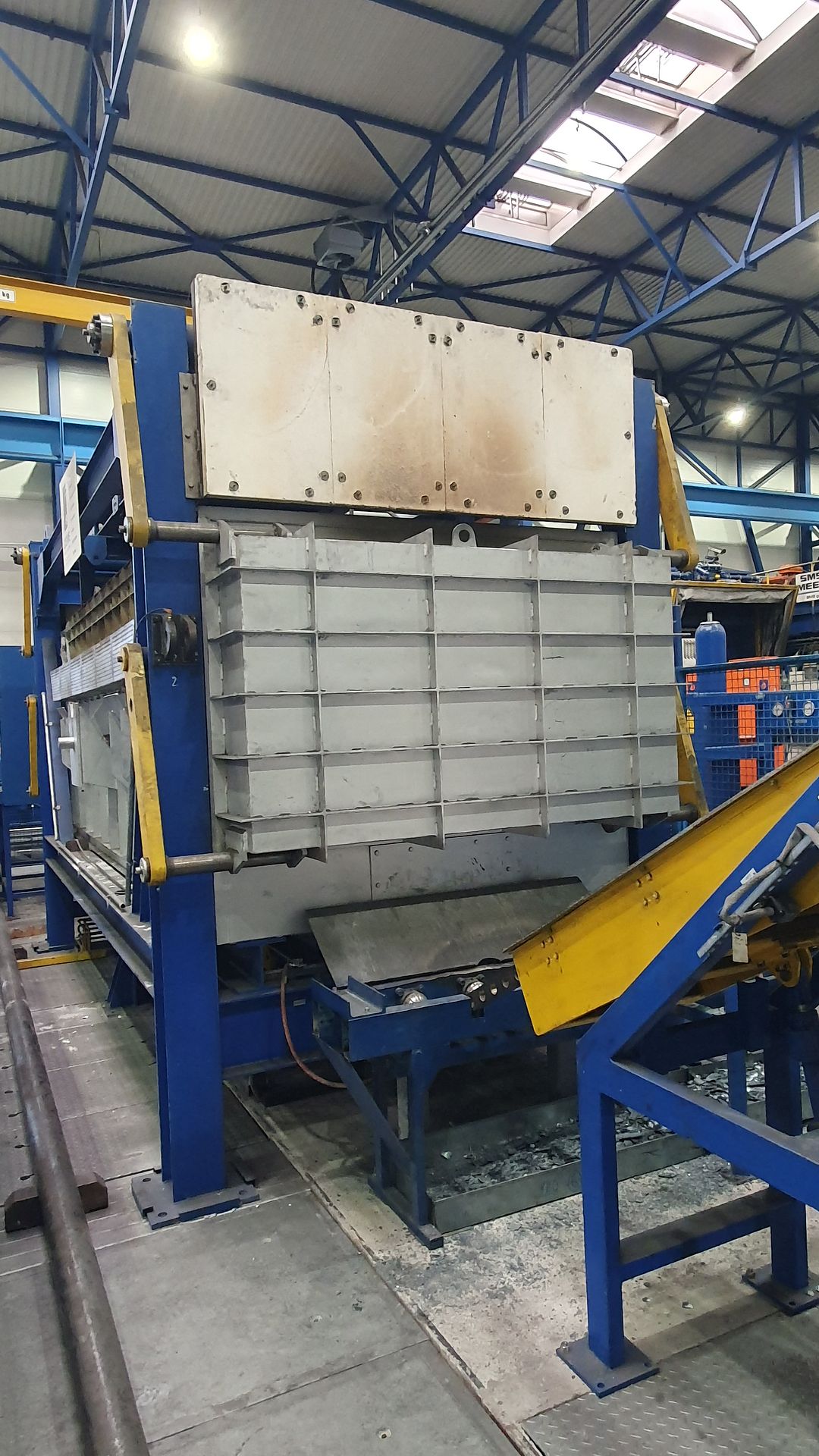

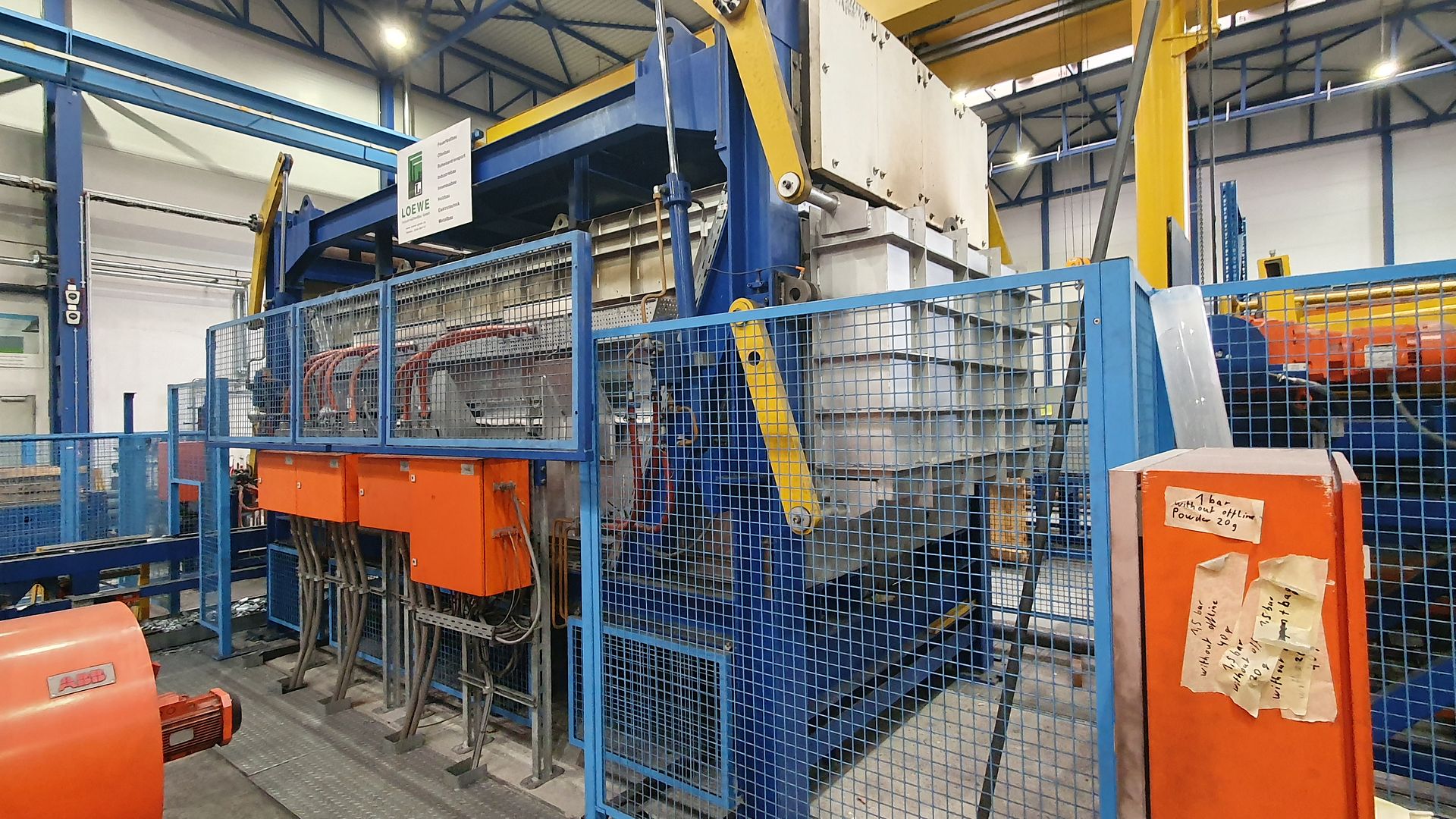

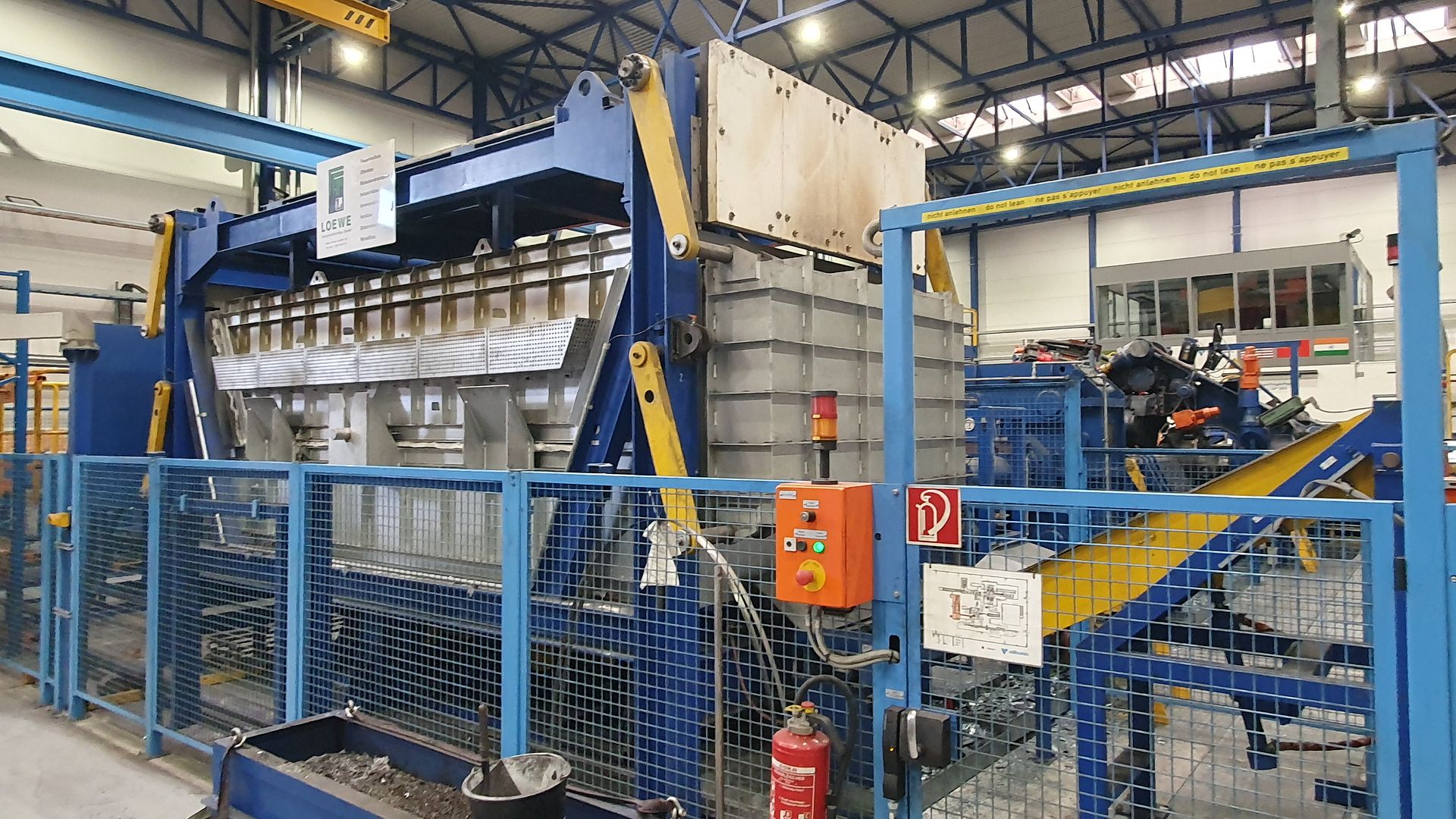

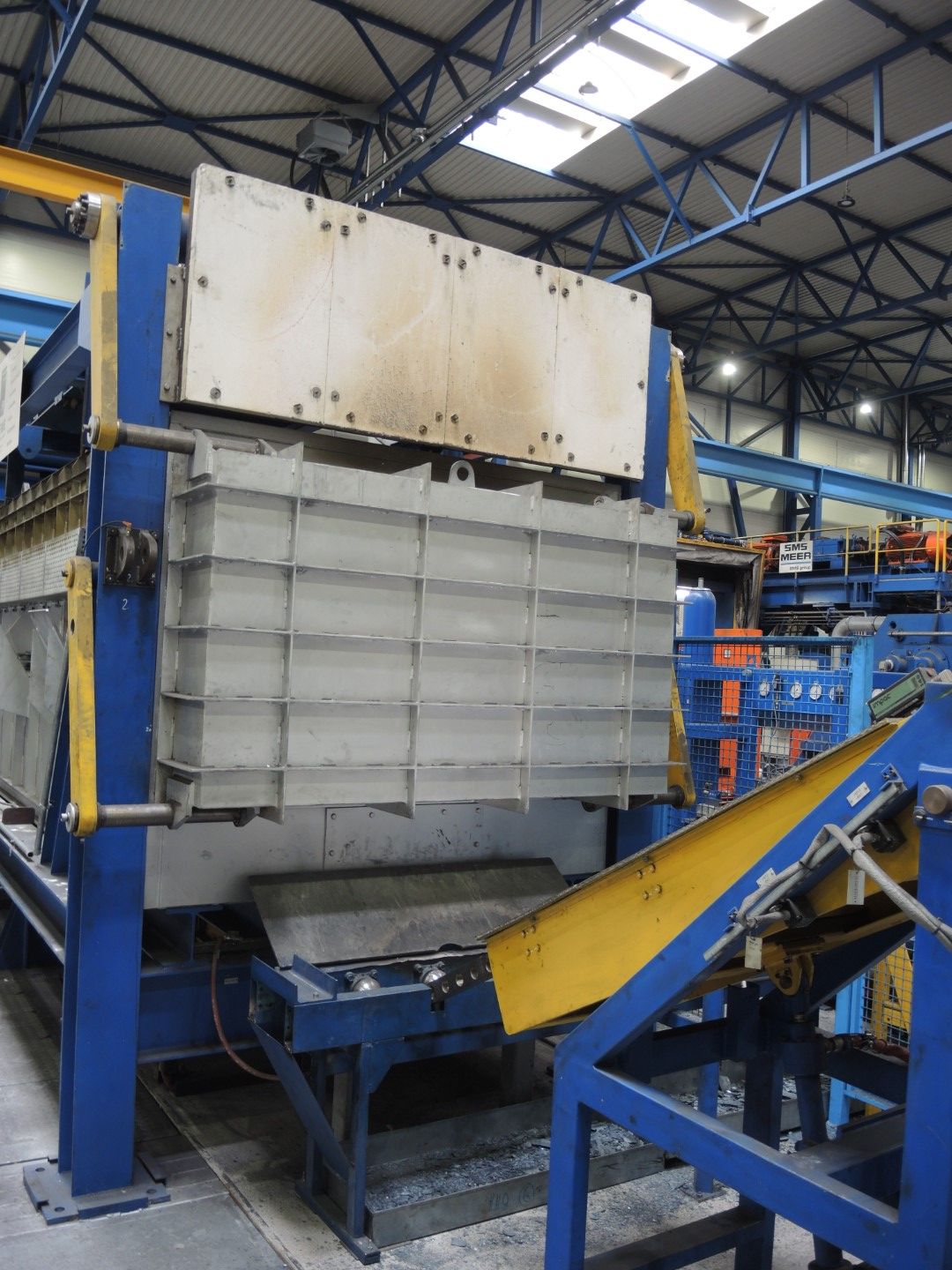

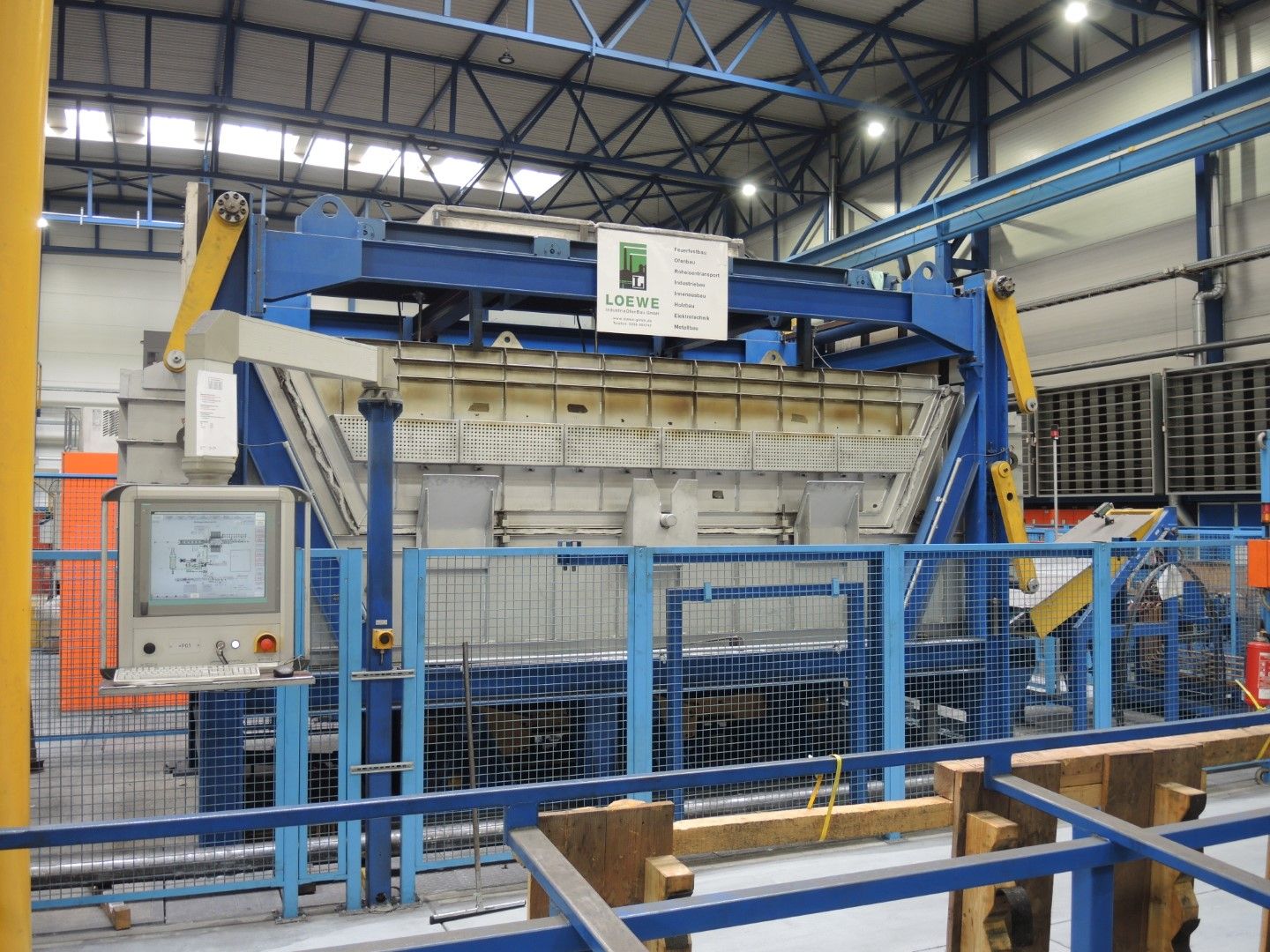

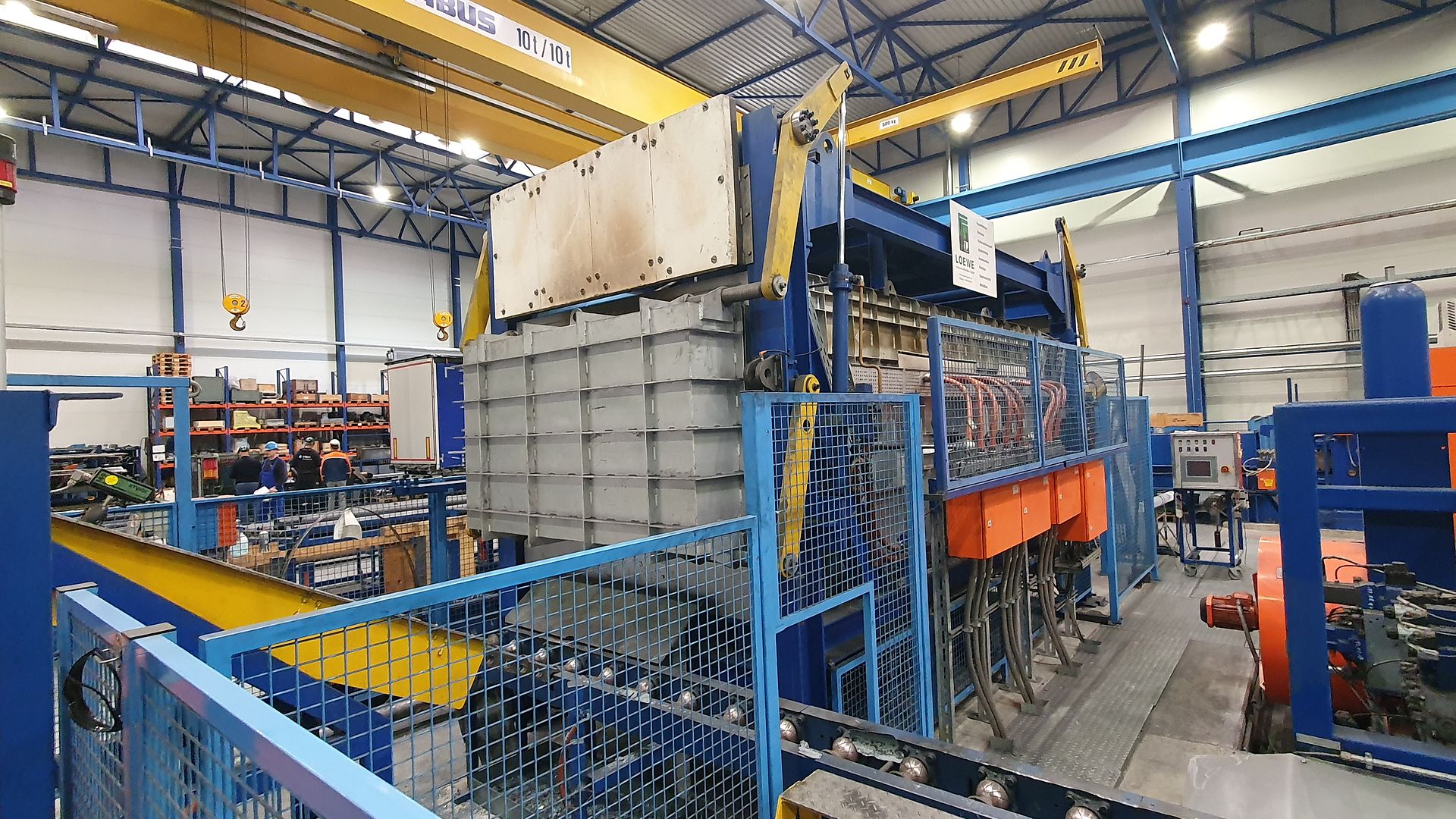

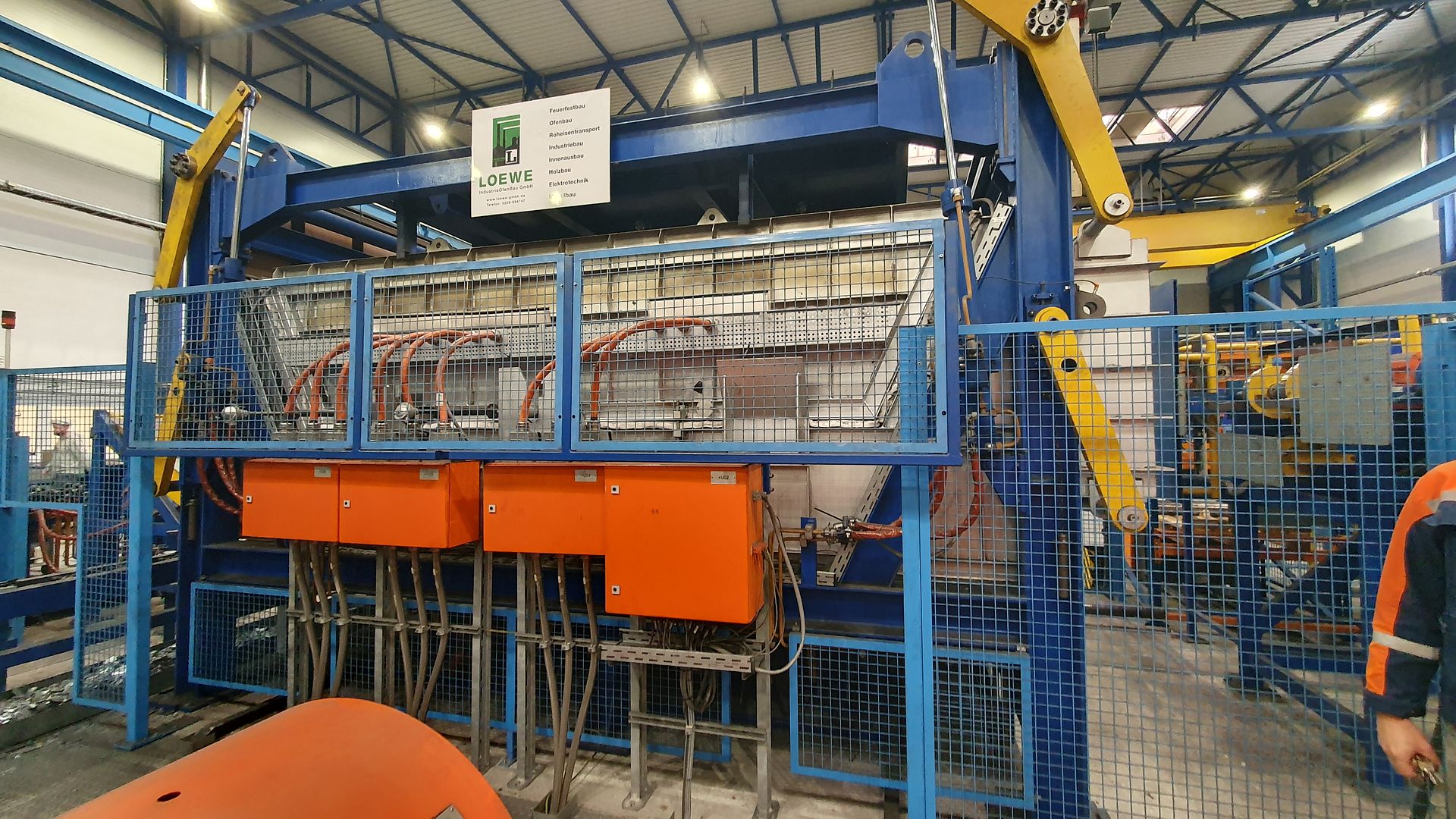

Lifting Furnace "LOEWE" 2010
Year of Mfg. 2010
Heating of 15 Round Billets diameter from 90 to 145 mm

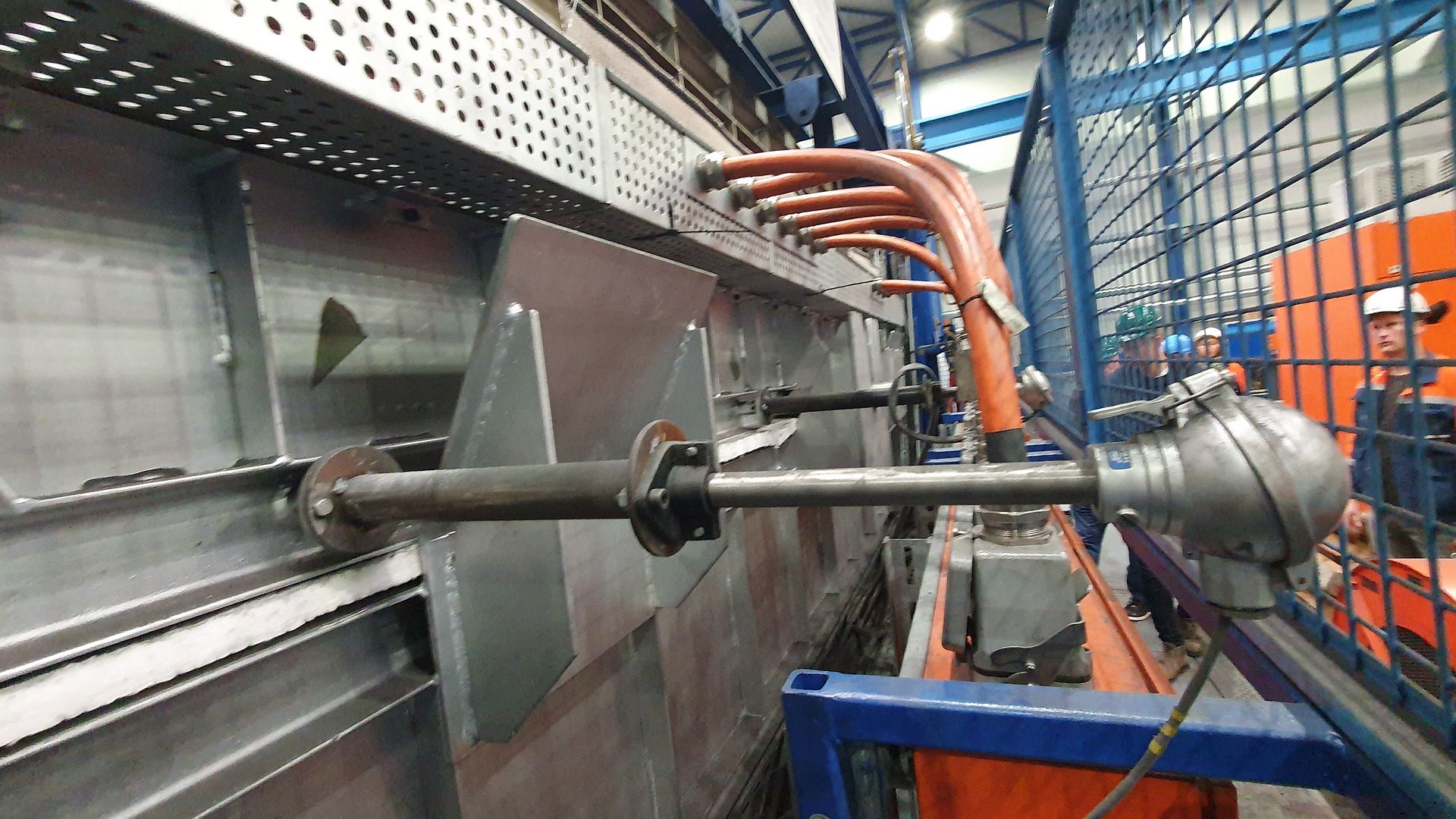

Electric Heating; 3 Heating Zones with 3 areas containing 3 SIC Heating Elements
36 SIC Heating Elements Globar SDO-1-32-110-1800-1,51-1515 from Kanthal
Heating control by 9 JUMO IGBT
Max heating temperature 1350 Degrees Celsius
Automation Control Mfg. “SIEMENS -S7” CPU 315-2DP

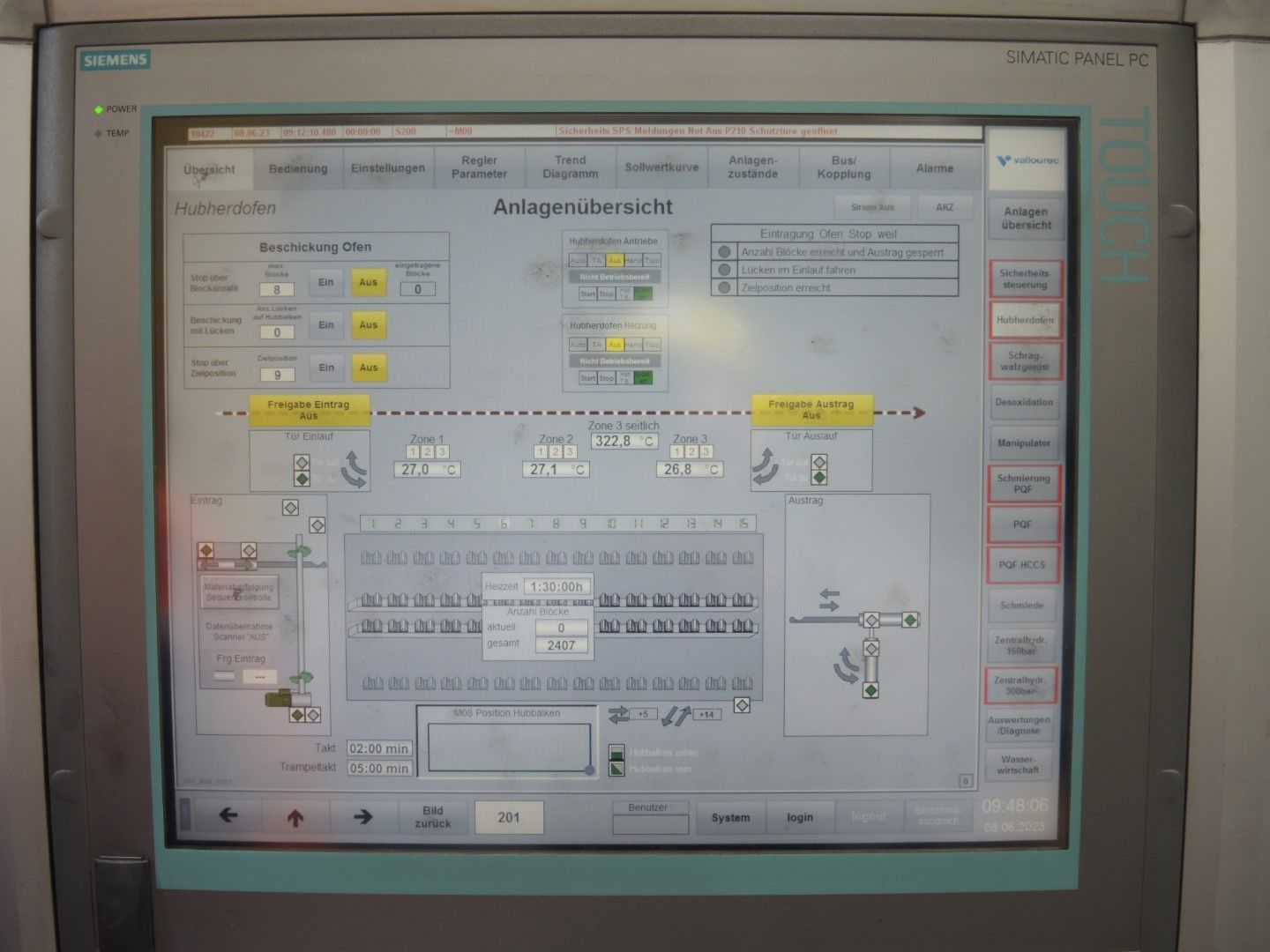

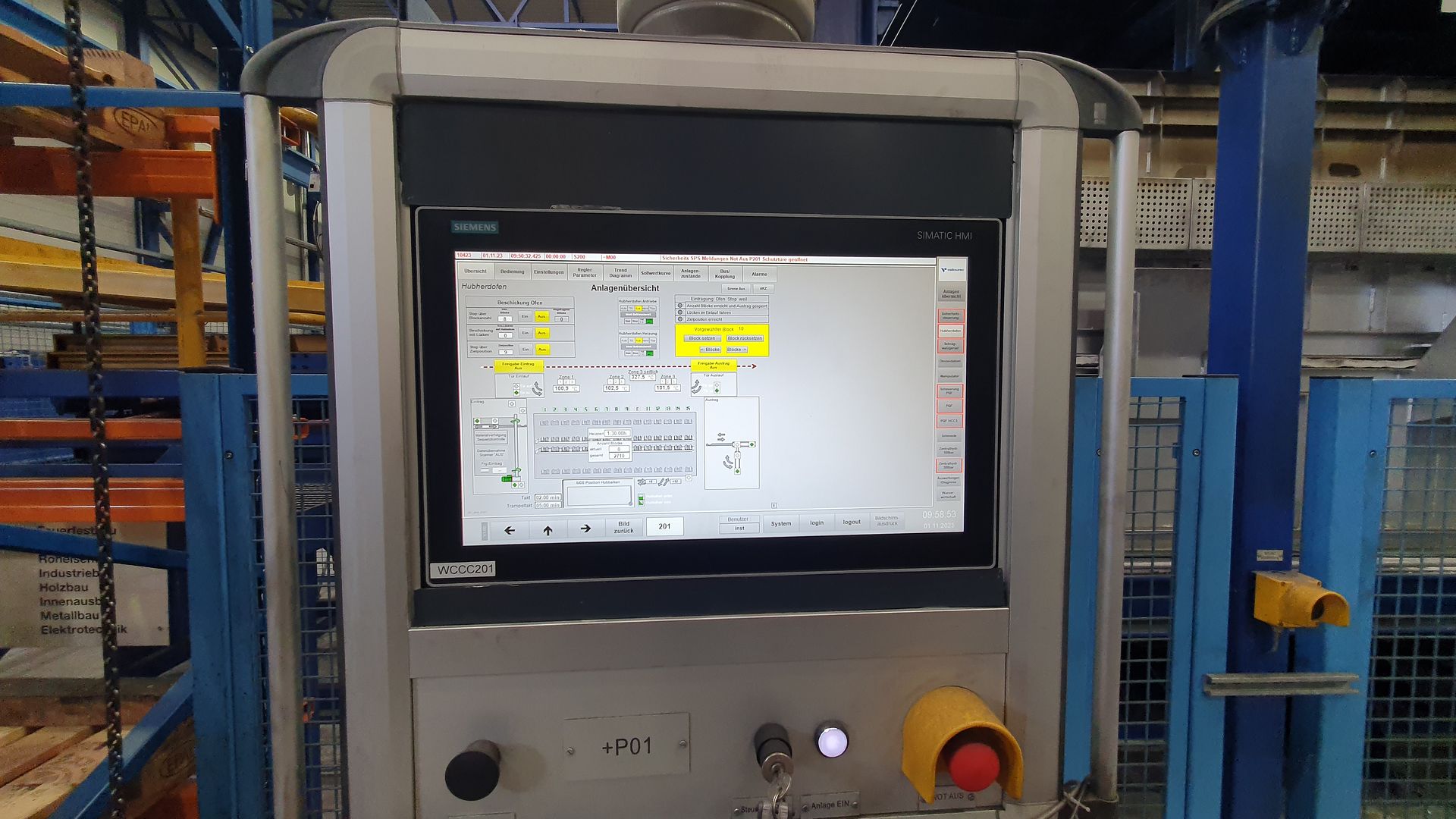

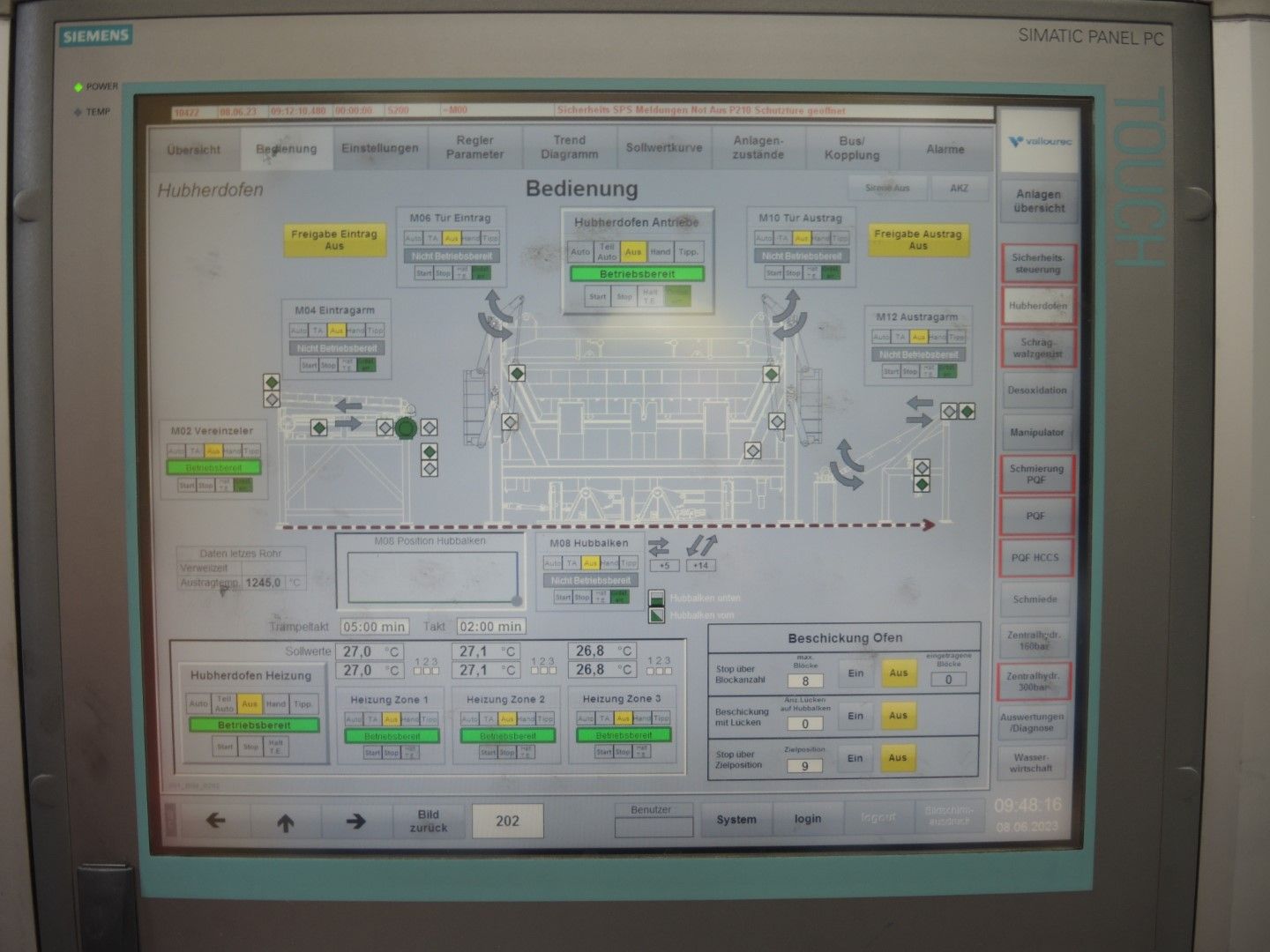

Touch Panel PC 677 mit 19“ Siemens
Network card Siemens CP1613
Useable Furnace Area 500 mm

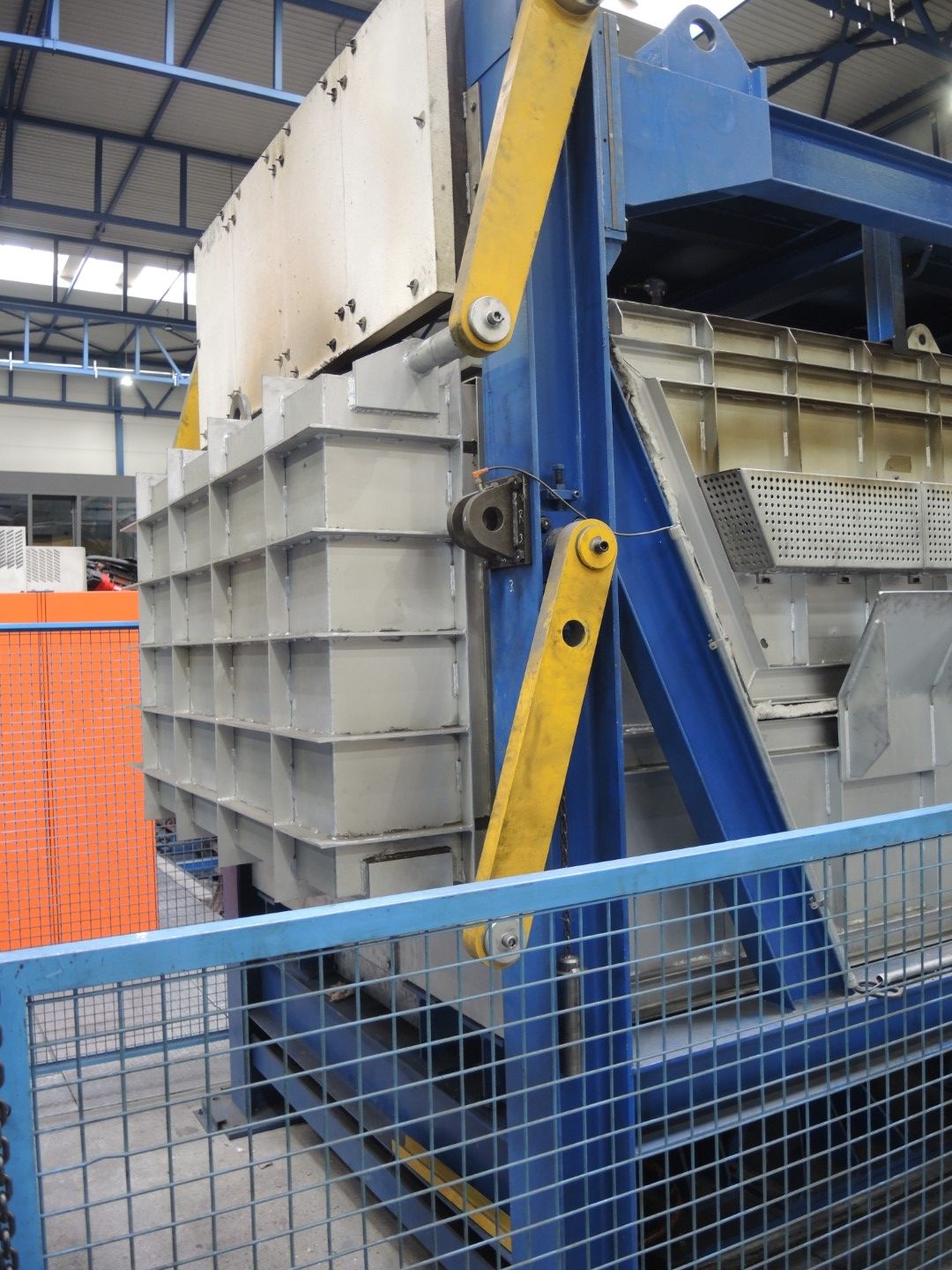

Travels of the lifting furnace: Longitudinal 260 mm, up and down 130 mm
Hydraulic needed 160 Bar
Fully automatic, semi-automatic and manual use possible
Max temperature on outside surfaces 60°C

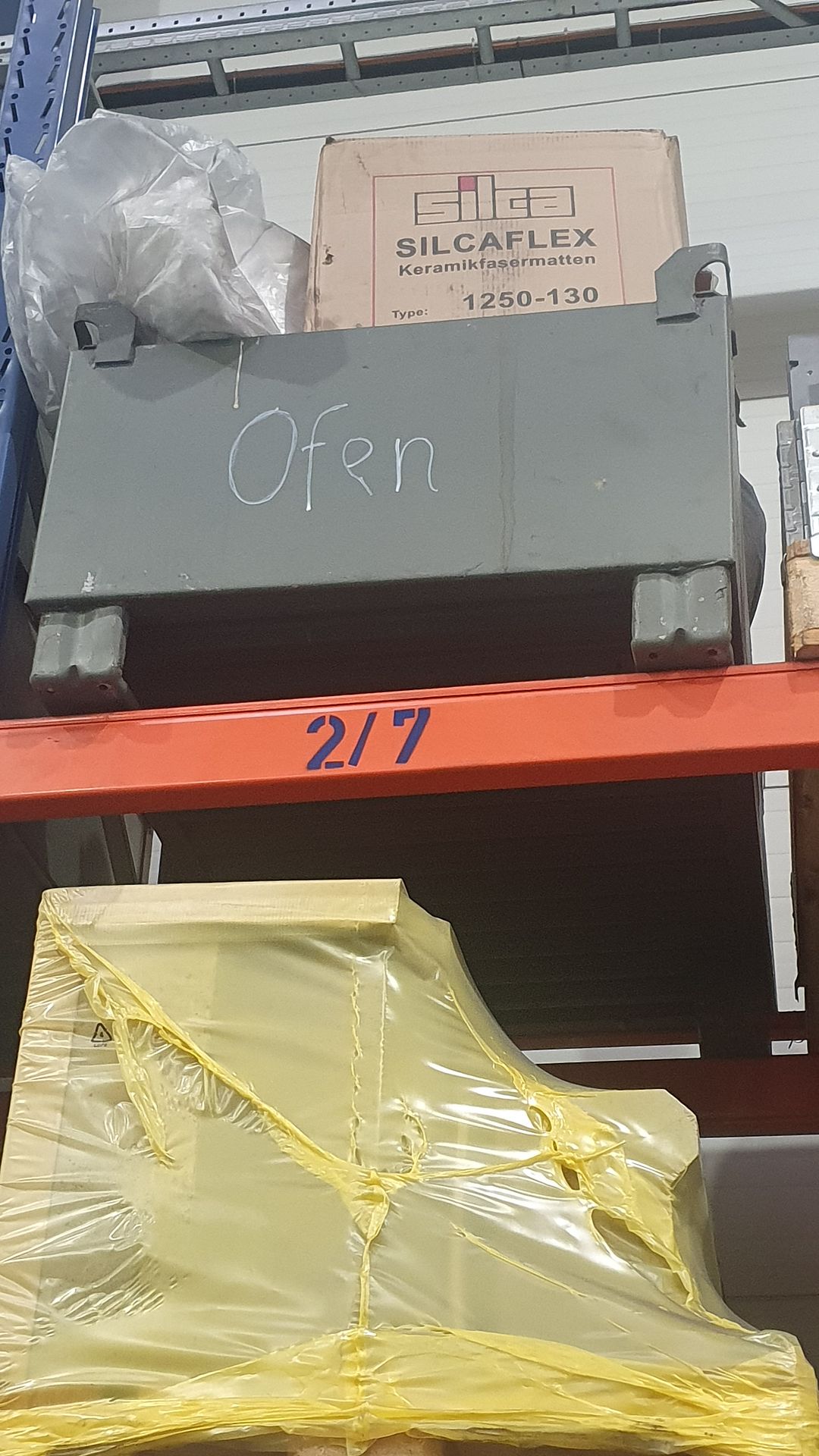

Inside lining Fire Light Stone, KSP, Ceramic Fiber
Connection power is 500kw
