‘MITSUBISHI-HITACHI-IHI’ Pickling Line Tandem Cold Mill

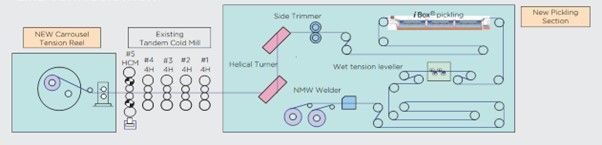

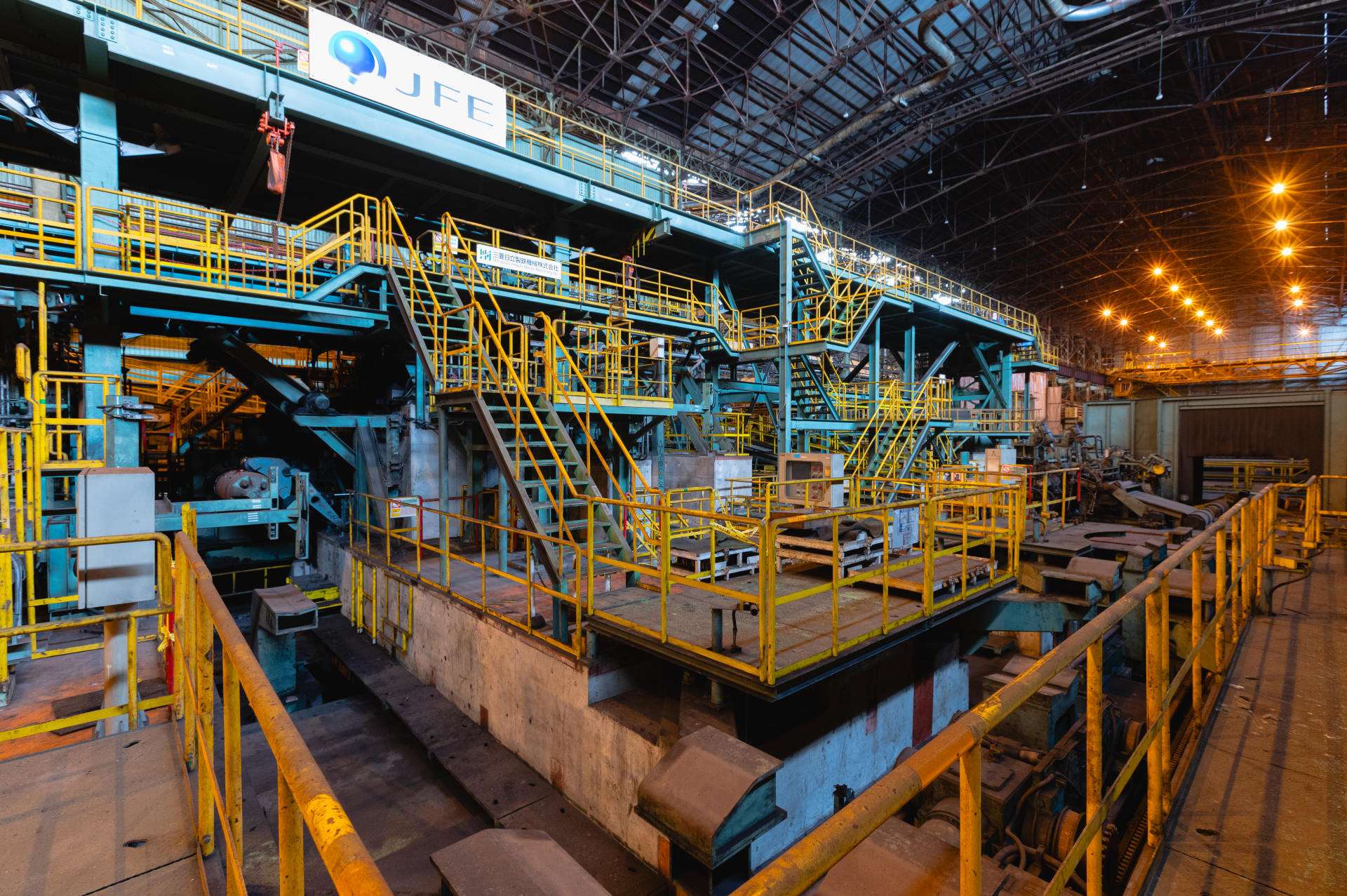

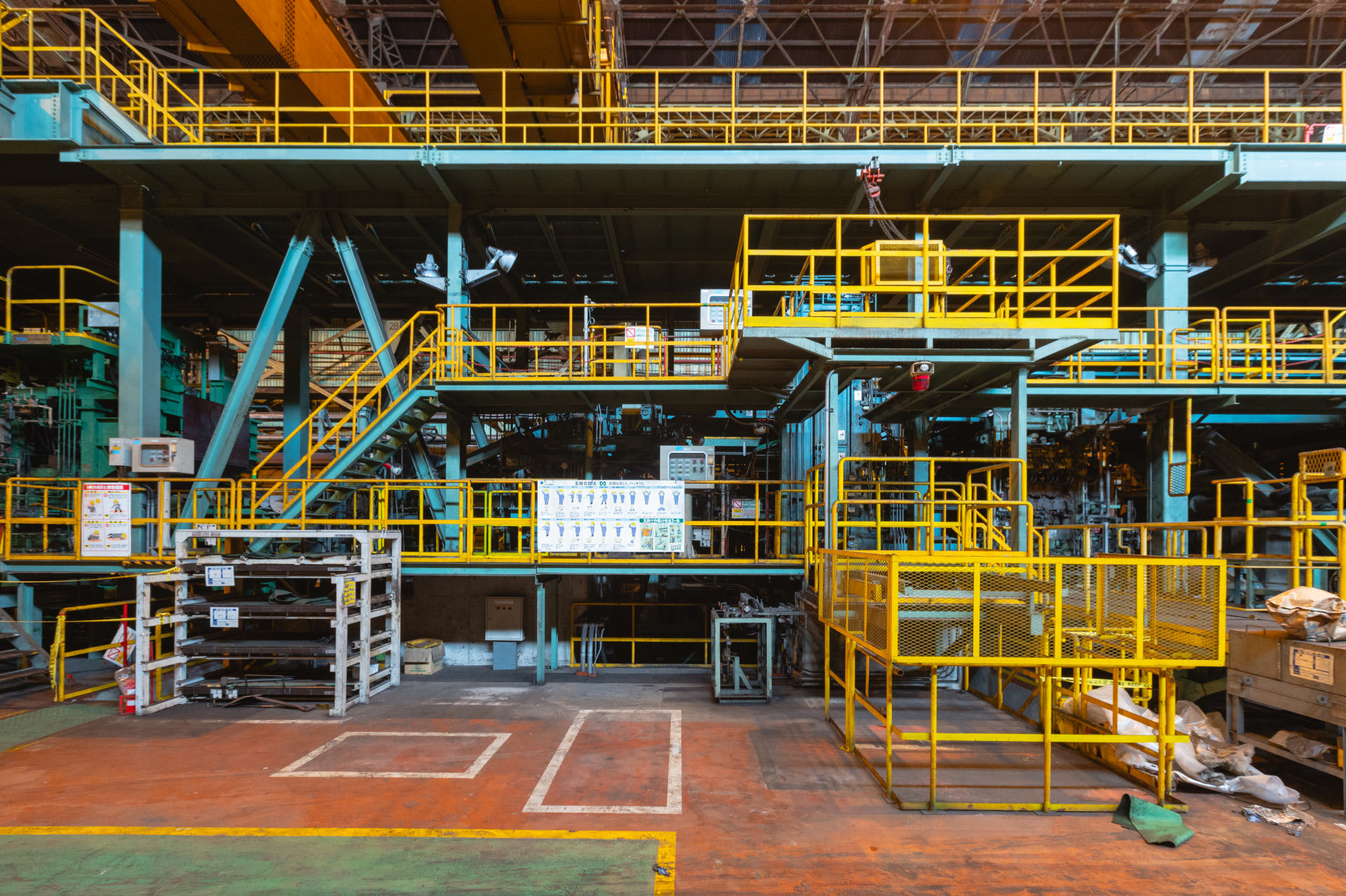

Originally commissioned in the 1980s, the Tandem Cold Mill at JFE Steel's Keihin plant undegone a significant modernization in 2007 to meet high standards. Upgraded with a state-of-the-art pickling line and carrousel tension reel, the 5-stand PLTCM integrates advanced technologies from industry leaders Mitsubishi, Hitachi, and IHI, enhancing the system’s reliability, productivity, and quality control.
Make: MITSUBISHI-HITACHI-IHI
Year of manufacture: 2007 (integrated to TCM from 1980s)
Mothballed since: Ceased production in March 2019
Production capacity: 1,200,000 tons per year
Rolling direction: Right to left (right hand line)
Processed material: Low carbon steel
Strip width: 600 – 1,350 mm
Strip thickness: 1.8 – 4.5 mm entry
0.12 – 1.6 mm exit
Coil weight: max. 32,000 kg entry
max. 45,000 kg exit
Line speed: 250 mpm PL section
350 mpm TCM entry
2,100 mpm TCM exit
Pay off reels no. 1 & 2: Overhang 4 segment type
Leveller: 6- rolls electric adjustable type
Double cutting shear: Hydraulic actuated double cut type
Welder: 1.8 – 4.5 mm plate thickness
600 – 1,350 mm plate width
Tension leveller: Non-drive type, wet leveler

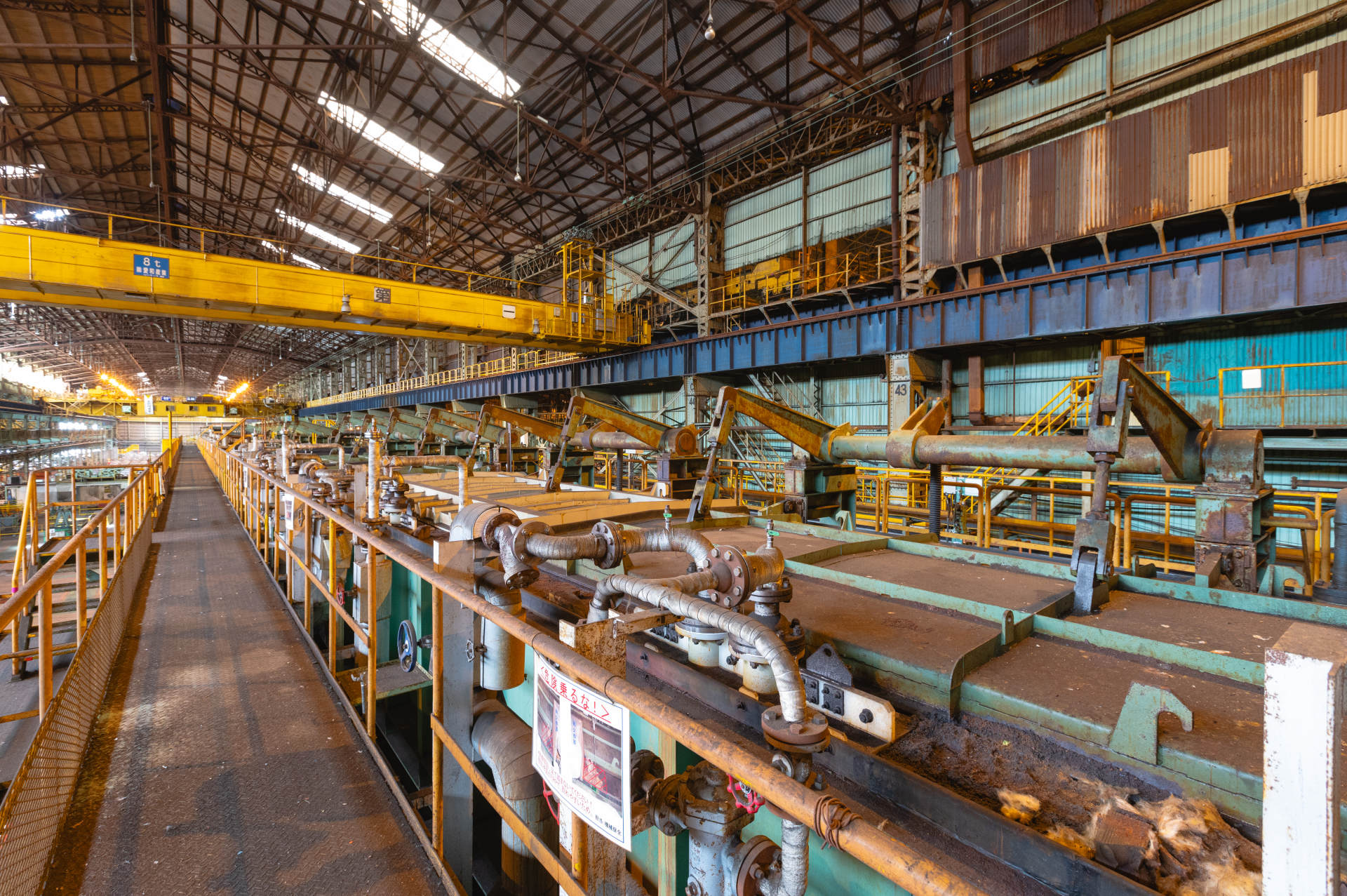

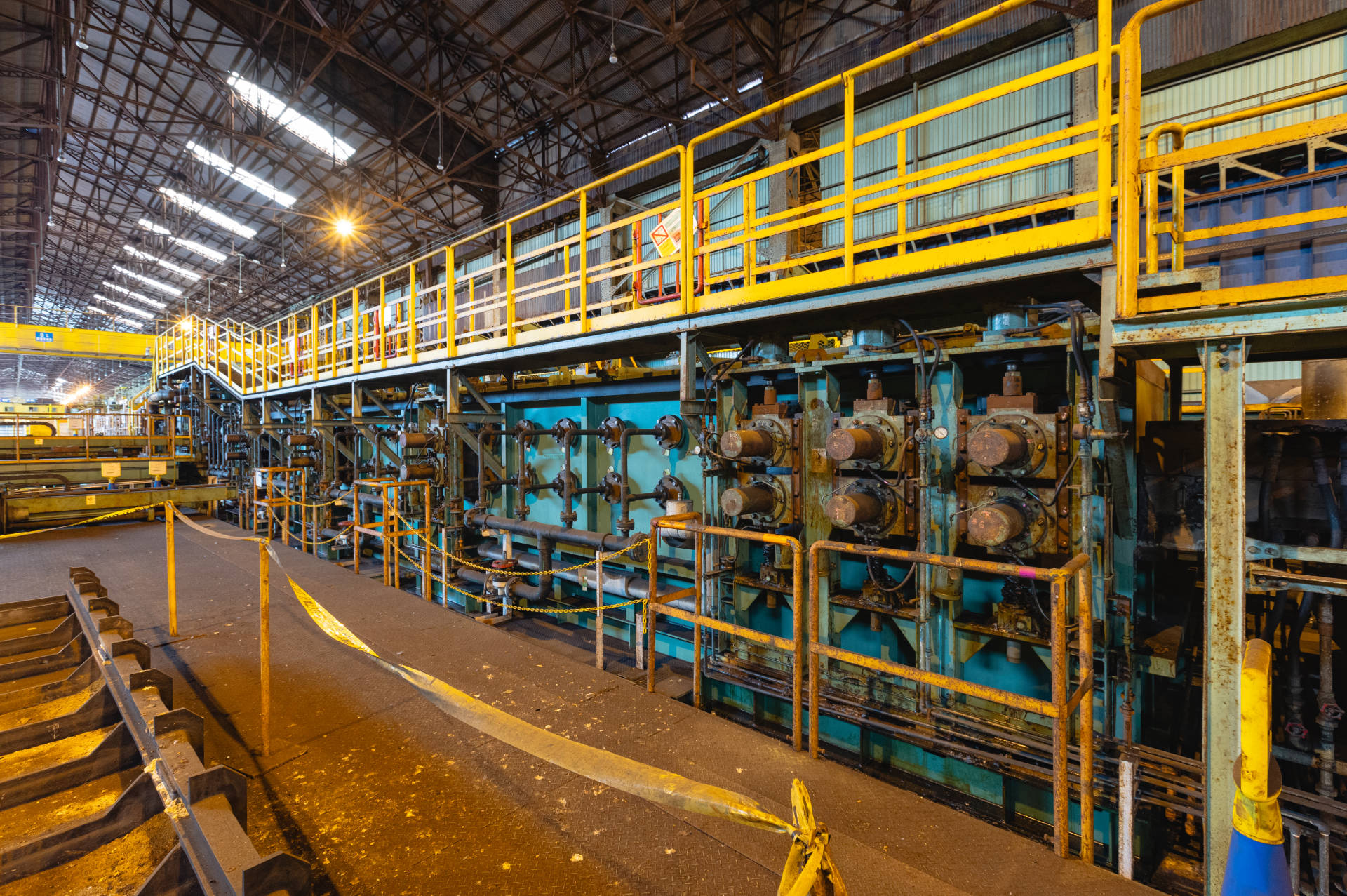

Pickling line tanks: 86,500 mm acid tank total length
17,850 mm cleaning tank total length

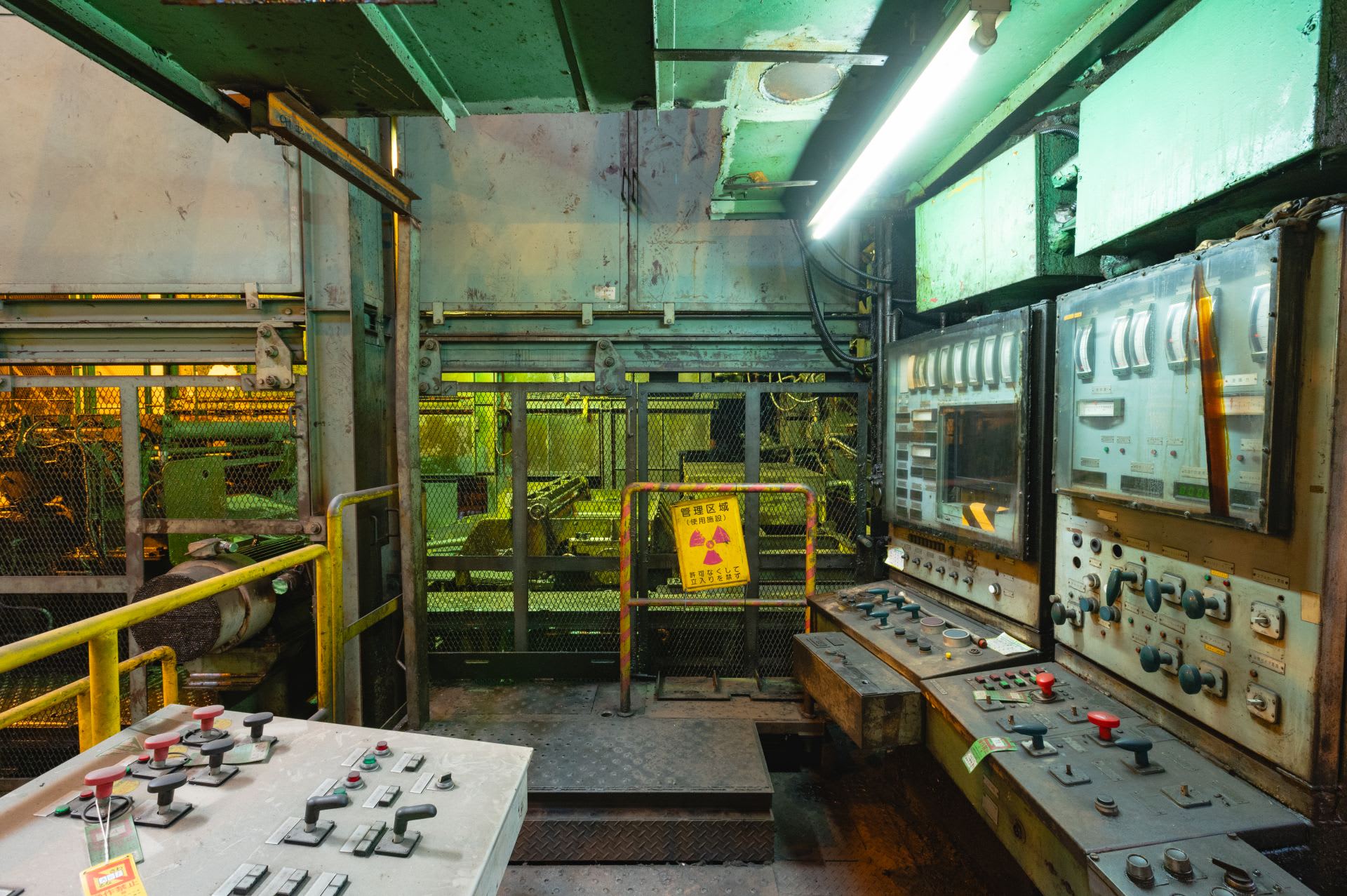

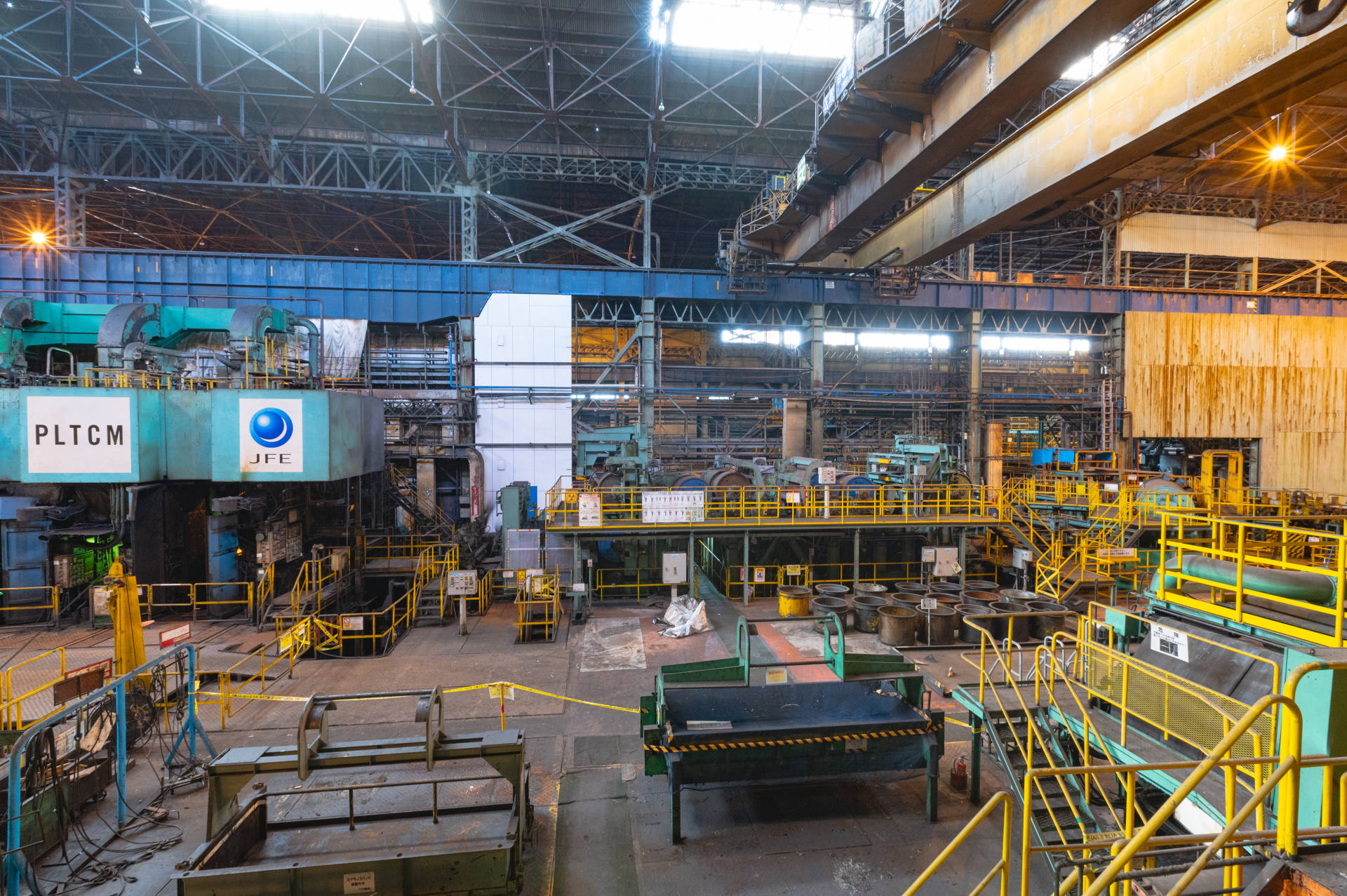

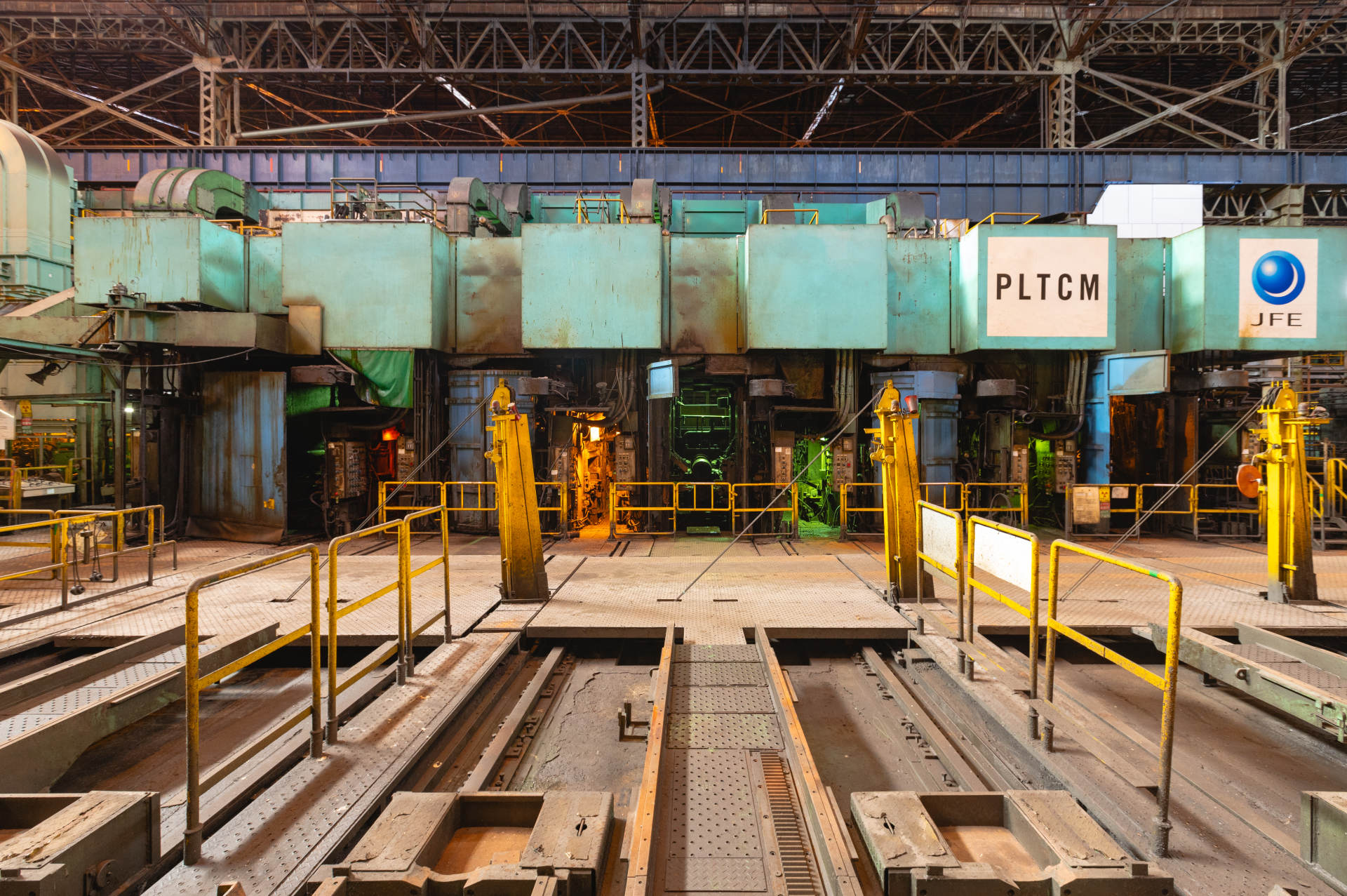

Tandem cold mill: Non-reversible type
Stands #1-4 4-Hi
Stands #5 6-Hi High Crown Mill
Rotary shear: 2,100 mpm max. winding speed with scrap drum
Tension Reel: Carrousel type
Other line equipment: Pinch rolls
Coil cars
Loopers
Bridle, steering, deflector rolls’ sets
Hydraulic units
Pump units
***A more detailed description of the line and scope list is available on demand.
