Lot No. 2010

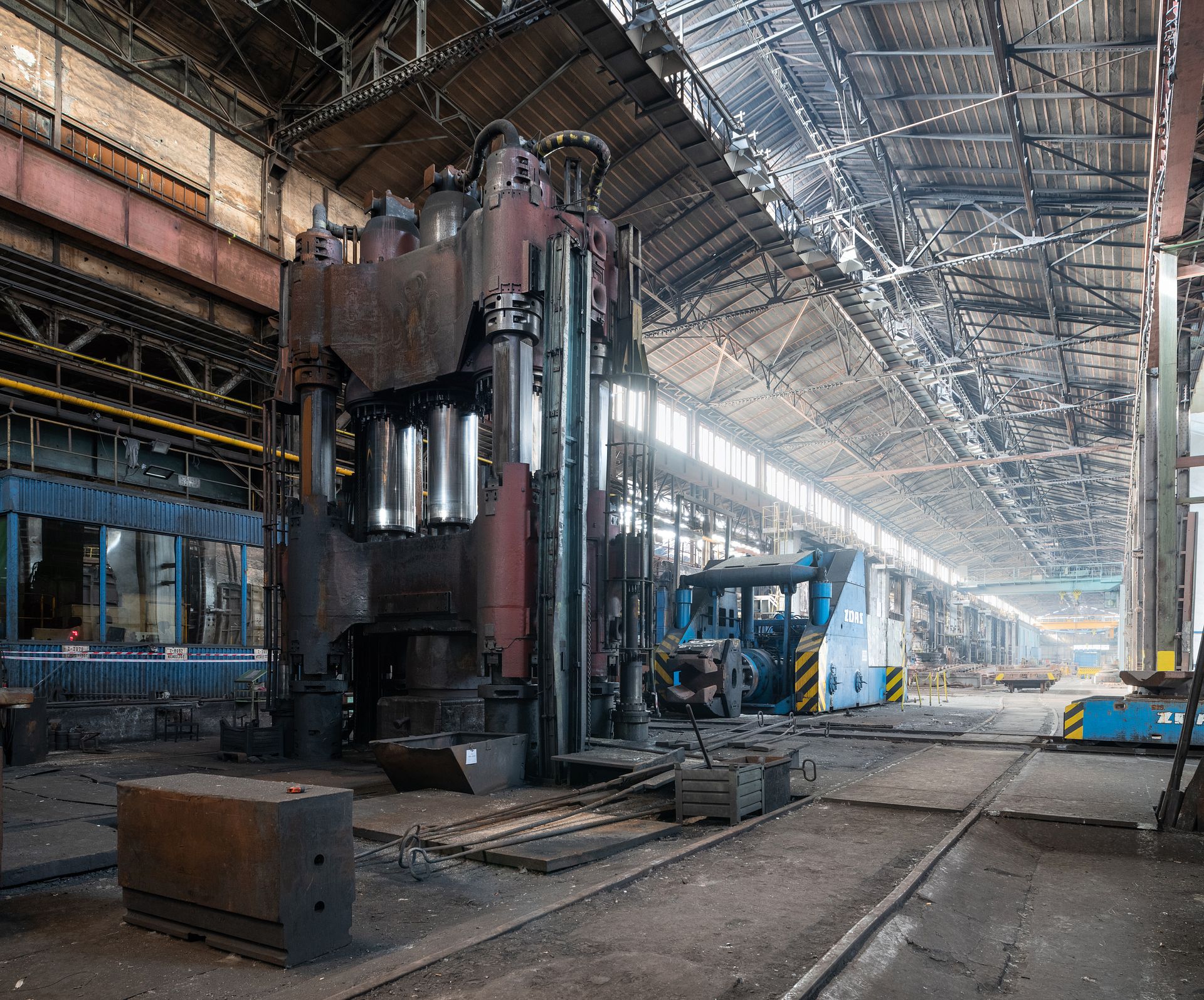

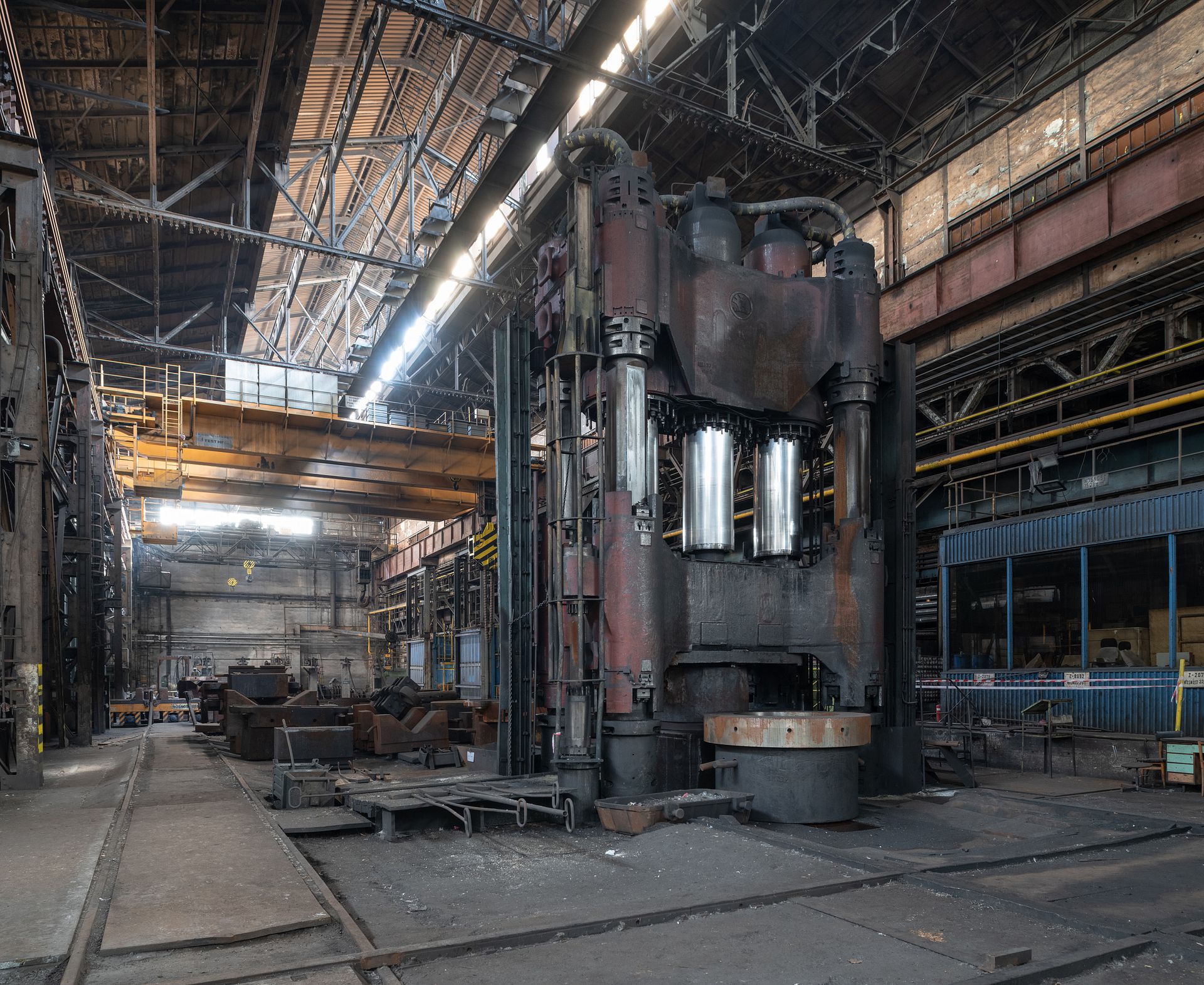

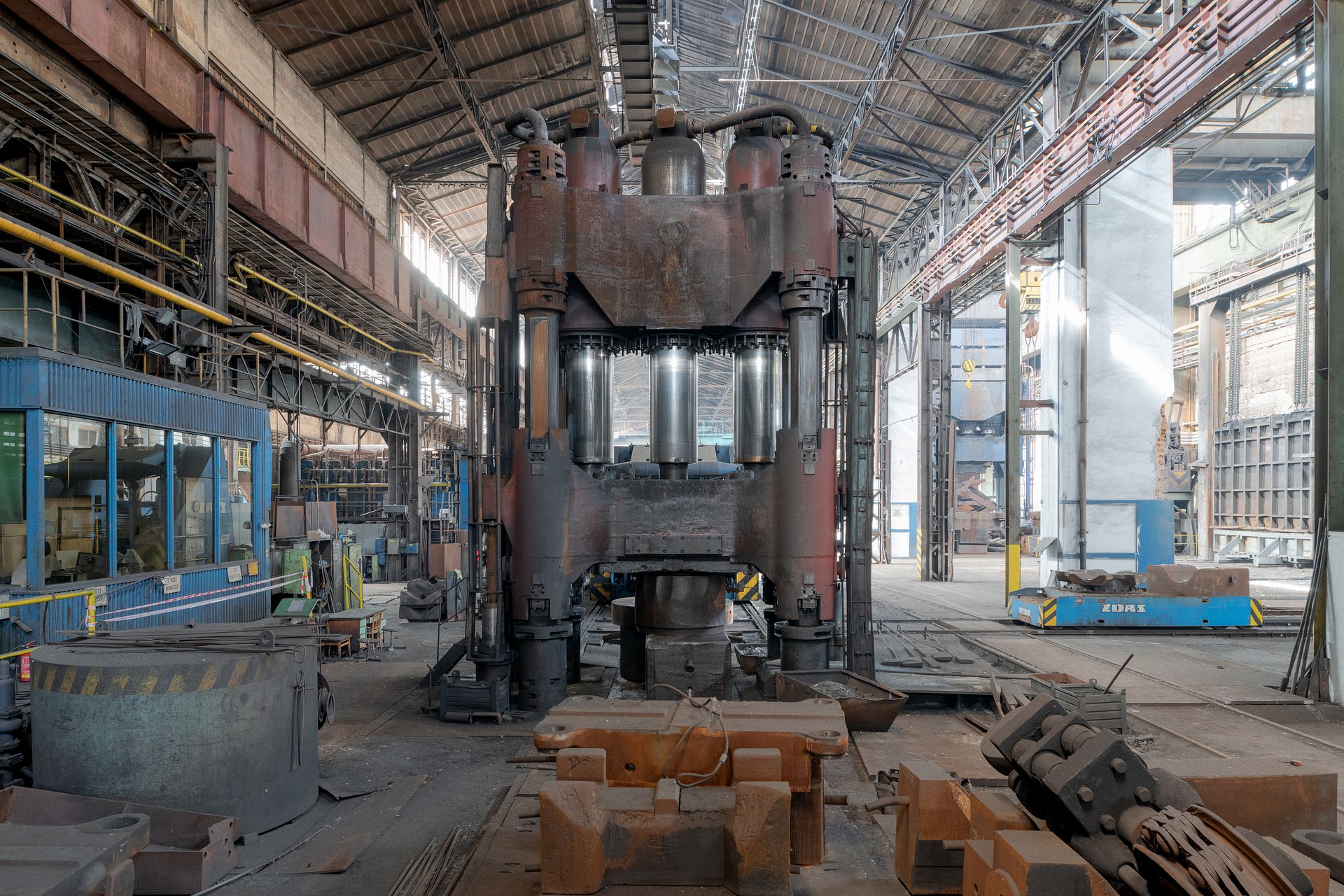

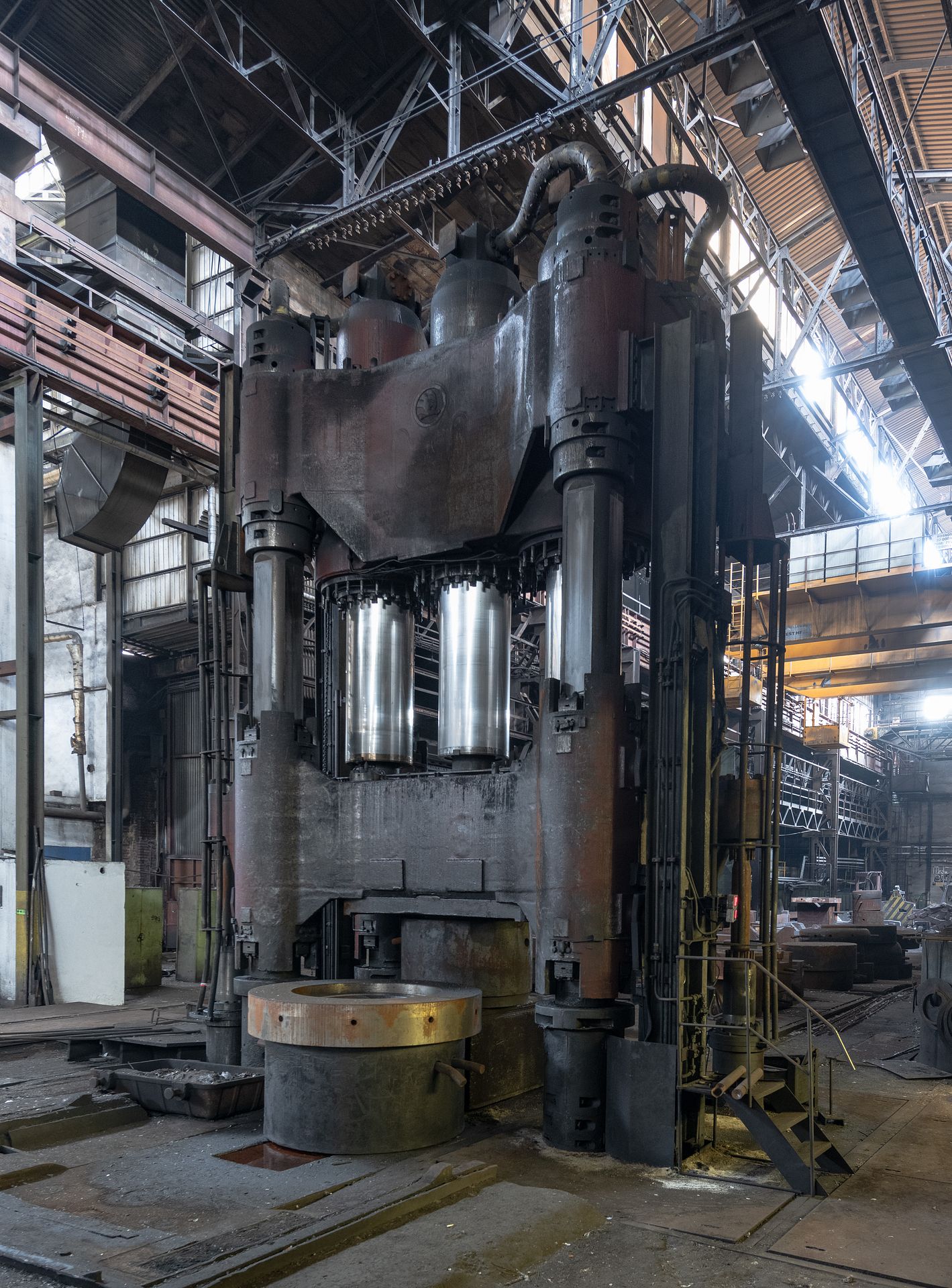

Skoda 3.000 Ton Open Die Hydraulic Forging Press

Make: Skoda
Year: 1987

Rear Refit: 2006

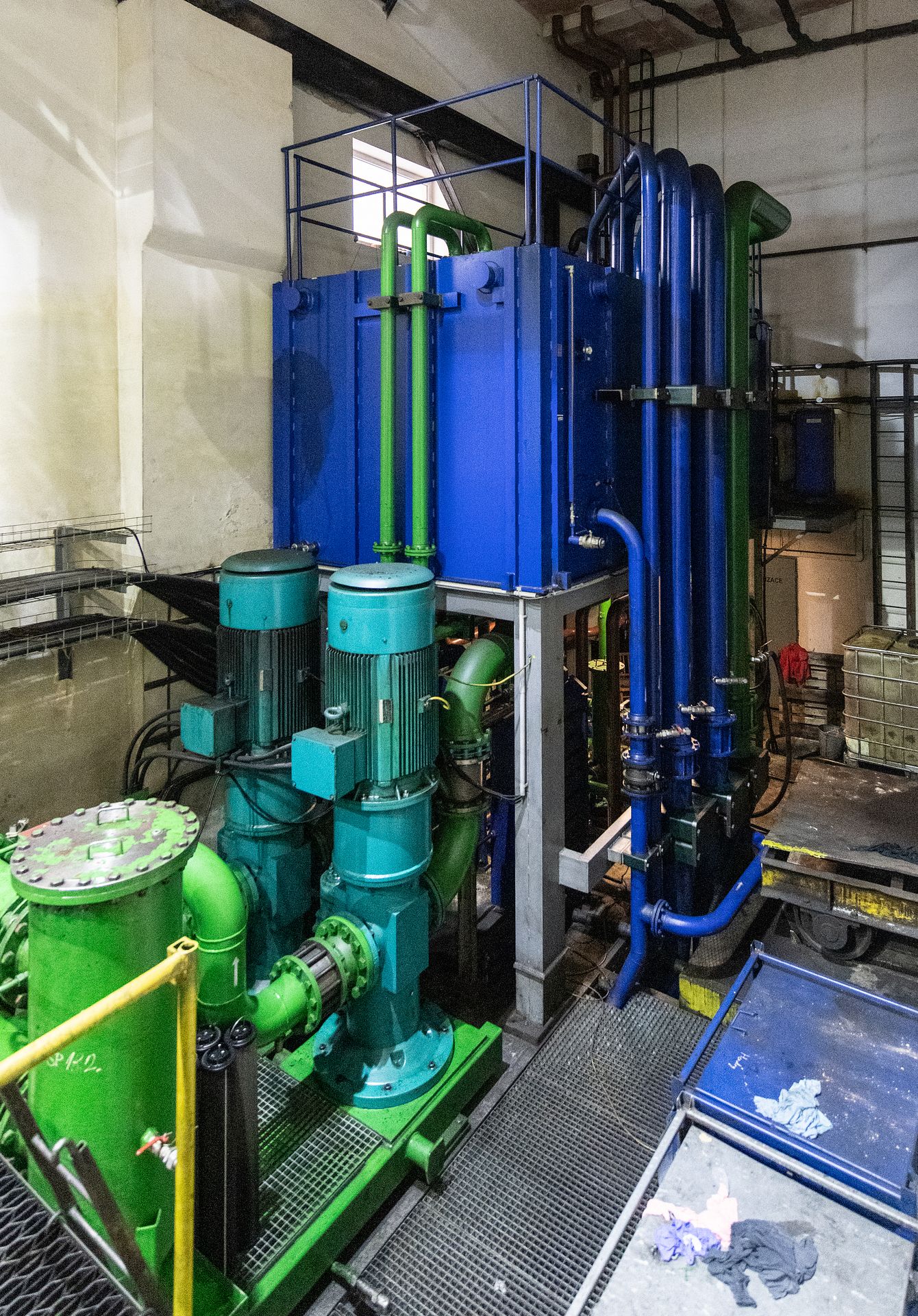

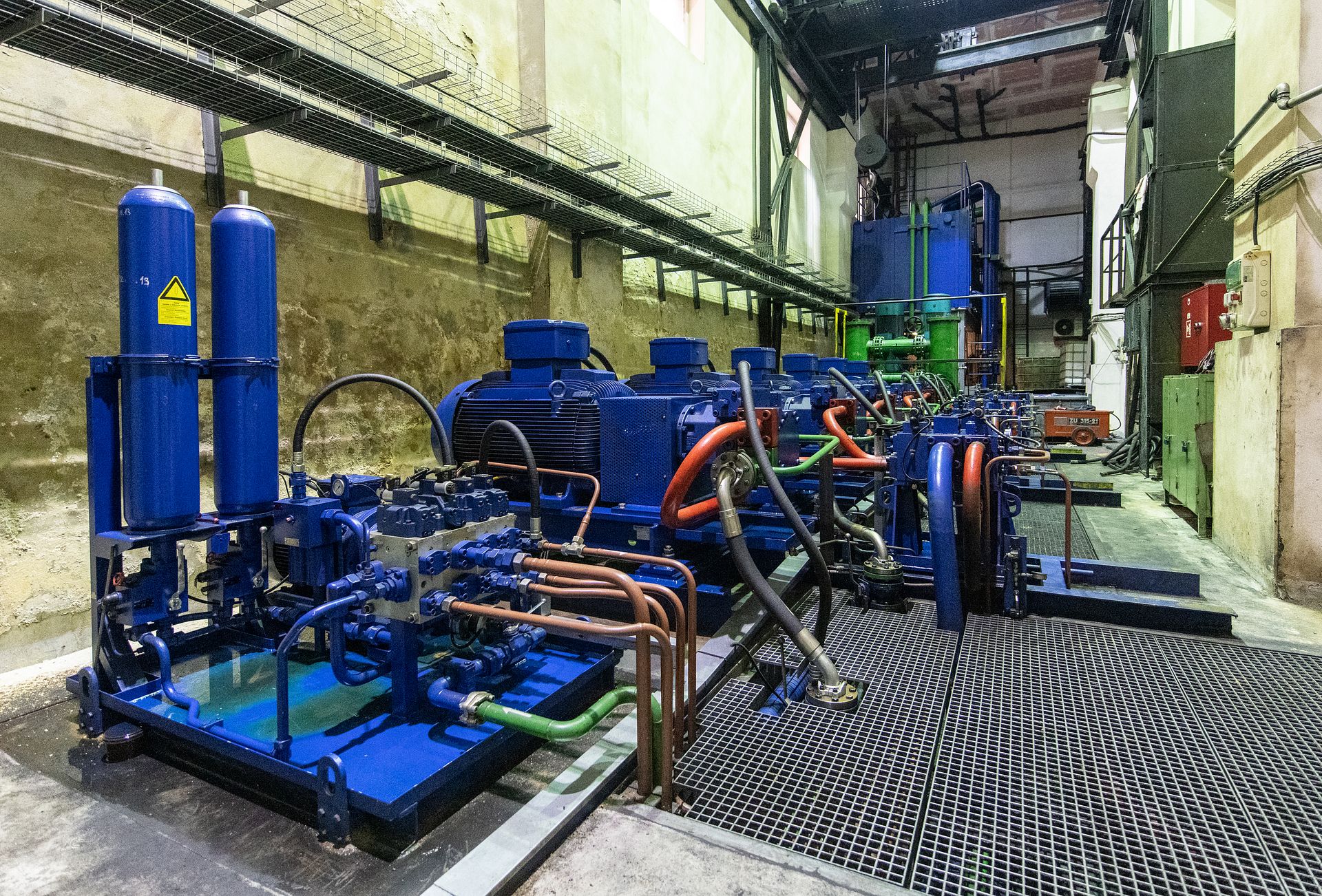

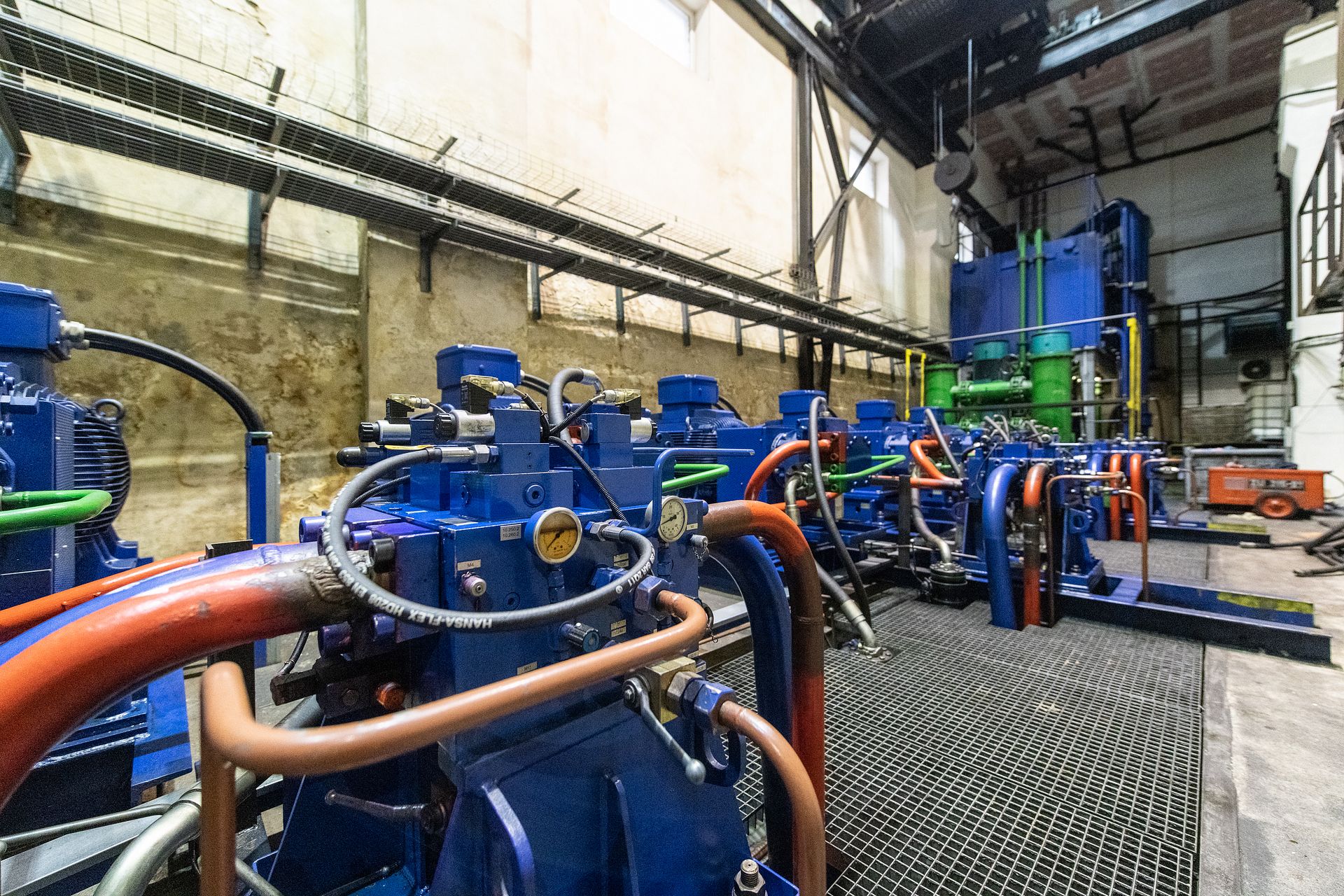

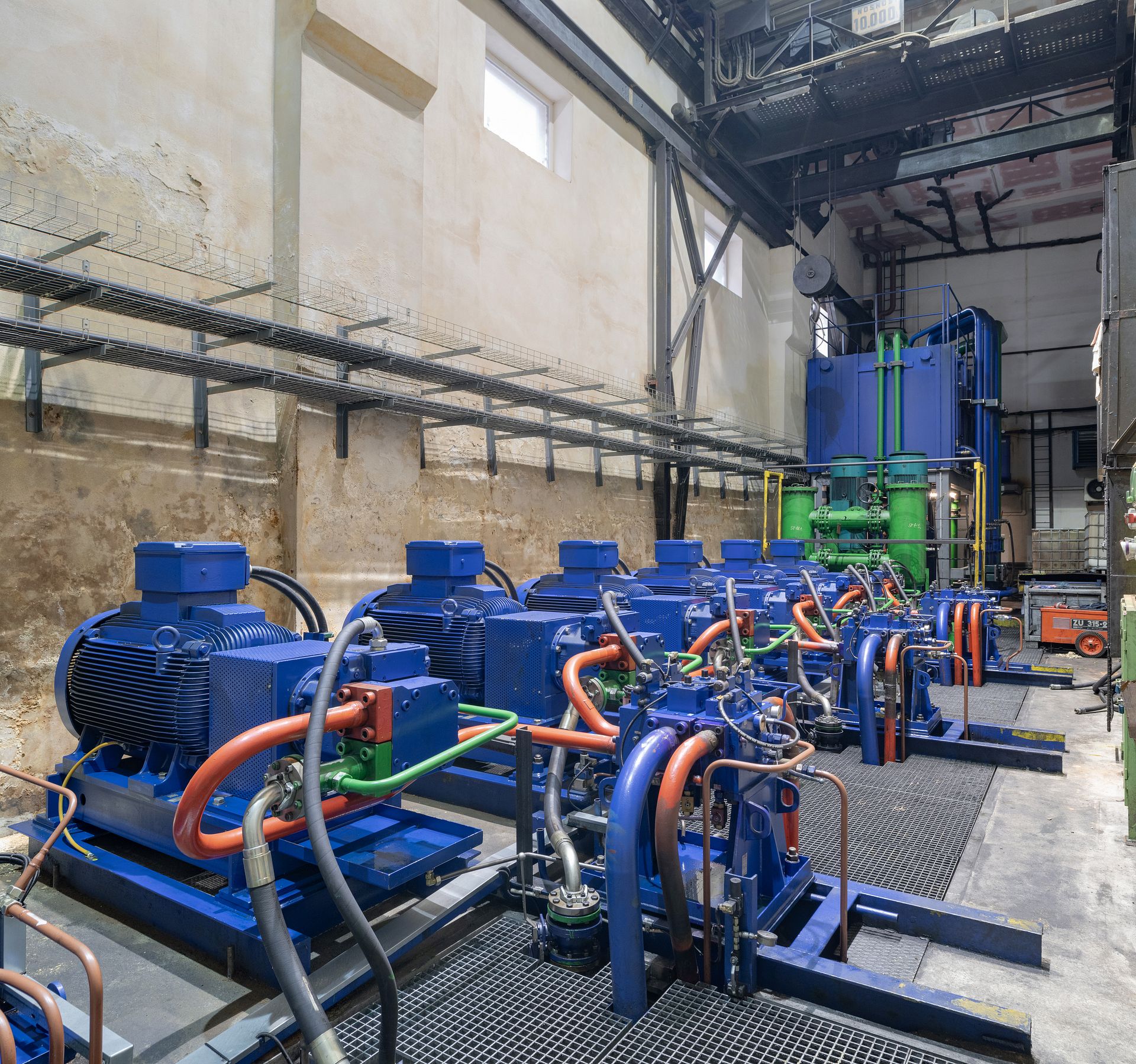

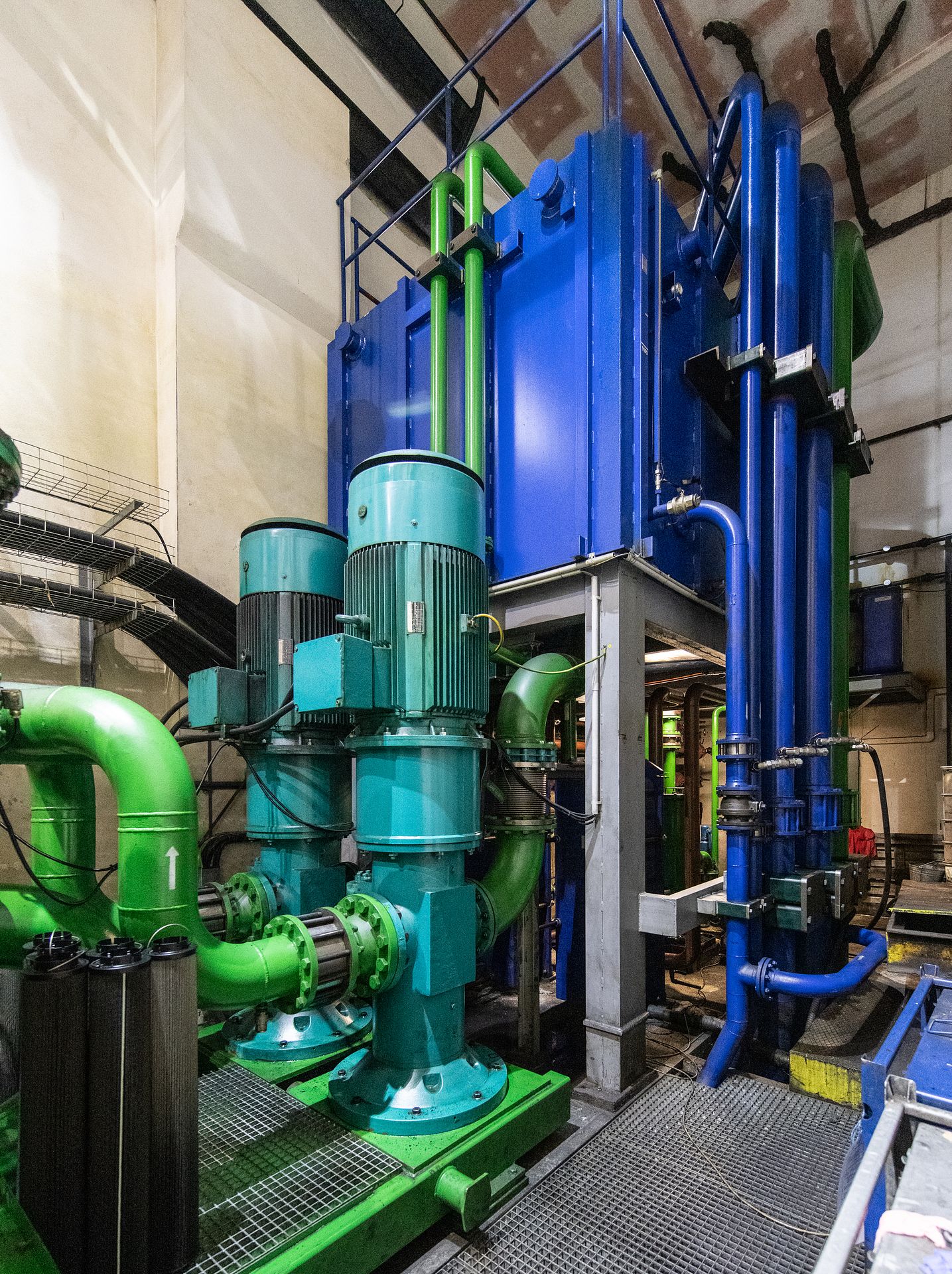

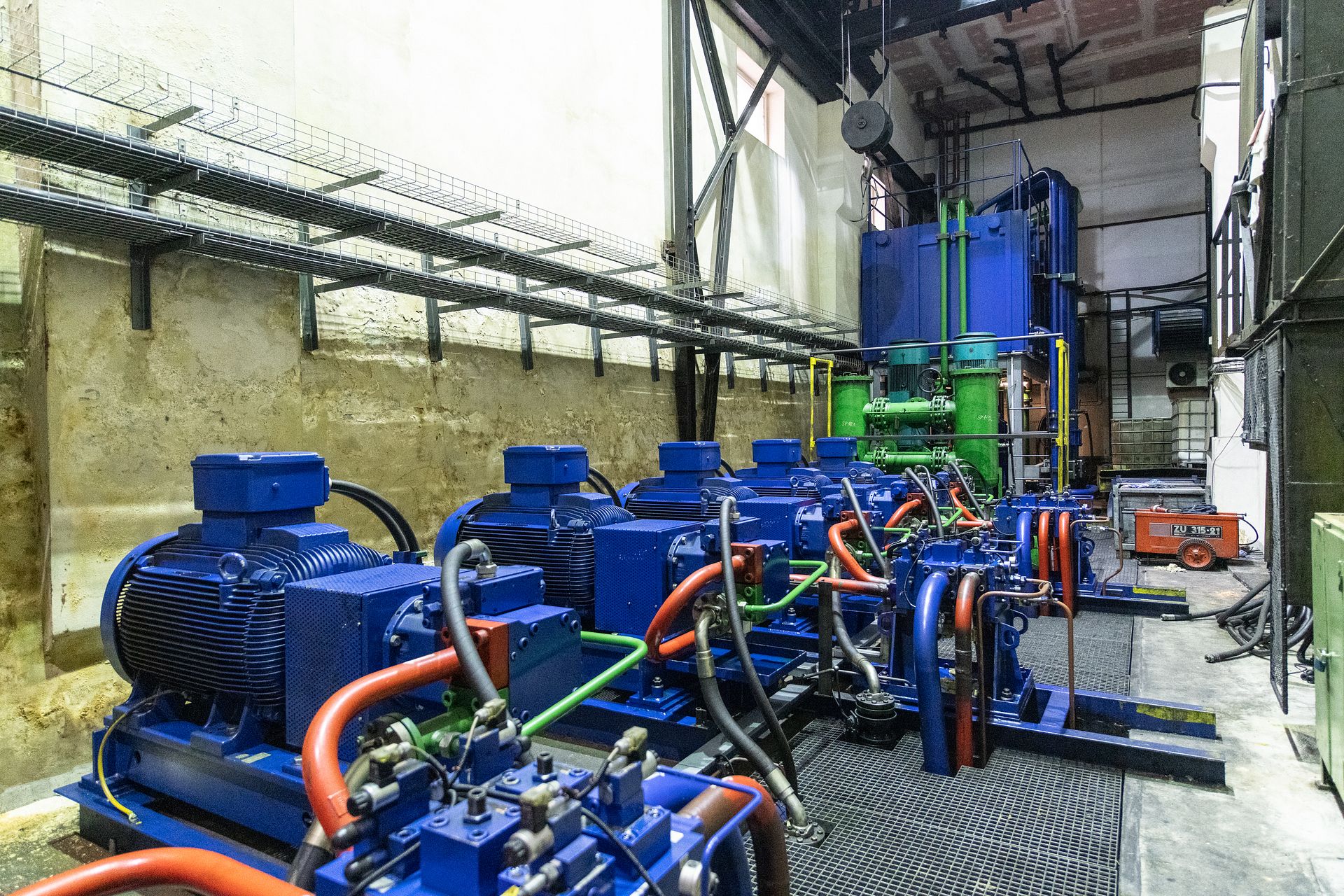

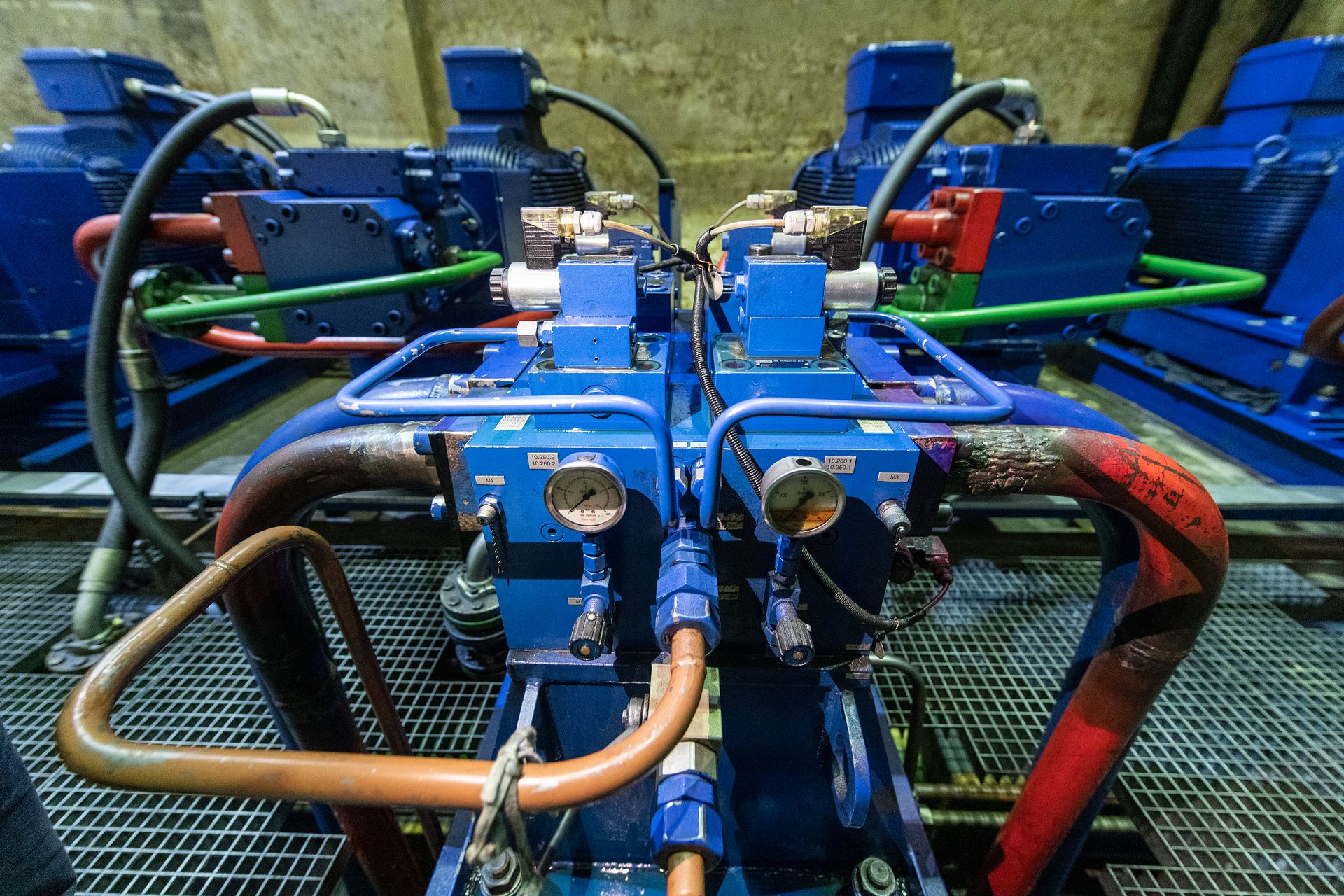

Hydraulics: Oil Hydraulics

Max. Power 33 Mn

Nominal Power: 11/22/33 Mn

Min./Max. Ingot Weight: 3/40 Ton

Max. Forging Dimensions L x D: 13.000 x 2.450 mm

Max. working pressure of oil: 20-25 Mpa

Nominal working pressure: 15 Mpa

Oil temperature: 50 degr.Max. Stroke: 1.800 mm

Daylight: 3.800 mm

Table length: Table width:Speed (stage 1): 150 mm/sec. Speed (stage 2): 75 mm/sec. Speed (stage 3): 50 mm/sec. Speed Travel: 300 mm/sec.

Lifting time, inching : 15-25 mm 80 mm/min

Air Pressure Supply: 500Nm³ -0,6 Mpa

Oil Tank Volume: 30 M³Installed Power: 2.470 kW

Height of Press above base: 8.945 mm under base 3.880 mm

Weight of the Press: 611 Ton

With: Selection of Forging Dies

***COMBINATION LOTS: together with 2011
