SINHO BLASTING & PAINTING SYSTEM FOR PIPING
BLASTING SHOP

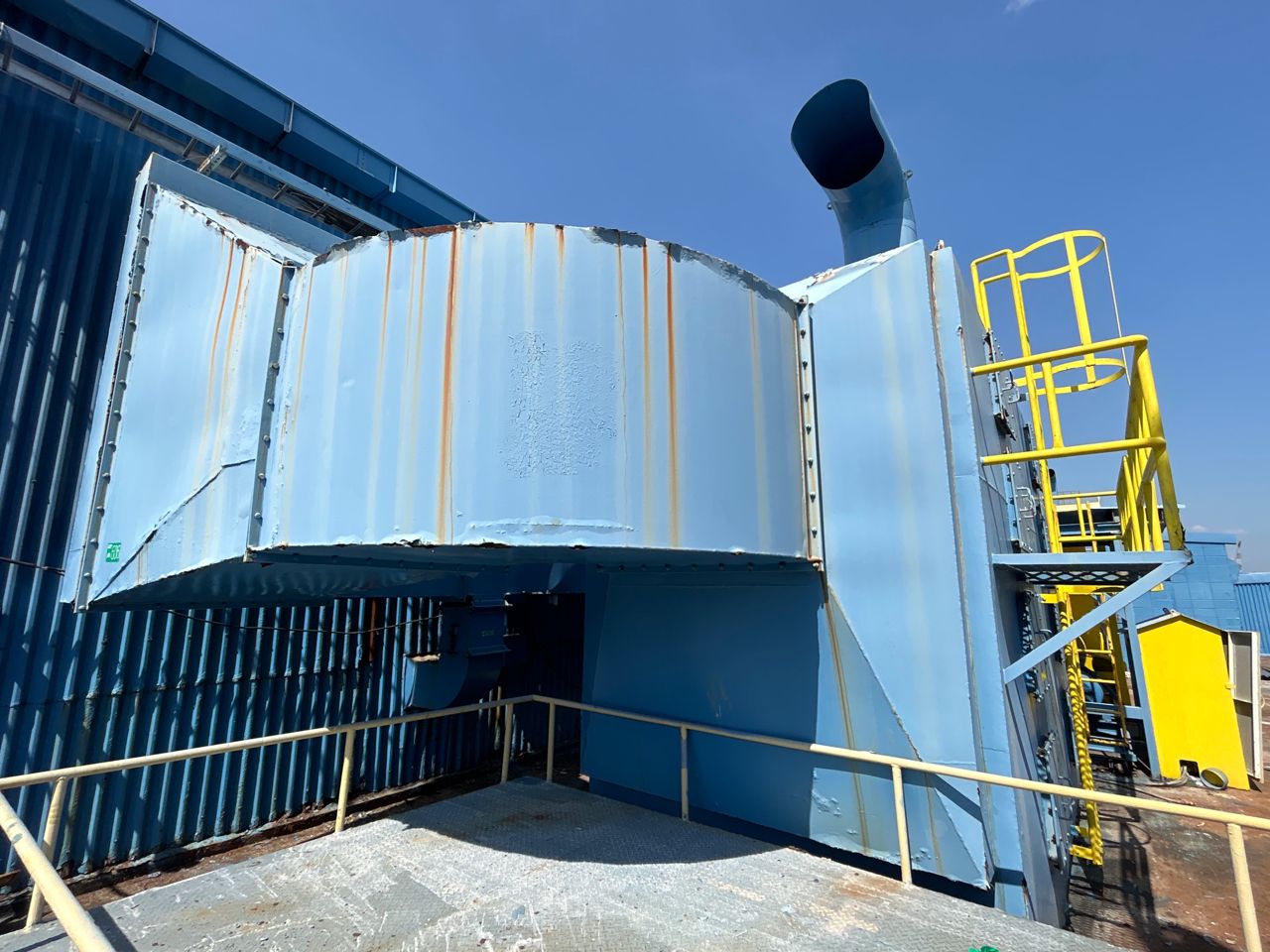

Ventilation System

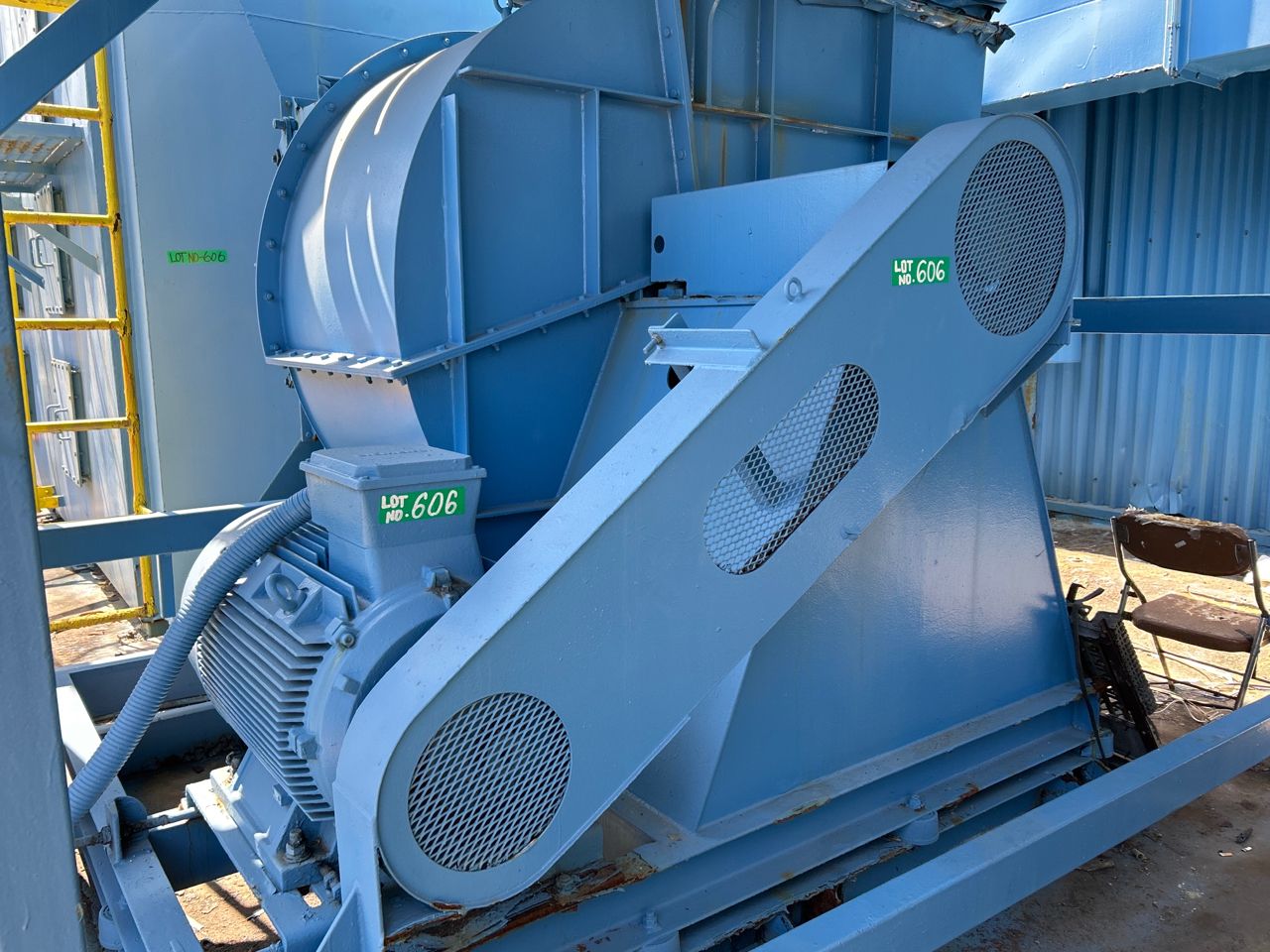

- Fan and blower Approx. 40hp – 1 Unit
- Exhaust pipe for 40hp fan- 1 unit

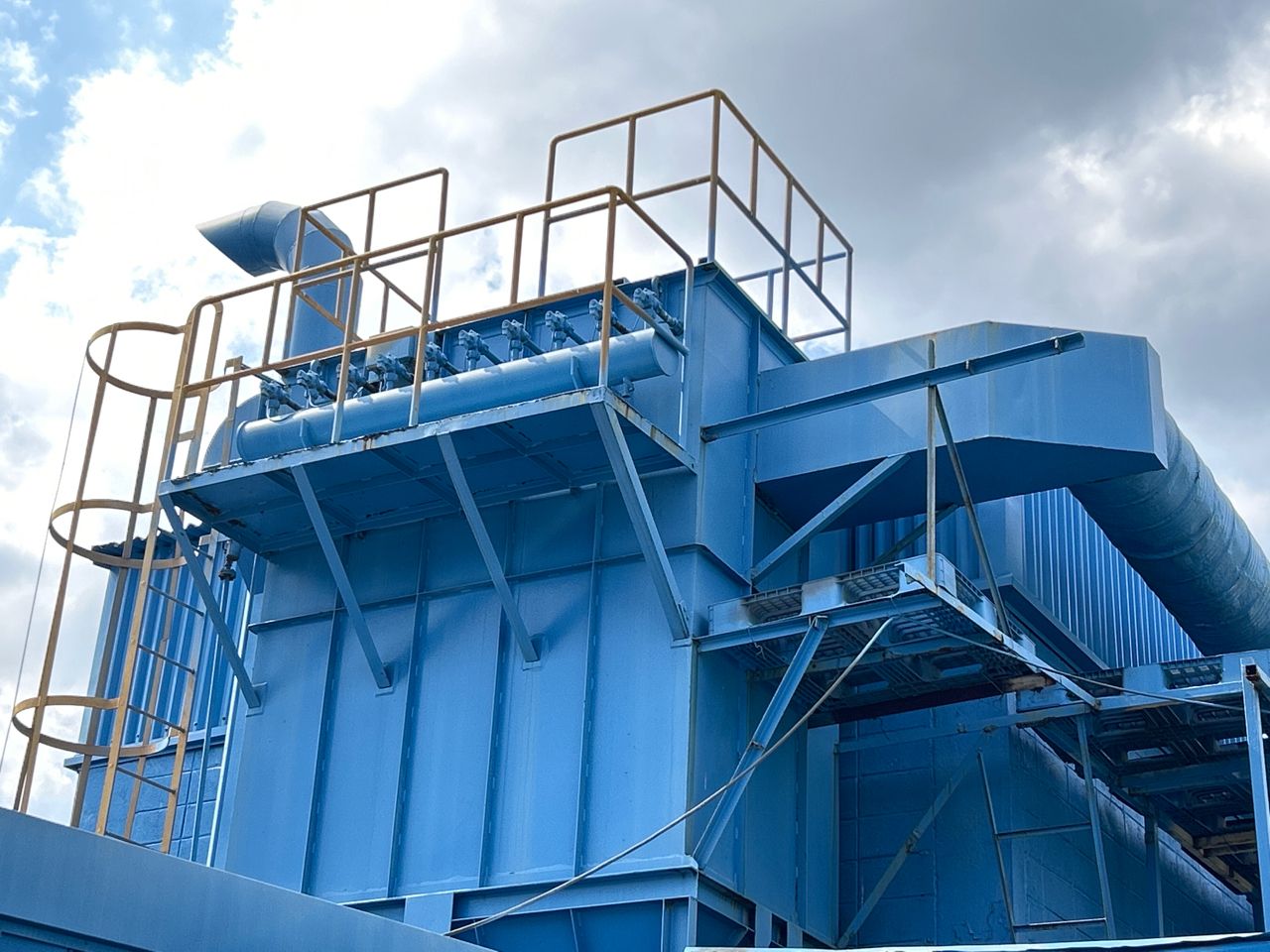

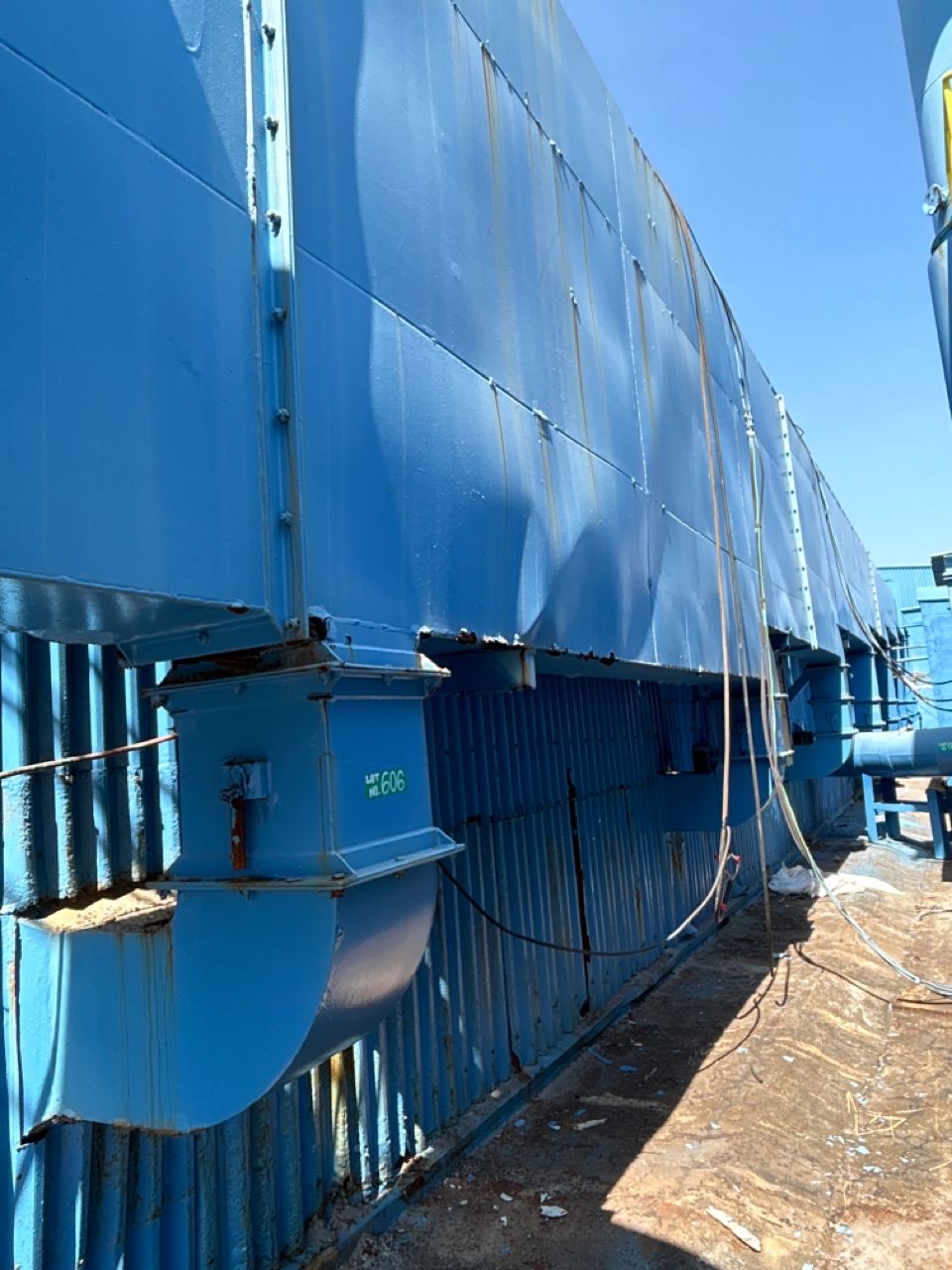

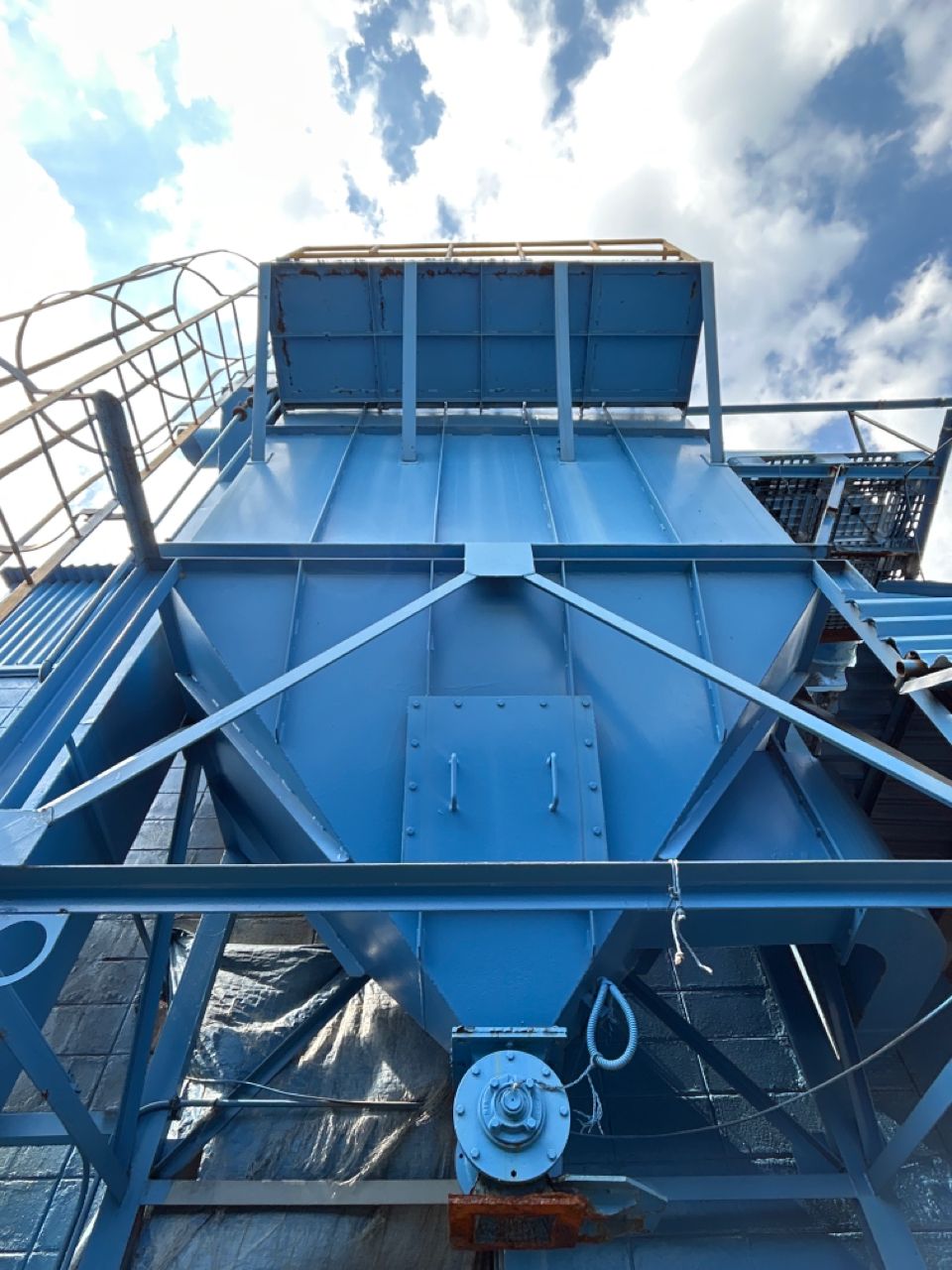

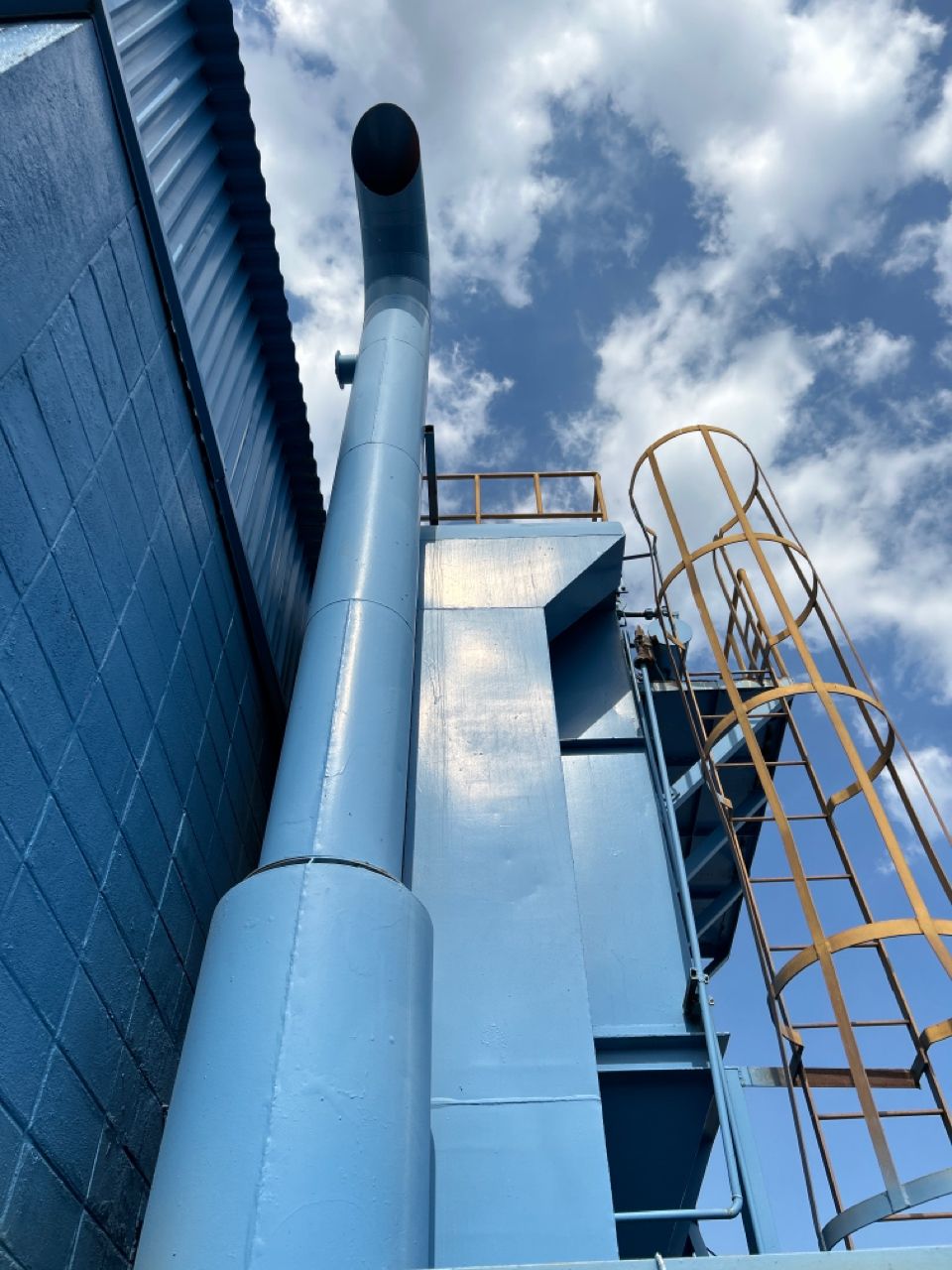

- Dust Collector – 1 unit
- Ventilation ducts
Sand Blasting System

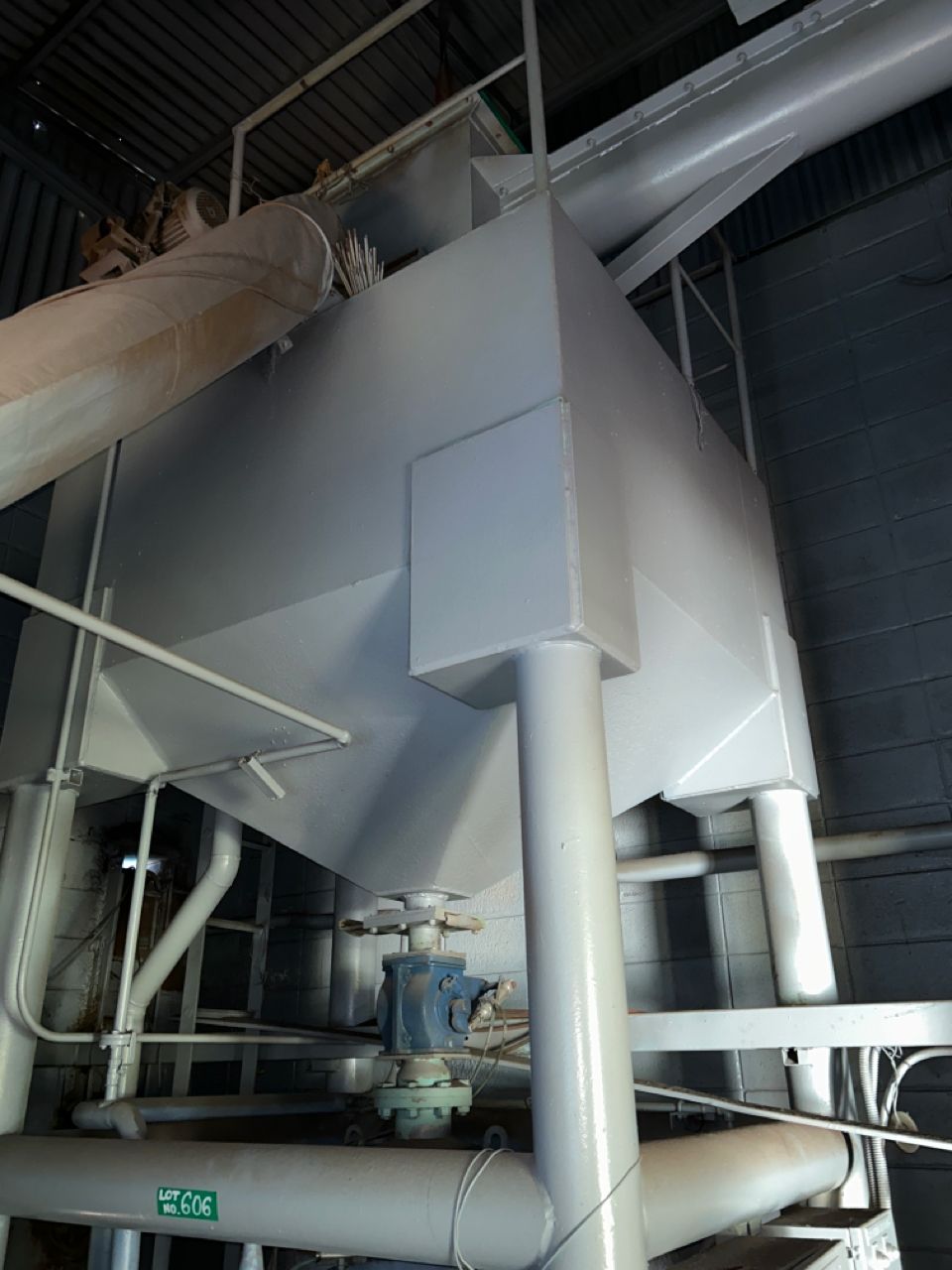

- Chute – 1
- Bucket Elevator – 1

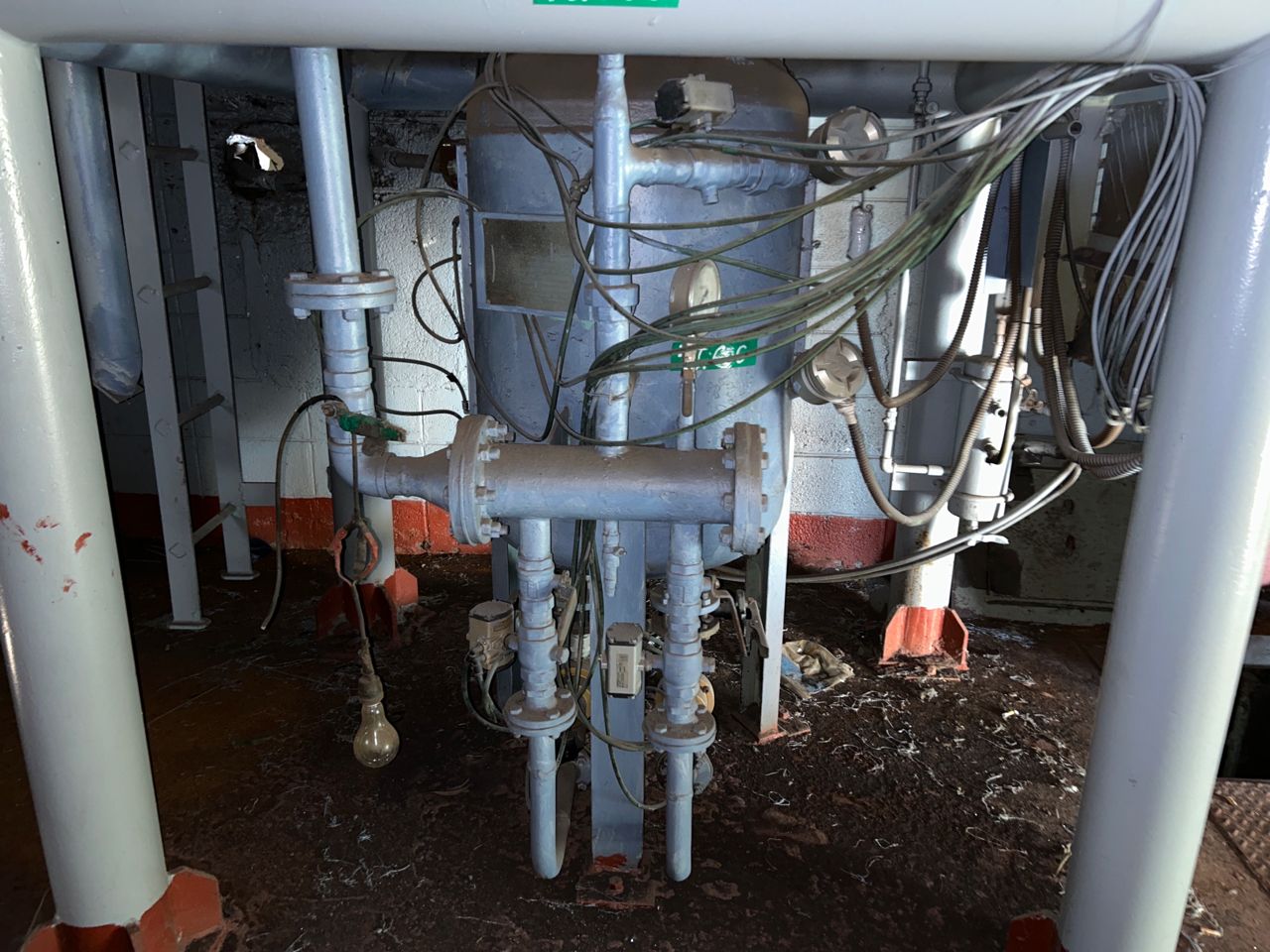

- Blasting system – 1 set – 1 tanks/set – 2 nozzles/tank
- Air ducts

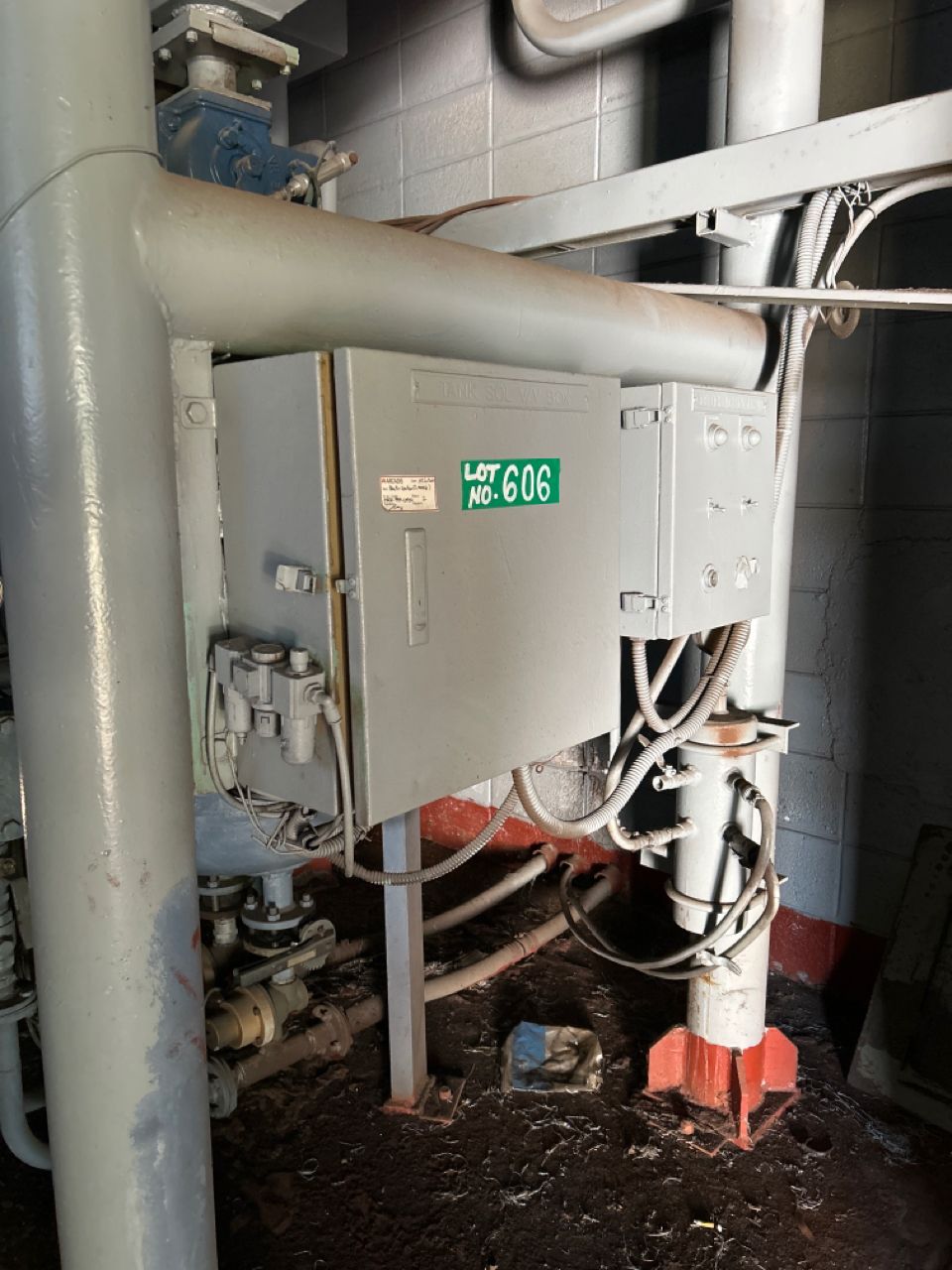

- Control panel

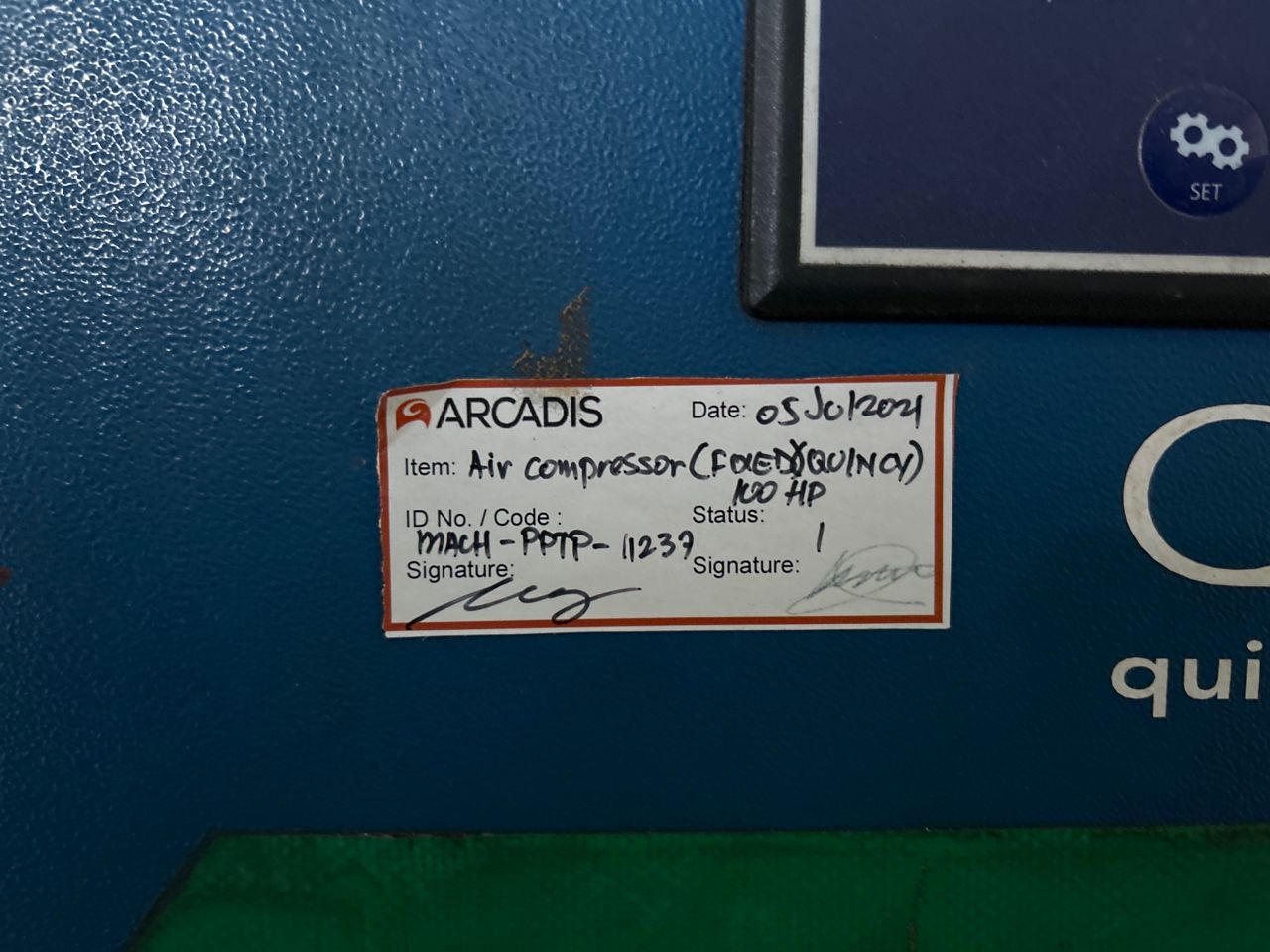

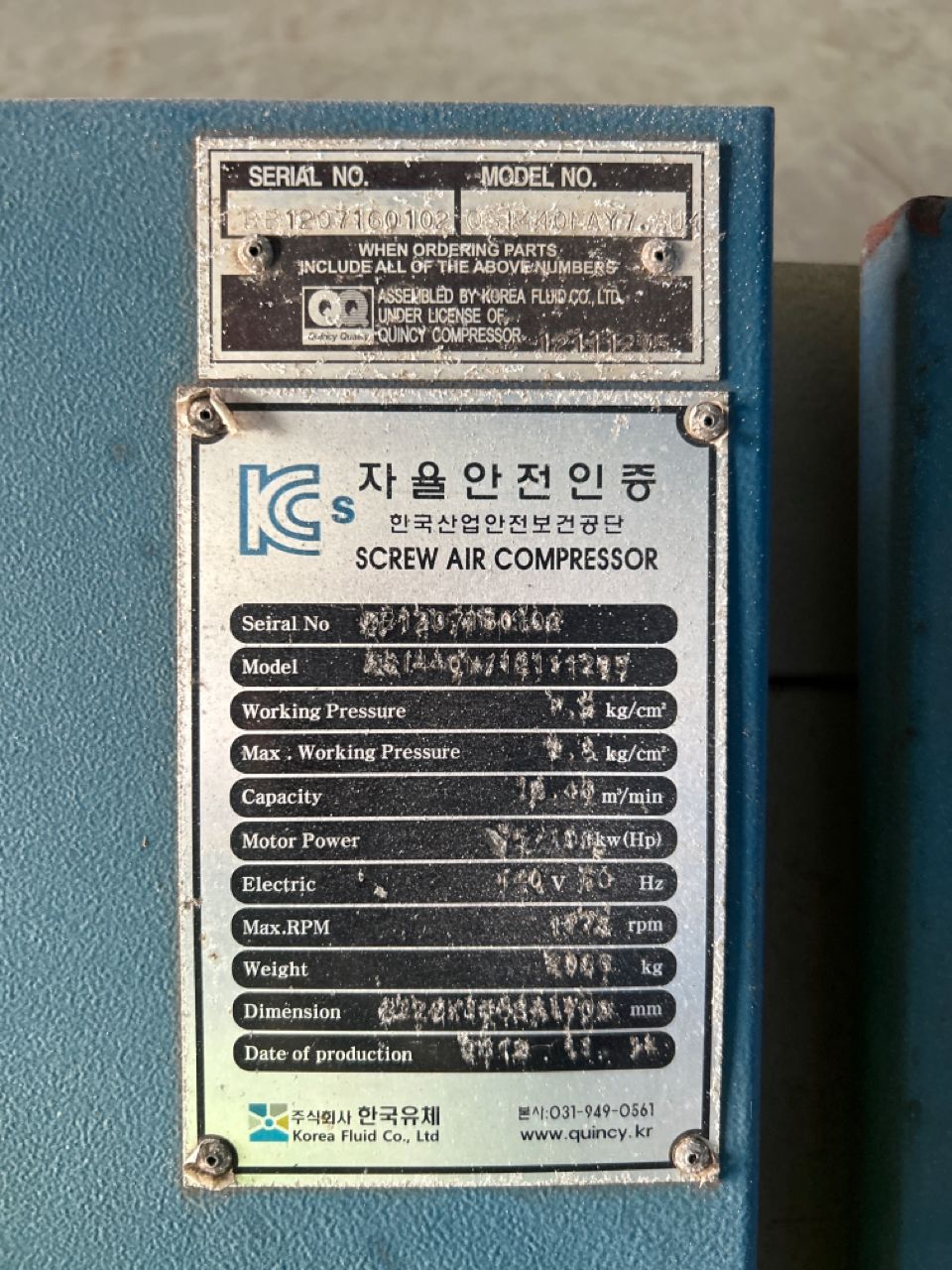

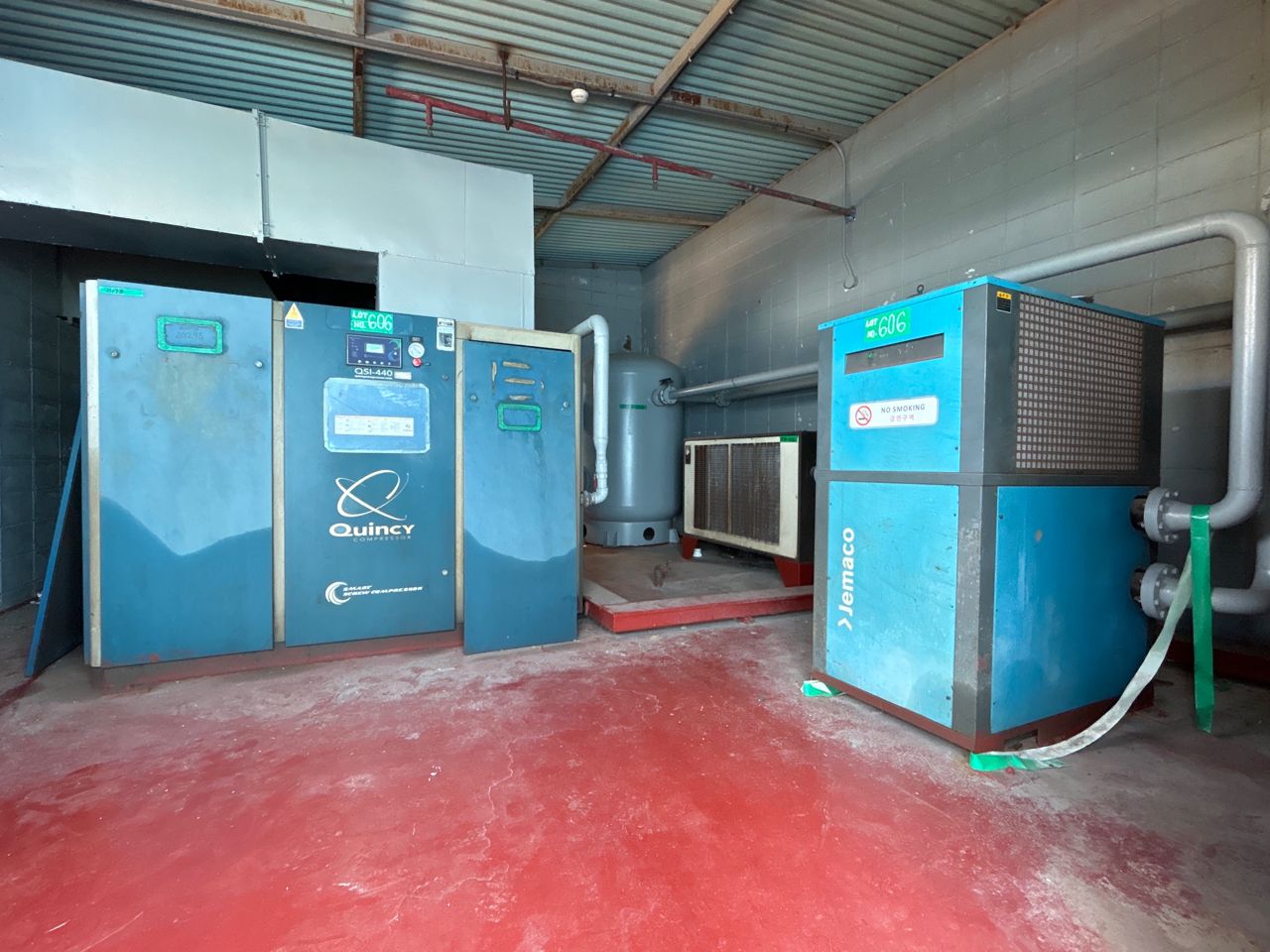

- Compressor room 1
- Compressor 1
- Maker: Quincy Compressor Co./Korea Fluid Co. Ltd.

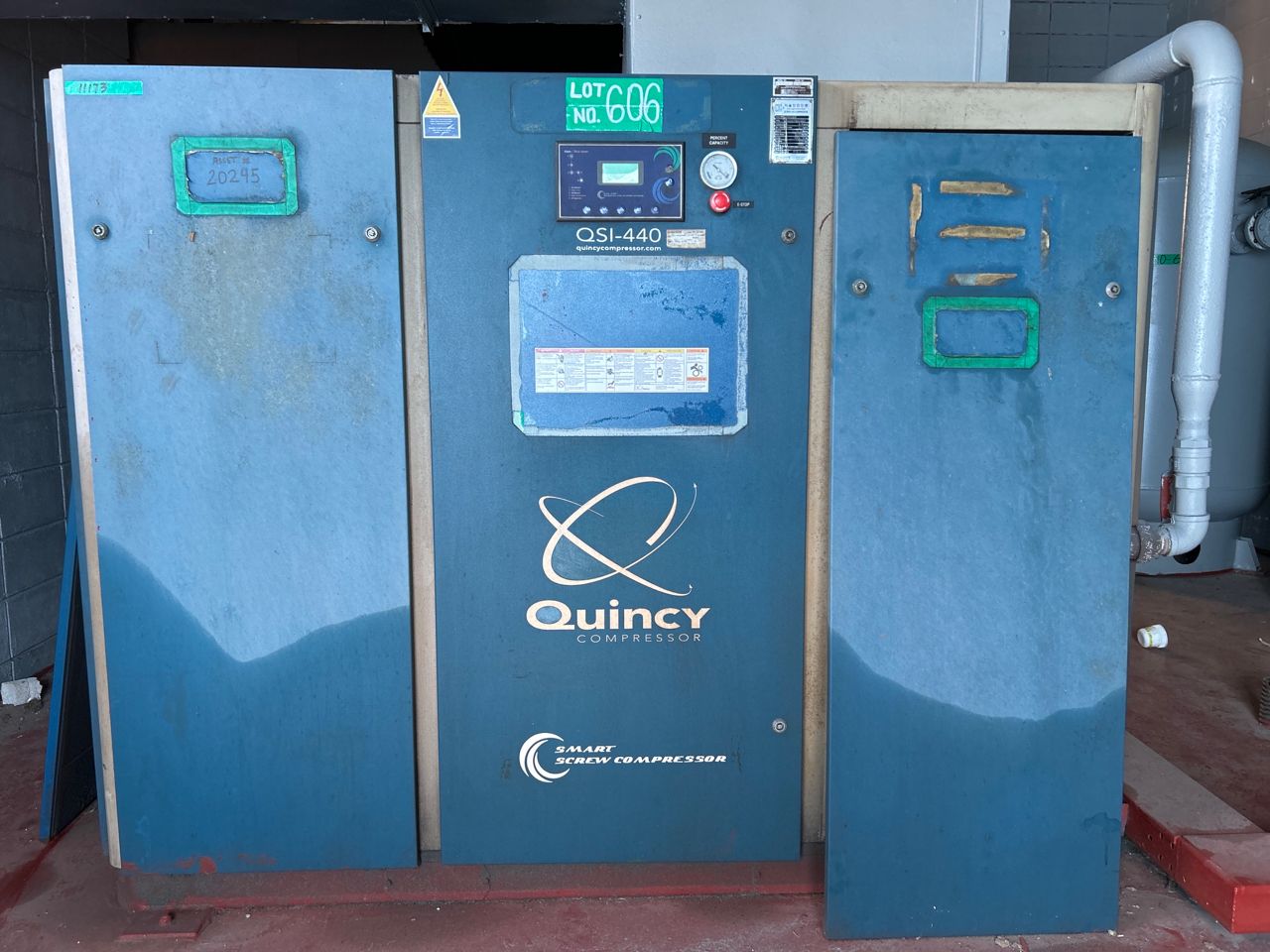

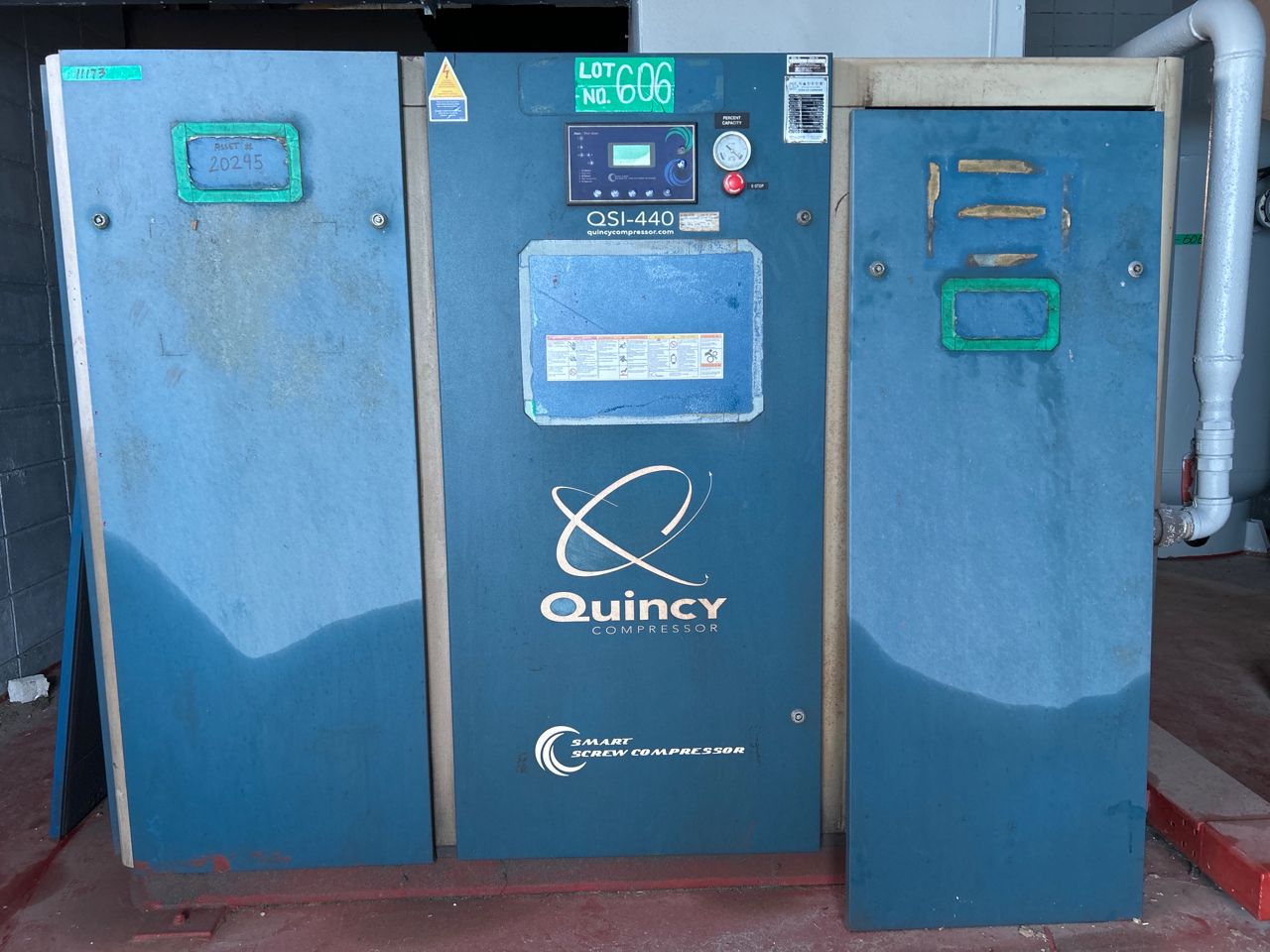

- Model: QSI-440
- Working pressure: 7.8Kg/sq.cm
- Max pressure: 8.8Kg/sq.cm
- Motor Power: 100HP
- Electric: 440V*60Hz
- Max RPM: 1775rpm
- Weight: 2000Kg
- Dimension: 2228*1468*1700mm
- Date of Production: 2012
- Compressor 1

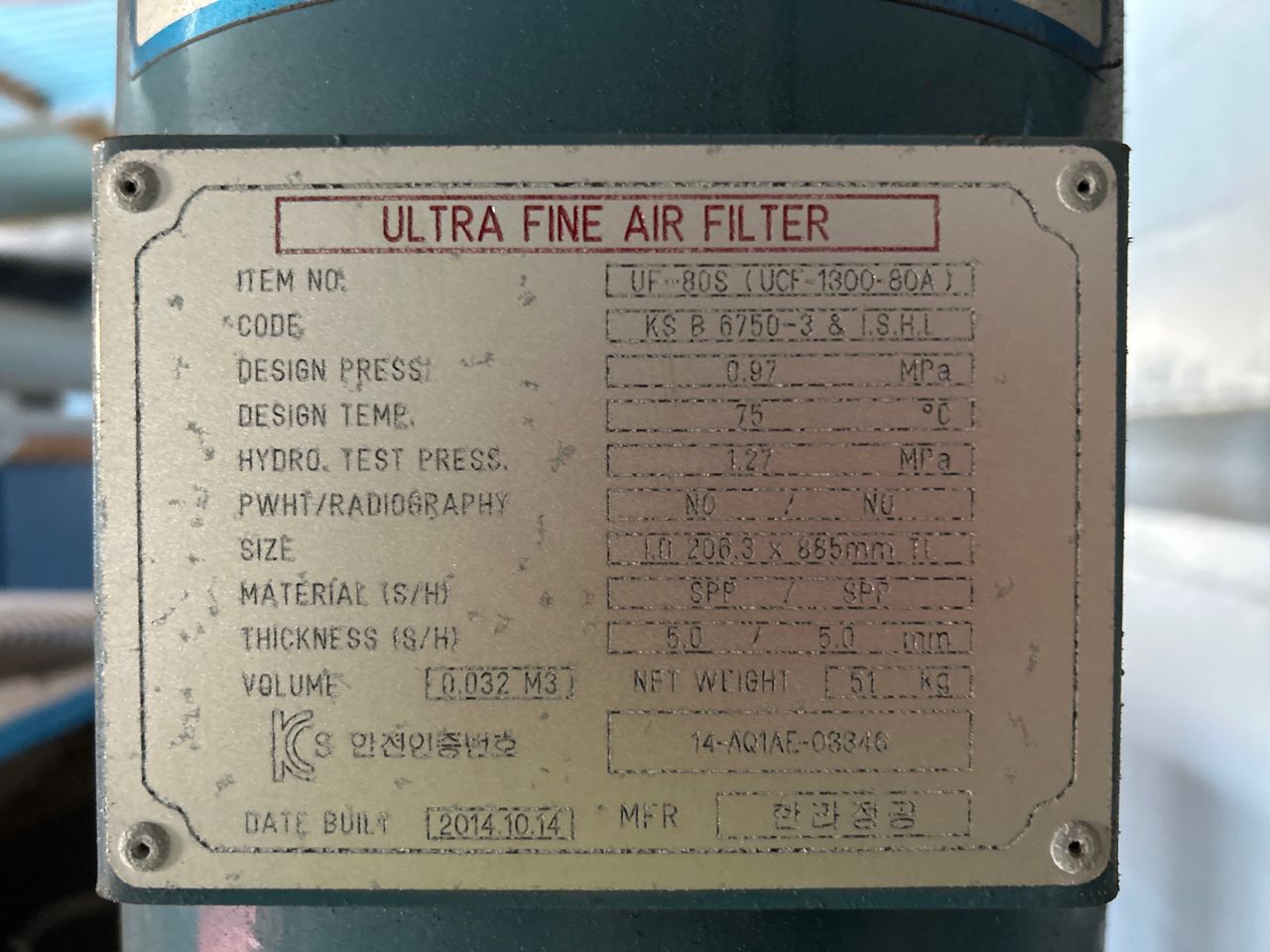

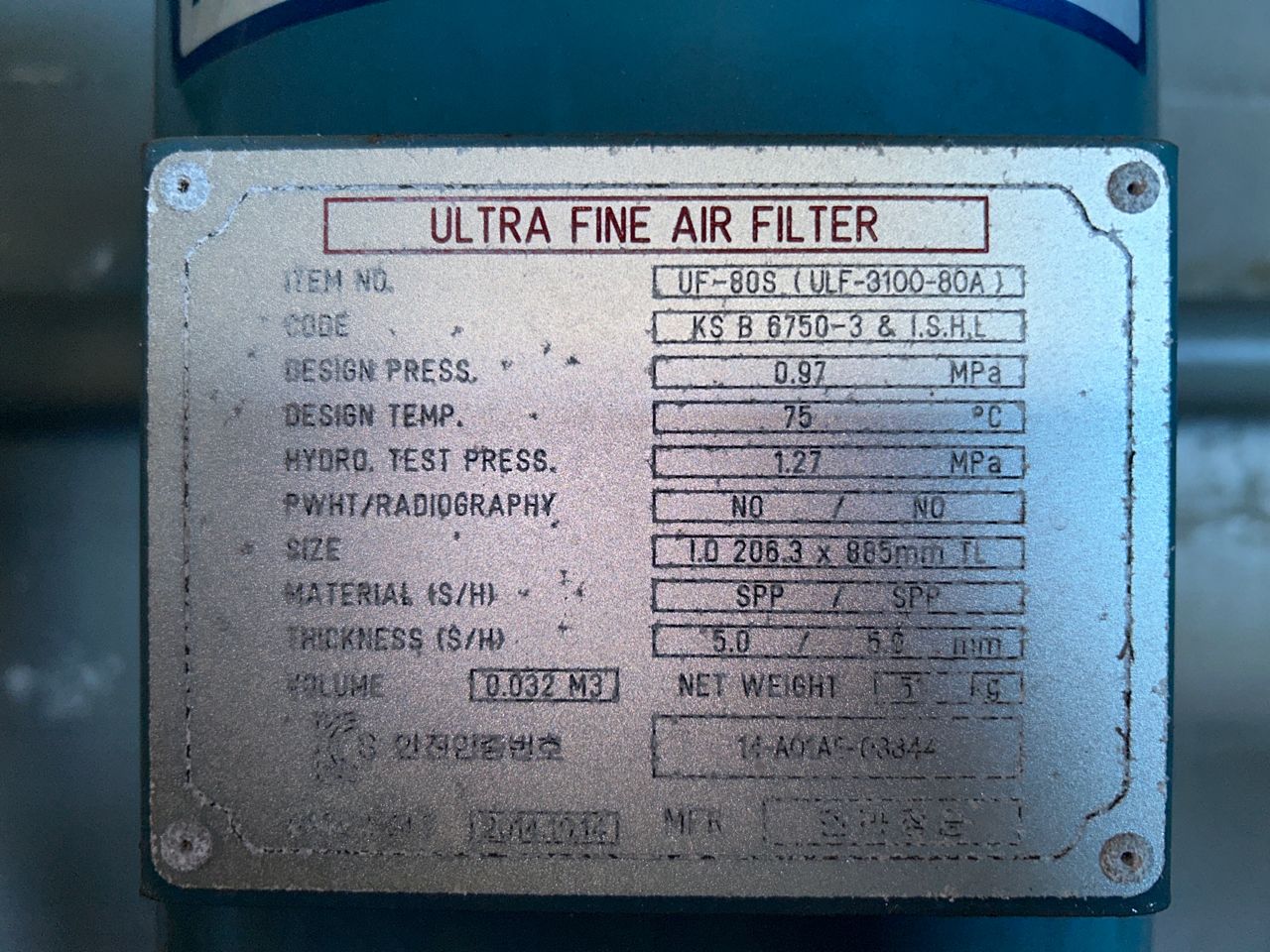

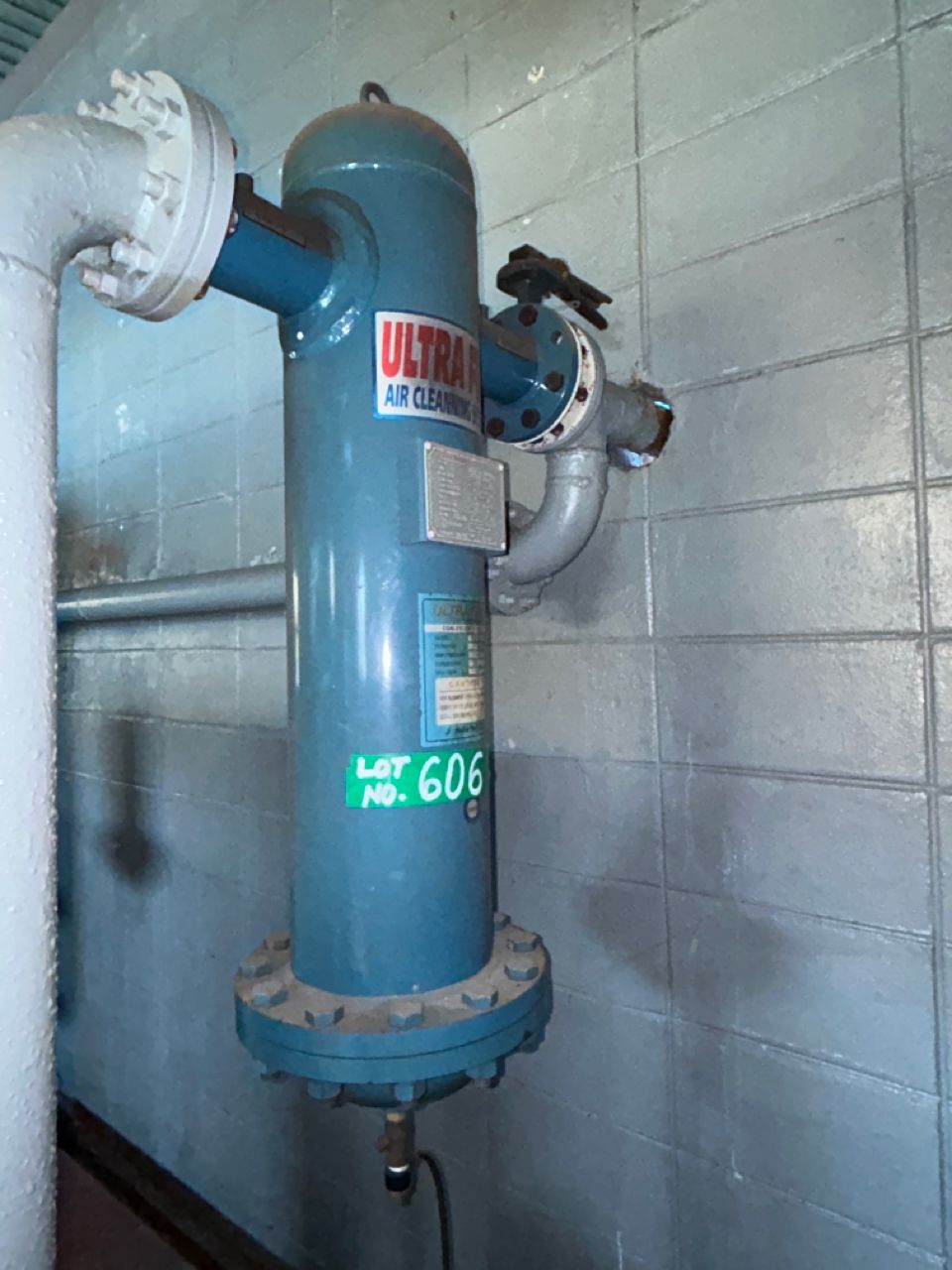

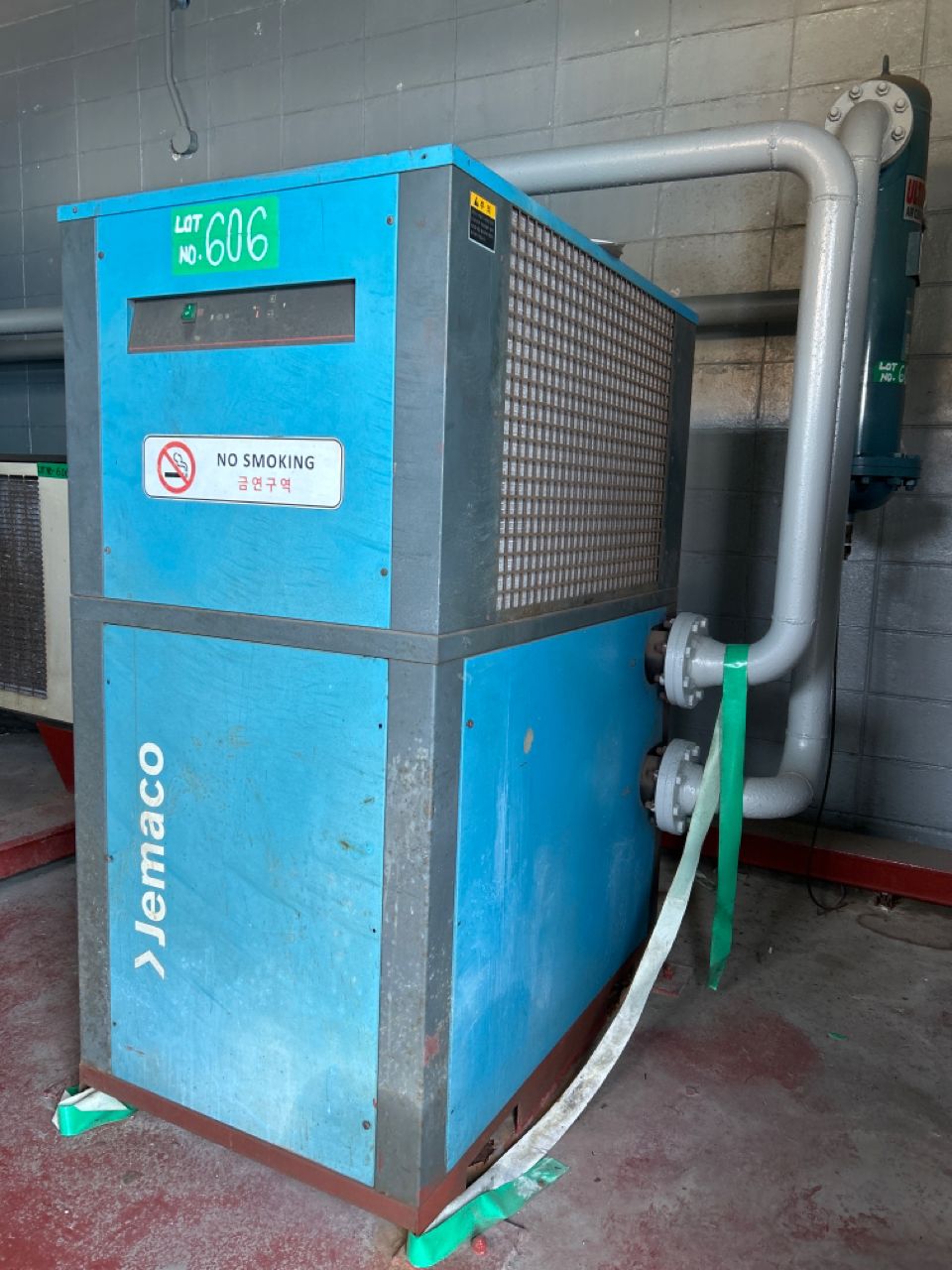

- JEMACO After Cooler with Filter – 2 Units
- Air Receiver Tank – 3cu.m Approx.
PAINTING SHOP

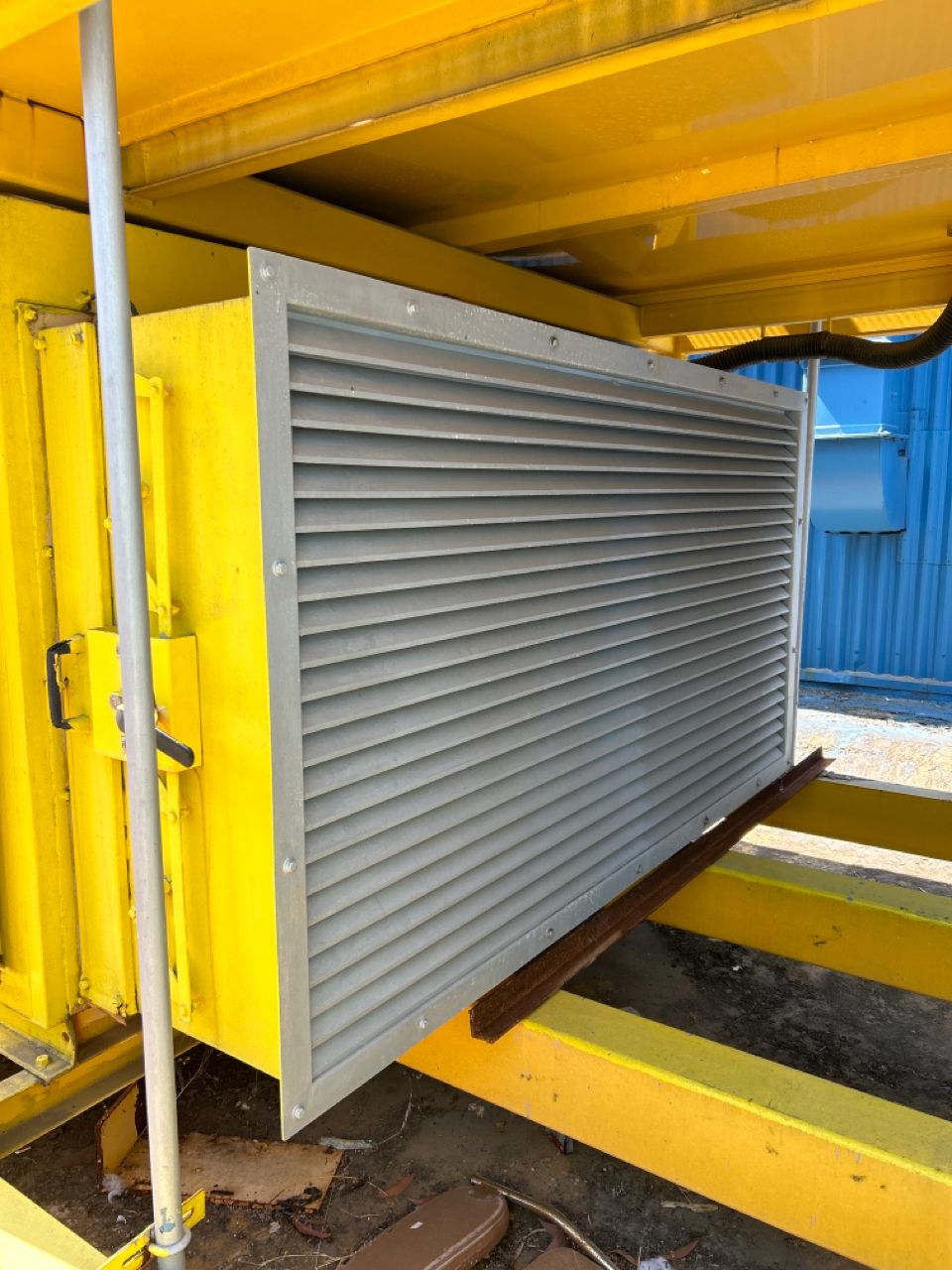

Ventilation System

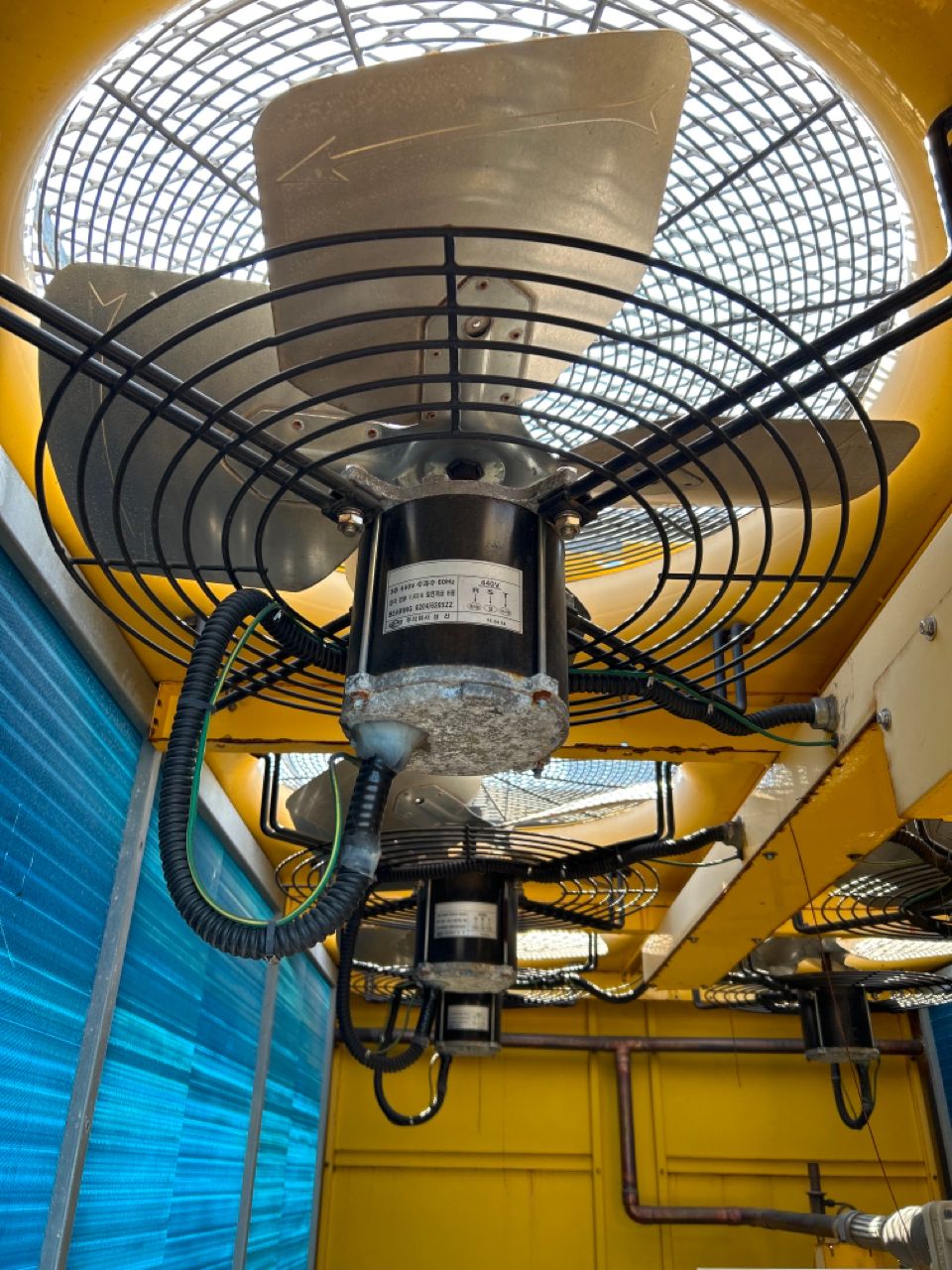

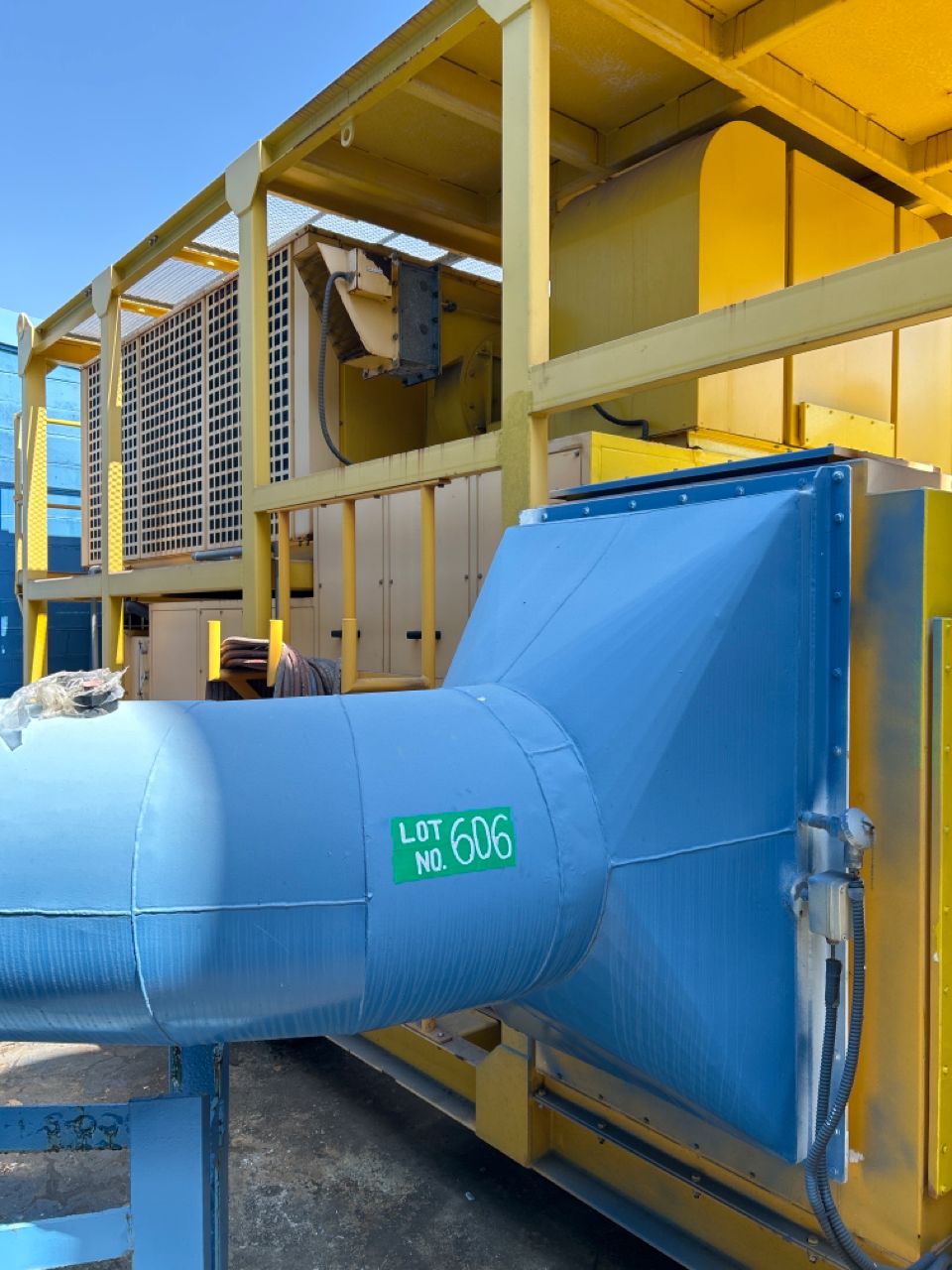

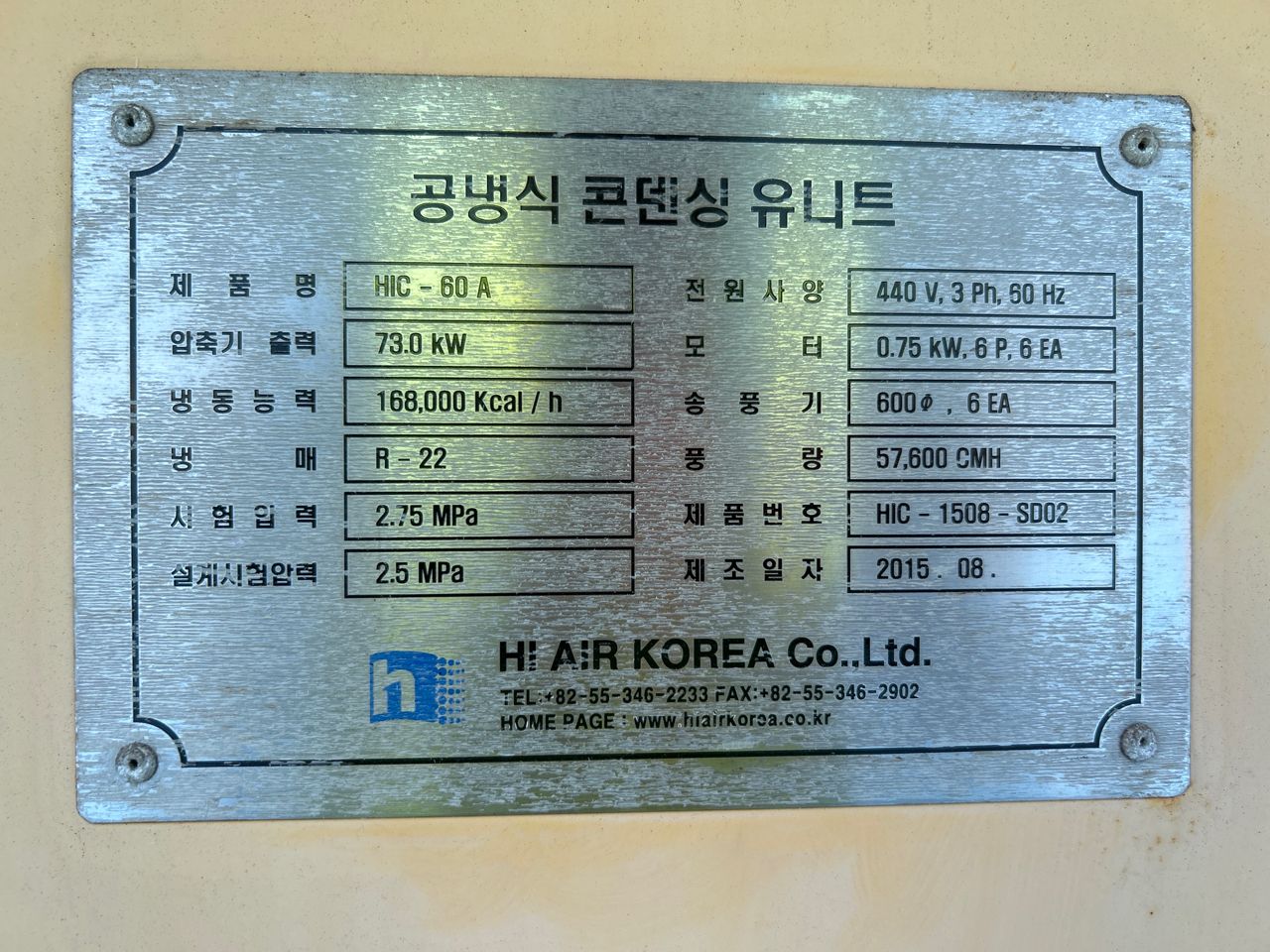

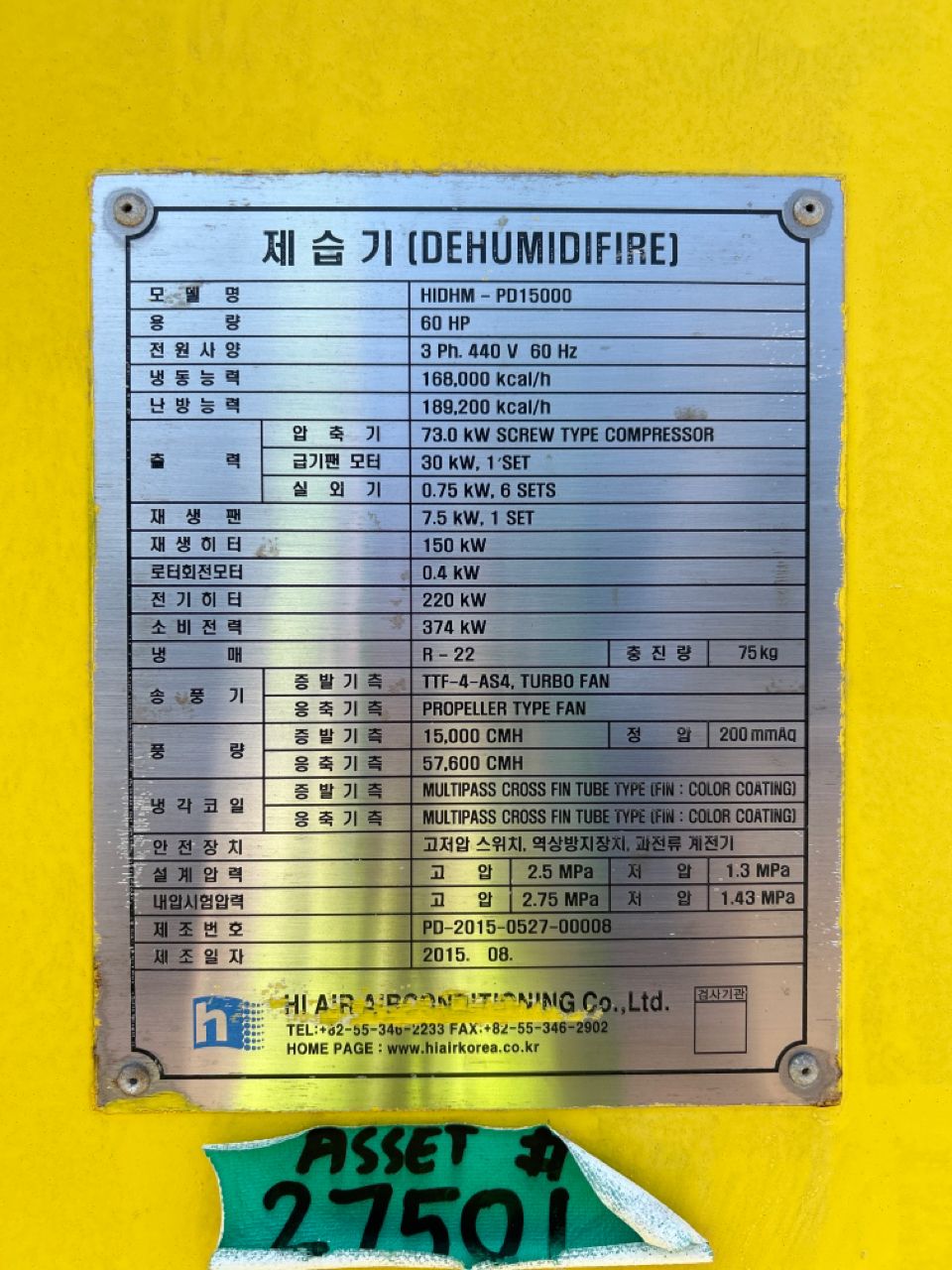

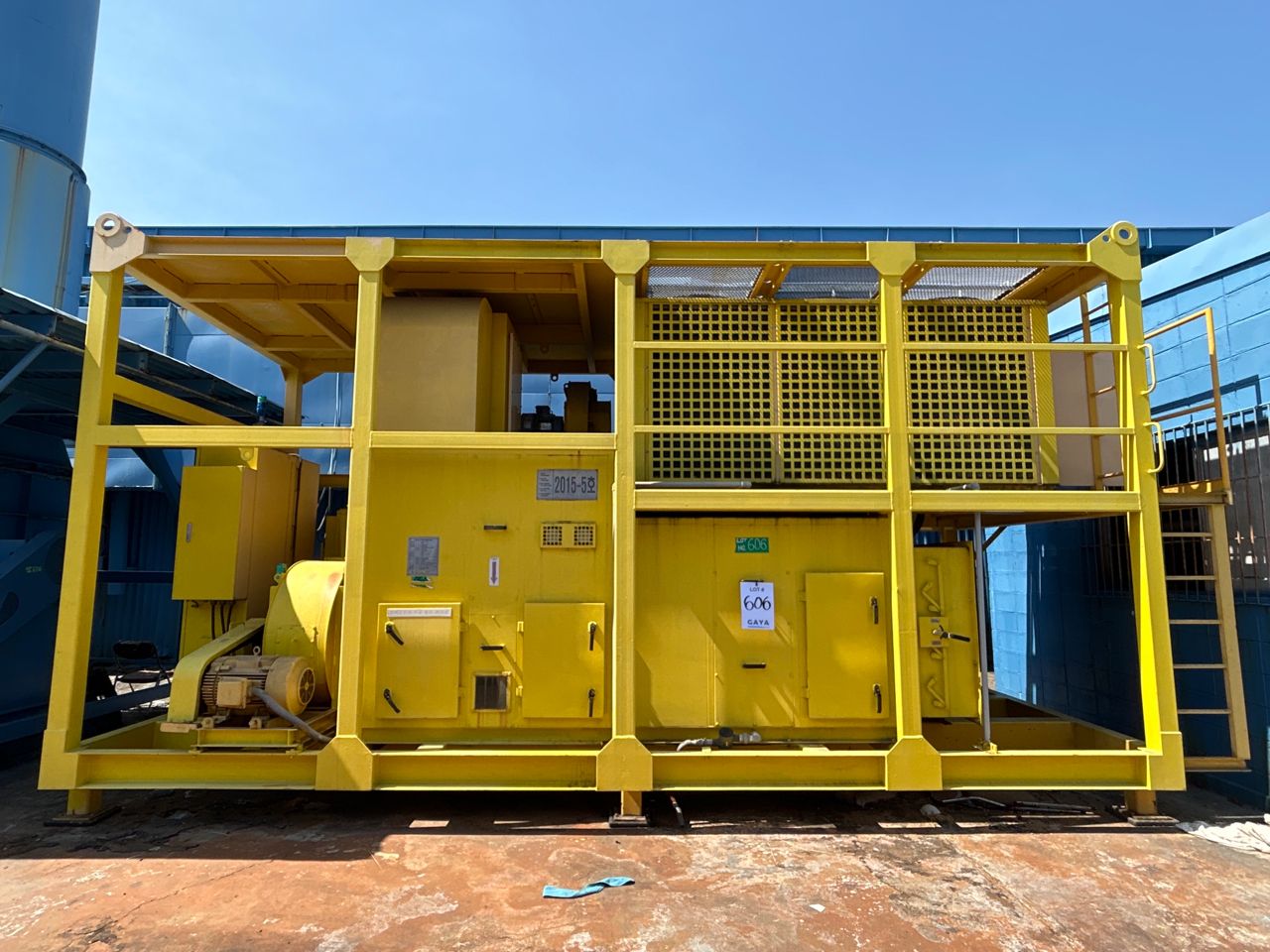

- Dehumidifier(HIDHM-PD-15000) yr.2015 – 1 unit
- 60HP
- 168000Kcal/Hr
- 15000CMH

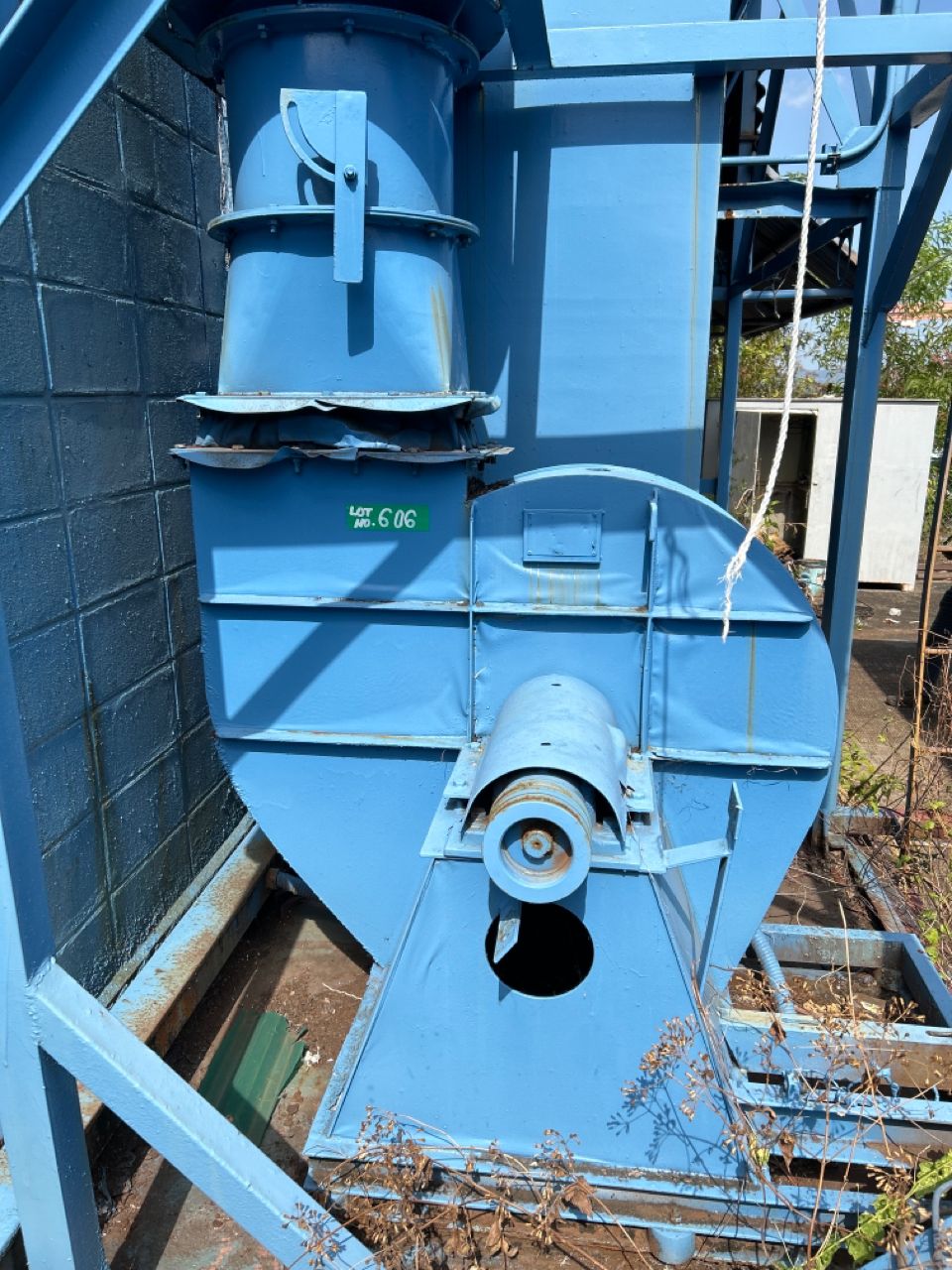

- Fan/Blower 150hp approx. – 1 units

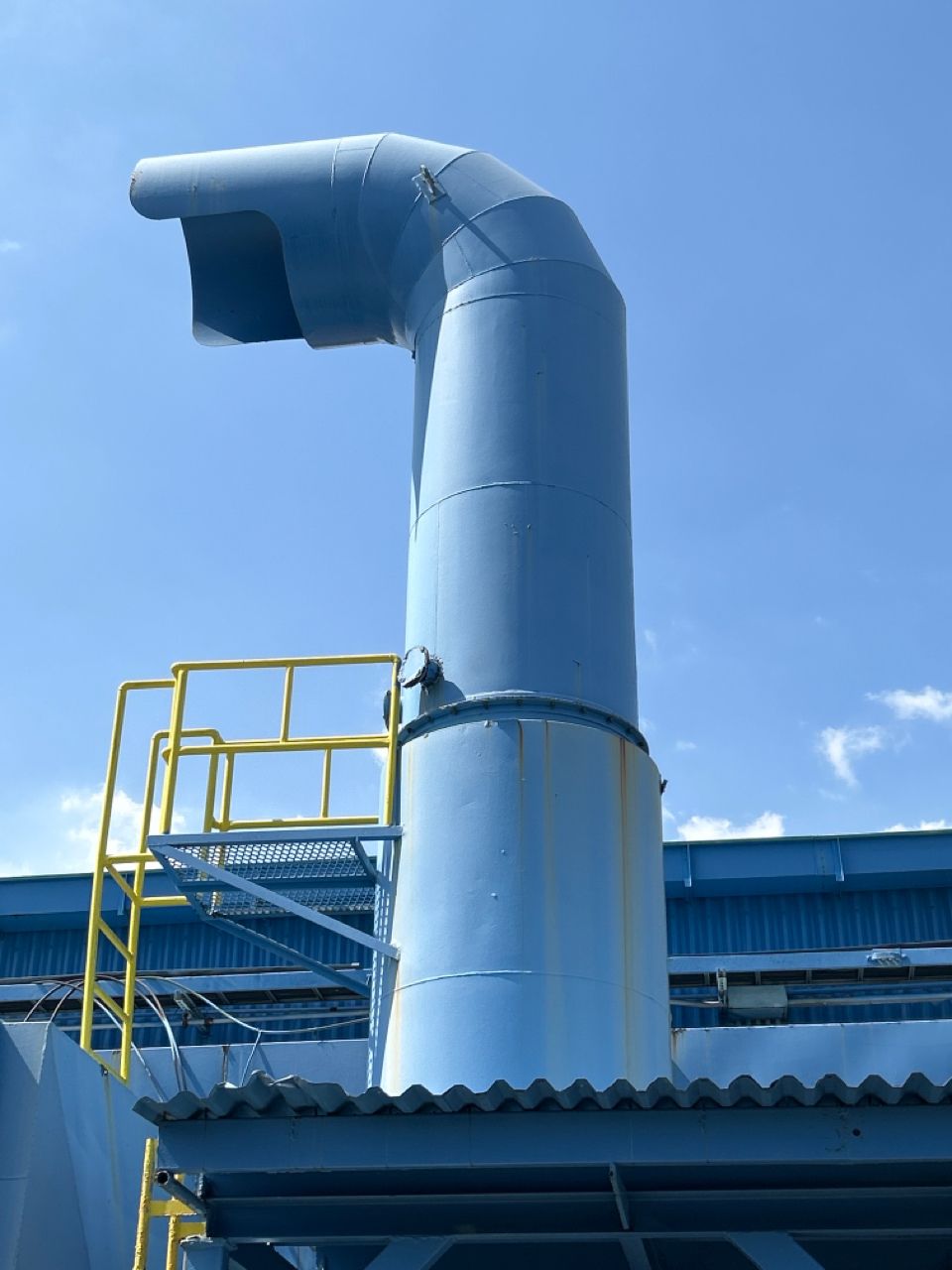

- Exhaust pipe (for 150hp fan) – 1 unit
- Ventilation ducts

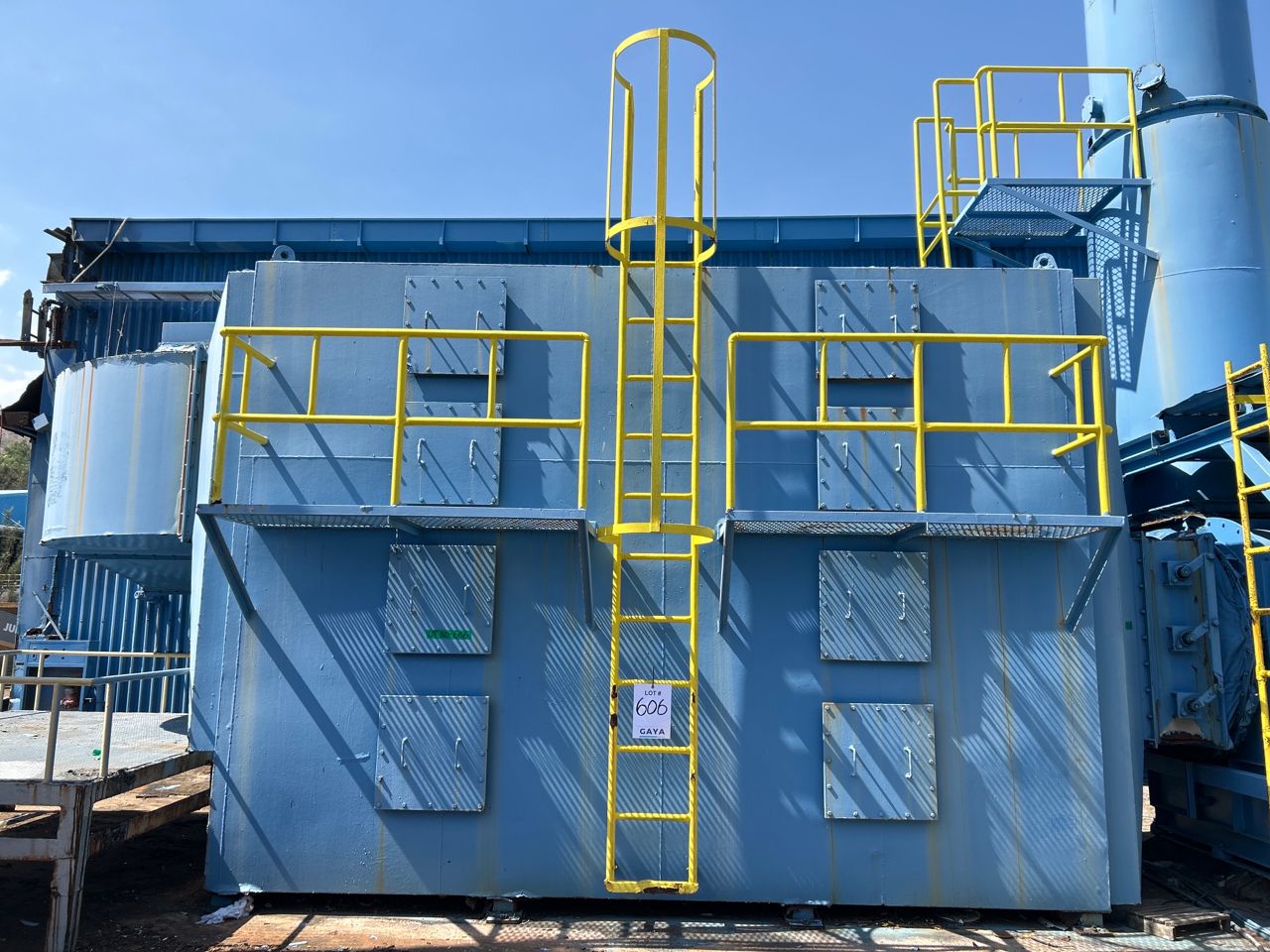

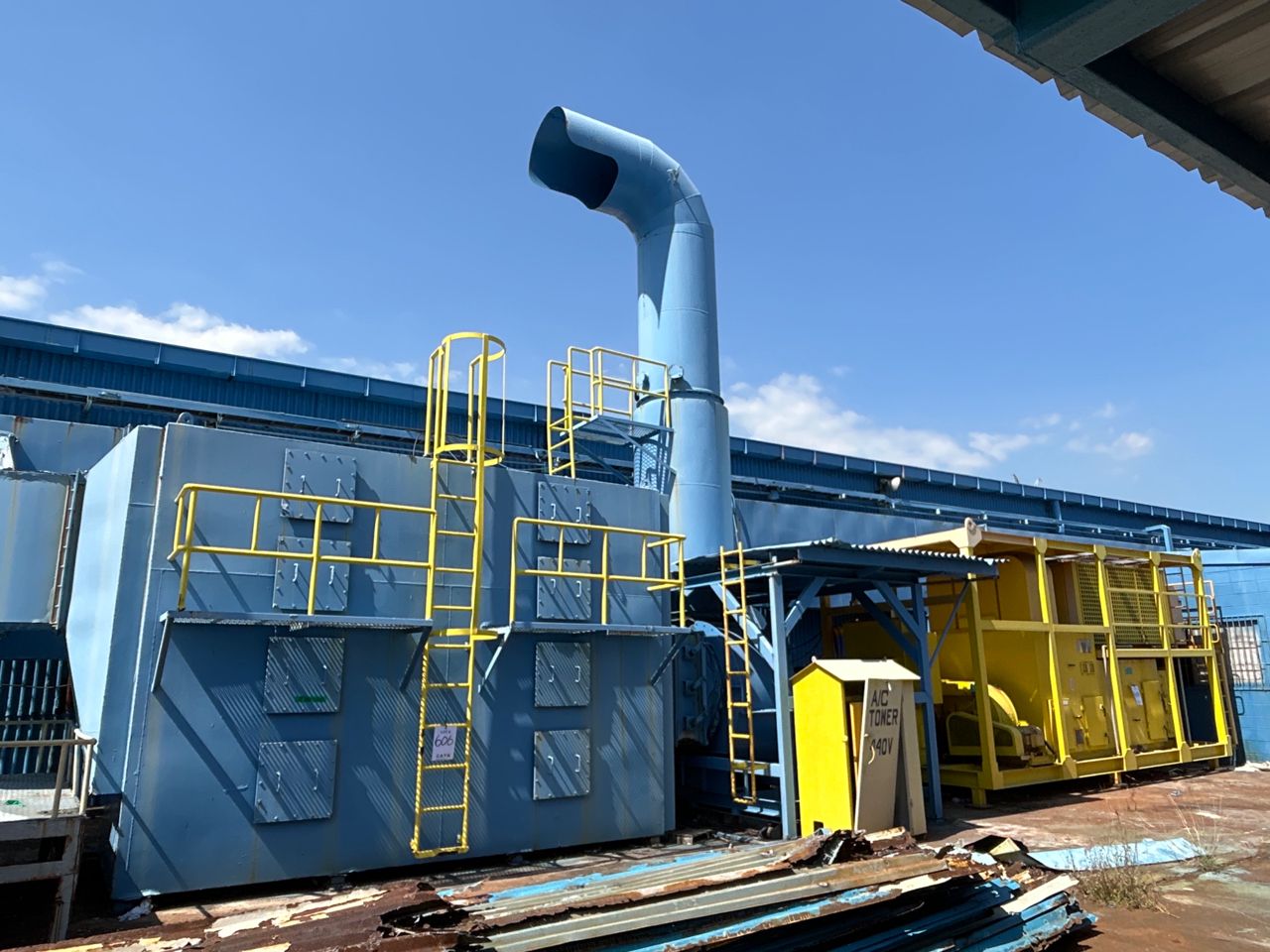

- Activated Carbon Tower – 1 unit
- Ventilation Fans 11KW – 2 units
- Compressor Room 2
- Compressor 1
- Maker: Quincy Compressor Co./Korea Fluid Co. Ltd.
- Model: QSF-50N
- Motor Power: 50HP
- Electric: 440V*60Hz
- Date of Production: 2010
- Compressor 2
- Maker: Quincy Compressor Co./Korea Fluid Co. Ltd.
- MODEL: QSF-50N
- Motor Power: 50HP
- Electric: 440V*60Hz
- Date of Production: 2010
- Compressor 3
- Maker: Quincy Compressor Co./Korea Fluid Co. Ltd.
- Model: QSF-30N
- Motor Power: 30HP
- Electric: 440V*60Hz
- Date of Production: 2010
- JEMACO After Cooler with Filter – 4 Units
- Air Receiver Tank – 1.5 cu.m approx. – 1 unit
- Air Receiver Tank – 3 cu.m Approx. – 1 unit
- Compressor 1
- Compressor Room 3

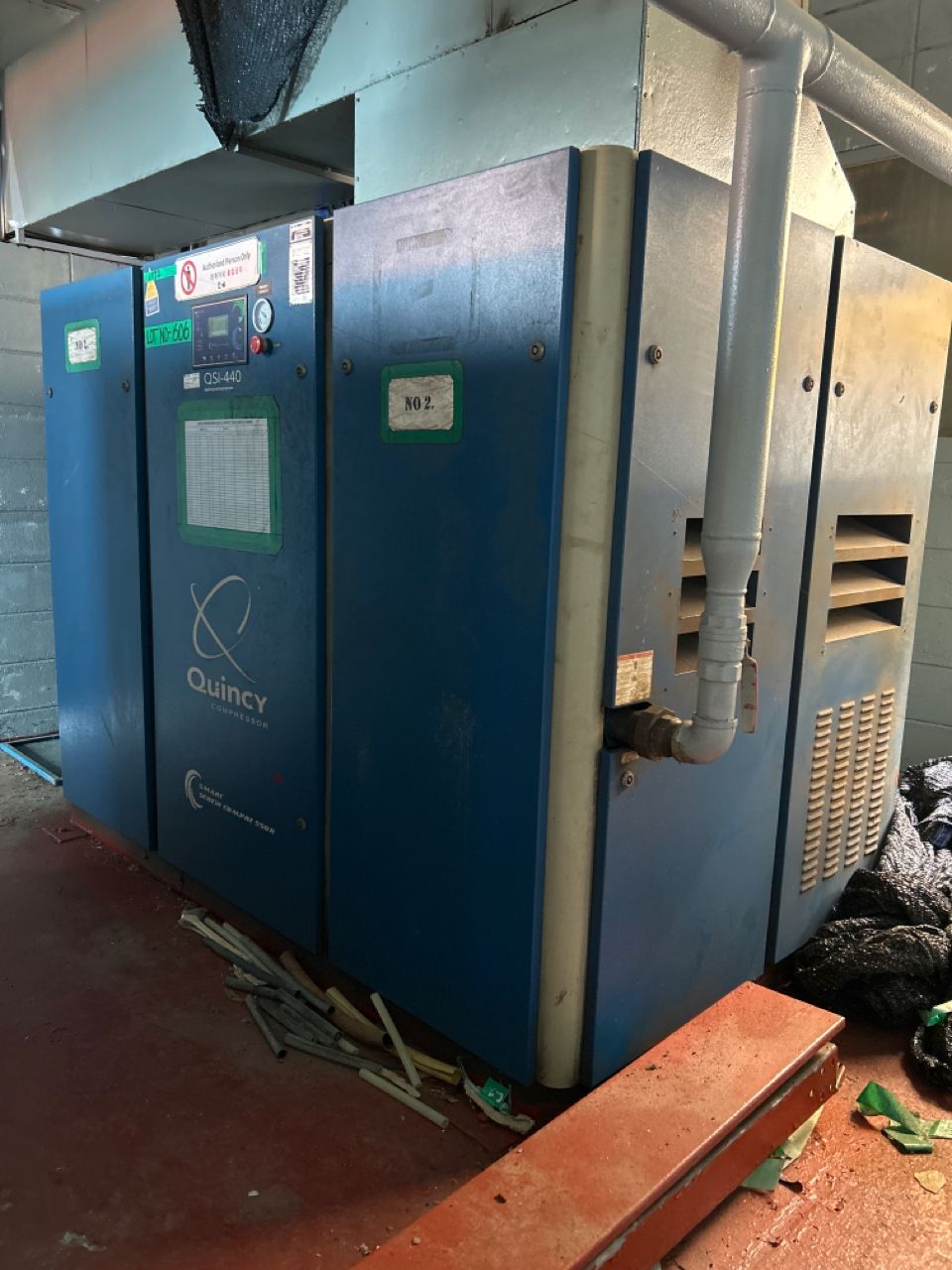

- Compressor 1
- Maker: Quincy Compressor Co./Korea Fluid Co. Ltd.
- Model – QSI-440
- Working pressure: 7.8Kg/sq.cm
- Max pressure: 8.8Kg/sq.cm
- Motor Power: 100HP
- Electric: 440V*60Hz
- Max RPM: 1775rpm
- Weight: 2000Kg
- Dimension: 2228*1468*1700mm
- Date of Production: 2013
- Compressor 2
- Maker: Quincy Compressor Co./Korea Fluid Co. Ltd.
- Model: QSI-440
- Working pressure: 7.8Kg/sq.cm
- Max pressure: 8.8Kg/sq.cm
- Motor Power: 100HP
- Electric: 440V*60Hz
- Max RPM: 1775rpm
- Weight: 2000Kg
- Dimension: 2228*1468*1700mm
- Date of Production: 2013
- JEMACO After Cooler with Filter – 2 units
- Air Receiver Tank 3cu.m Approx – 1 unit
- Compressor 1
Accessories/other items:
Power Supply/Electric cables (distribution panels not included)

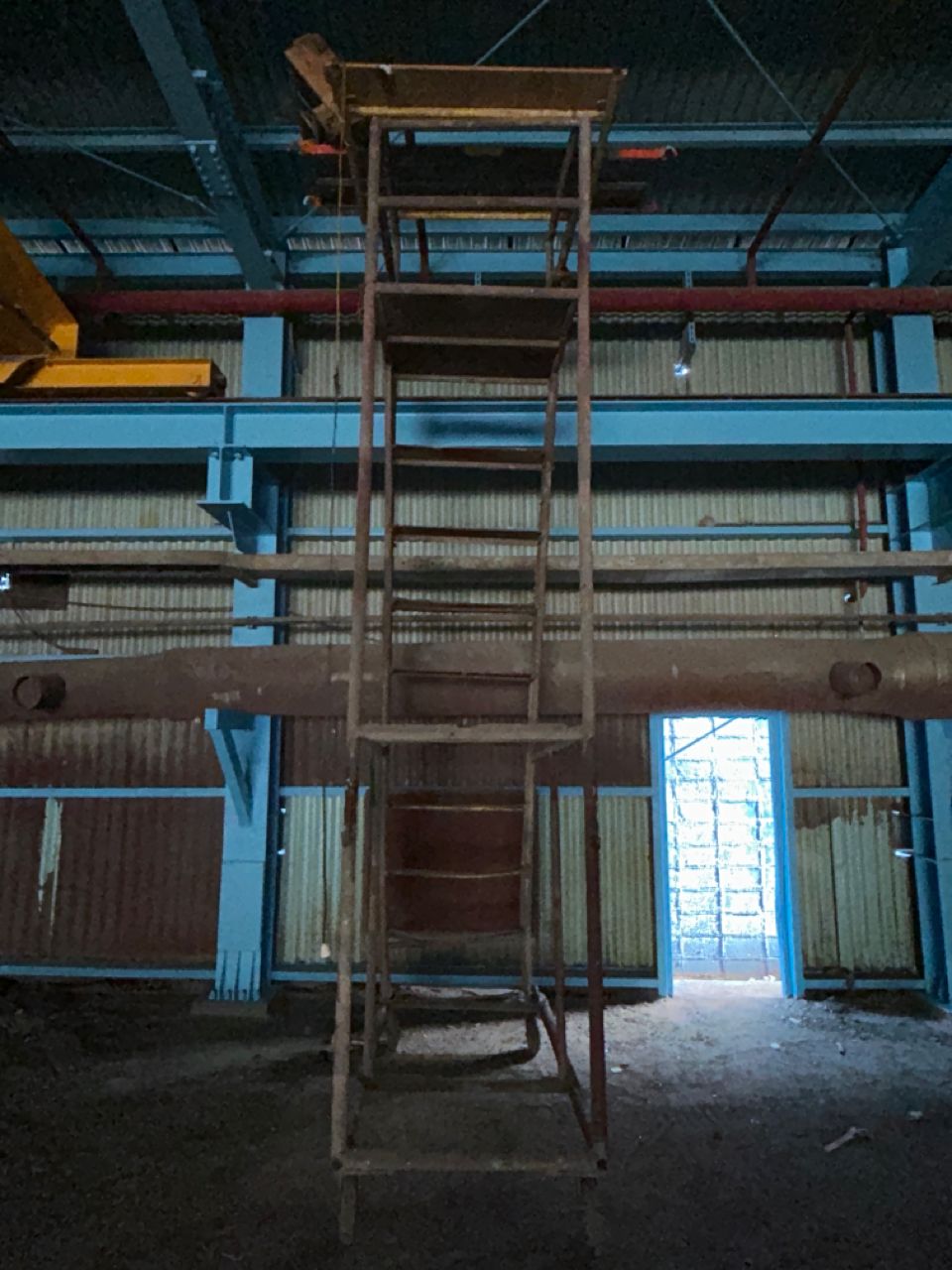

Inclined Ladder – 1 piece
