MIJININ MVR-55-2F BLASTING & PAINTING SYSTEM
CONSISTING OF: Air Blast Units, Vacuum Recovery System, Silo Tank. Dust Collector, Bucket Elevator, Rotary Separator, Storage Tank, Chute Hopper, Vacuum Recovery, Collection Tank, Ventilation System; MAIN CHARACTERISTICS: SHOP E (2014); MIJININ Industrial Machinery Model MVR-55-2F; Room size: l:45.000 X w 38.000 X h: 17.000; Cap. 4-6 Ton/Hr; Nozzle: Diam 12,5 Venturi; Abrasive: Steel Grit 0,7- 8.0 mm; Air Pressure: 8,0 kg/cm2; Output grit per nozzle: ABT 2 ton/HR/Nozzle; Power Supply: AC 3 Phase 440V 60 Hz; Motor 75KW x 440V x 4P x 60Hz; PAINTING SHOP; Model MVR-75-R; Cap: 4-8 Ton/Hr Grit; Motor: 75KW x 440V x 4P x 60Hz
BLASTING SHOP
Ventilation System

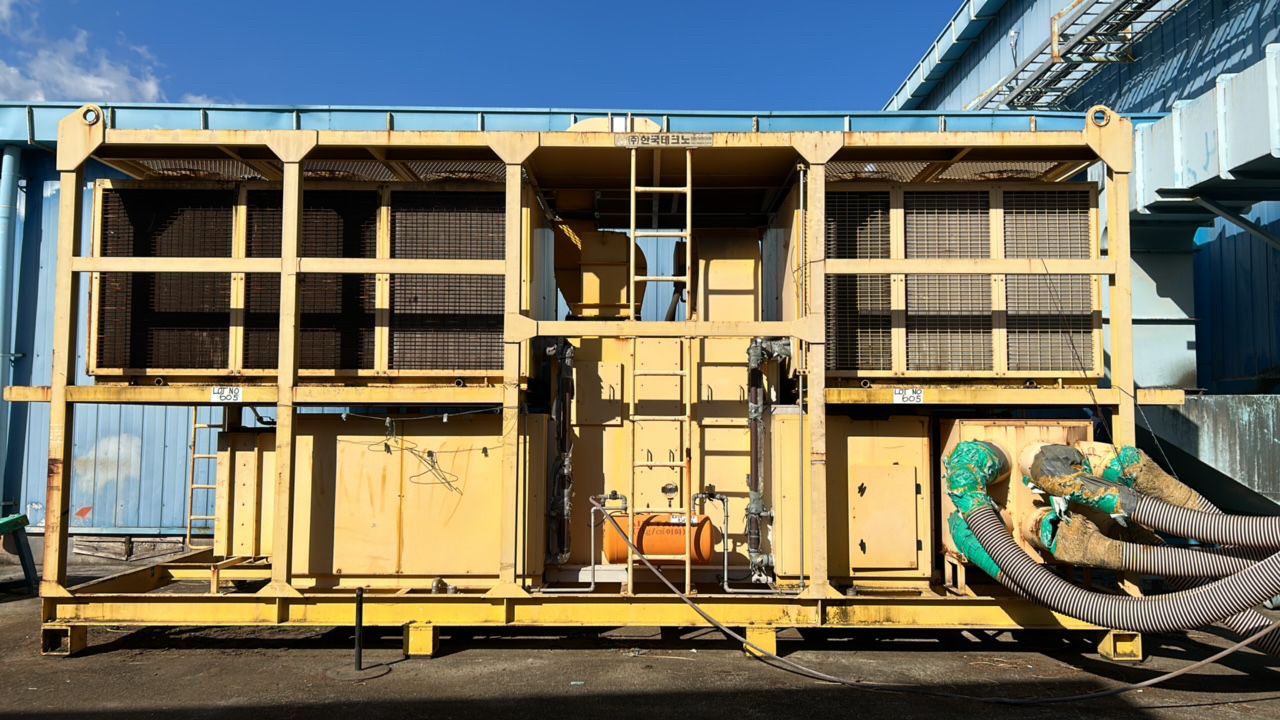

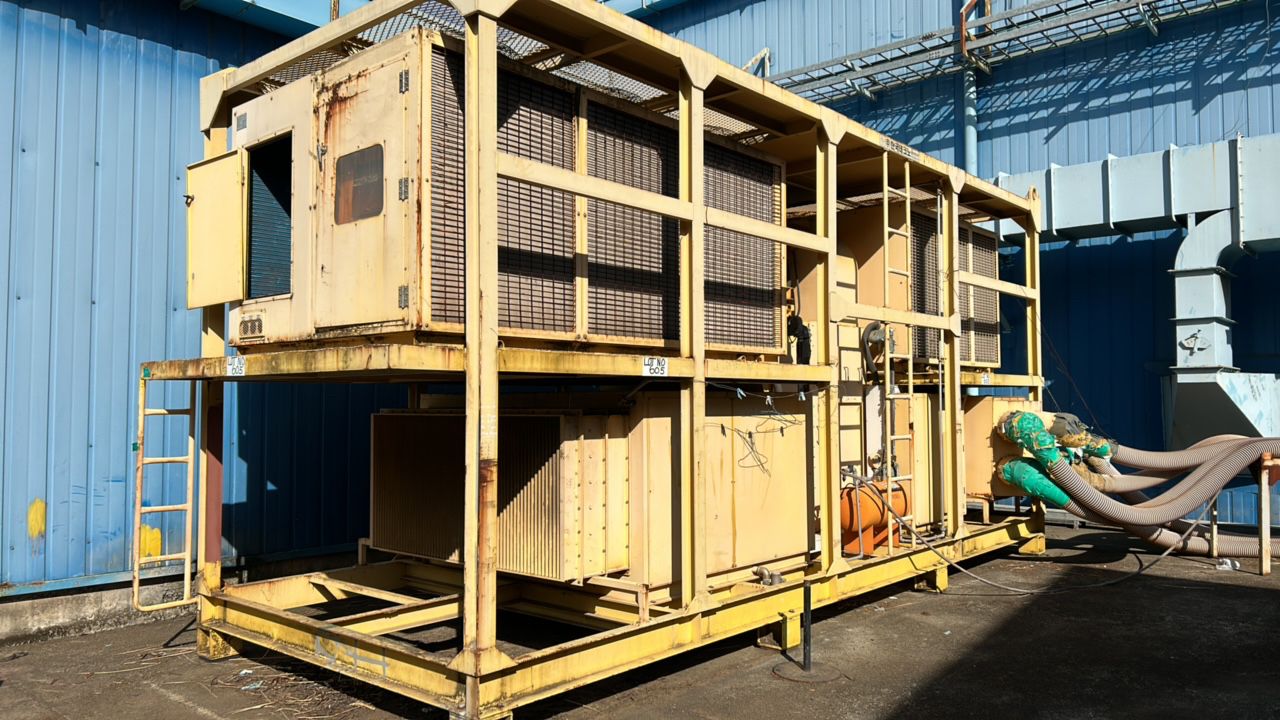

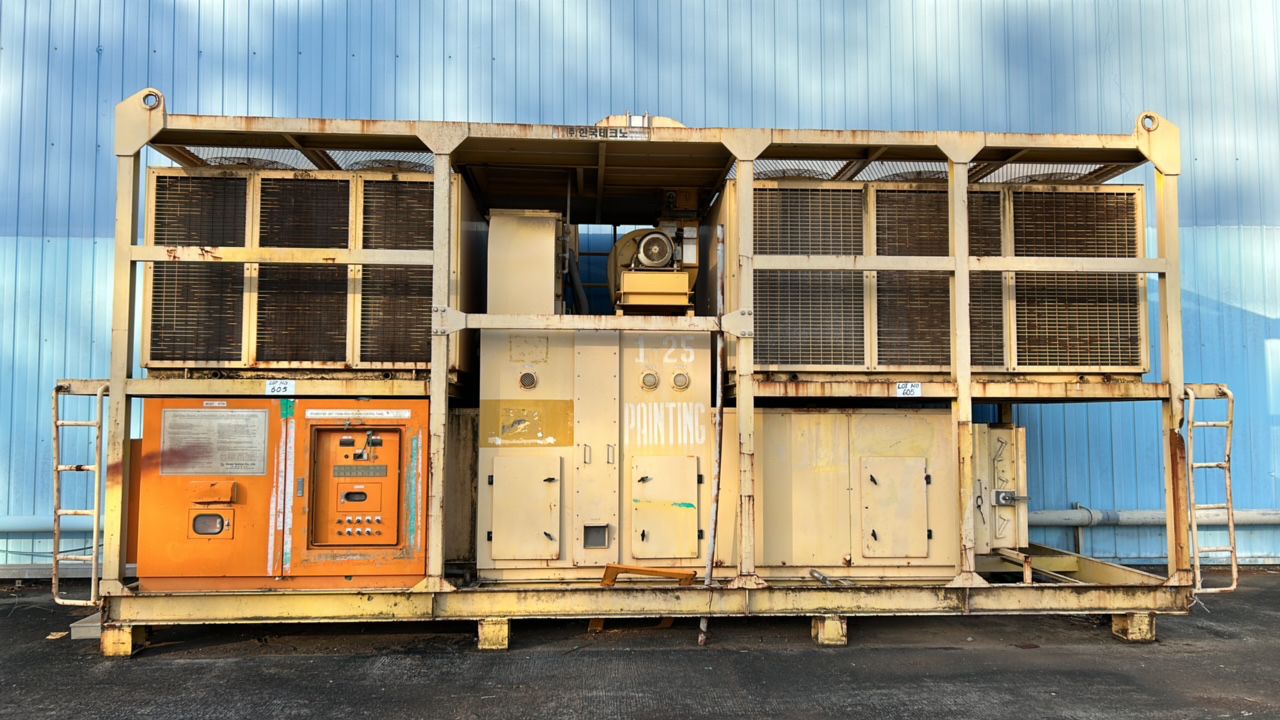

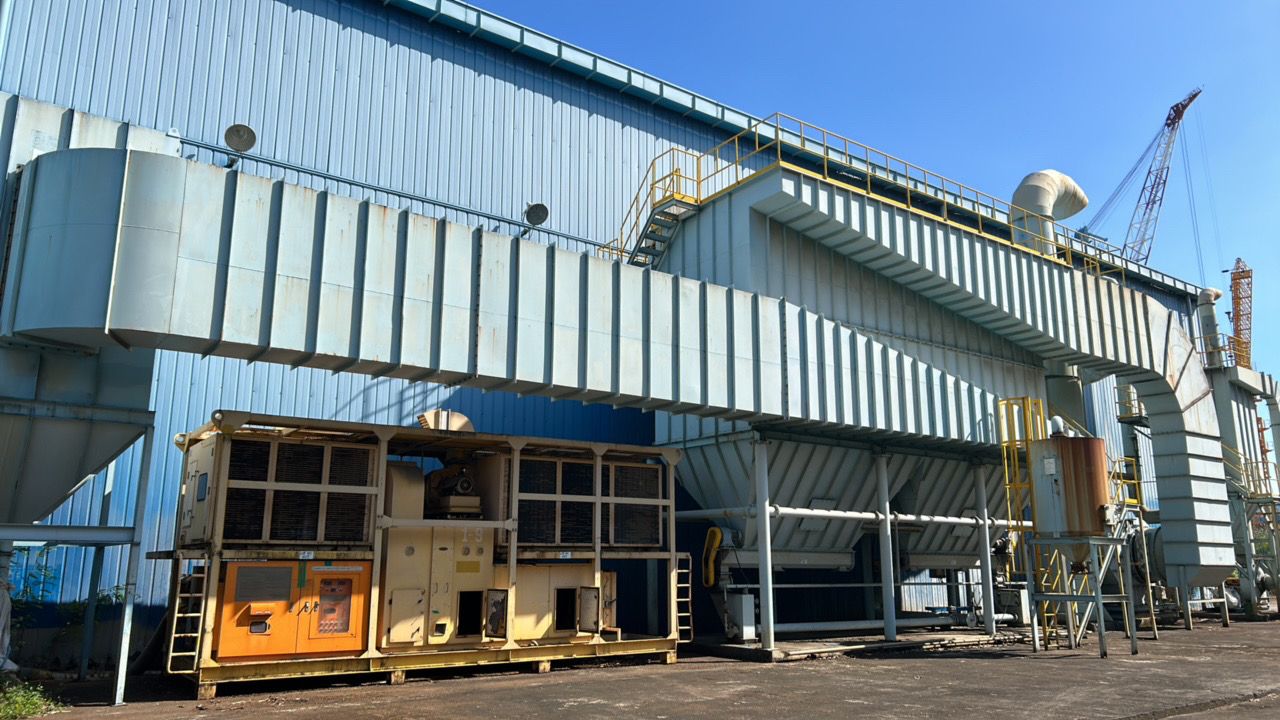

- Dehumidifier (YDHM-PDA-15,000N) – 2 Units

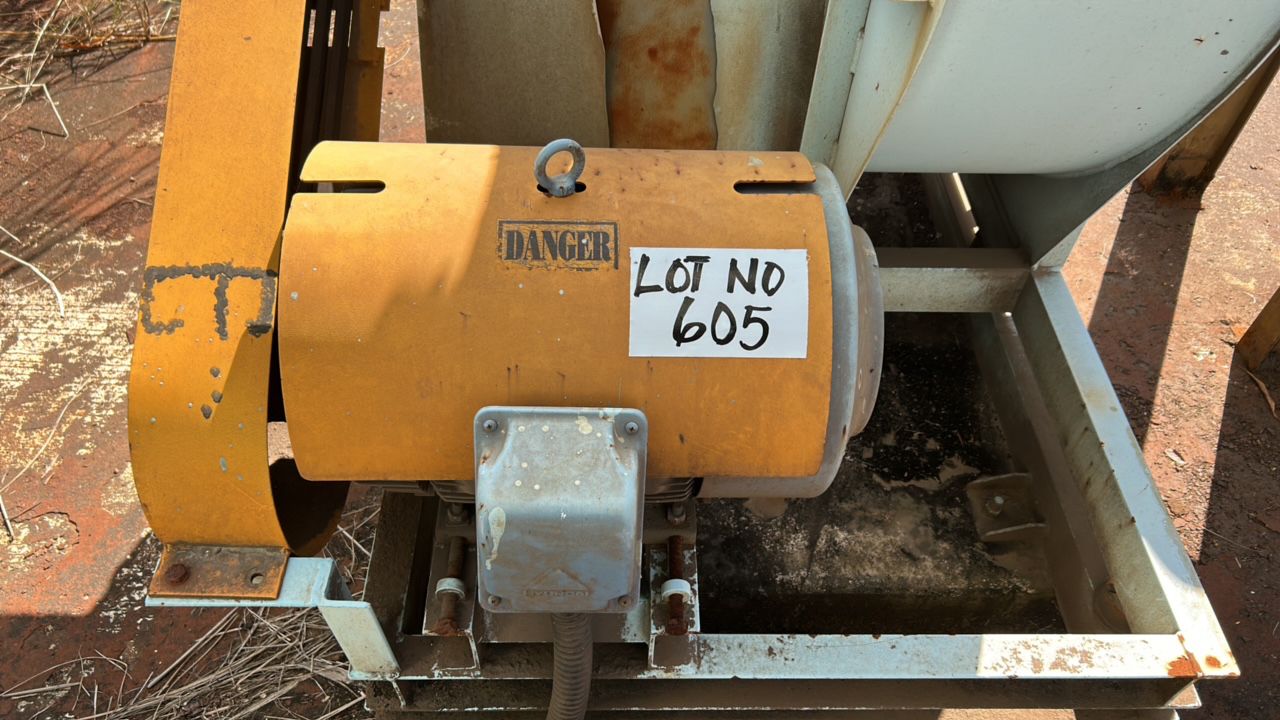

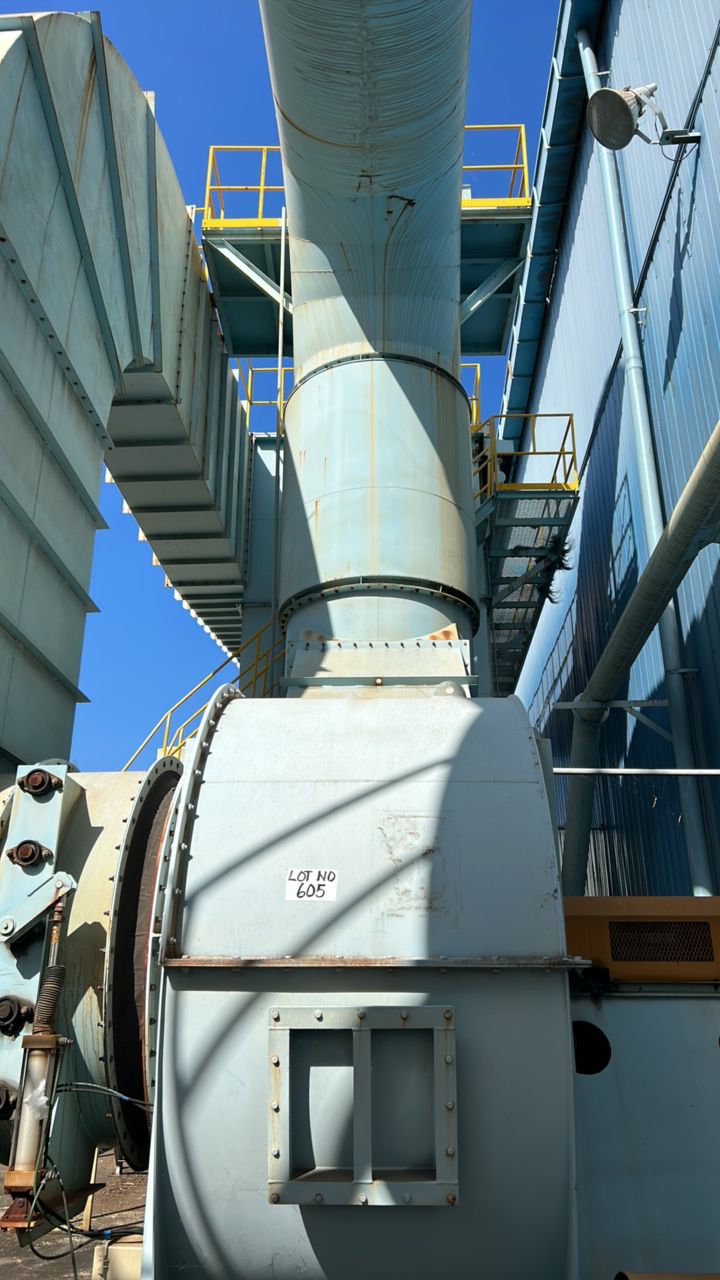

- Fan and blower 200hp – 1 Unit

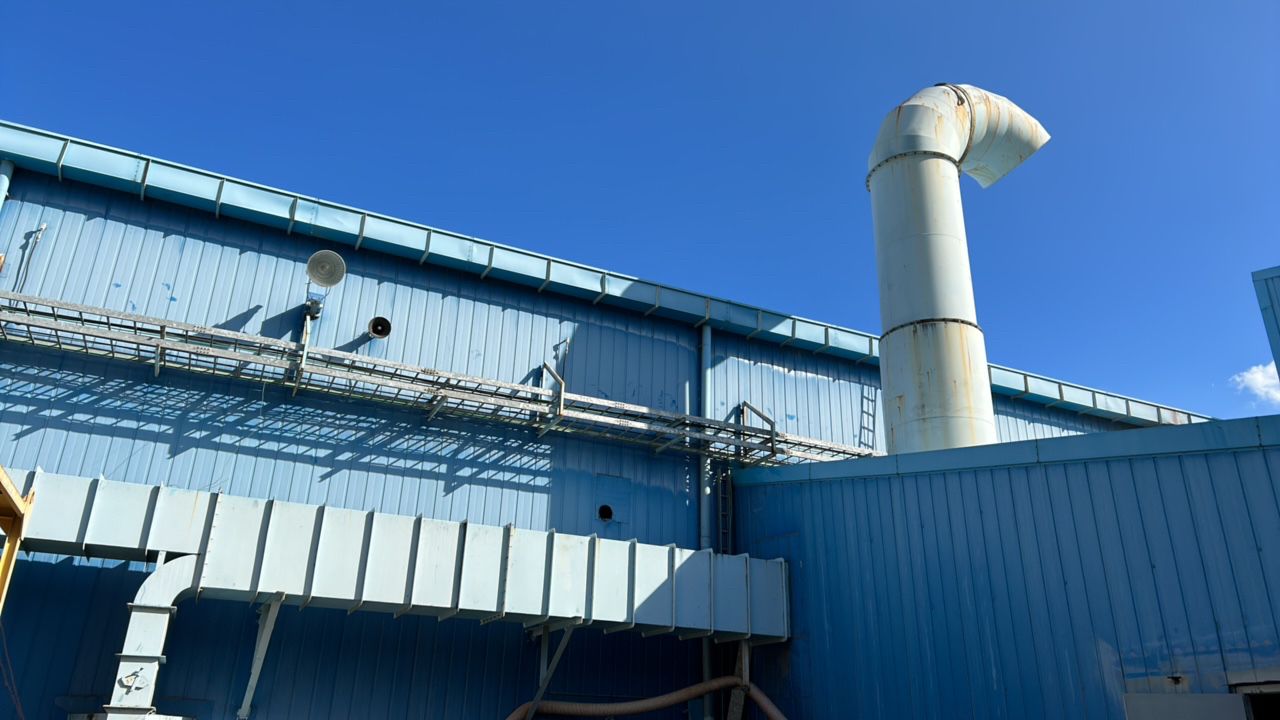

- Exhaust pipe for 200hp fan- 1 unit
- Fan and blower 40hp – 1 Unit
- Exhaust pipe for 40hp fan – 1 unit

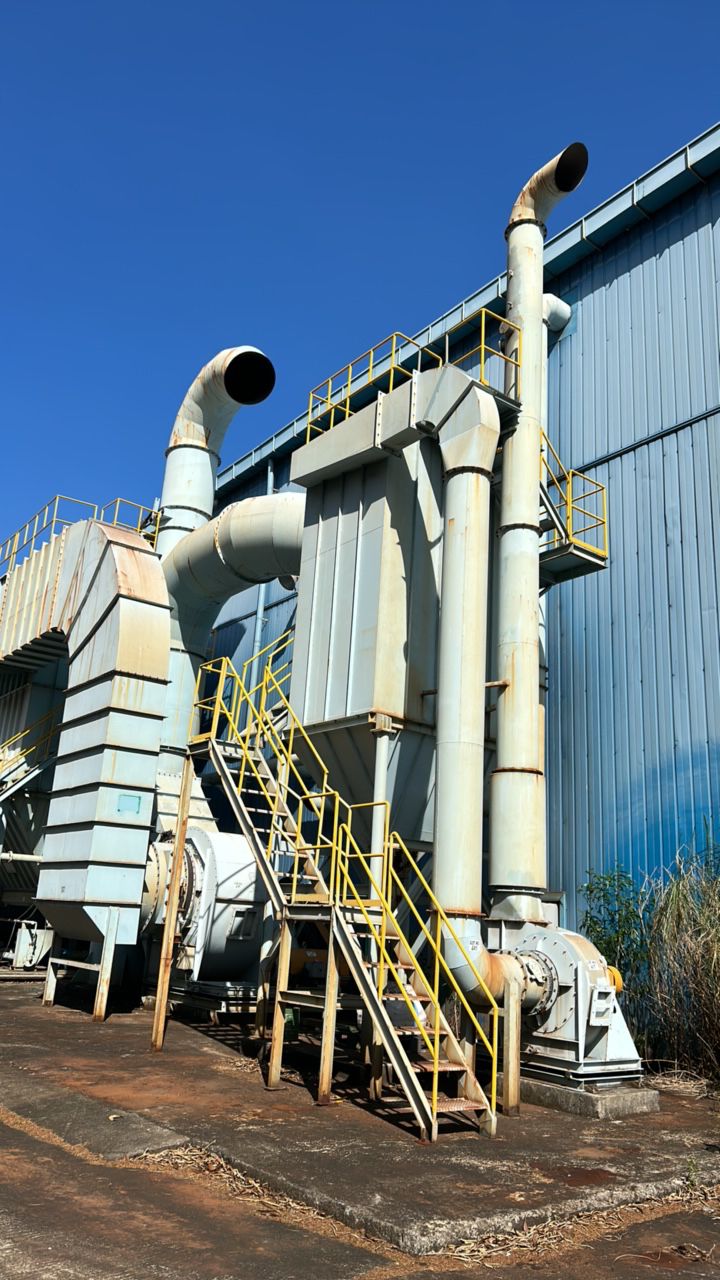

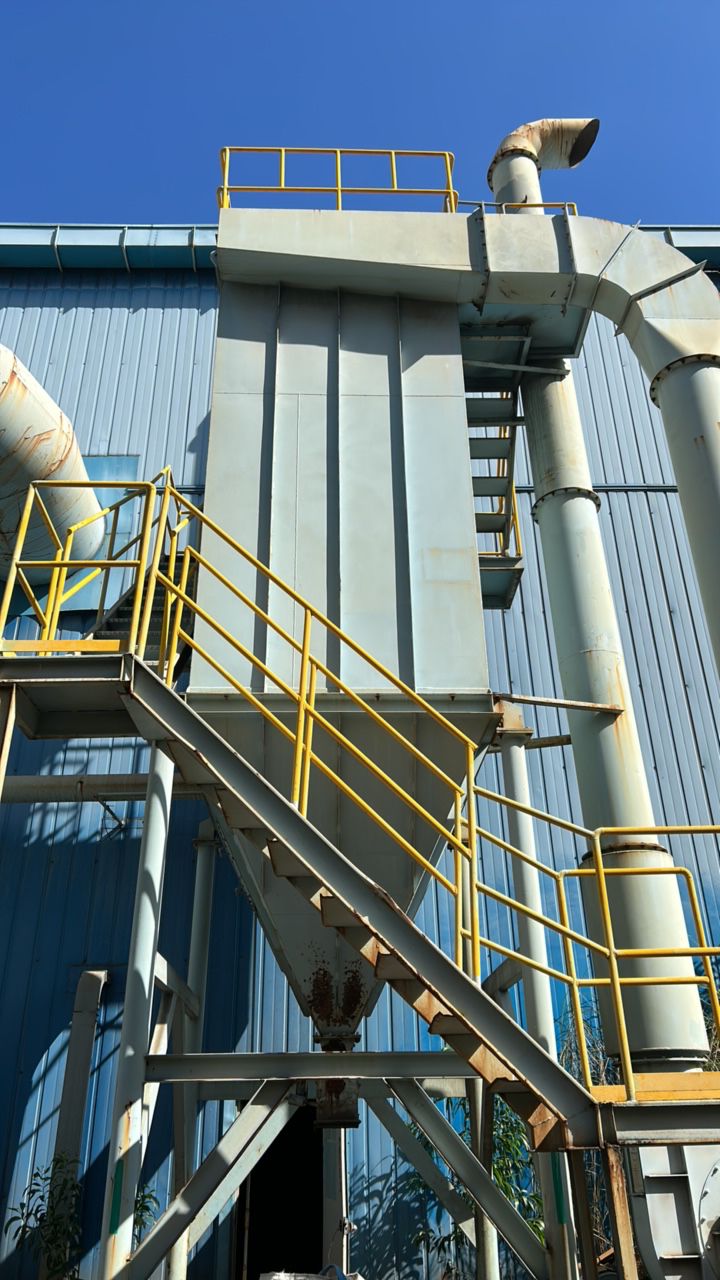

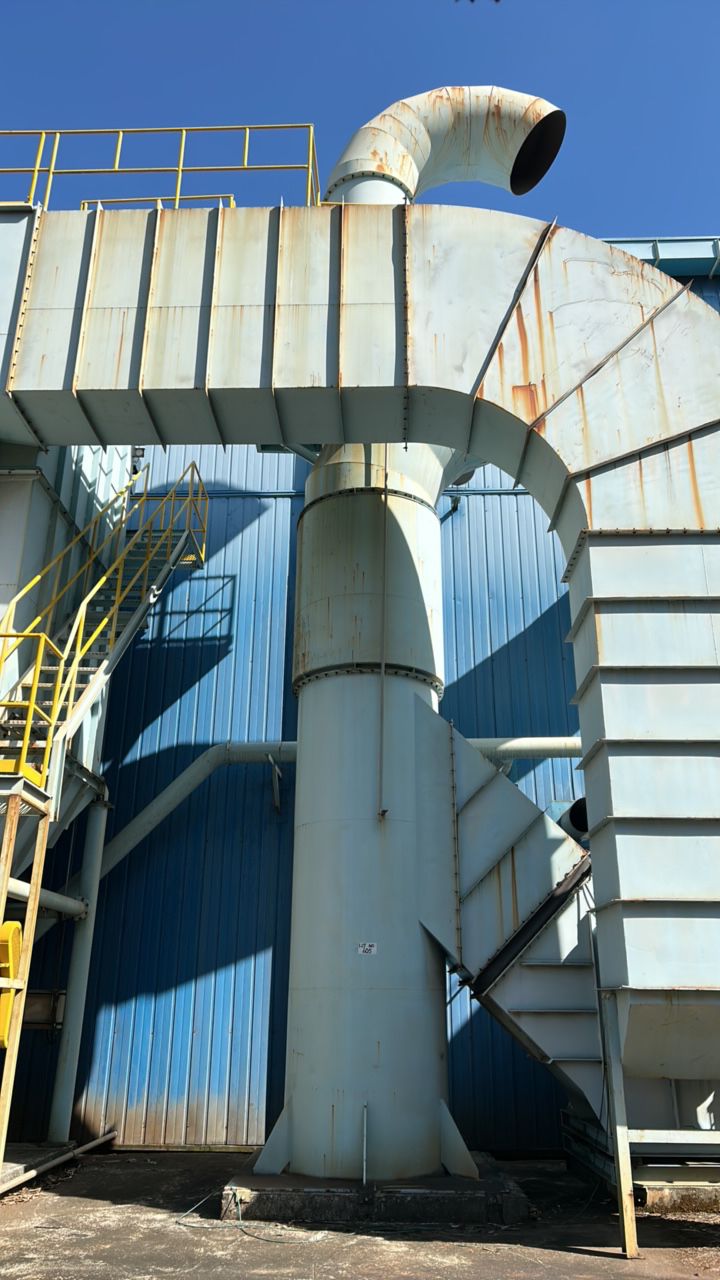

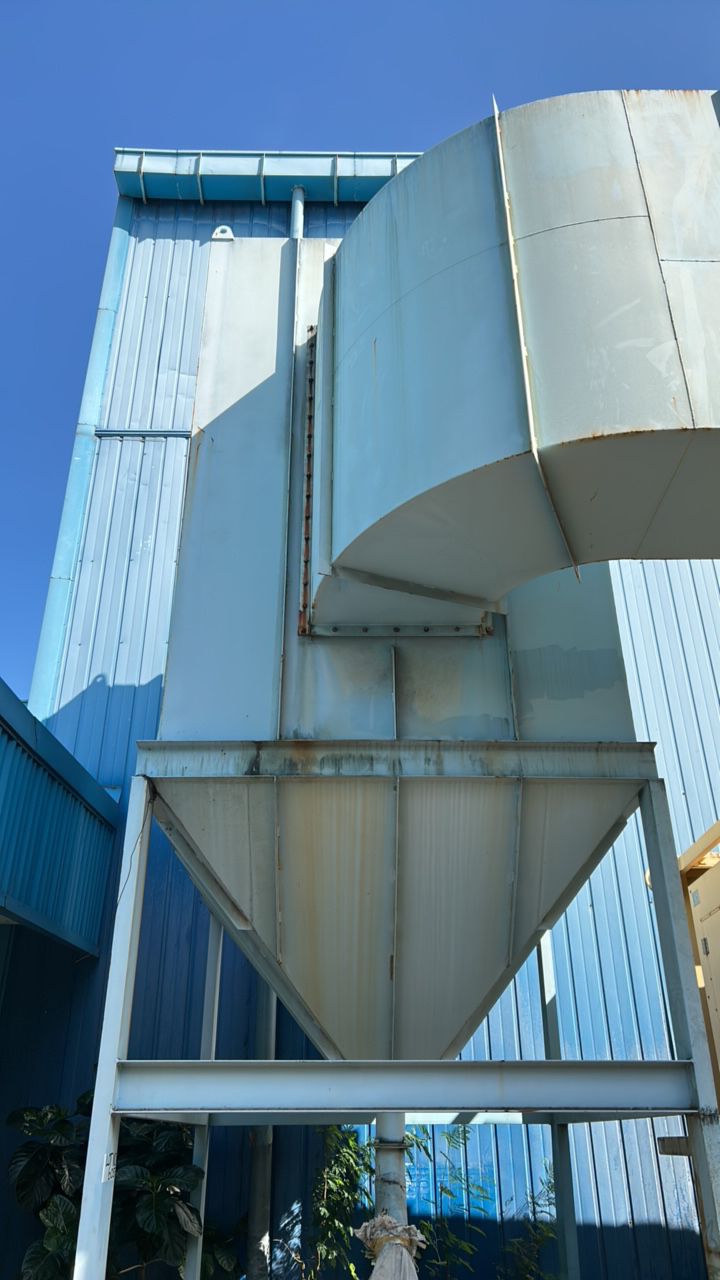

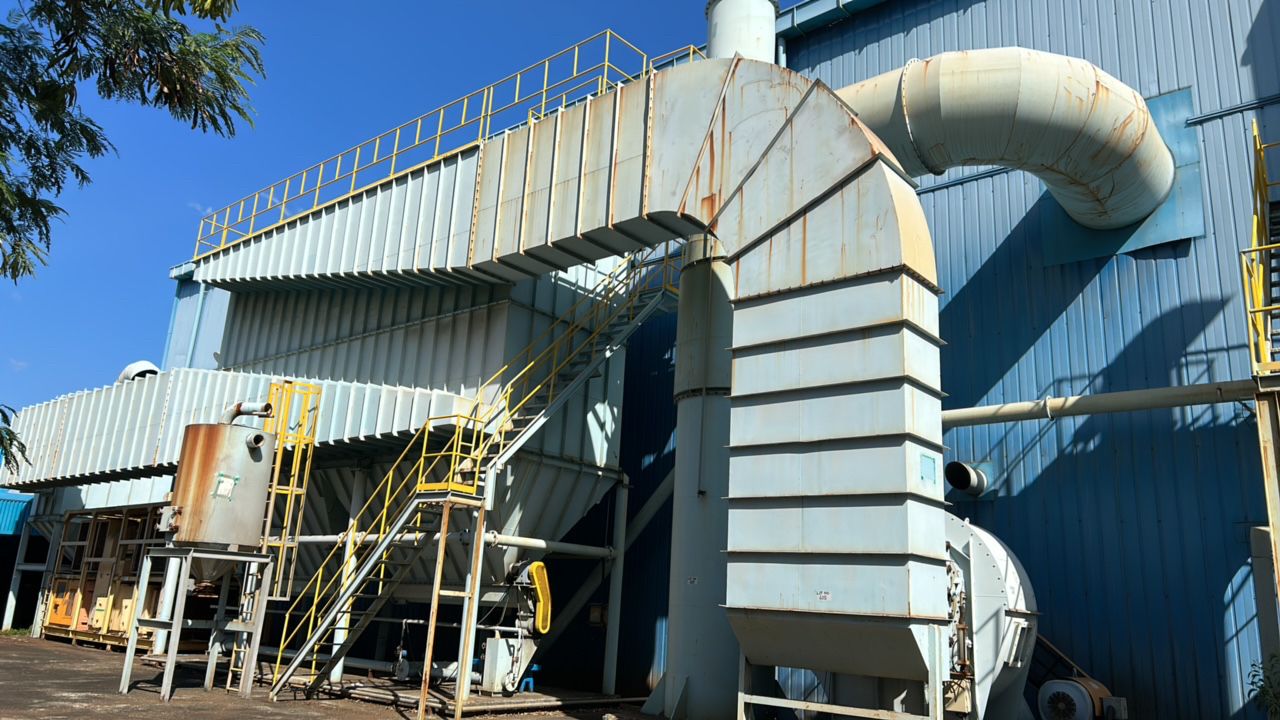

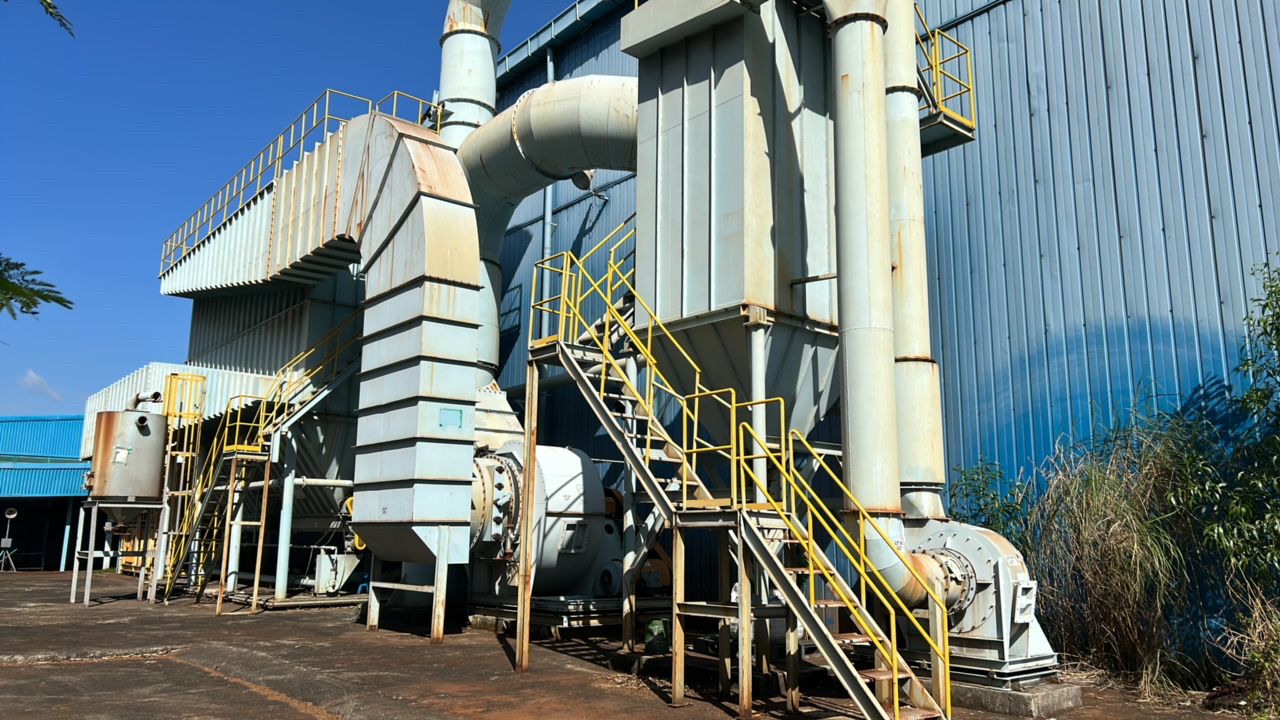

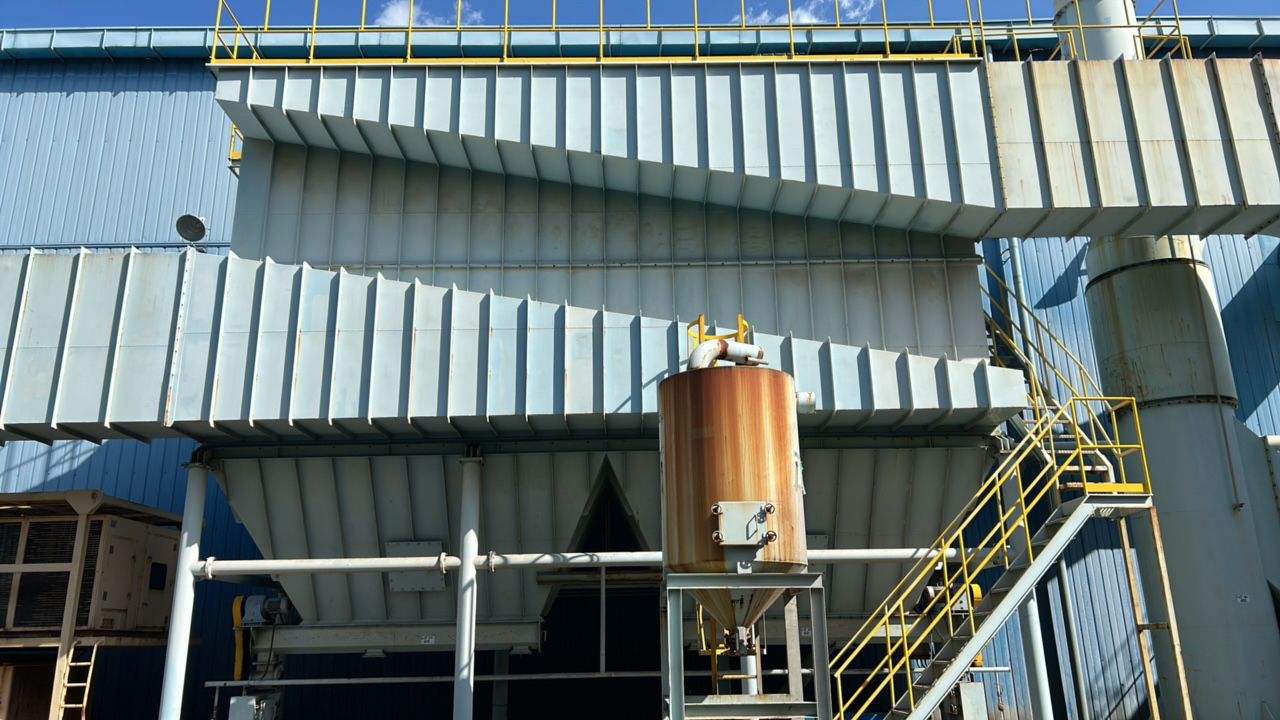

- Dust Collector Main – 1 unit
- Dust Collector (portable type) – 1 unit
- Air cooled chiller 15hp – 1 unit

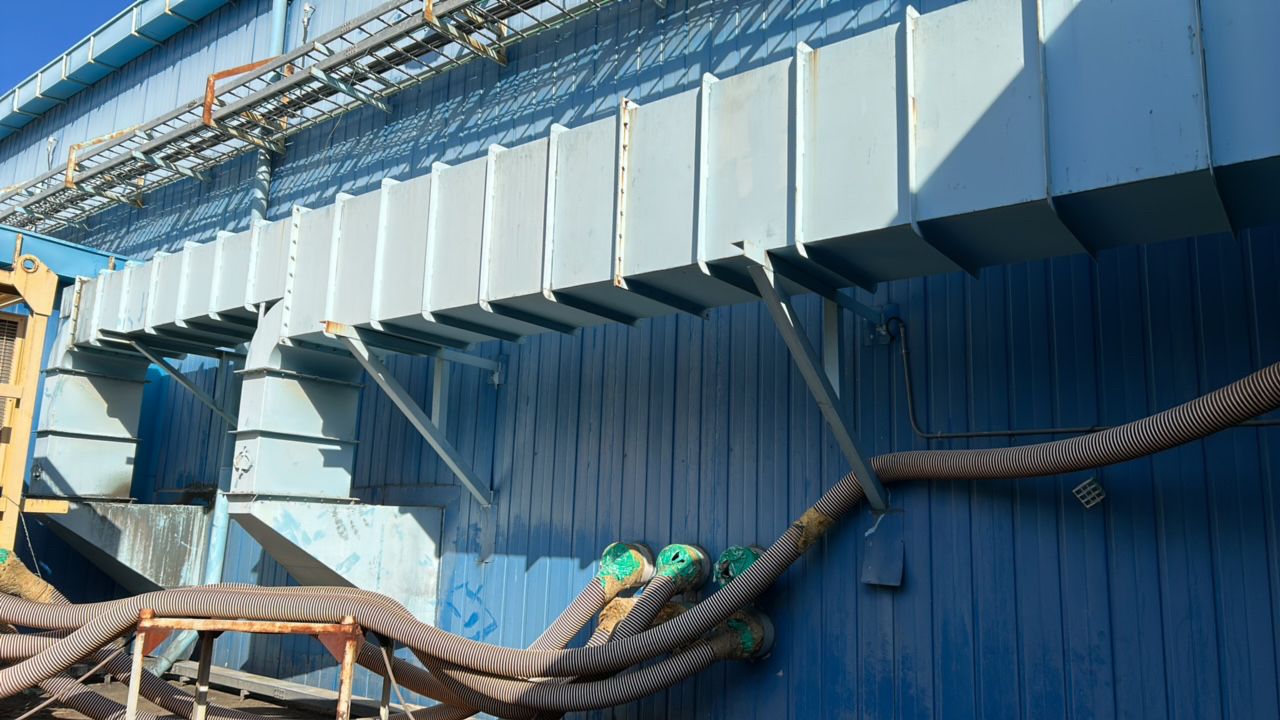

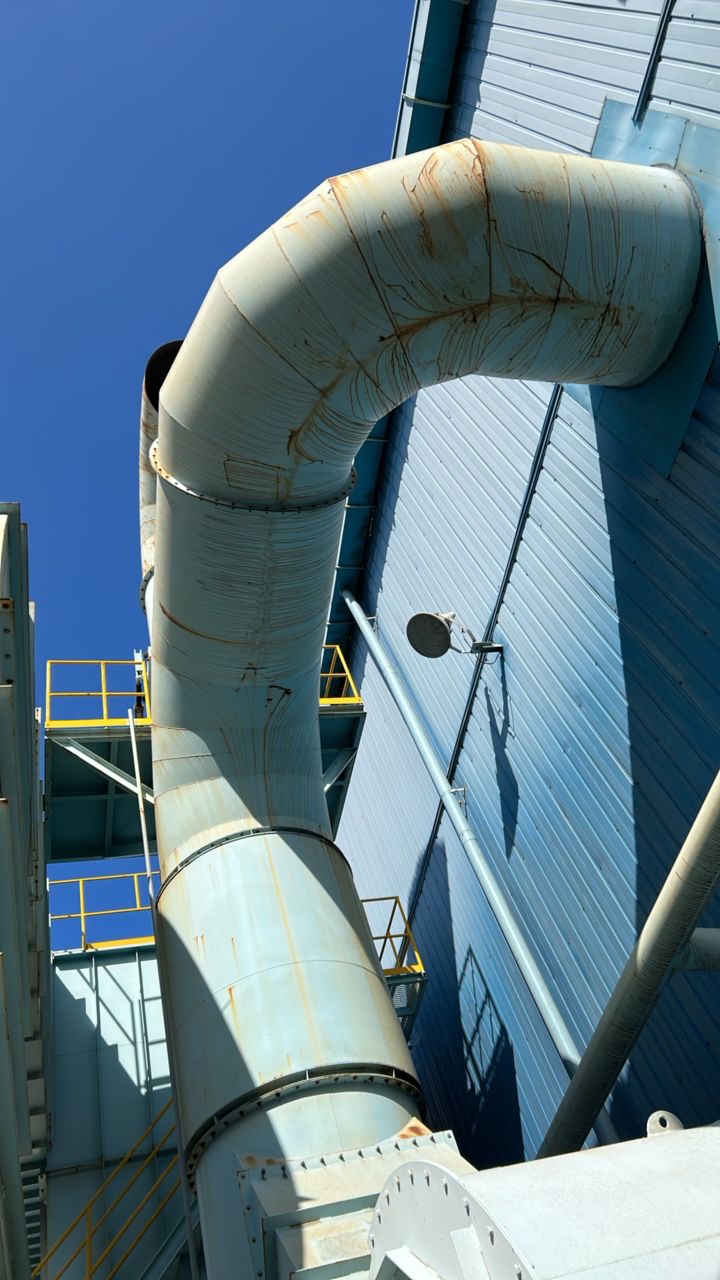

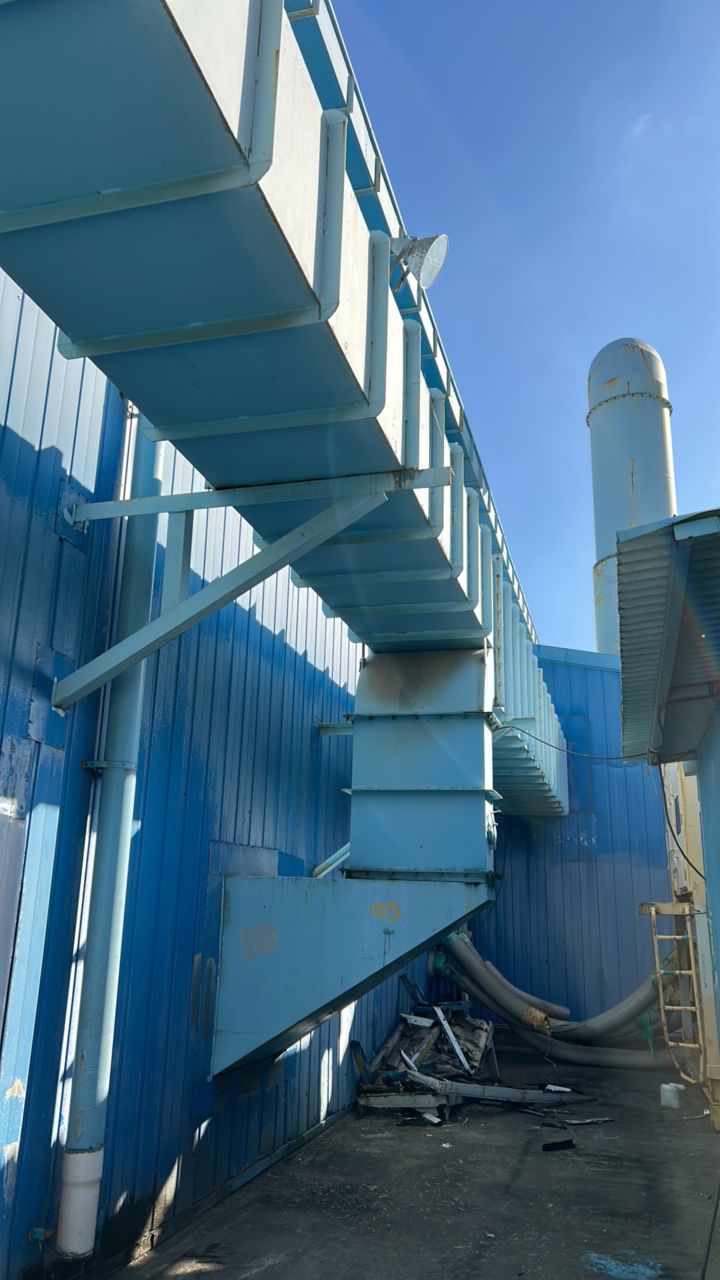

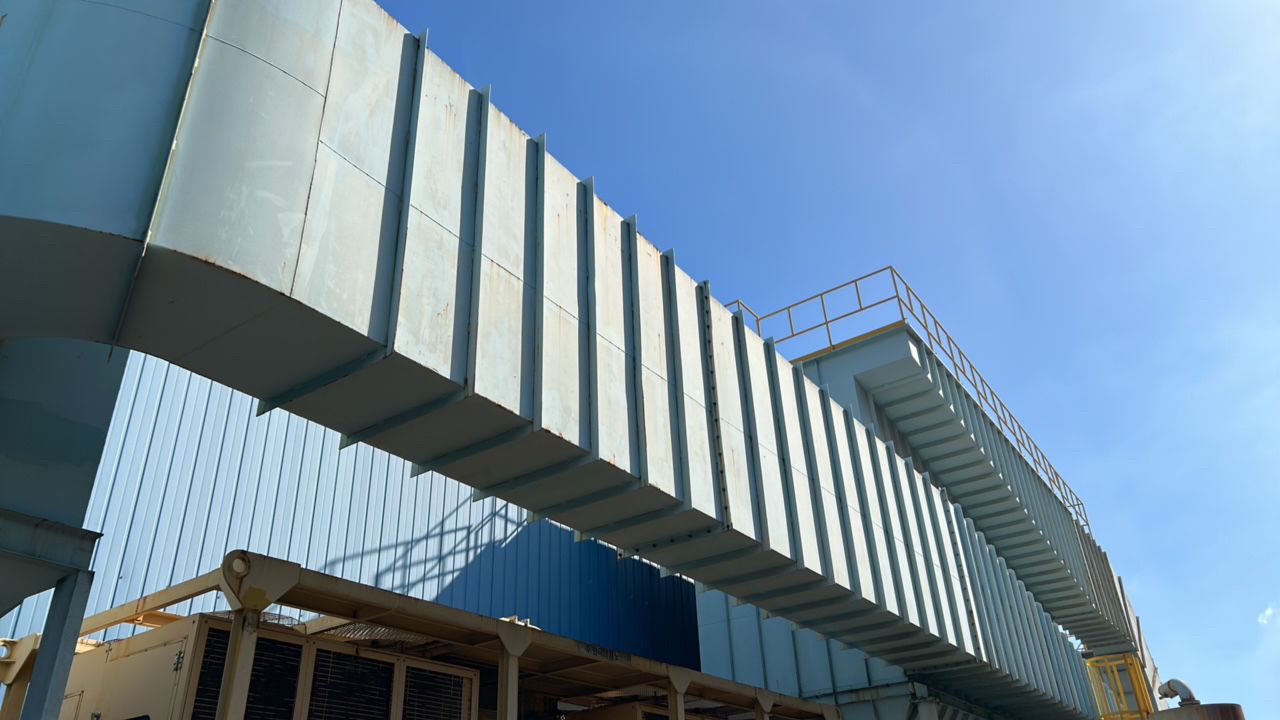

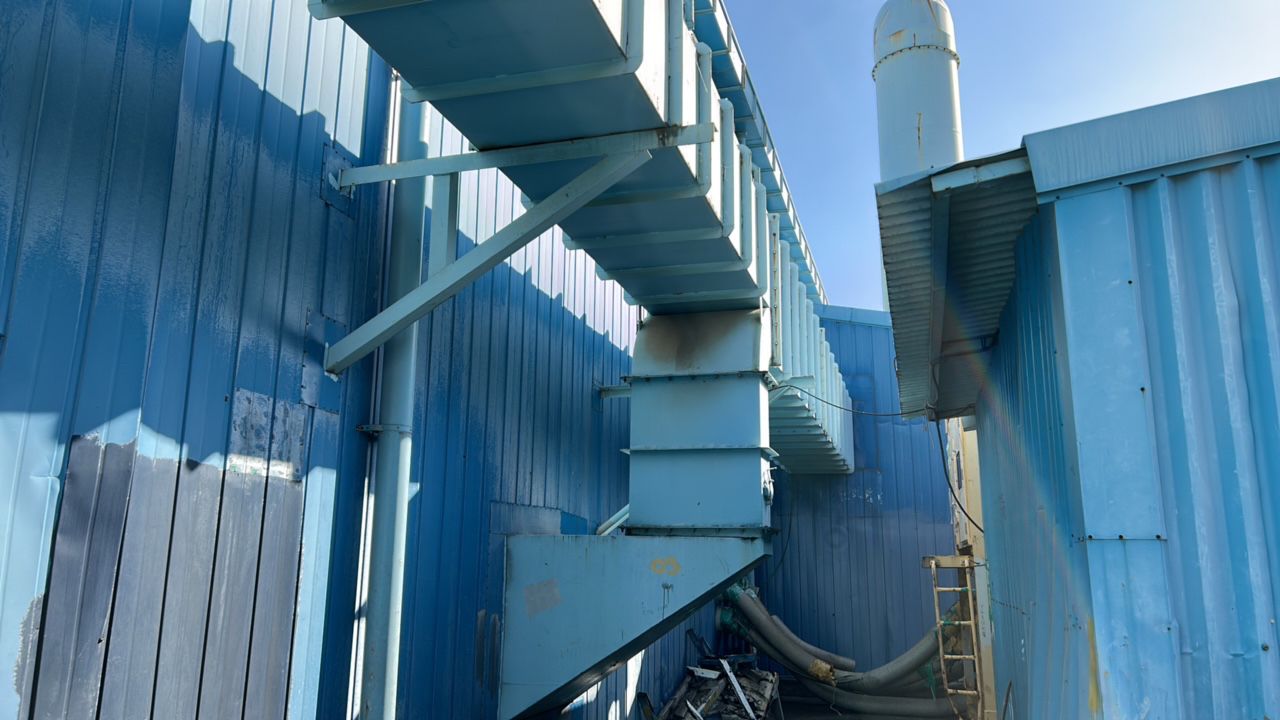

- Ventilation ducts

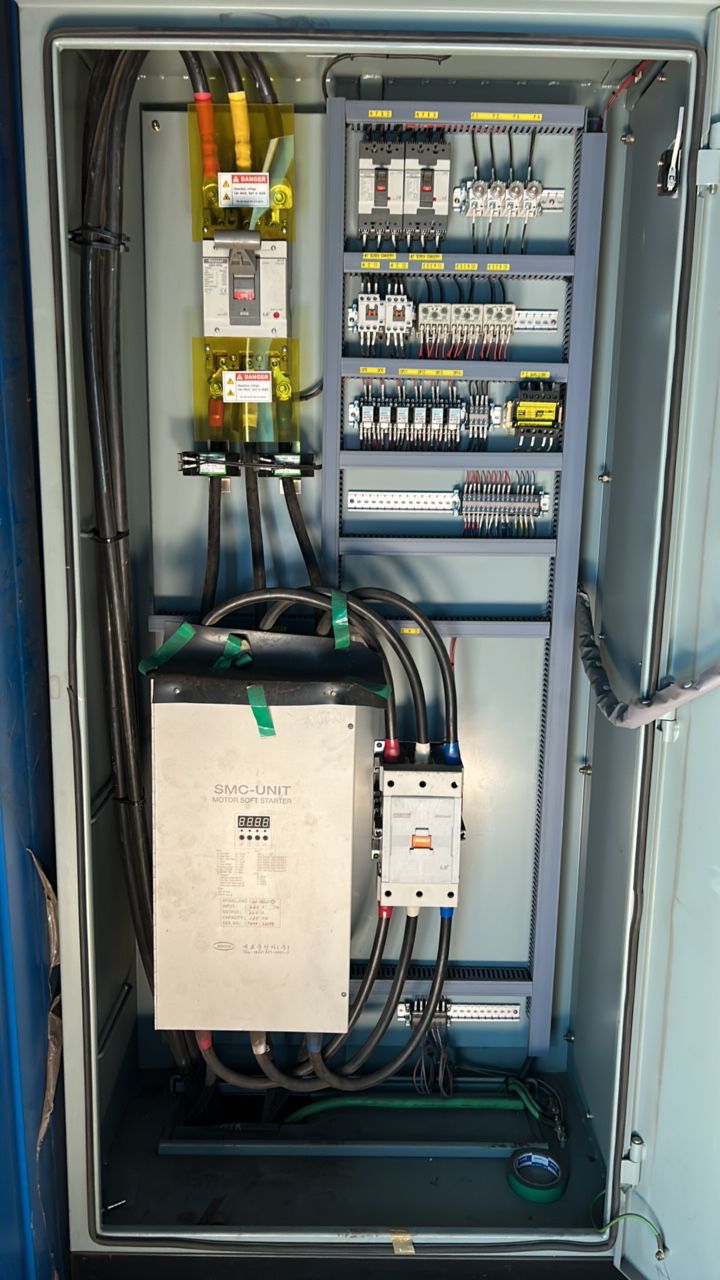

- Control panel
Sand Blasting System
- Chute – 1
- Bucket Elevator – 1

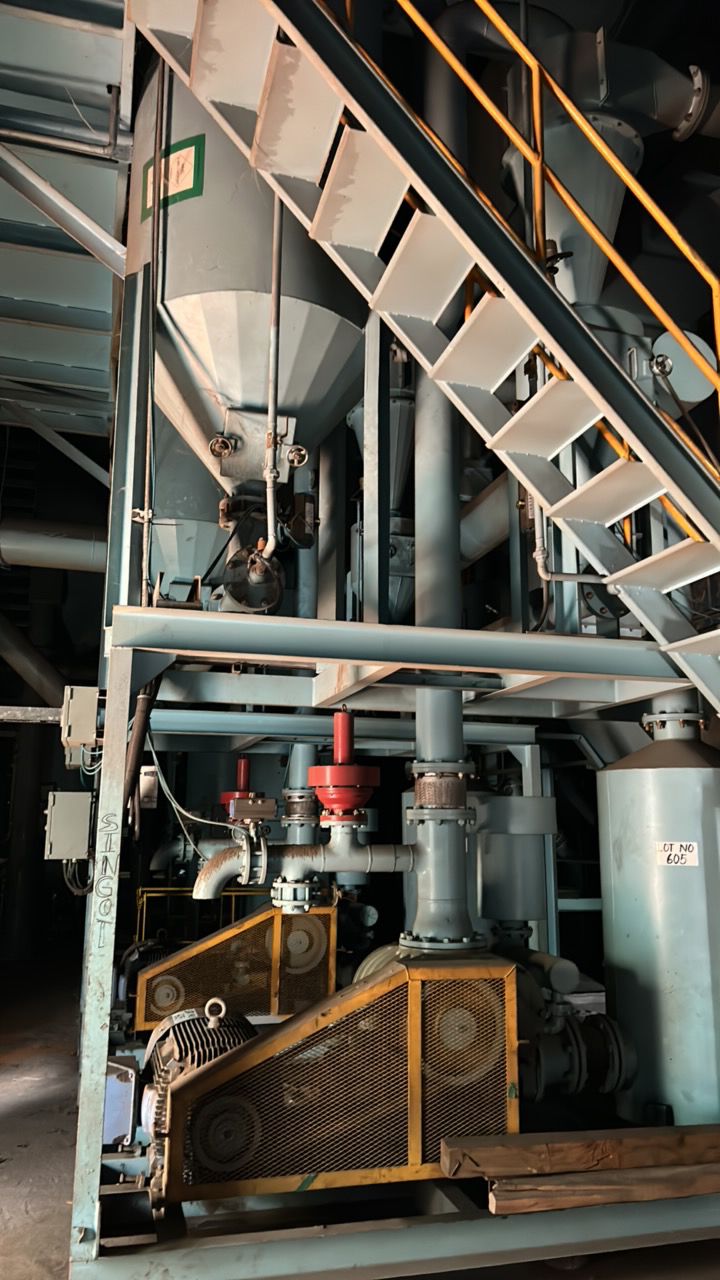

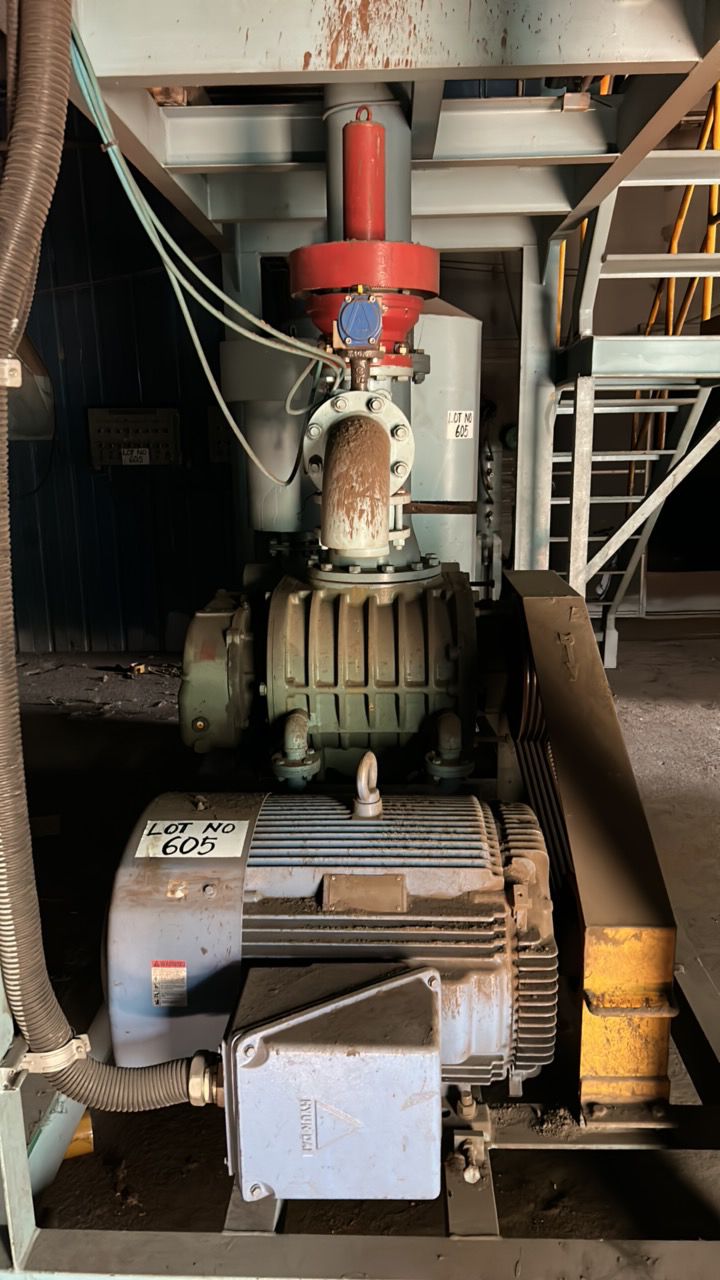

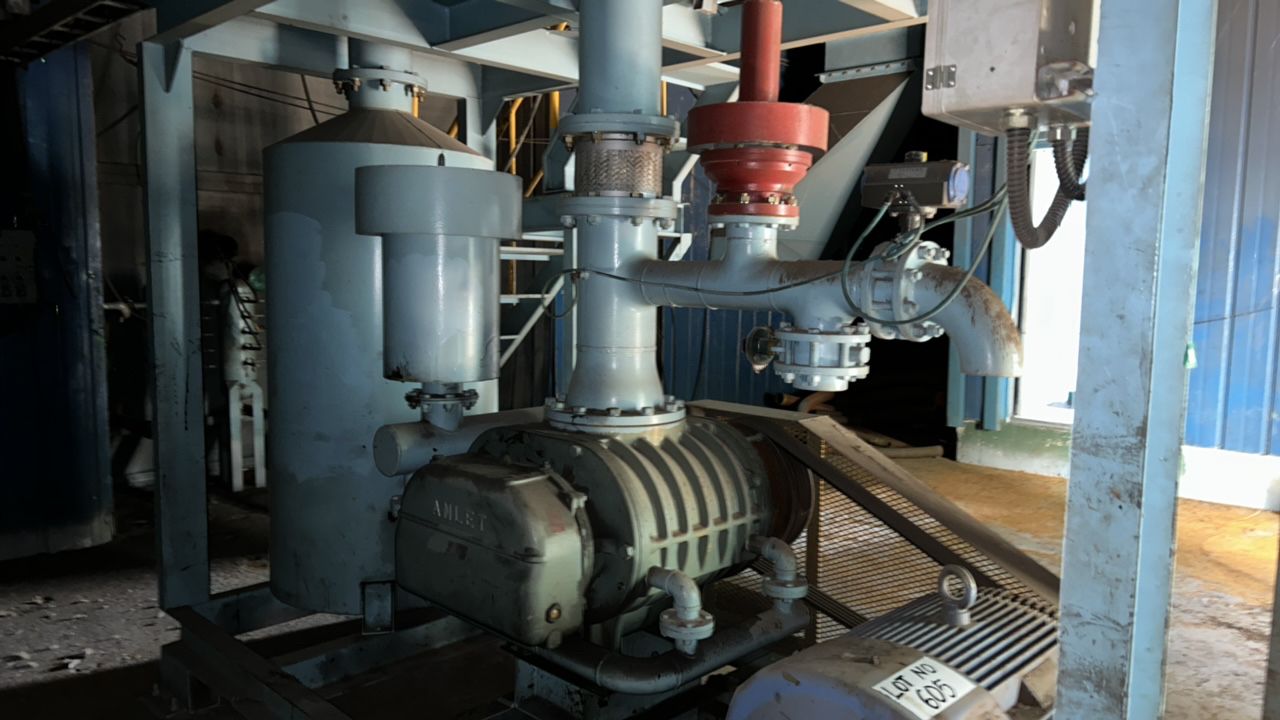

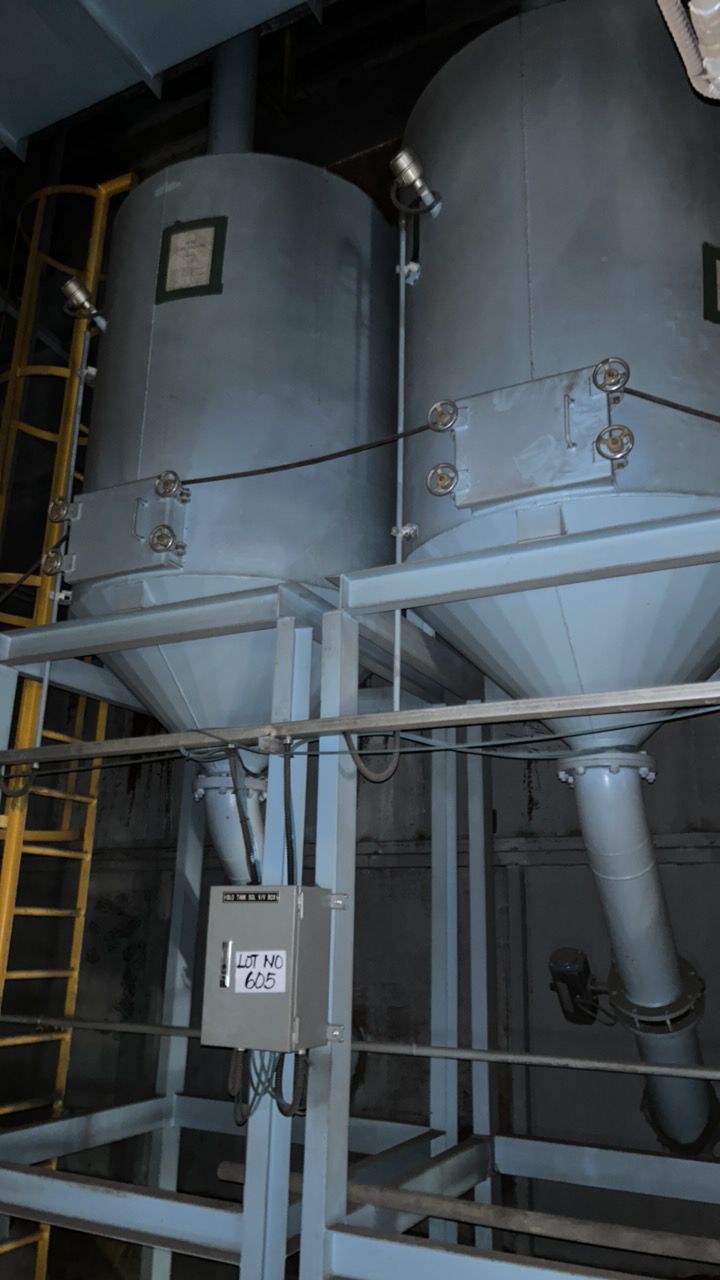

- Vacuum Recovery – 2 units
- Blasting system – 1 set – 4 tanks/set – 4 nozzles/tank – 1852kg/tank

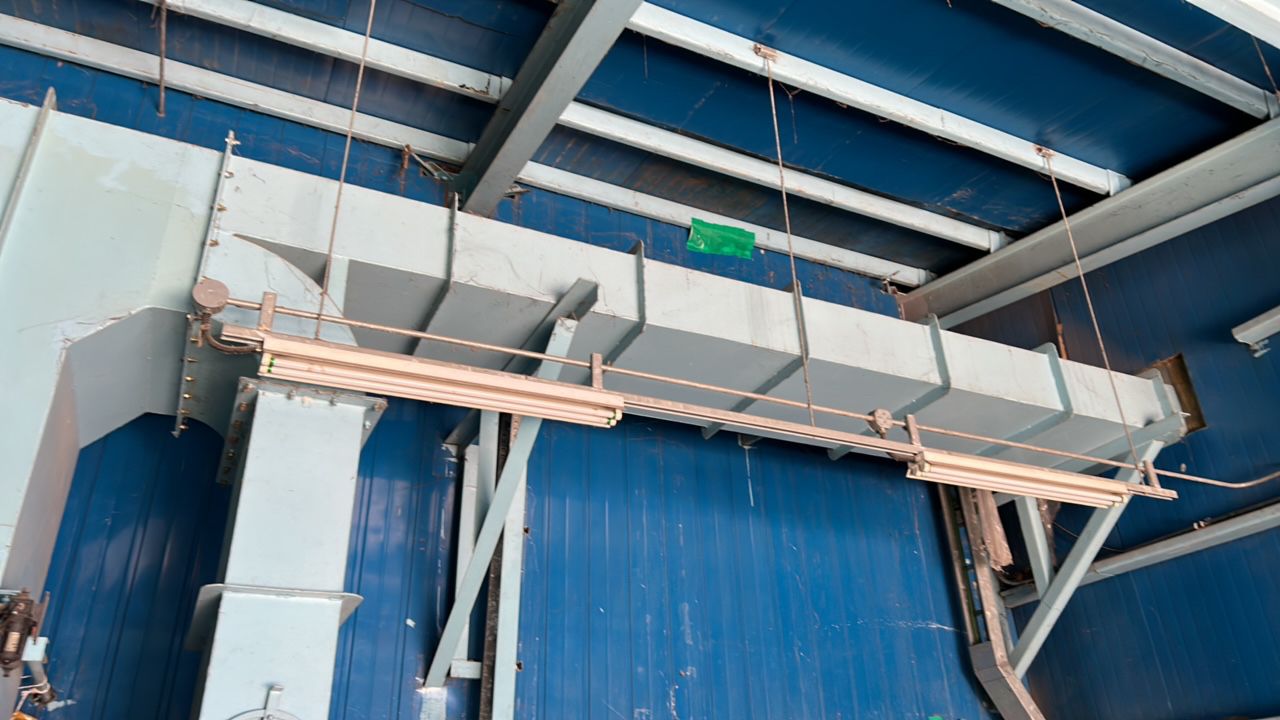

- Air ducts
- Control panel
PAINTING SHOP
Ventilation System
- Dehumidifier(YDHM-CDH-15,000N) – 2 units
- Fan/Blower 200hp -2 unit
- Exhaust pipe (for 200hp fan) – 2 units
- Ventilation ducts
Accessories/other items:
Spare vacuum recovery collection tank – 1
Cable trays
Power Supply/Electric cables(distribution panels not included)
