HONG KANG Machinery Integrated Coil Shearing Line (Cut-to-Length Line) (2011)
Lot No. 1
HONG KANG Machinery Integrated Coil Shearing Line (Cut-to-Length Line) (2011)
Coil Weight 30 Ton x 1850 mm x 3,2-8,0 mm
Make: Manufactured by HONG KANG Machinery Manufacturing Co., Ltd. (China)
Designed by DAE DONG Engineering Co., Ltd. (Korea)
Year of manufacture: 2011
Recent updates: During the course of the last few years all components were exchanged for original Korean components, such as Work- and Back-Up Rolls, Bearings, Motor Coil except for housings.
Mothballed since: Line currently in operation
Application: Processing steel coils (cutting-to-length, trimming, and leveling) into sheets according to specific requirements

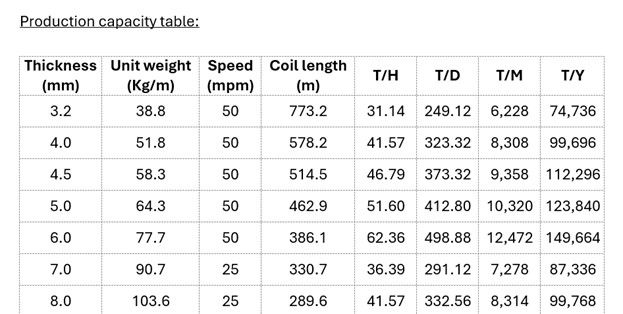

Capacity: 150,000 tpy
Equipment weight: approx. 300 tons (estimate)
Line overall length: approx. 70 meters
Line direction: Right to left
Material data:
Processed material: Hot Rolled Steel Coils
Tensile strength: max. 65 Kg/mm2
Shear strength: max. 52 Kg/mm2
Yield point: max. 46 Kg/mm2
Coil width: min. 900 mm
max. 1,850 mm
Coil thickness: min. 3.2 mm
max. 8.0 mm
Coil weight: max. 30,000 kg
Coil inside diameter: 508, 610, 762 mm
Coil outside diameter: min. 1,000 mm
max. 2,200 mm
Sheet width: min. 900 mm
max. 1,829 mm
Sheet thickness: min. 1.6 mm
max. 8.0 mm
Sheet length: min. 1,000 mm
max. 13,000 mm
Stacking weight: max. 10,000 kg
Stacking height: max. 300 mm
Process data:
Line speed: 1.6 ~ 6.0 mm = 0 ~ 60 mpm
6.1 ~ 8.0 mm = 0 ~ 25 mpm
Threading speed: 10 mpm
Scrap processing: Scrap winder and chopper
Scrap width: max. 30 mm on each side
Cutting method: Flying hydraulic shear
Pass line height: Floor + 1,100 mm
Take-out conveyor: Longitudinal roller conveyor
Accuracy:
Trim width: ±0.5 mm
Accuracy length: ±0.5 mm / 1,000 mm (at stable speed)
Diagonal: ±0.5 mm / 1,000 mm
Camber: 2.0 mm / 1,000 mm
Burr: 1.6 ~ 6.0 mm = 0.3 mm
6.1 ~ 13.0 mm = 0.7 mm
Utilities:
Main control power: AC 440V ±10%, 60 Hz ±1%, 3Φ
Operation power: AC 220V ±10%, 60 Hz ±1%, 1Φ
Hydraulic equipment: AC 22 kW x 2 (oil pump)
Hydraulic pressure: normal 70 kg/cm2
max. 140 kg/cm2
Pneumatic pressure: normal 5 kg/cm2
max. 7 kg/cm2
Mechanical equipment list:
No. Equipment
1. Coil skid
2. Loading car

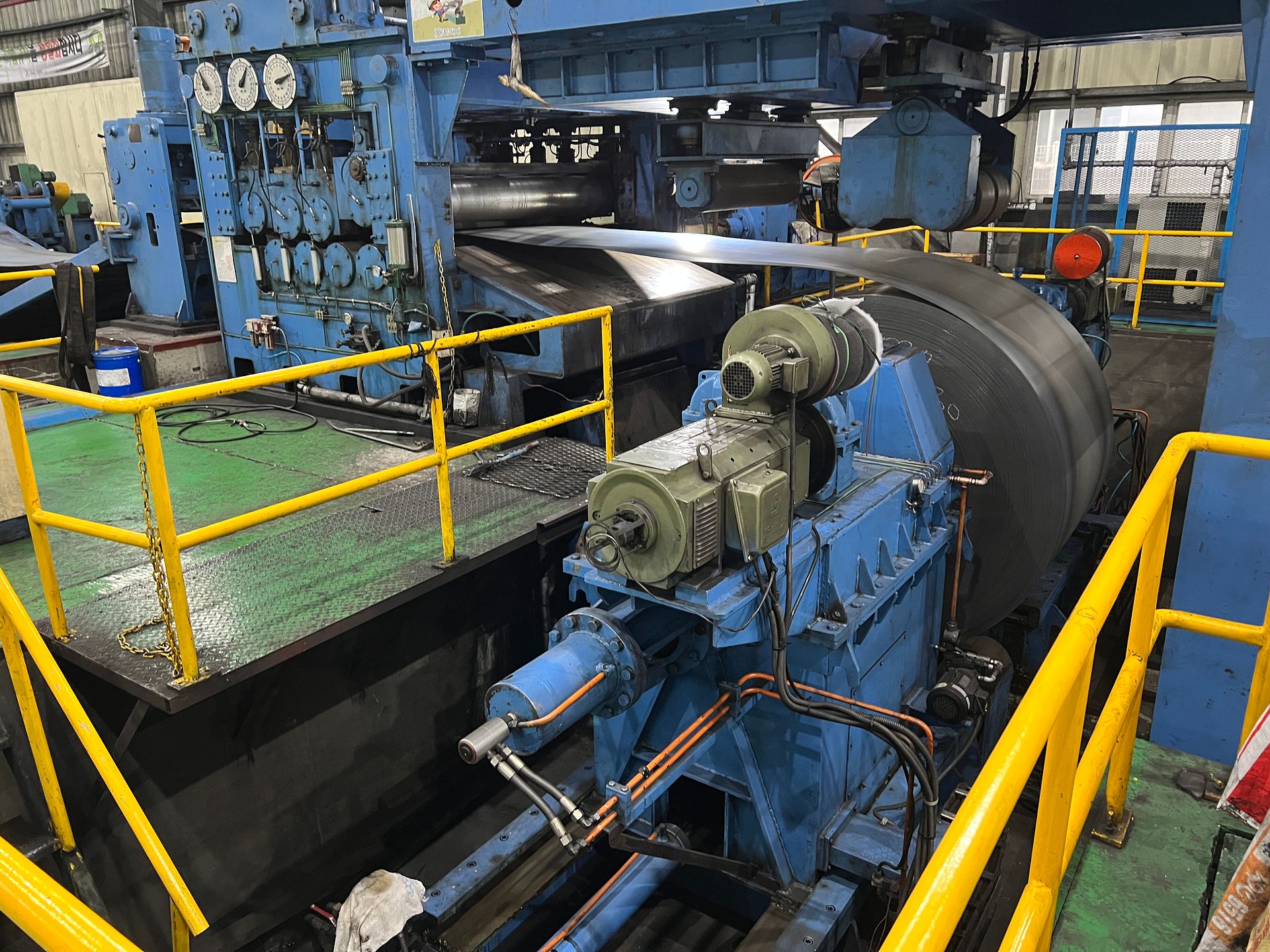

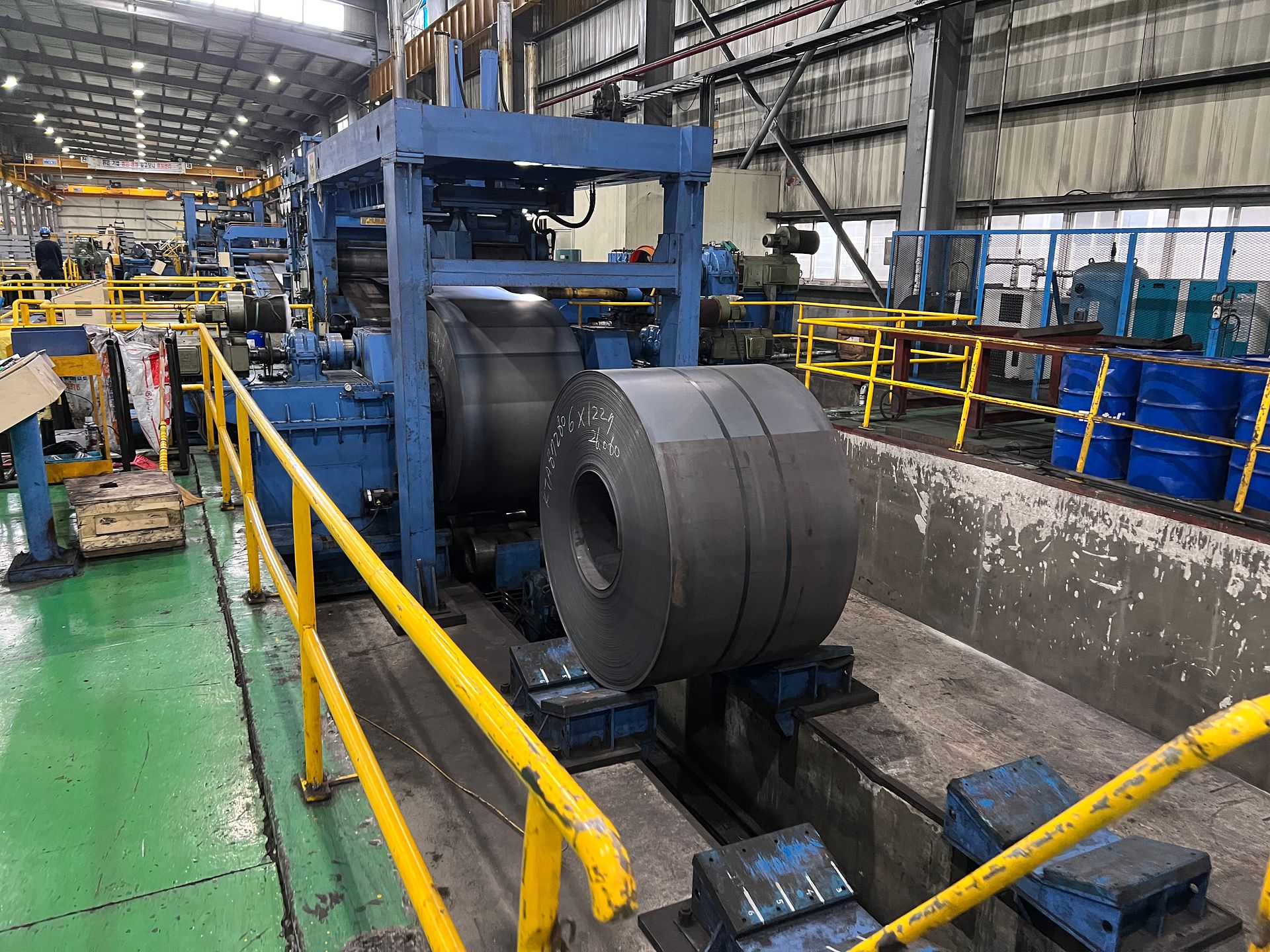

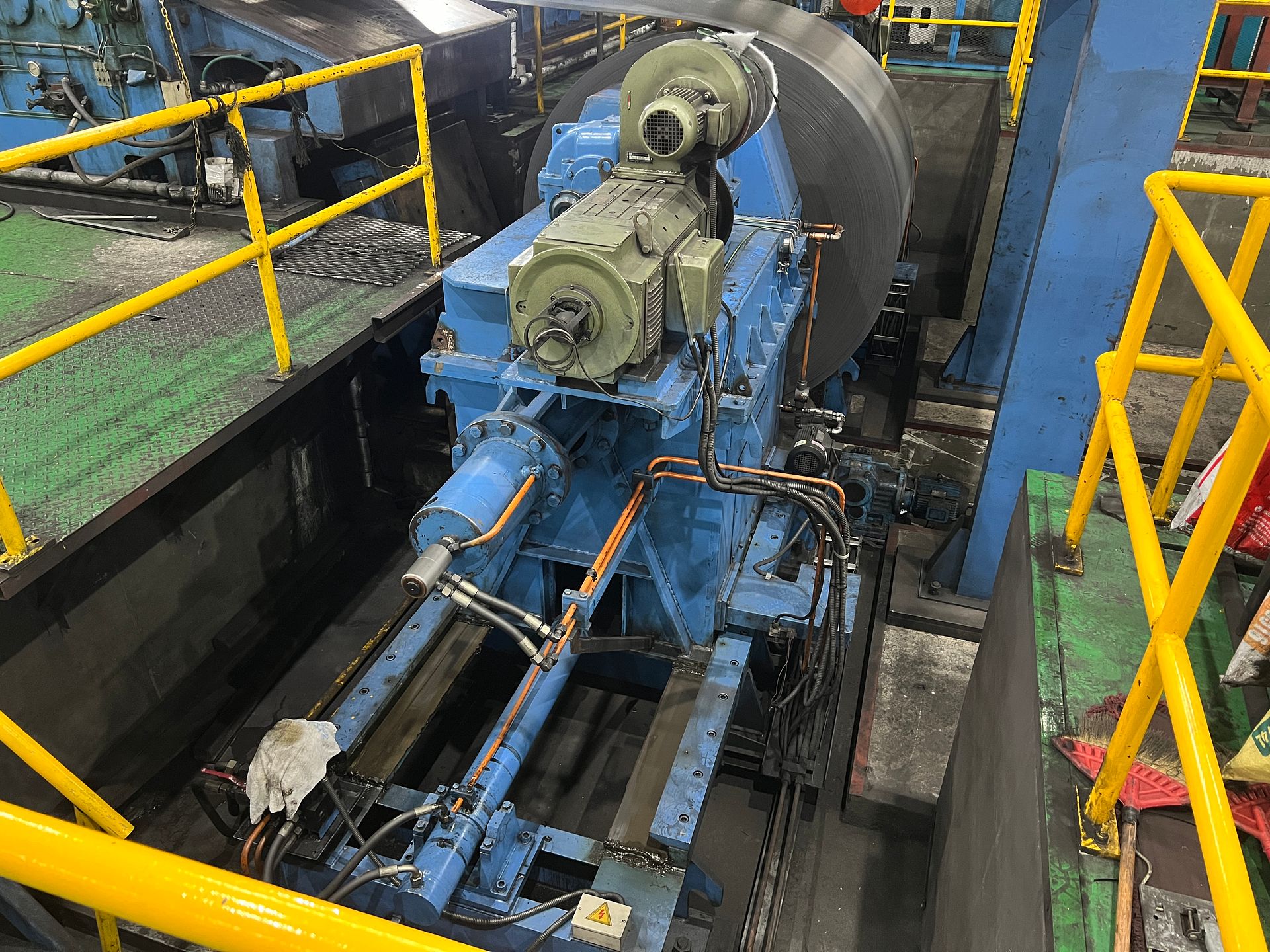

3. Double cone uncoiler
4. Coil opener
5. Rough leveler (8-rolls) with pinch roll
6. Crop shear/scrap car

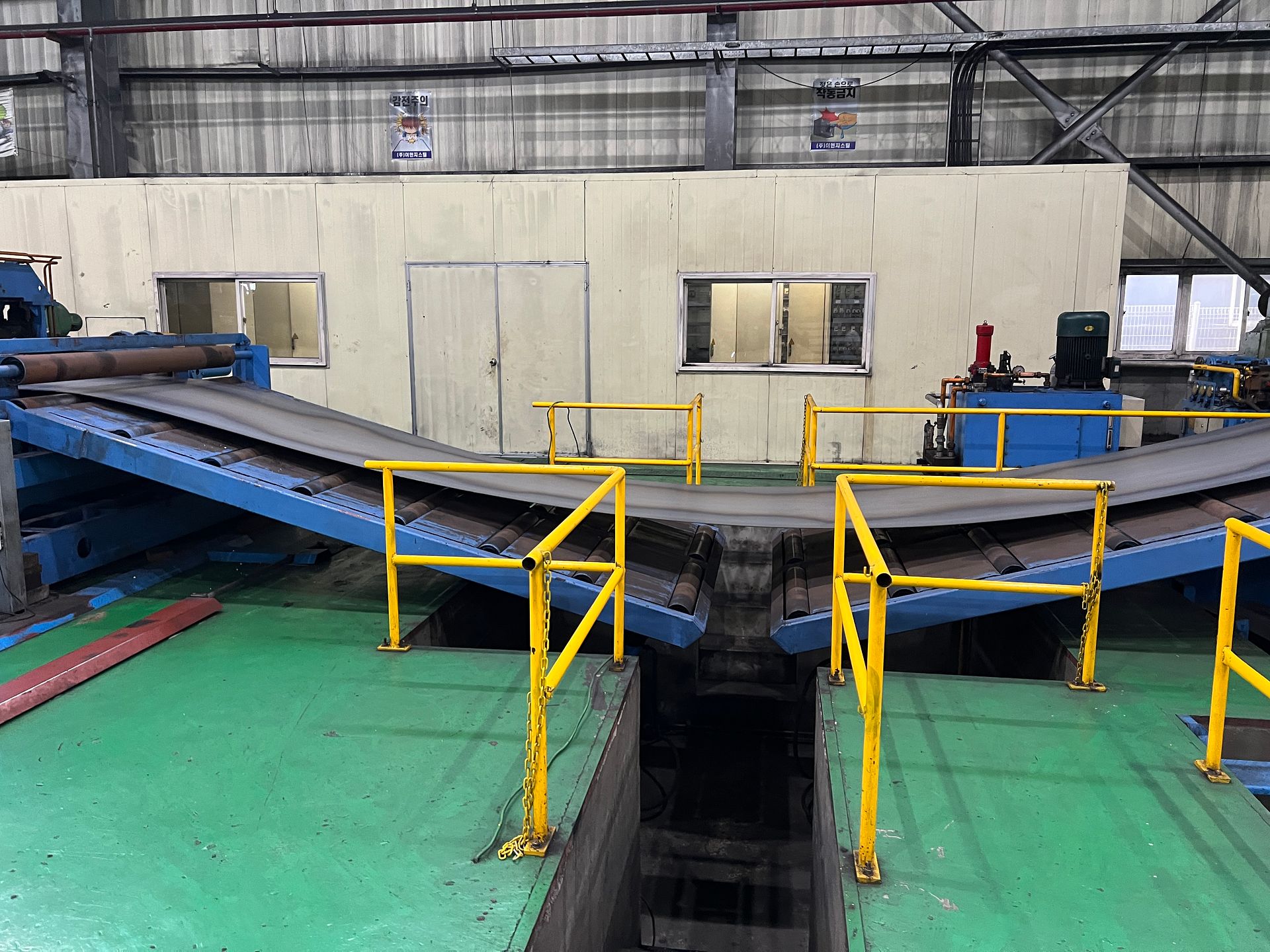

7. No.1 transition shelf (loop table)
8. No.1 side guide

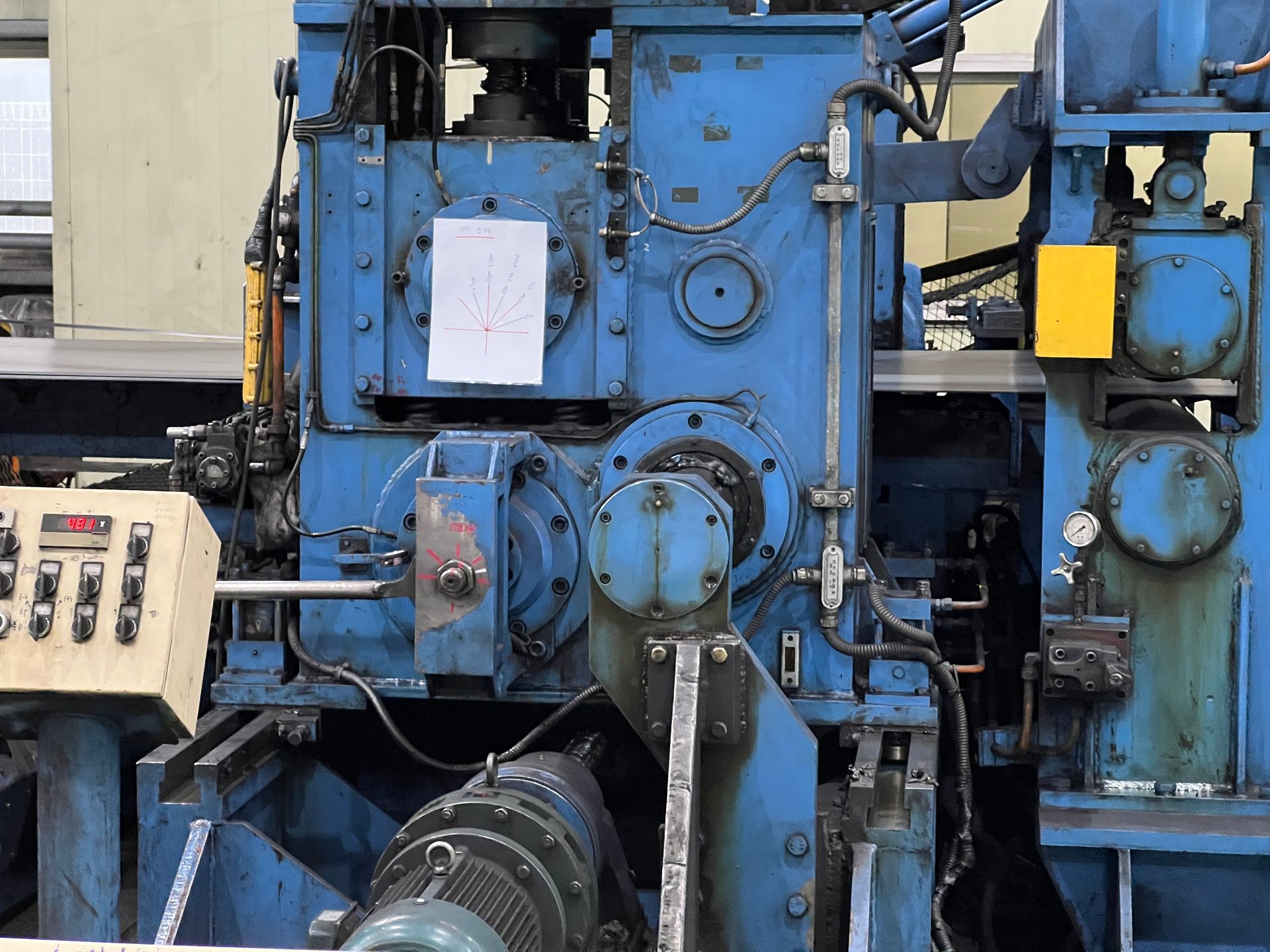

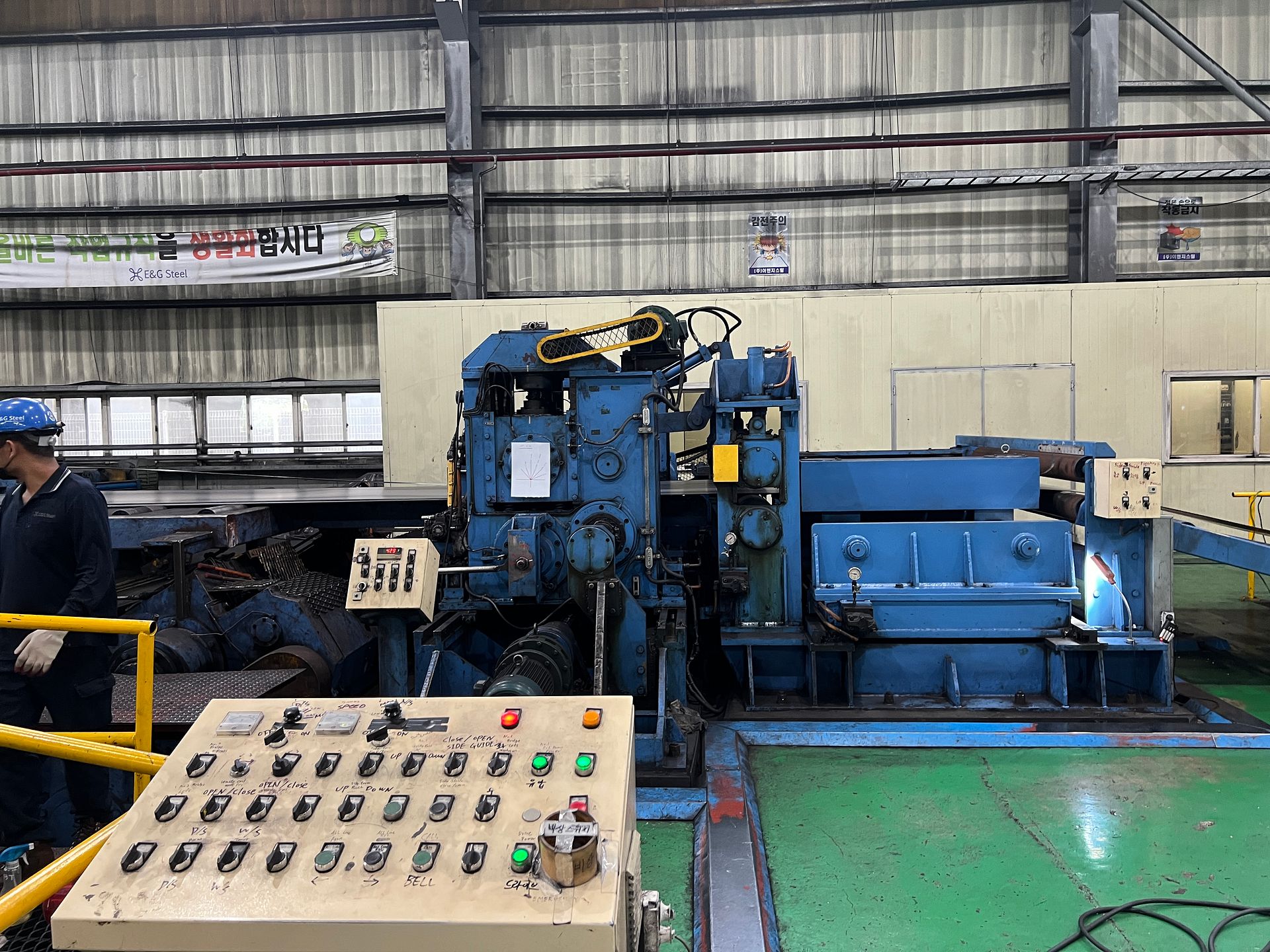

9. Side trimmer
10. Scrap chopper with pinch roll
11. Scrap conveyor with scrap box

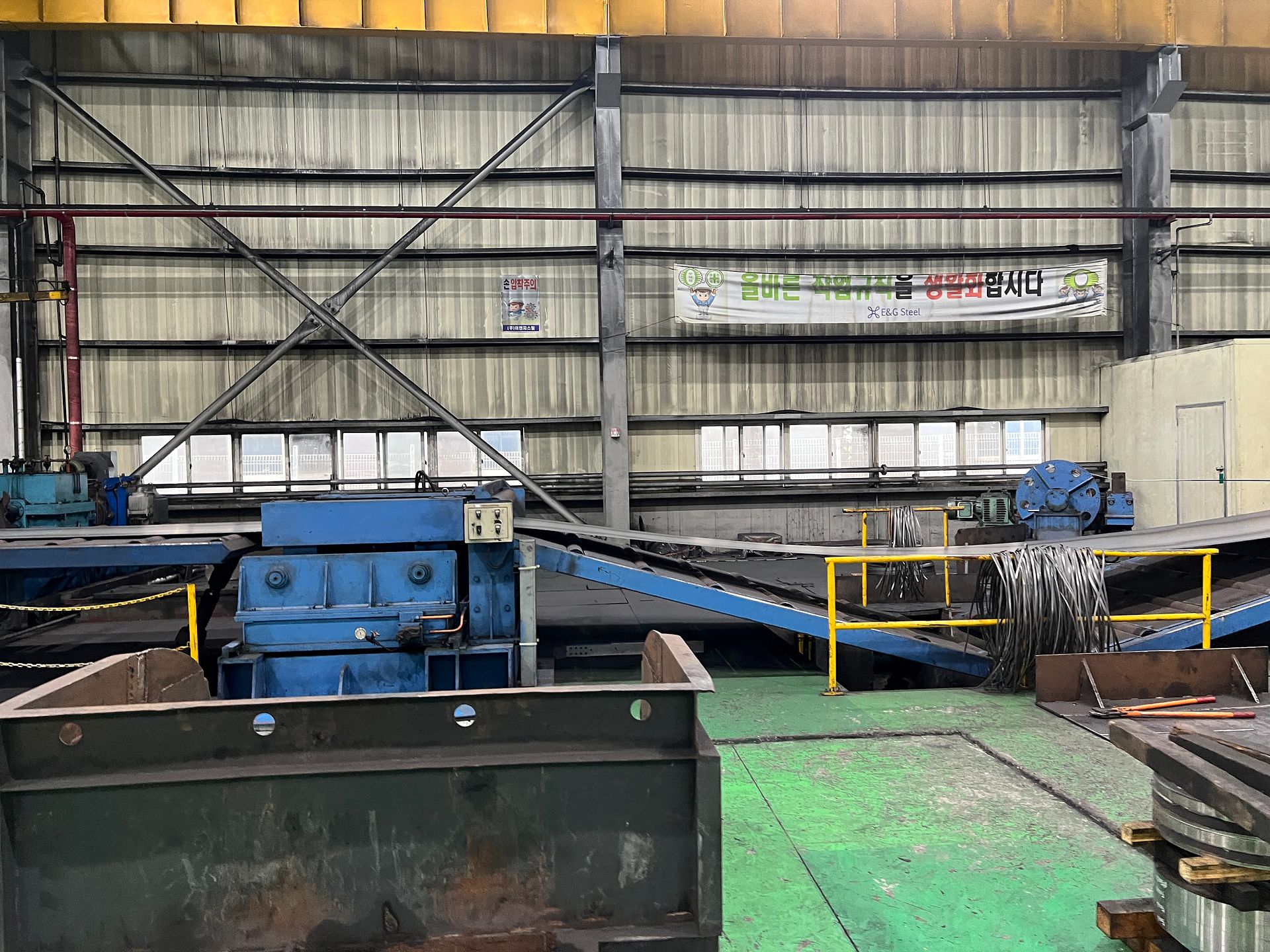

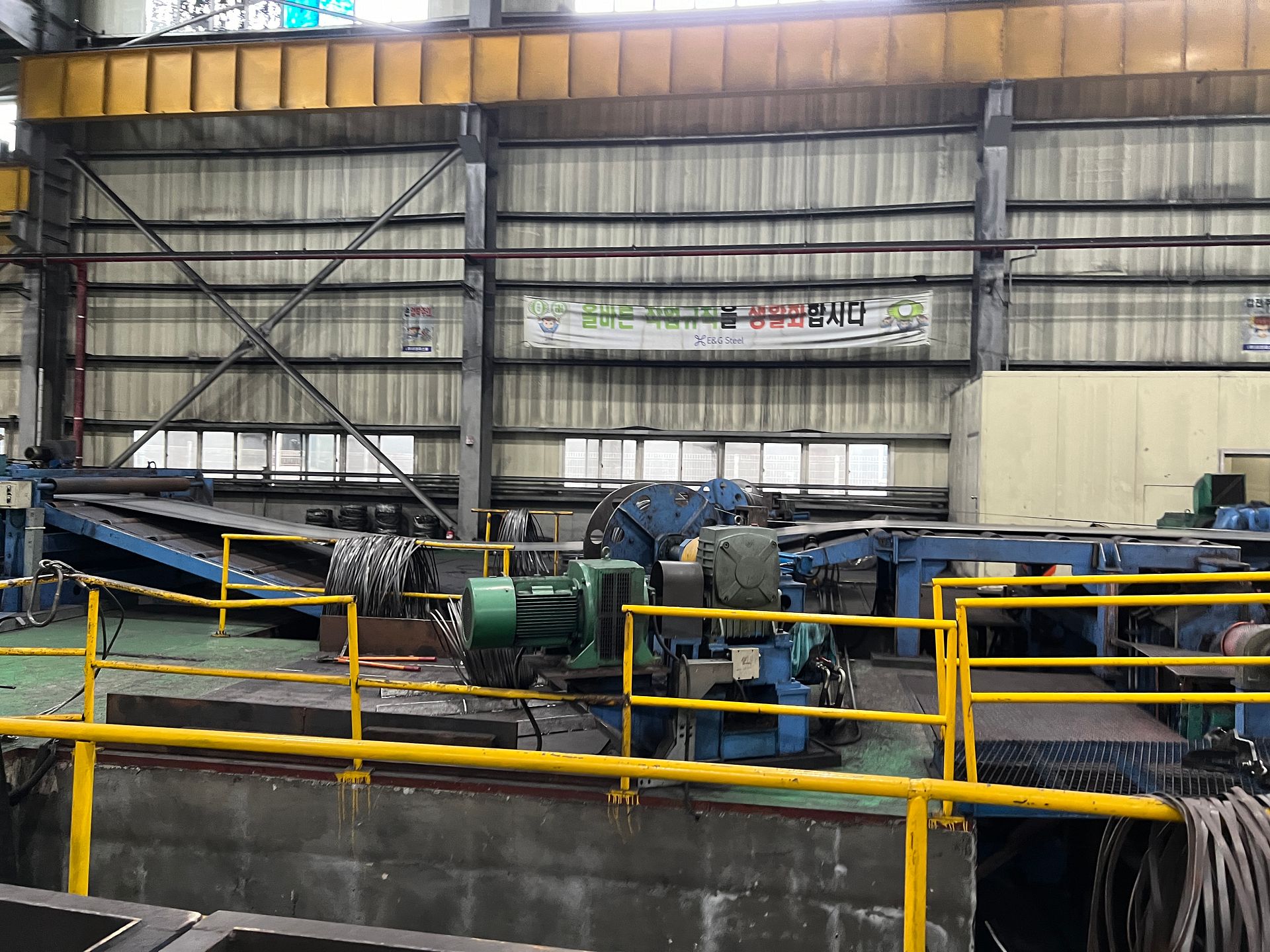

12. Scrap winder
13. No.2 transition shelf (loop table)
14. No.2 side guide

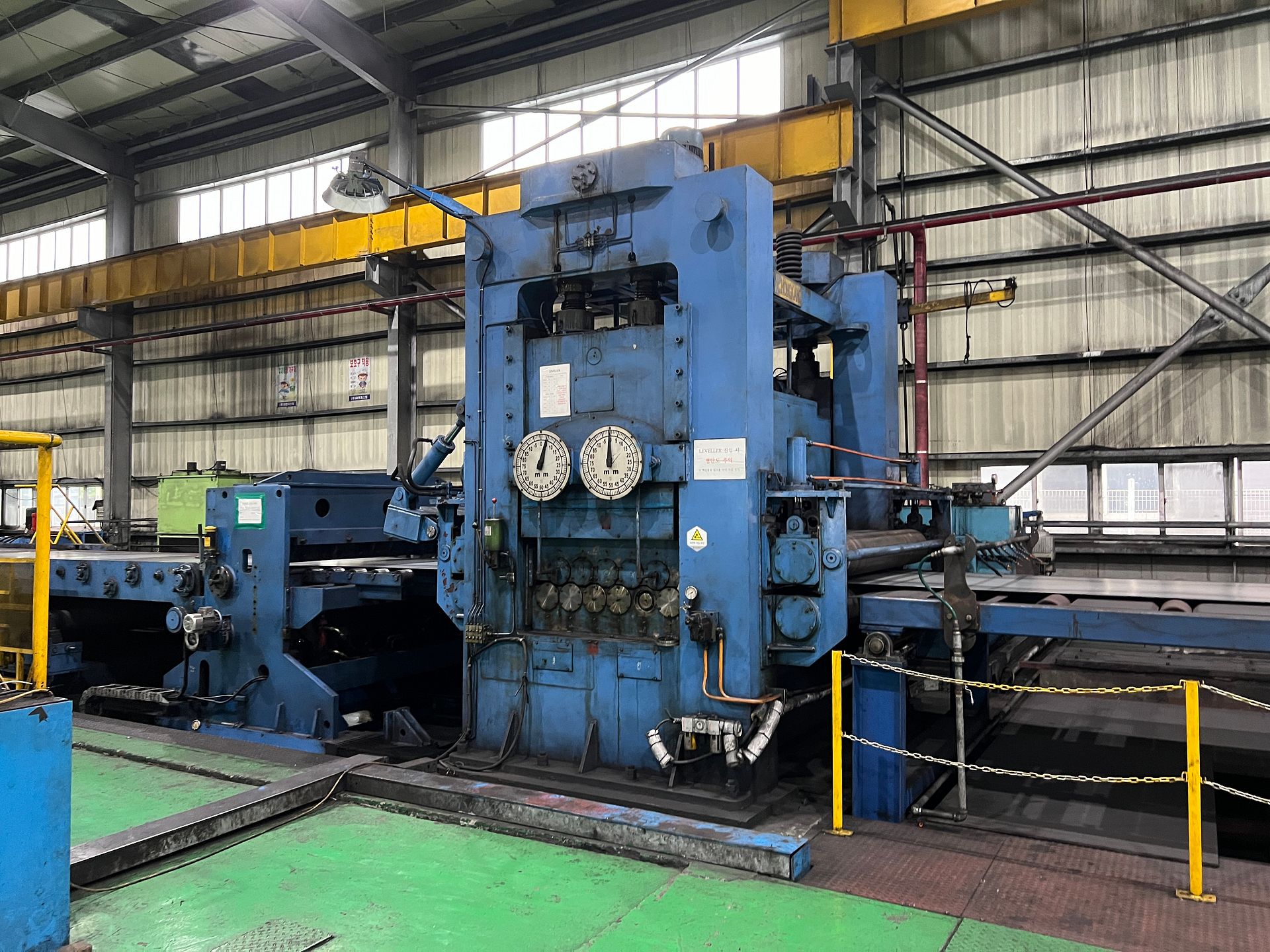

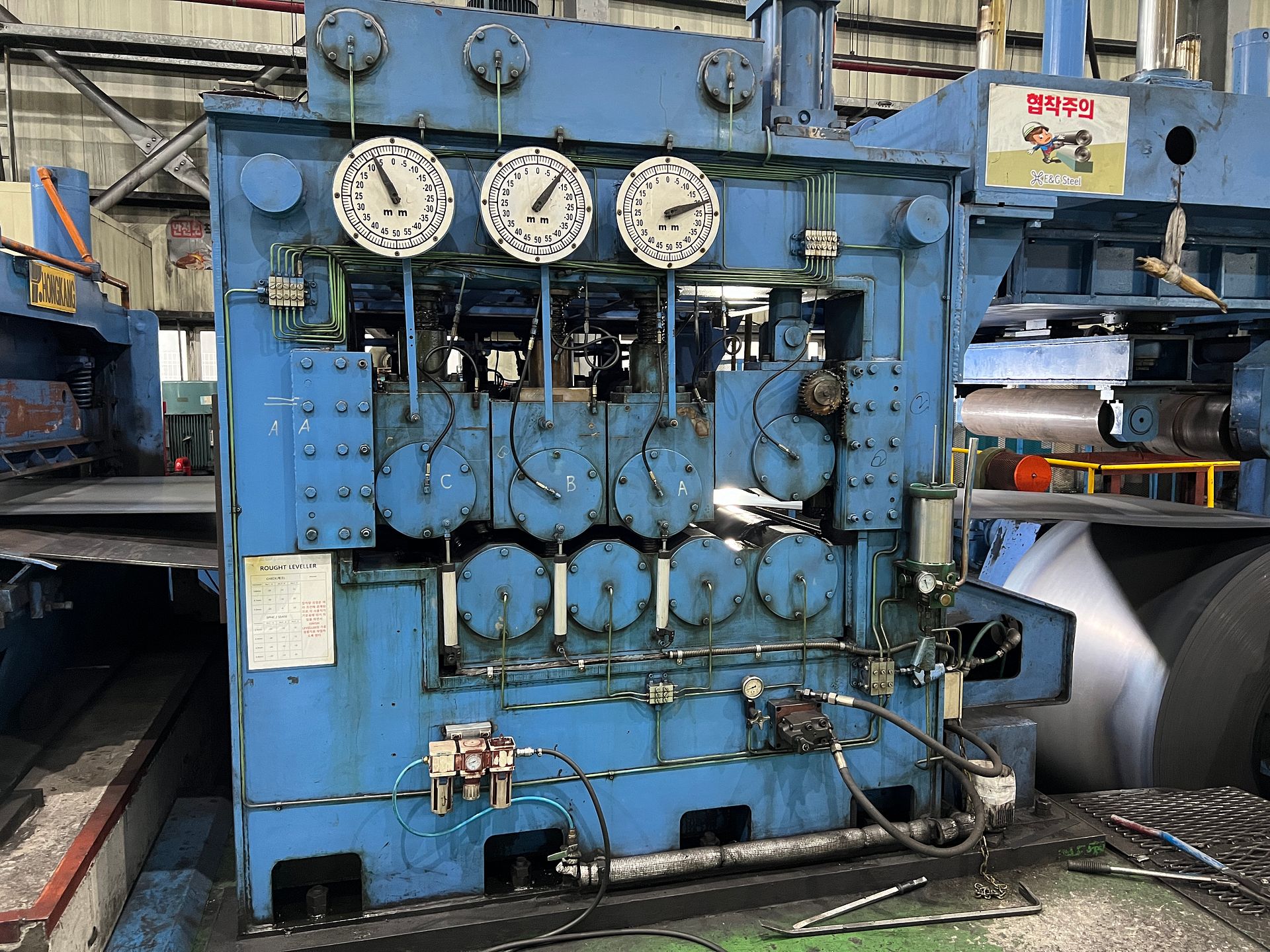

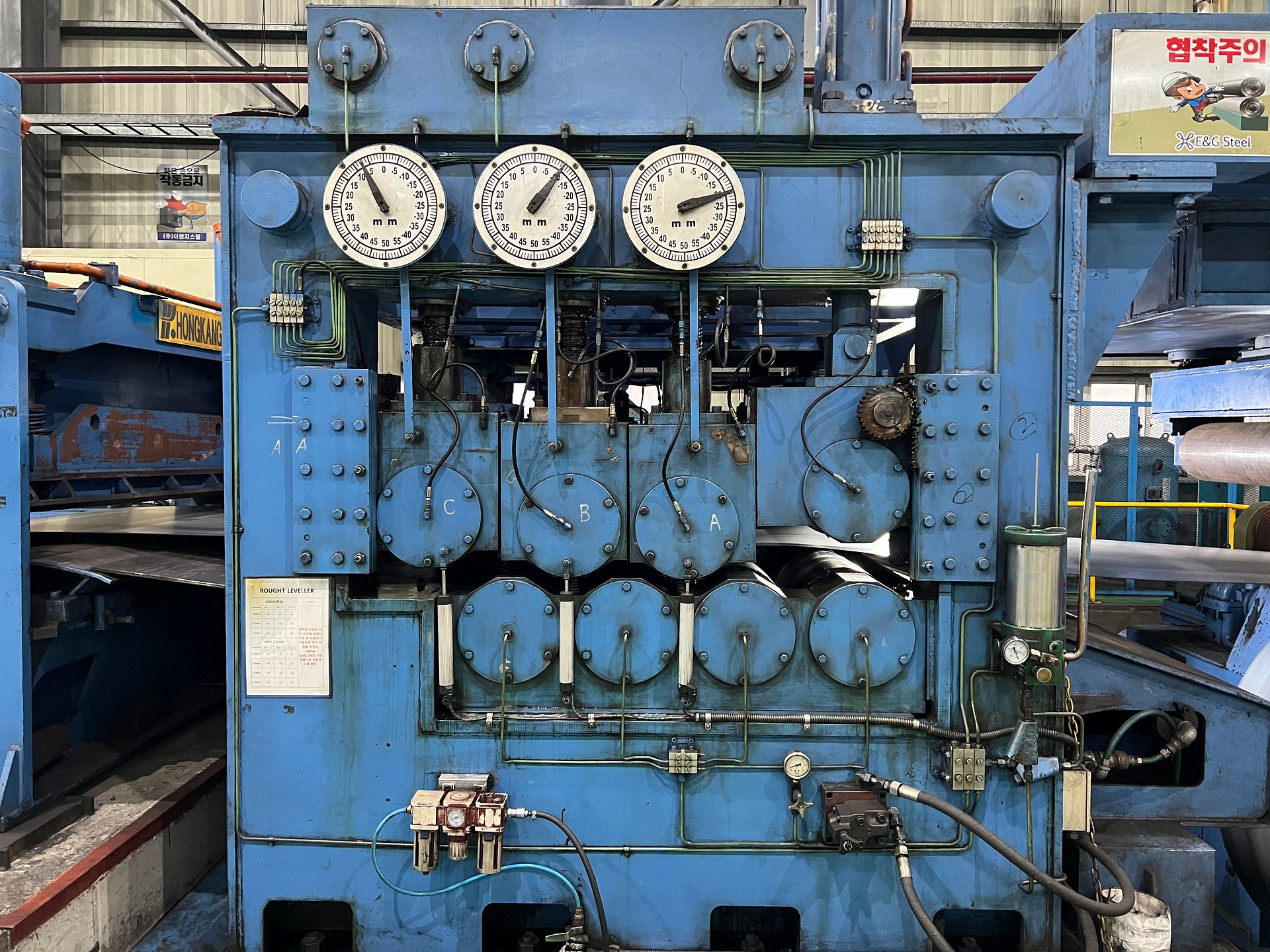

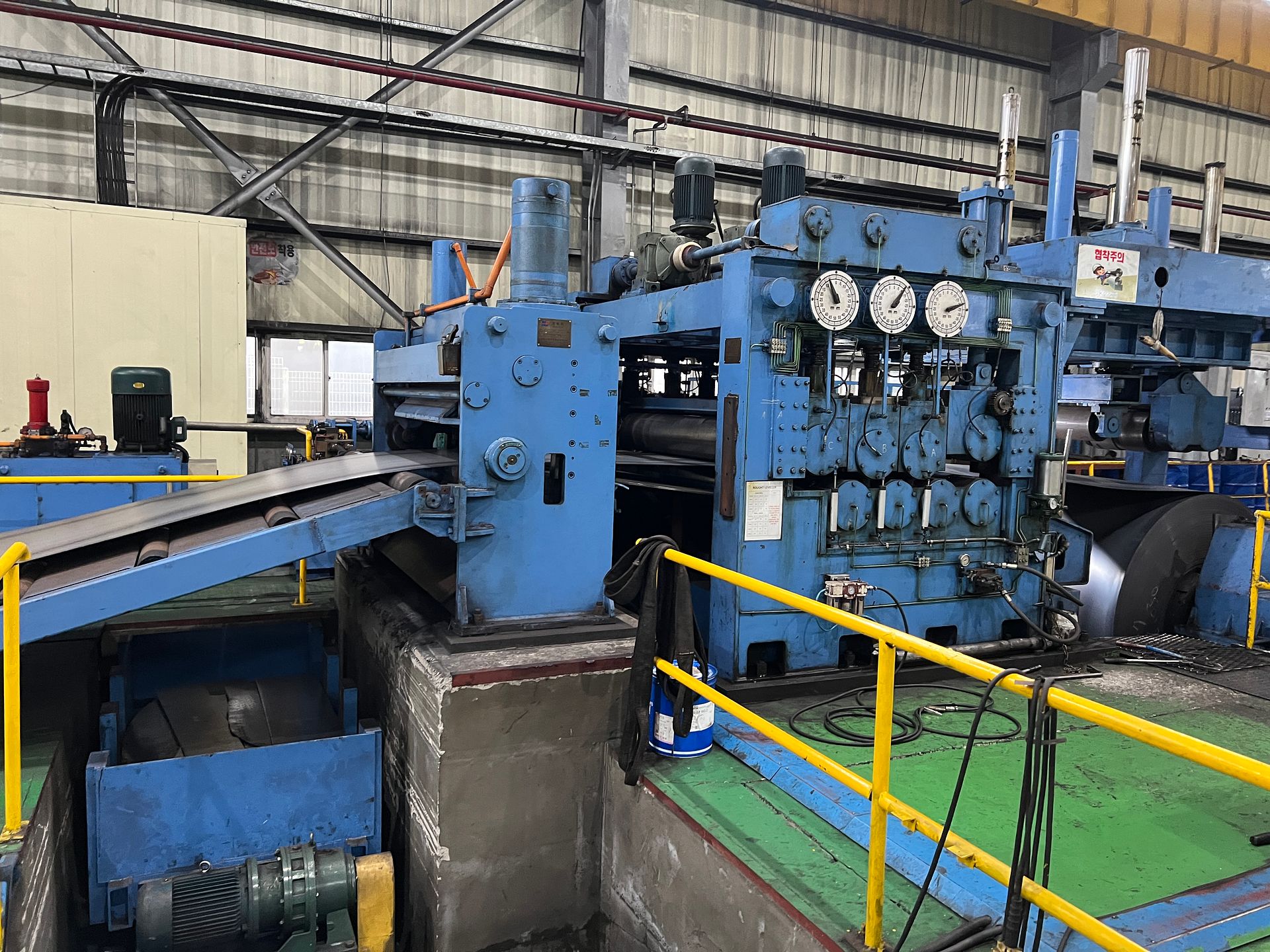

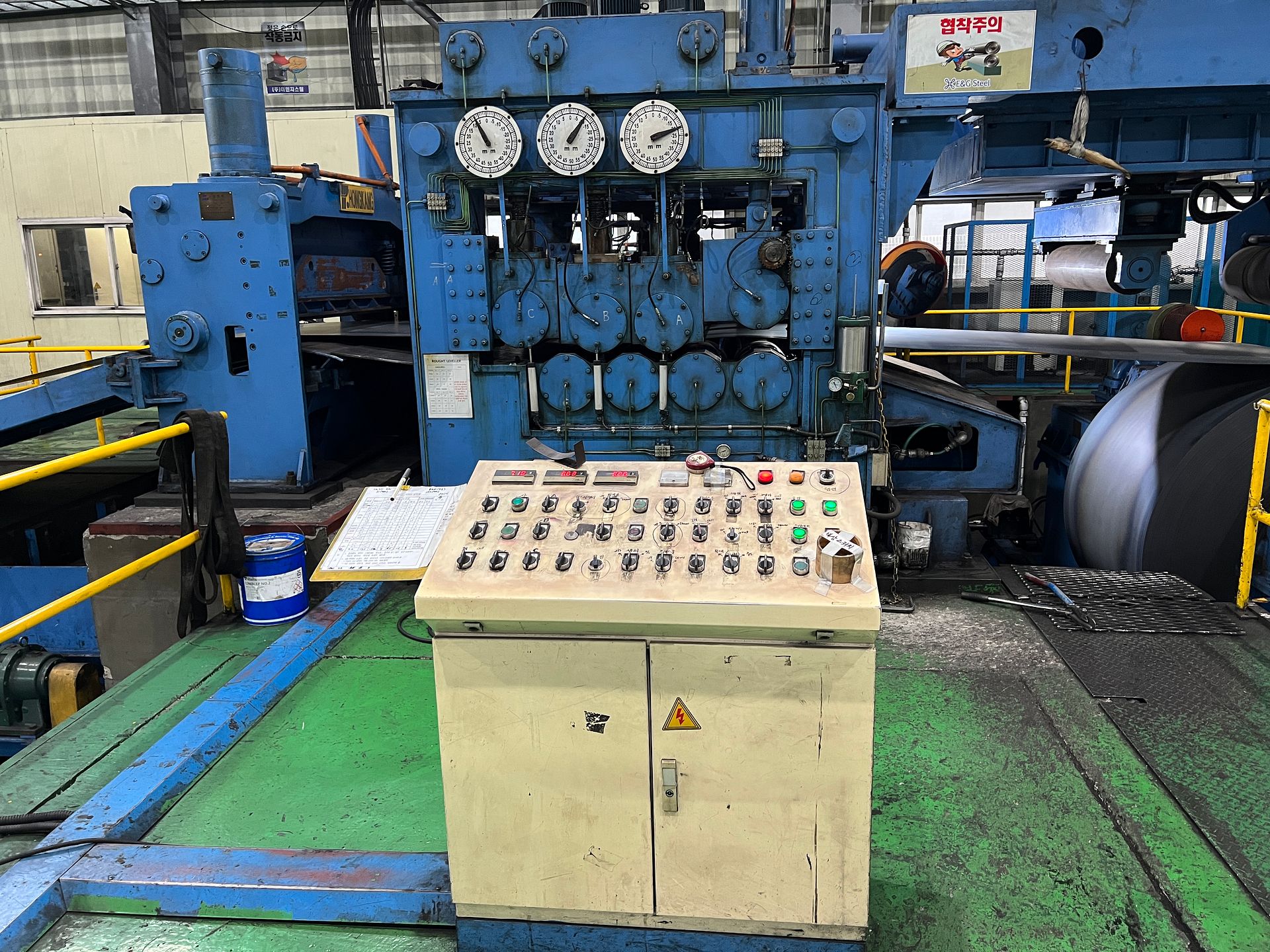

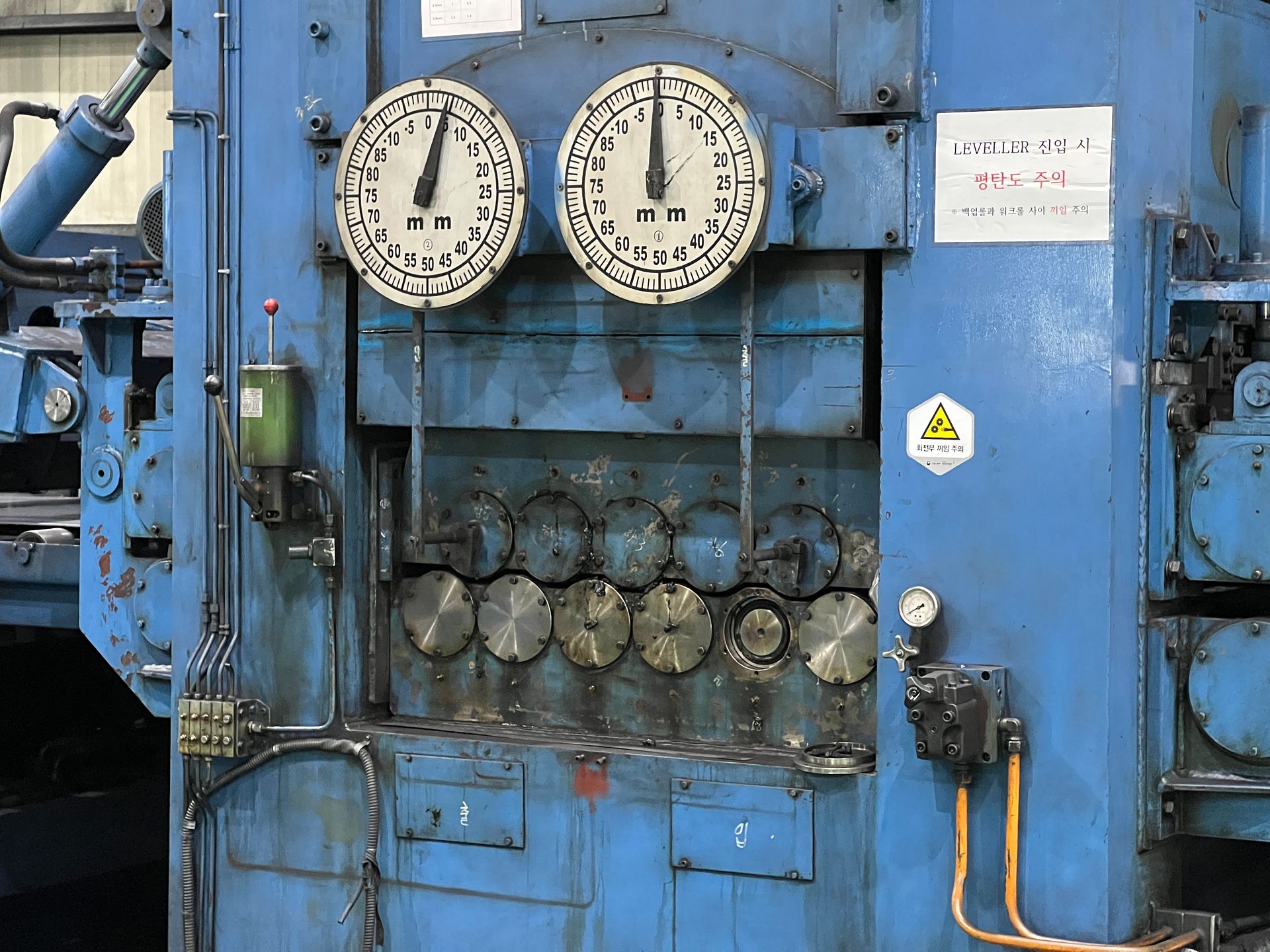

15. Heavy leveler (4-hi-11rolls) with pinch roll
16. Measuring roll
17. Moving shear
18. Telescopic conveyor
19. Run-out conveyor with reject box

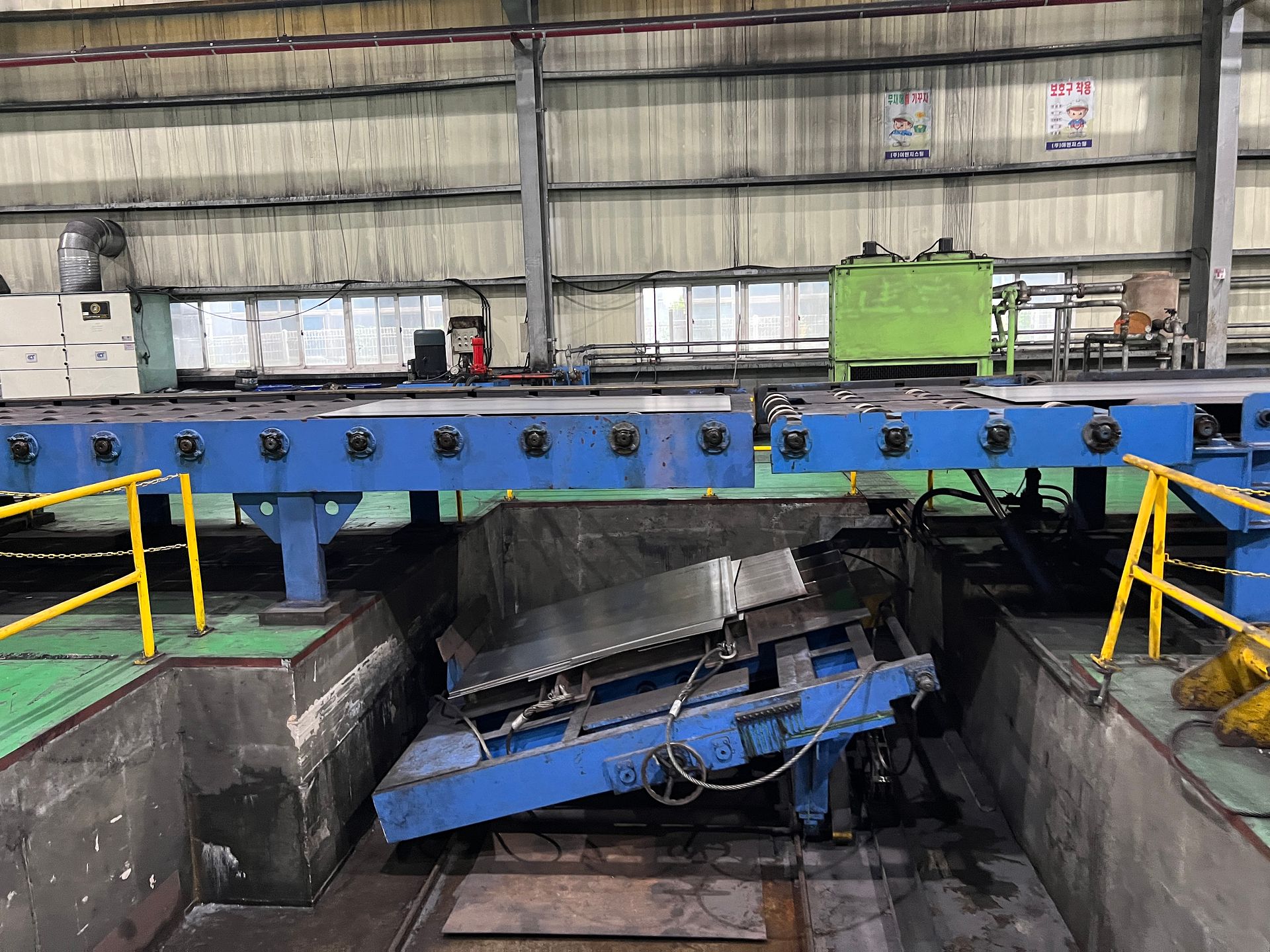

20. Piler
21. Piler with lifting table(chain type)

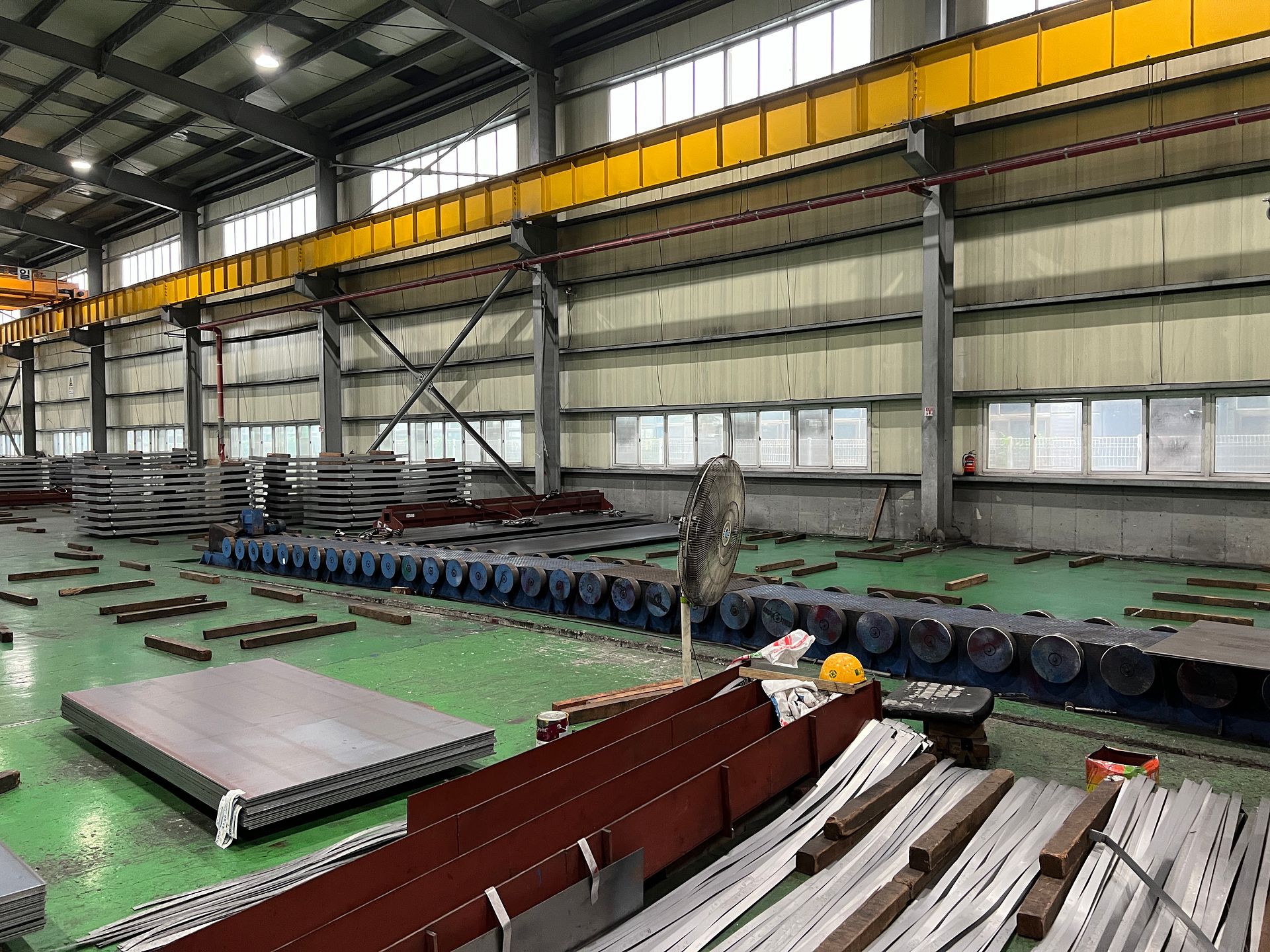

22. Exit table
23. Hydraulic equipment
24. Pneumatic equipment
25. Simple unit
Electrical equipment / motor list(*):

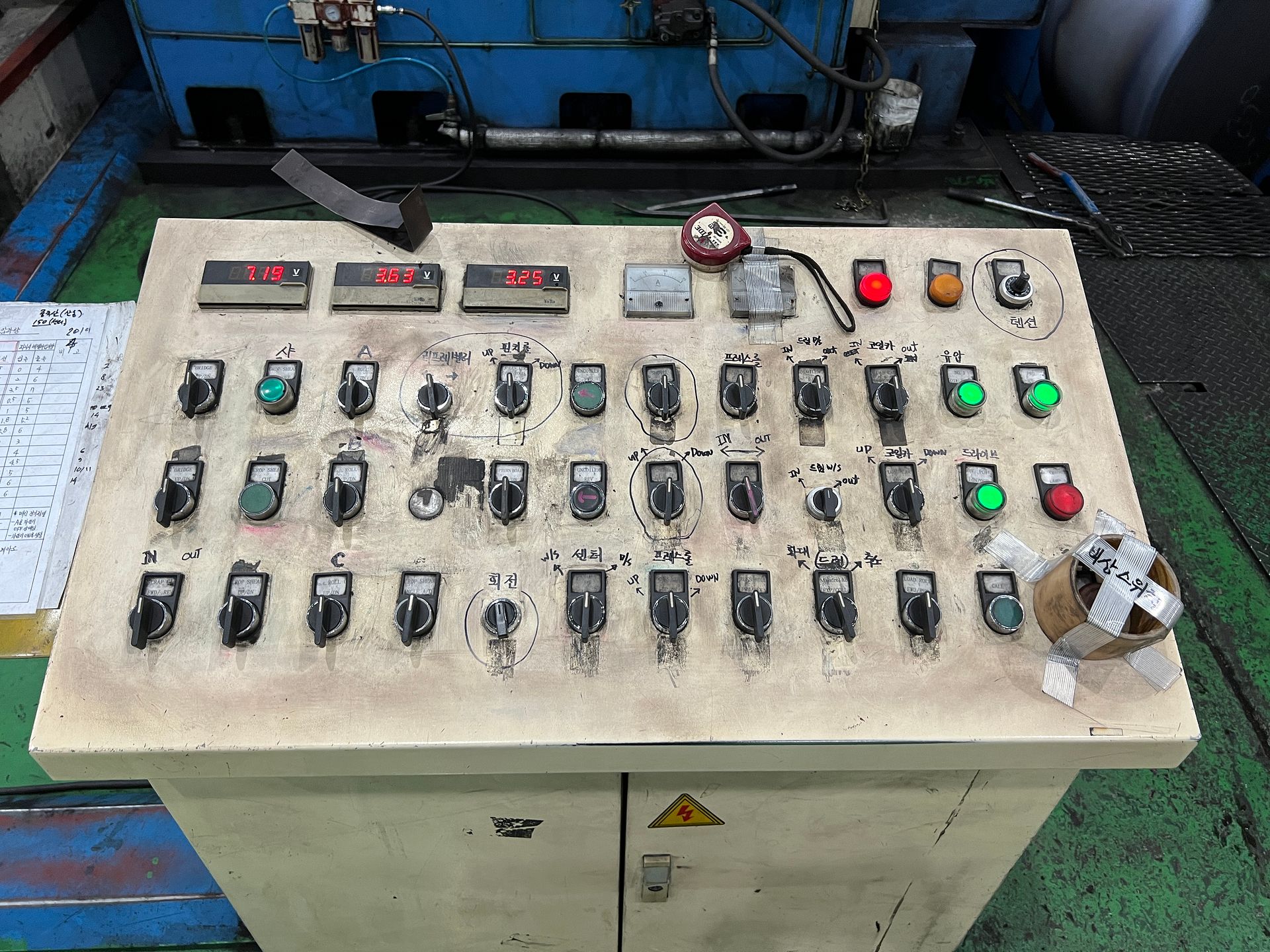

- Controller (Japan)
- PLC (PARKER)
- AC Motor 55 kW
- DC Motor 30 kW
- DC Motor 132 kW
- AC Motor 3.7 kW x 2
- DC Motor 67 kW
- DC Motor 45 kW
- AC Motor 7.5 kW x 2
- AC Motor 15 kW
- DC Motor 280 kW
- AC Motor 75 kW
- AC Motor 1.1 KW
- AC Motor 3.1 kW
- AC Motor 5.5 kW x 5
- AC Motor 2.2 kW
(*)Above list shall be reviewed and confirmed at the time of purchase.
Spares and consumables list:
Spares and consumables are available along with the equipment. A list can be made available upon request. Considering the equipment is still in operation, such list content shall be revised and confirmed at the time of purchase.
