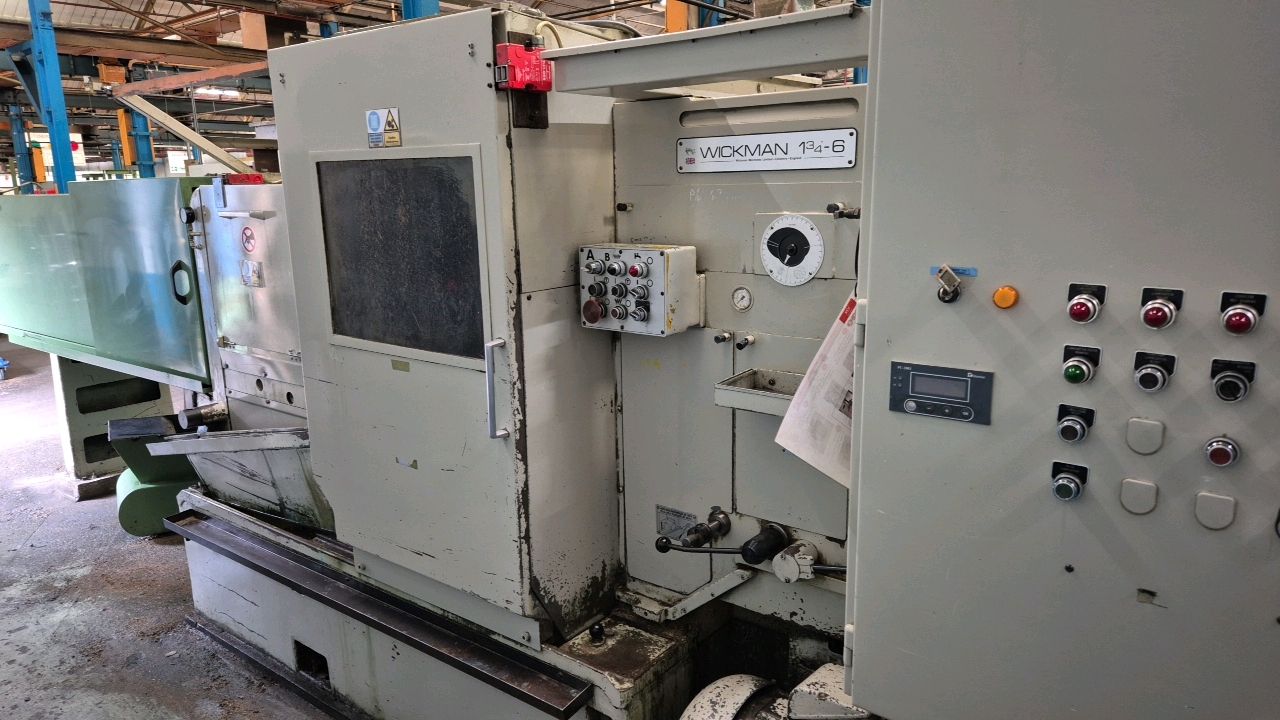

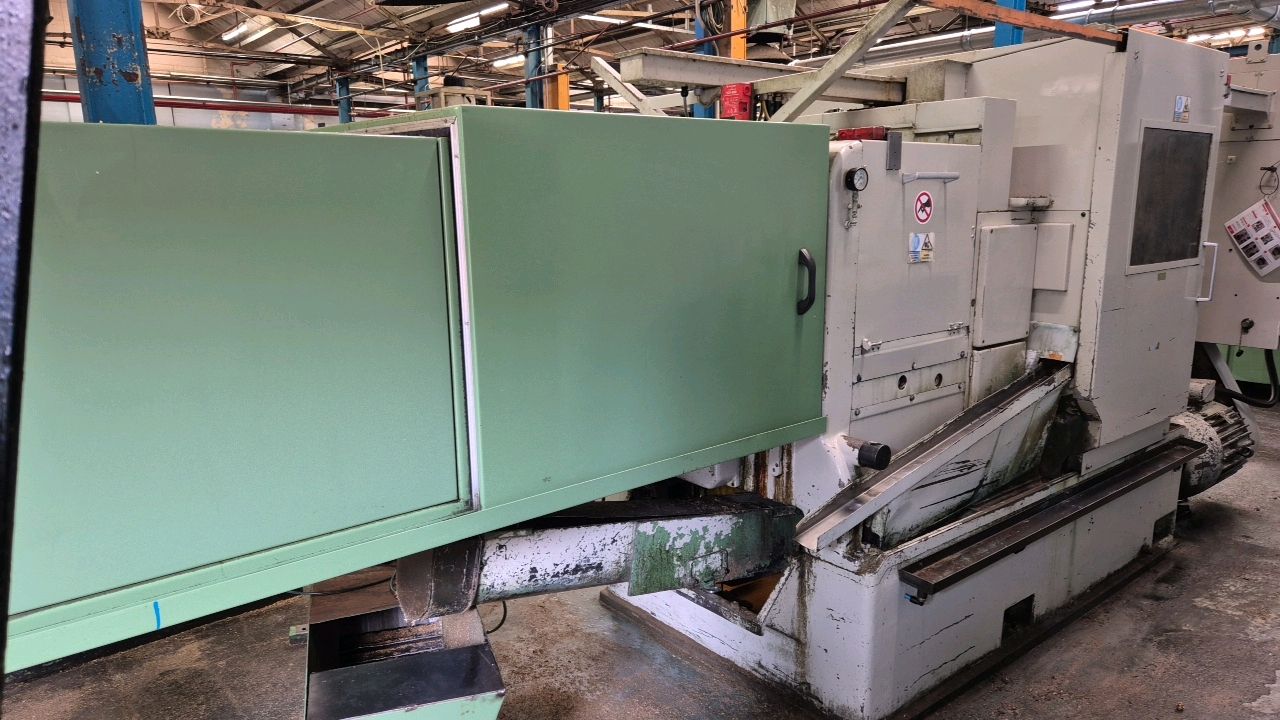

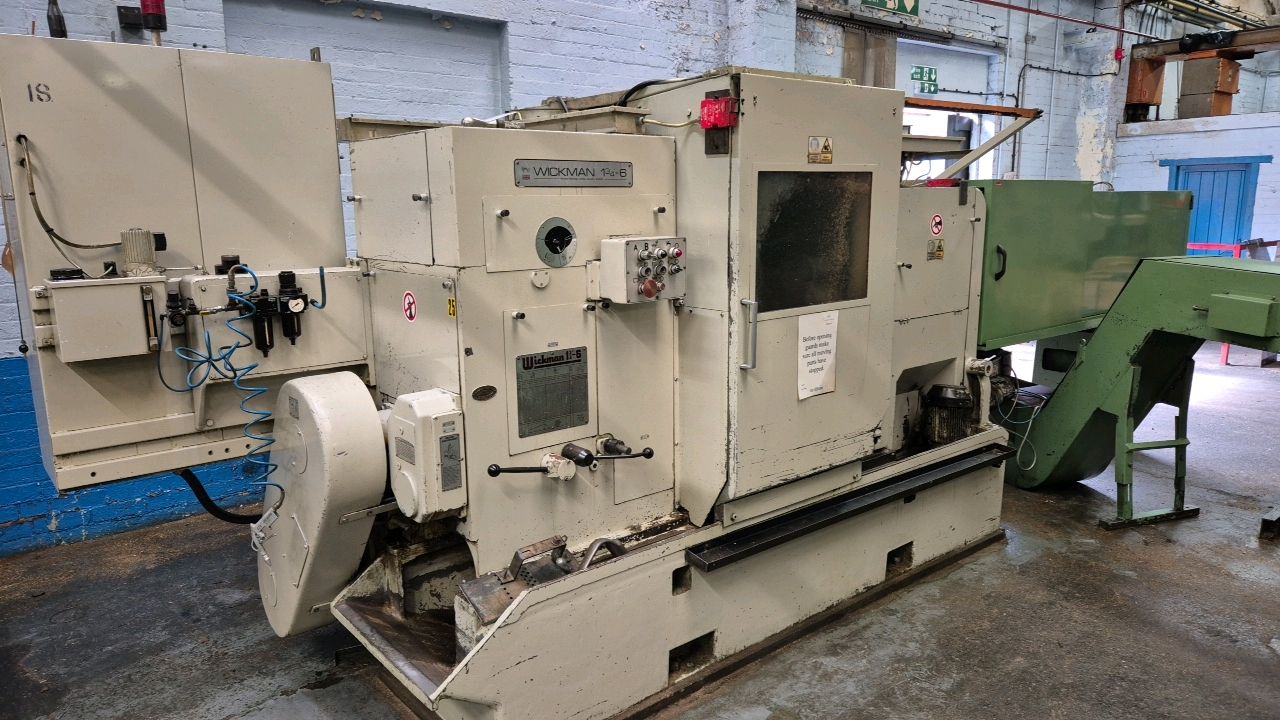

6 Spindle Bar Automatic Lathe 1"3/4 WICKMAN
Lot No. 391
6 Spindle Bar Automatic Lathe 1"3/4 WICKMAN
Measurements width: 974 mm
Measurements depth: 5572 mm
Measurements height: 1924 mm
Machine weight: 8000 kg
Spindle speed range: 132-1667 1/MIN
Bar size diameter: round 44 mm; hexagonal 38,3 mm; square 31,2 mm
Bar feeding: standard: 12 – 178 mm; special: 50 – 330 mm; double bar feeding
Feed travel on hexagonal block: 0 – 89 mm
Feed travel cross slides: lower 0 -32 mm; upper 0 – 48 mm; intermediate 0 – 22 mm
Feed travel intermediate cross slides: normal/ride: 0,13 – 1,5 mm; stop spindle/ride: 0,13 – 1,5 mm
Motor: 22 kw to 1450 rpm
Spindle speed: normal 132 – 2.000 rpm
Cycle time range: normal 3,9 – 337 sec sec
Idle time: standard/ spindle stop: 1,6 sec.
