HYUNDAI RB JCO-LSAW Welded Pipe Production Lines (NEW)
Lot No. 1
HYUNDAI RB JCO-LSAW Welded Pipe Production Lines (NEW)

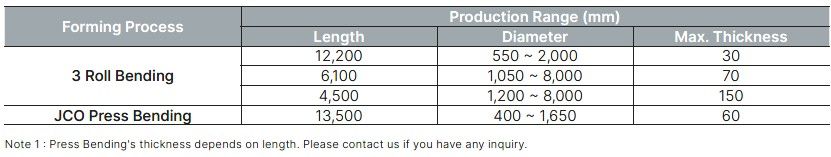

Based on excellent production capacity achieved over more than 25 years’ experience, Hyundai RB developed its own S.A.W. pipe production lines featuring JCO Press Bending. Alternatively, 3 Roll Bending can be utilized.

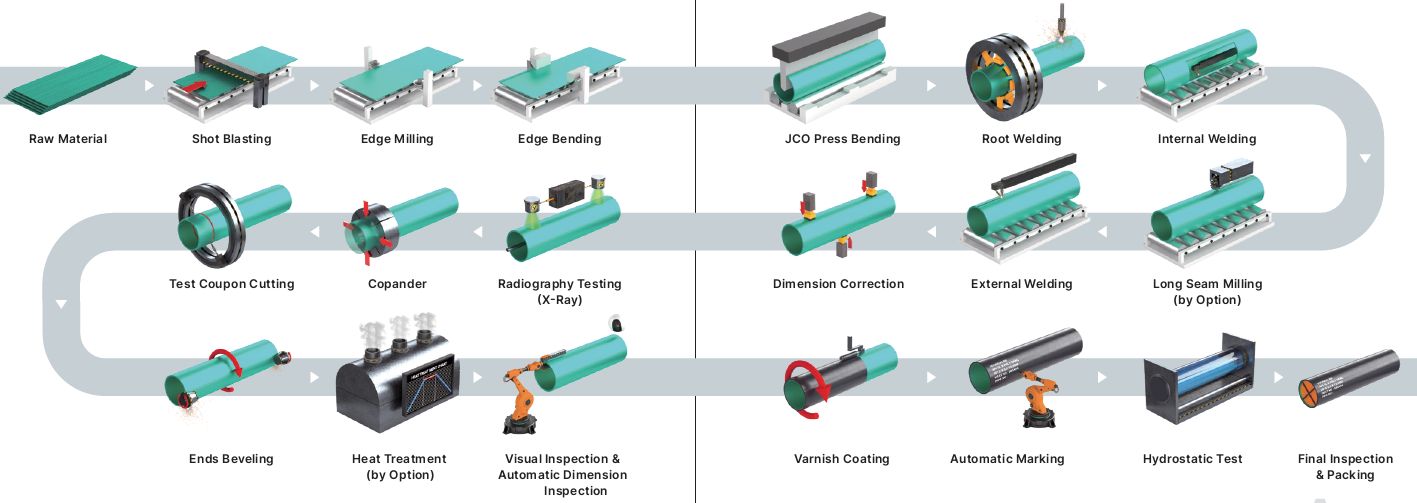

LSAW Welded Pipe Production Line Main Equipment and features:

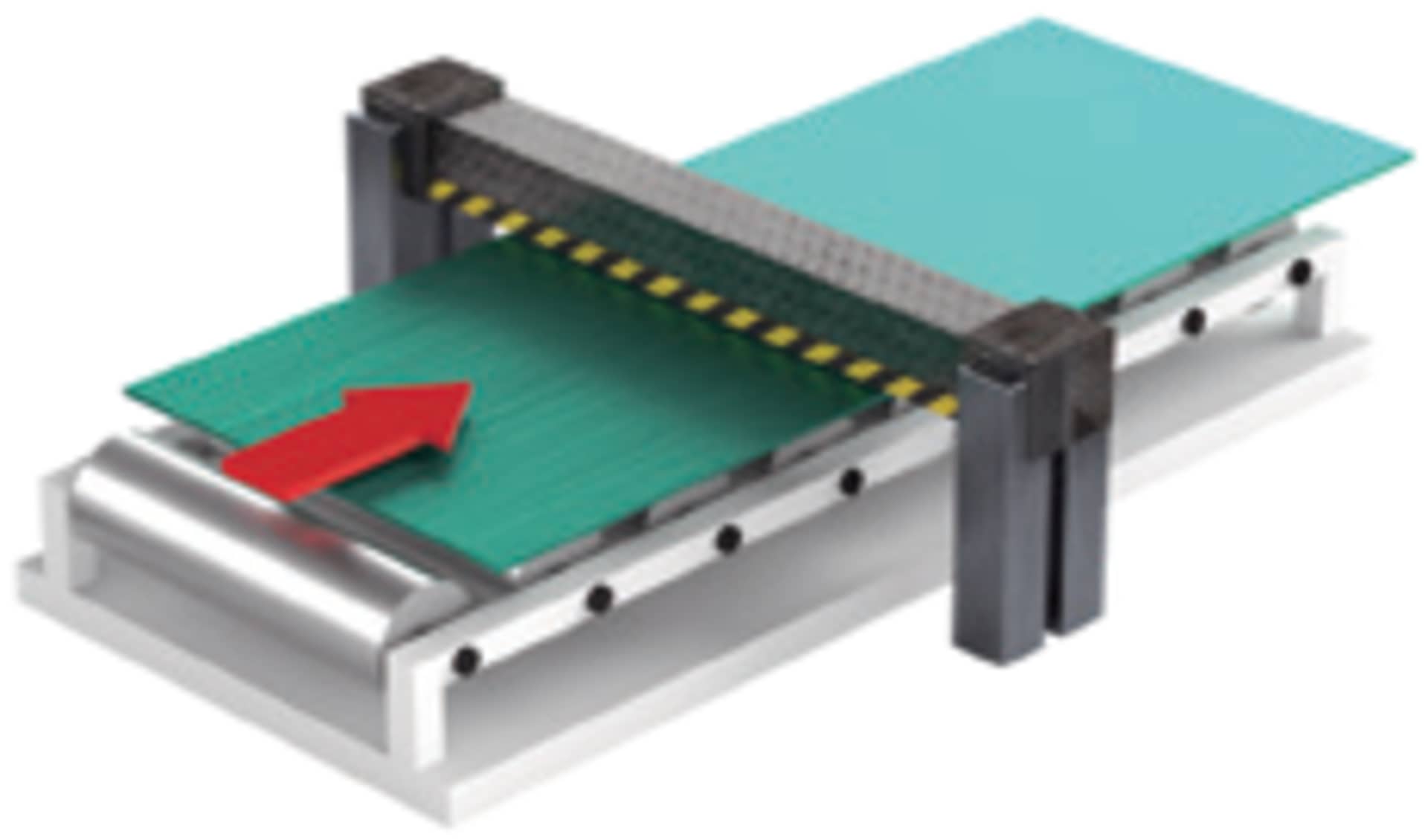

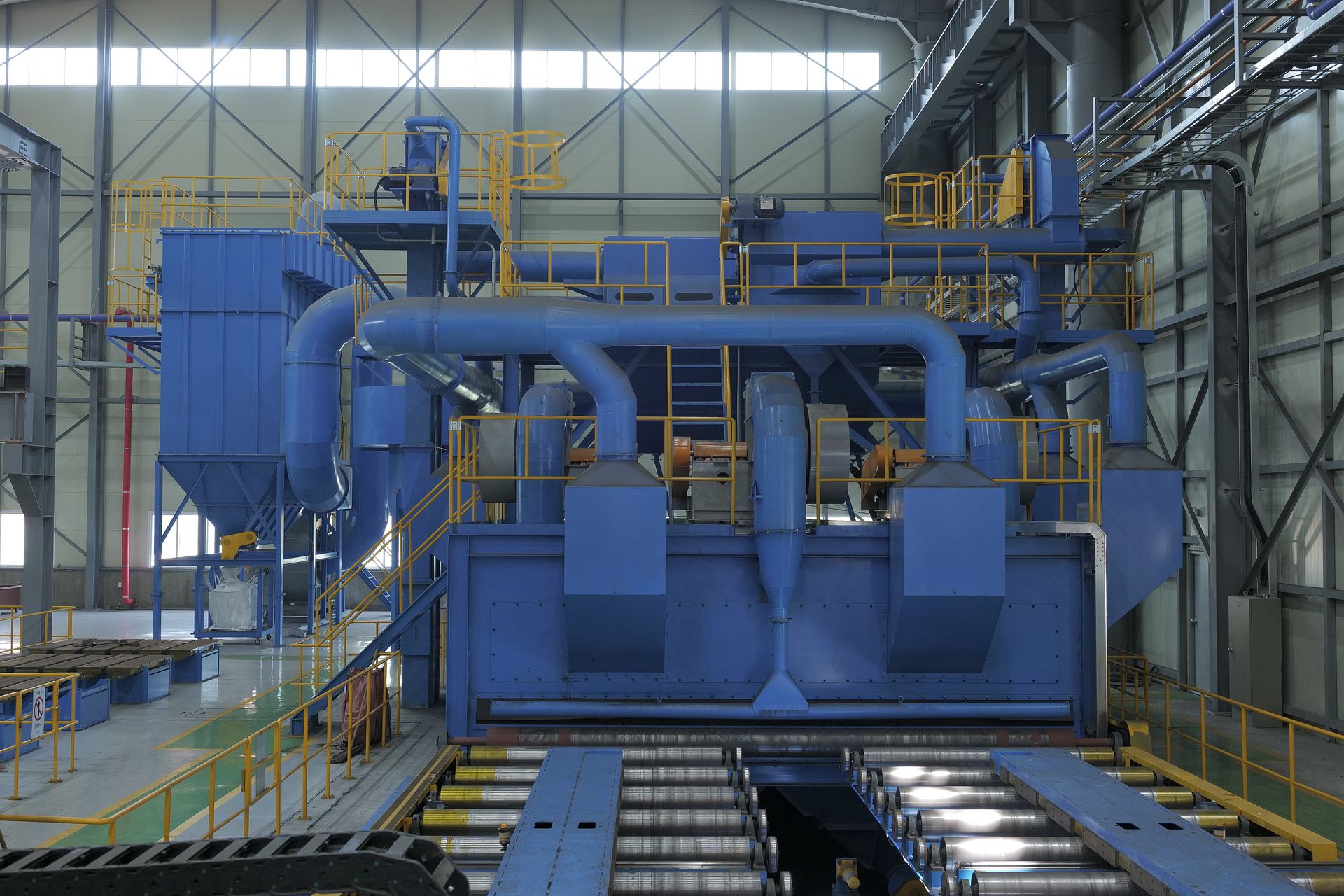

Shot Blasting
- Max 6m/min x width 4,800

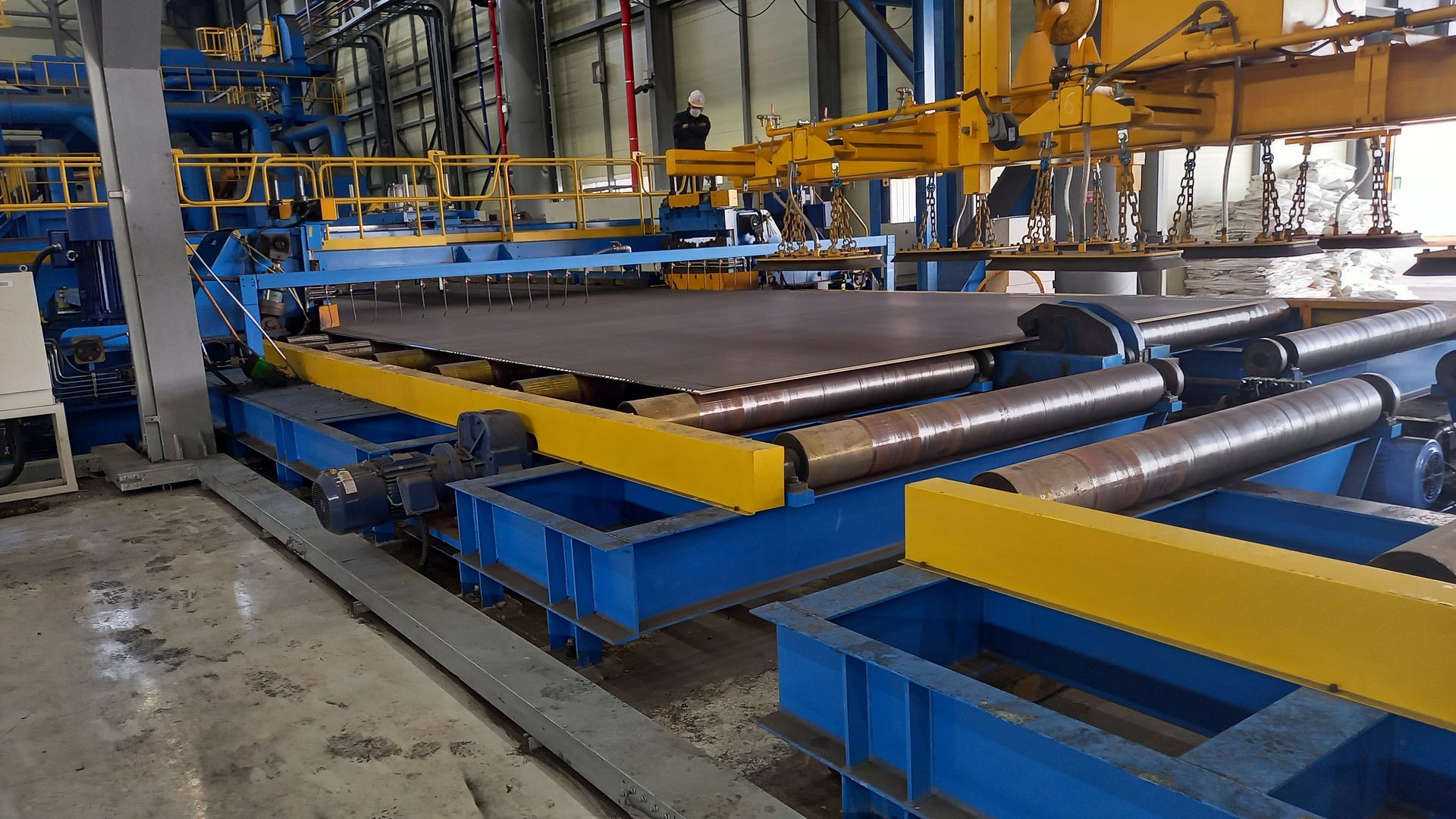

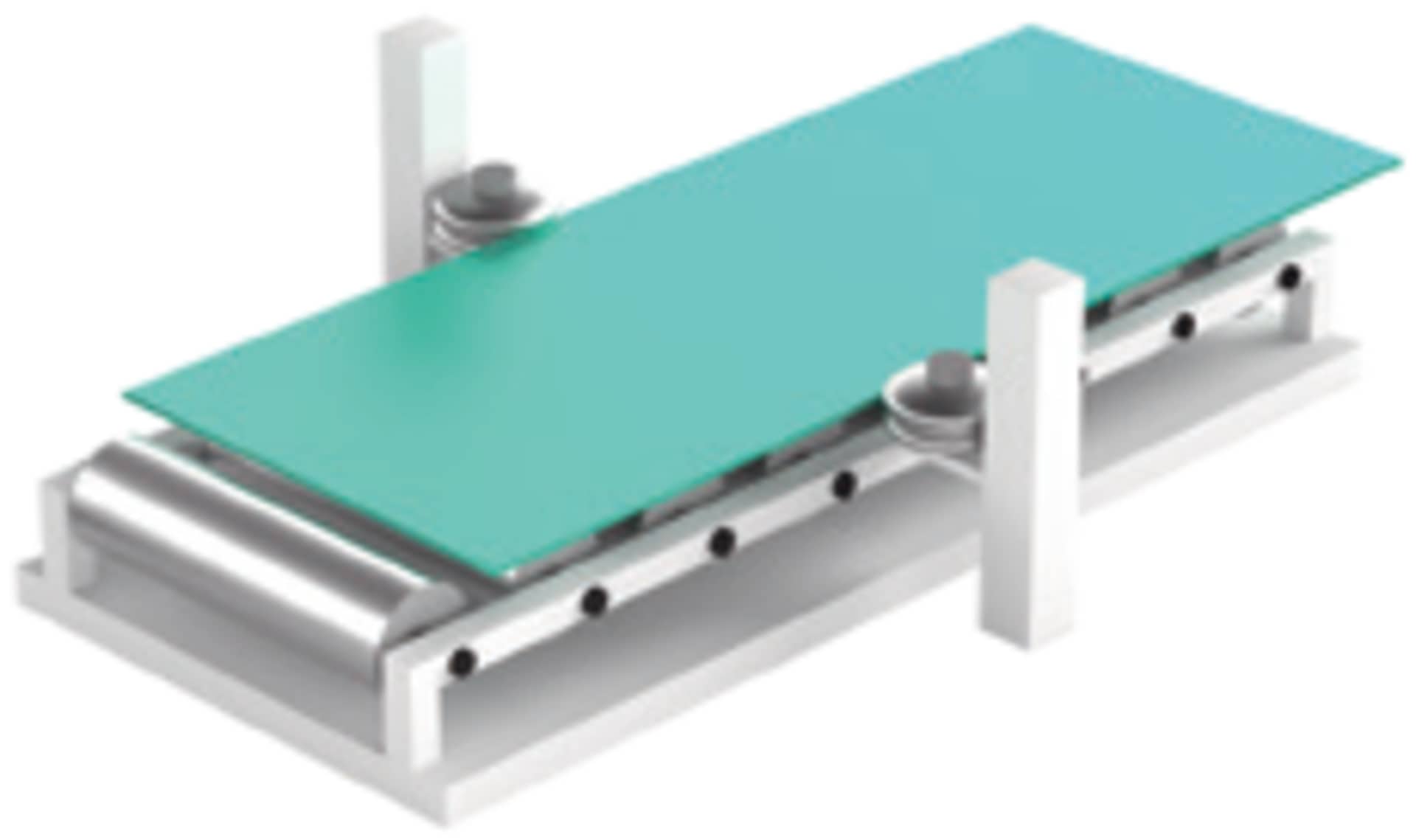

Edge milling
- Φ800 cutter type x 130kw
- Quick tool changing
- Max. milling speed: 6m/min.
- Automatic calculation of number of milling
- Automatic width checking

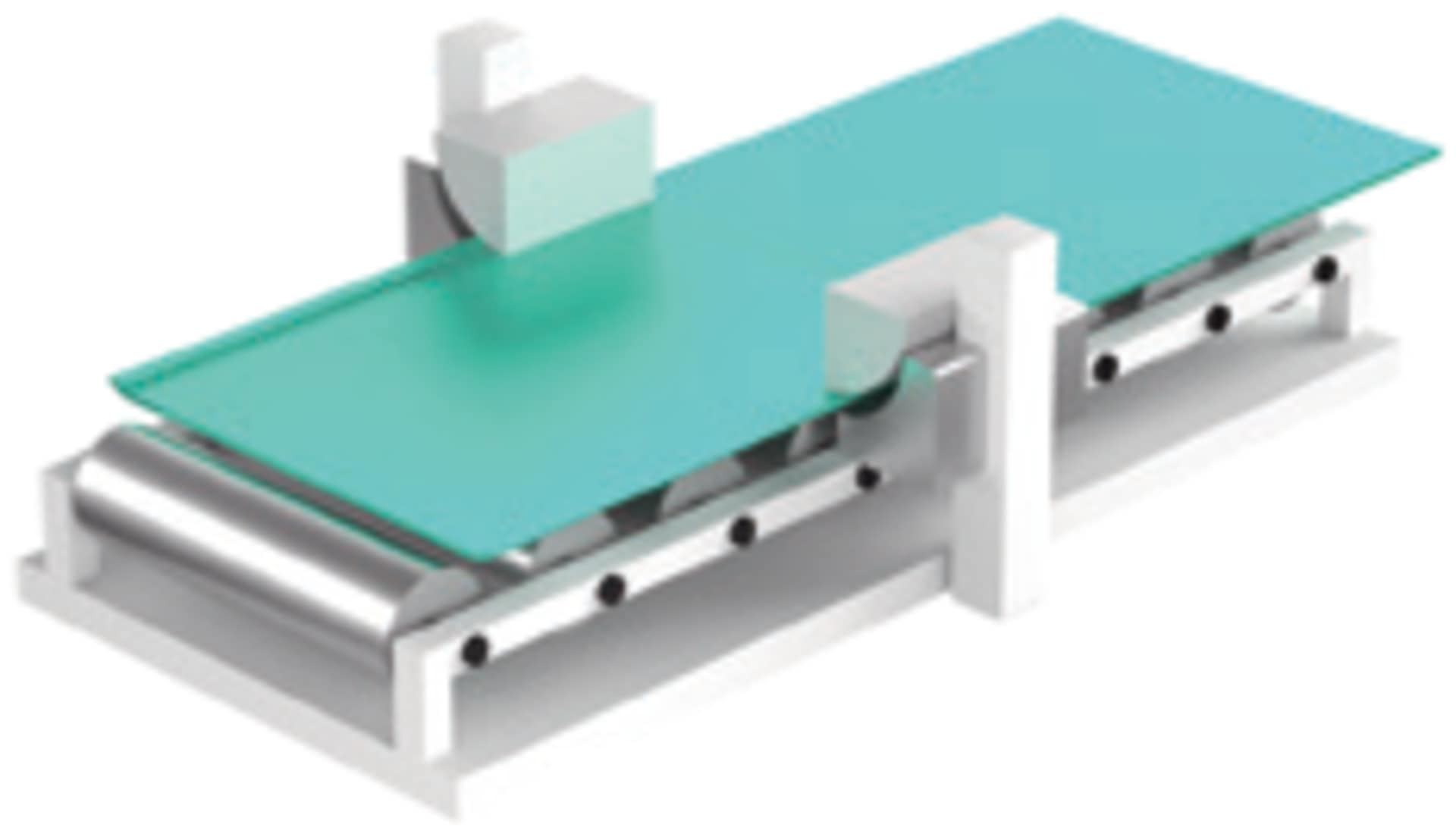

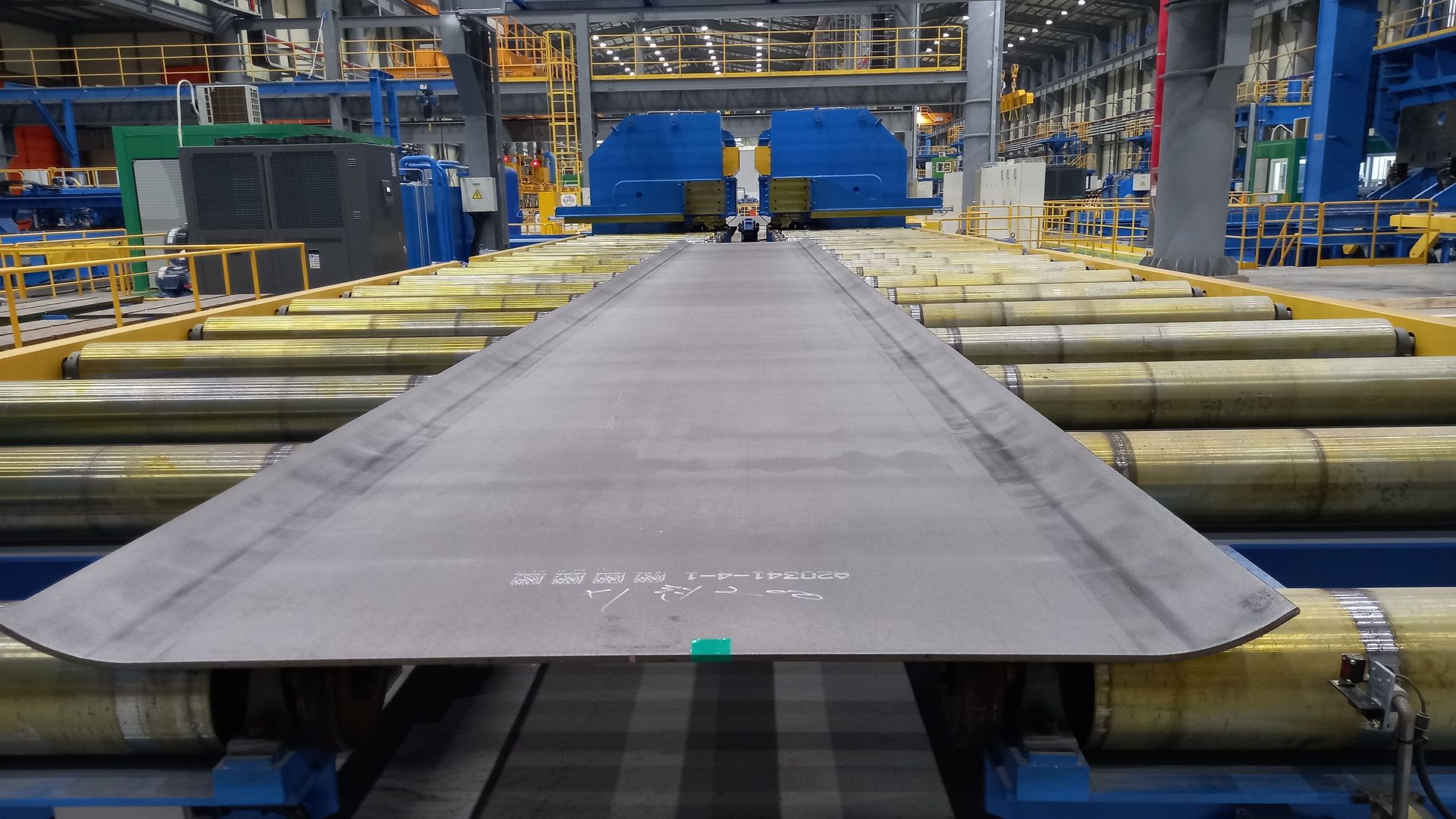

Edge-Bending (Pre-Bending)
- 1,500 ton/8t ~60t/6~13.5m
- Quick size changing
- Max. bending thick.: 60mm

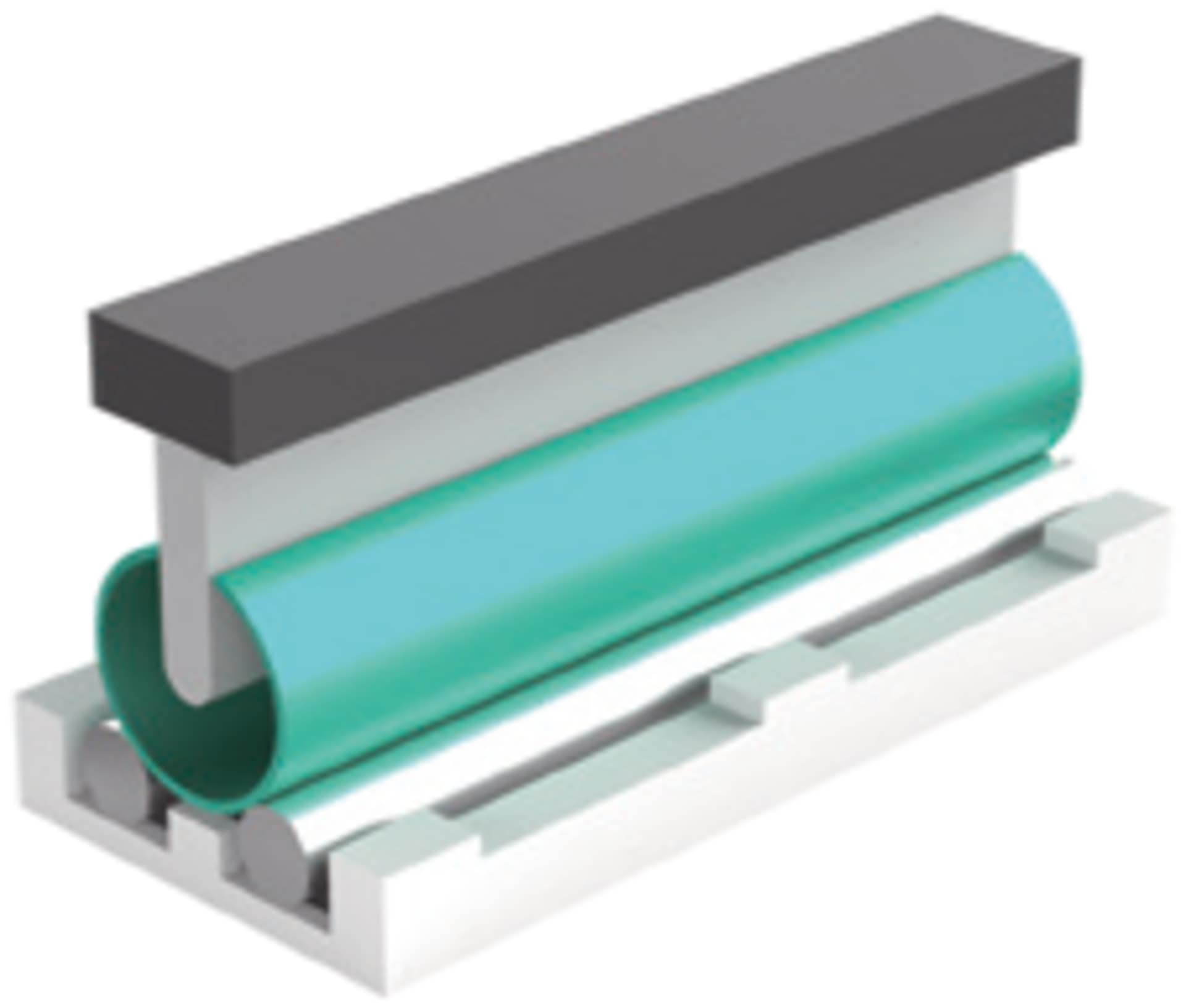

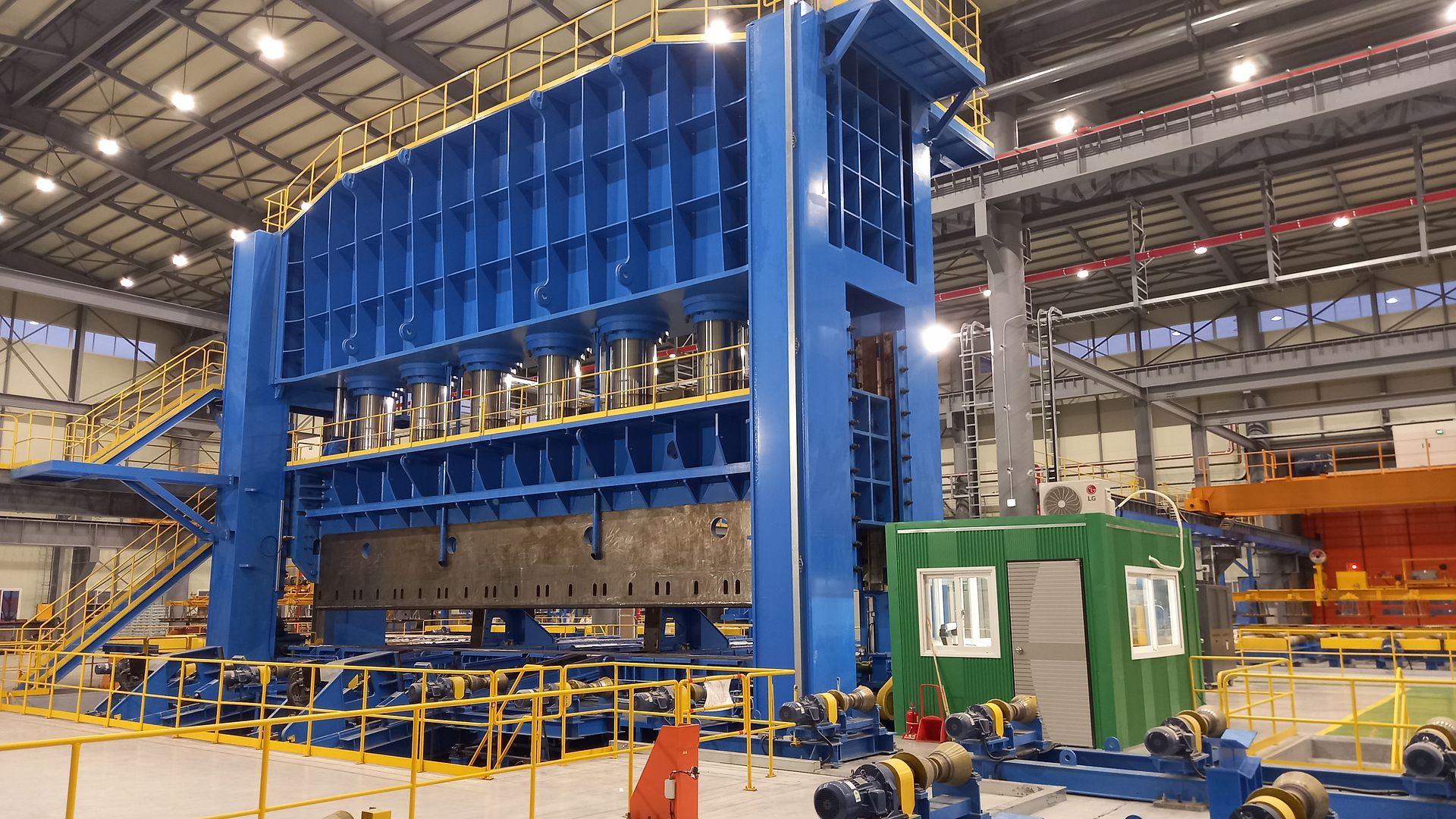

JCO Press Bending
- 6,000/8,000/10,000 ton (max.13.5M)
- PLC with CNC (Recipe memory)
- Pre-stress feature
- Pressing power control acc. to thickness

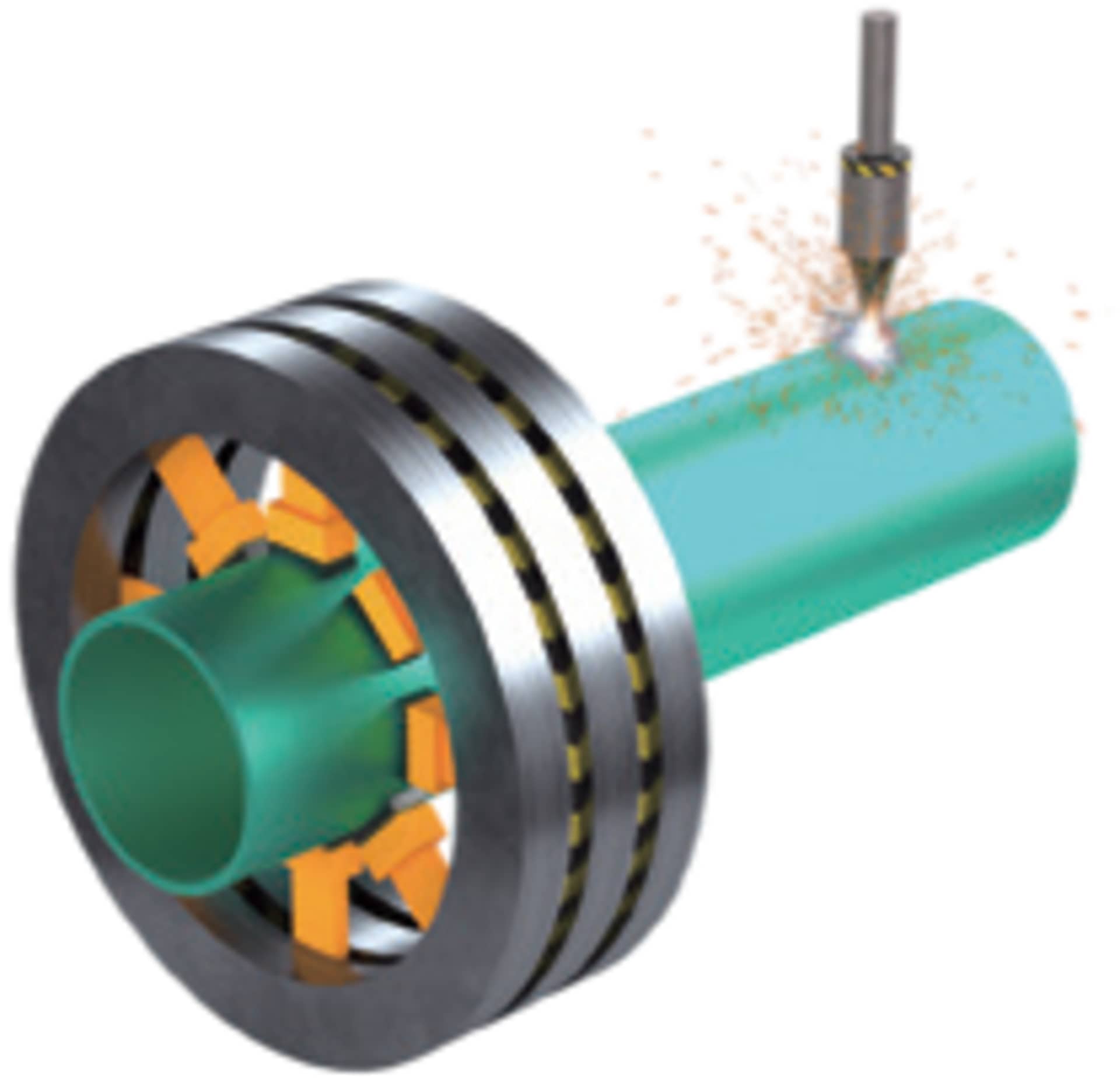

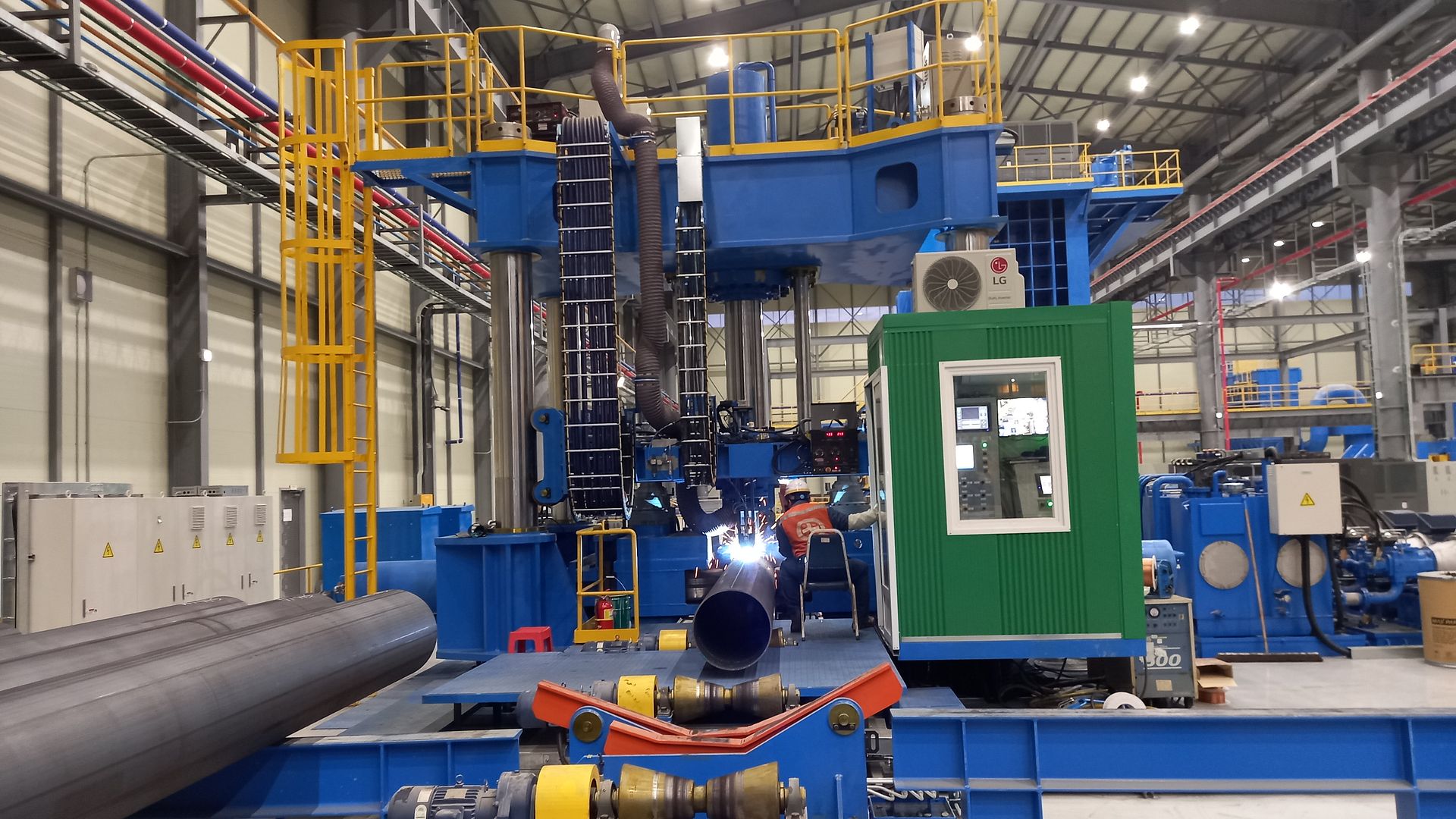

Root Pass Welding
- CO2 DC 1.000A / 8t ~60t
- GMAW with center trace sensor
- Max. welding speed: 4.5m/min.

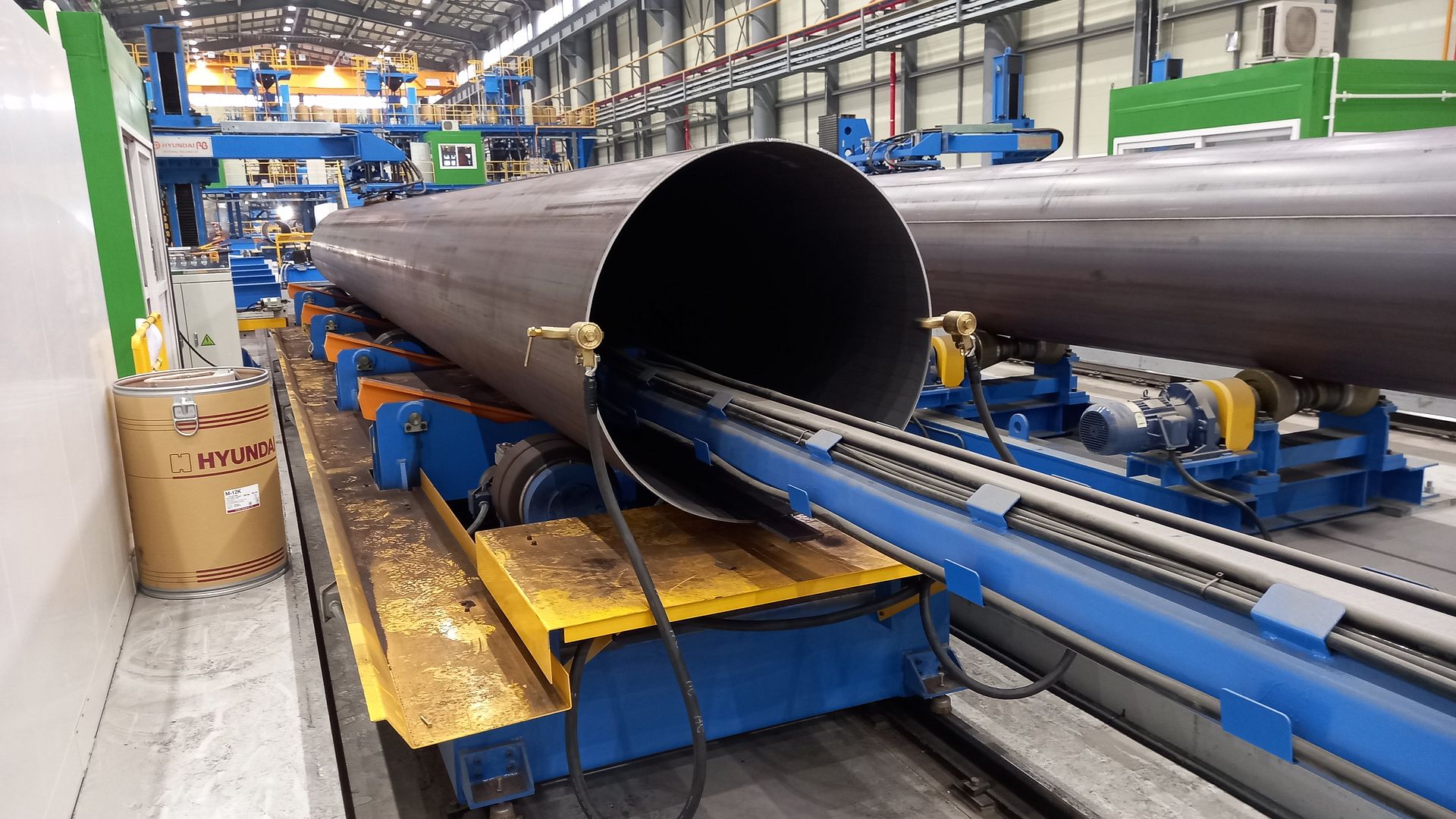

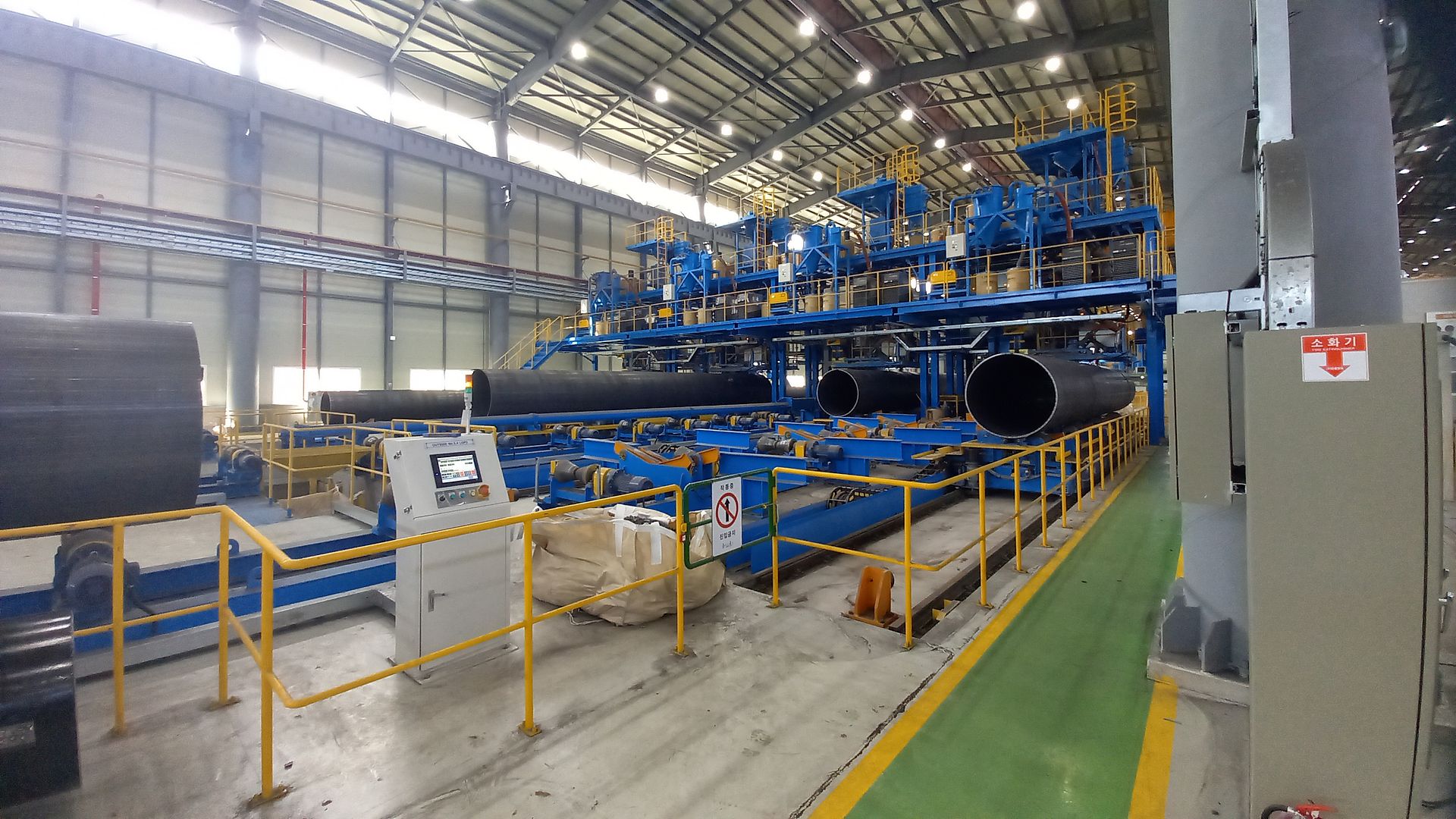

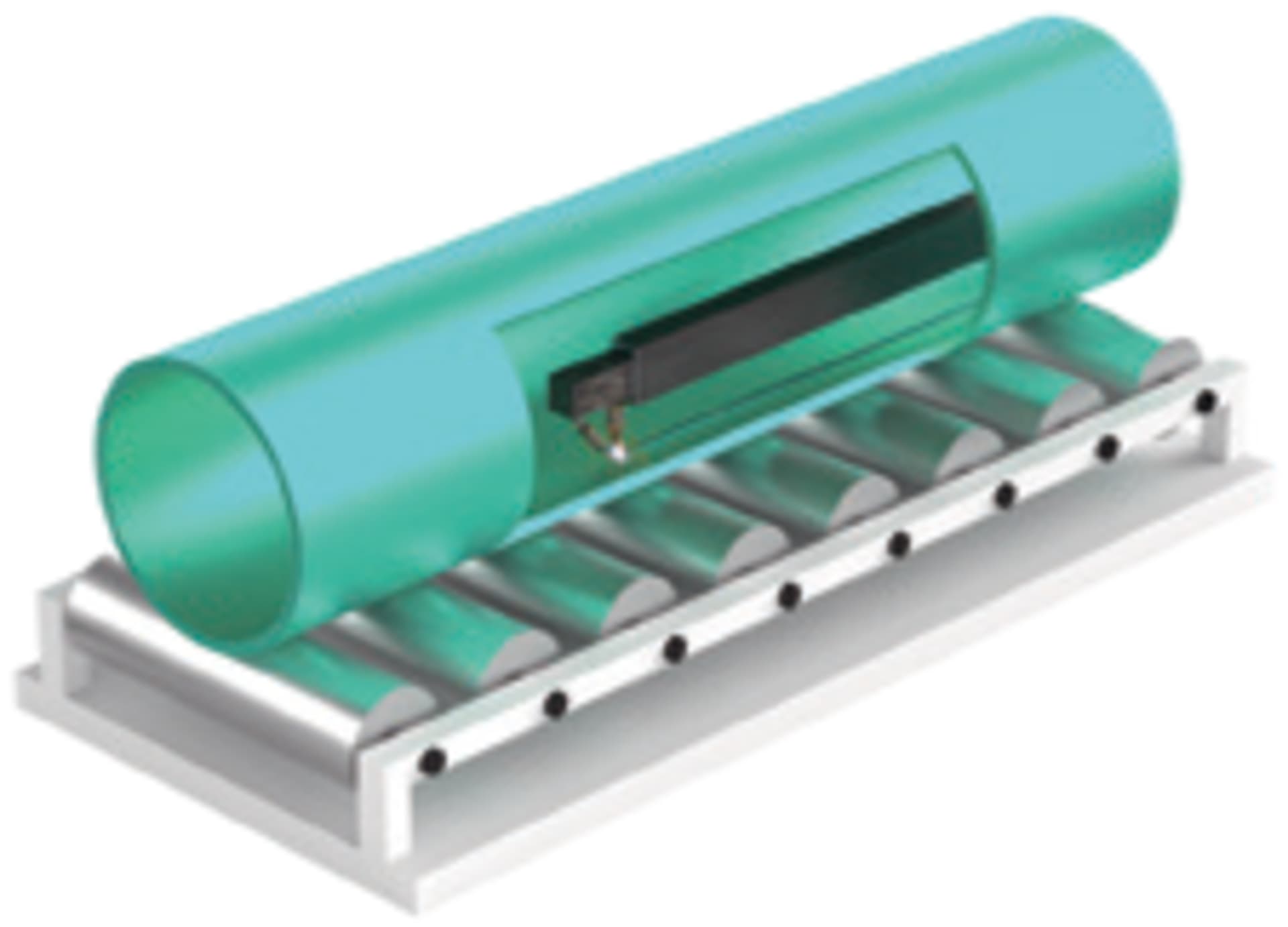

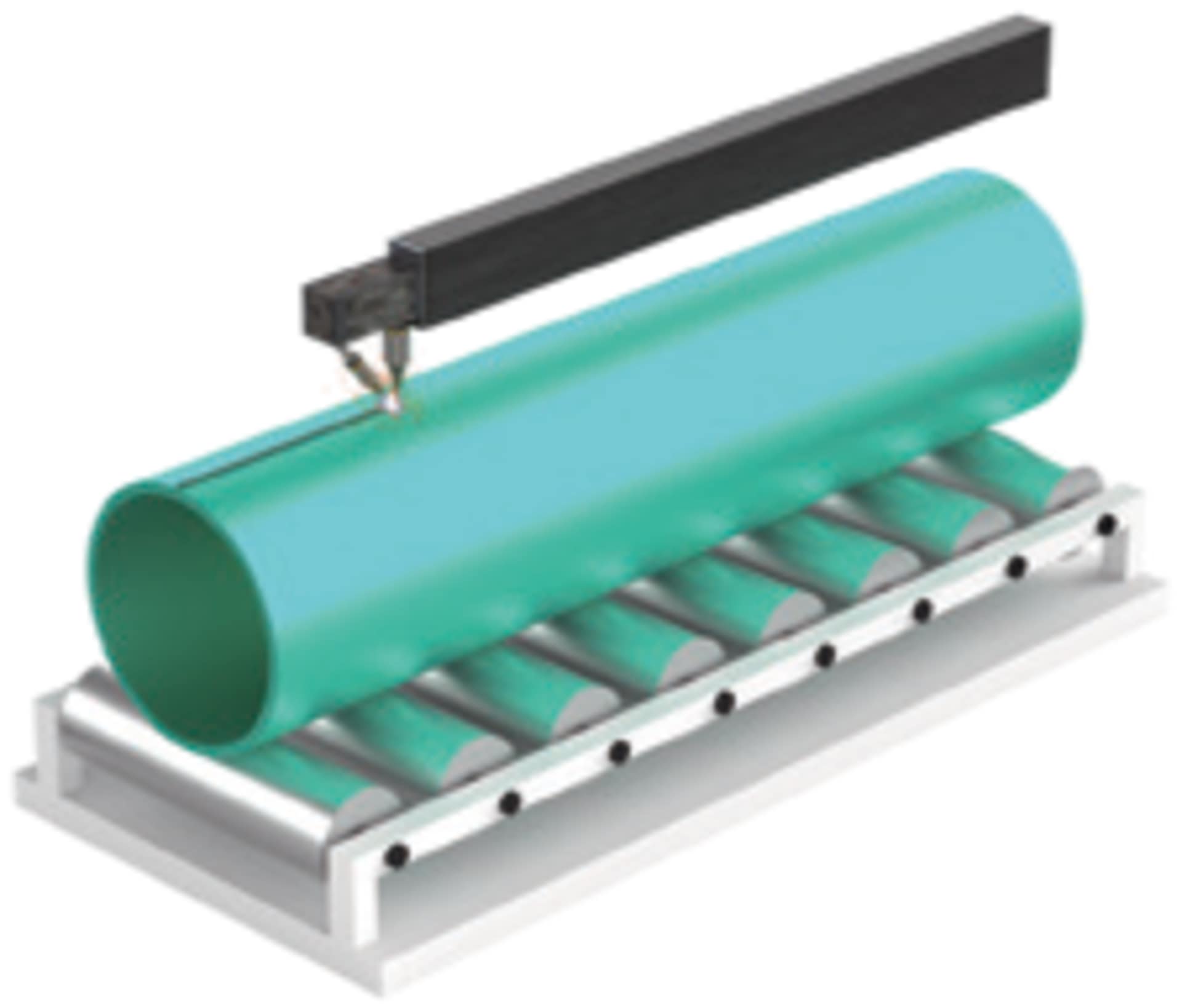

In/Ex-ternal Welding
- Φ406.4~Φ1,524/2-pole
- Welding center tracing
- Flux recycling system
- Preheating system (Option)
- Number of Electrodes 2~5 poles (Option)

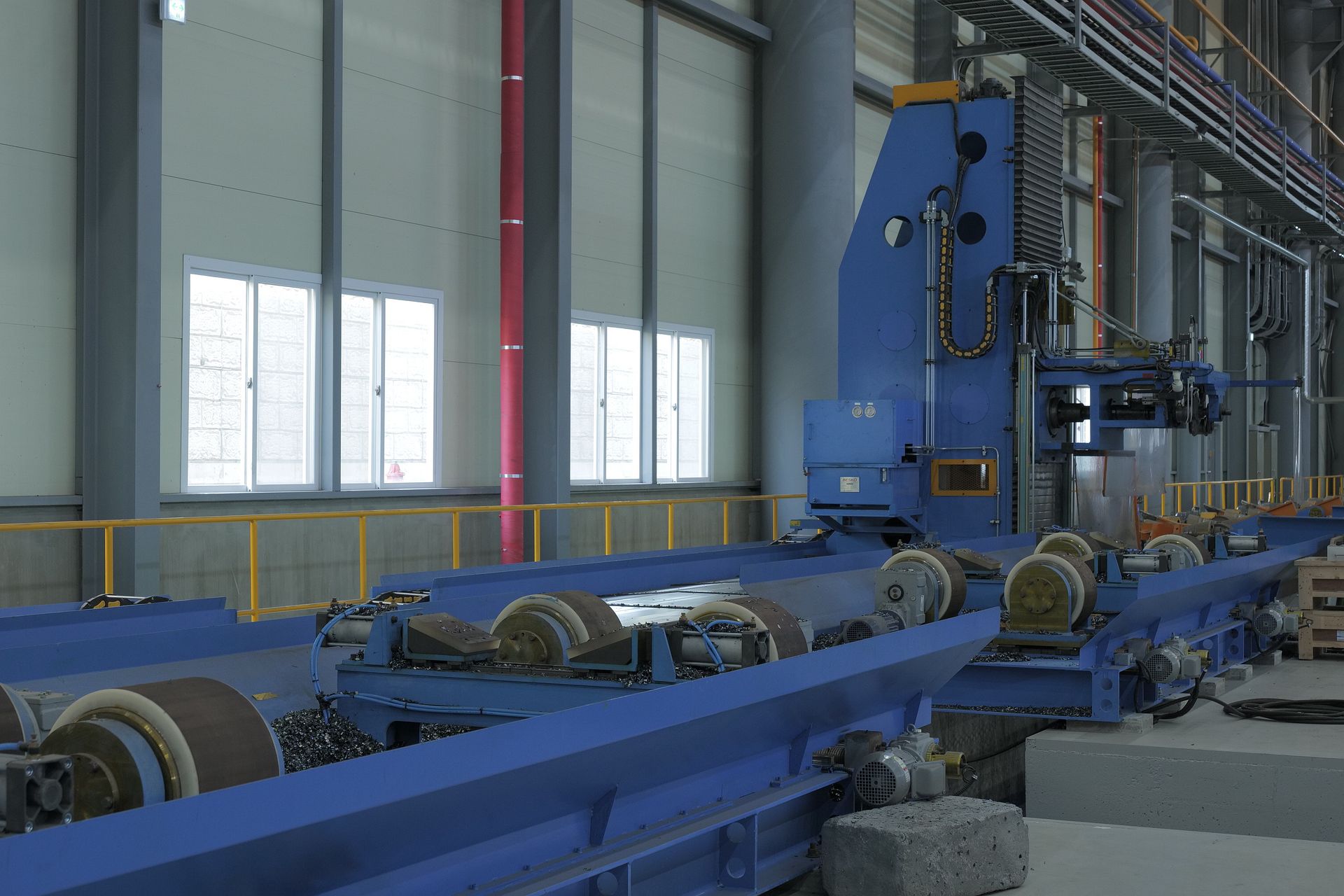

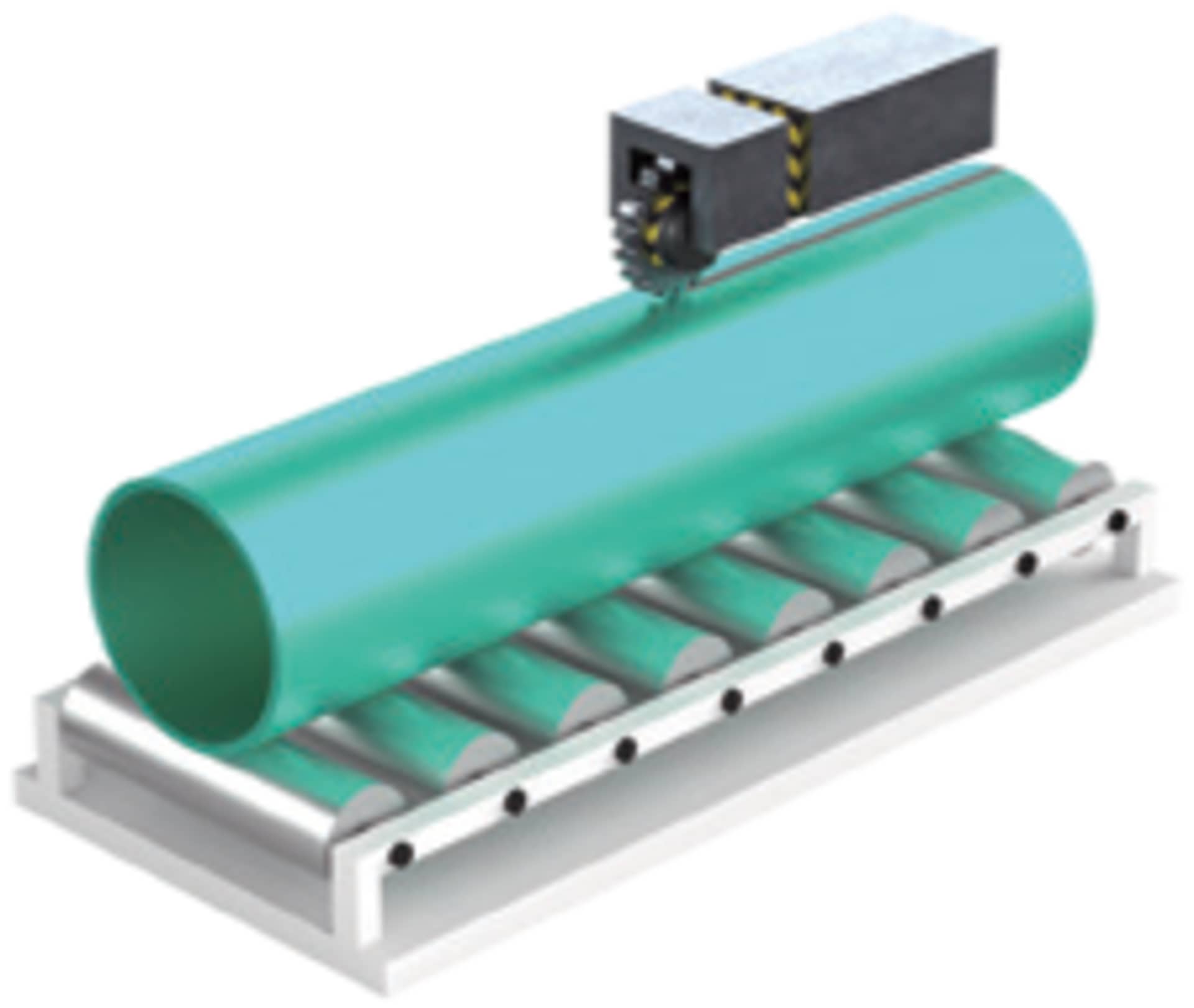

Long Seam Milling
- Φ350 cutter type x 7.5kw
- Back bead milling replace arc air gouging
- External groove preparation

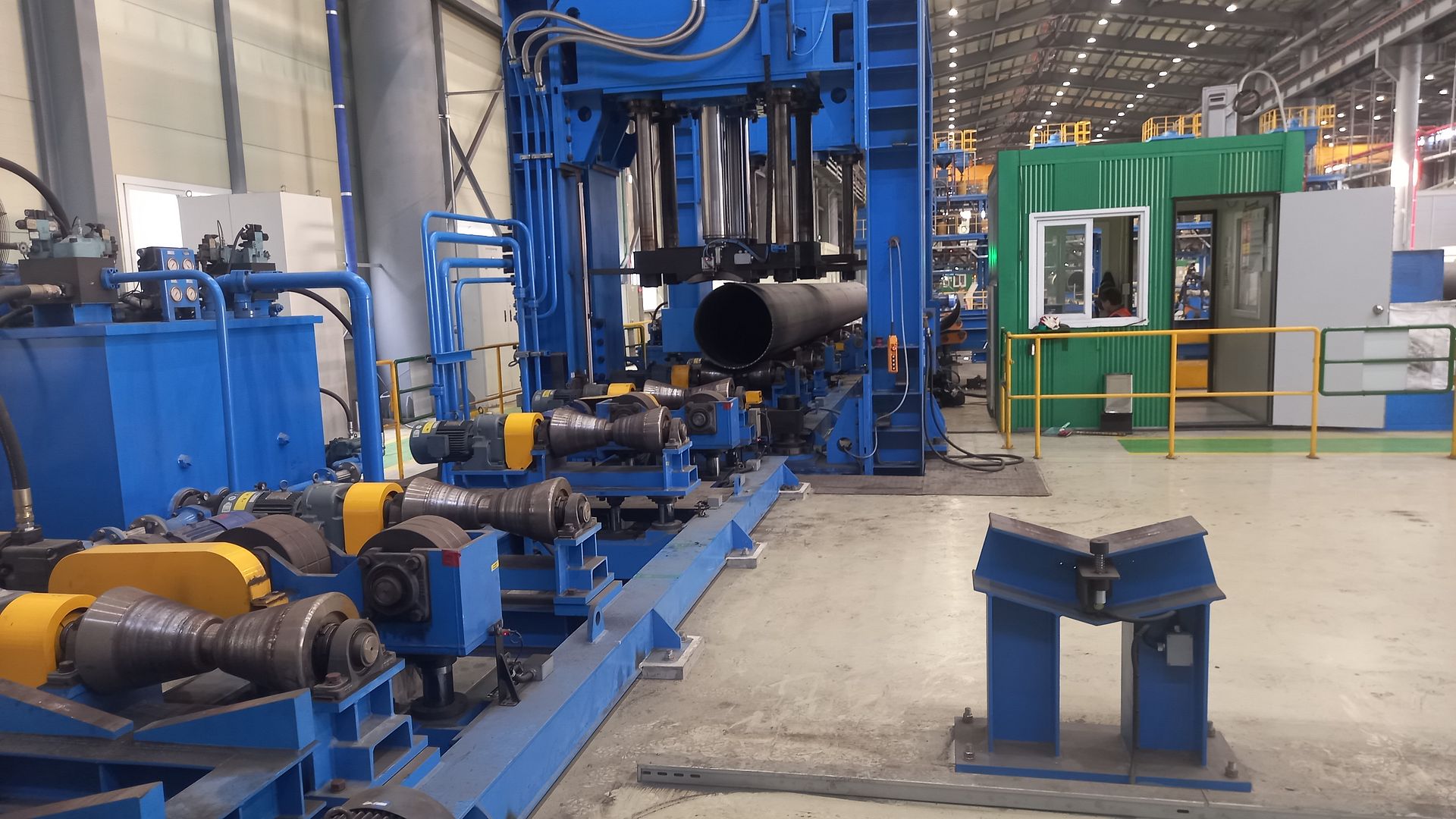

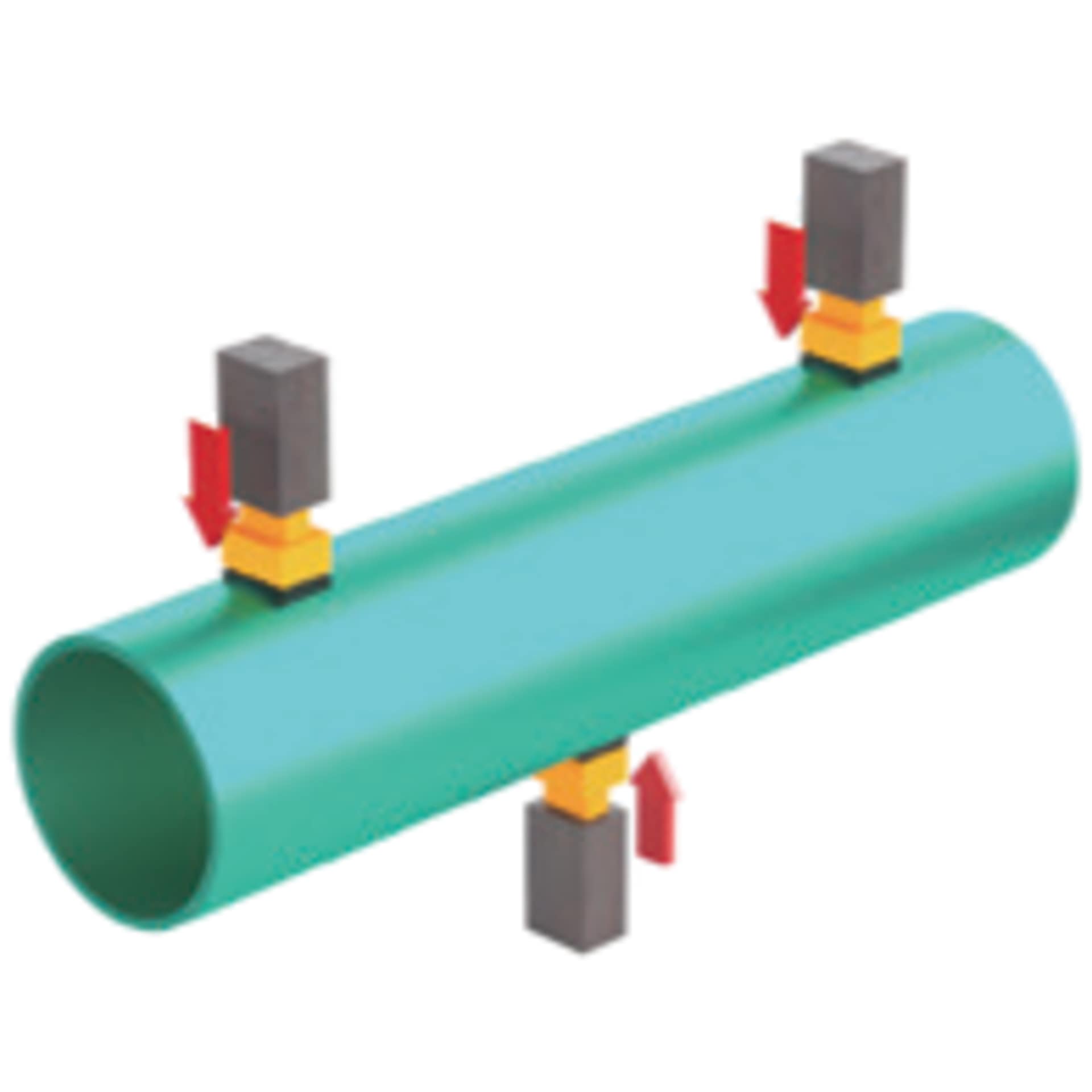

Dimension Correction
- Welding deformation correction
- Correction of both ends roundness and straightness

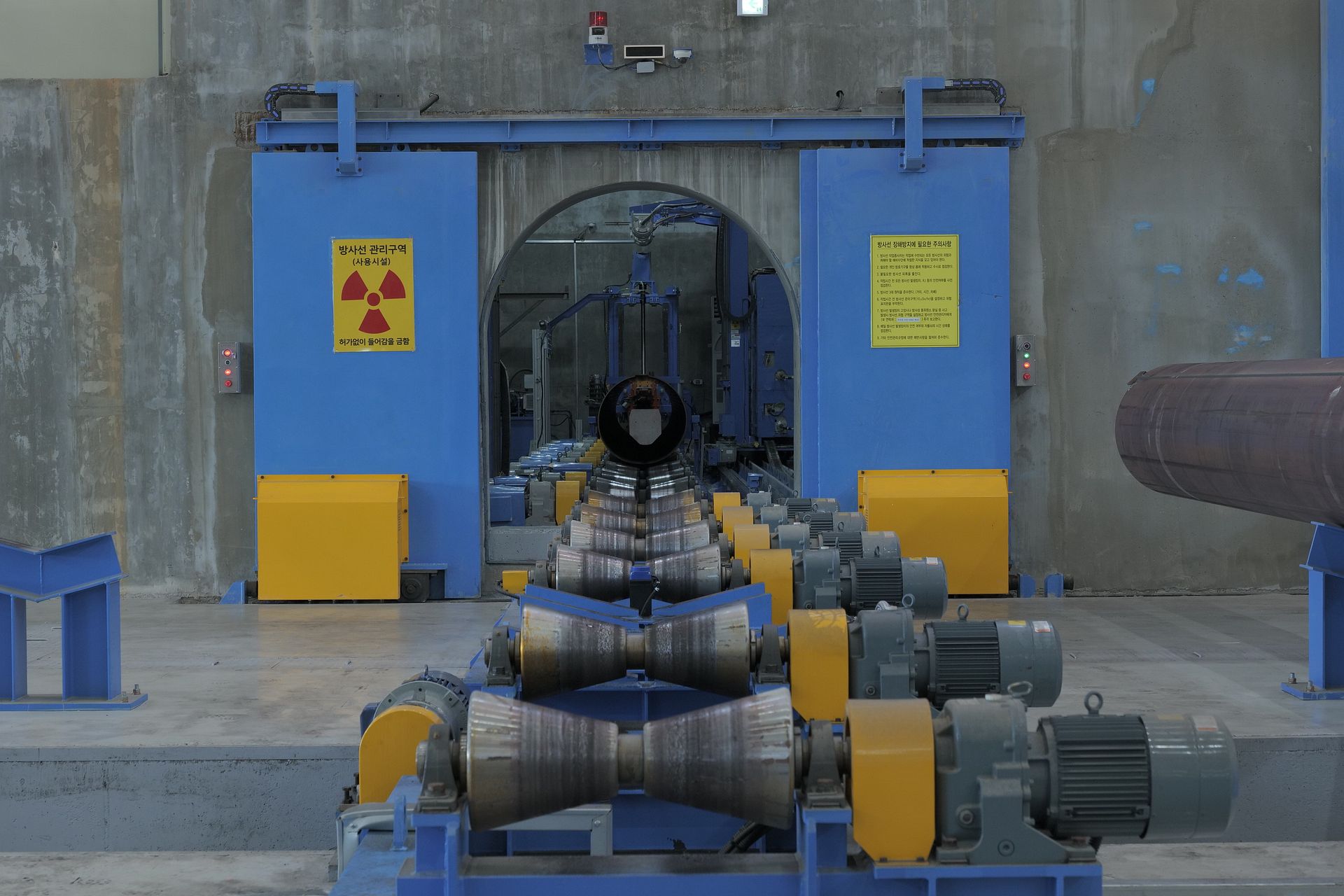

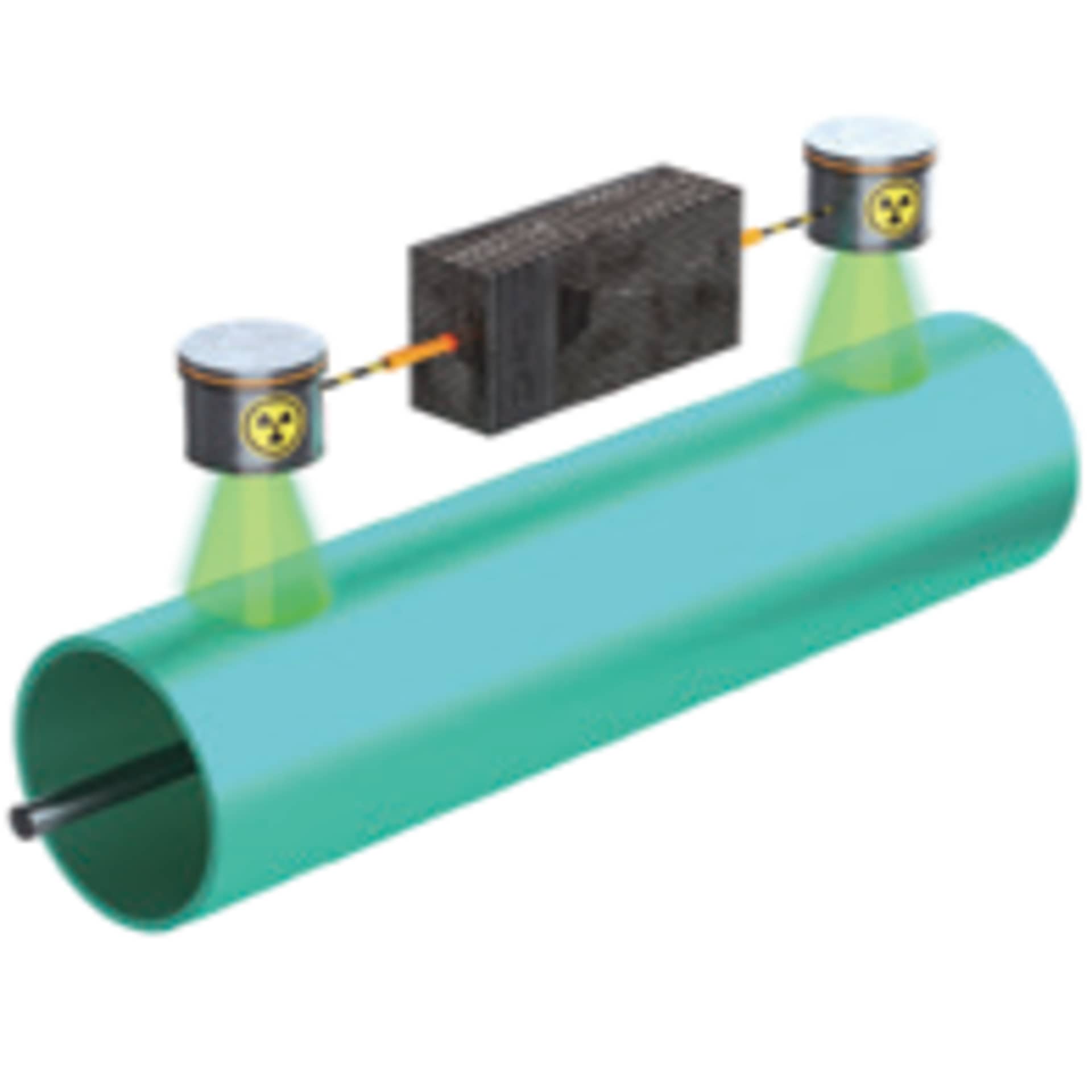

Radiographic Testing
- Radiography and/or Radioscopy
- 2 head type/Φ406.4~Φ1,524
- Dual X-Ray with Digital sensor (LDA/FPD)
- Automatic tool
- Al evaluator (Option)
- Image sharing system (Option)

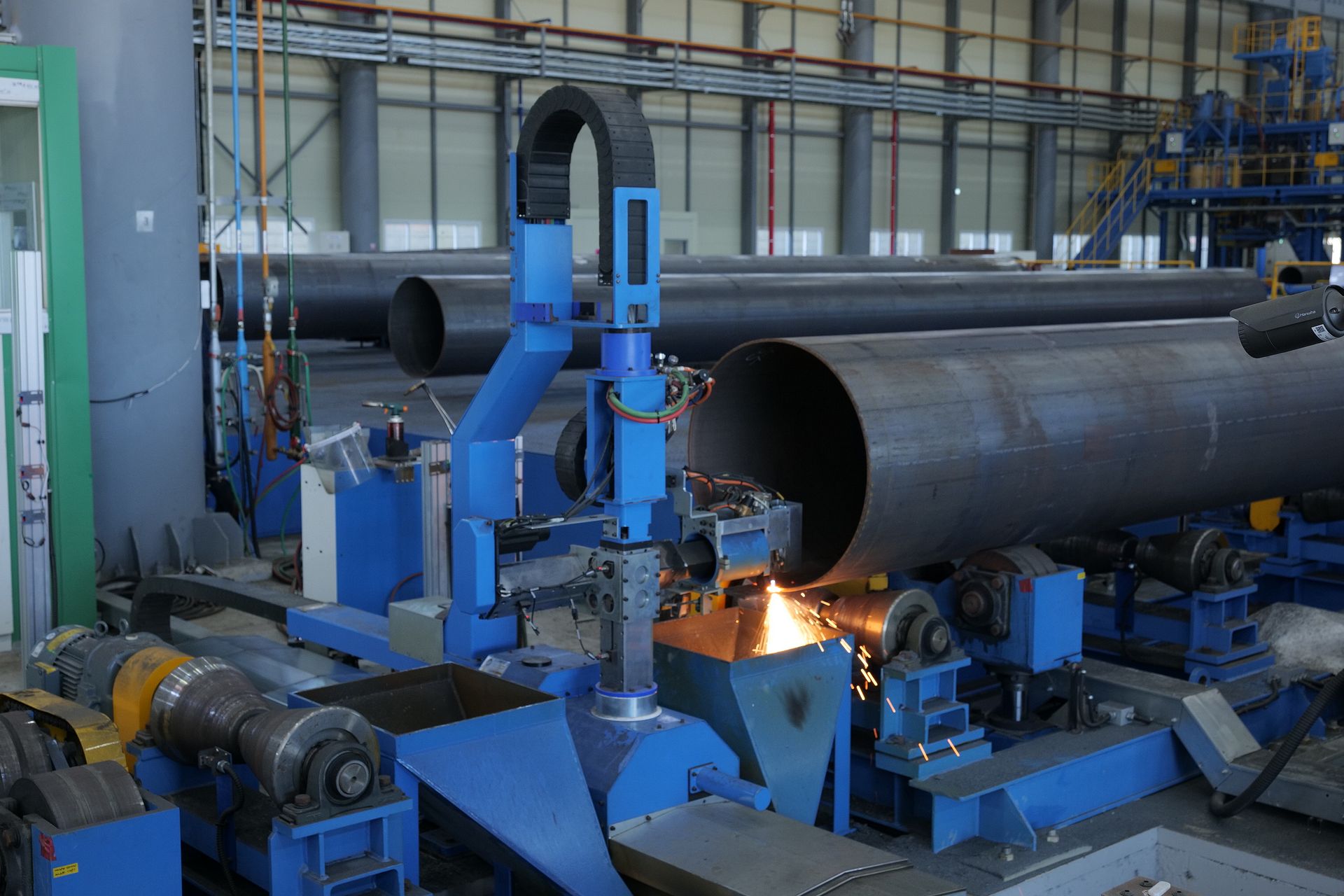

Tap Cutting
- Auto turning gas cutting type

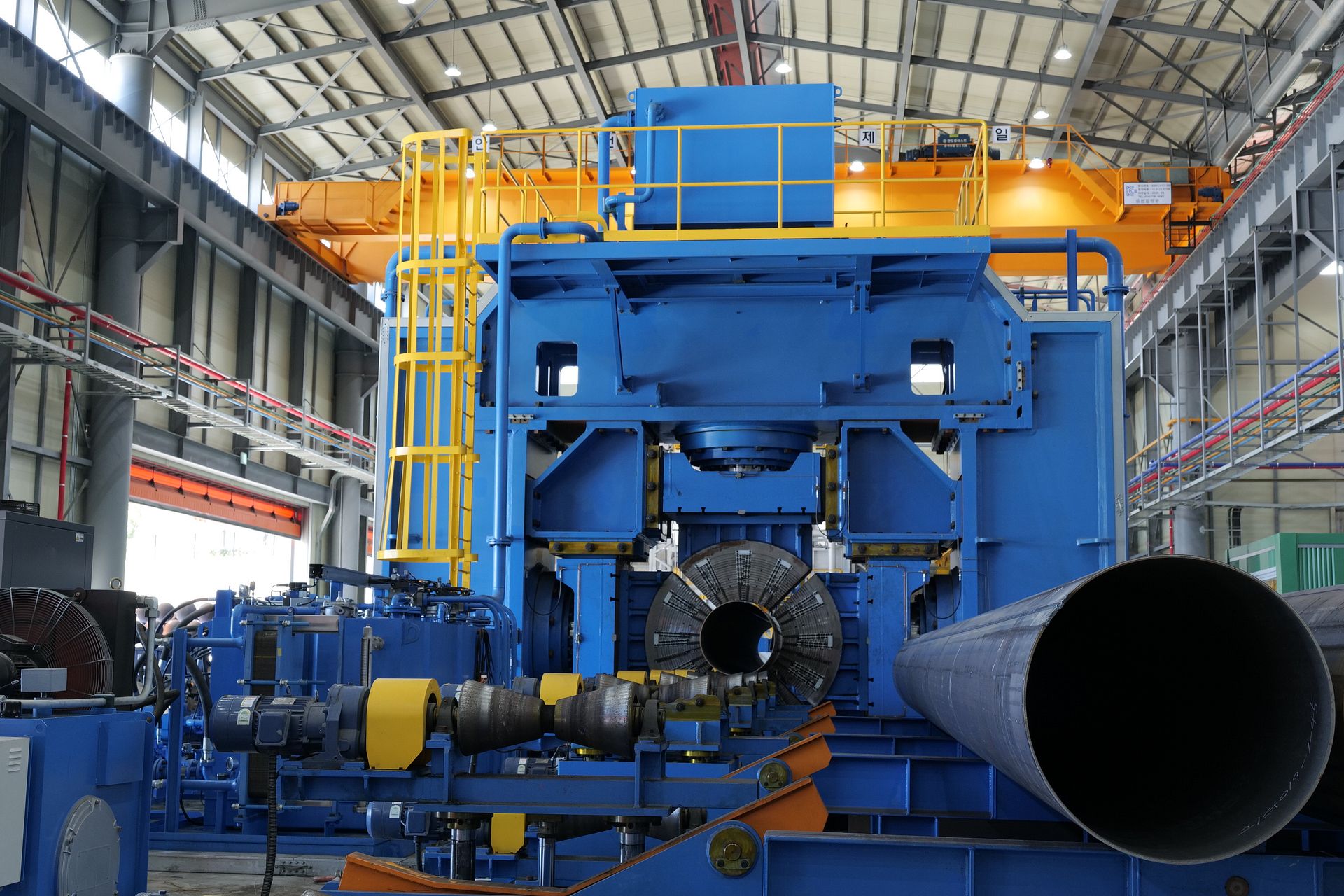

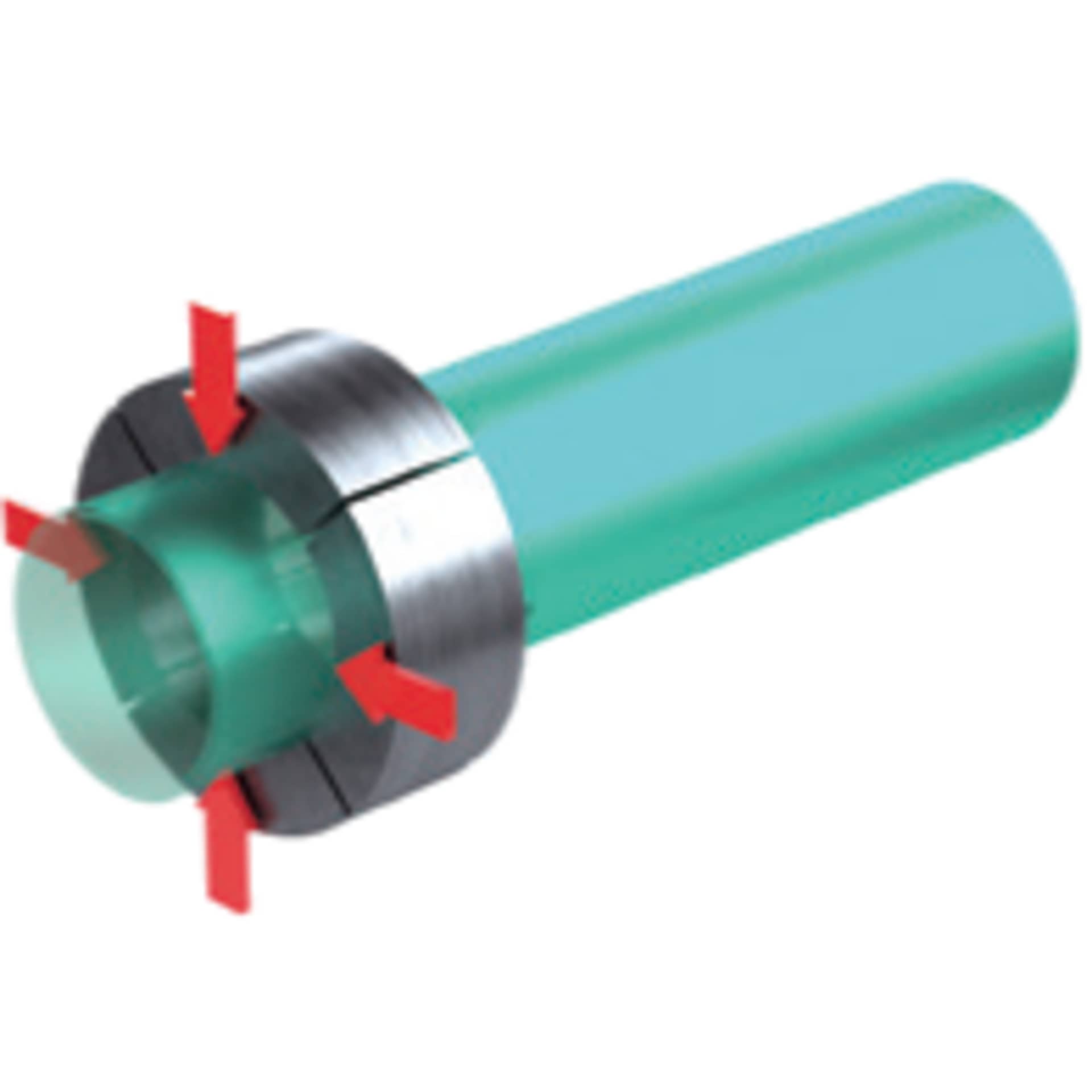

Copander
- 1,750ton 4 way type
- Development by HYUNDAI RB
- Stress relief effect
- Full body roundness correction
- Max. compression rate: 0.3% of O.D.
- Straightness correction (Option)

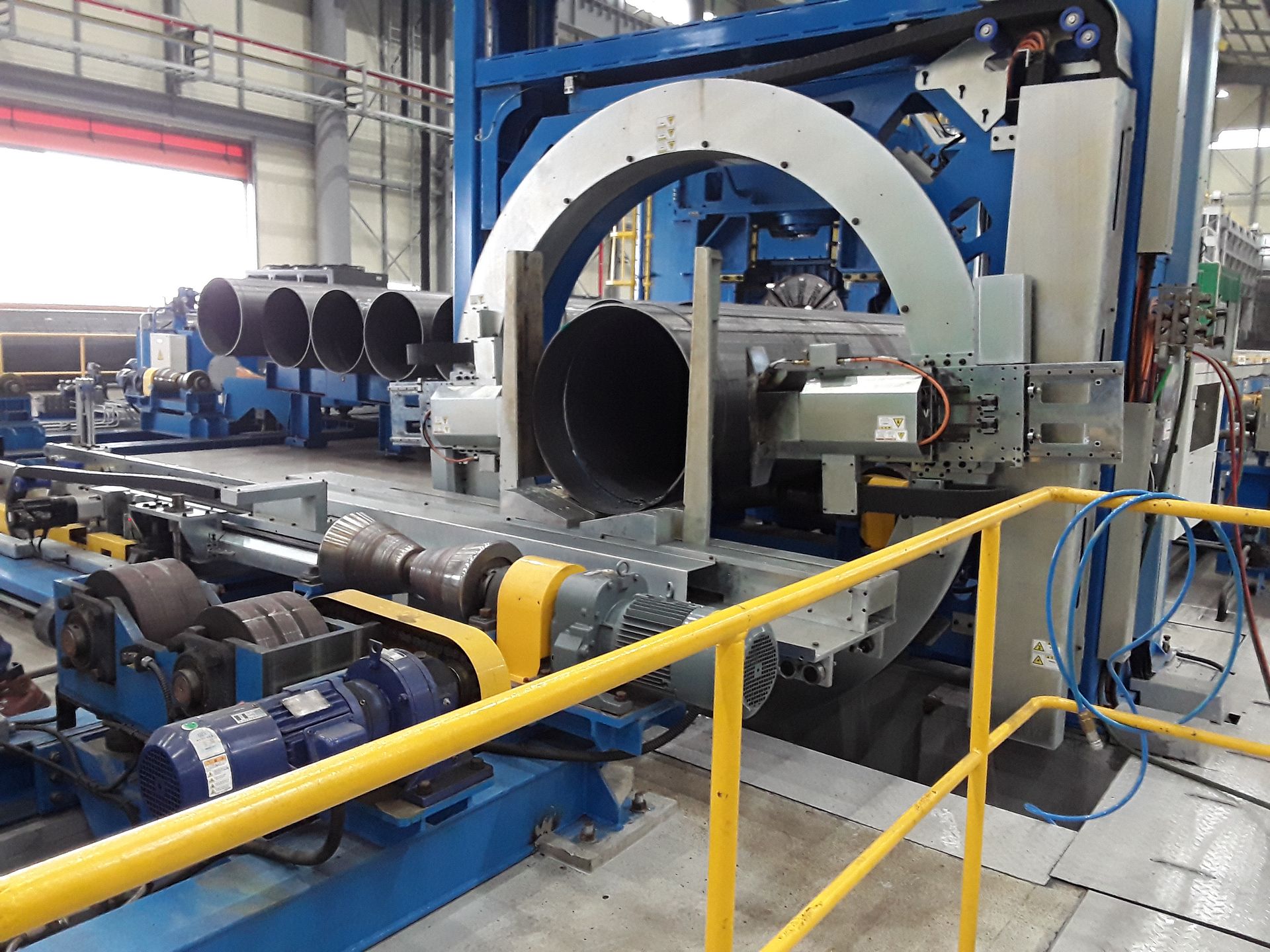

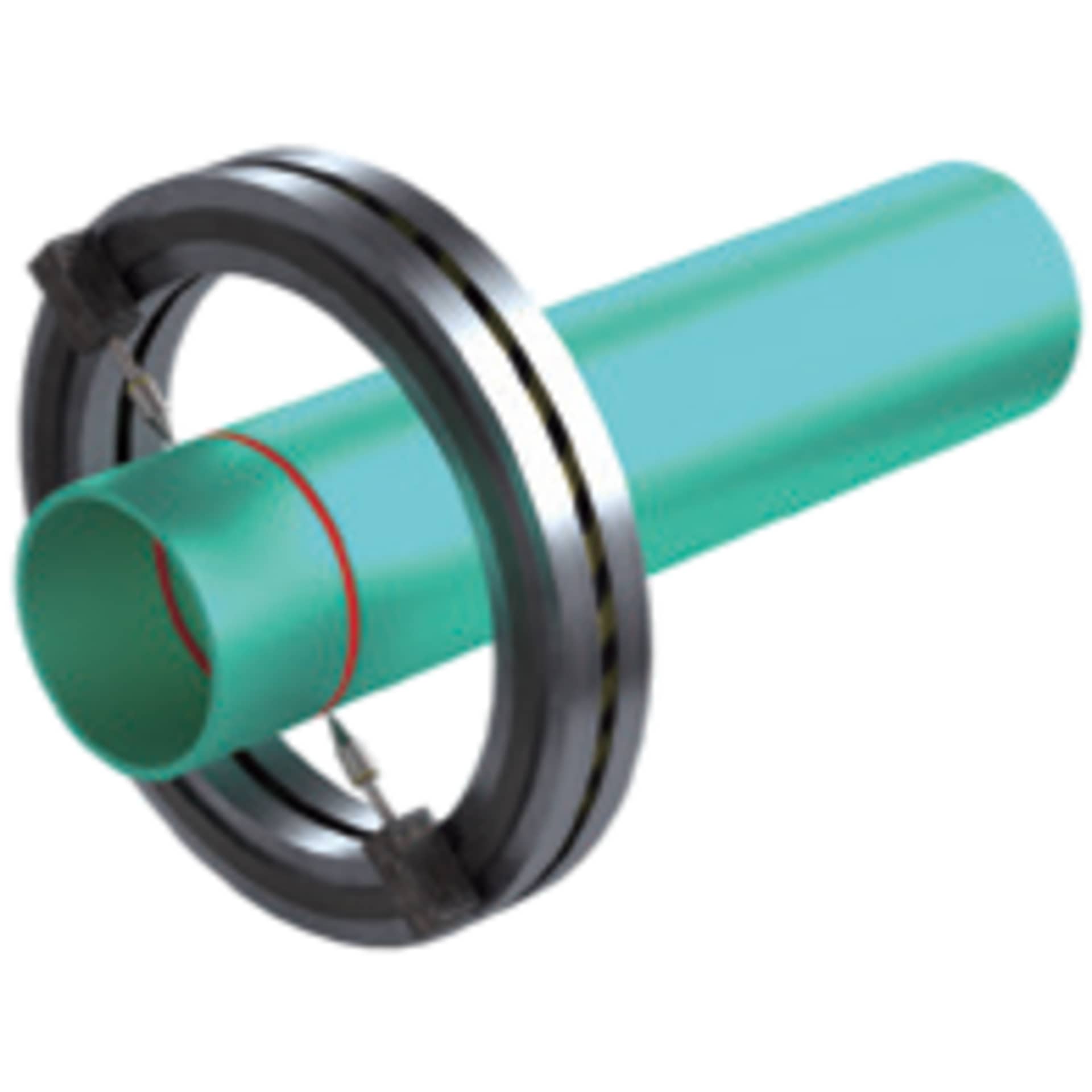

Test Coupon Cutting
- Auto turning gas cutting type

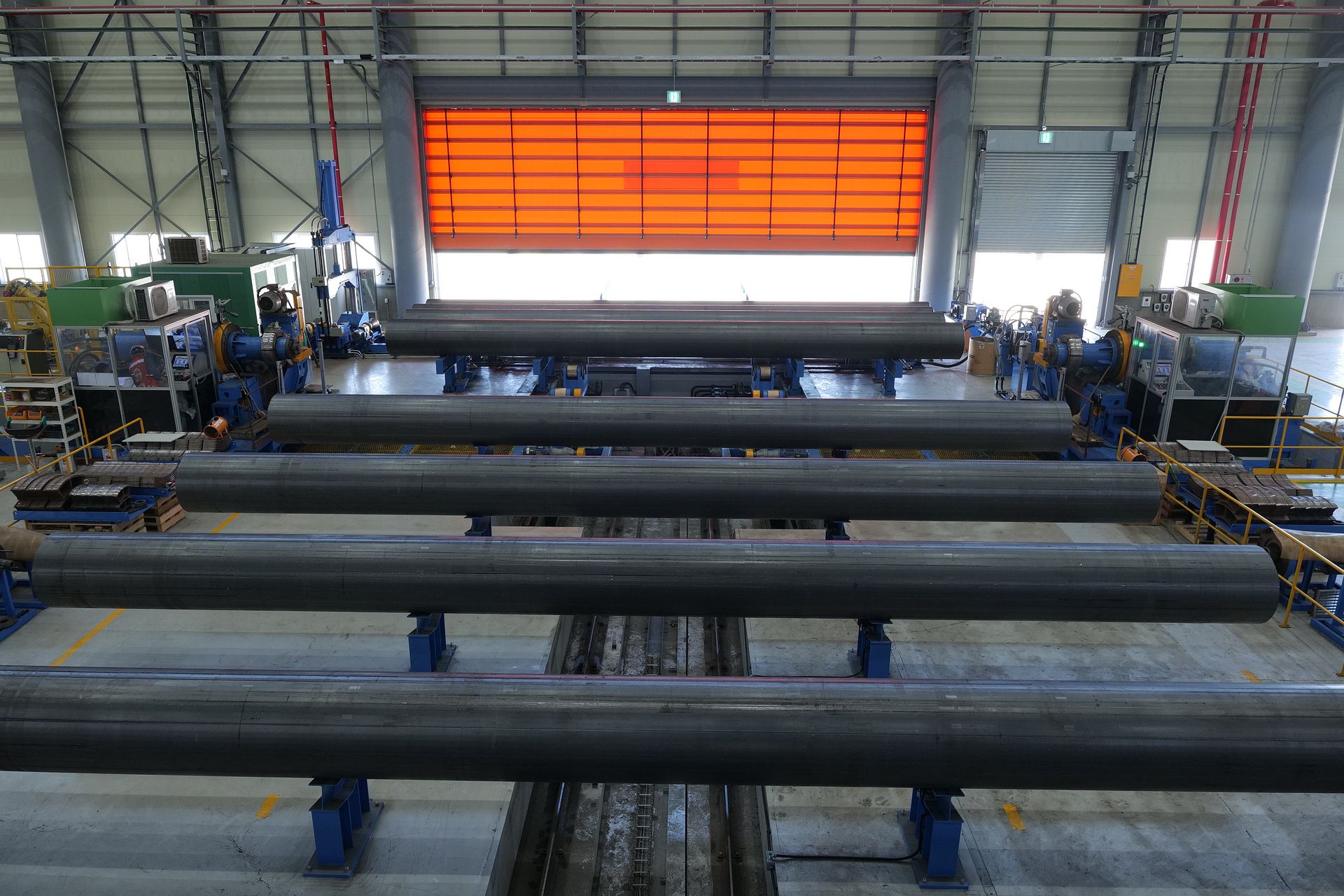

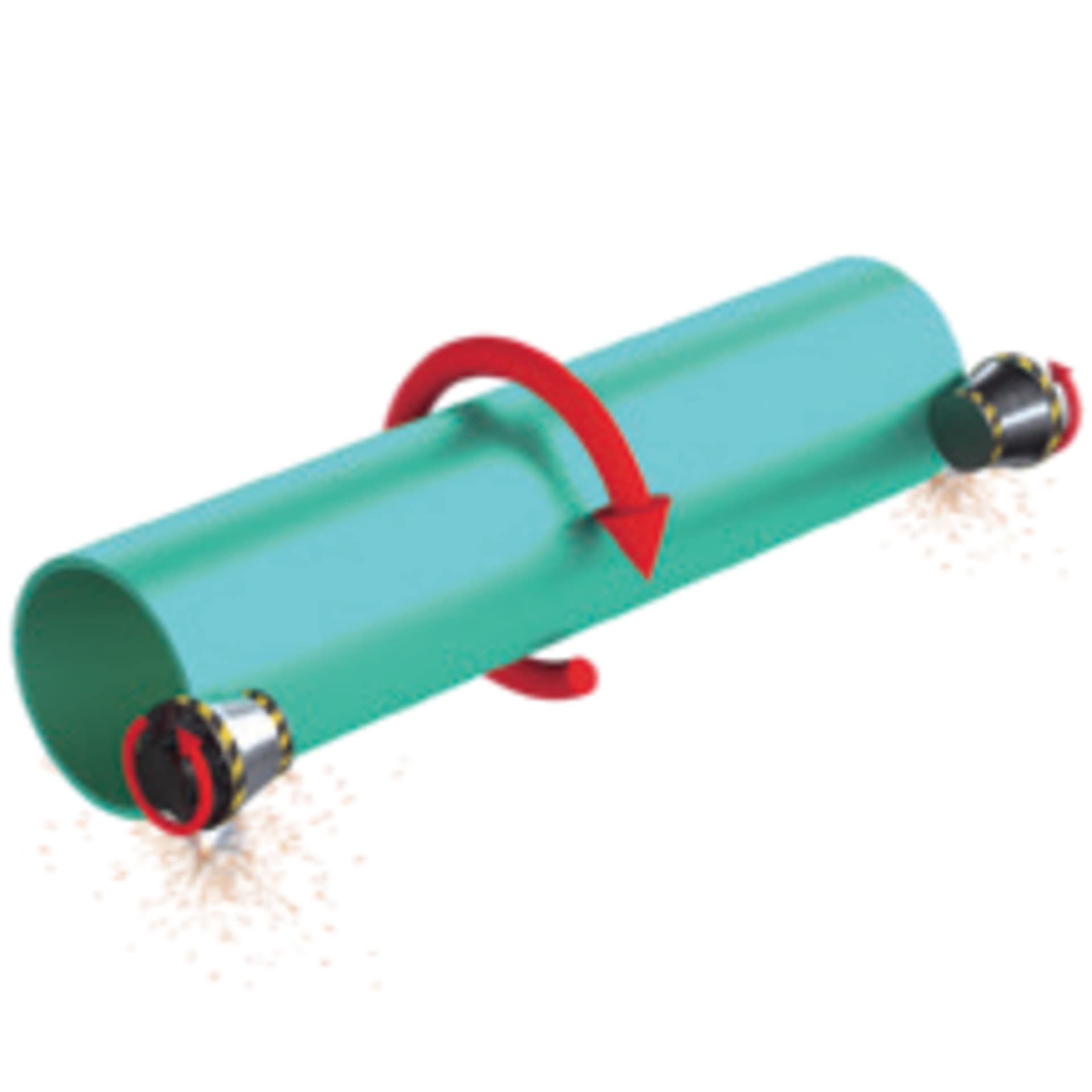

End Beveling (End Facing)
- cutter type/Φ406.4~Φ1,524
- Pipe inside chucking and pipe rotation
- Automatic length checking
- Pipe transfer system (Simultaneous input & output)
- Beveling tool’s angle (Option)
- Shape of bevel (Option)

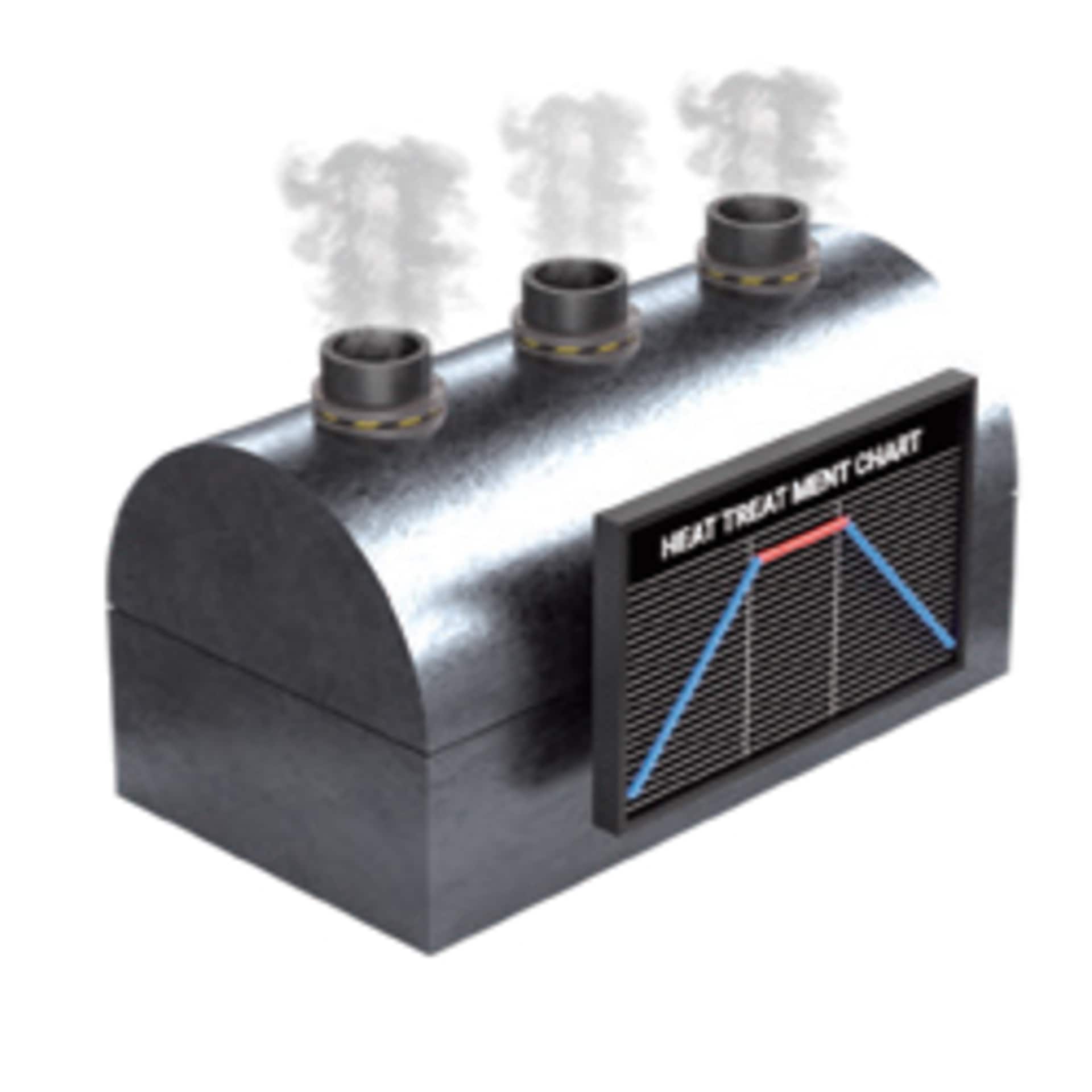

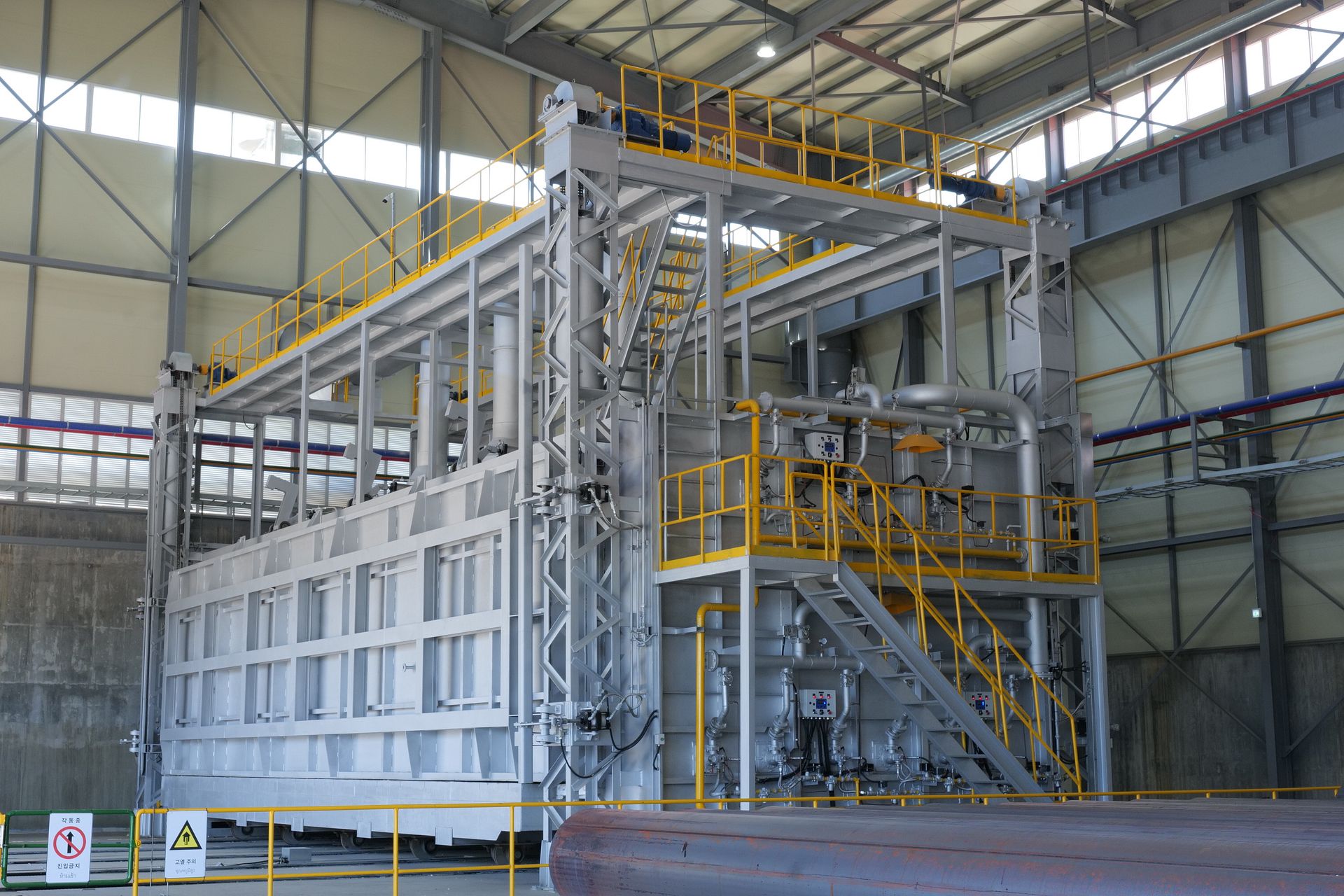

Heat Treatment (Optional)
- Stress Relieve / Normalizing / Normalizing & Tempering
- 100ton/charge (W6,000XH3,400XL16,000)
- LNG heat source system
- Pulse On-Off temperature control
- Max. 1,000℃ temperature with ±10℃ deviation

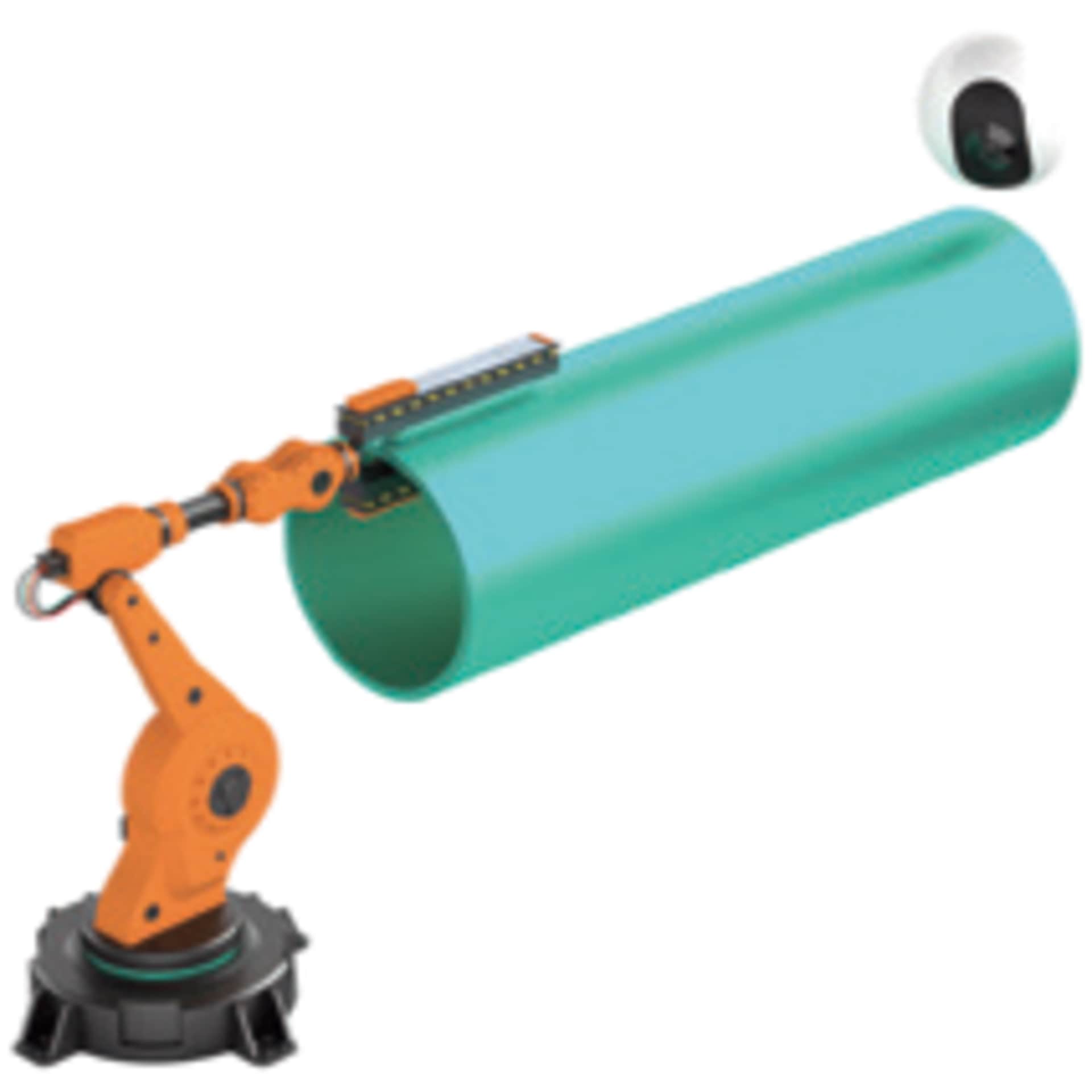

Visual Inspection and Automatic Dimension Inspection

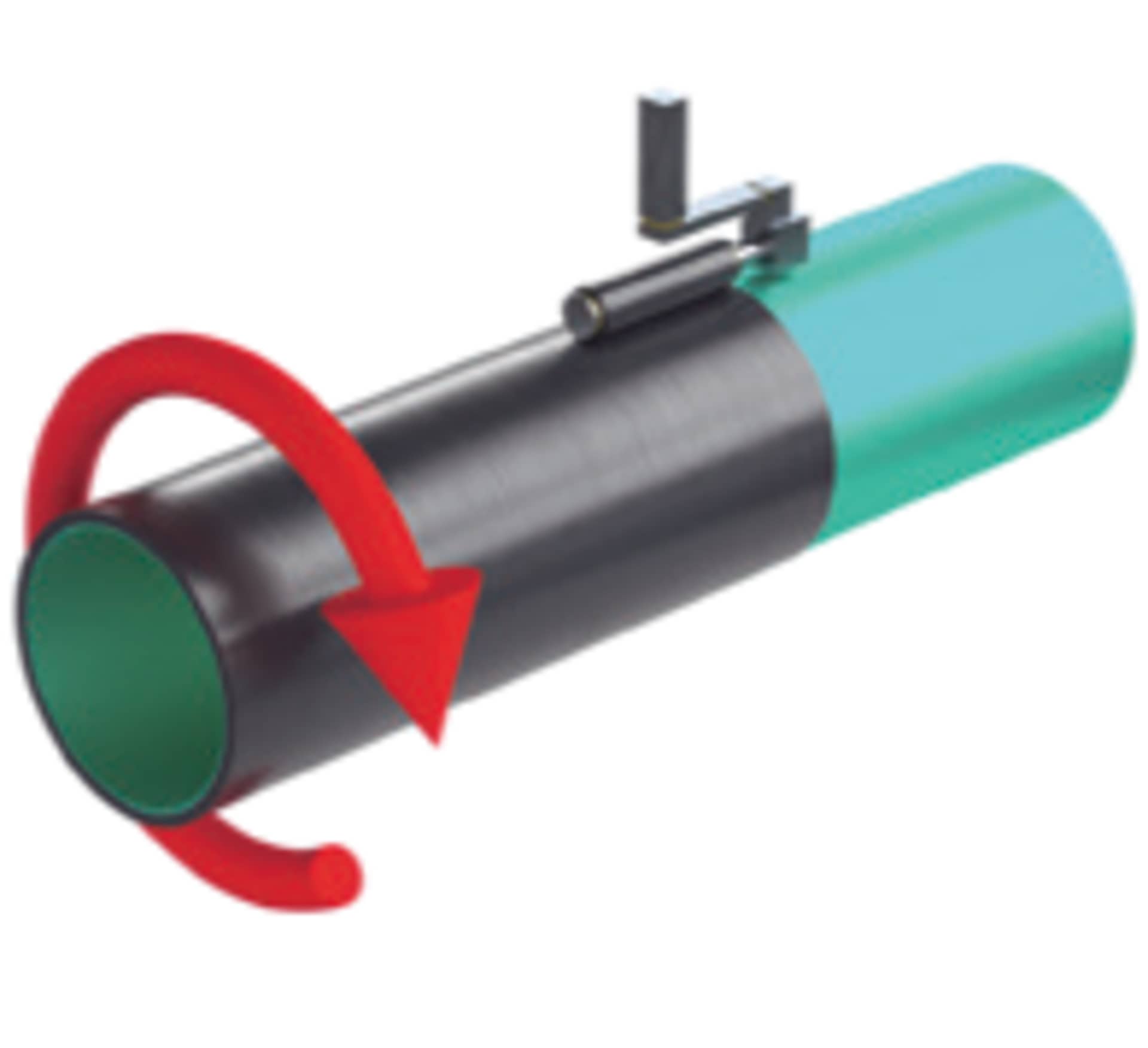

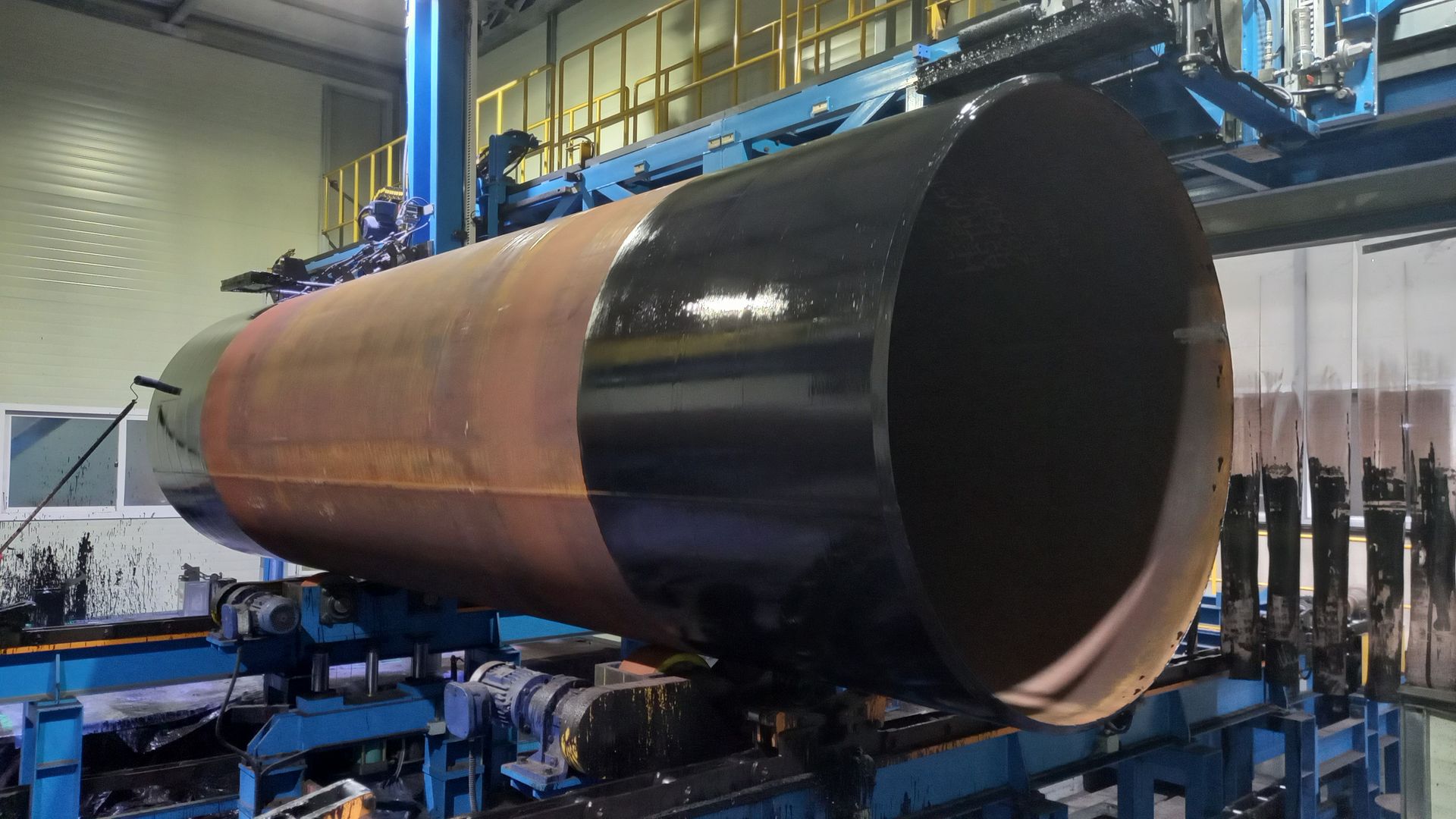

Vanish Coating (Optional)
- Roller type coating system

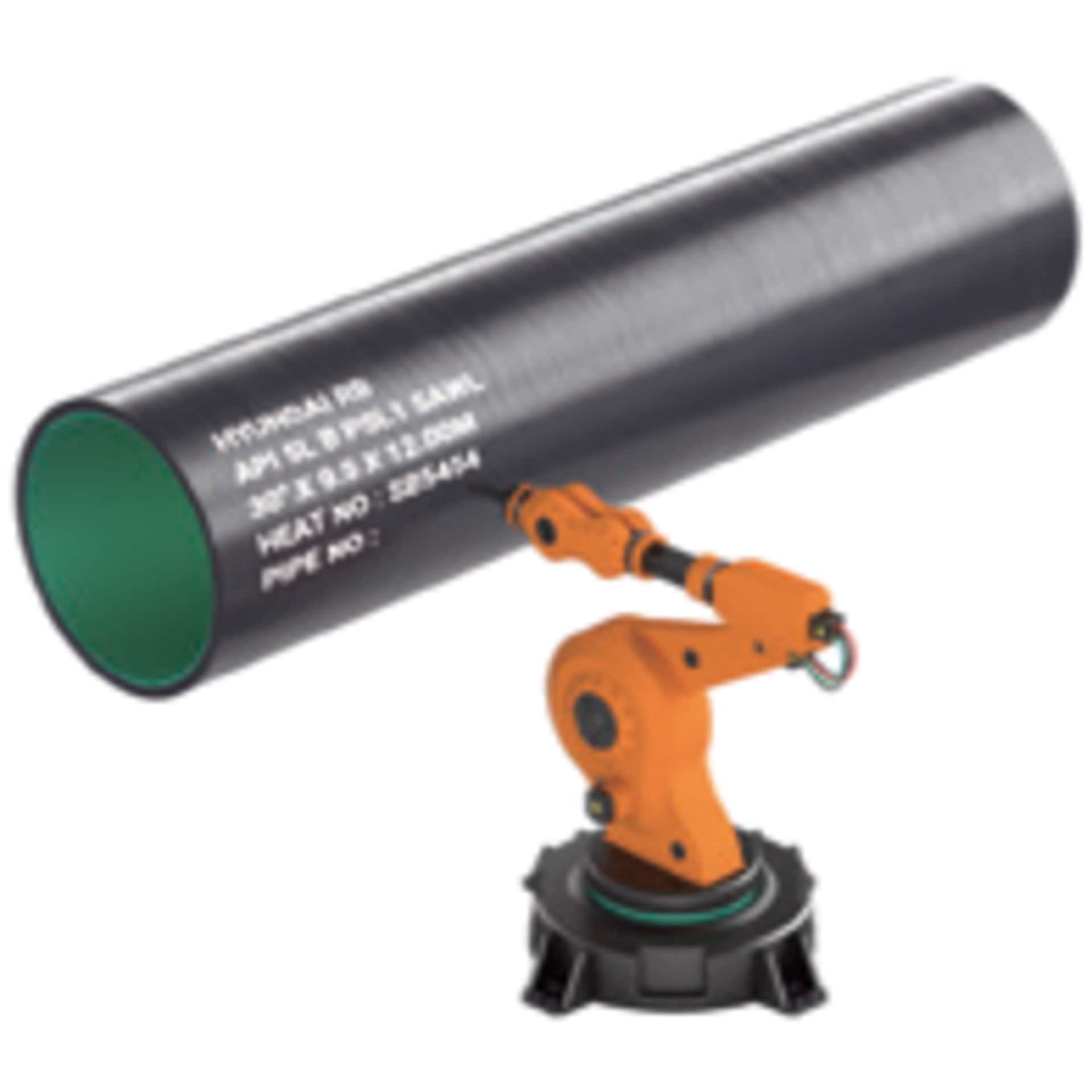

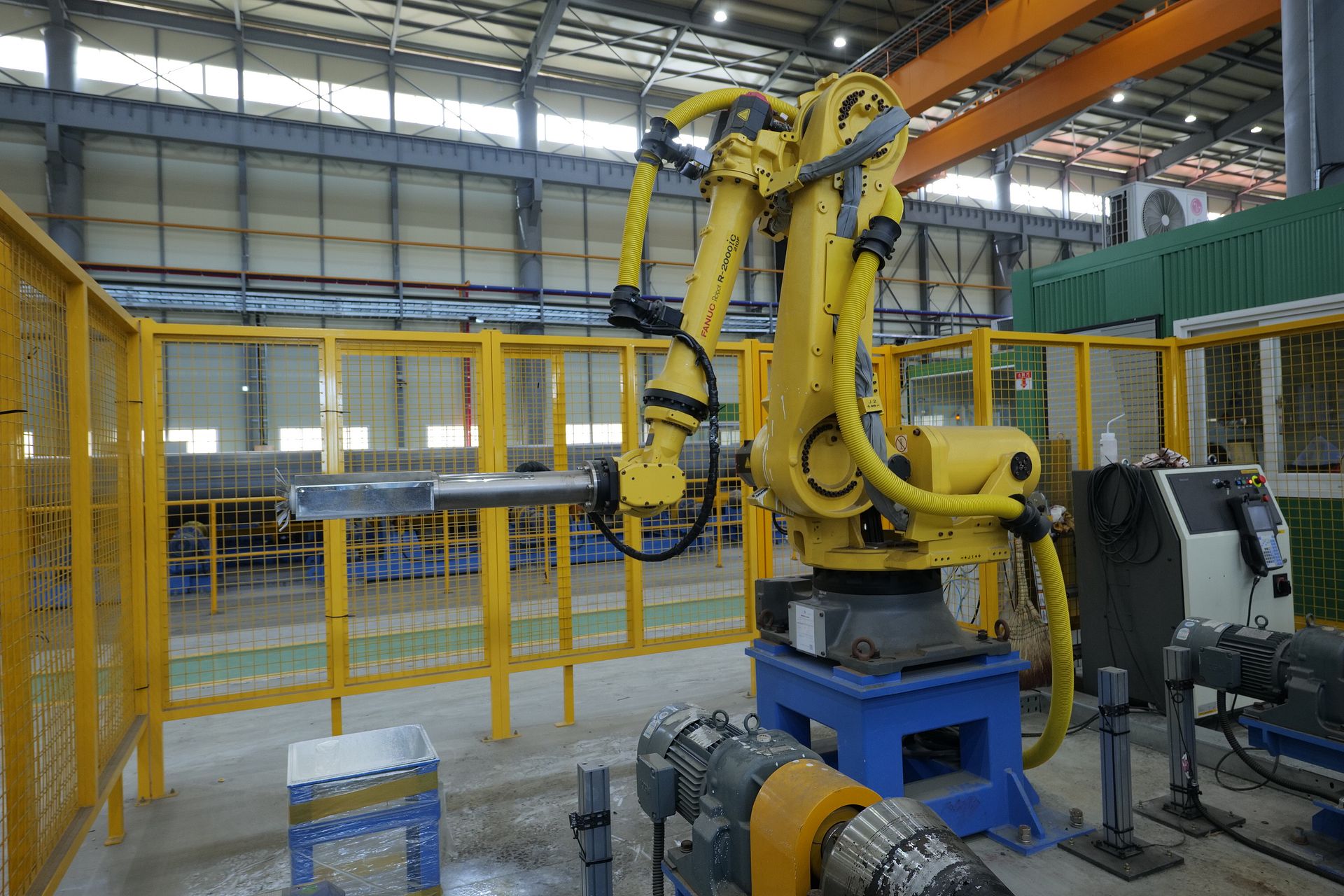

Automatic Marking
- Full automatic robot-type pipe marking system
- Automatic marking program

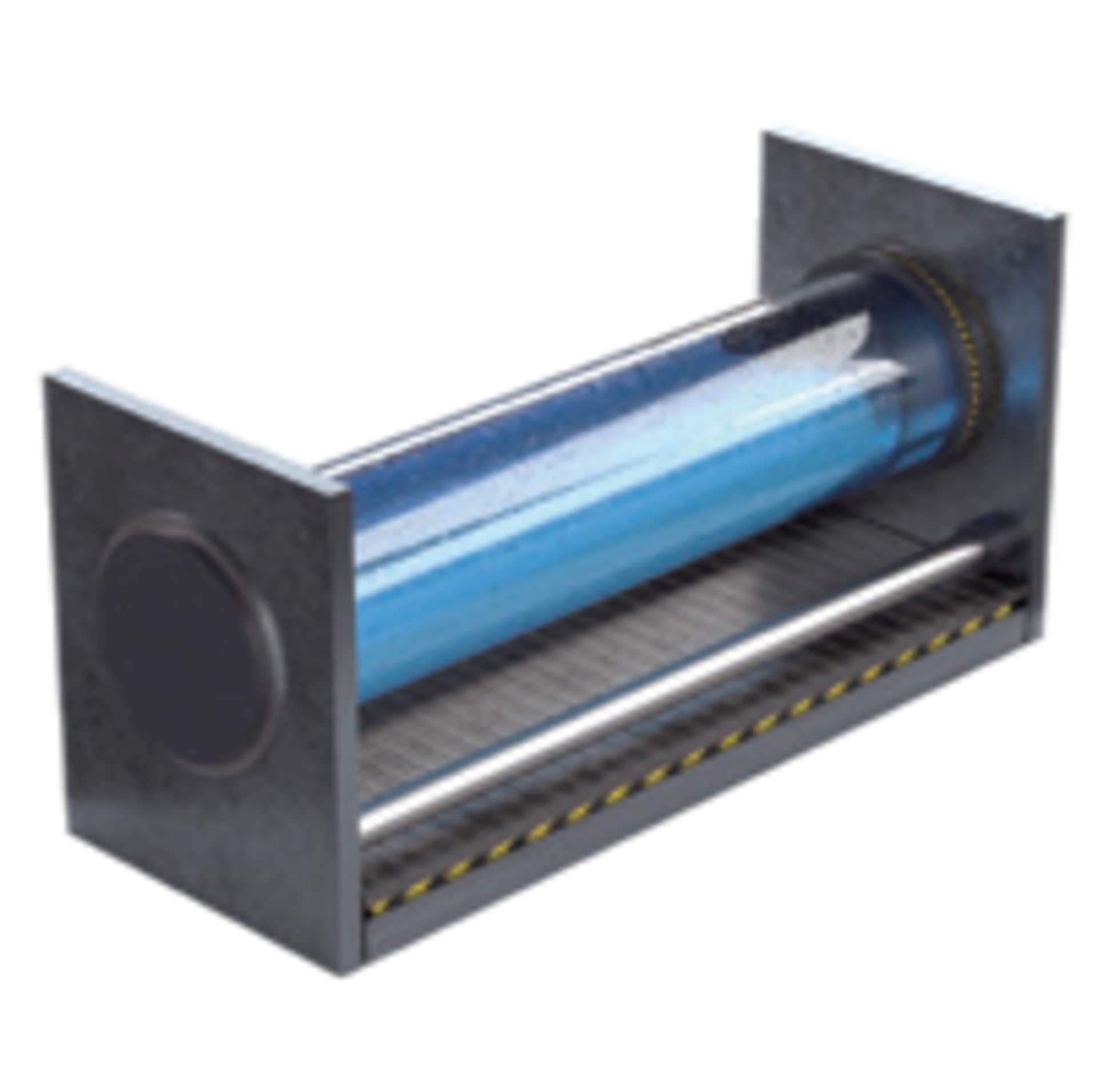

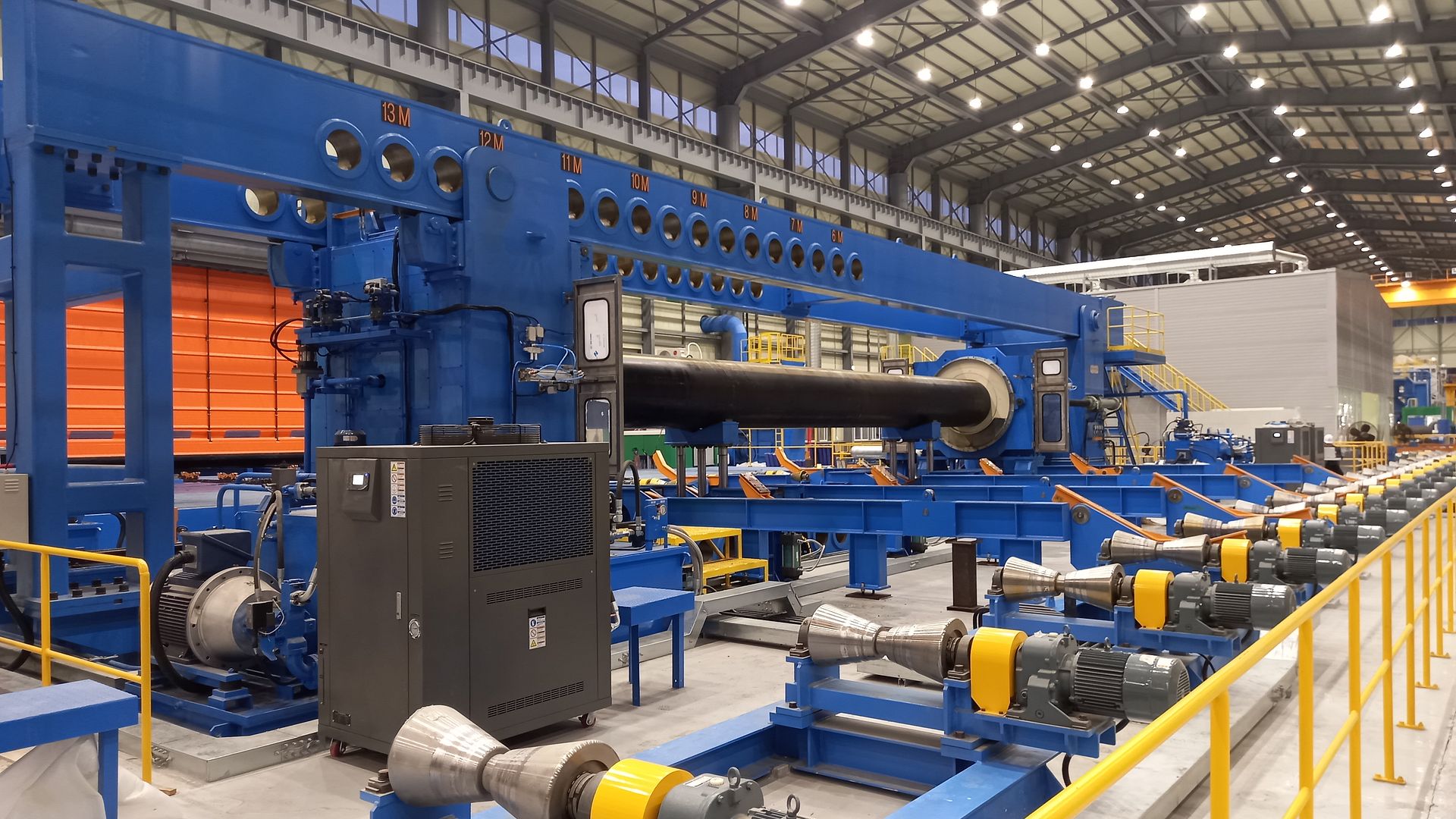

Hydrostatic Testing
- Φ406.4~Φ1,524/250 bar
- Step-by-step pressure adjustment (Filling, High-pressure, Pressurization)

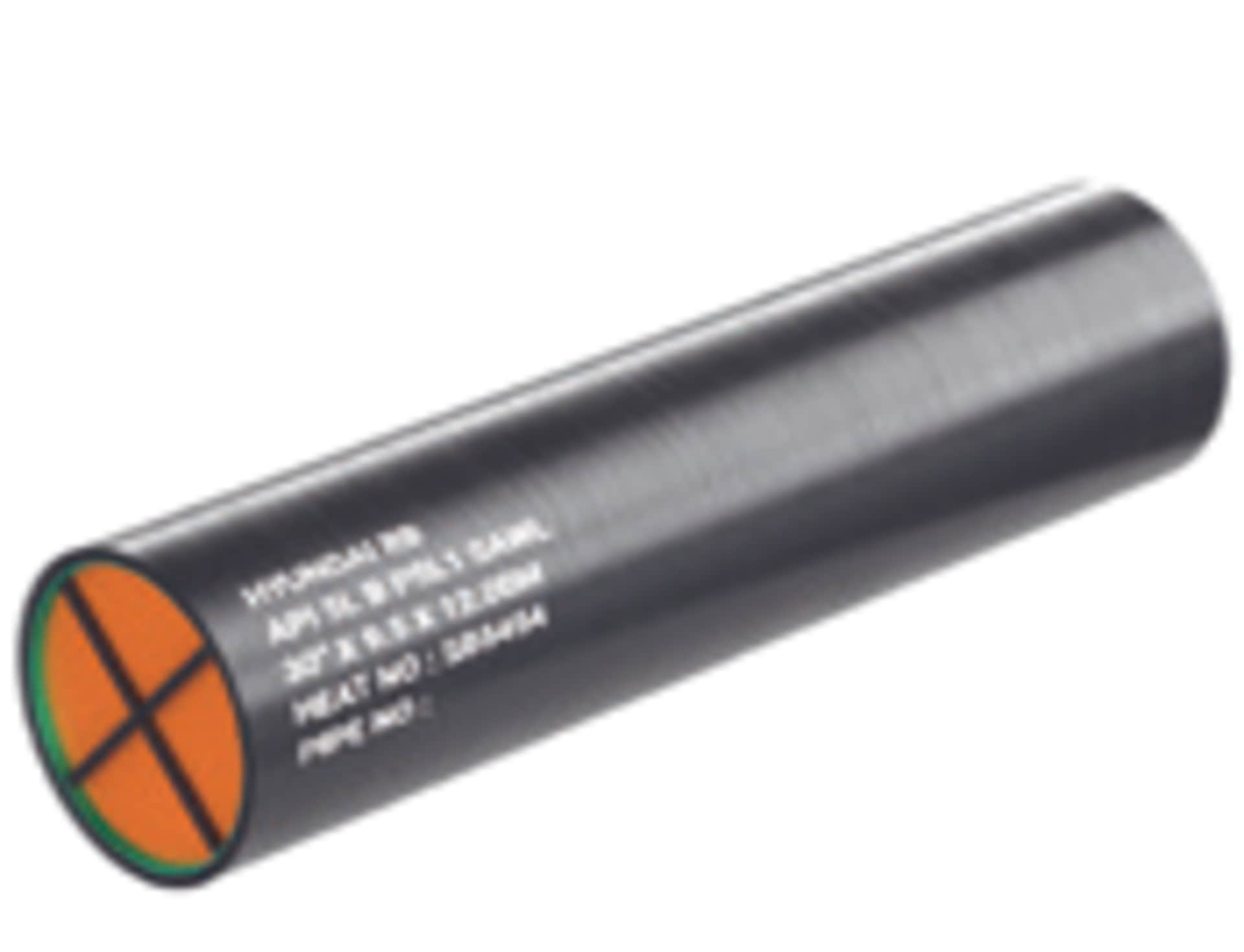

Packing & Inspection

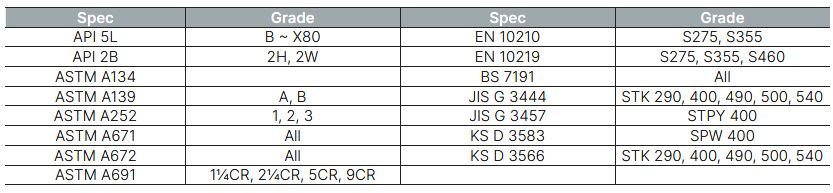

Steel Grades
Please contact us if you have any inquiry.
