HYUNDAI RUDDER AND PROPELLER TRANSPORTER
RUDDER TRANSPORTER P0309

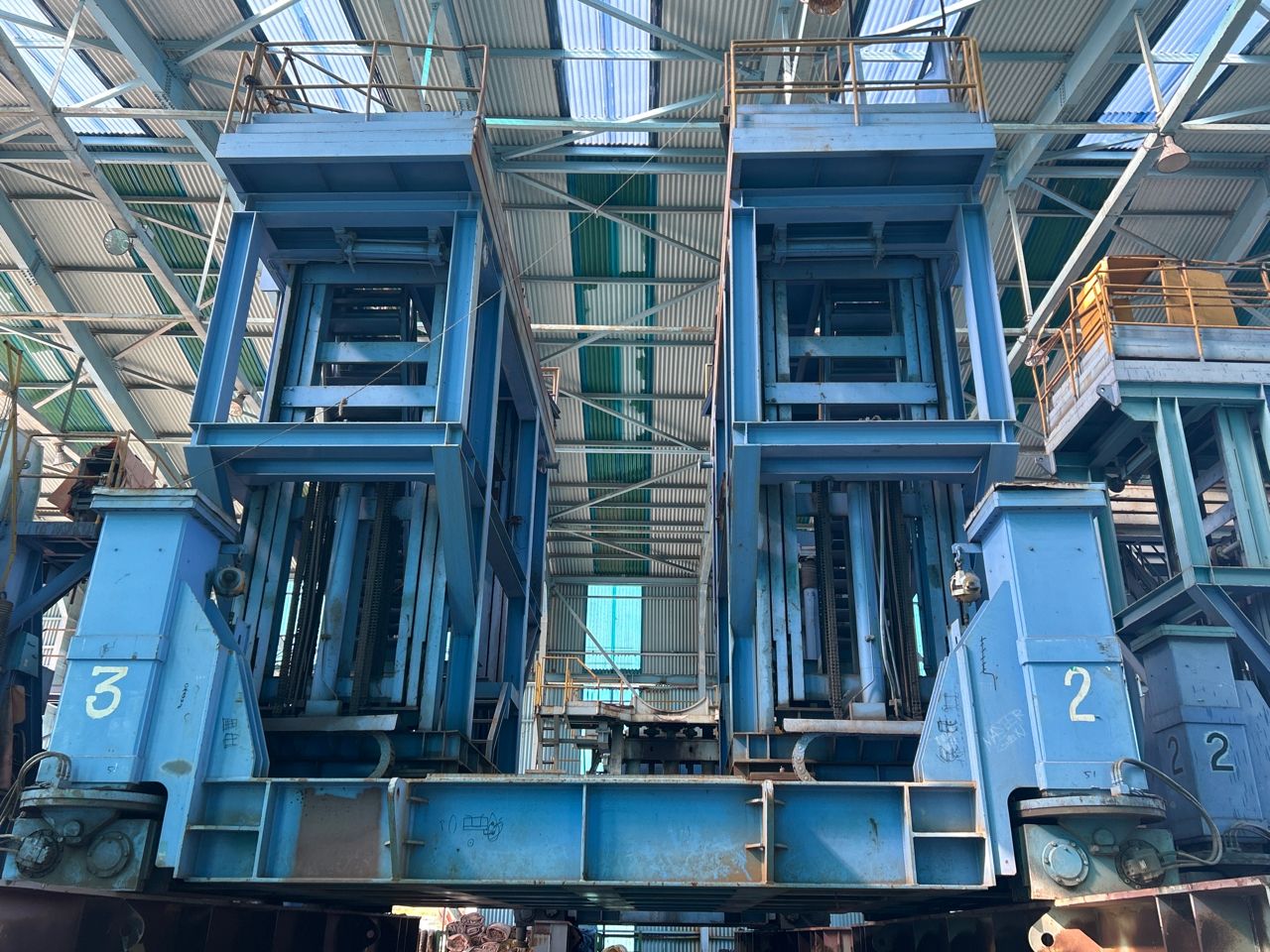

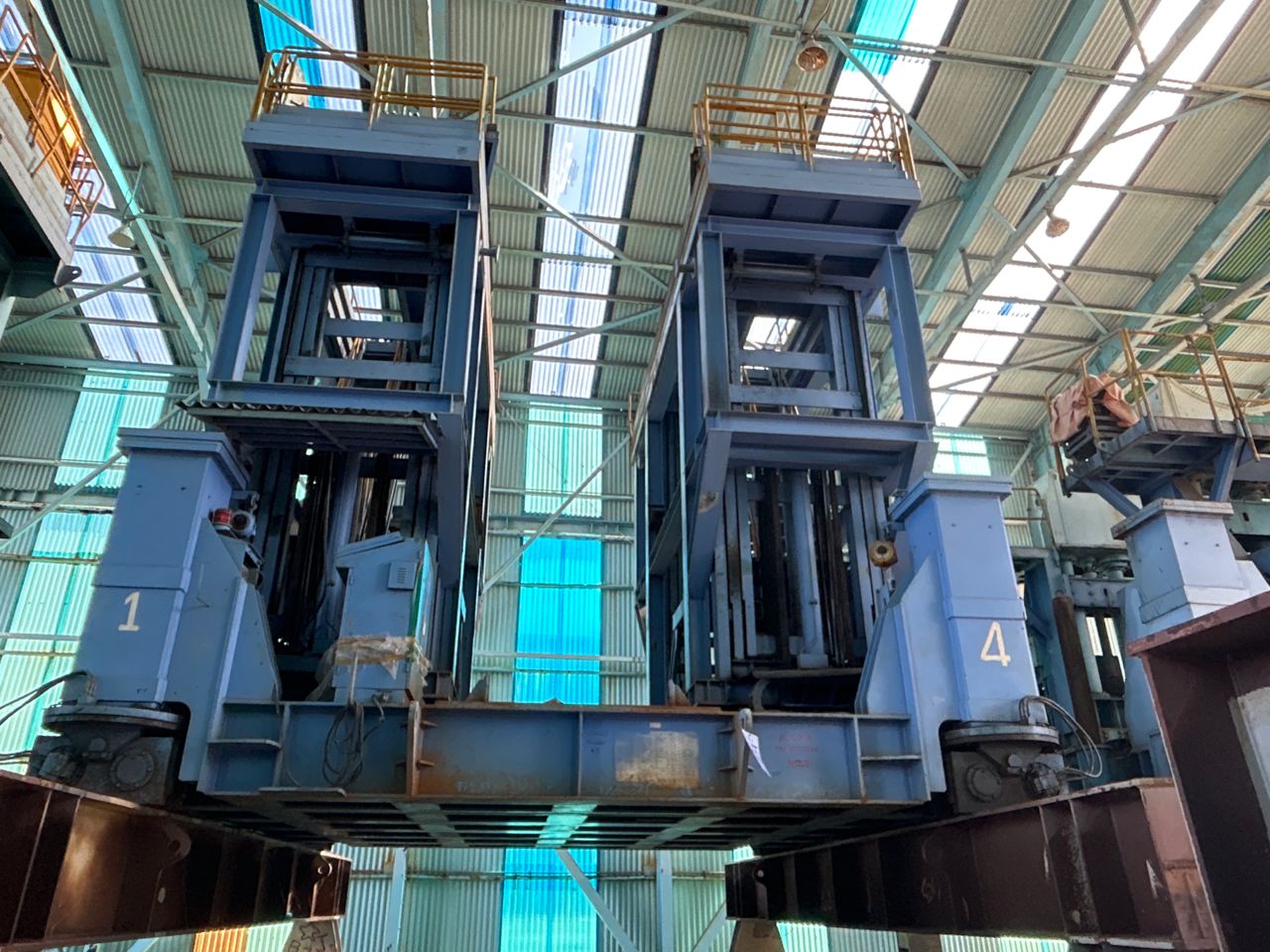

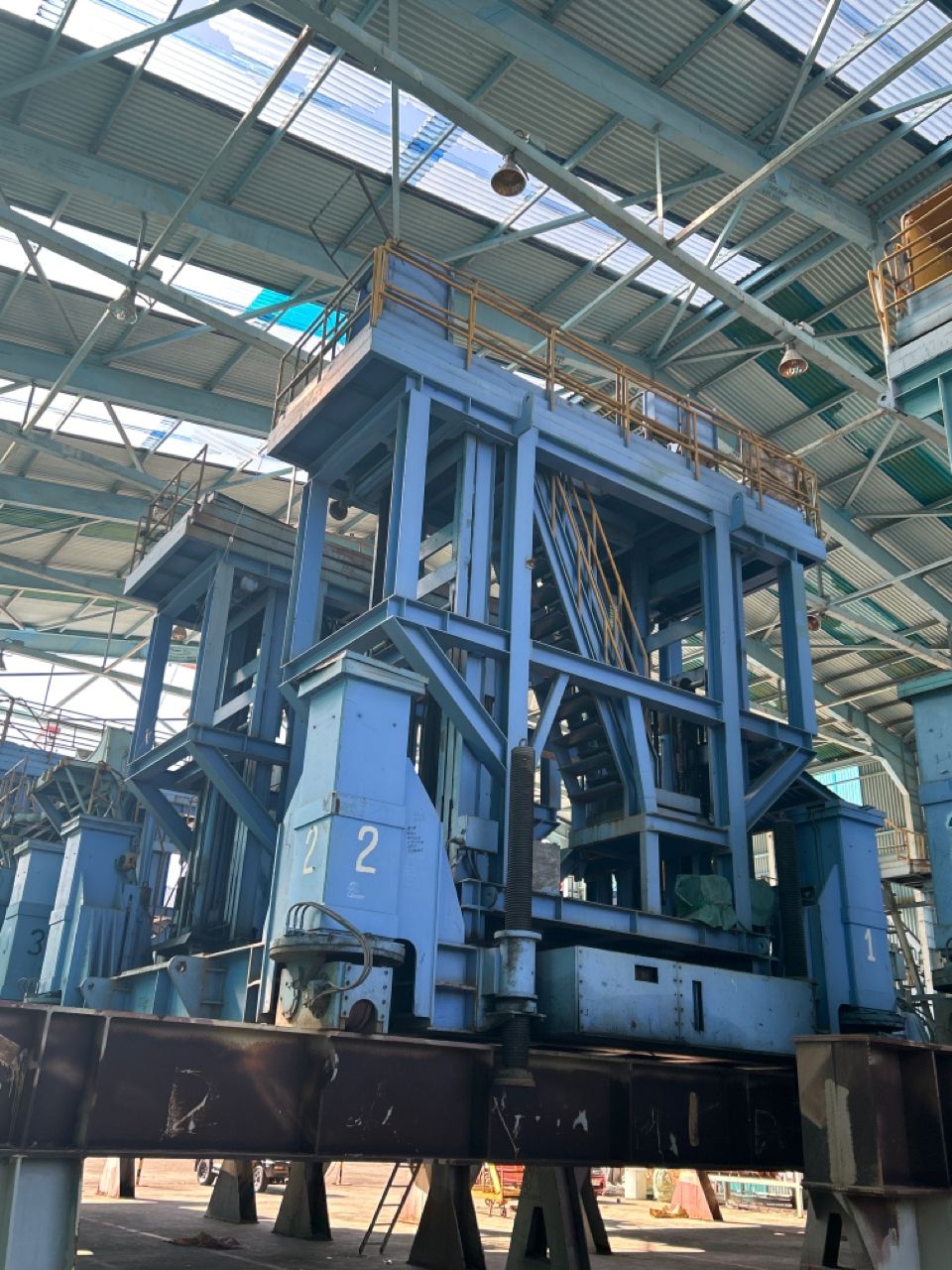

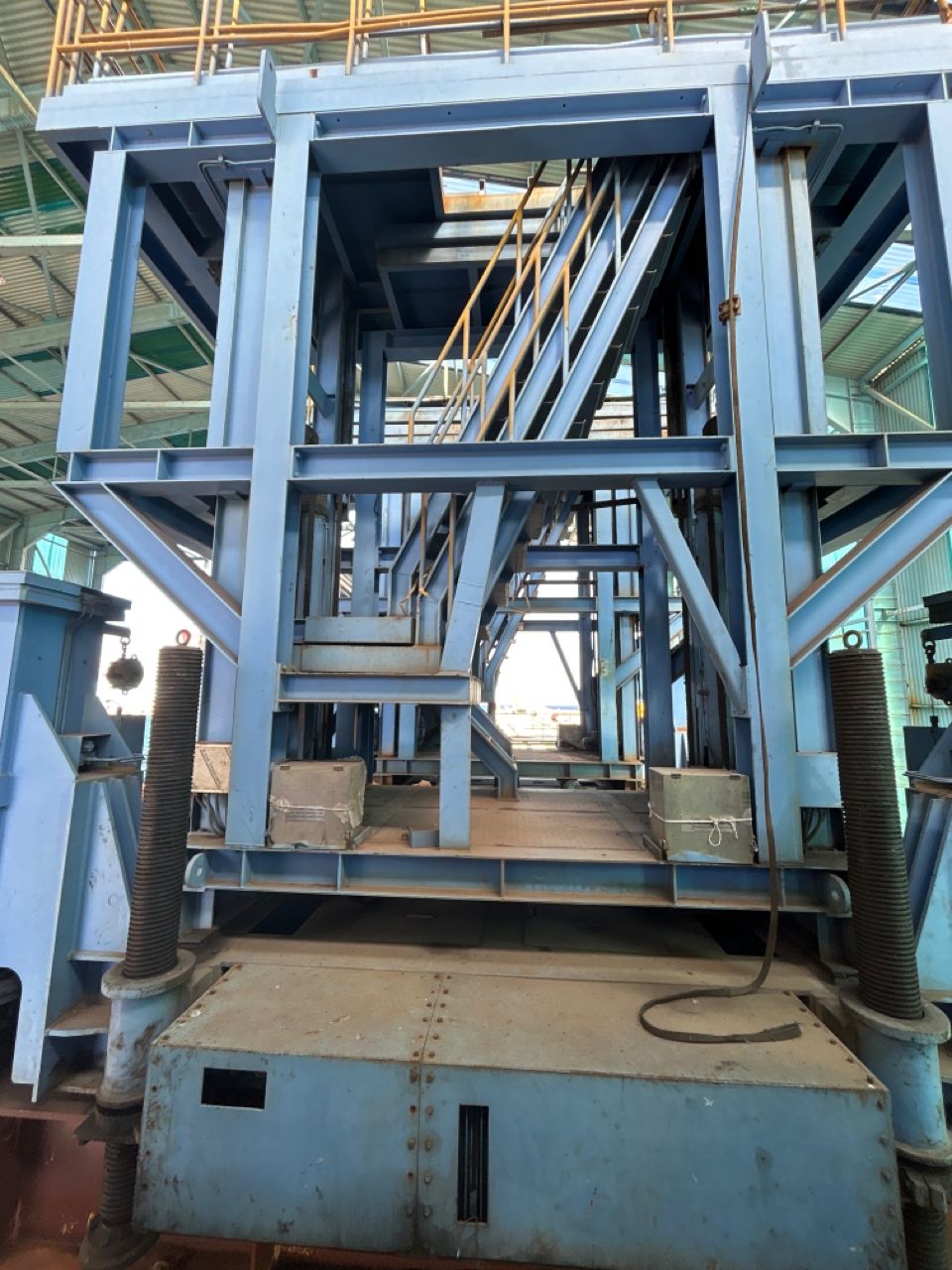

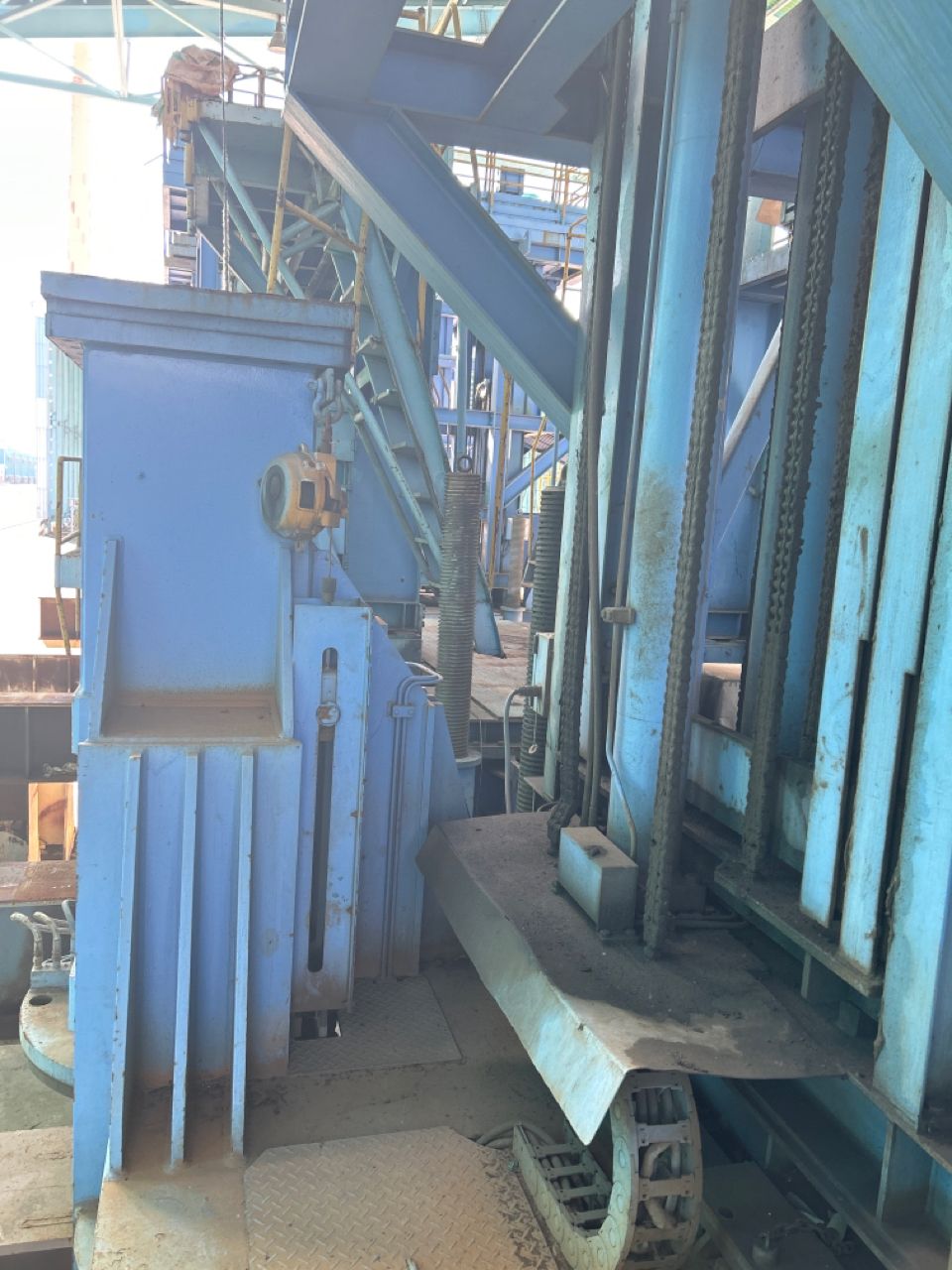

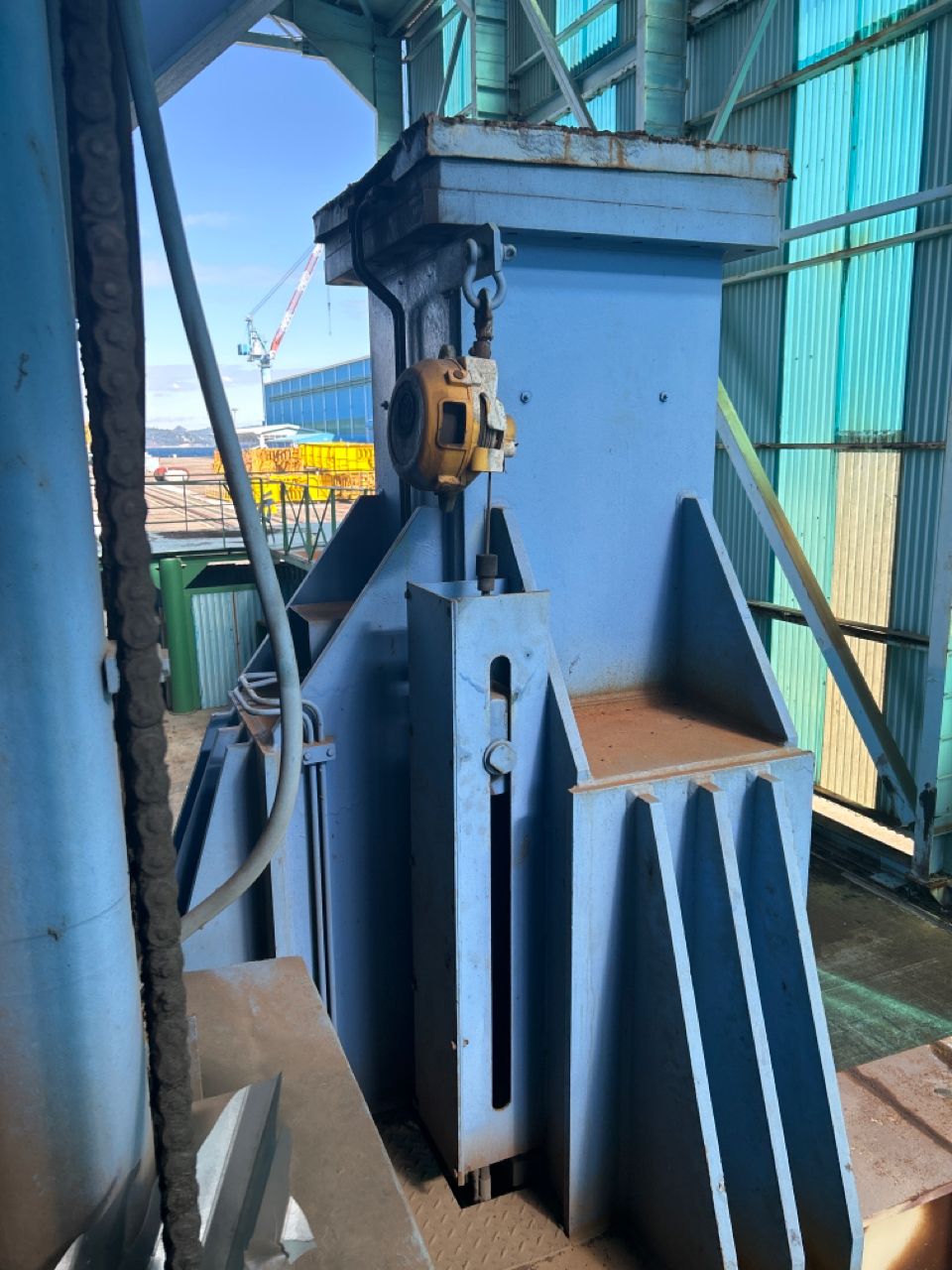

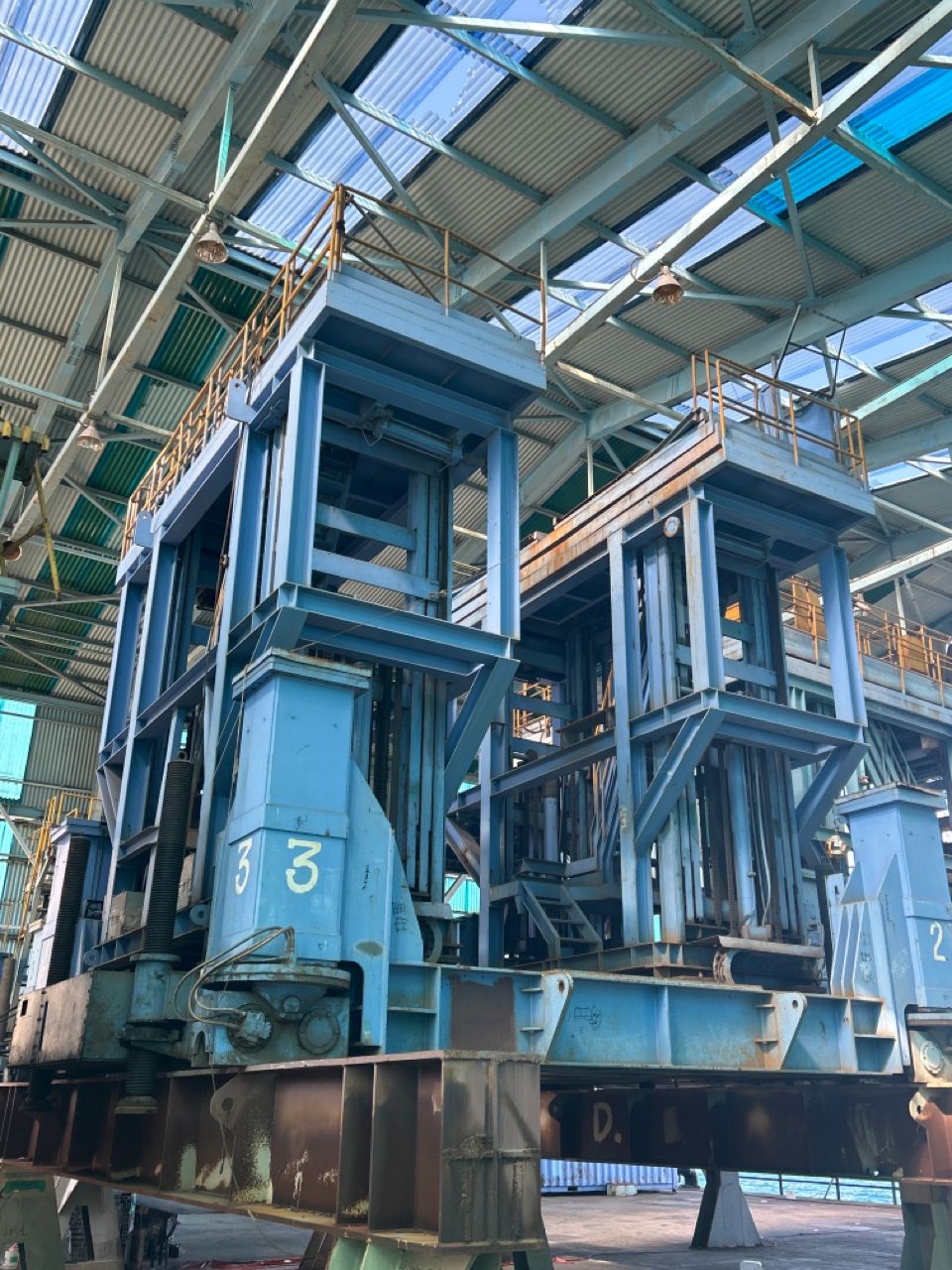

Rudder Transporter
Size: 6410 x 7220 x 6995h
Capacity: 200Tons
Weight: 76.5Tons

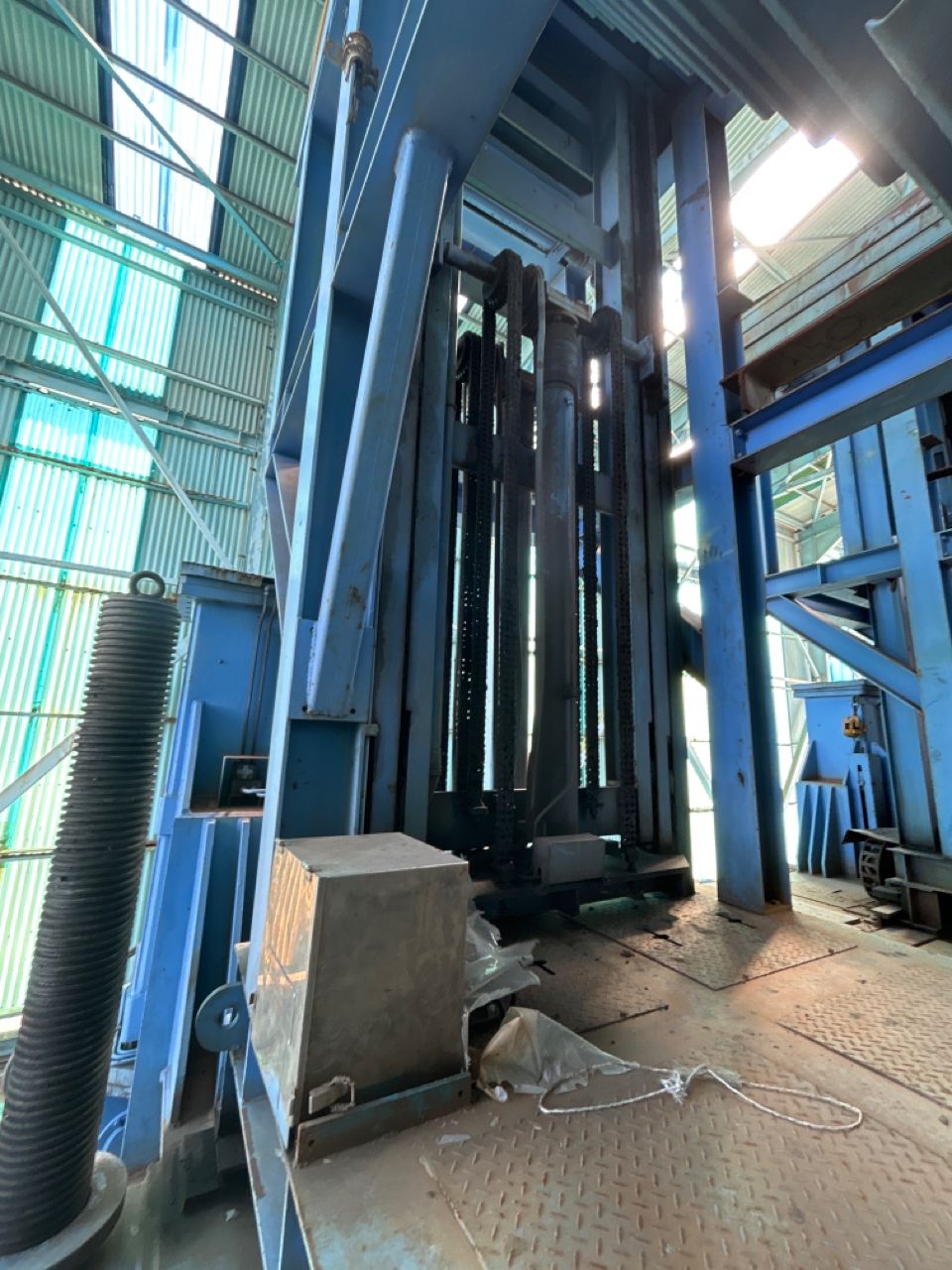

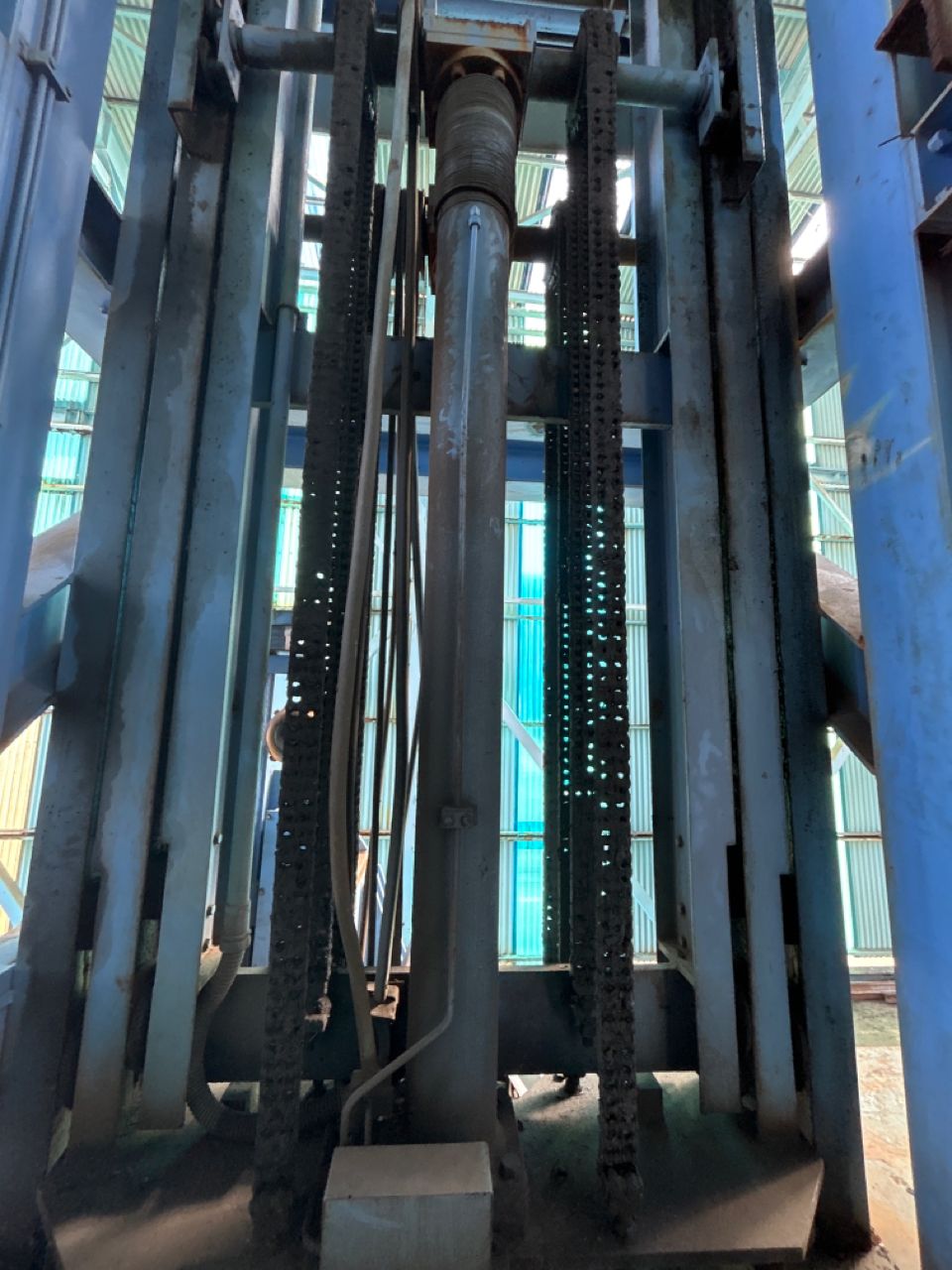

Frame up/down
Capacity: 100T x 4set
Stroke: 1500mm
Speed: 180mm/min
Driving
Driver: Hydraulic motor
Swing: Manual 5, 15, 30, 45, 90 deg.
Speed: 1~6 M/min

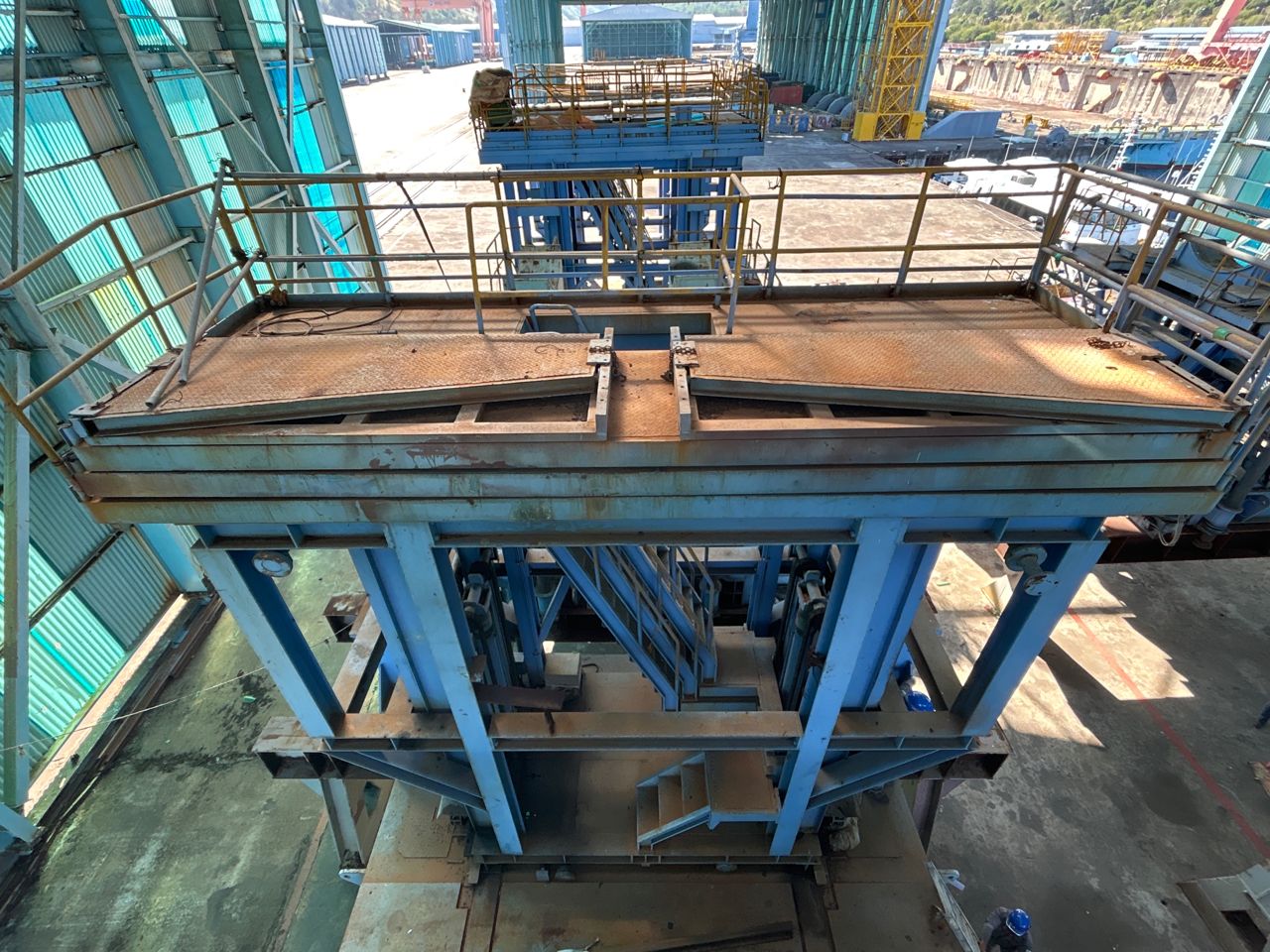

Working table
Capacity:
Pushing: 44T x 2 set
Pulling: 28T x 2 set
Stroke: 500mm x 2 set
Working Table Sliding
Capacity: 50Tons
Stroke: 1300mm x 2step x 2set
Table size: 1900 x 5650 mm

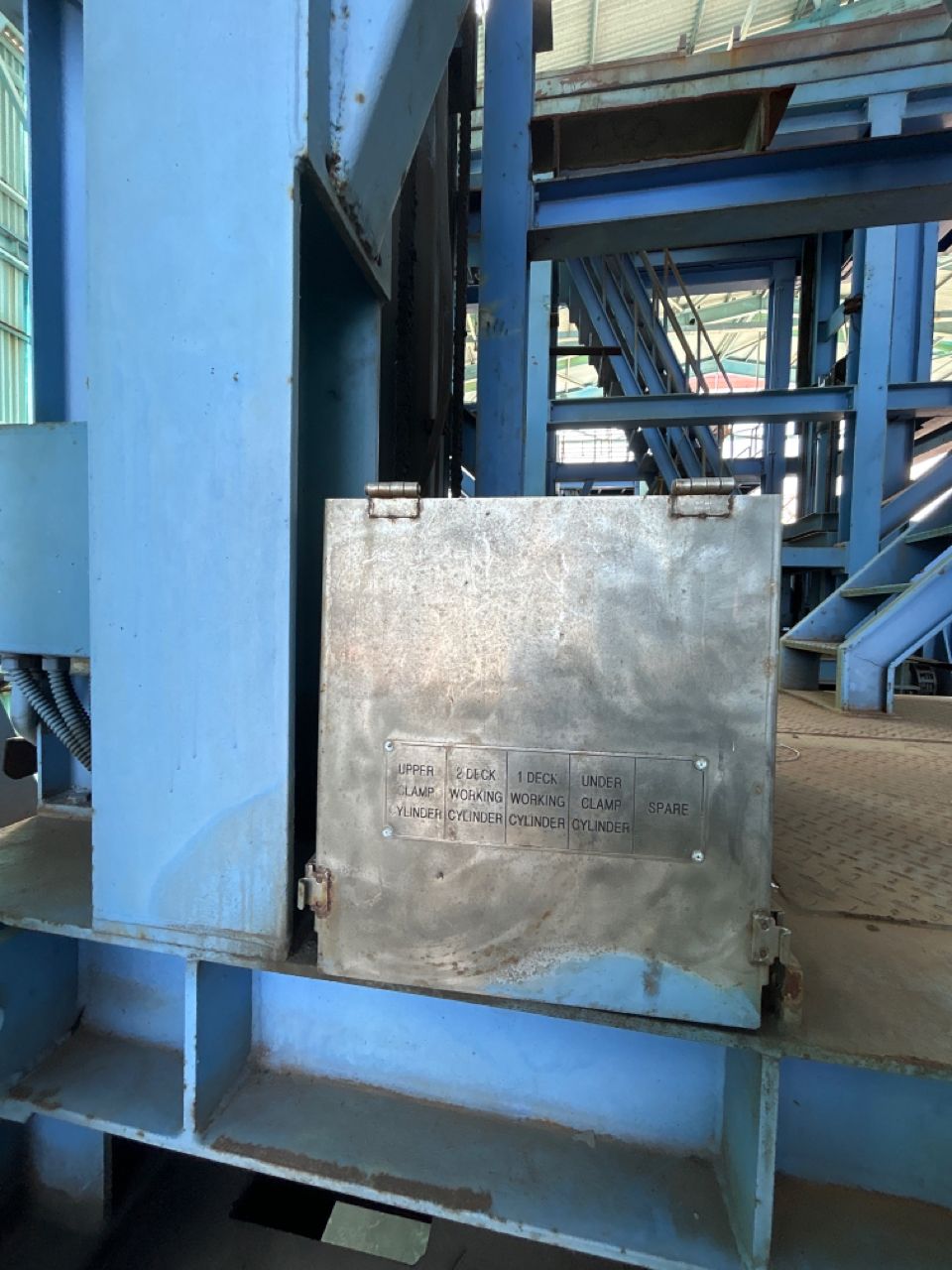

Rudder Clamping
Capacity: 65Ton x 4set
Stroke: 650mm

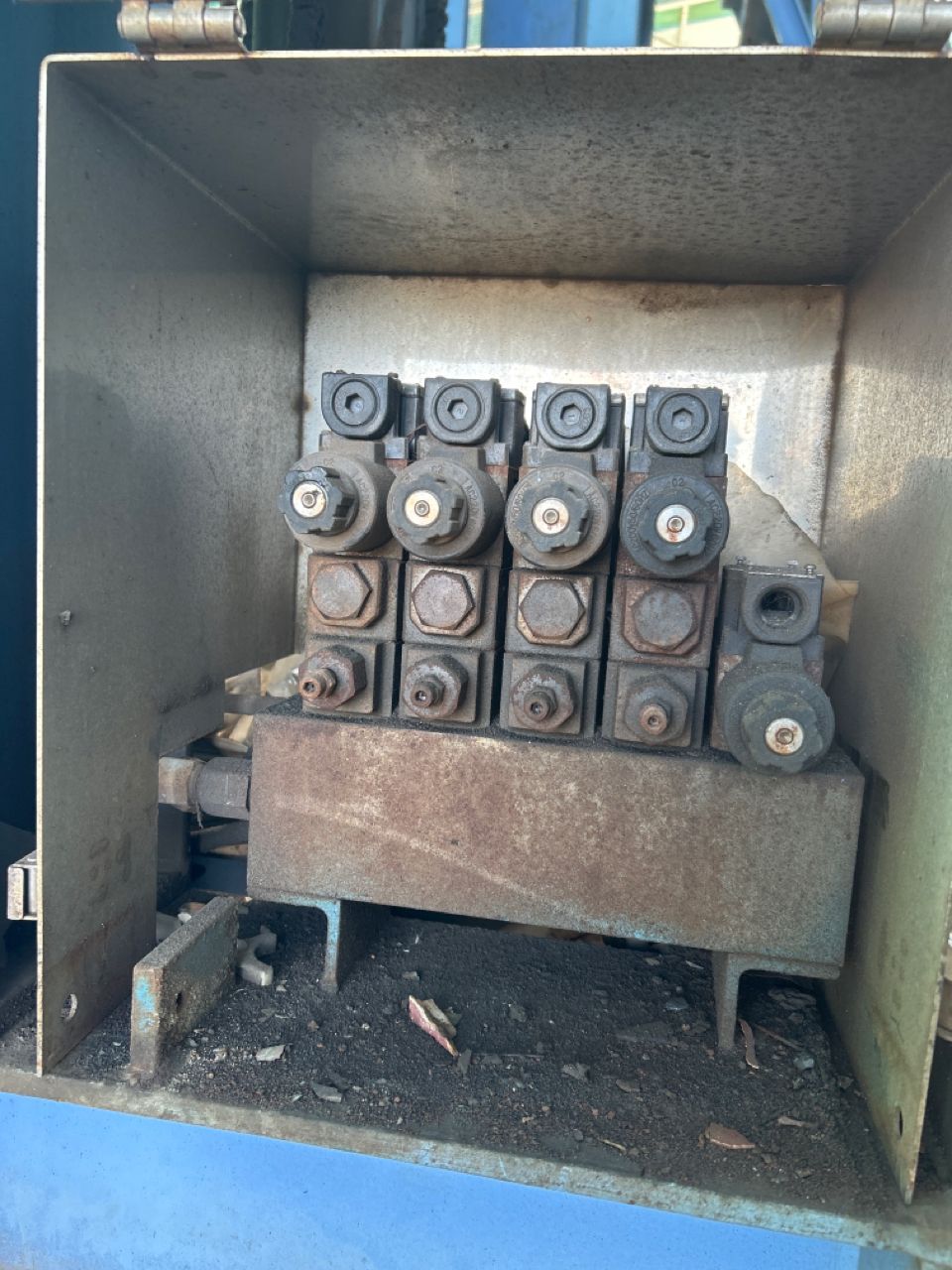

Hydraulic
Pump type: Tanbem Gear
Pressure: 210Kg/sq.cm
Tank: 400L x 2set
Hose: Connect type

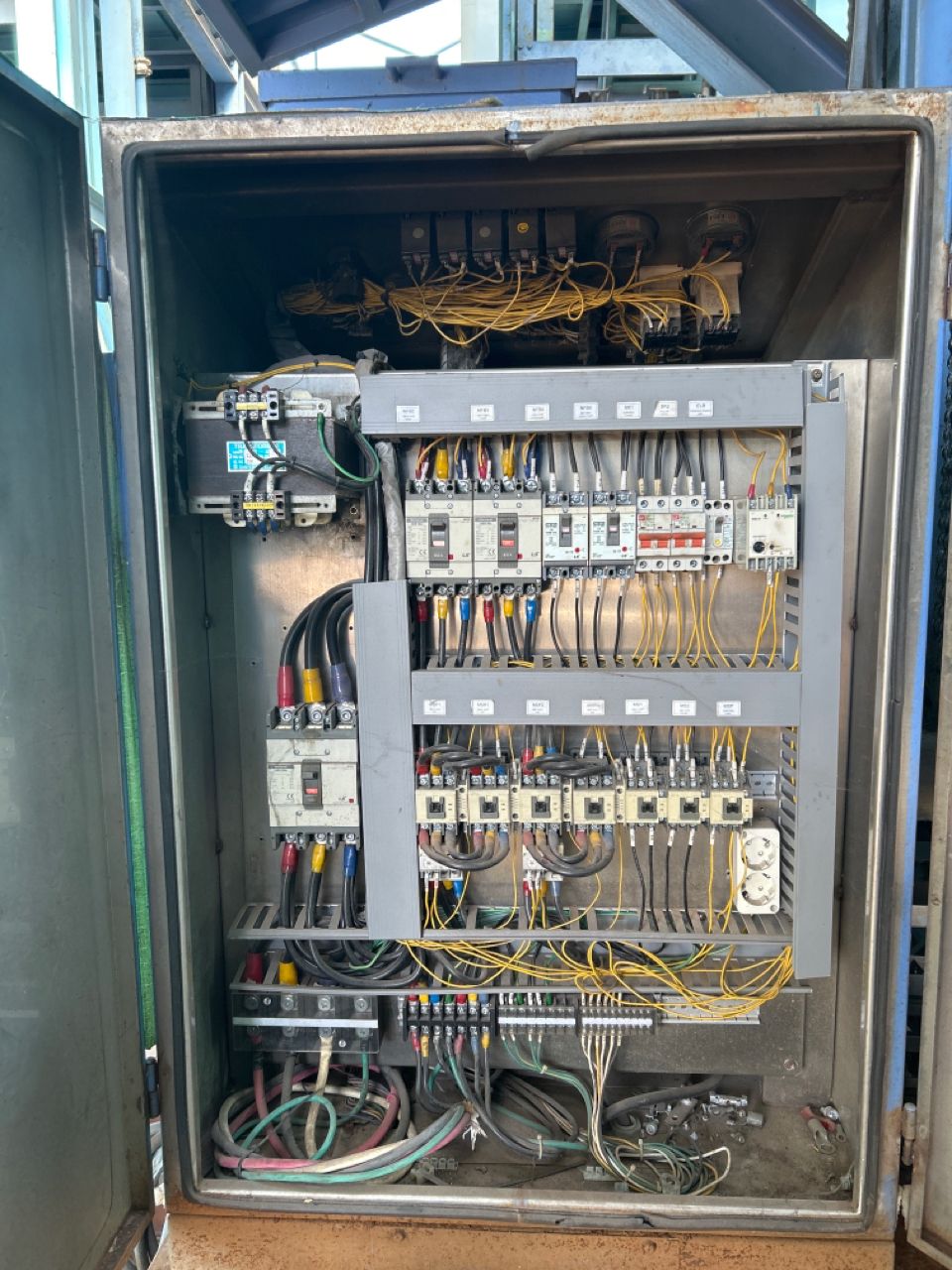

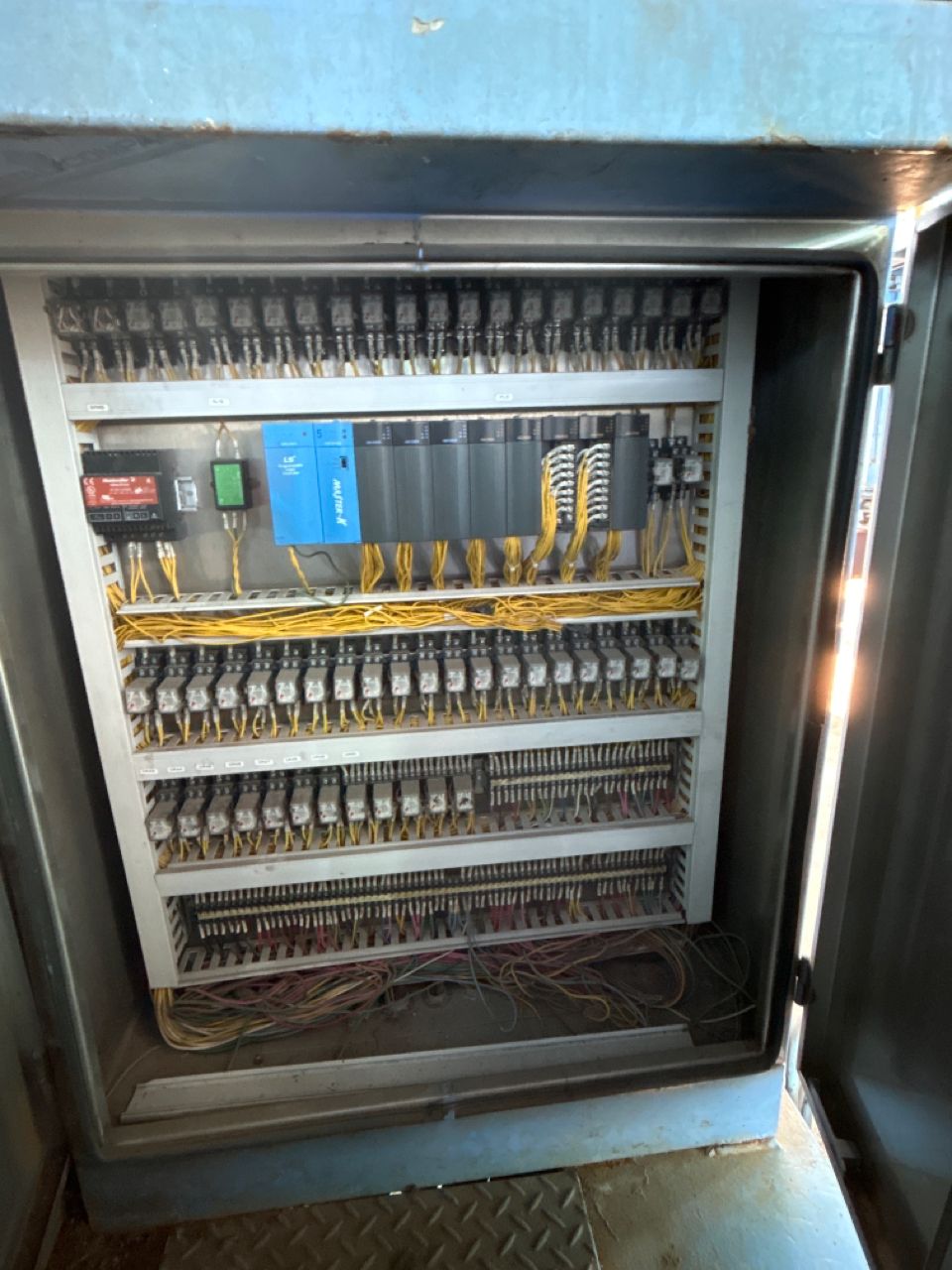

Electric
Main: AC440V x 3P x 60Hz

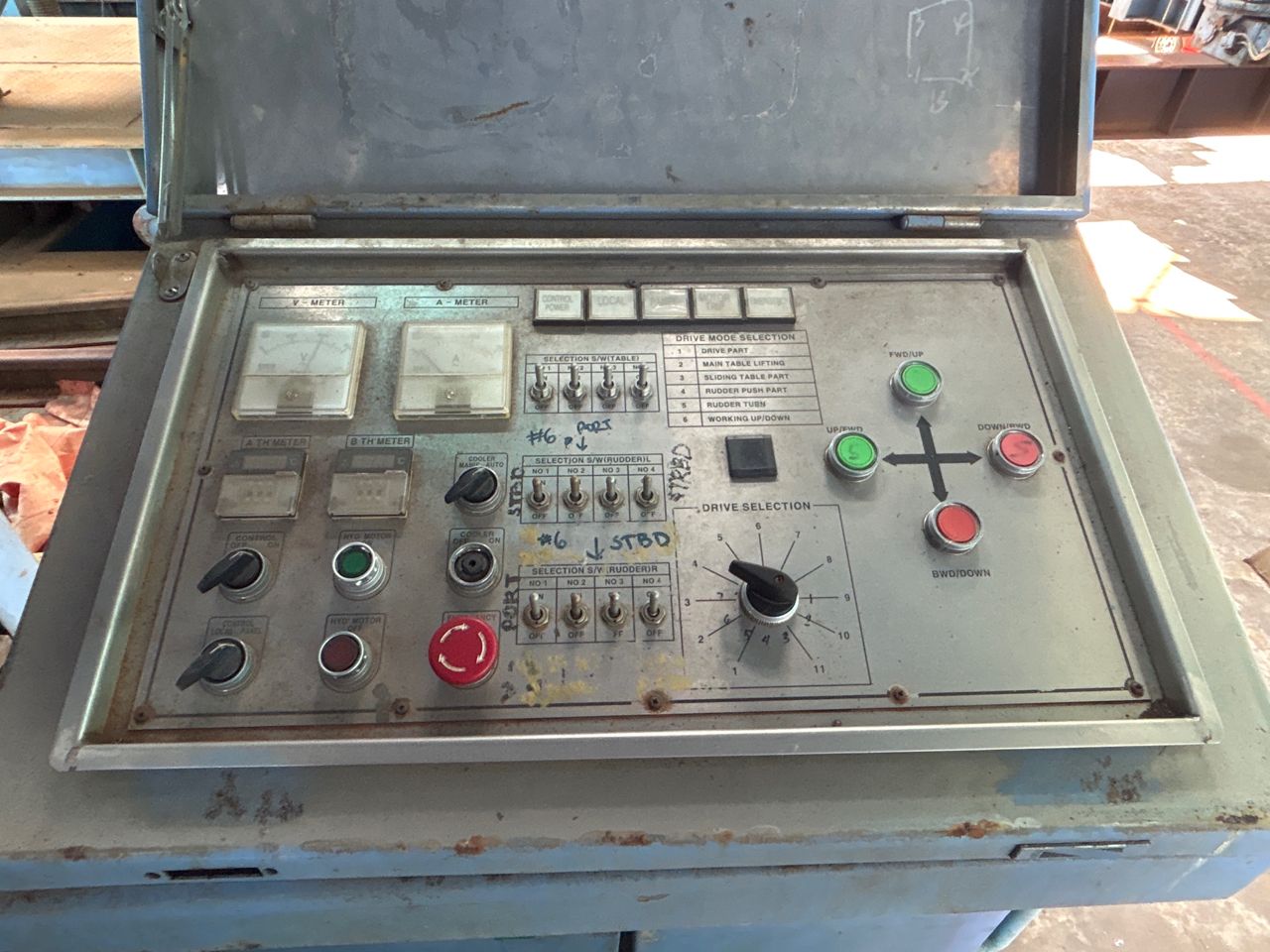

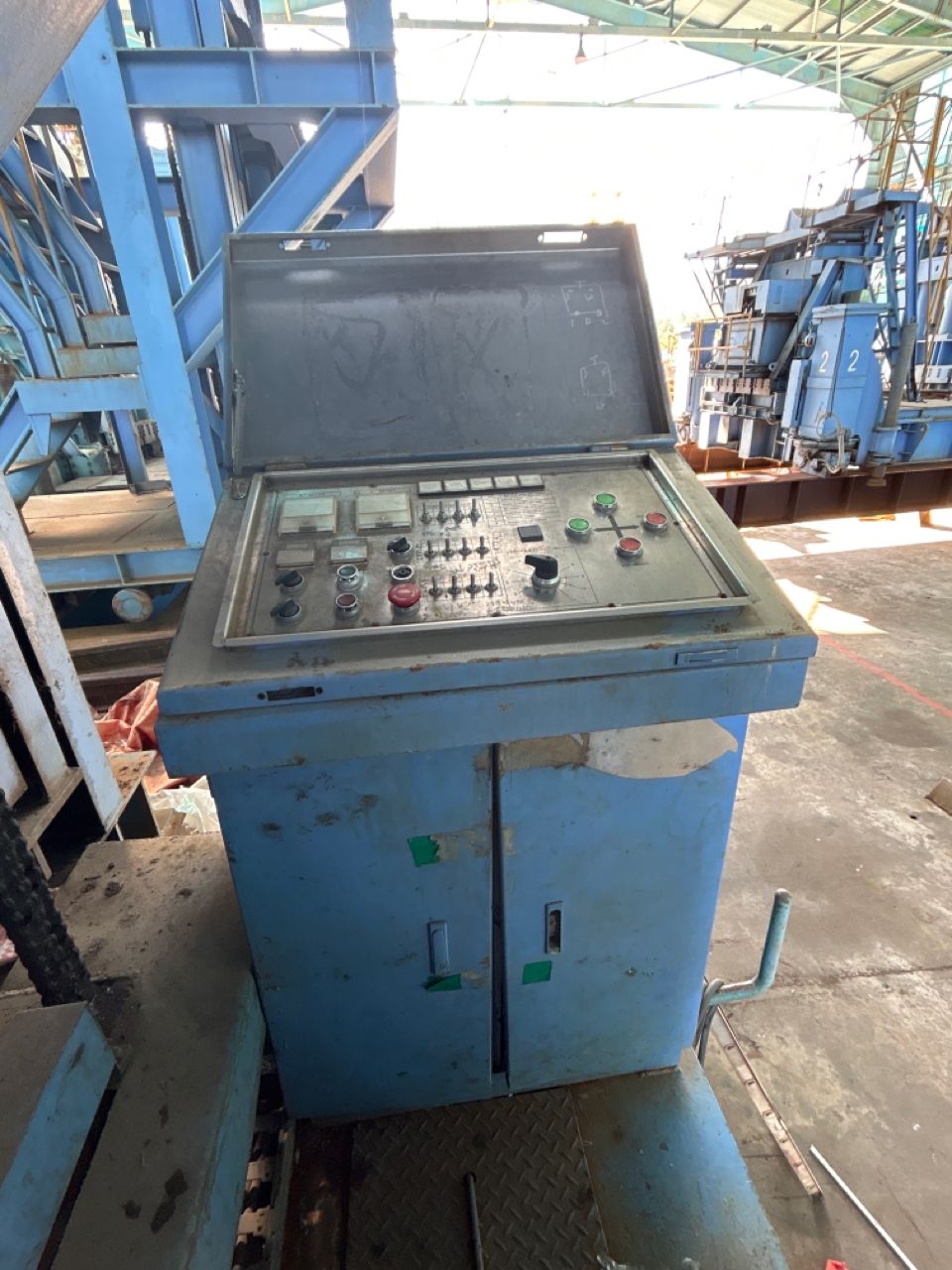

Control: AC220V x 1P x 60Hz
Trestles not included
