Lot No. 601

HYE WANG BLASTING & PAINTING SYSTEM

Year: 2007
Make: HYE WANG
Model: HWAT-3NZL

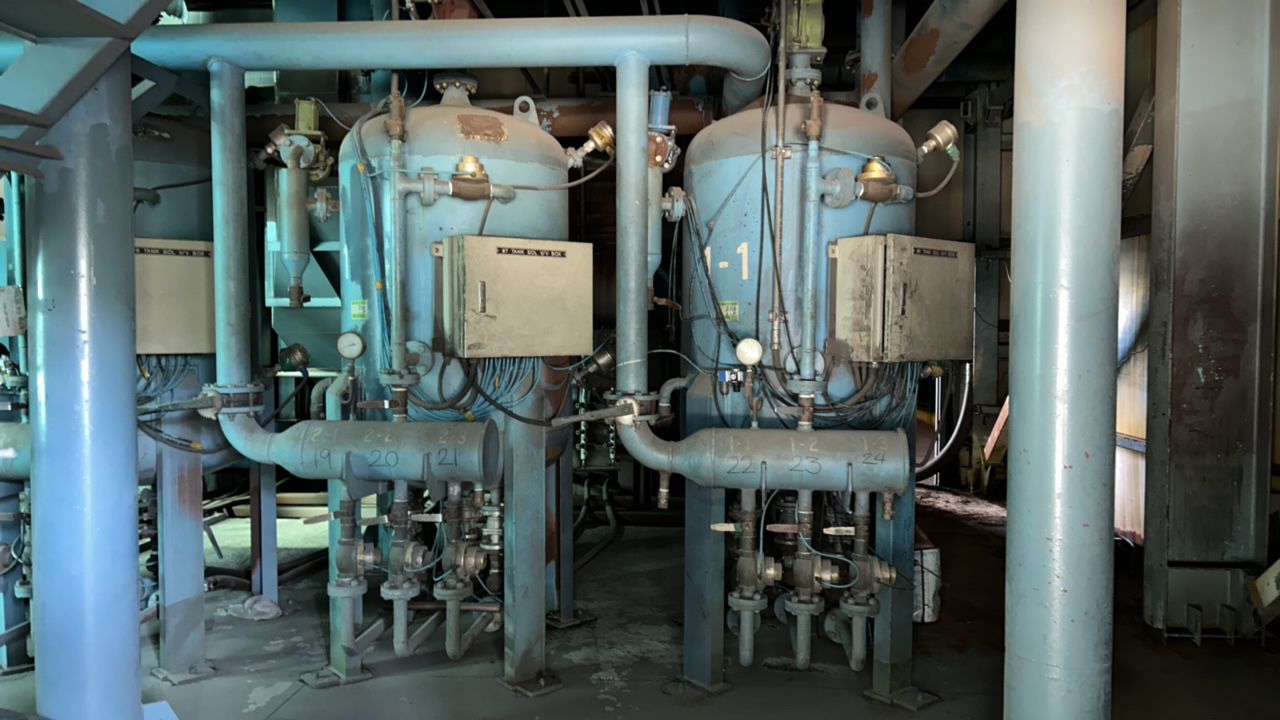

CONSISTING OF: Air Blast Units, Vacuum Recovery System, Silo Tank. Dust Collector, Bucket Elevator, Rotary Separator, Storage Tank, Chute Hopper, Vacuum Recovery, Collection Tank, Ventilation System; MAIN CHARACTERISTICS: SHOP A (2007); HYE WANG Model HWAT-3NZL; Tank Capacity 1425 Kg, dual chamber; Tank dimensions: Diam 970 x H: 2500; T.C. Nozzle diam 12 Venturi 3; PAINTING SHOP; Water Screen Type; Size: W: 8000 x L: 4000 x H: 2850; Main Voltage: 440V x3PH x 60Hz;


BLASTING SHOP

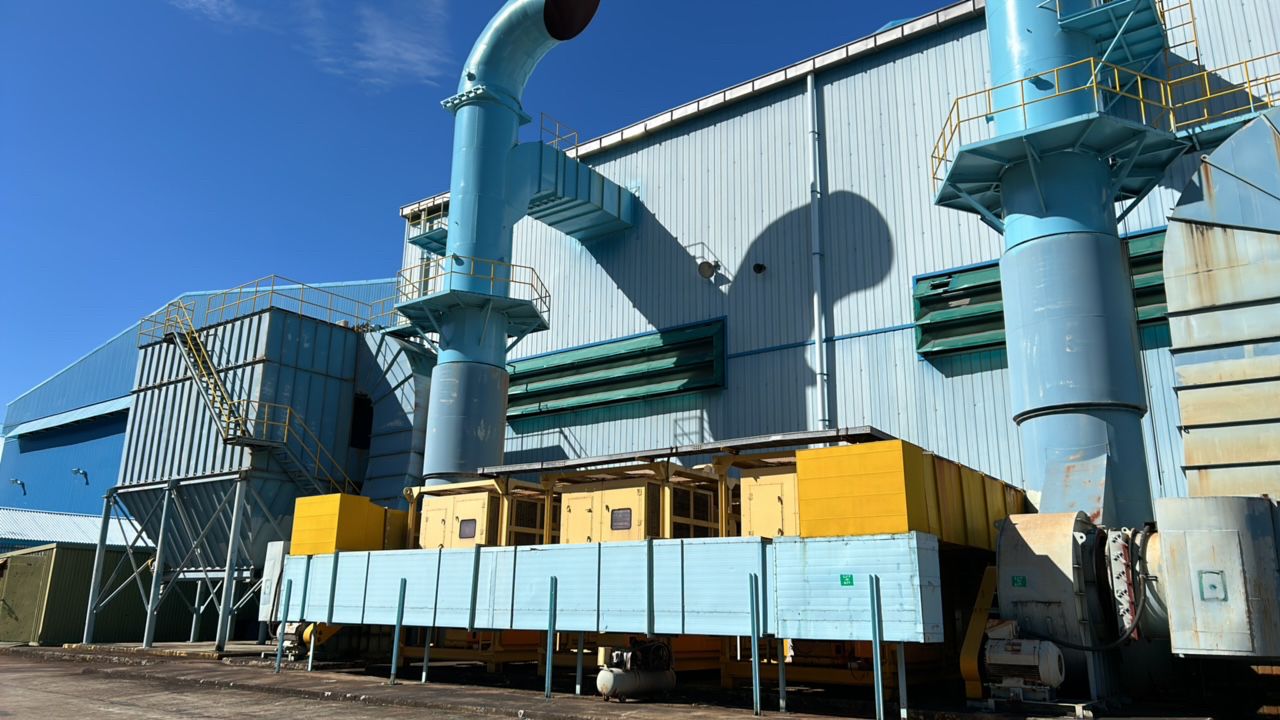

Ventilation System 1

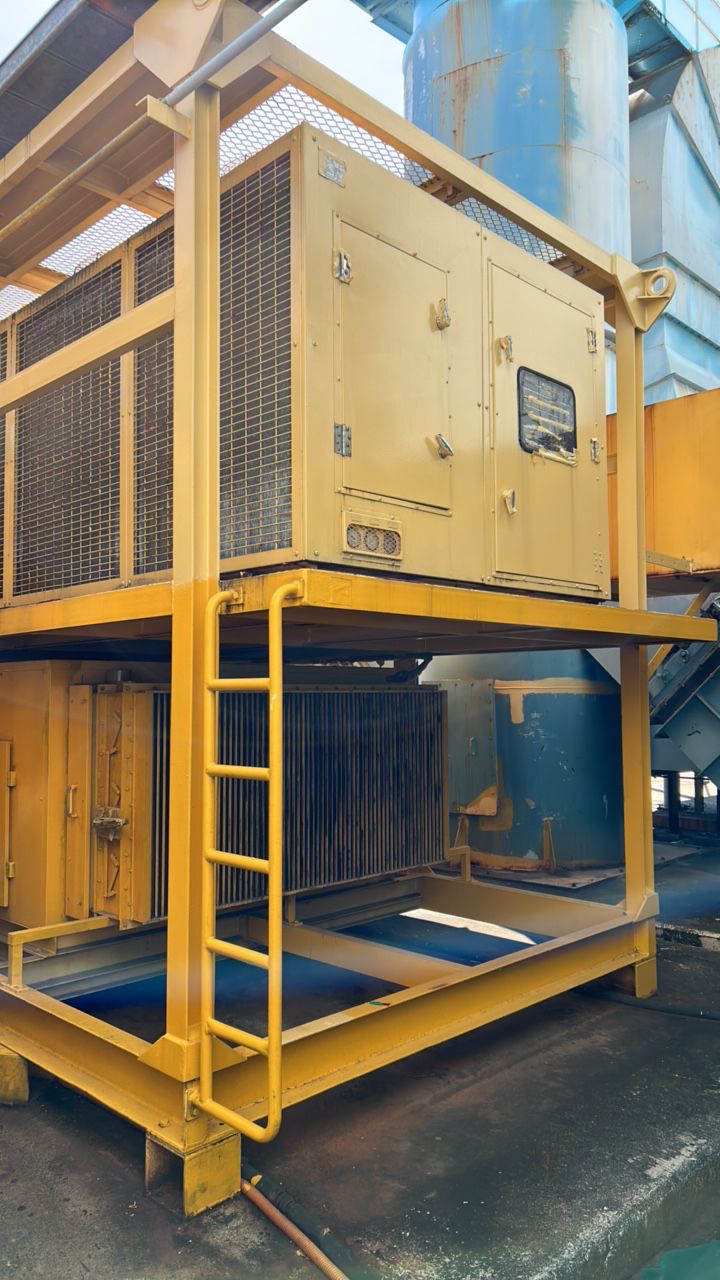

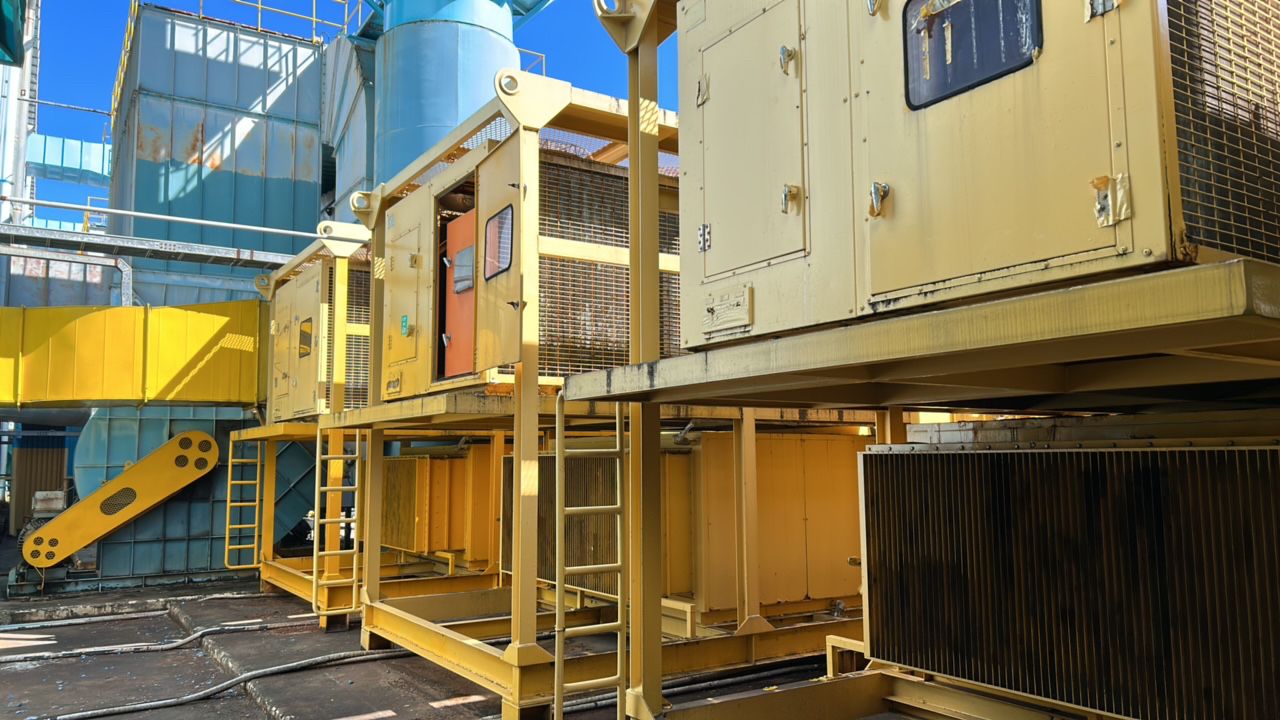

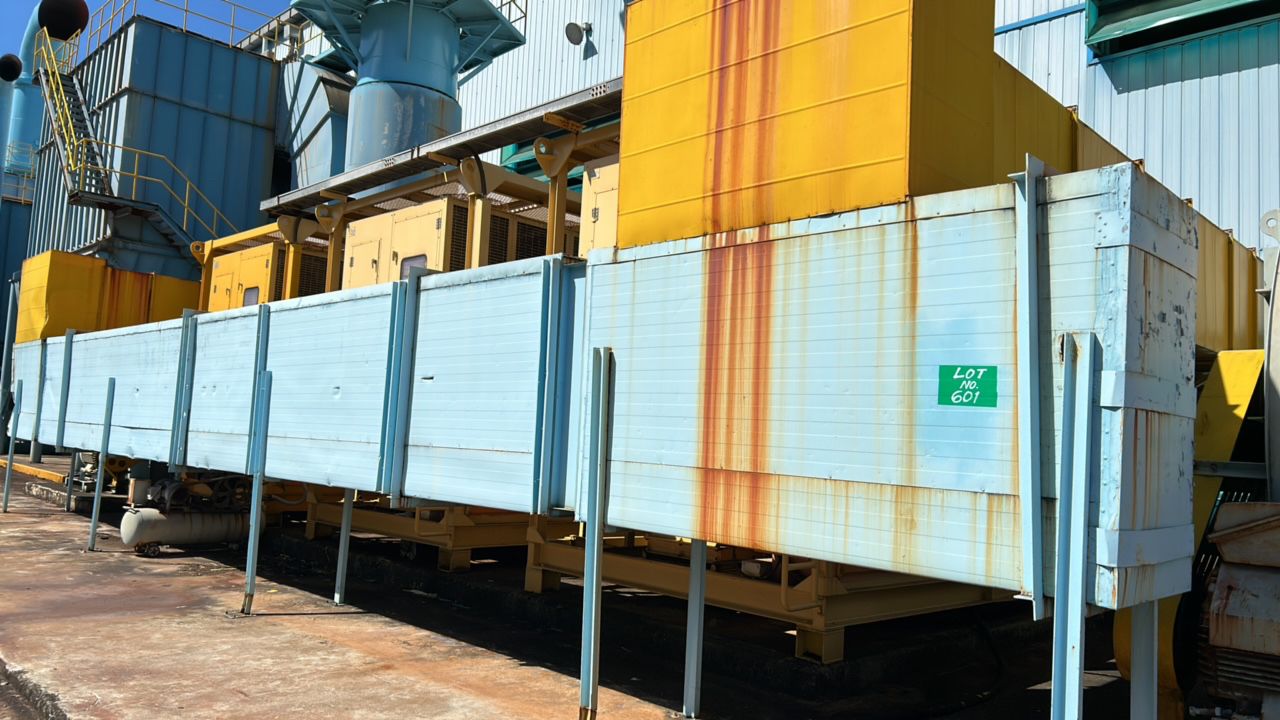

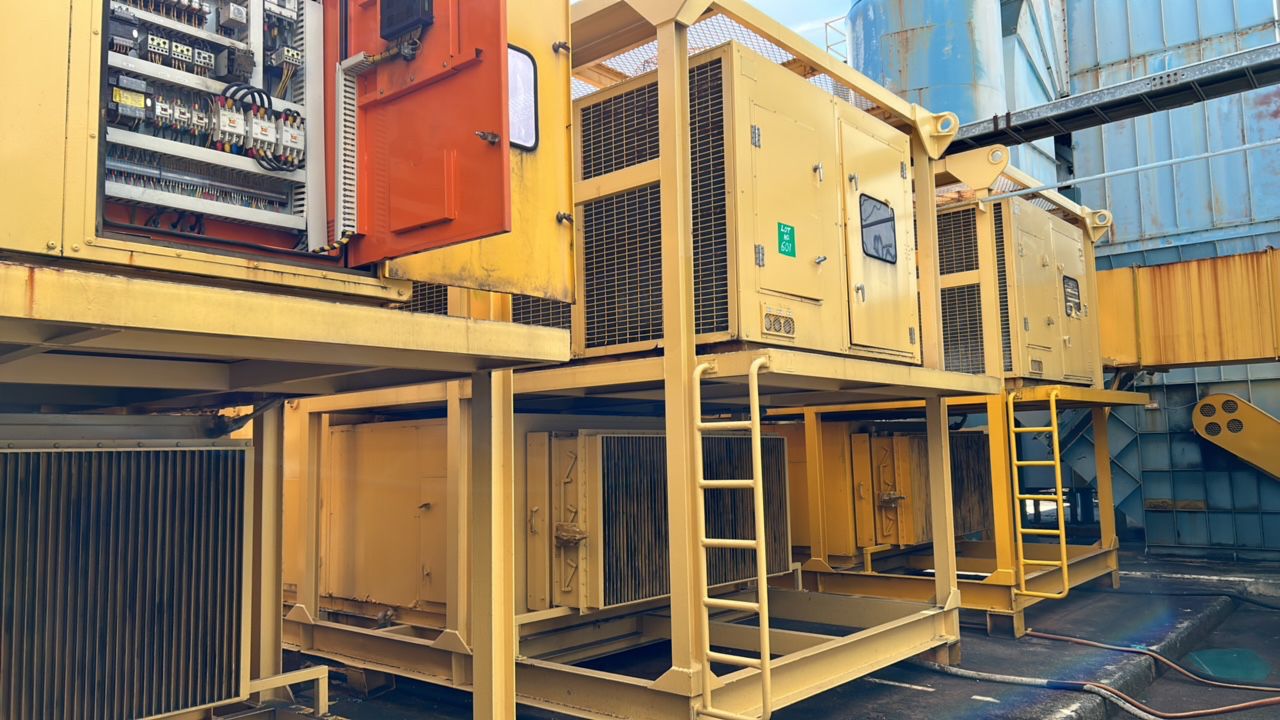

  1. Dehumidifier (YDHM-PDA-15,000N) - 3 Units
  2. Dehumidifier (YDHM-CDH-15,000-100) - 2 units

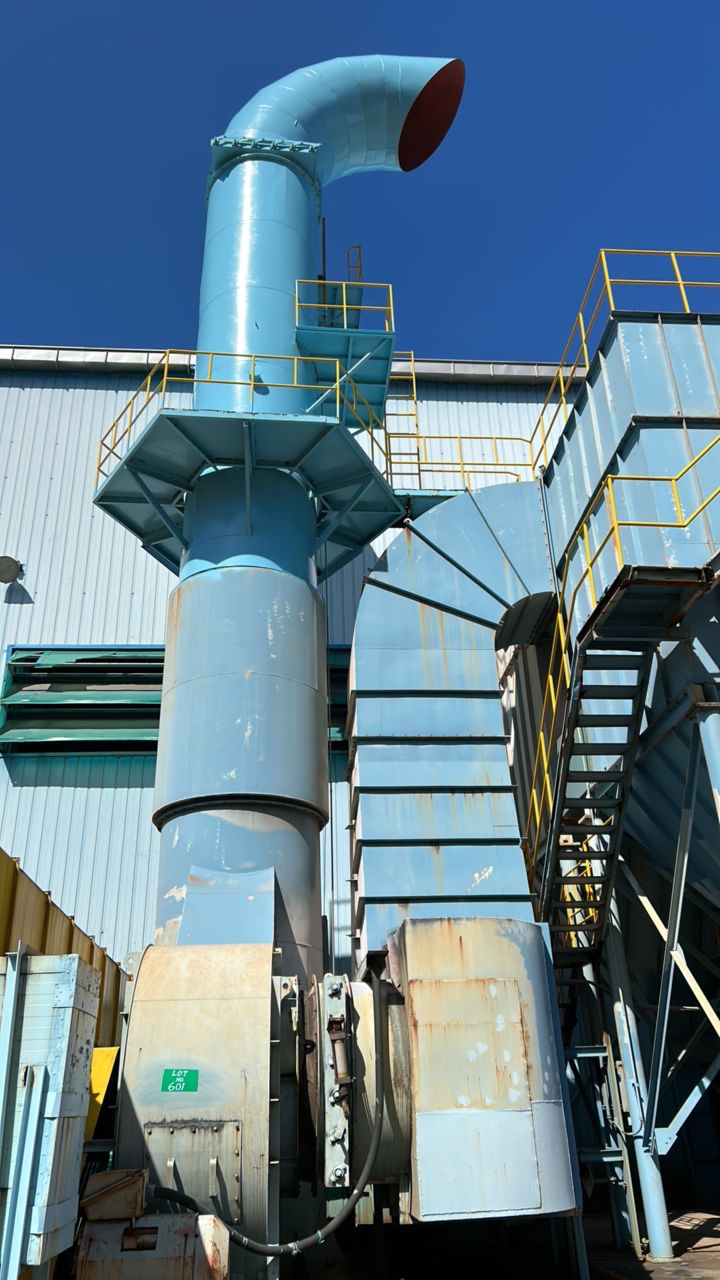

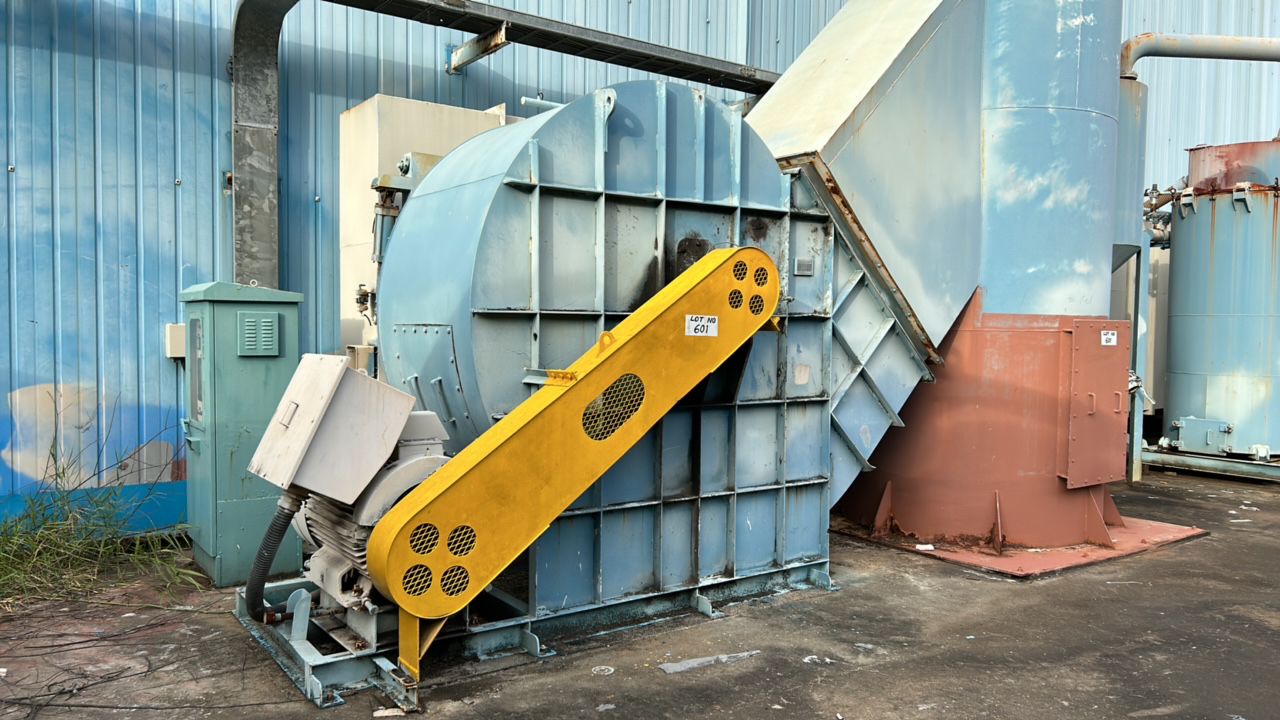

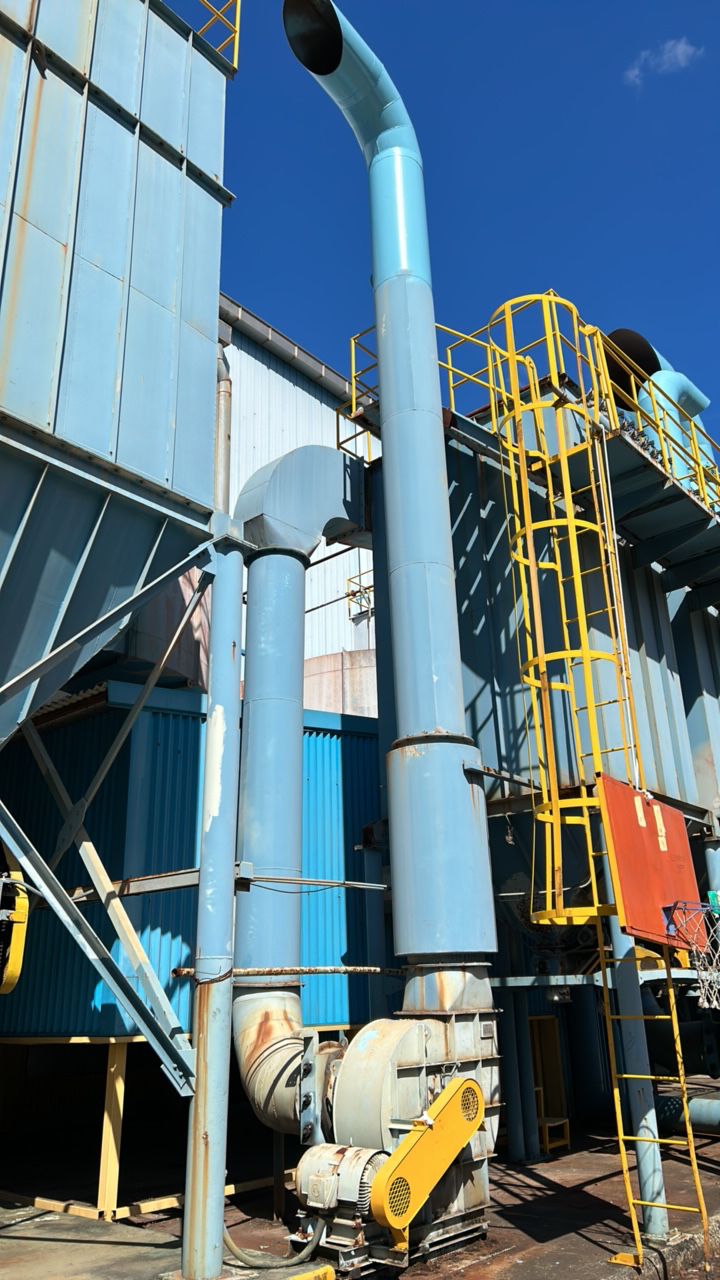

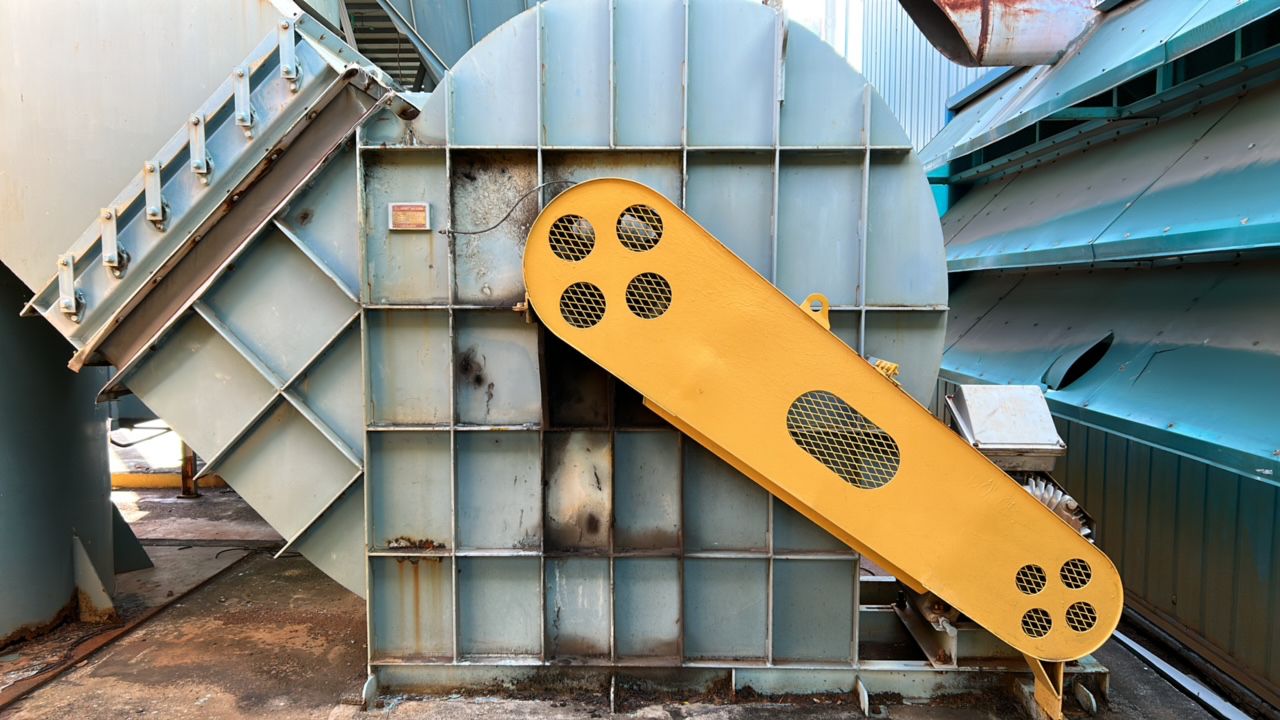

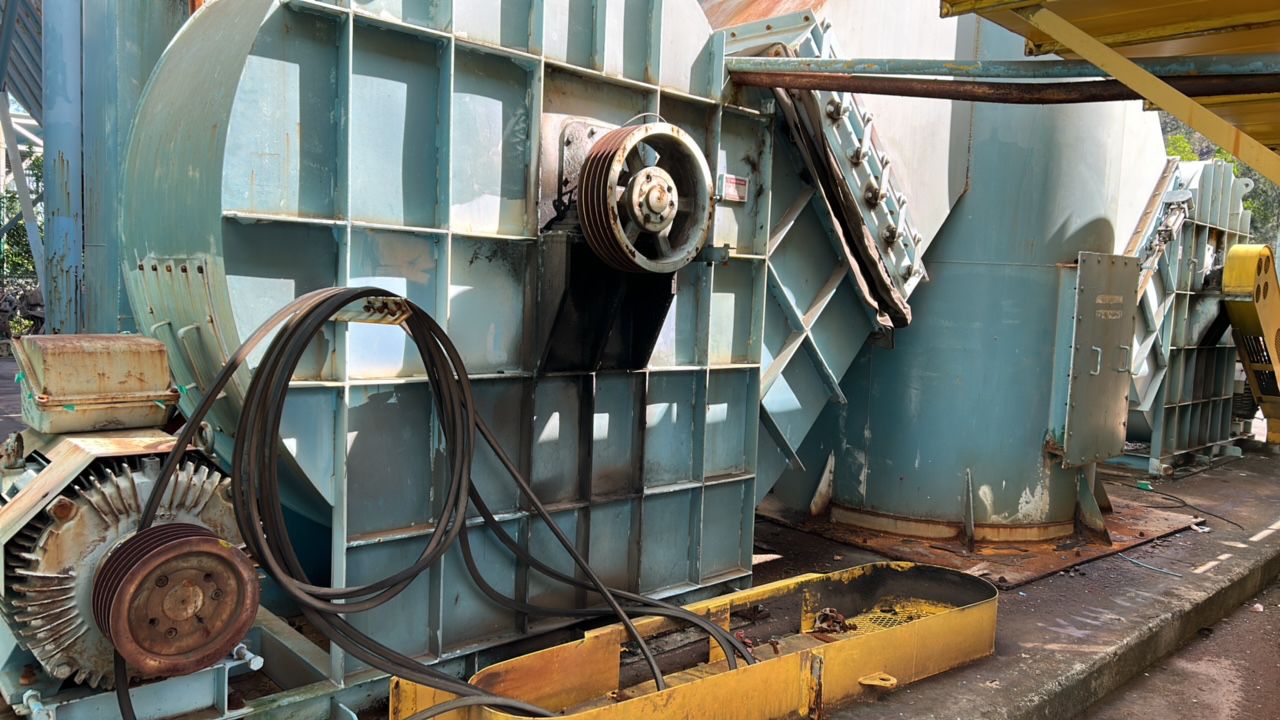

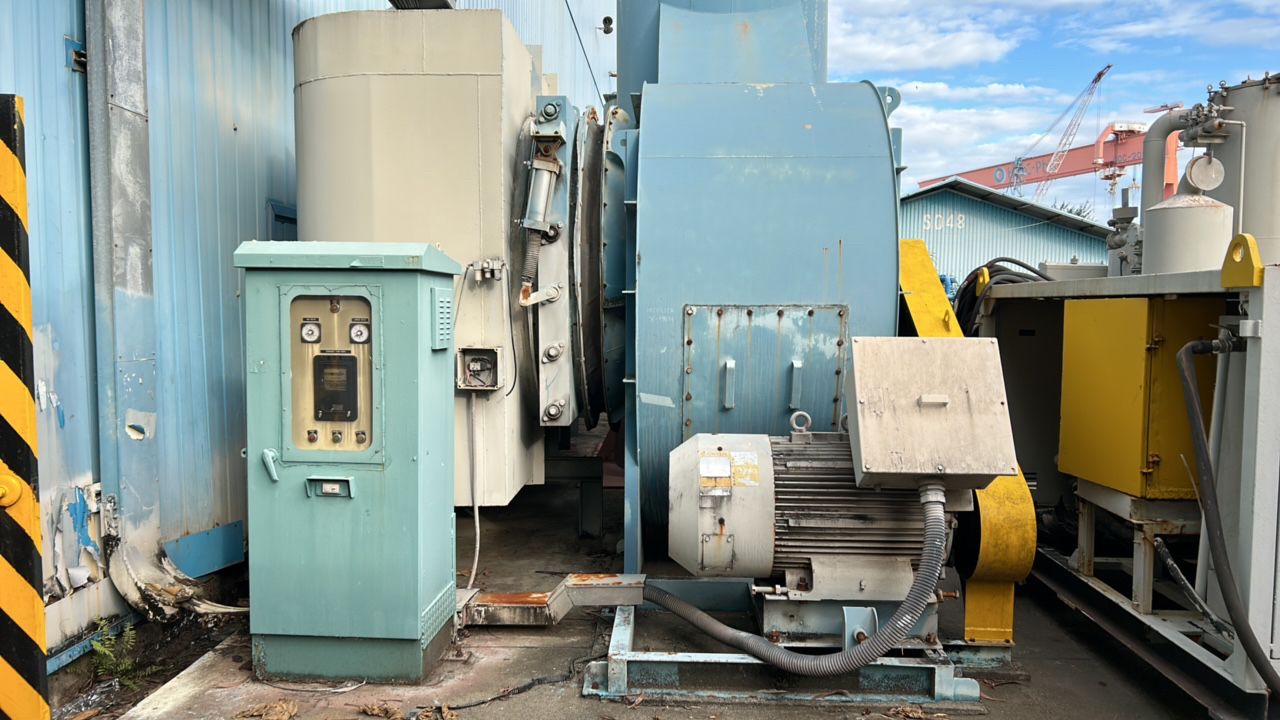

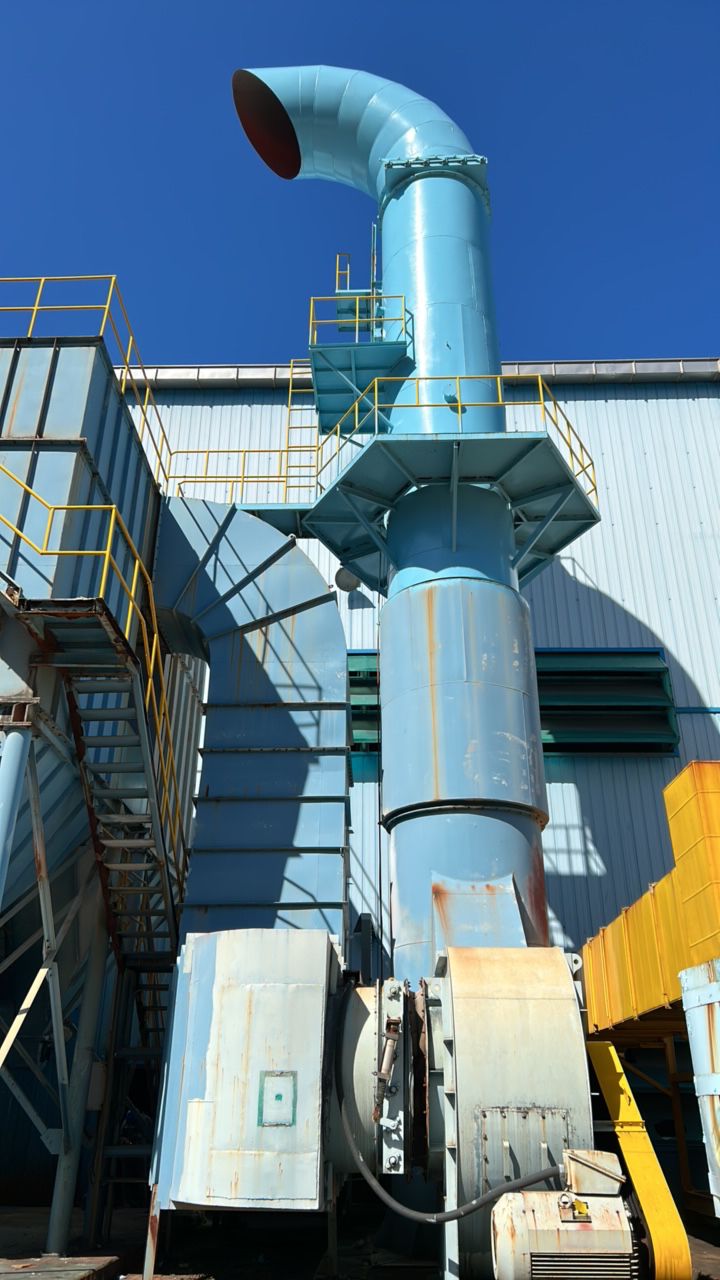

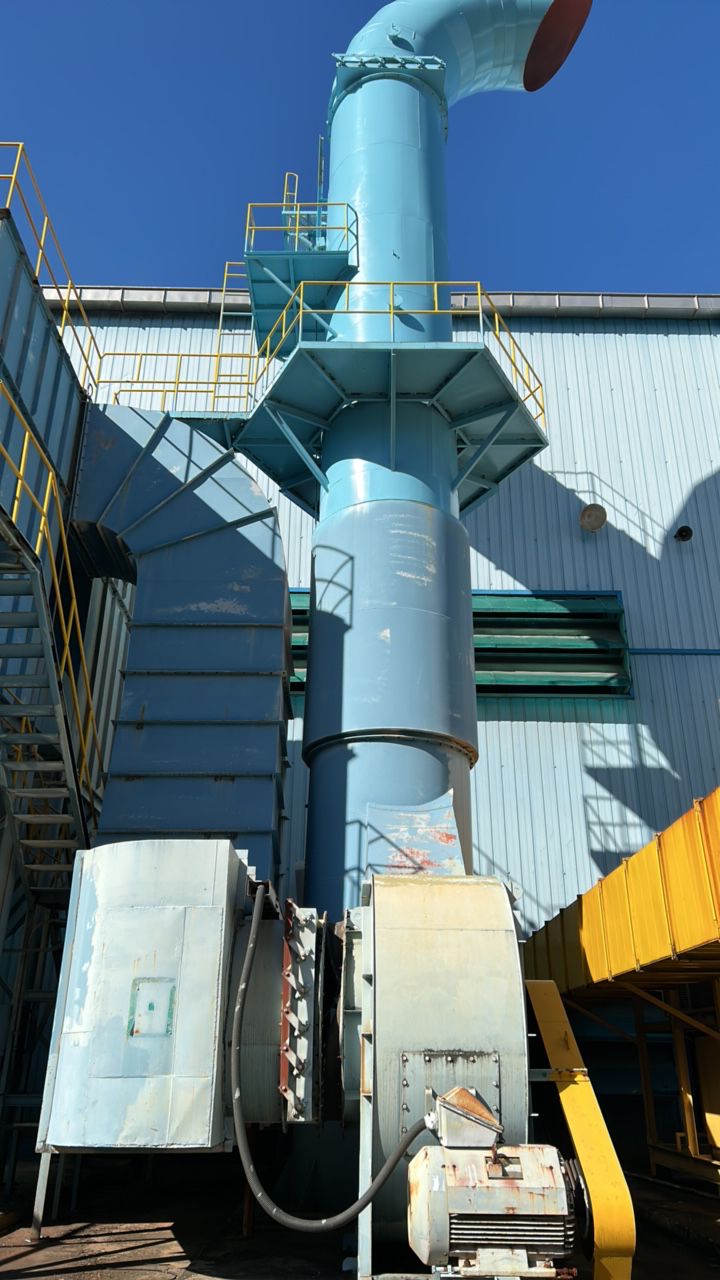

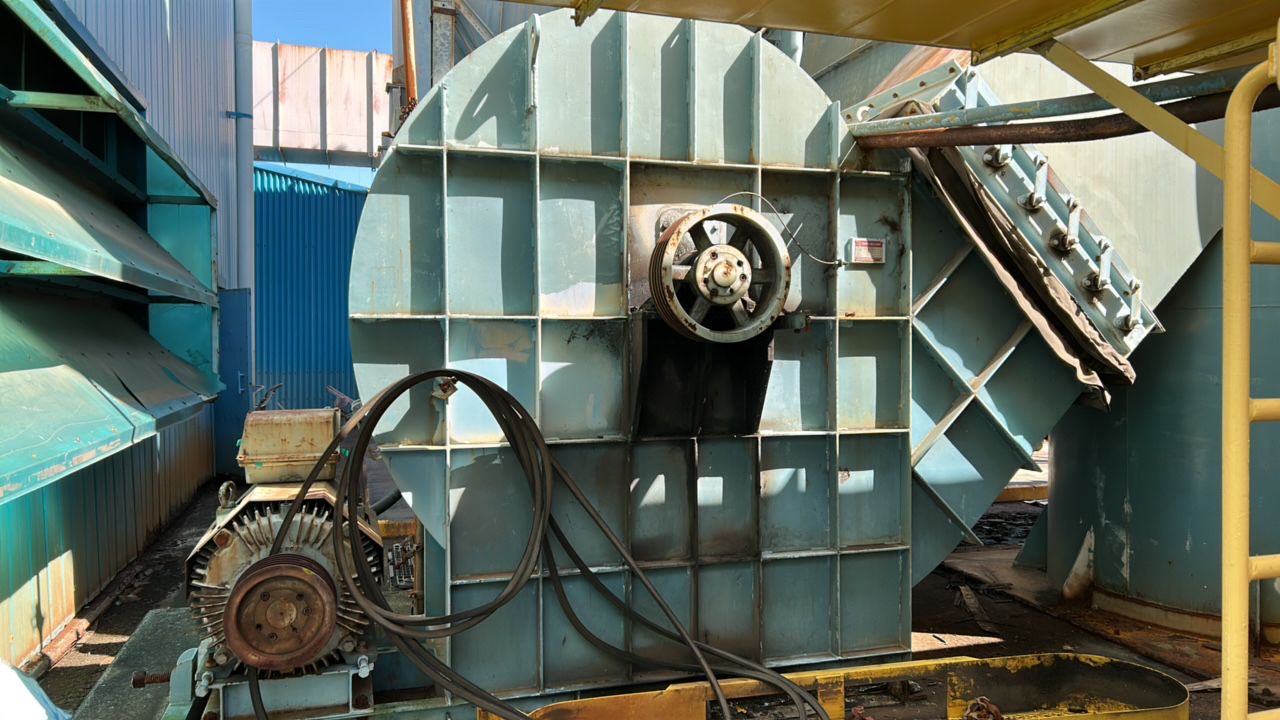

  3. Shin Pung Fan and blower(SPTF) 175hp - 2 Units per exhaust pipe - 4 units total

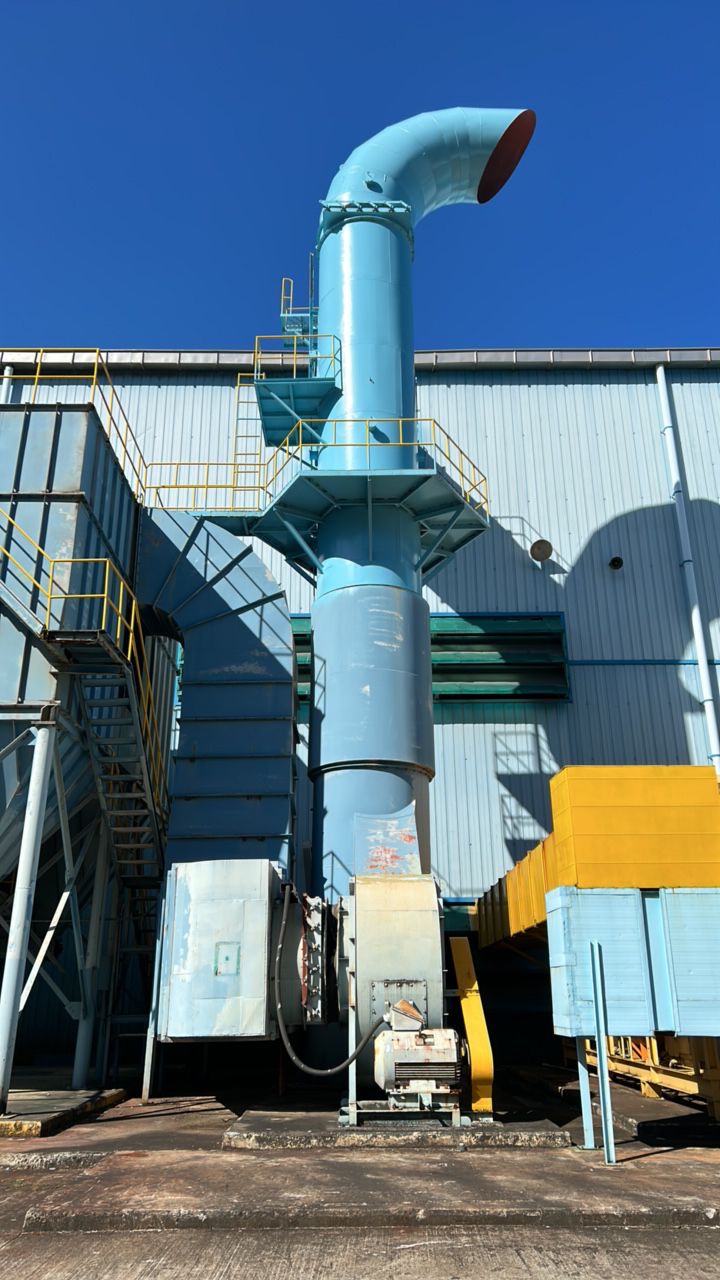

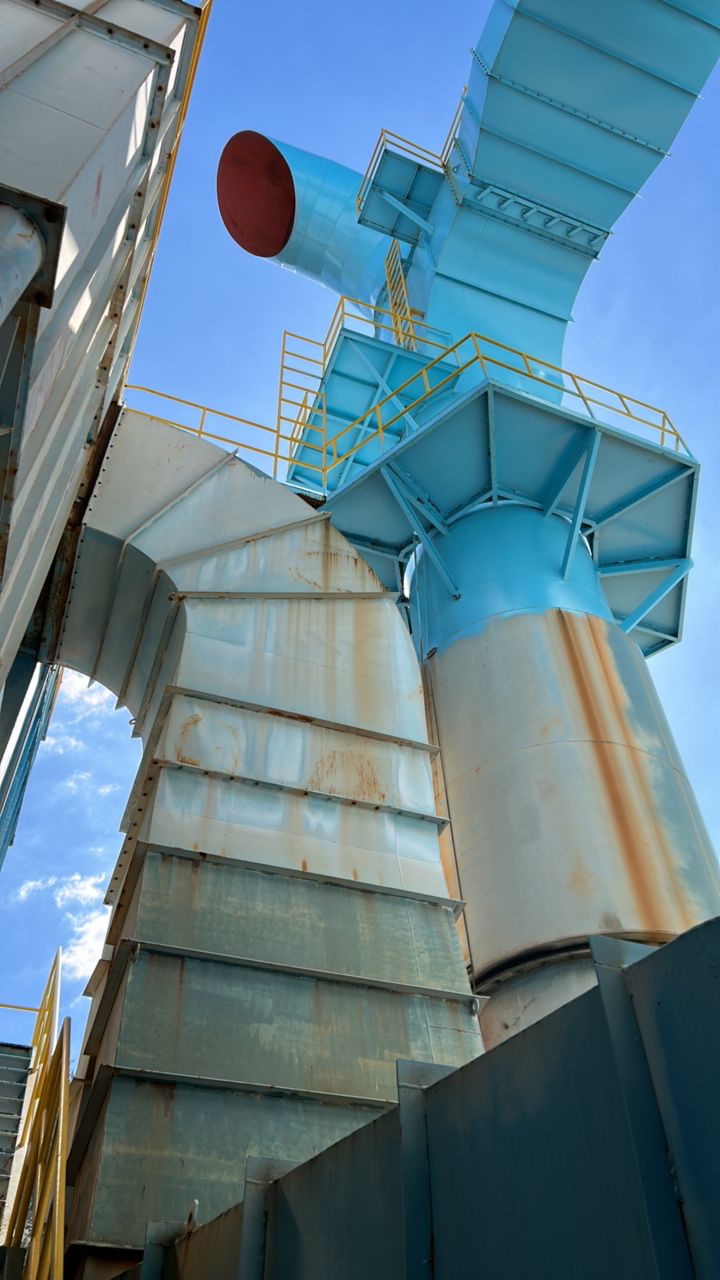

  4. Exhaust pipe (for 175hp fan) - 2 units
  5. Shin Pung Fan and blower(SPTF) 40hp - 1 Unit
  6. Exhaust pipe (for 40hp fn) - 1 unit

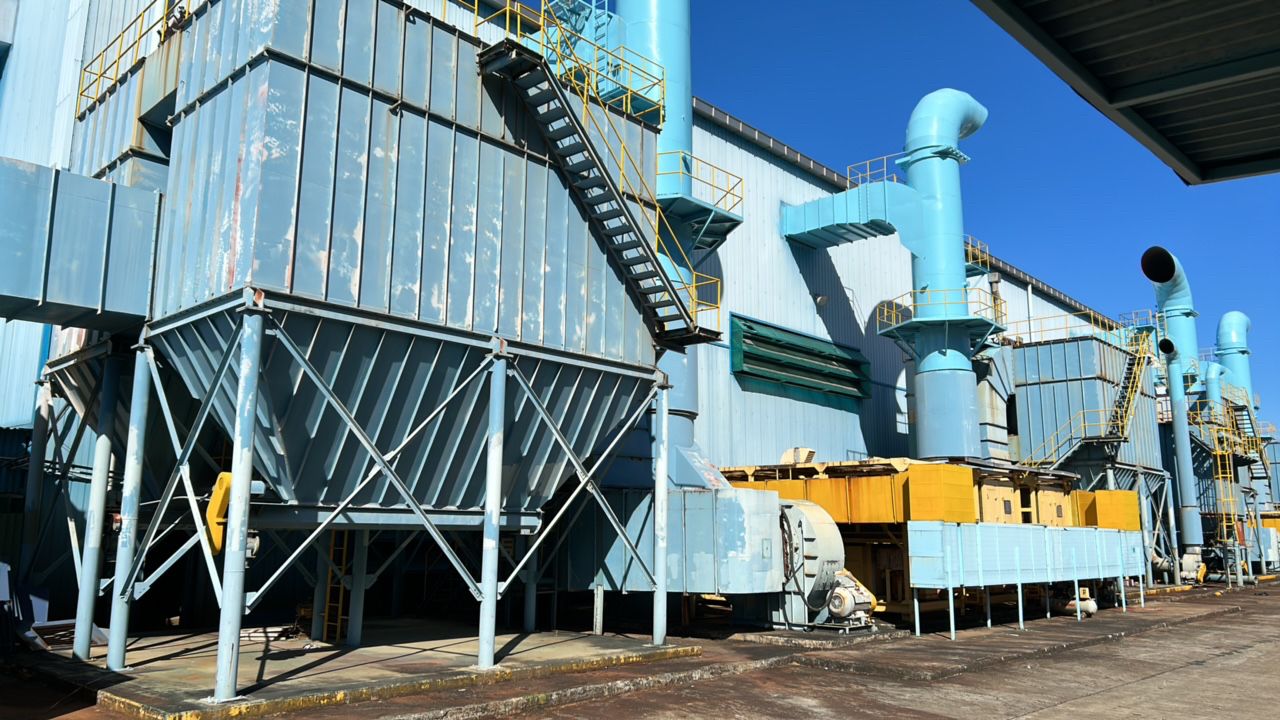

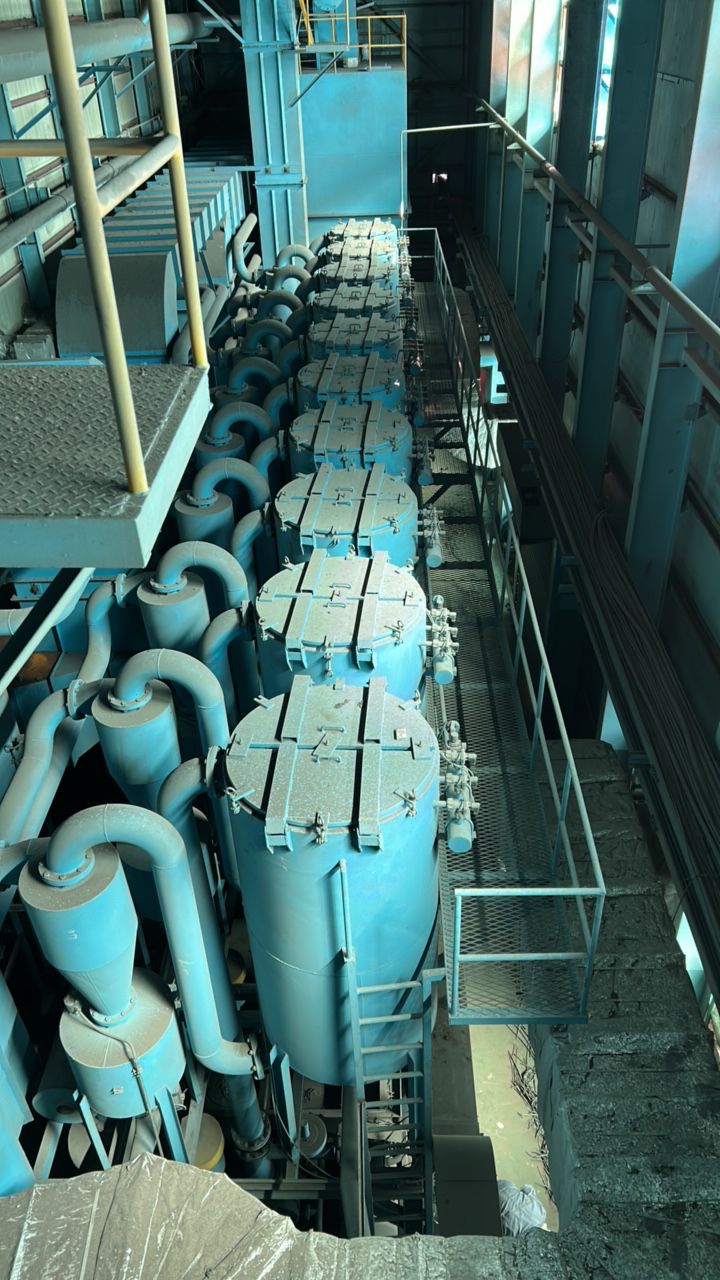

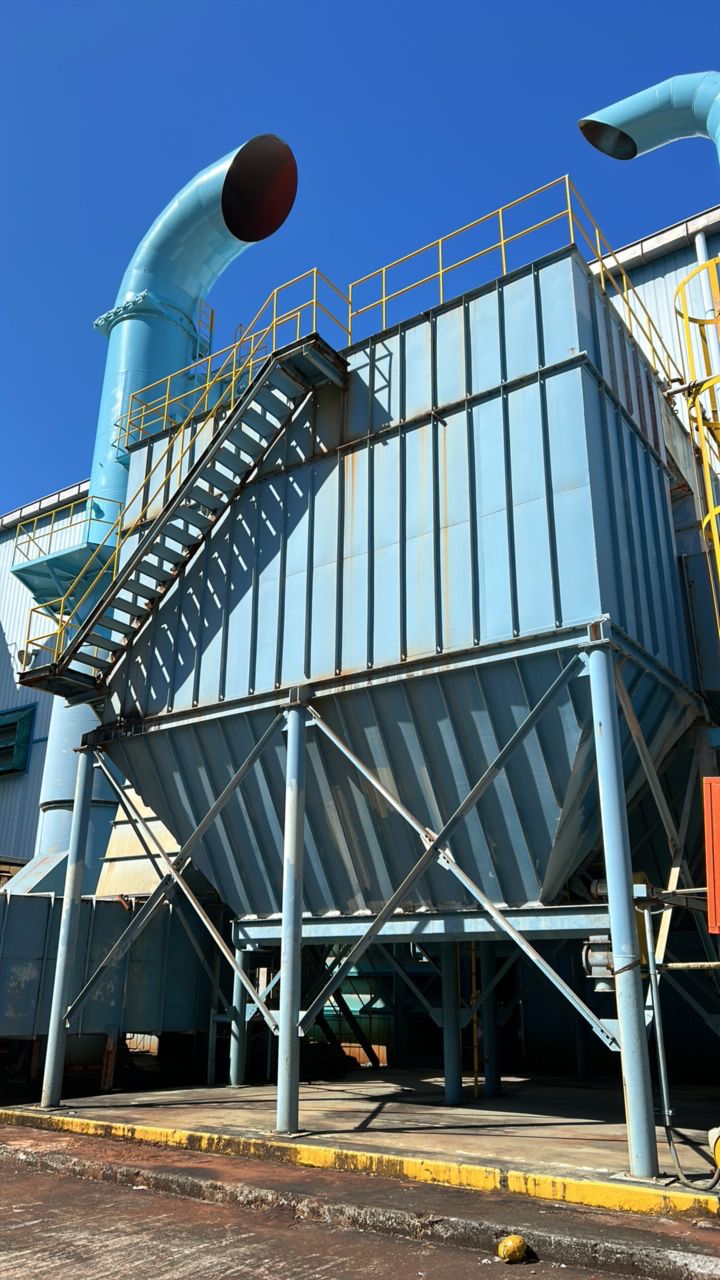

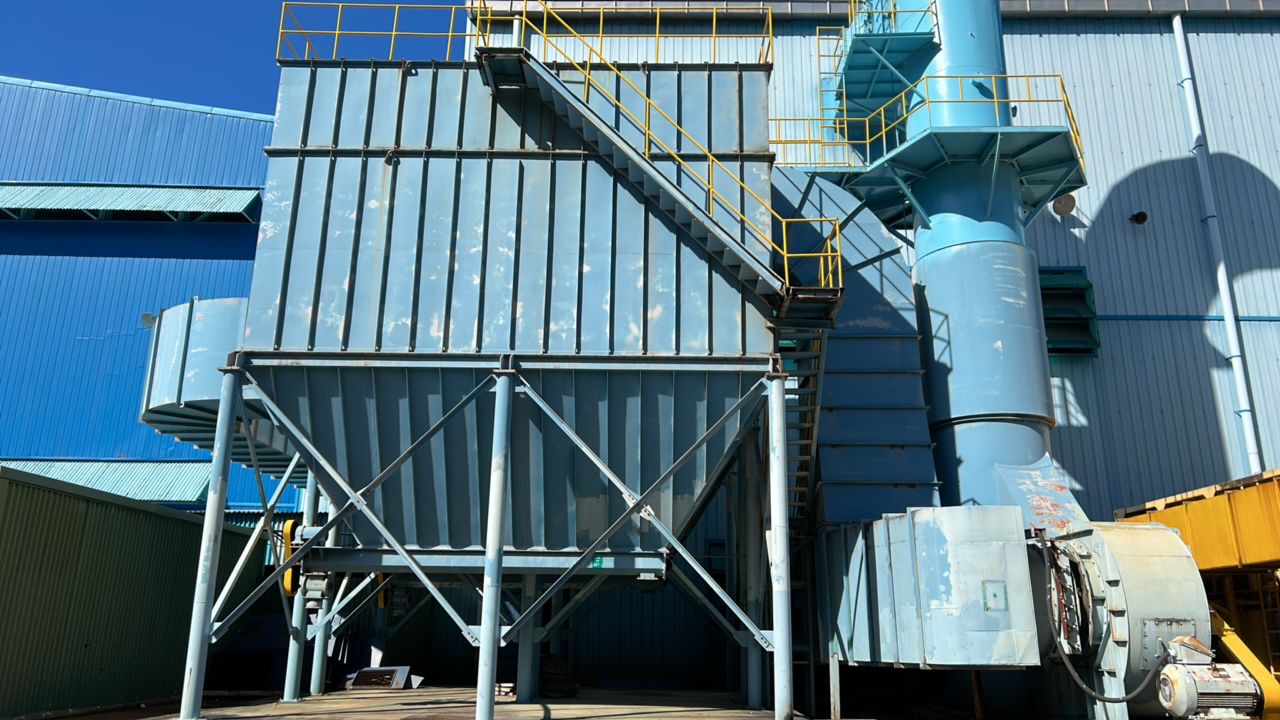

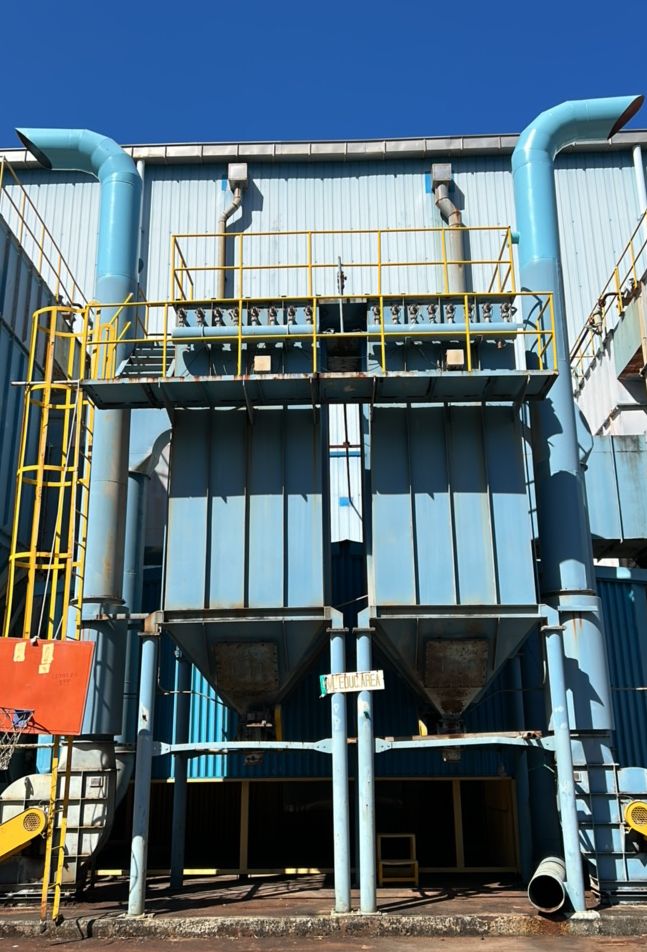

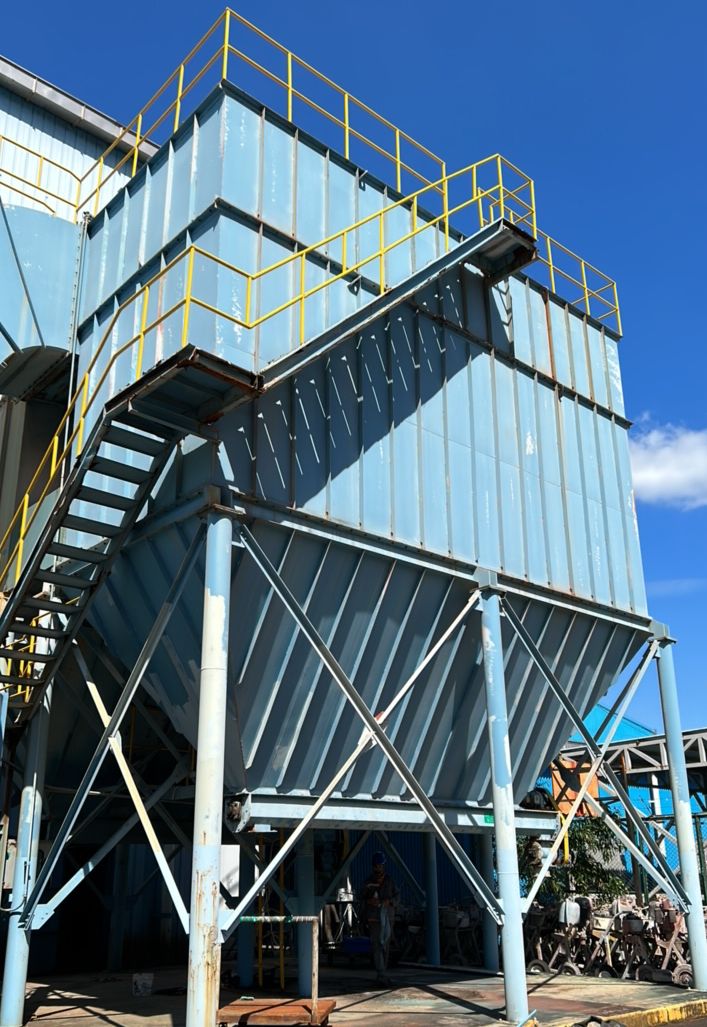

  7. Dust Collector large - 2 units
  8. Dust Collector Small - 1 unit
  9. Ventilation ducts

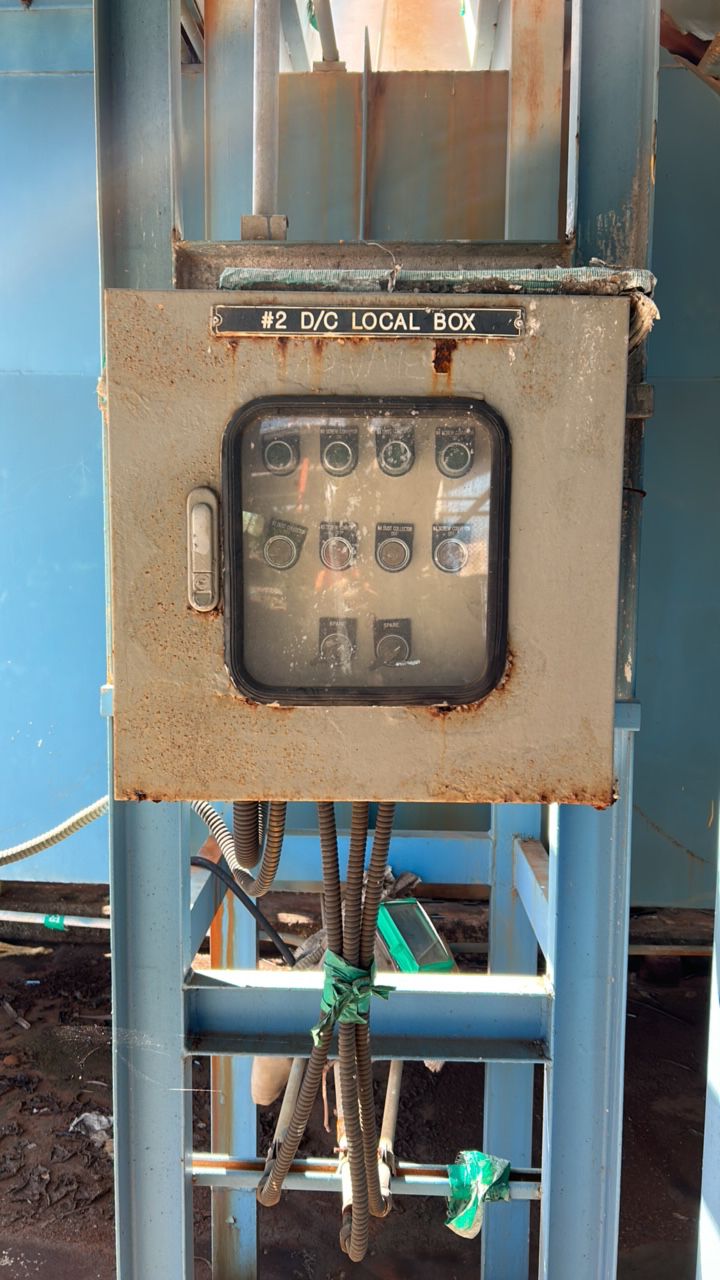

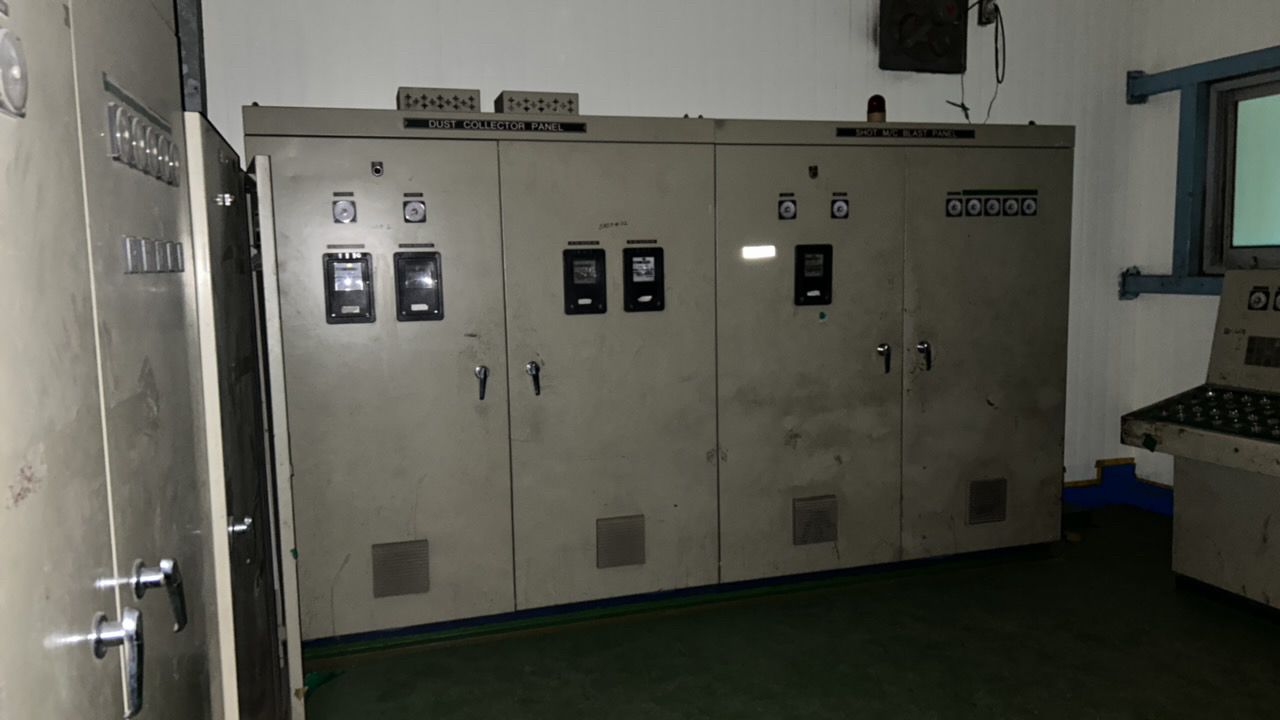

  10. Control panel
  11. Kohands Air compressor

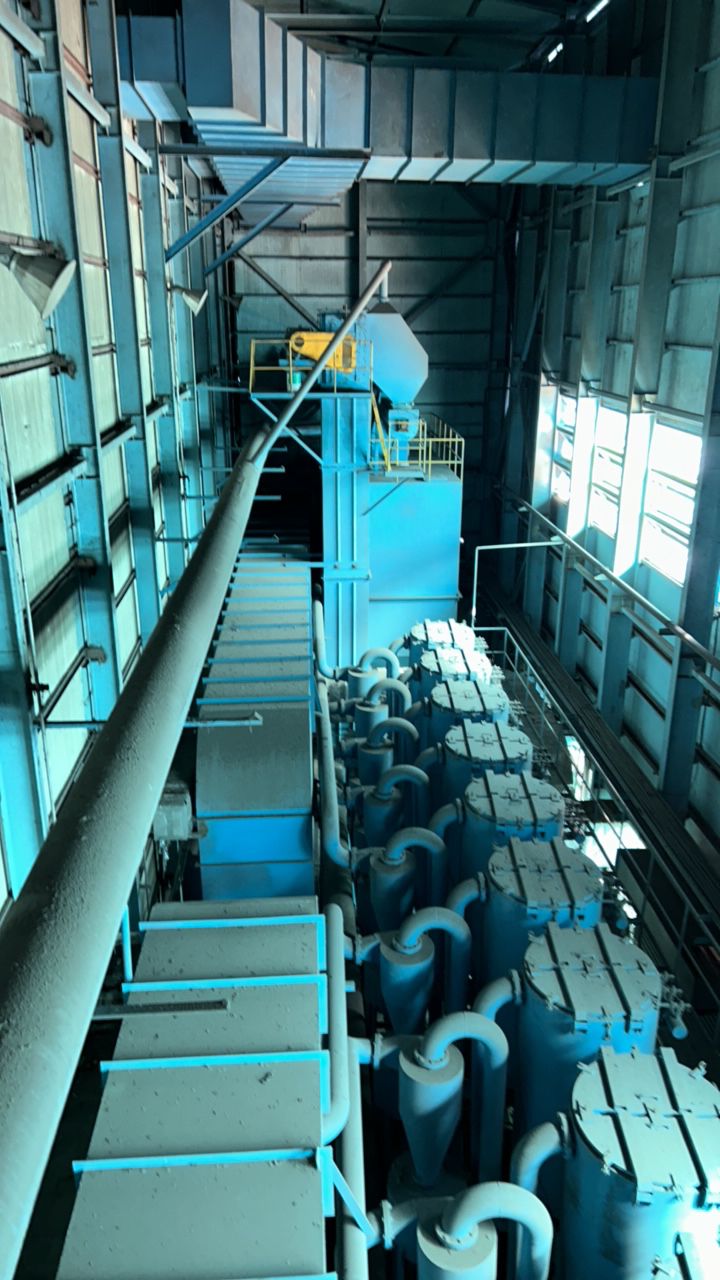

Sand Blasting System 1

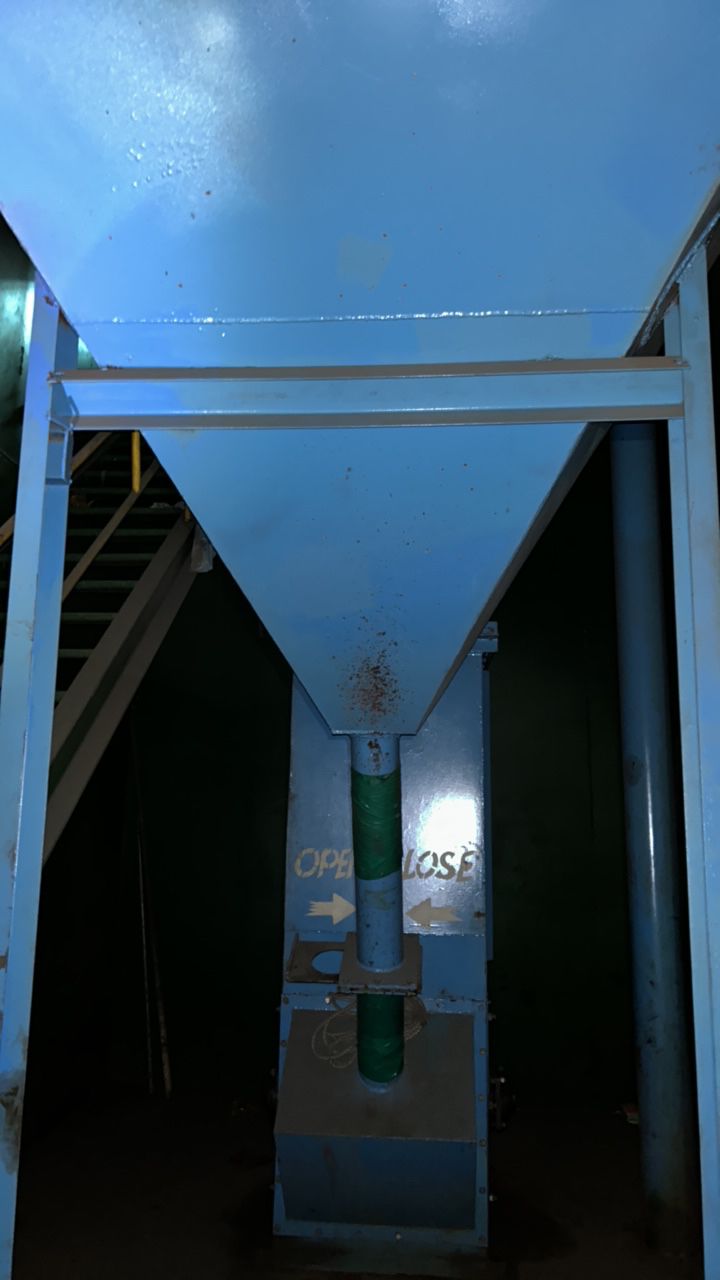

  1. Chute - 2

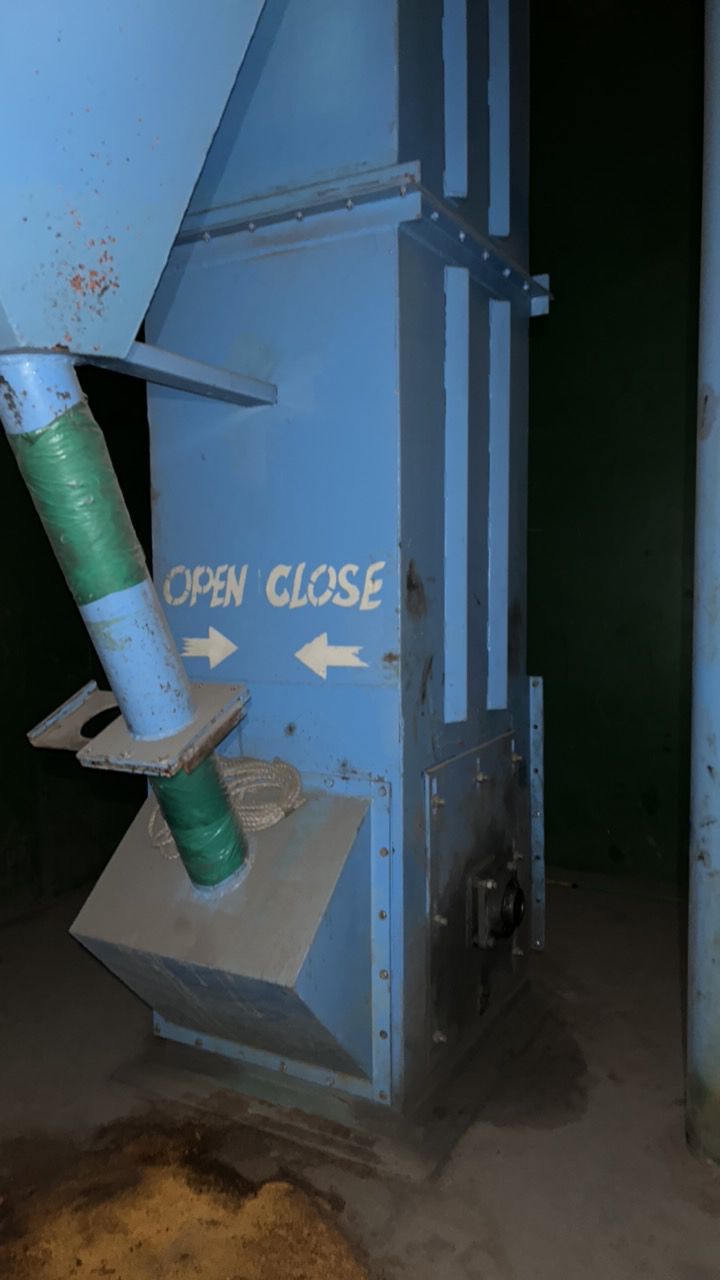

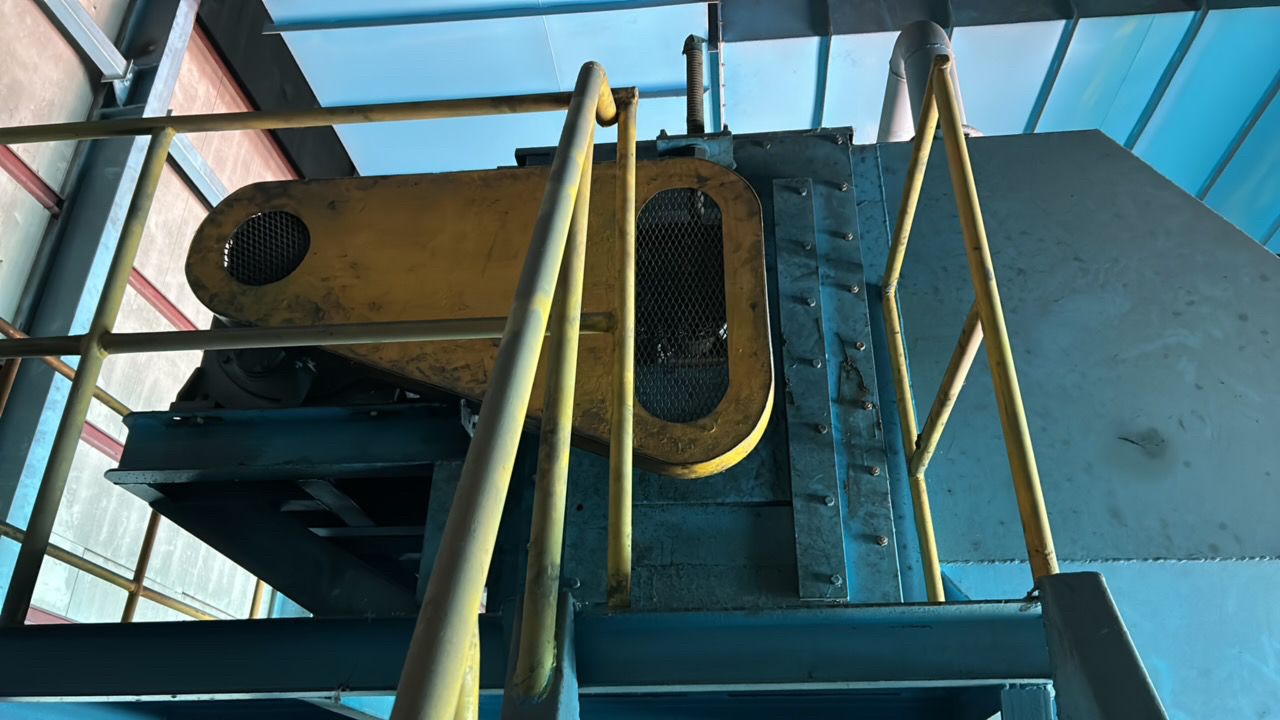

  2. Bucket Elevator -2

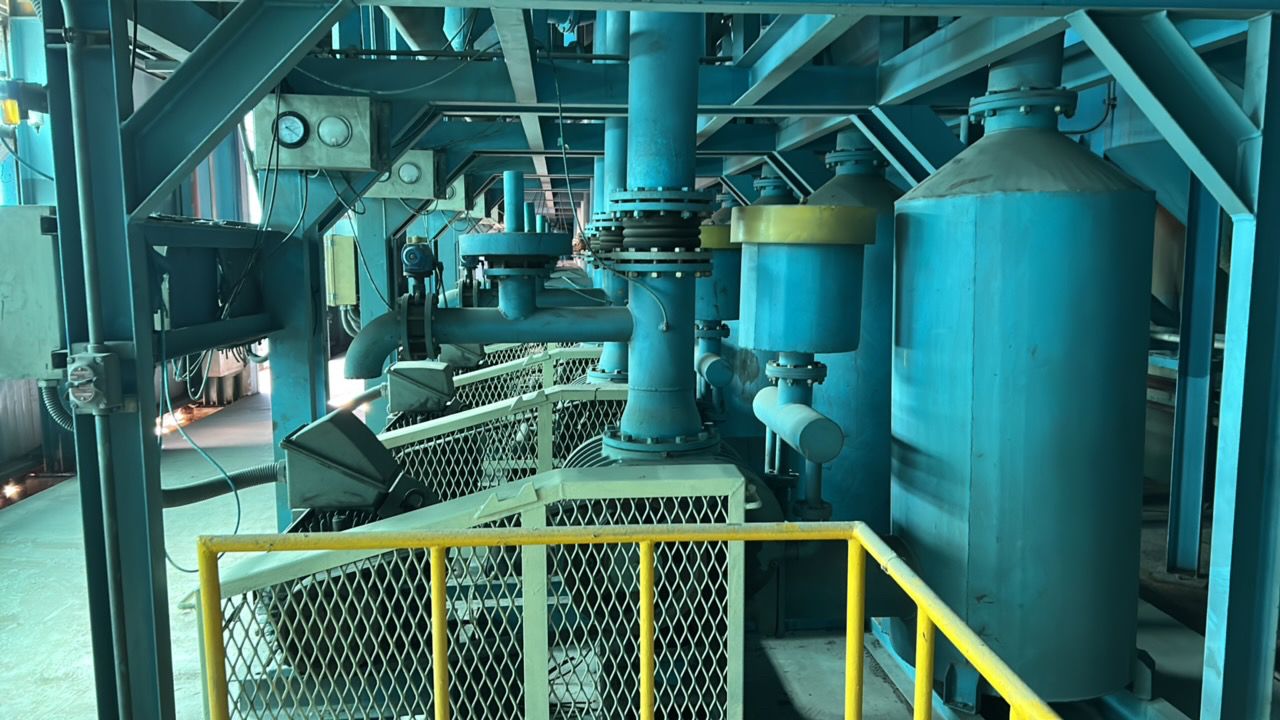

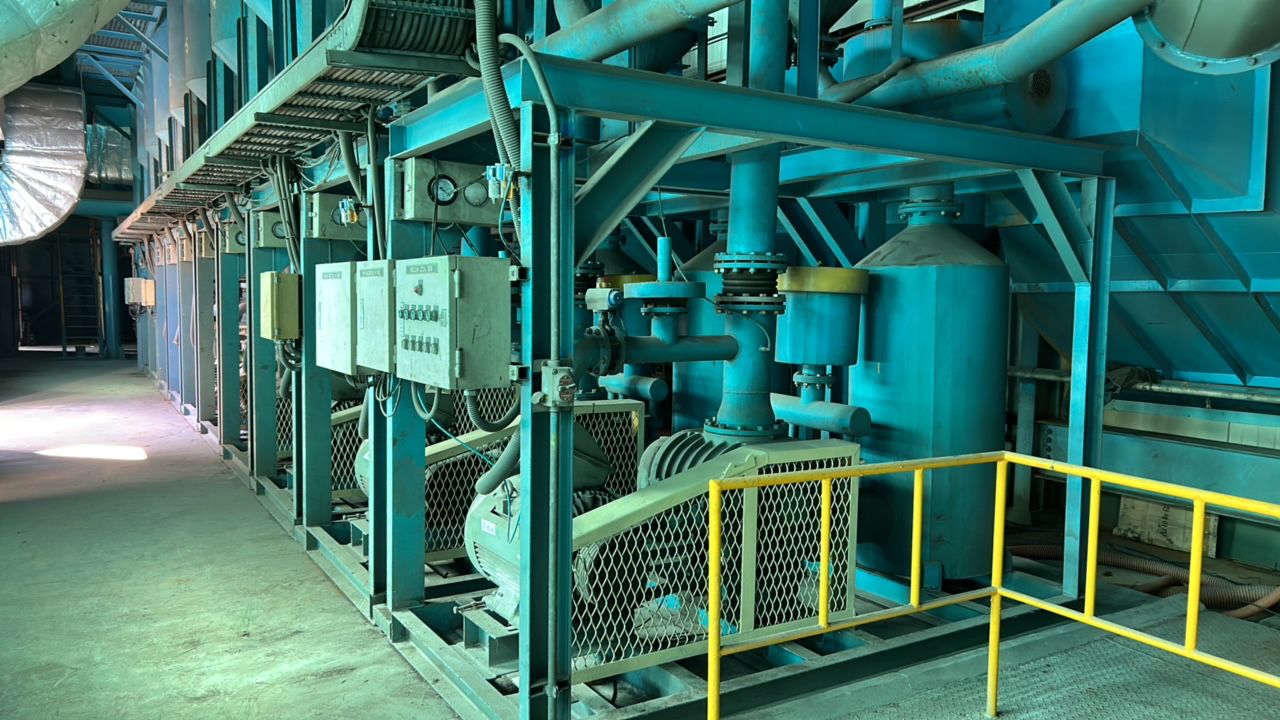

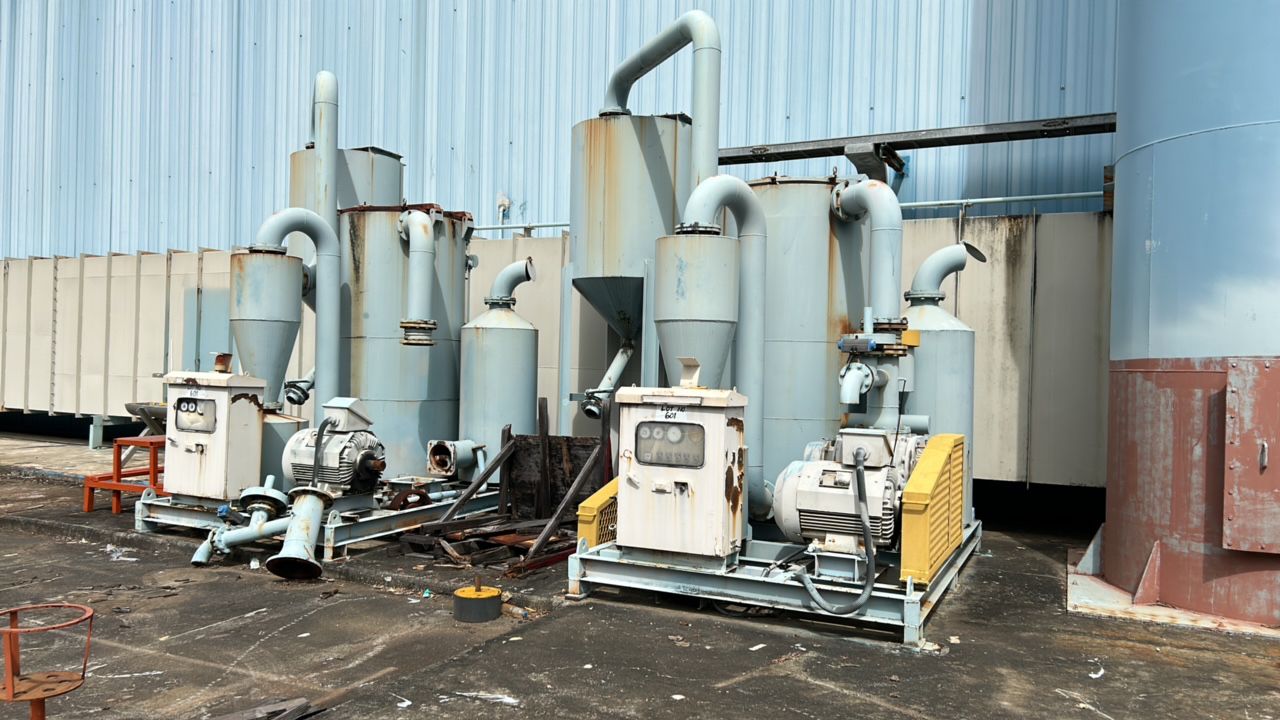

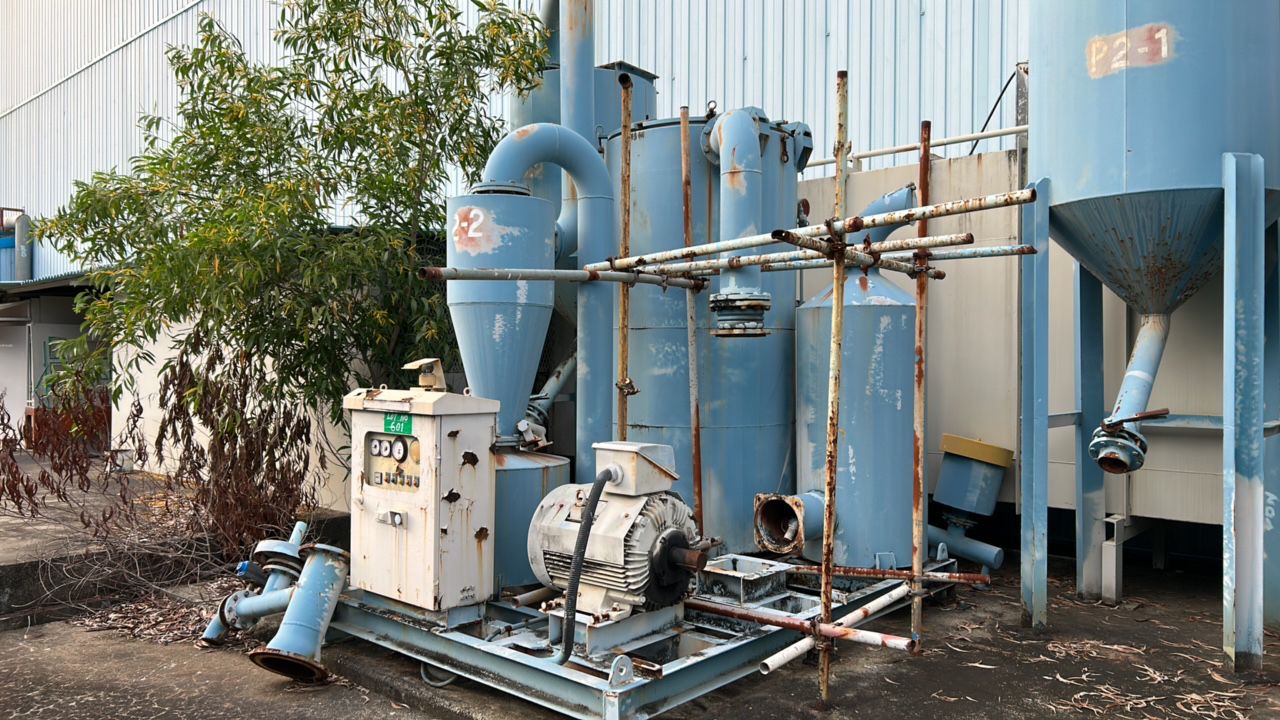

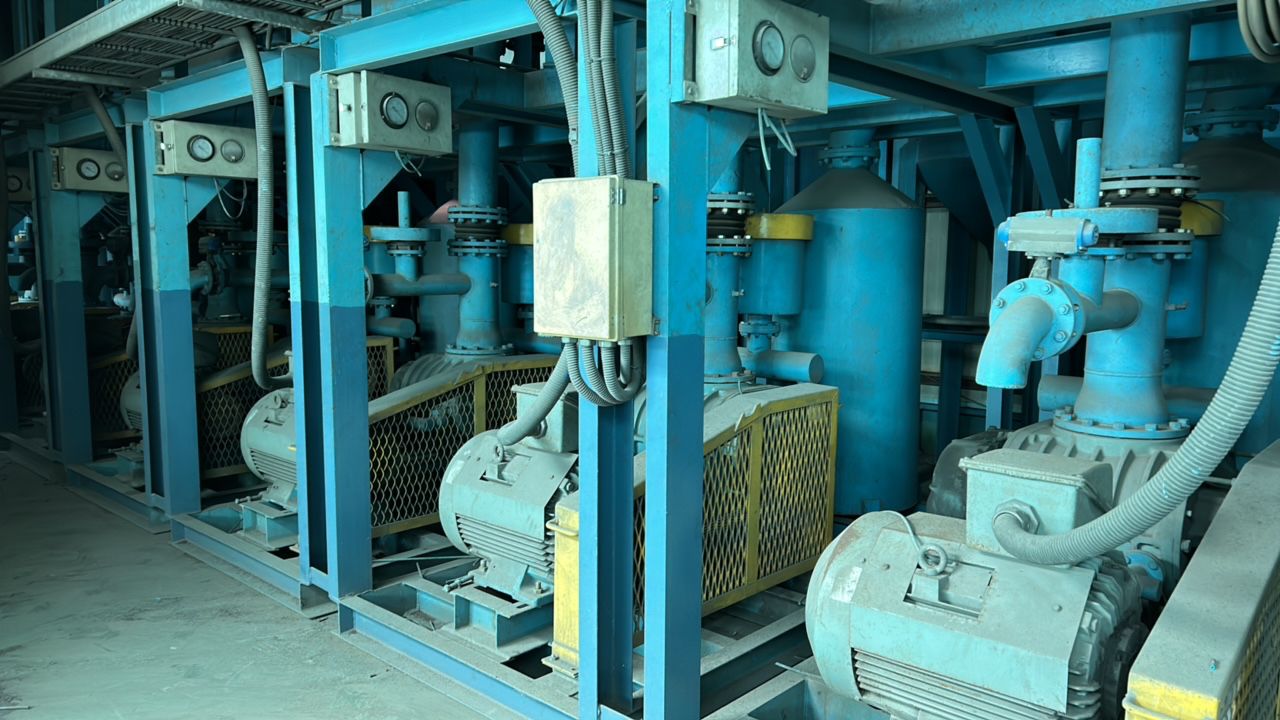

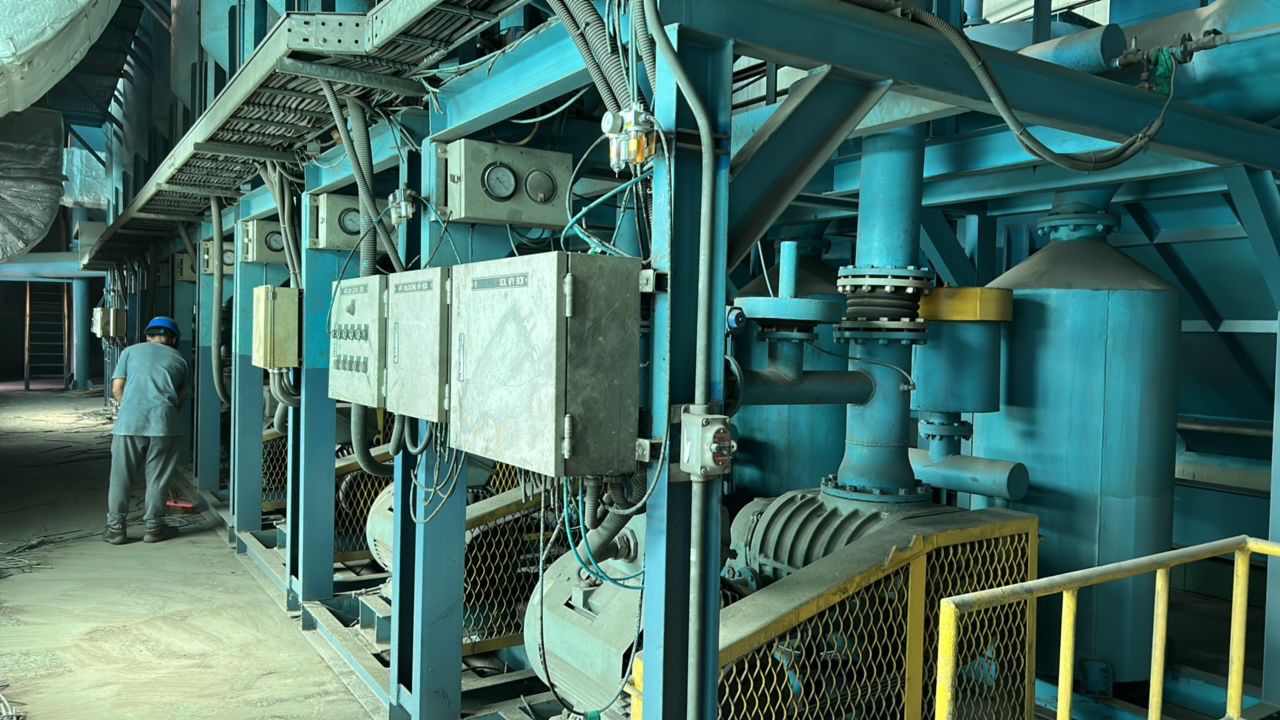

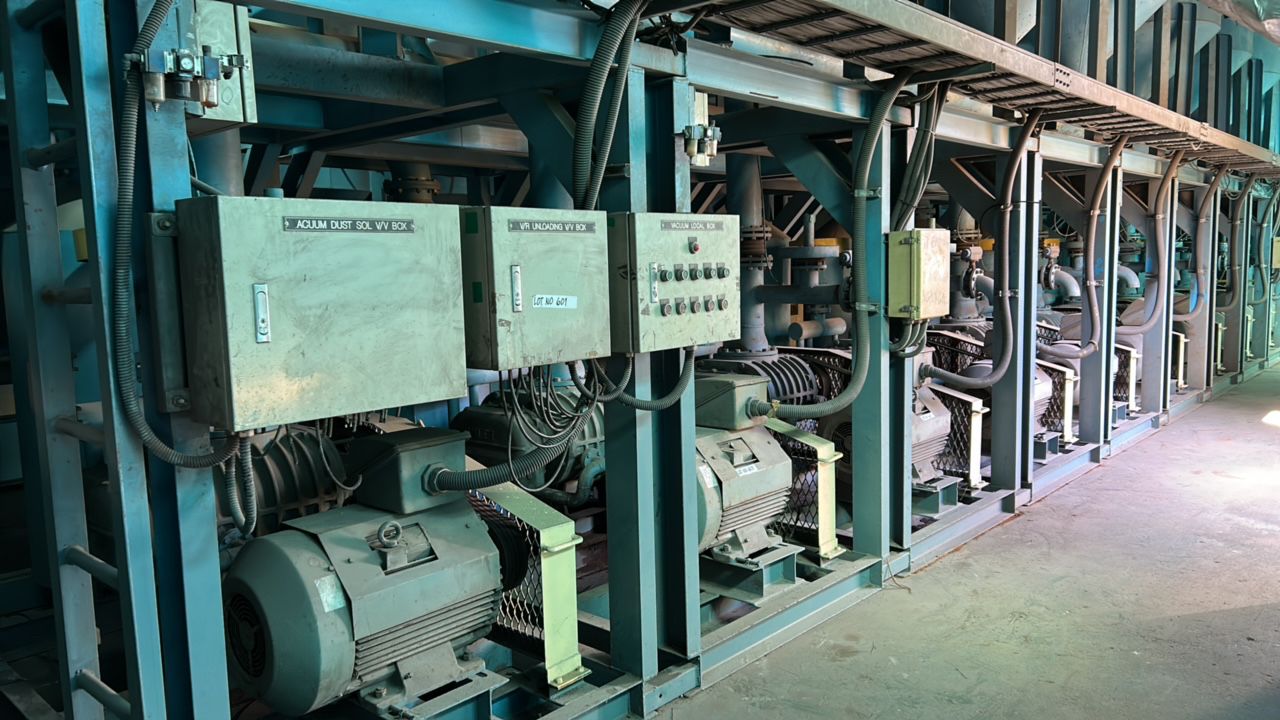

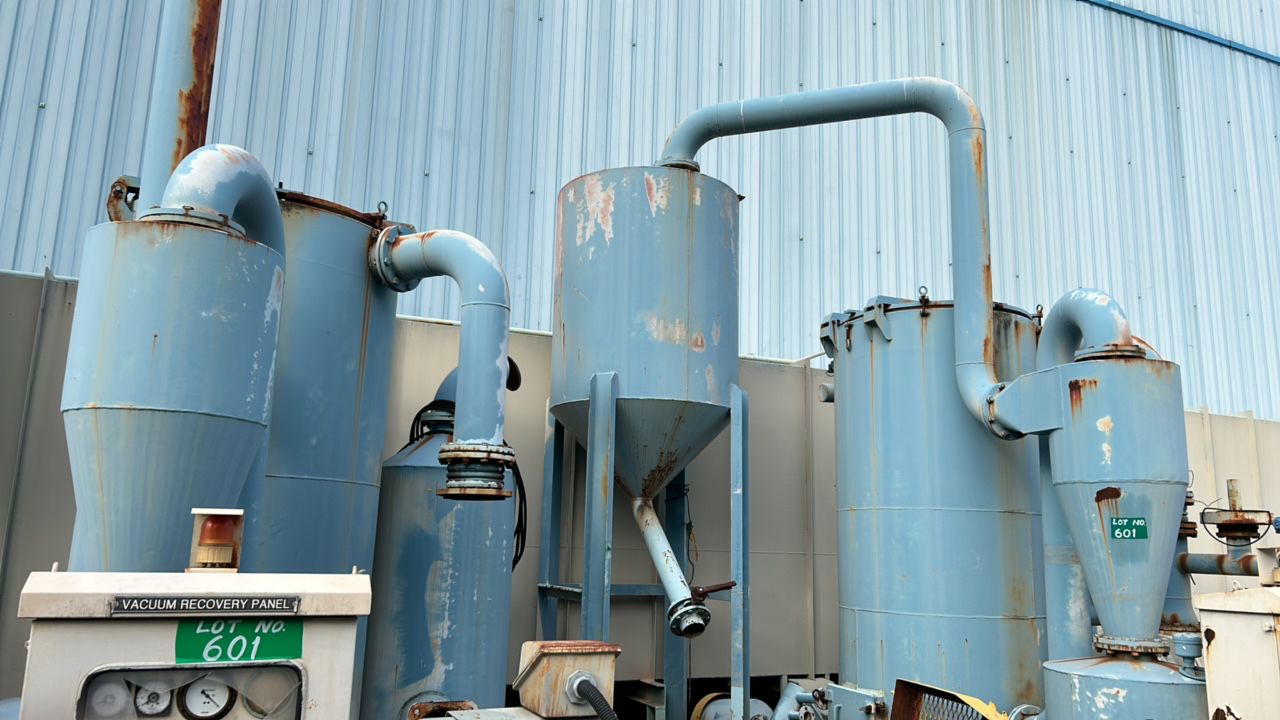

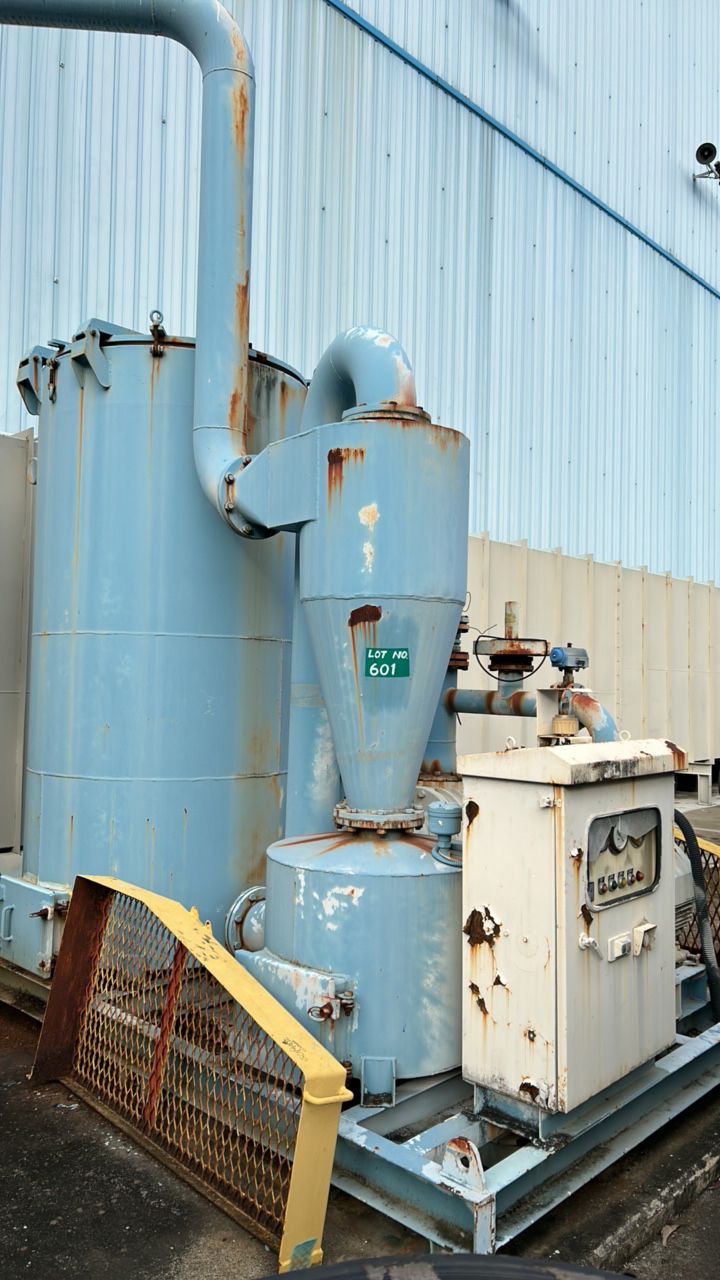

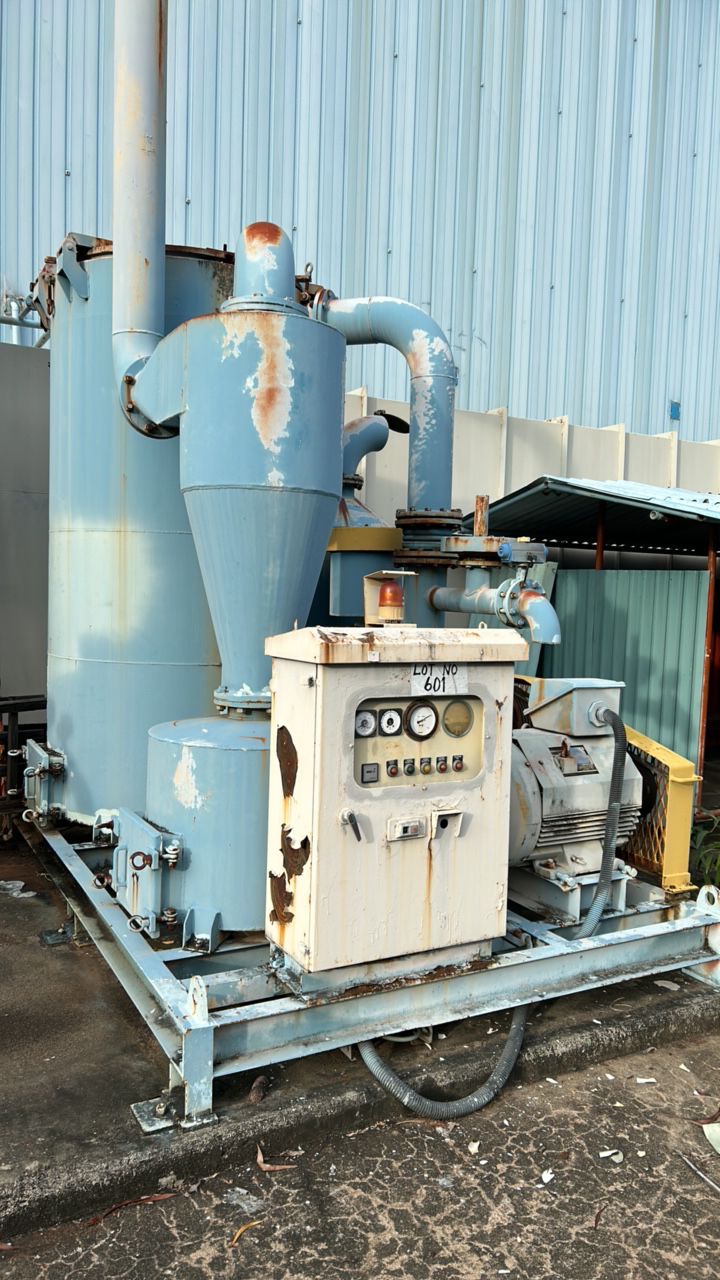

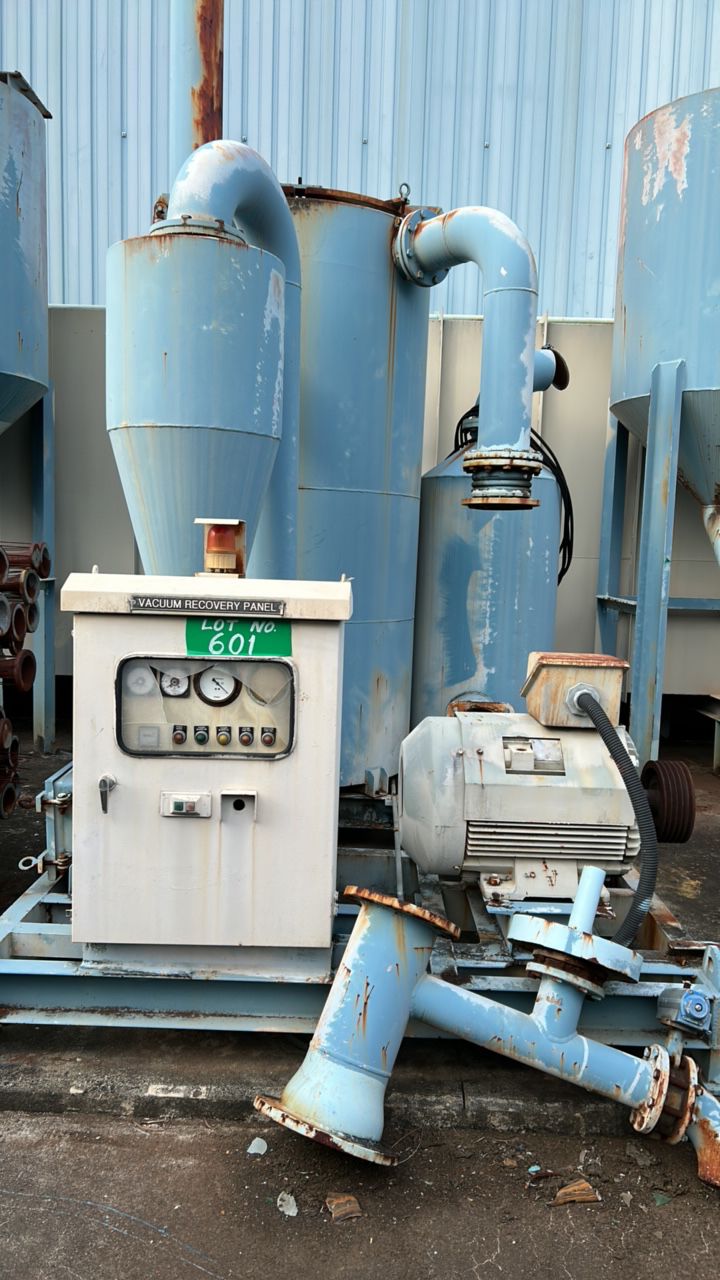

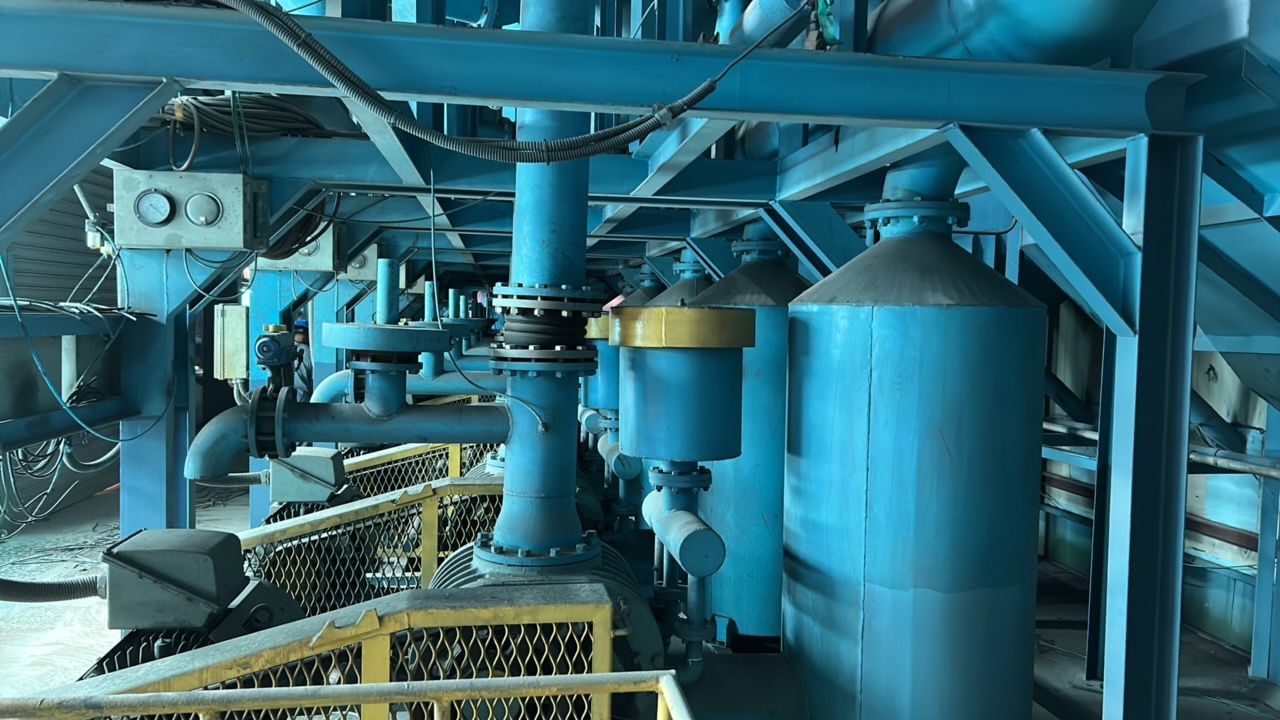

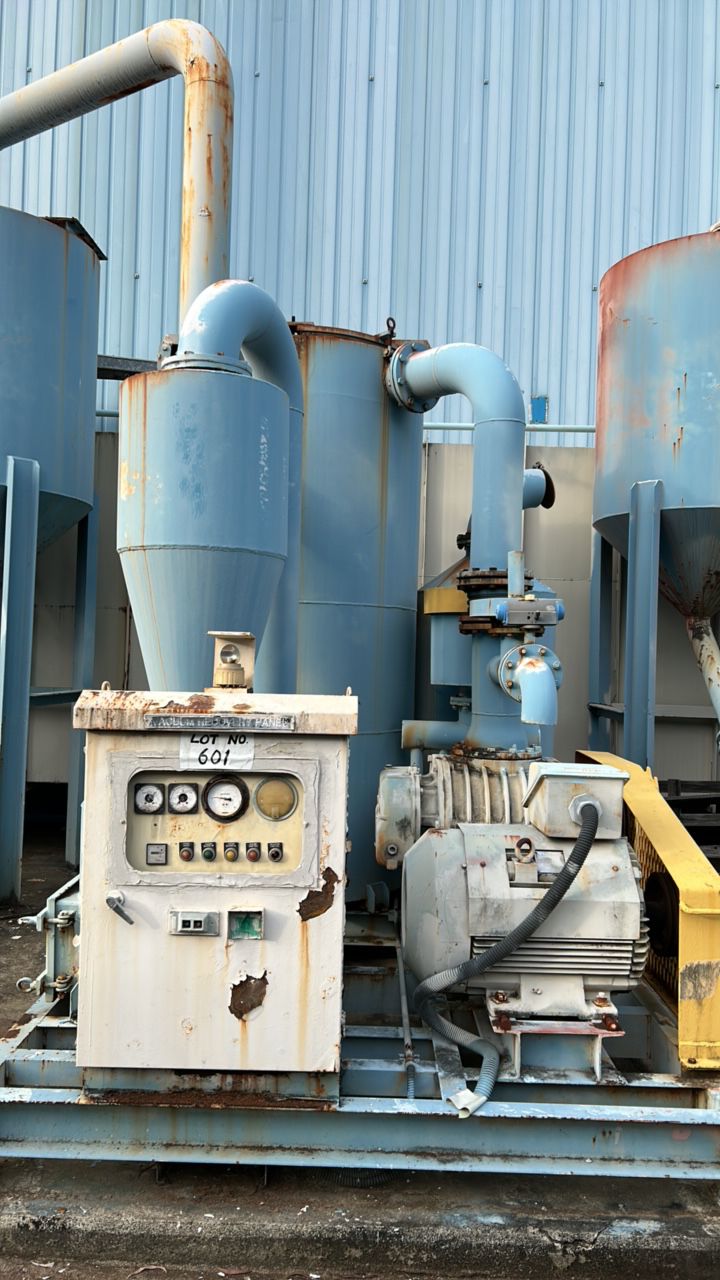

  3. Vacuum Recovery System
  4. Dryer

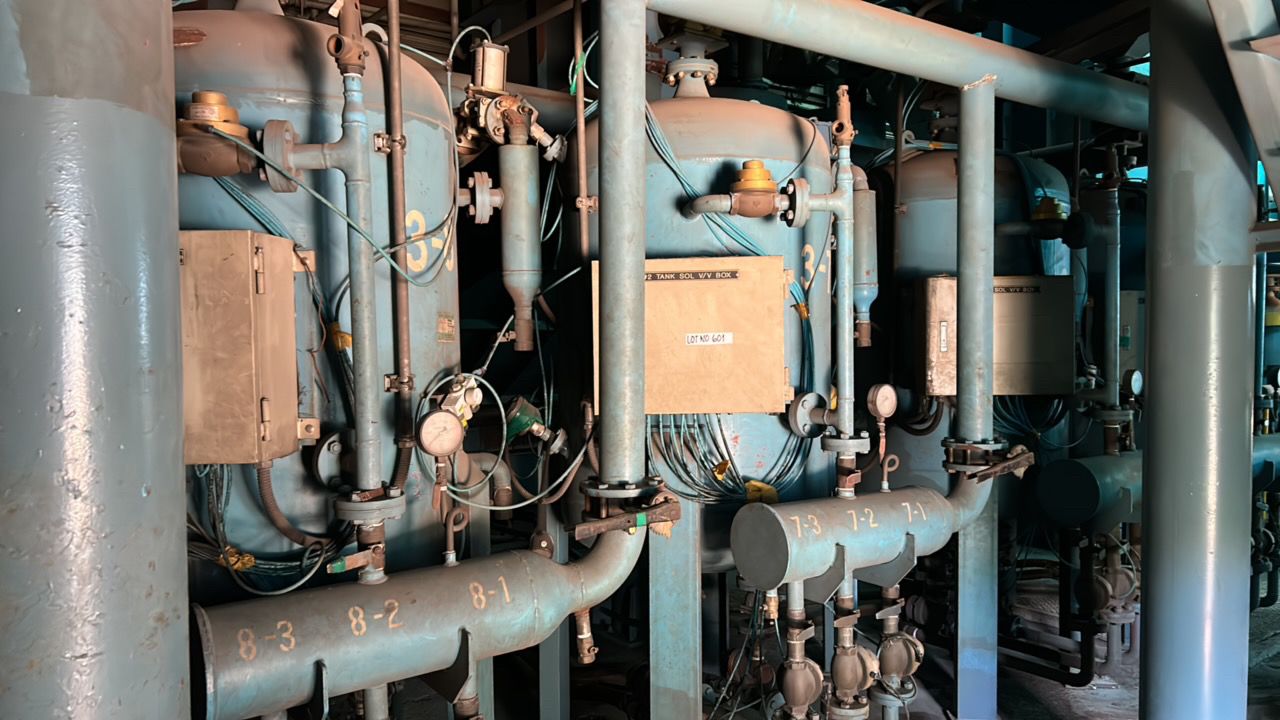

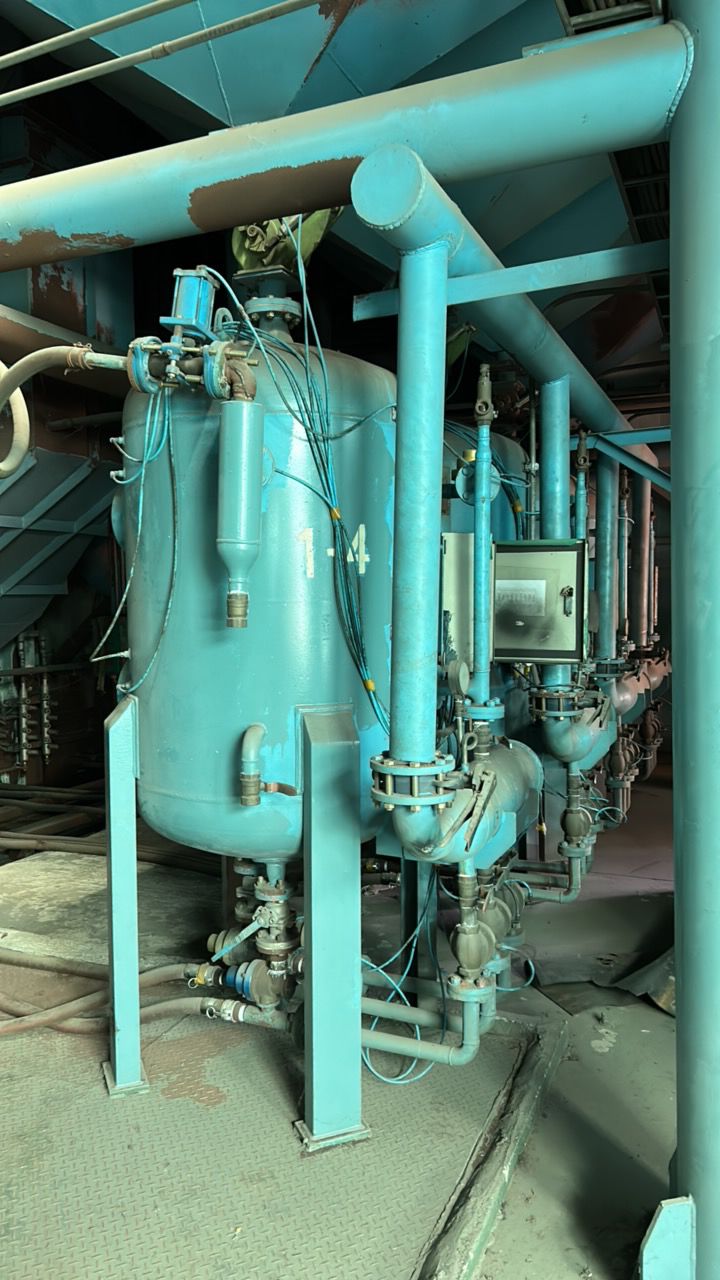

  5. Blasting system - 2 sets - 4 tanks/set - 4 nozzles/tank
  6. Air ducts
  7. Control Panel
Ventilation System 2
  1. Dehumidifier (YDHM-PDA-15,000N) 3 Units
  2. Shin Pung Fan and blower(SPTF) 175hp - 2 Units per exhaust pipe - 4 units total
  3. Exhaust pipe (for 175hp fan) - 2 units
  4. Shin Pung Fan and blower(SPTF) 40hp - 1 Unit
  5. Exhaust pipe (for 40hp fn) - 1 unit
  6. Dust Collector large - 2 units
  7. Dust Collector Small - 1 unit
  8. Ventilation ducts
  9. Control Panel
  10. Kohands Air compressor
Sand Blasting System 2
  1. Chute - 2
  2. Bucket Elevator -2
  3. Vacuum Recovery System
  4. Dryer
  5. Blasting system - 2 sets - 4 tanks/set - 4 nozzles/tank
  6. Air ducts
  7. Control Panel


PAINTING SHOP
Ventilation System 1
  1. Dehumidifier(YDHM-CDH-15,000-100) - 2 units
  2. Dehumidifier(YDHM-PDA-15,000N) - 2 units
  3. Shin Pung Fan/Blower 200hp -2 units
  4. Exhaust pipe (for 200hp fan) - 2 units
  5. Ventilation ducts
  6. Vacuum Recovery(portable) - 2 units
Ventilation System 2
  1. Dehumidifier(YDHM-CDH-15,000-100) - 2 units
  2. Dehumidifier(YDHM-PDA-15,000N) - 2 units
  3. Shin Pung Fan/Blower 200hp -2 units
  4. Exhaust pipe (for 200hp fan) - 2 units
  5. Ventilation ducts
  6. Vacuum Recovery(portable) - 2 units

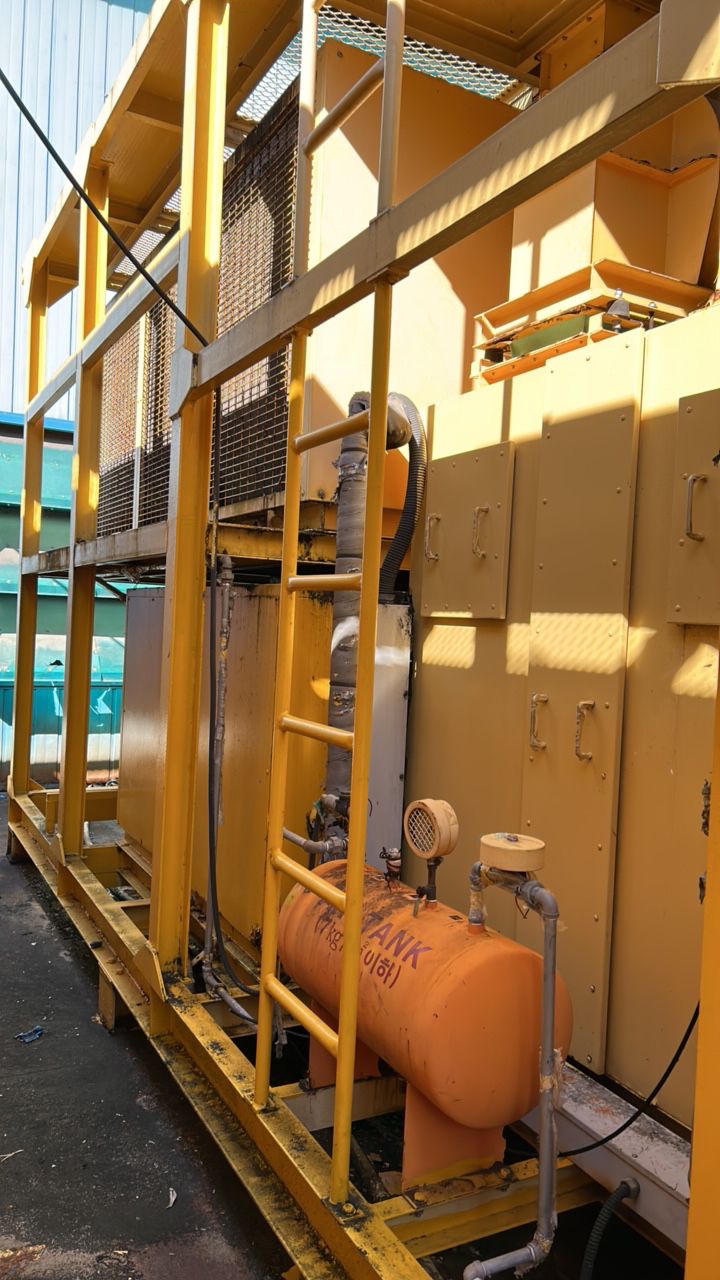

Moisture Separator & Receiver tank - 1 unit


Accessories/other items:
Cable trays
Electric cables

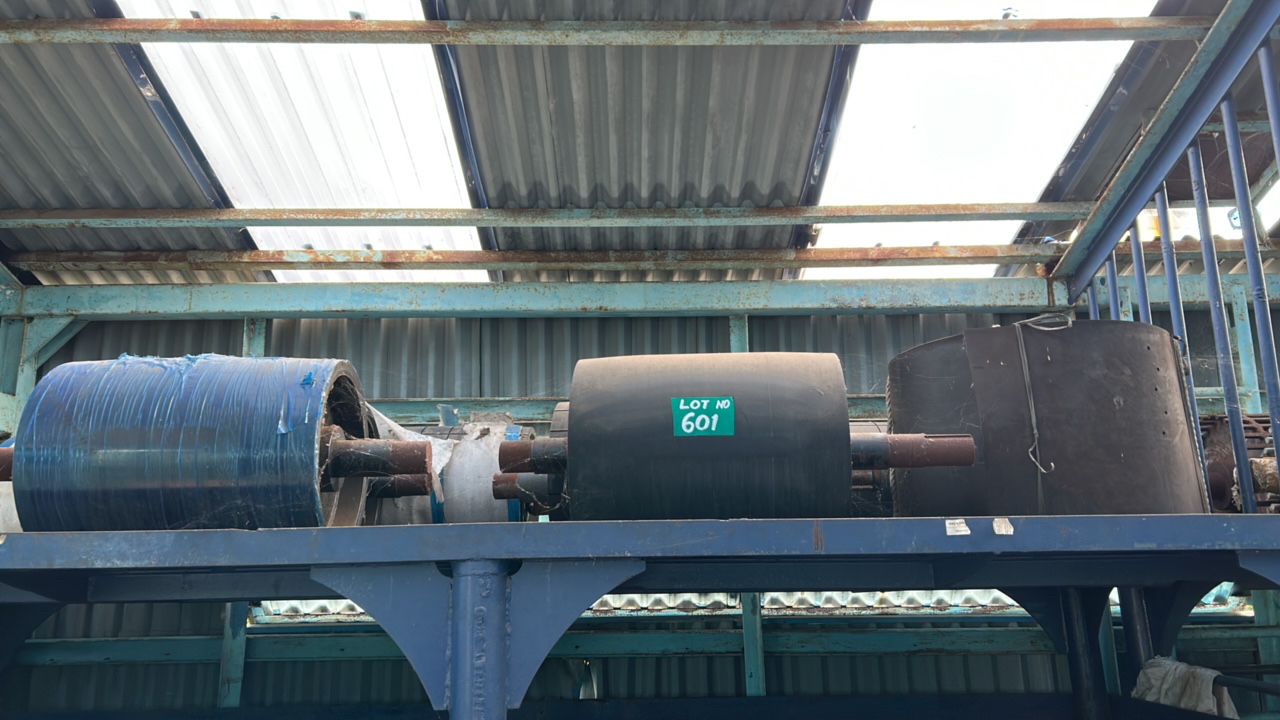

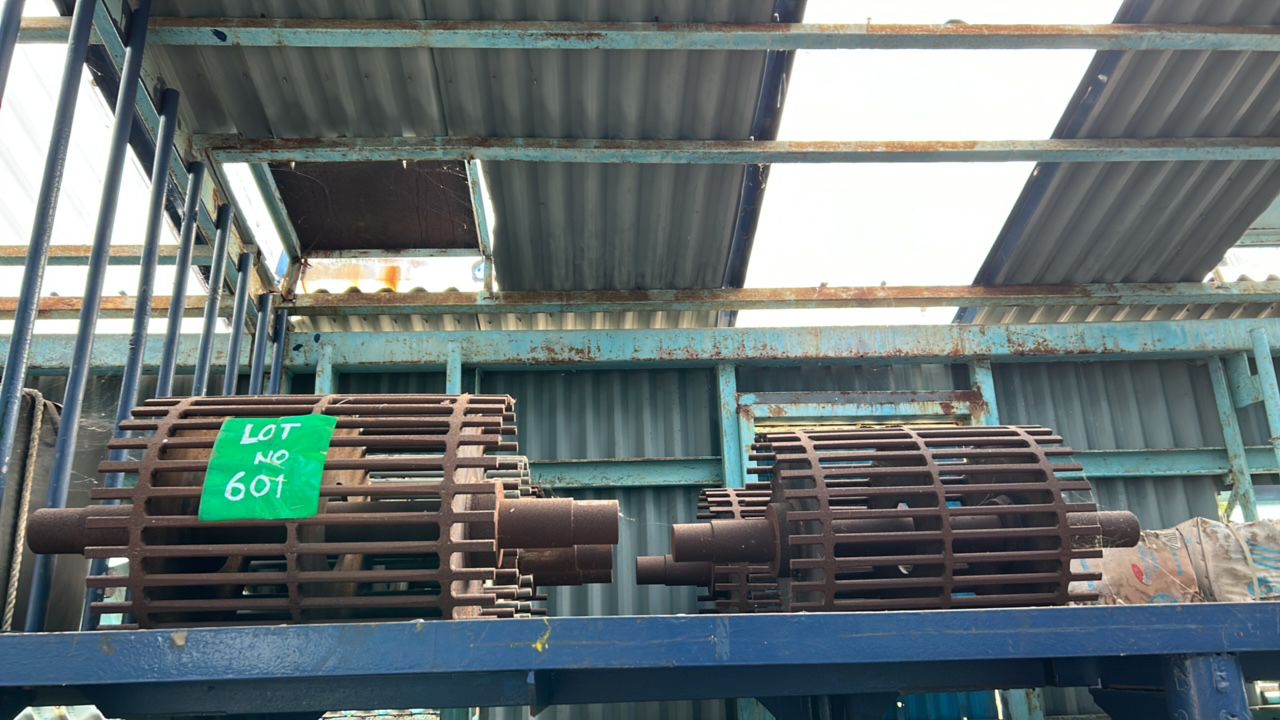

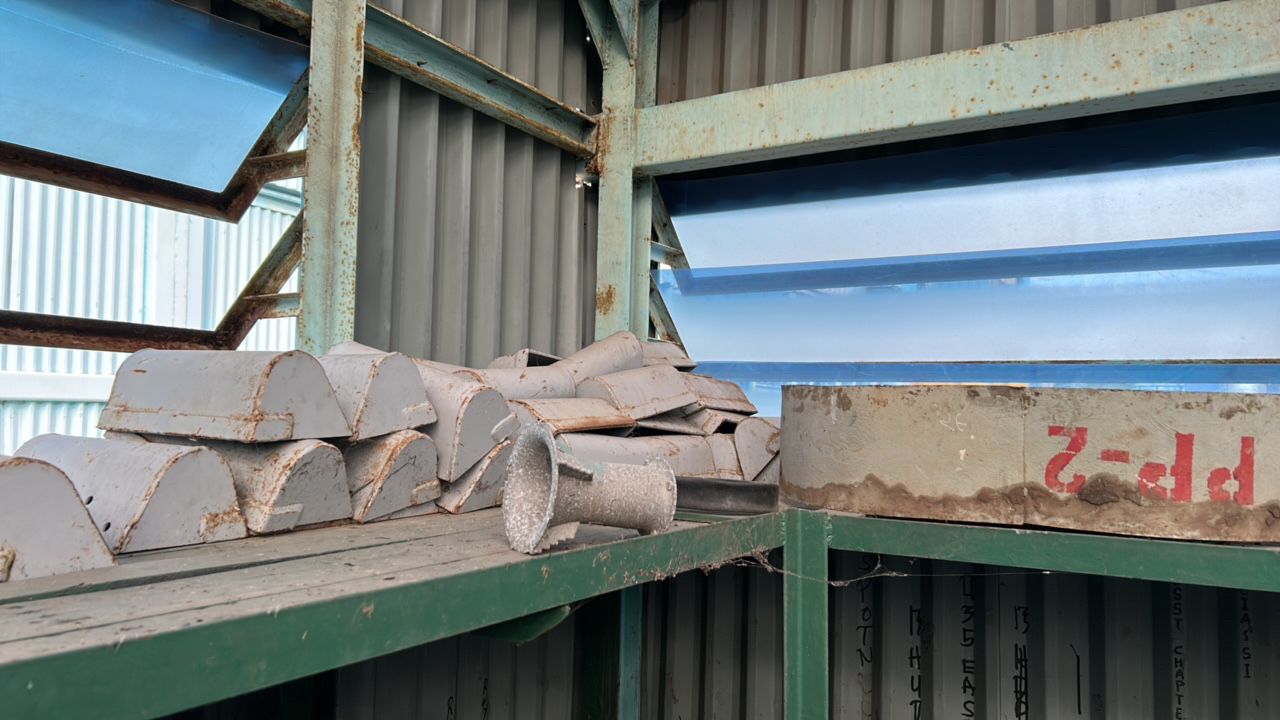

Mechanical Spare parts
Air Filters
Drive belts


Room Size: W:50.000 x L: 50.000 x H: 17.000
