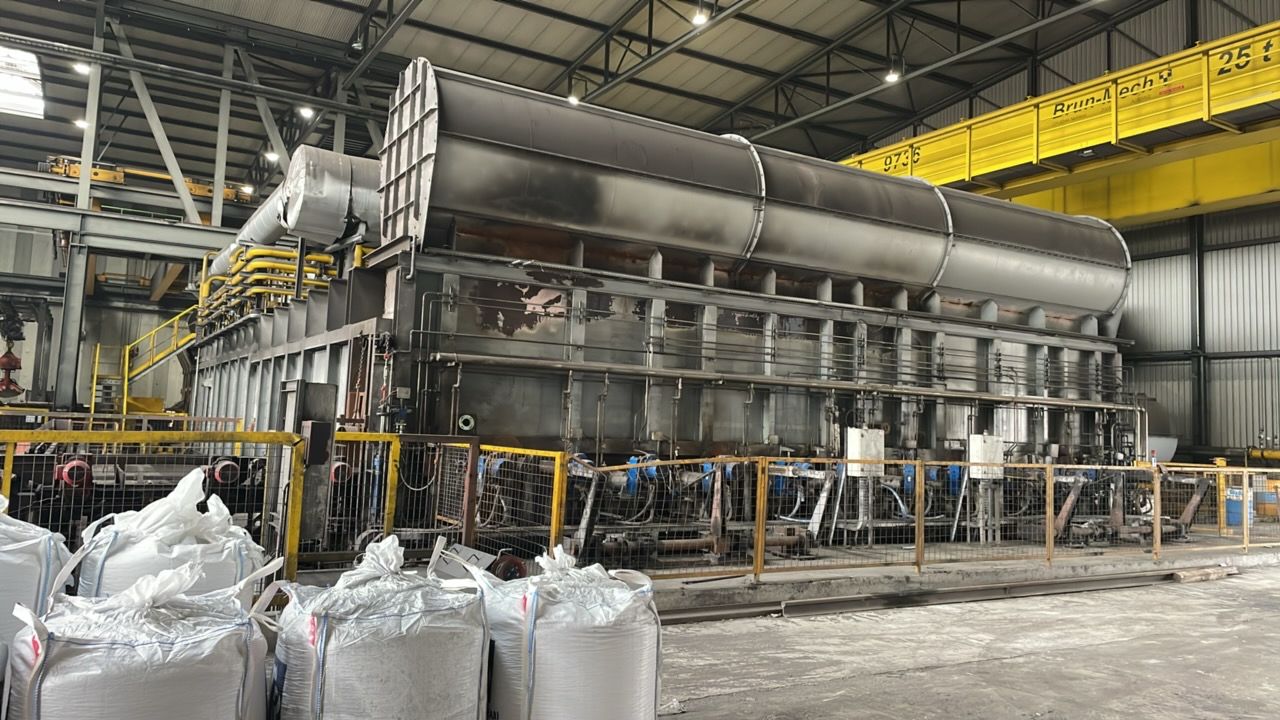

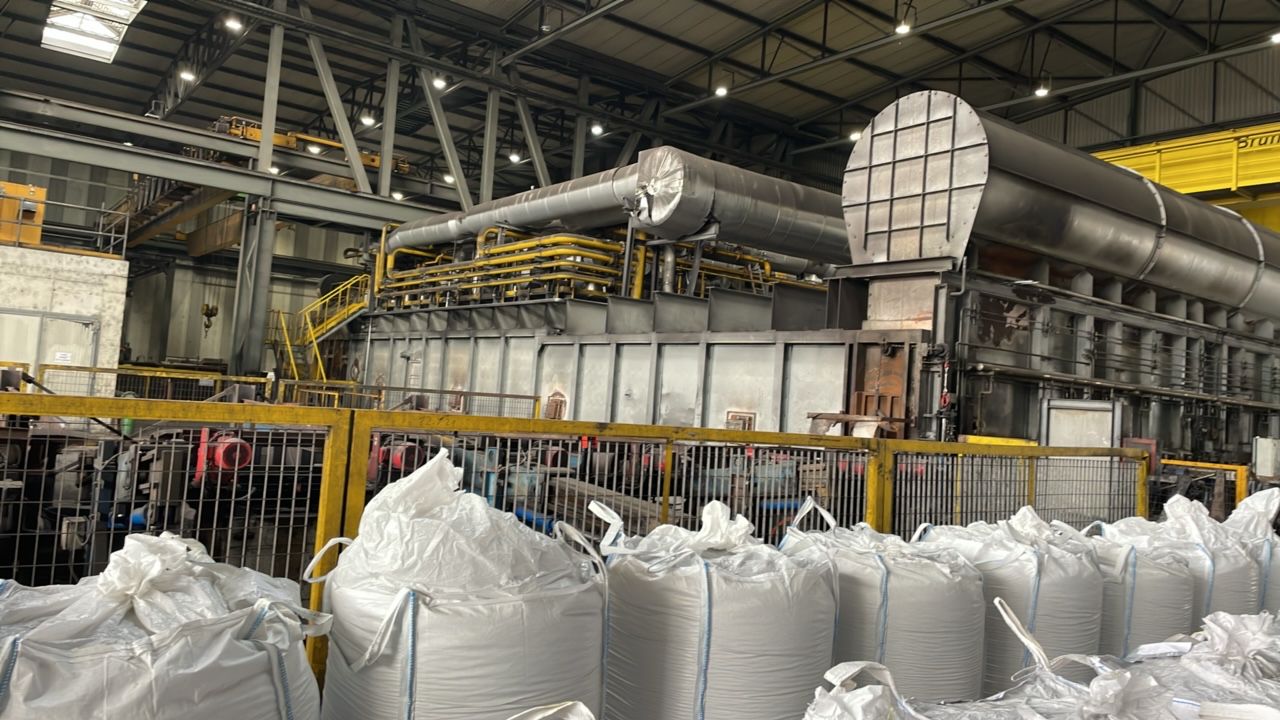

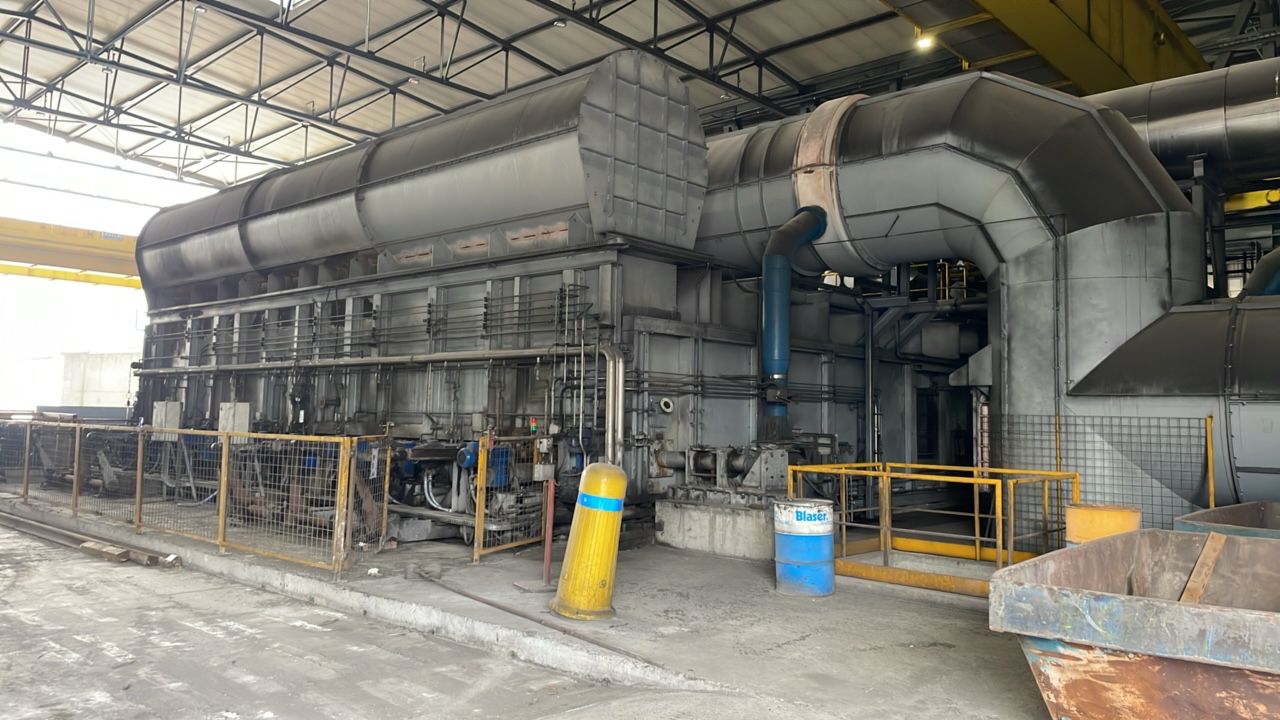

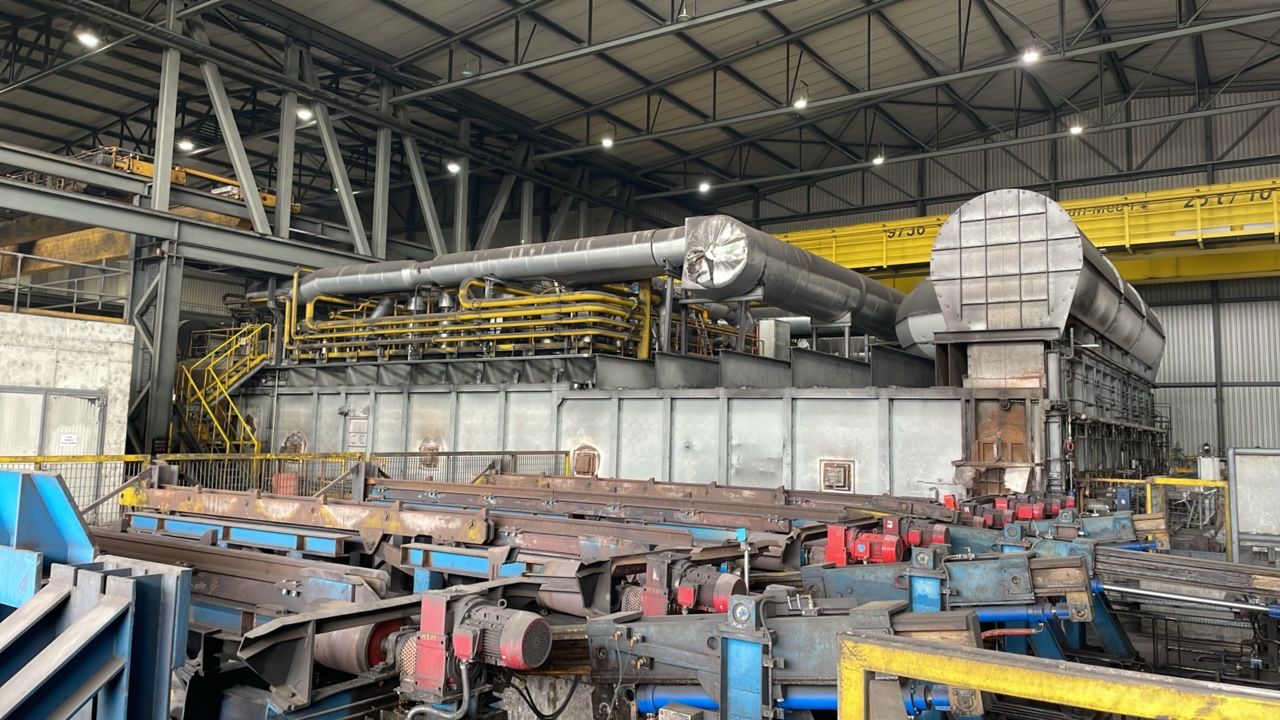

Reheating Furnace (2009)
Design capacity: up to 120 tph
Internal width: 15,000 mm
Useful length: 27,000 mm
Zones, total: 5
Charging temperature: 20 °C
Discharging temperature: 1,200 °C
The starting materials are loaded into re-heating furnace with a rated capacity of 120 t/h, heated up to the required rolling temperature, discharged one at a time and transferred to the rolling mill.

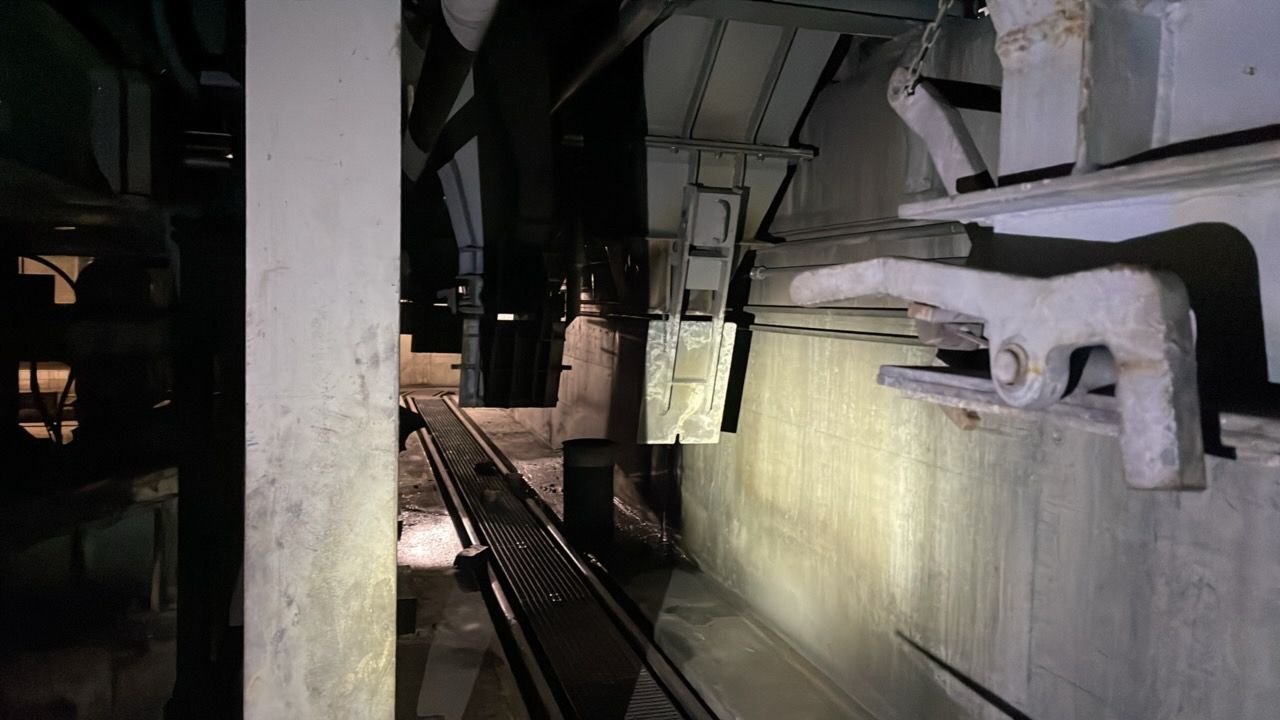

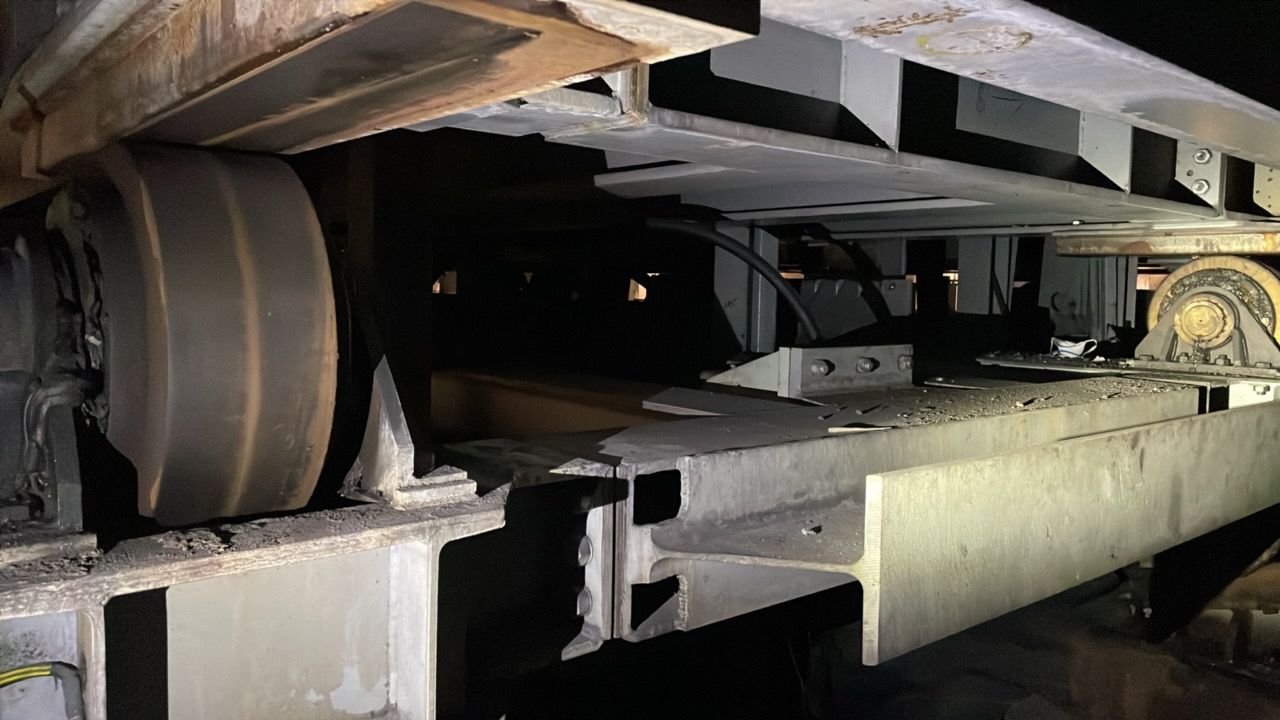

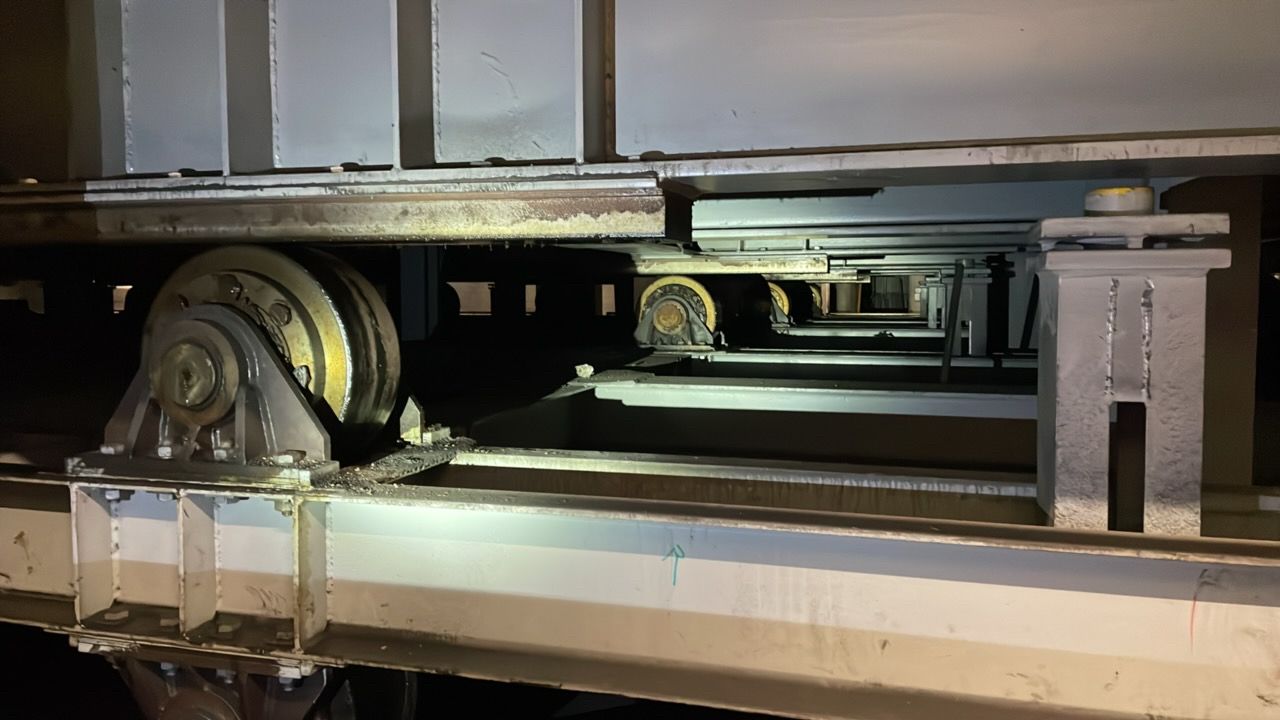

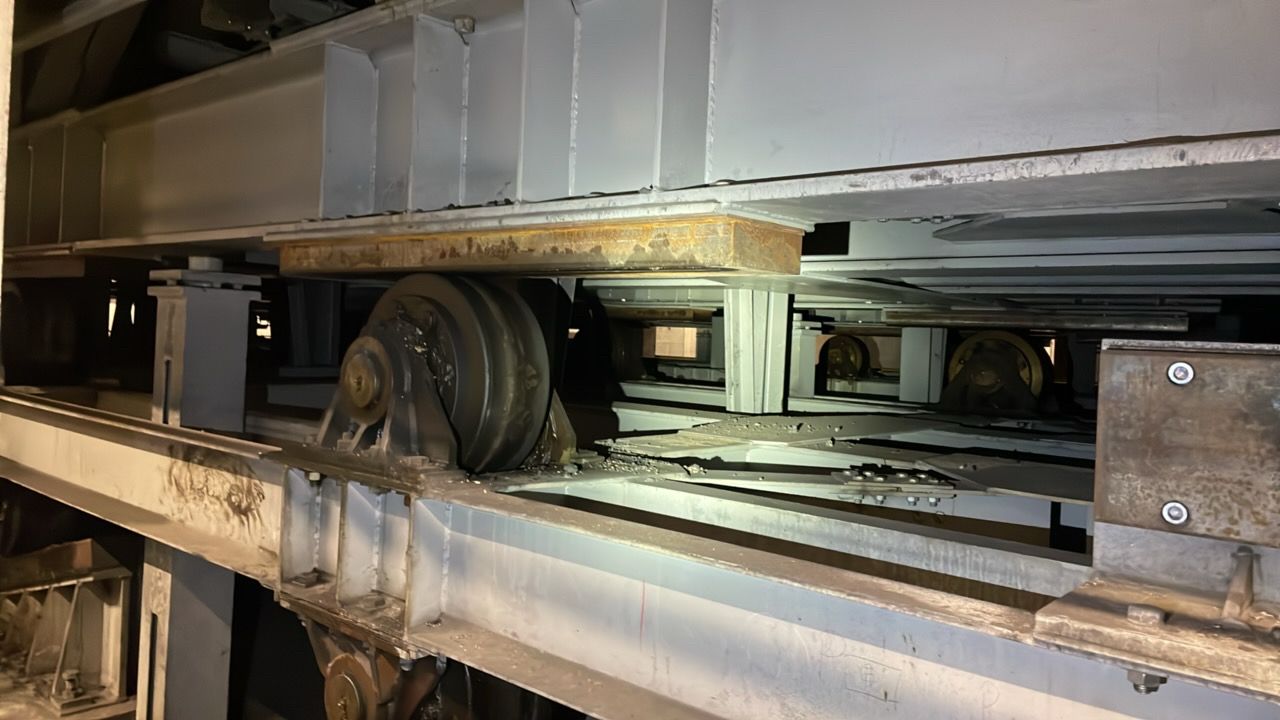

The furnace is a walking hearth type, with n° 5 separated countercurrent combustion zones and one/two rows of advancing charged material. Beam Blanks / Blooms / Billets are charged by side, advance counterflow with combustion products and travel first in the charging tunnel where are skimmed by waste gases.
Afterwards starting material passes to the proper heating zones, where their temperature reach the final one requested and then to the soaking zones, where the heat diffuses on the mass of products.

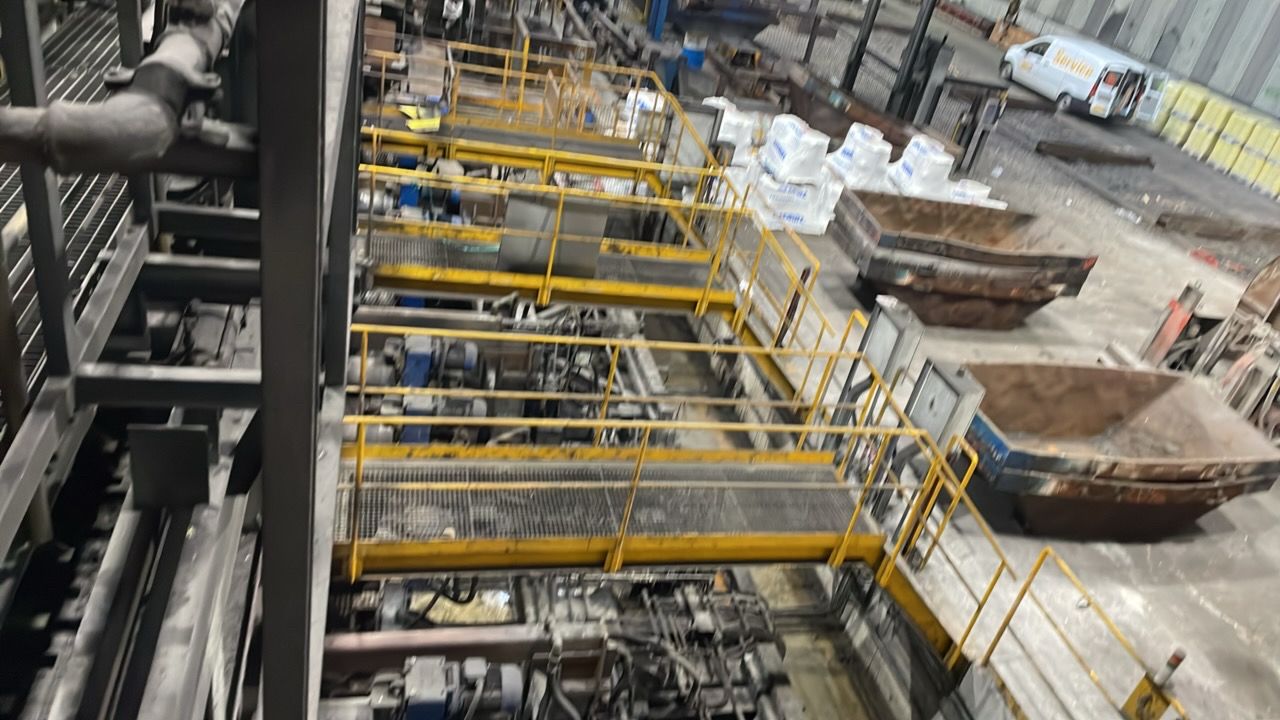

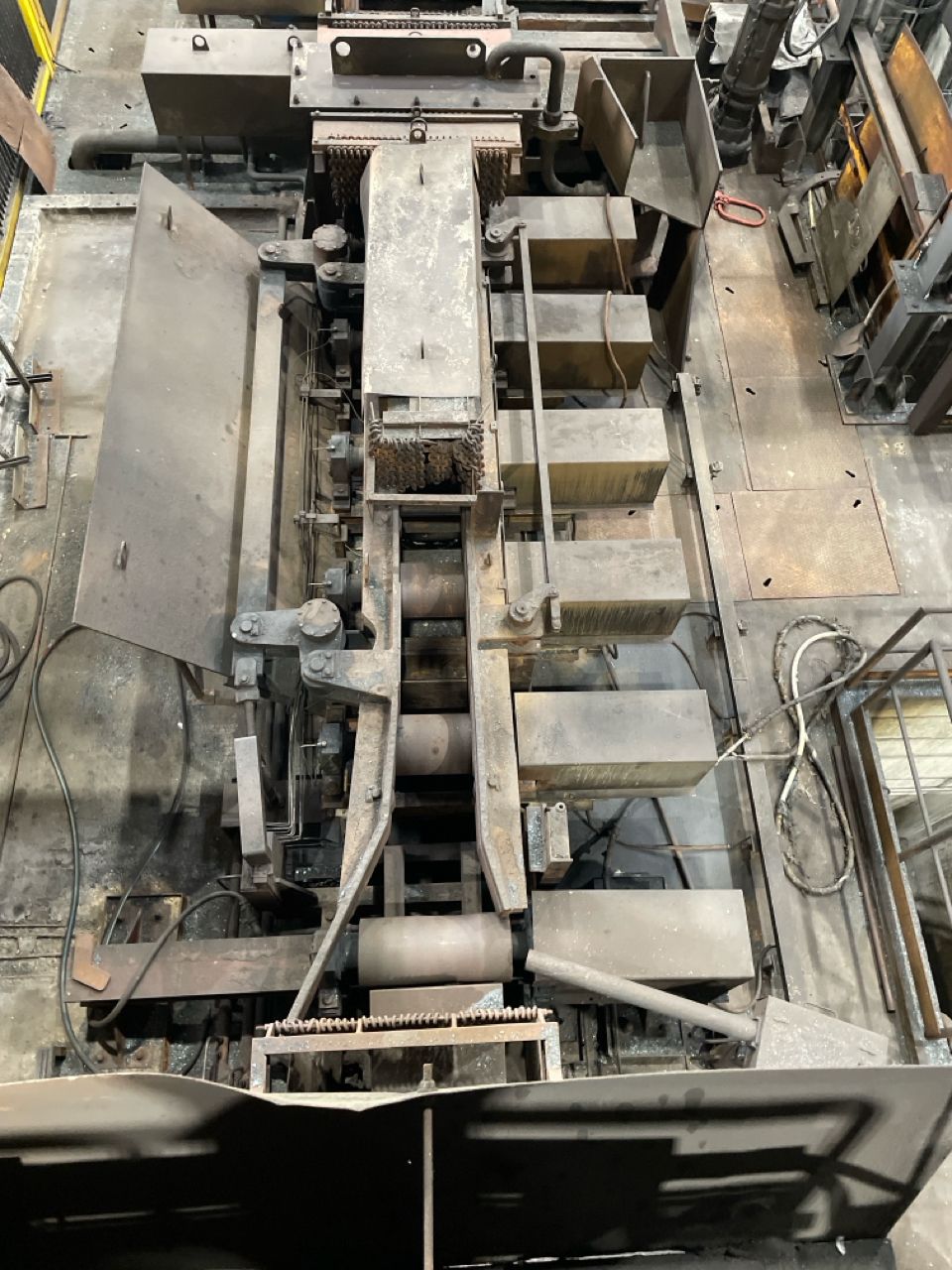

Material are side discharged through kick-off machine and rollers way.

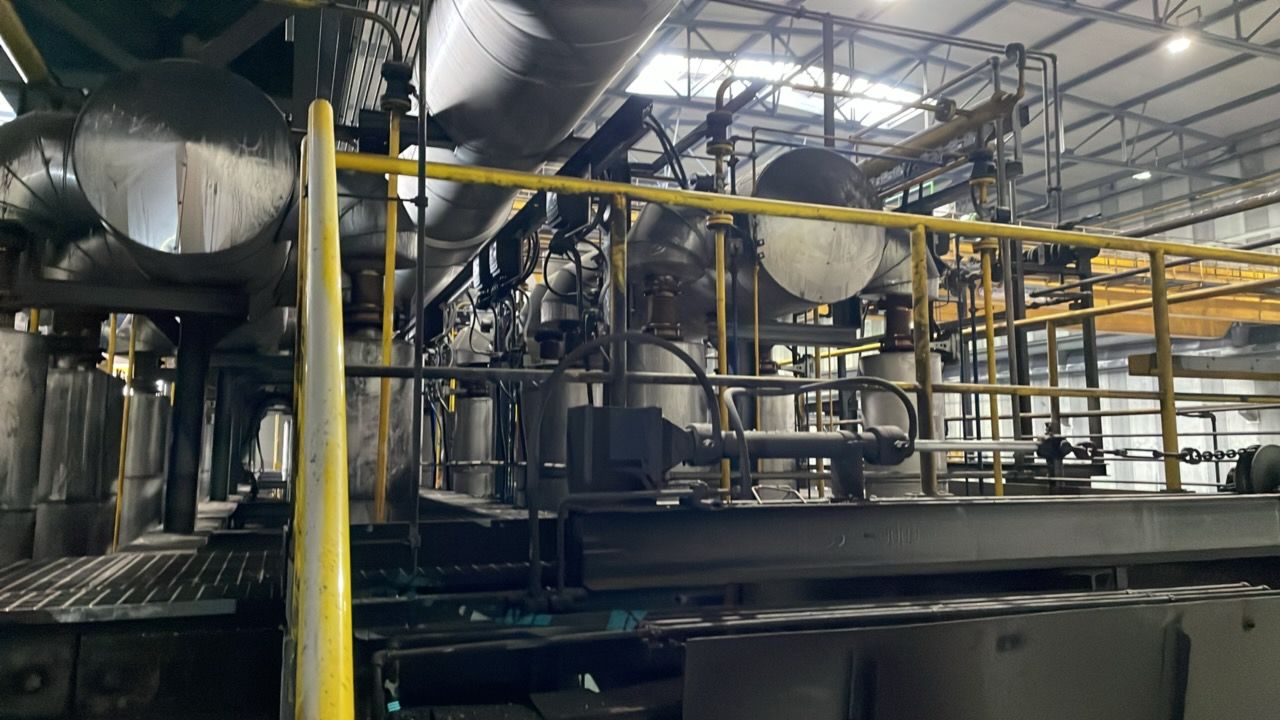

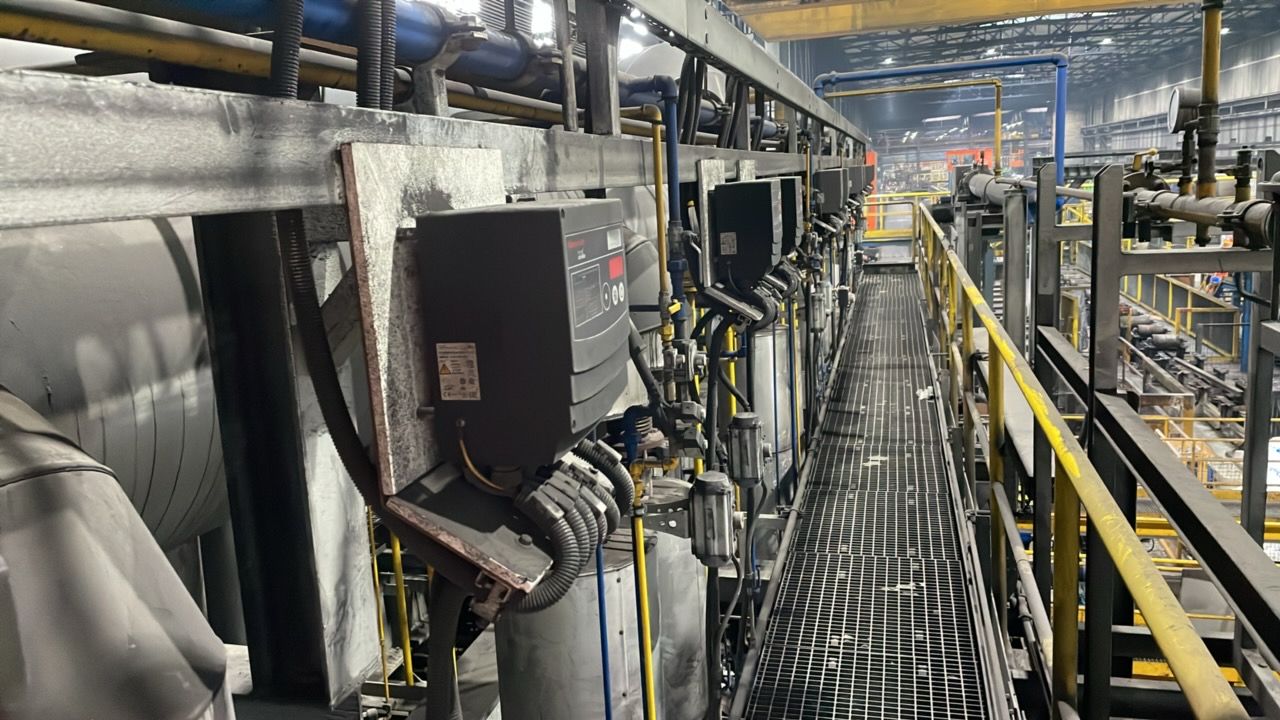

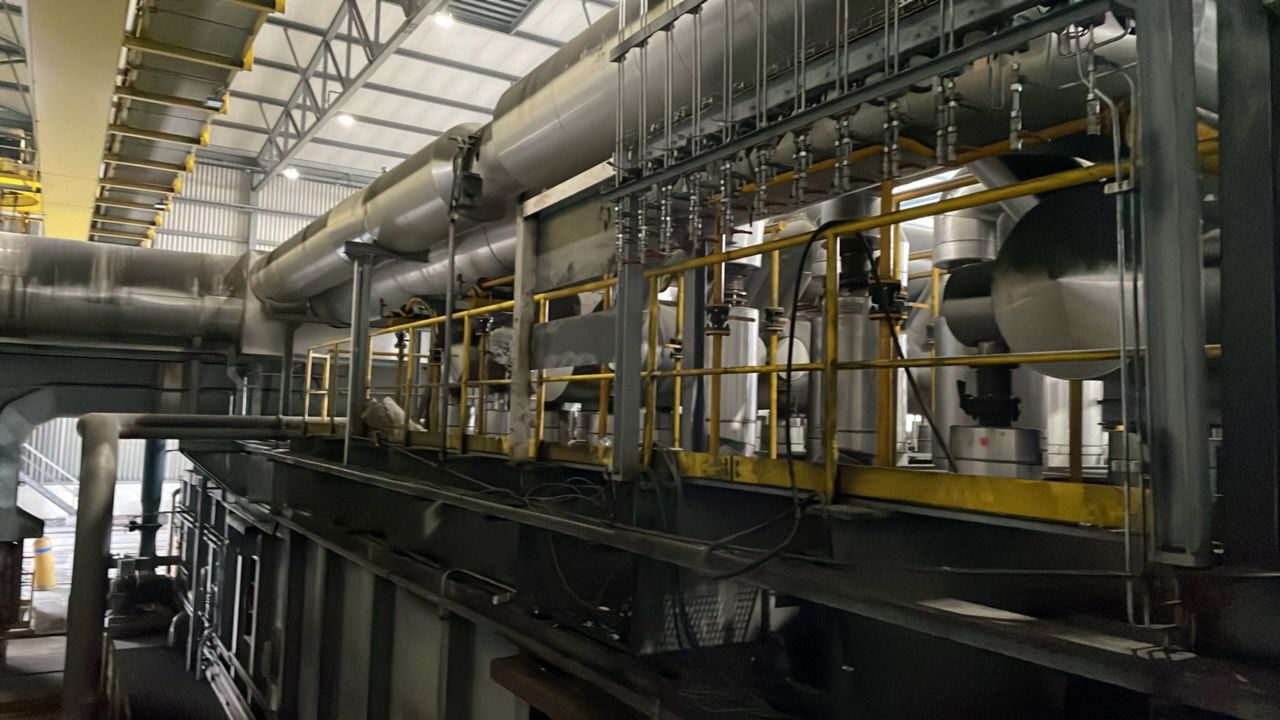

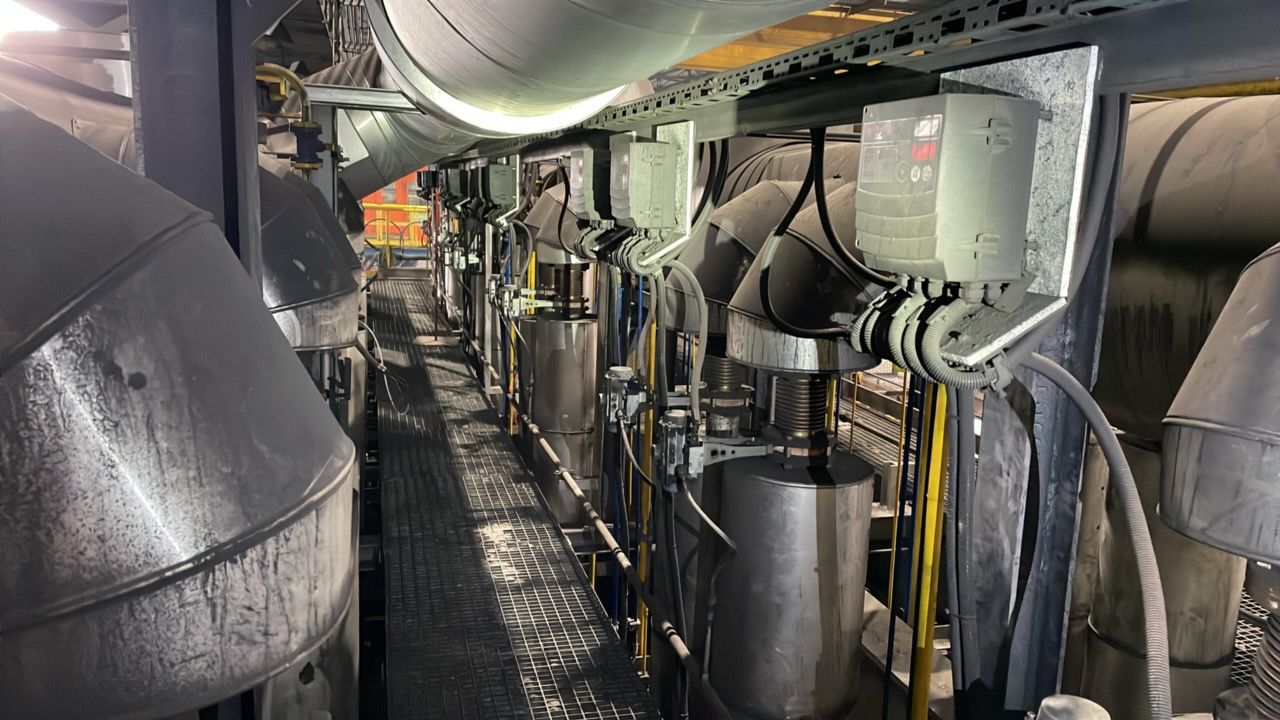

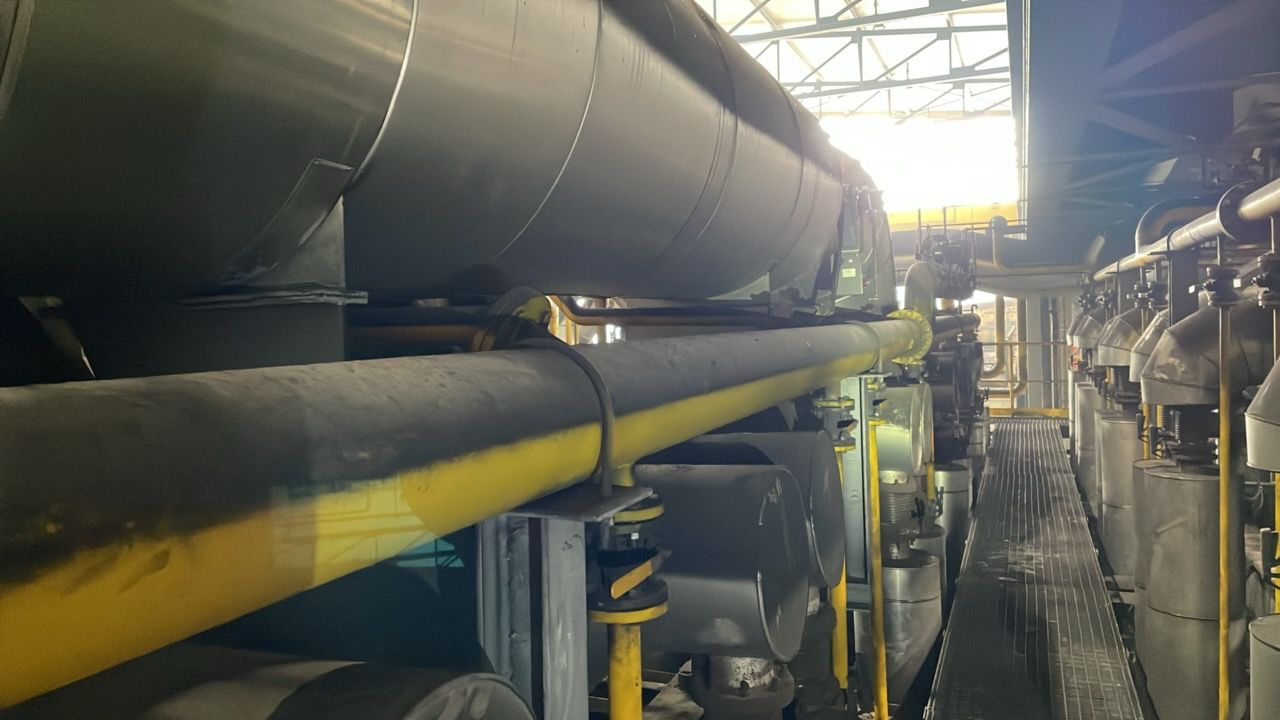

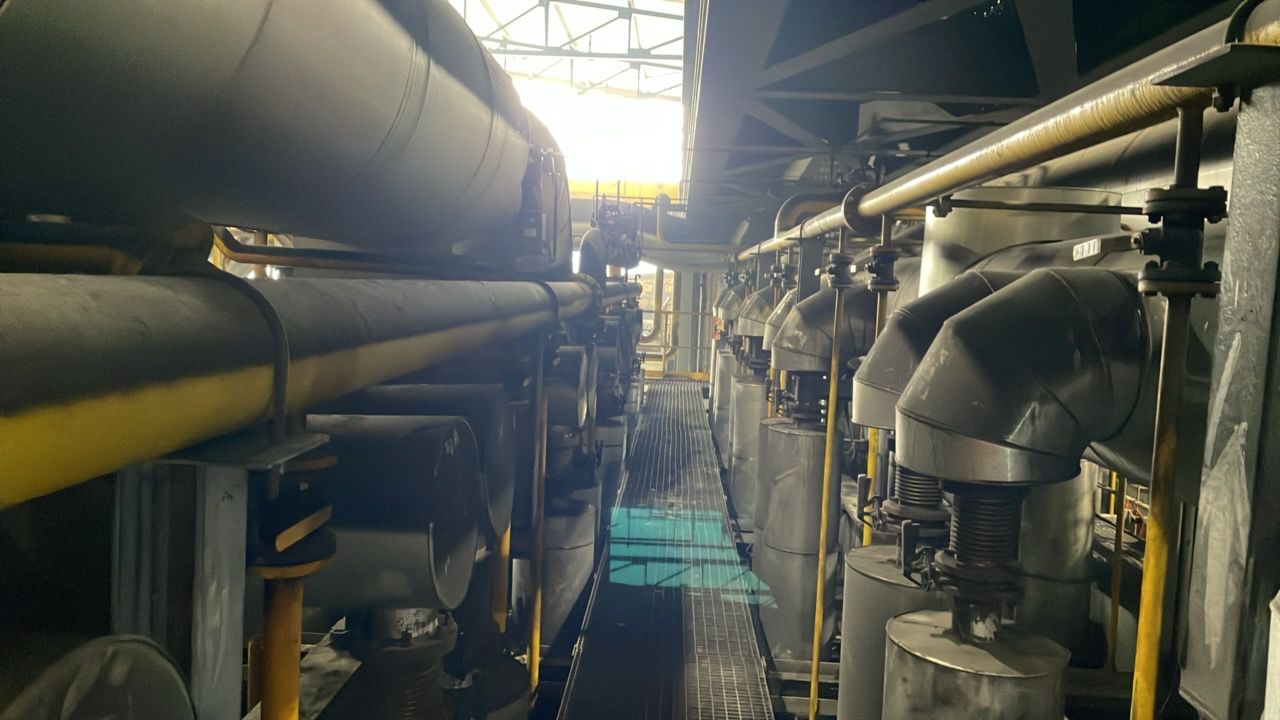

In the heating and soaking zones, radiant roof burners, placed on roof irradiate over the upper and side surfaces of the material.

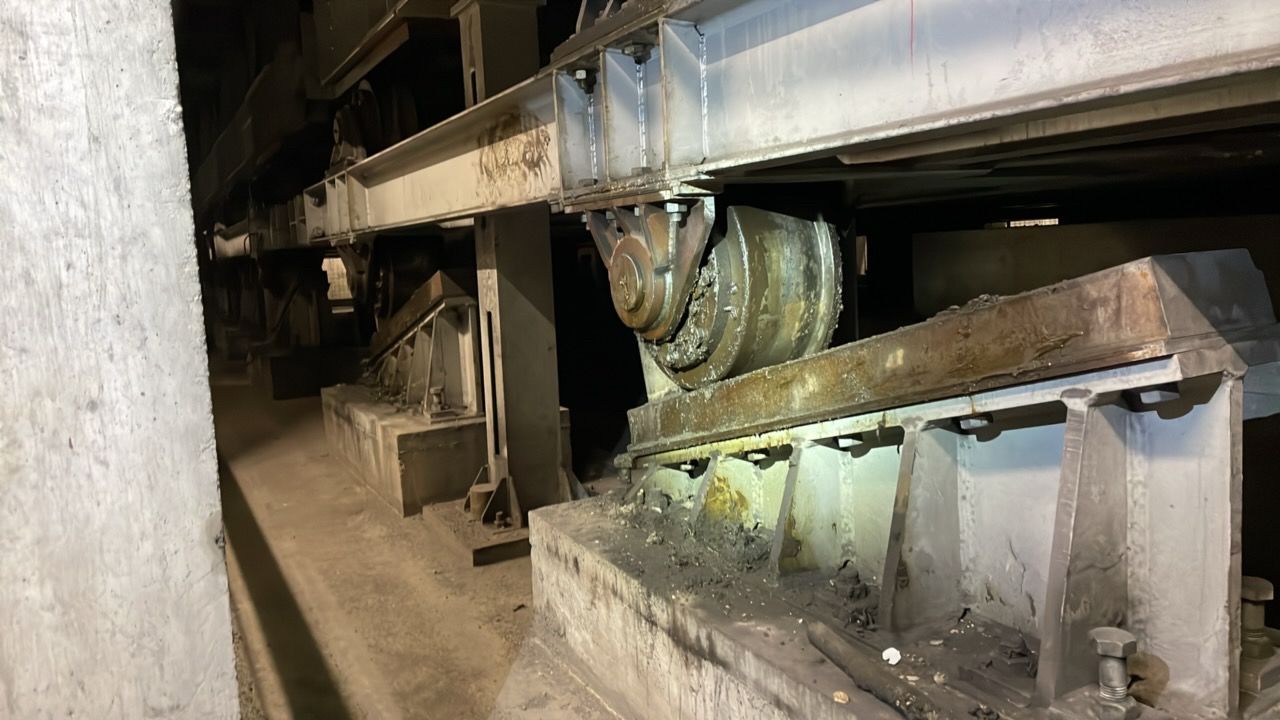

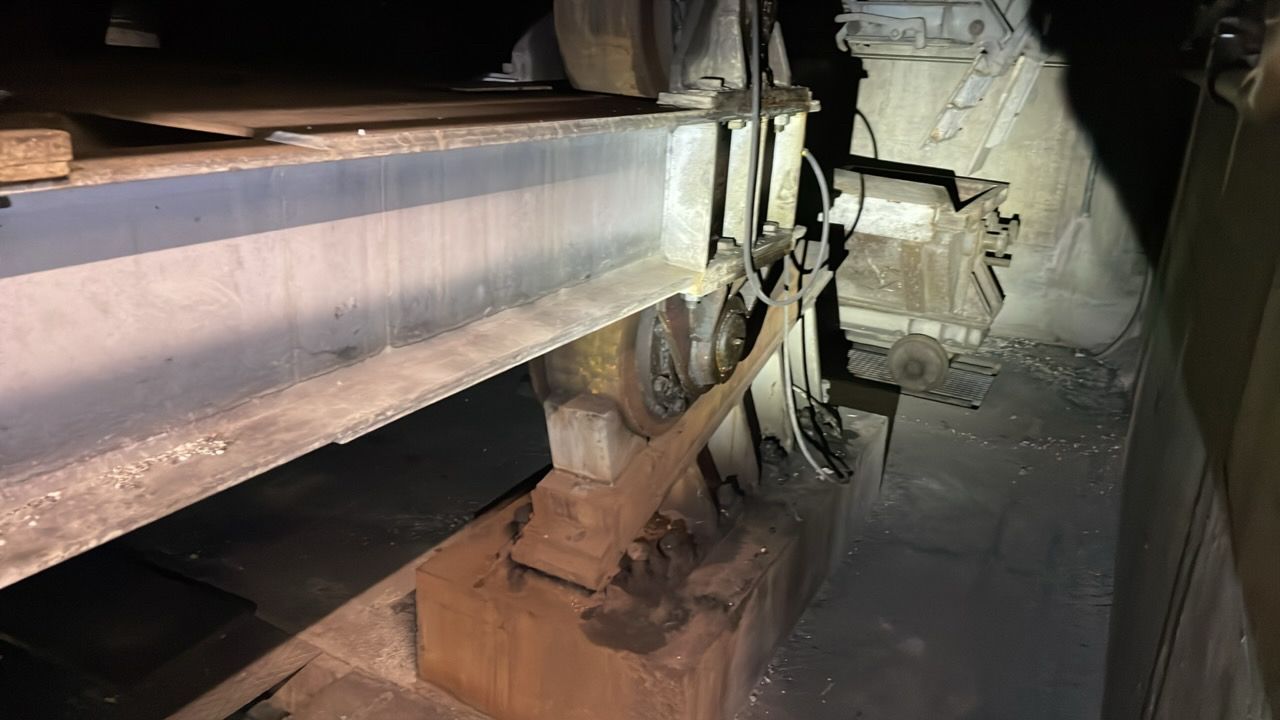

The hot face of walking and fixed hearth is foreseen with refractory vibro concrete showing a particular resistance to the wear and to the thermo-chemical action of the scale.

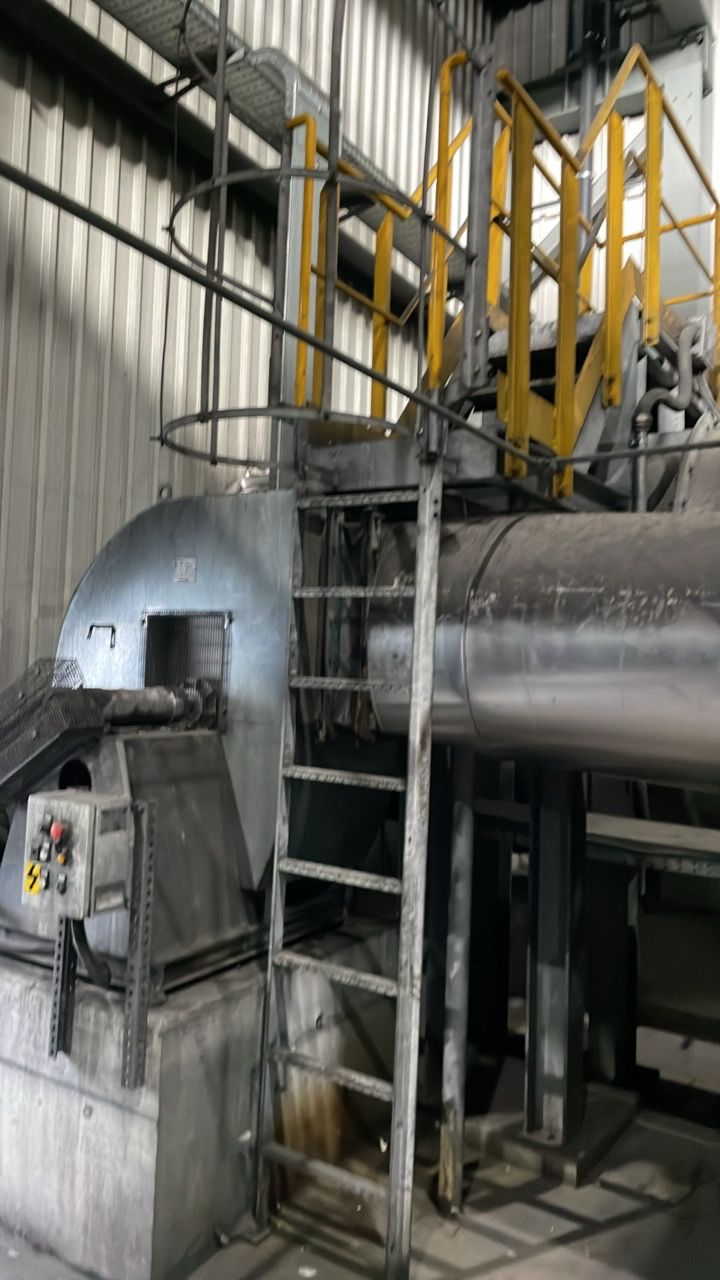

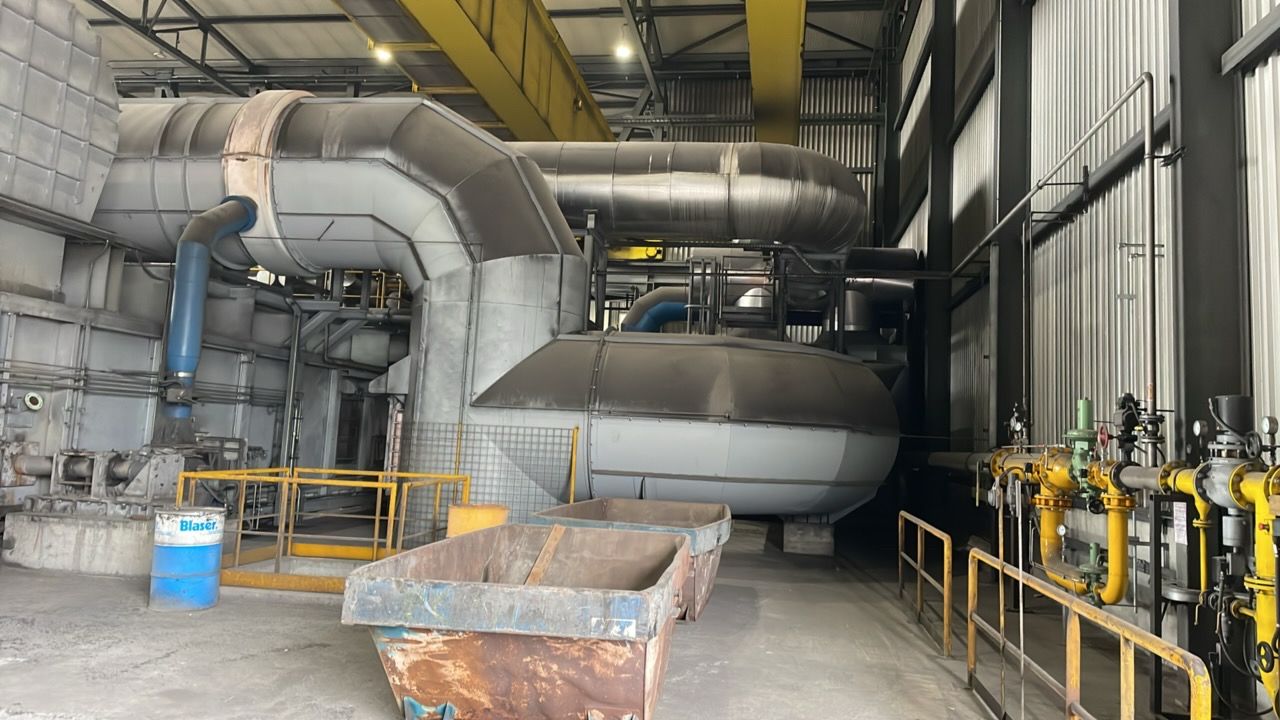

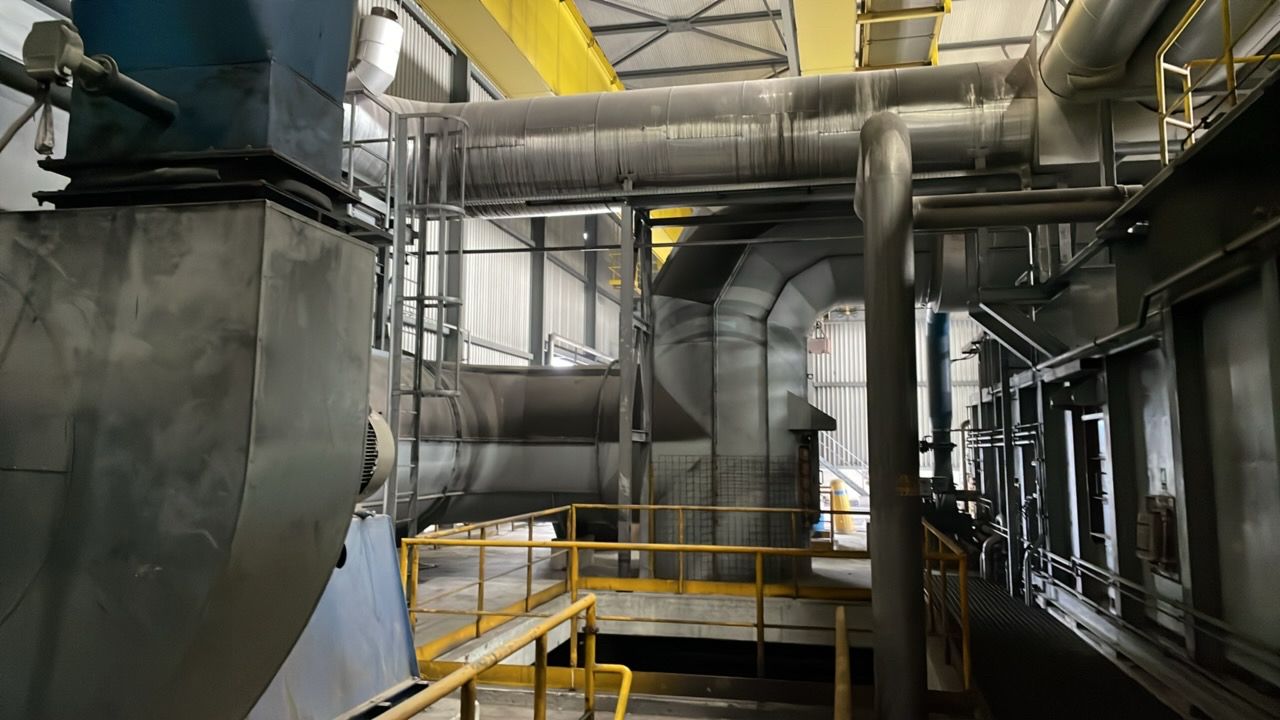

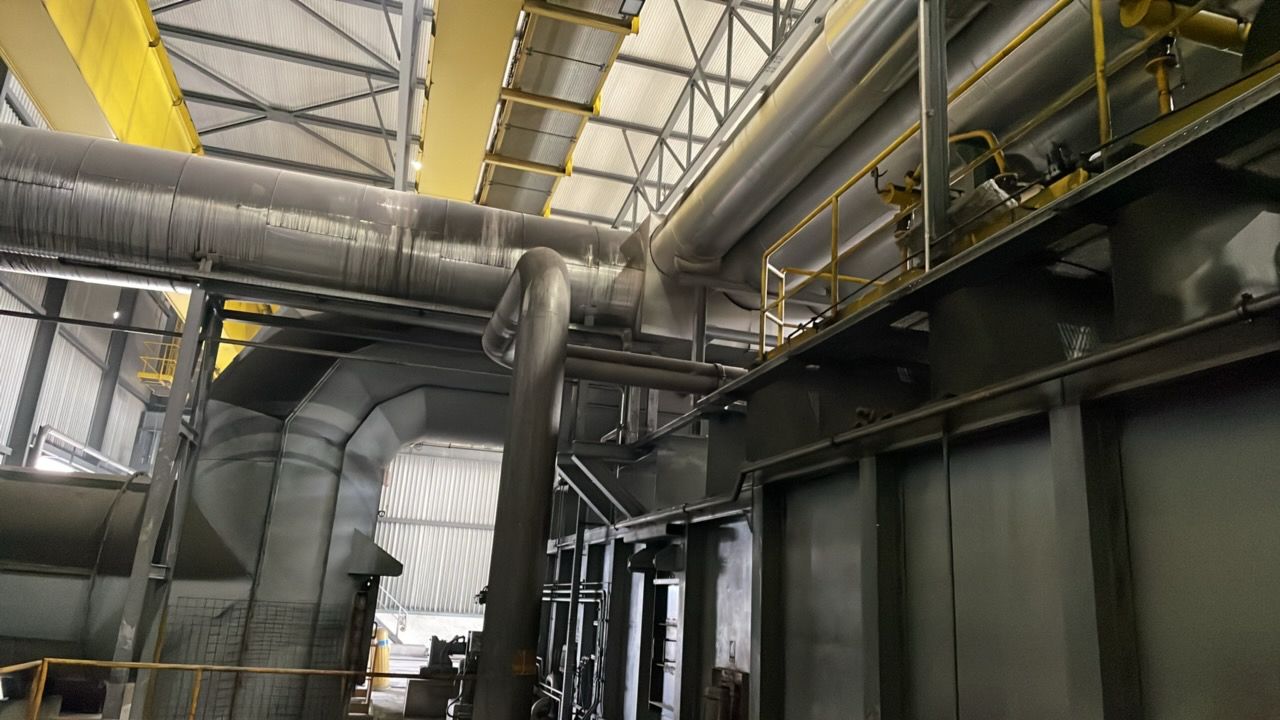

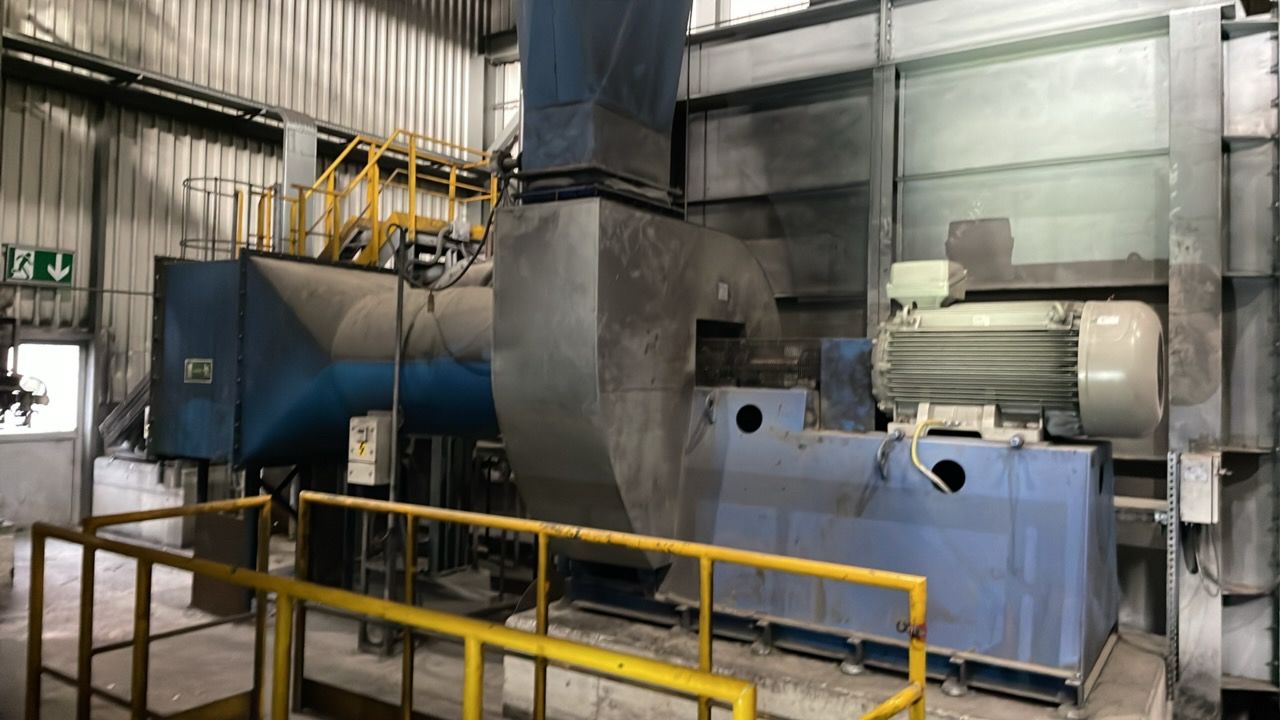

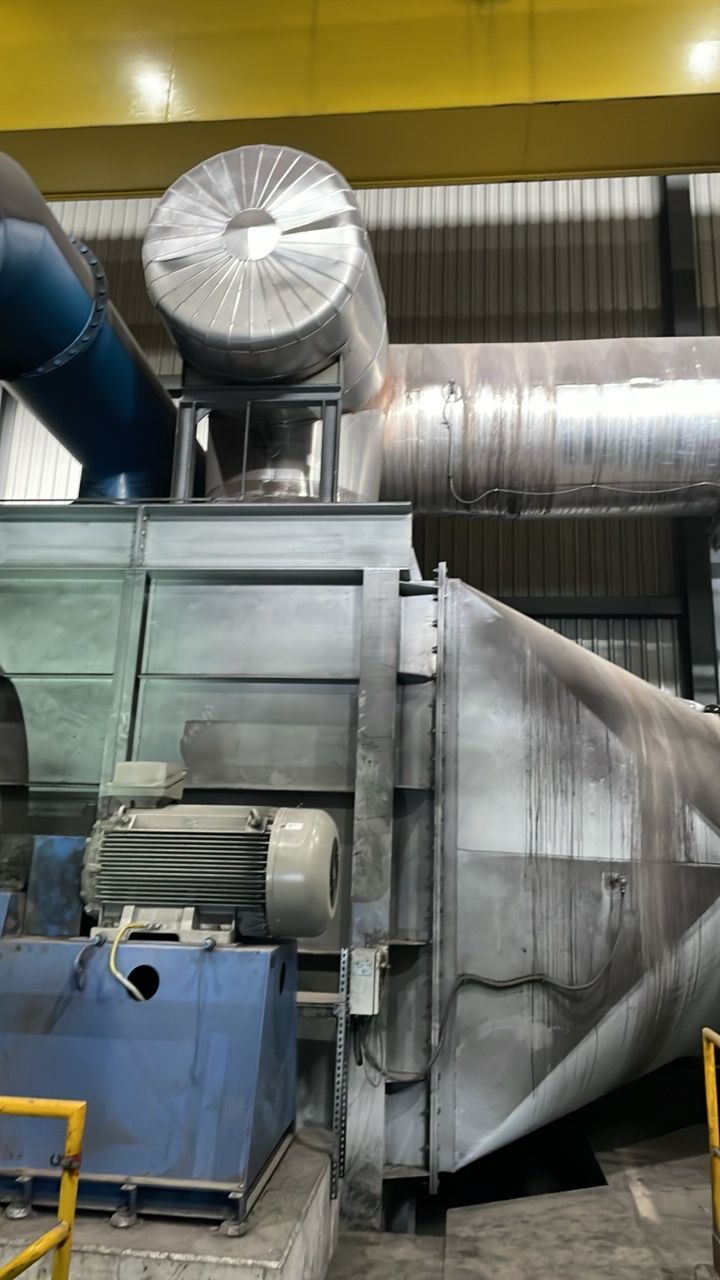

The products of combustion, which leave part of their heat content to the material are evacuated at the charging side by a metallic exhaust conduit and are conveyed to the recuperator, which preheats combustion air for all burners at a temperature of abt. 530°C. Recuperator is placed on a metallic casing, internally insulated.

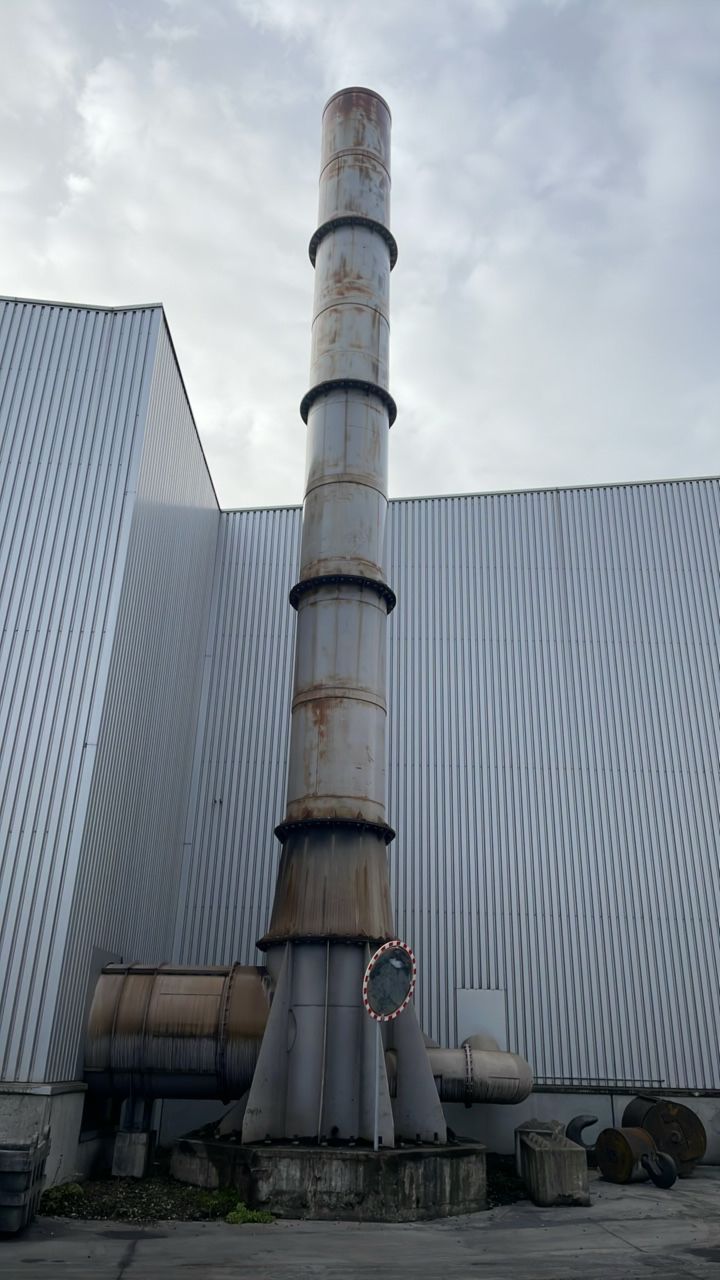

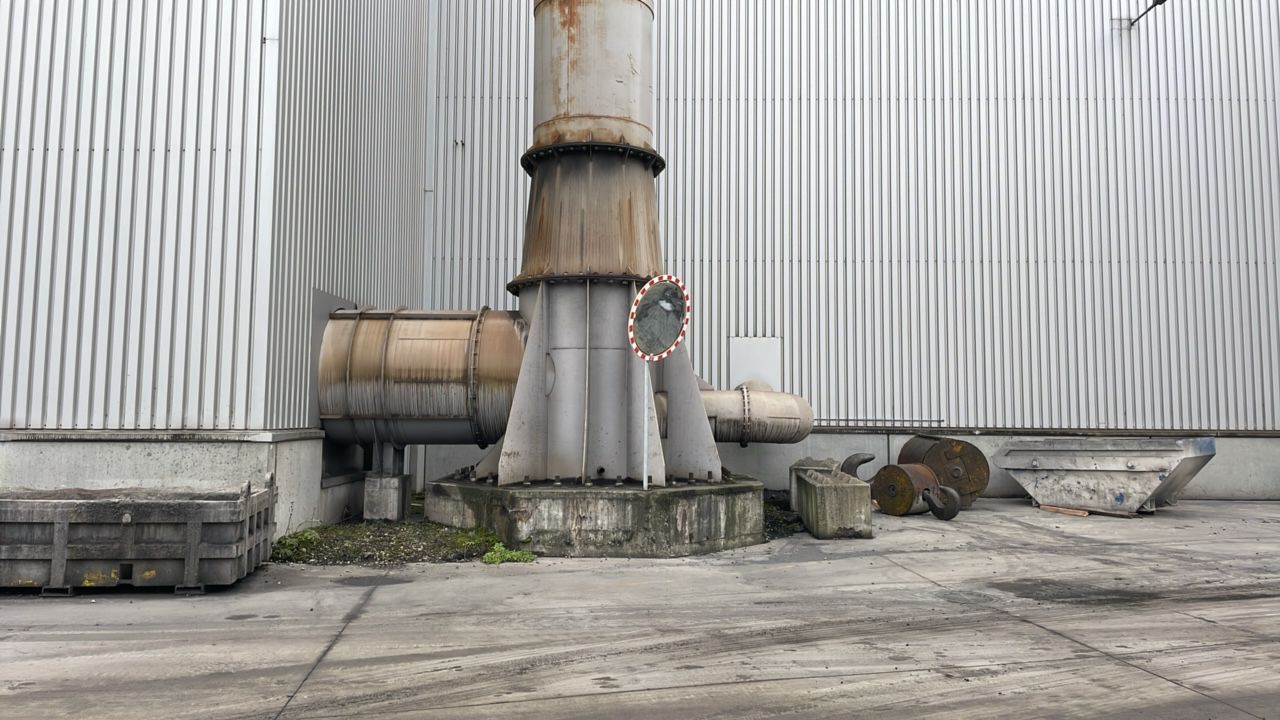

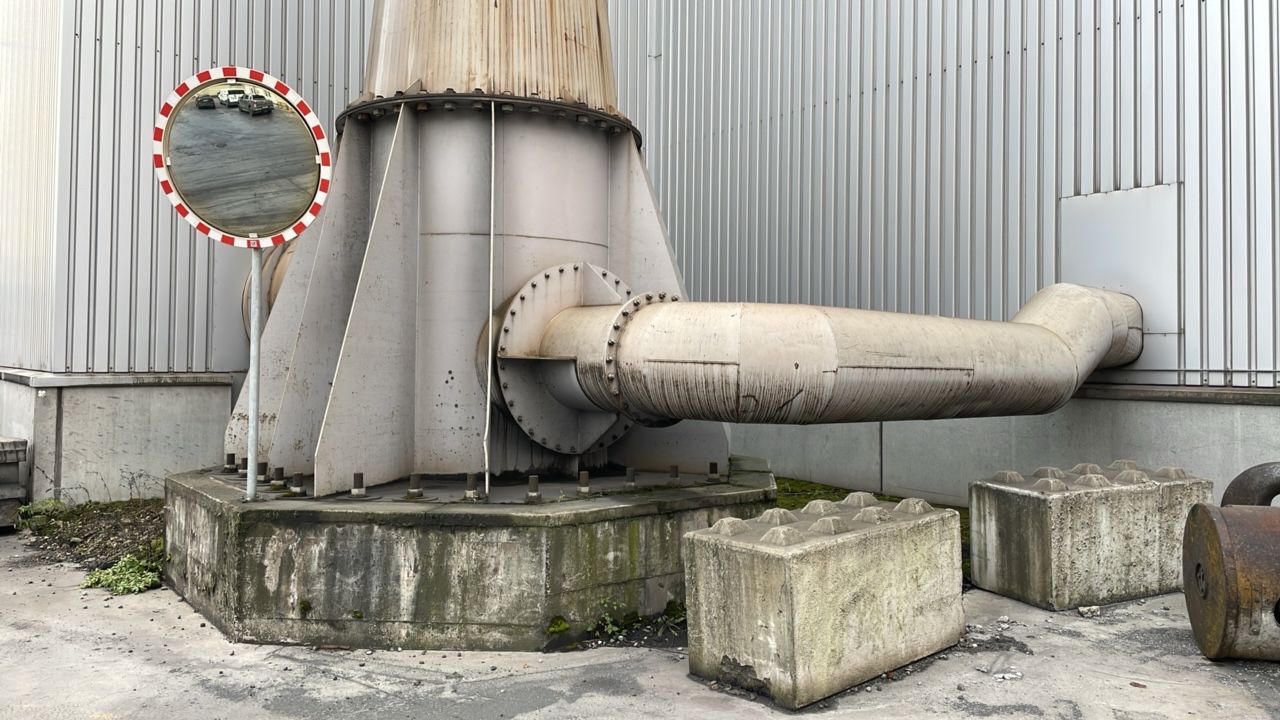

Subsequently waste gases pass through pressure regulation damper and finally to the stack.
*** Extra lot, part of the total package 'Lot 1' and not sold separately!!!
