‘MTM-SMS’ 6” Electric Resistance Welding (ERW) Pipe Mill
Lot No. 2
‘MTM-SMS’ 6” Electric Resistance Welding (ERW) Pipe Mill
Make: MTM (Italy)
SMS ELOTHERM (Germany)
KTM (Korea)
Year: 1995
Revamping / upgrades: 2021
Mothballed since: Ceased production October 2024
Pipe Specs (KS Standards): SPHT1~3, API-B, SS275, SS400
Thickness (round pipe): 2.8 – 5.5 mm
Thickness (square pipe): 1.8 – 5.5 mm
Starting material: Hot Rolled Steel
237.6 - 523.3 mm skelp width
Outer diameter (round pipe): Ø 76.3 Ø 89.1 Ø 101.6 Ø 114.3 Ø 139.8 Ø 165.2 mm
Outer diameter (square pipe): Squares 75 and 100 mm, as well as 4 and 5”
Rectangular 100 x 50 and 100 x 150 mm, as well as
4 x 3, 5 x 3, 6 x 2 and, 6 x 3 inches
Capacity:150,000 tons per year (24h operation)
Line speed: 15 – 30 mpm
Line direction: Right to left
Consists of:
Uncoiler
Double drum rotary type
Hydraulic disk brakes
Max 25 tons coil weight
2.8 – 5.5 mm coil thickness
237.6 – 523.3 mm coil width
DC motor 26kW 440V 76A 1950-3800RPM / GNAFF 132MV

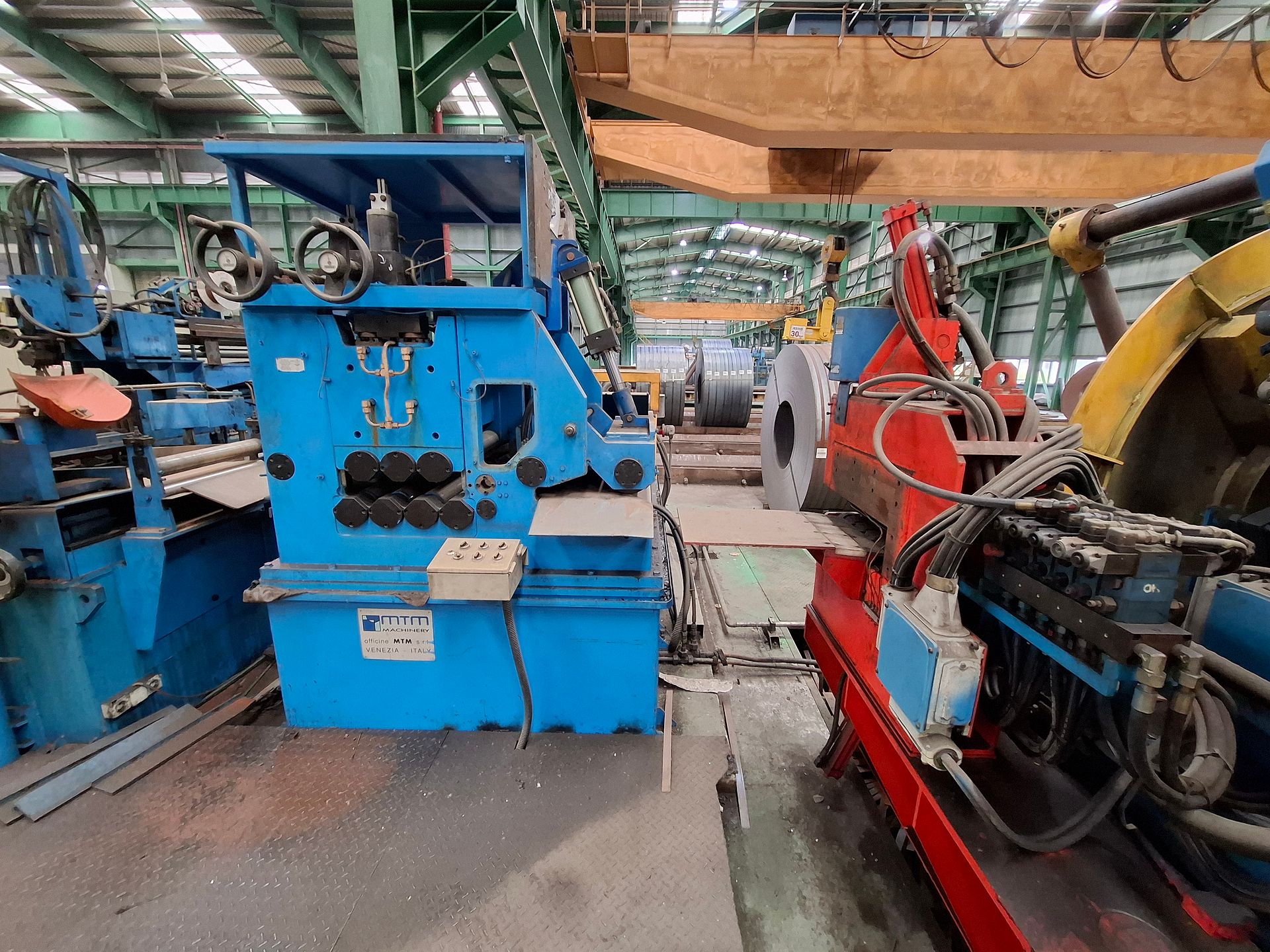

Pinch Roll
Double Swivel Type
3 Upper Roll
4 Lower Roll
HYD’ UNIT motor 12.6kW 1755RPM
DC motor 18kW 440V 51A 2950-5940RPM / GNAFF 112LV

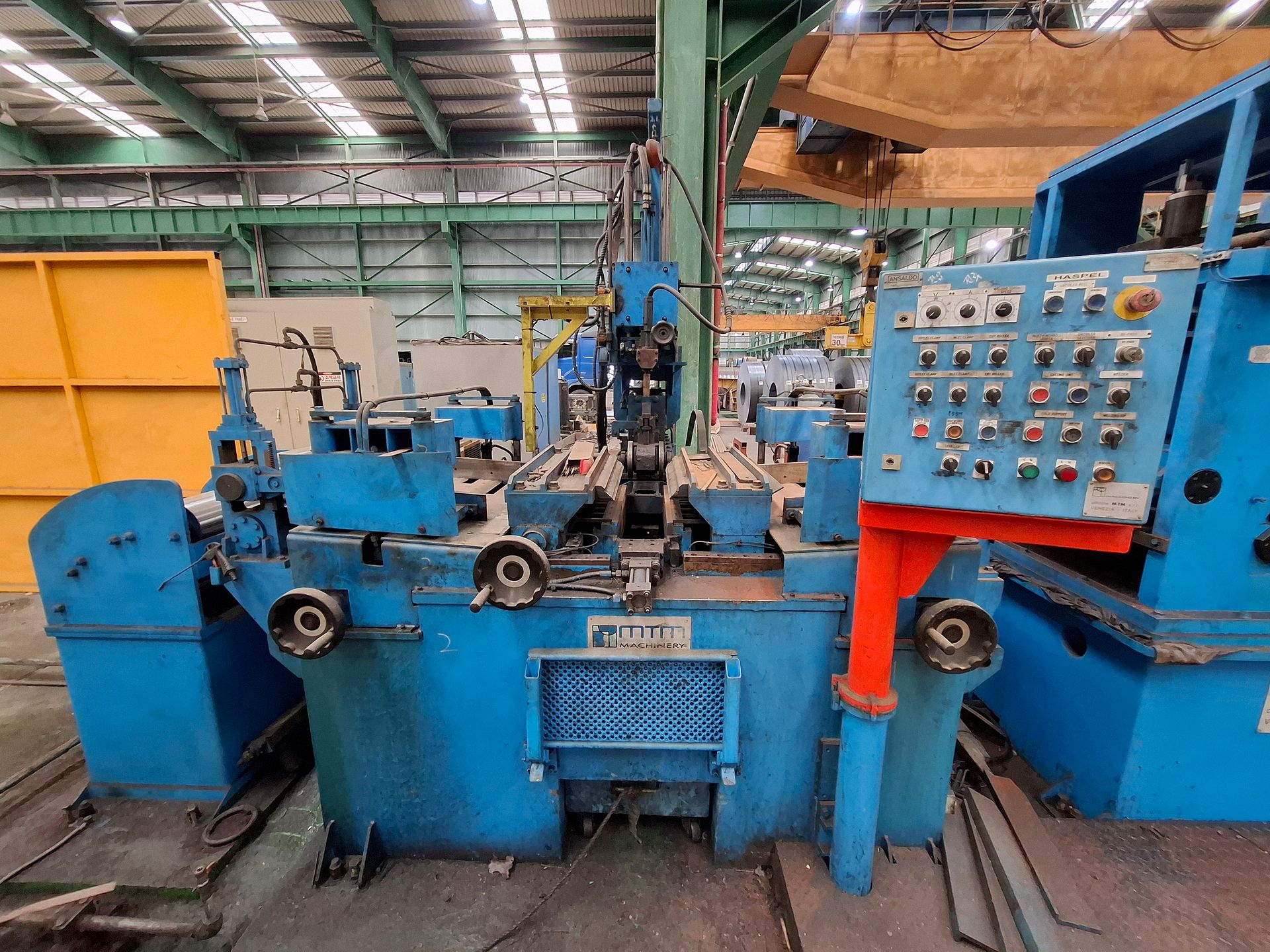

Shear and Welder
Rotary Shear, TIG Welder type
Forward, Reverse Cut
CO2 Welder (500A)

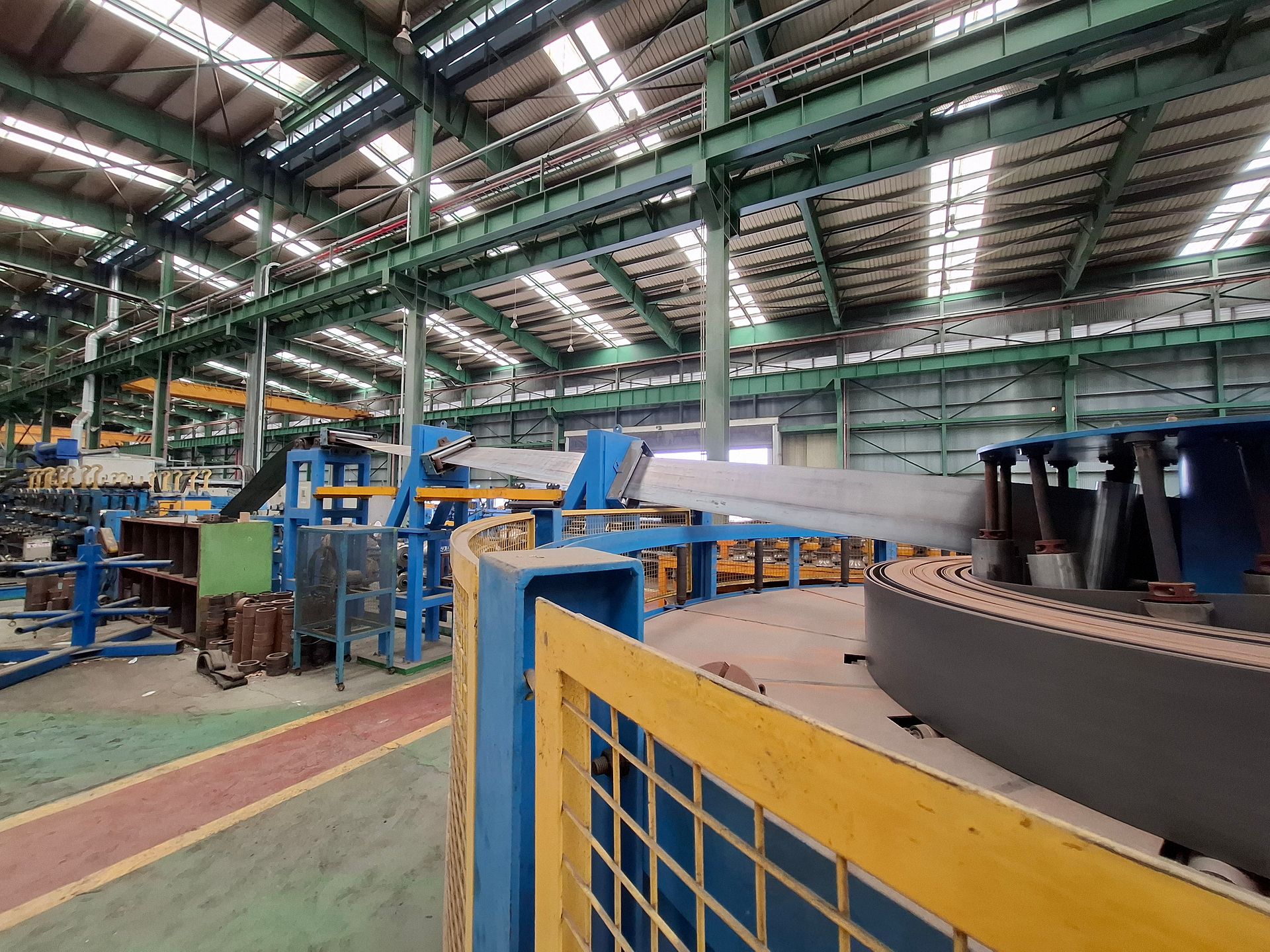

Accumulator
Horizontal Spiral Looper
500 meters strip capacity
Entry Pinch Roll motor: 45kW 440V 118A 4P 1750/2300RPM
DC motor 26kW 400V 76A 1950-3800RPM / GNA123MV

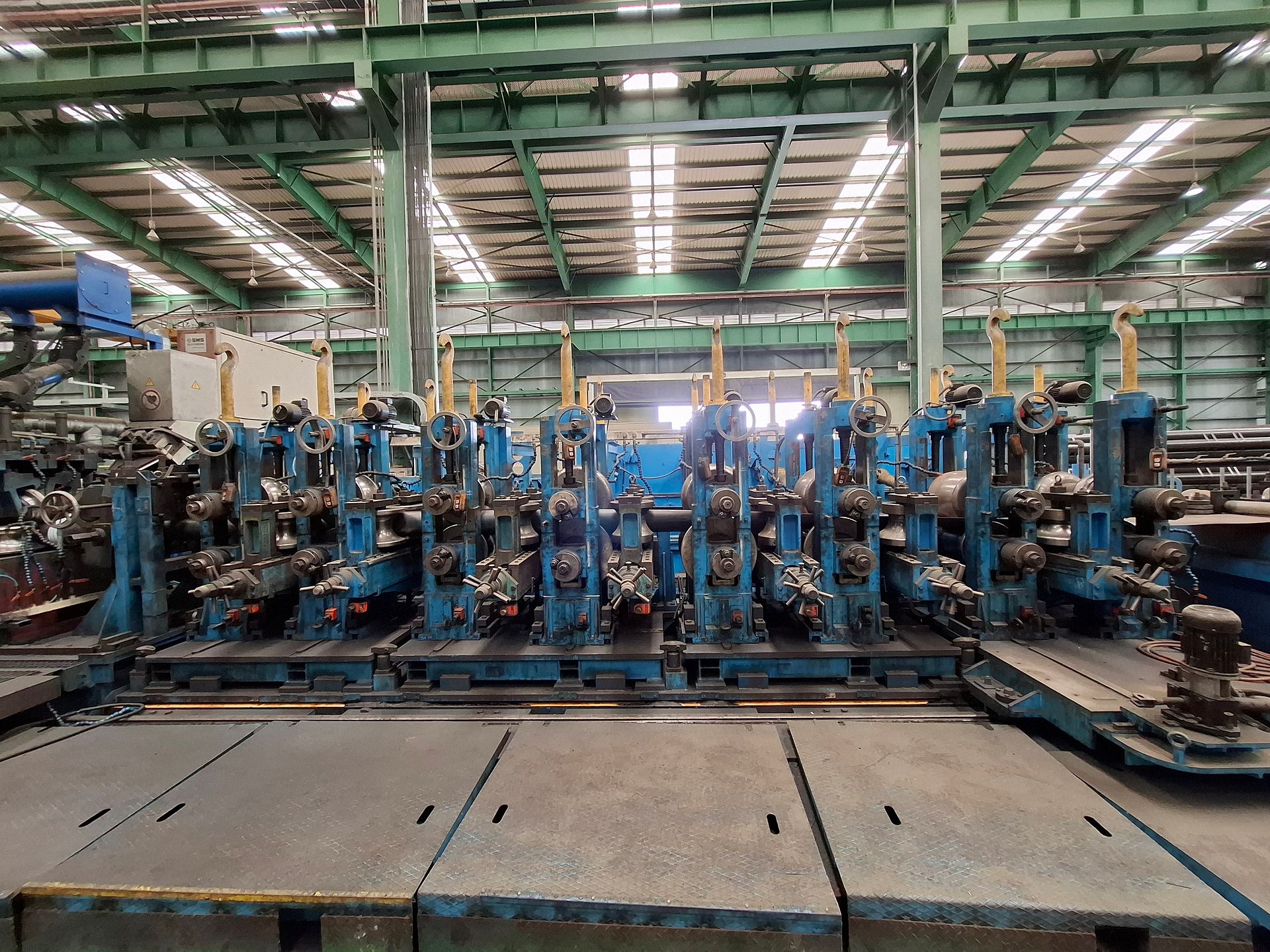

Forming (Breakdown & Finpass)
5 + 3 Roll Stands
Motorized Shaft diam. 110 mm
Roll diam. 150 mm
Roll Shaft diam. 110 mm
DC motor 150kW

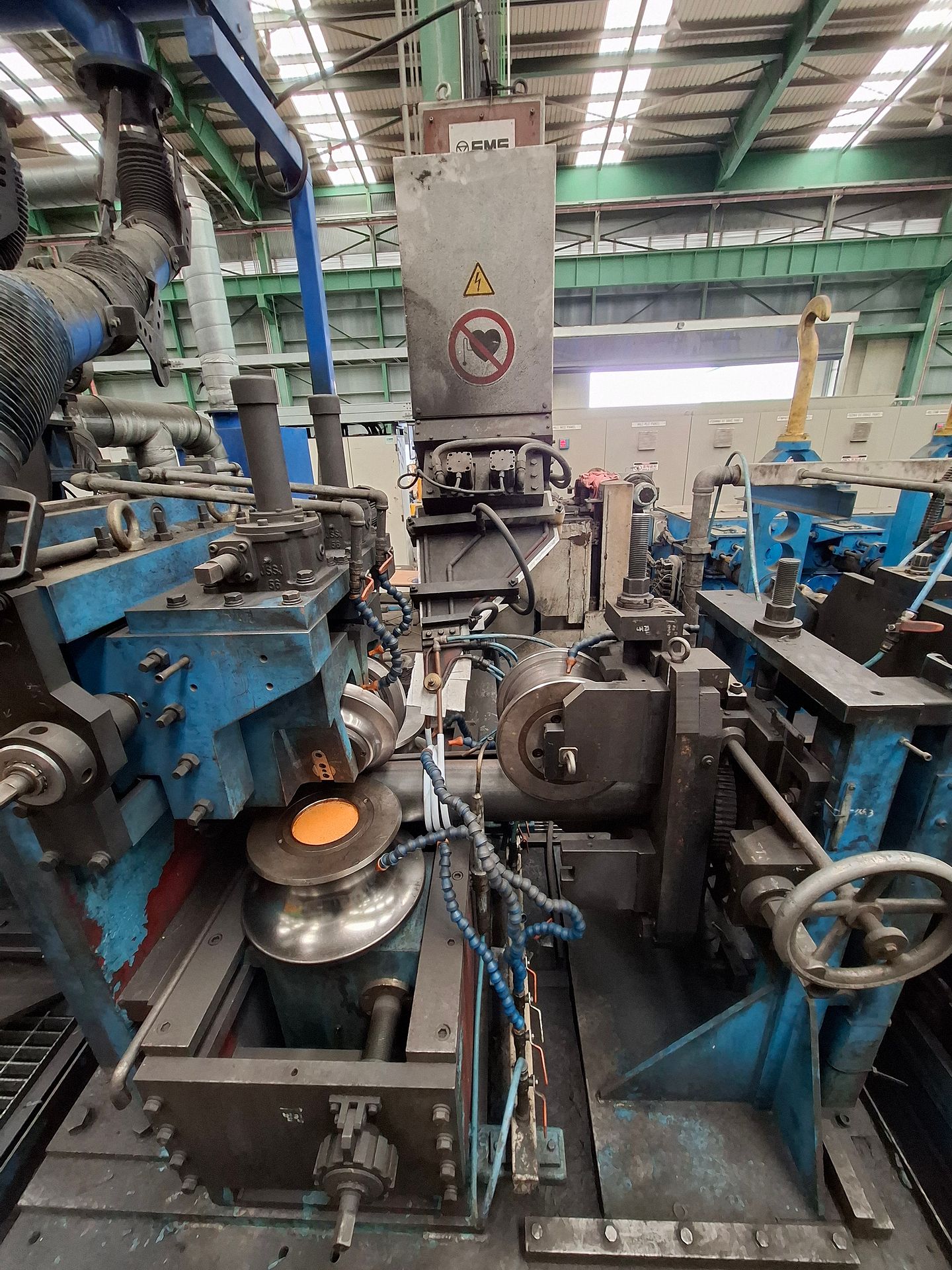

High Frequency Welder
SMS ELOTHERM
400kW power
300Khz frequency
Work Coil Type (ERW welding)
Rapid Cooling Zone
Pipe rapid water cooling
Pump motor 15kW 440V 25A 1760RPM
Cooling Fan motor 22kW 440V 38.8A 1770RPM 180M

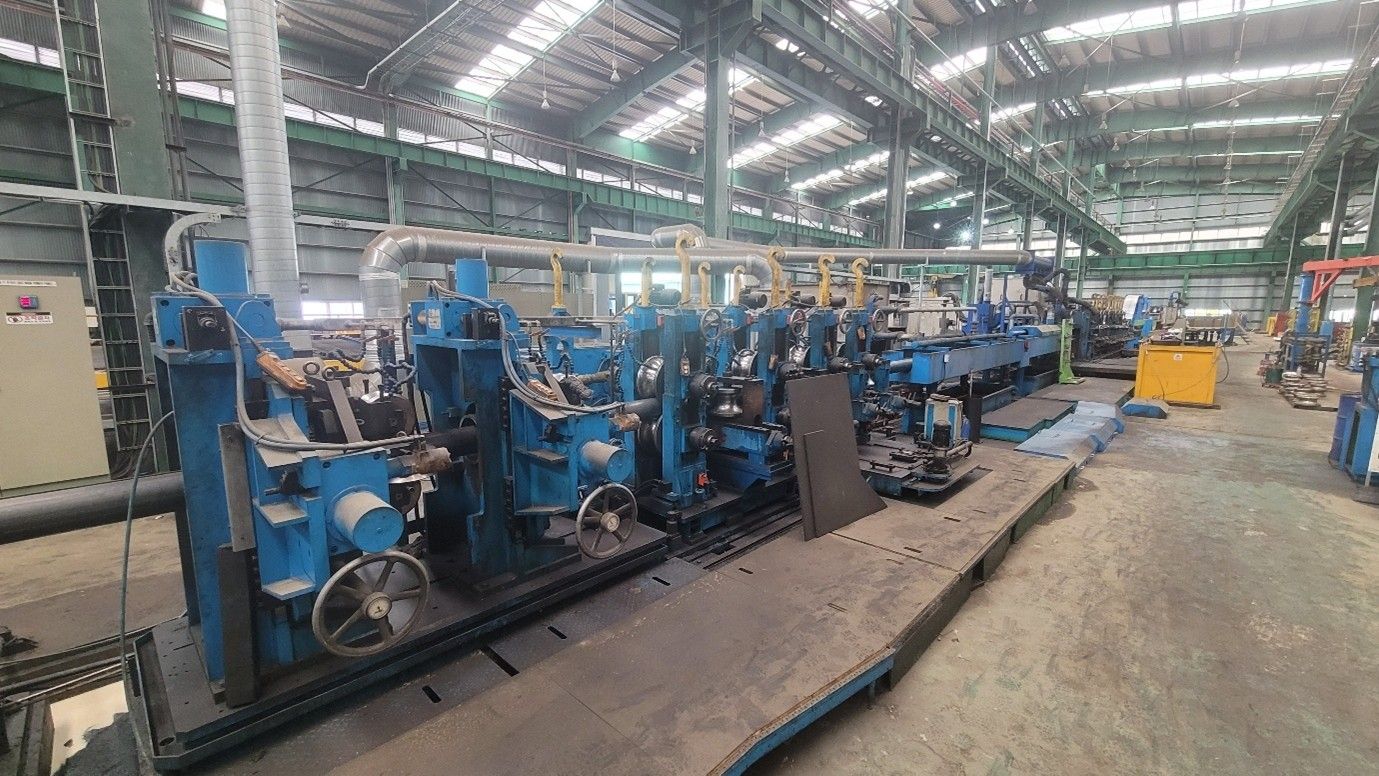

Sizing
5 Roll Stands
Motorized Shaft diam. 110mm
Roll diam. 150mm
Roll Shaft diam. 70mm
Roll Spacer Left/Right 124mm
Roll Spacer Top/Bottom 160mm
Motor 150kW 440V 376A 600-2000RPM
Flying cut-off machine
Friction Saw Cutter Type
Cross Carriage Slop Sliding Type
Saw diam. 90 mm
Saw Drive AC Motor 75KW 440V 122.8A 1770RPM 250S
Feeding Speed max 80 mpm
Feeding Control D.D.S. Type

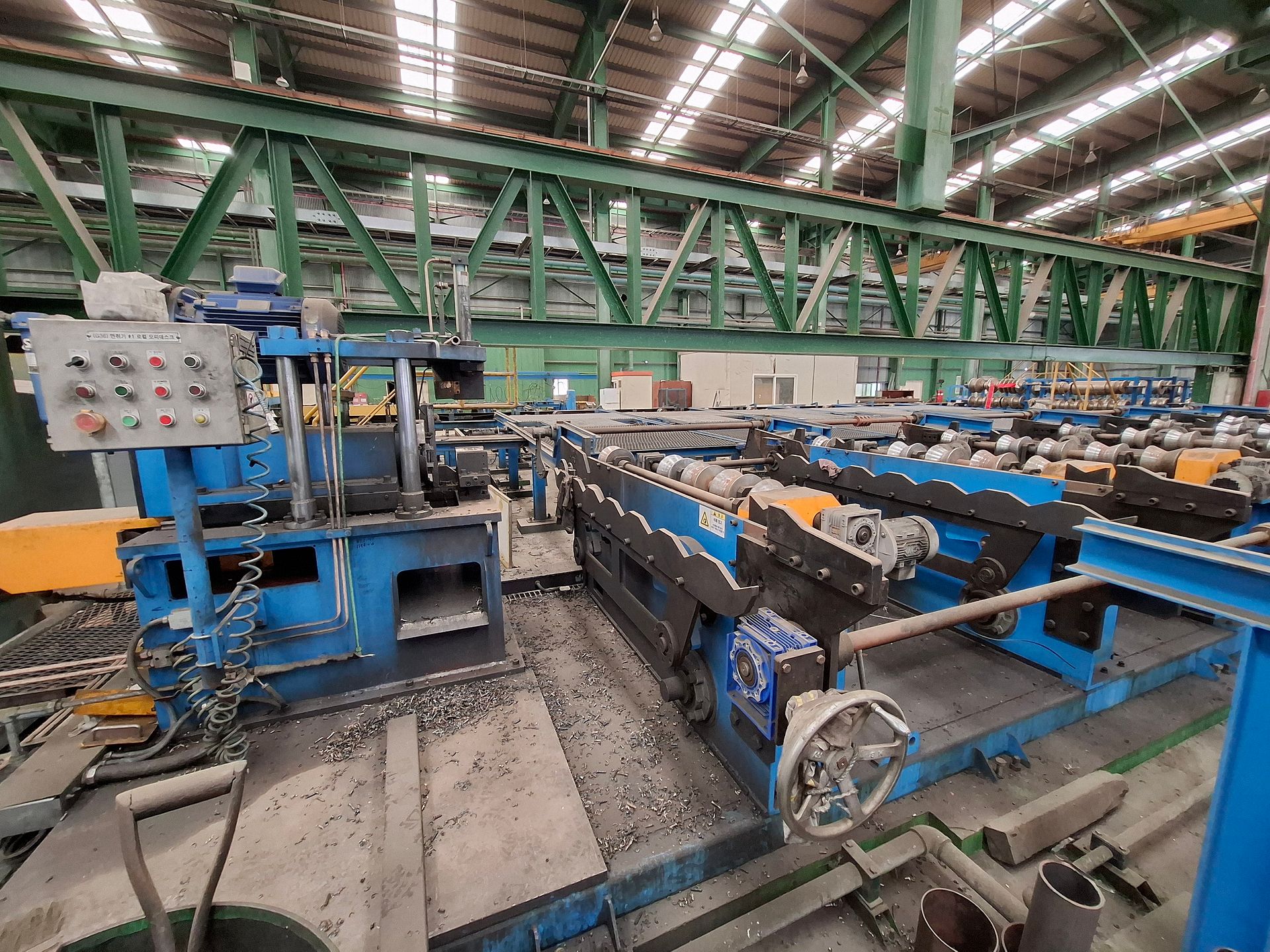

End Facing Machine
Top & Bottom Type
Sizes Ø 76.3 – Ø 165.2 mm
Facing Motor 22kW 440V 38.3A 1770RPM [P30HV1FI]

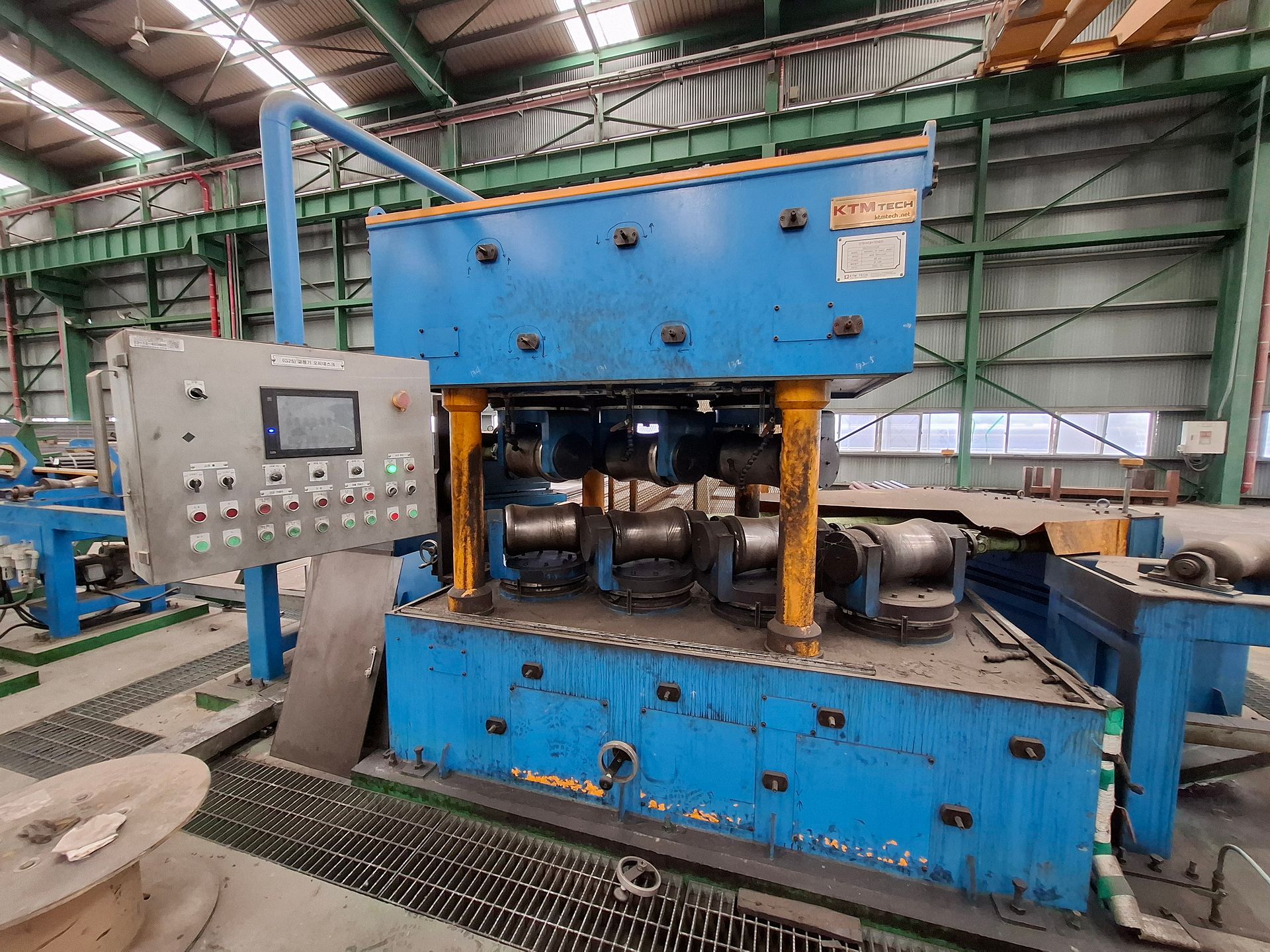

Straightening Machine
3 Top Rolls
4 Bottom Rolls
Pipe OD max diam. 165.2 mm
Pipe Thickness max 5.5 mm
Pipe length max 12 meters
Motor 37kW 4P 440V 63A 200L 1770RPM
Marking Machine
Printing speed 80 – 160 mpm
Printing distance > 10 mm from target surface to nozzle tip
RS232C serial communication (19.2kbs)
Pressure Dry Air ≤ 0.4Mpa (recommended 0.6MPa)

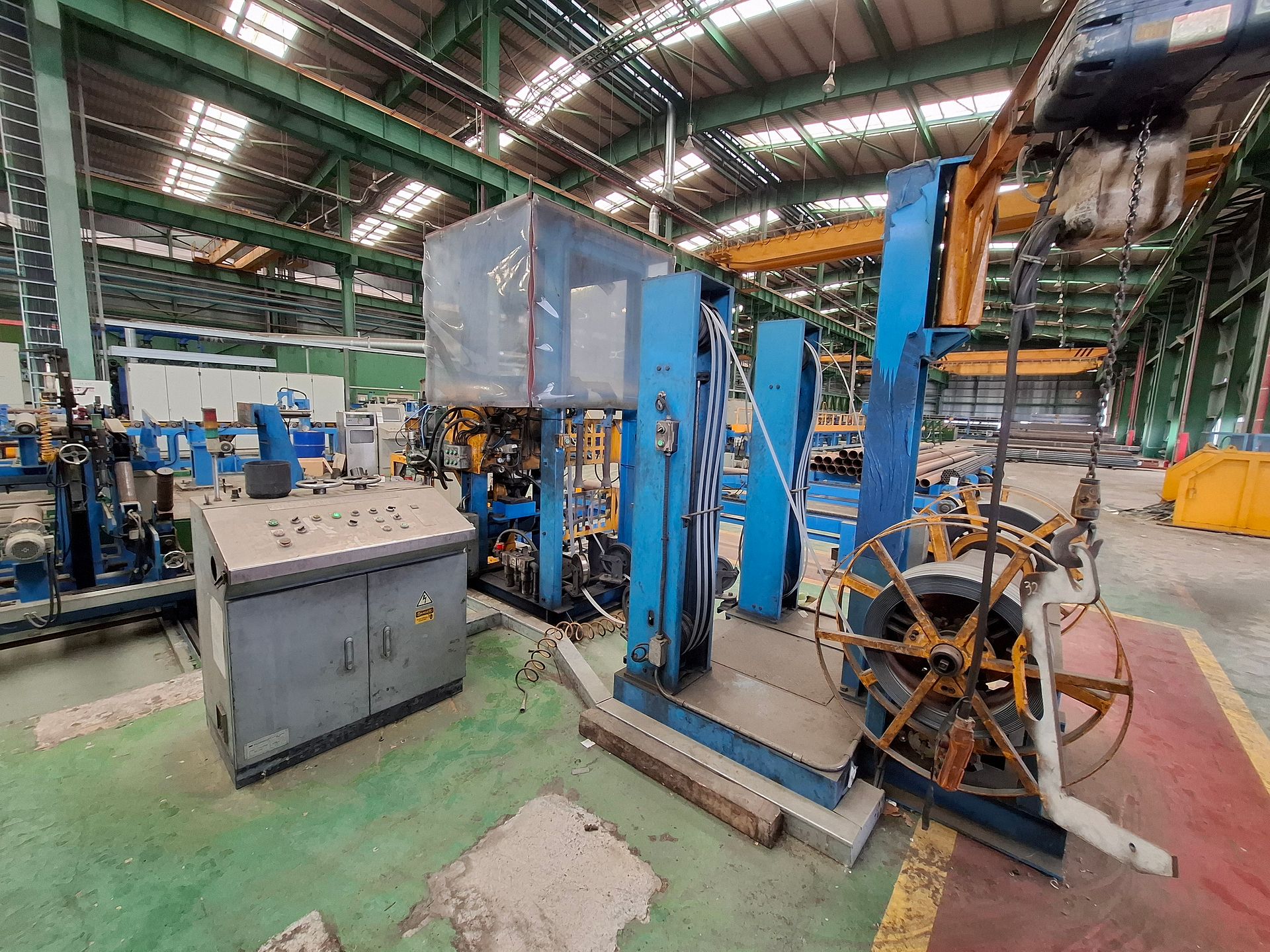

Strapping - Packing Machine
Hydraulic Unit 15KW 4P 440V 26.8A 160L 1775 RPM

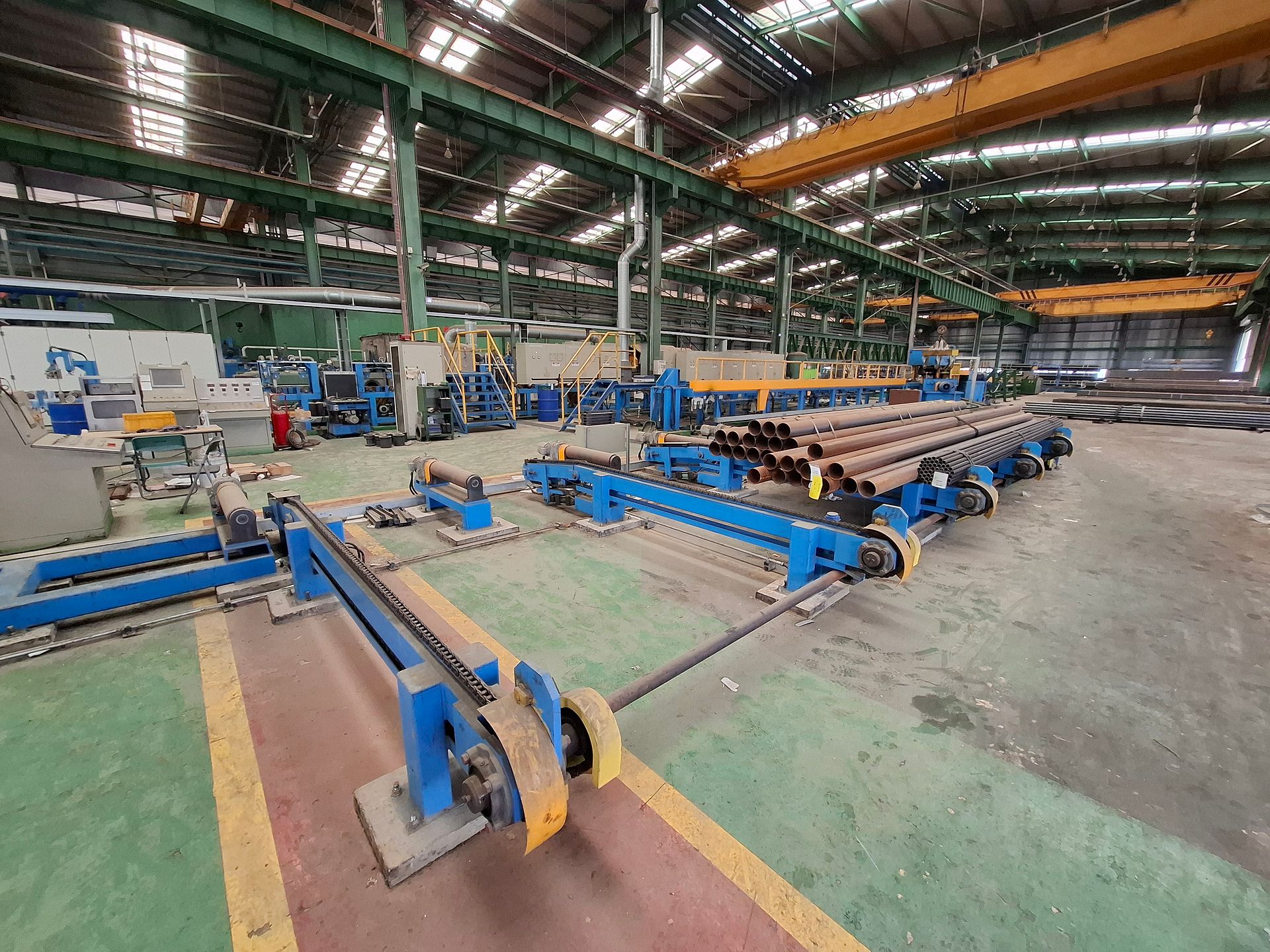

Exit Table

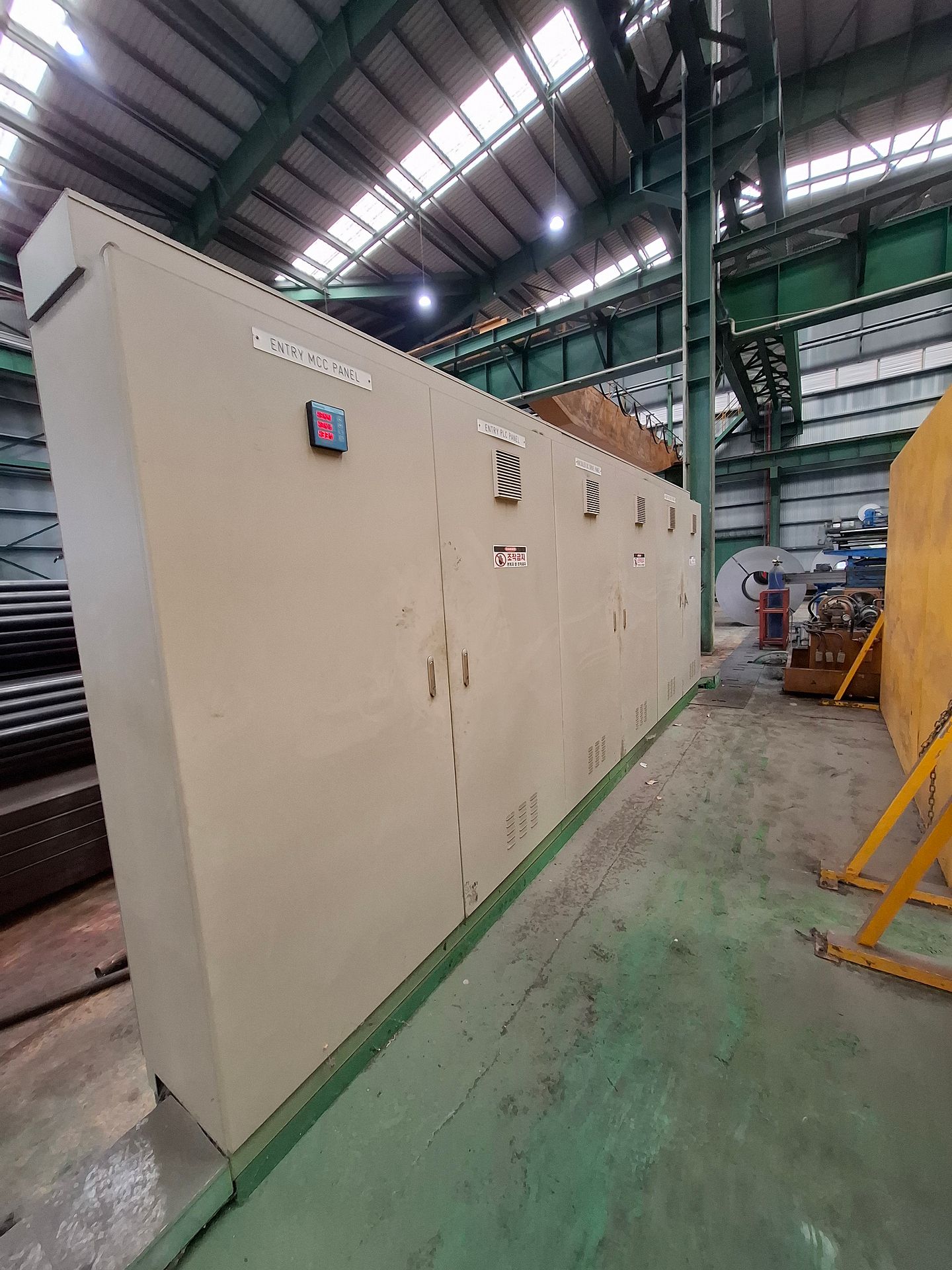

Electrical Room
