25x Carbon Steel Vessels
Equipment: 1
Volume m³: 62.5
Height/Length mm: 9600
Diameter mm: 2800
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 4.1
Design Temperature Max. °C: 343
Service: Crude Oil
Year of construction: 1965
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1, Pic2
Equipment: 2
Volume m³: 69.5
Height/Length mm: 10225
Diameter mm: 3000
Material of Construction: Carbon Steel (HIC resistant) DICREST 5
Design Pressure Max. Bar: 3.5
Design Temperature Max. °C: 343
Service: Naphtha Minus
Year of construction: 2015
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1, Pic2
Equipment: 3
Volume m³: 3.3
Height/Length mm: 3200
Diameter mm: 1100
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 14.5
Design Temperature Max. °C: 260
Service: Butan Minus
Year of construction: 1964
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1, Pic2
Equipment: 4
Volume m³: 0.65
Height/Length mm: 1520
Diameter mm: 800
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 10
Design Temperature Max. °C: 150
Service: Slops
Year of construction: 1996
Design Code ANSI / DIN: DIN
Comment:
Equipment: 5
Volume m³: 0.82
Height/Length mm: 2835
Diameter mm: 700
Material of Construction: Carbon Steel/SS Overlay
Design Pressure Max. Bar: 3.4
Design Temperature Max. °C: 343
Service: HC Reflux
Year of construction: 1992
Design Code ANSI / DIN: DIN
Comment:
Equipment: 6
Volume m³: 0.65
Height/Length mm: 1500x600
Diameter mm: 600
Material of Construction: Carbon Steel
Design Pressure Max. Bar: Atm.
Design Temperature Max. °C: 150
Service: Slops
Year of construction: 1996
Design Code ANSI / DIN: DIN
Comment:
Equipment: 7
Volume m³: 8.815
Height/Length mm: 3300
Diameter mm: 2024
Material of Construction: Carbon Steel
Design Pressure Max. Bar: Atm.
Design Temperature Max. °C: 150

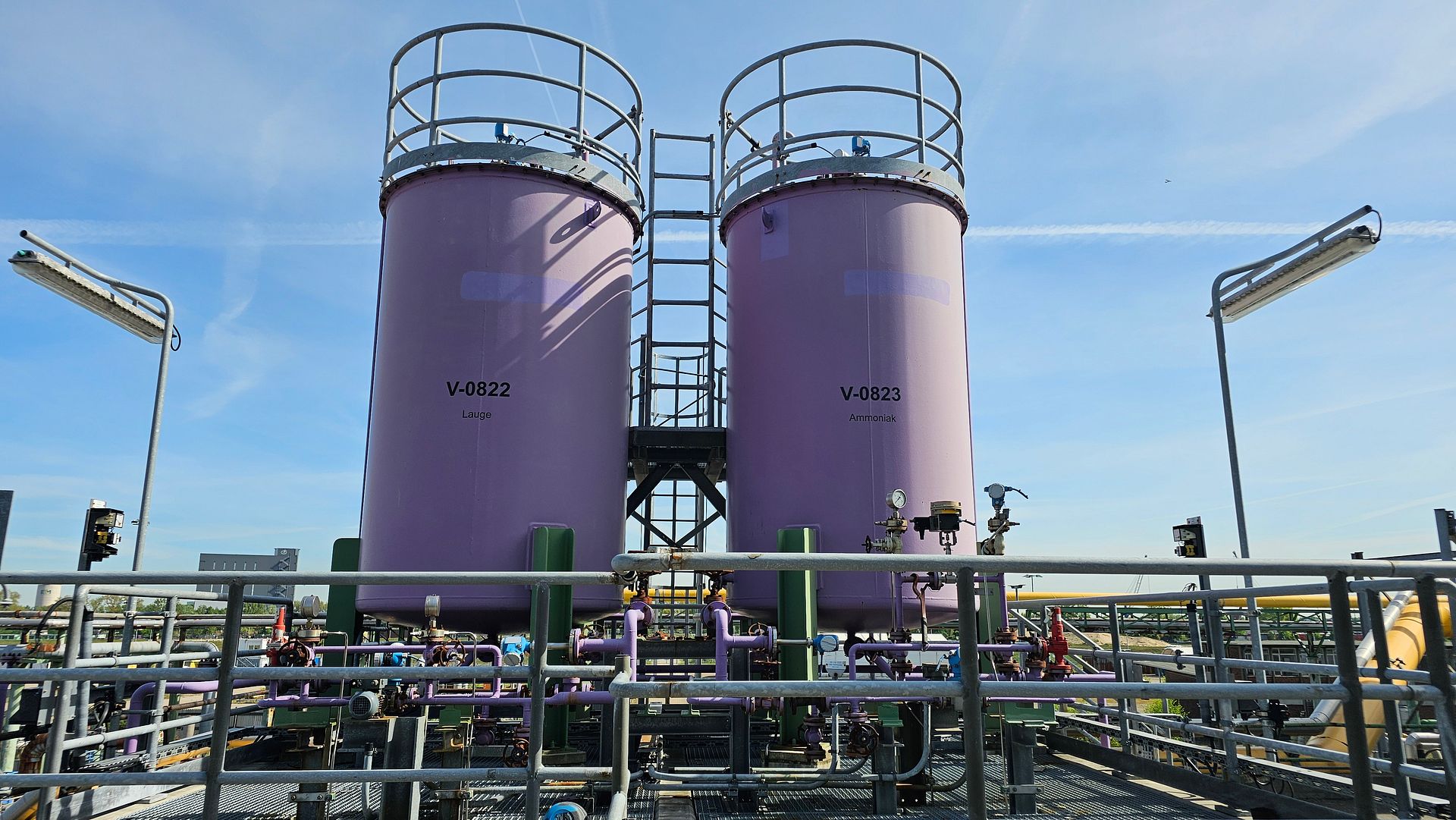

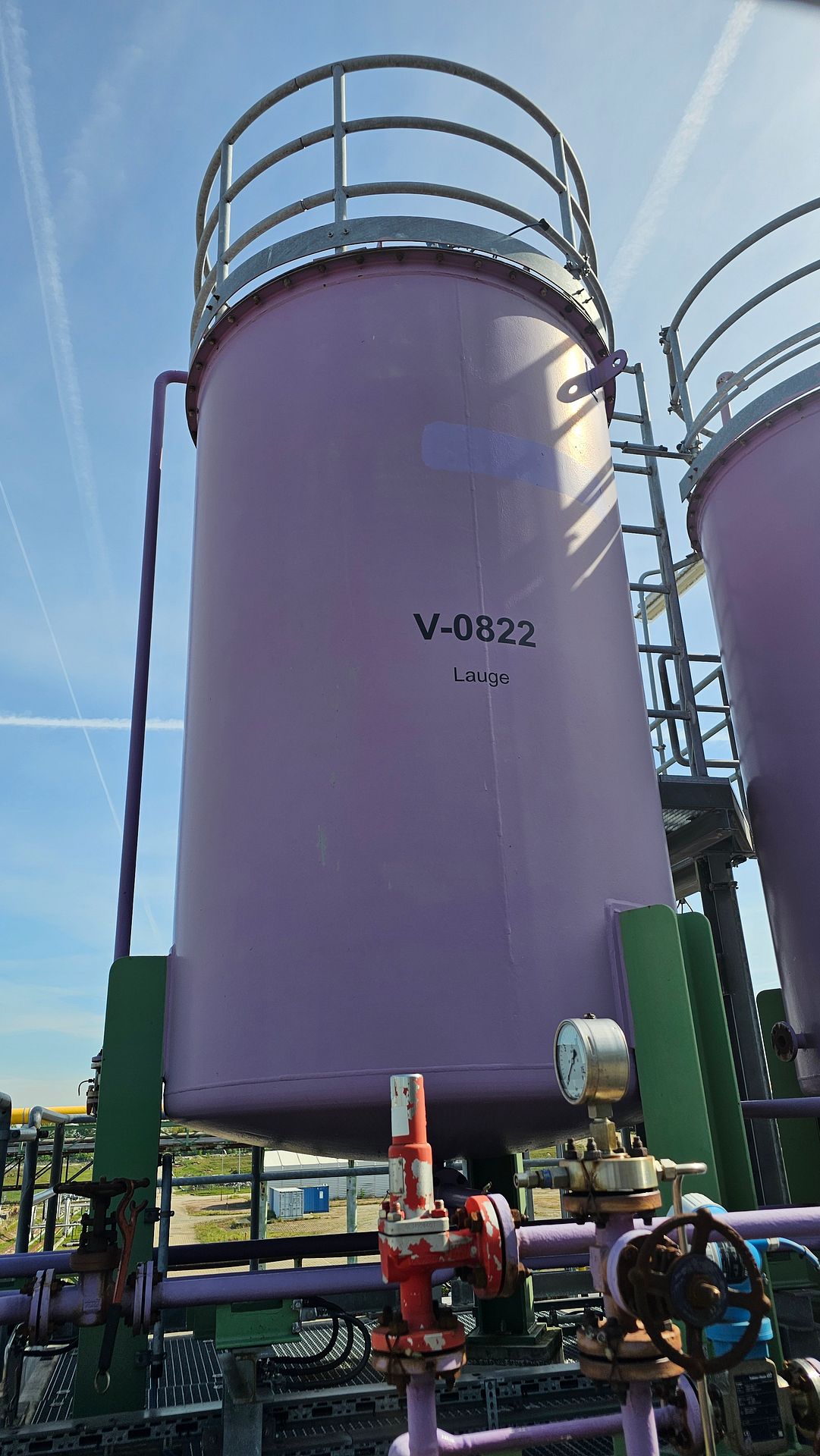

Service: Caustic Soda
Year of construction: 2007
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1, Pic2
Equipment: 8
Volume m³: 8.815
Height/Length mm: 3300
Diameter mm: 2024
Material of Construction: Carbon Steel
Design Pressure Max. Bar: Atm.
Design Temperature Max. °C: 150

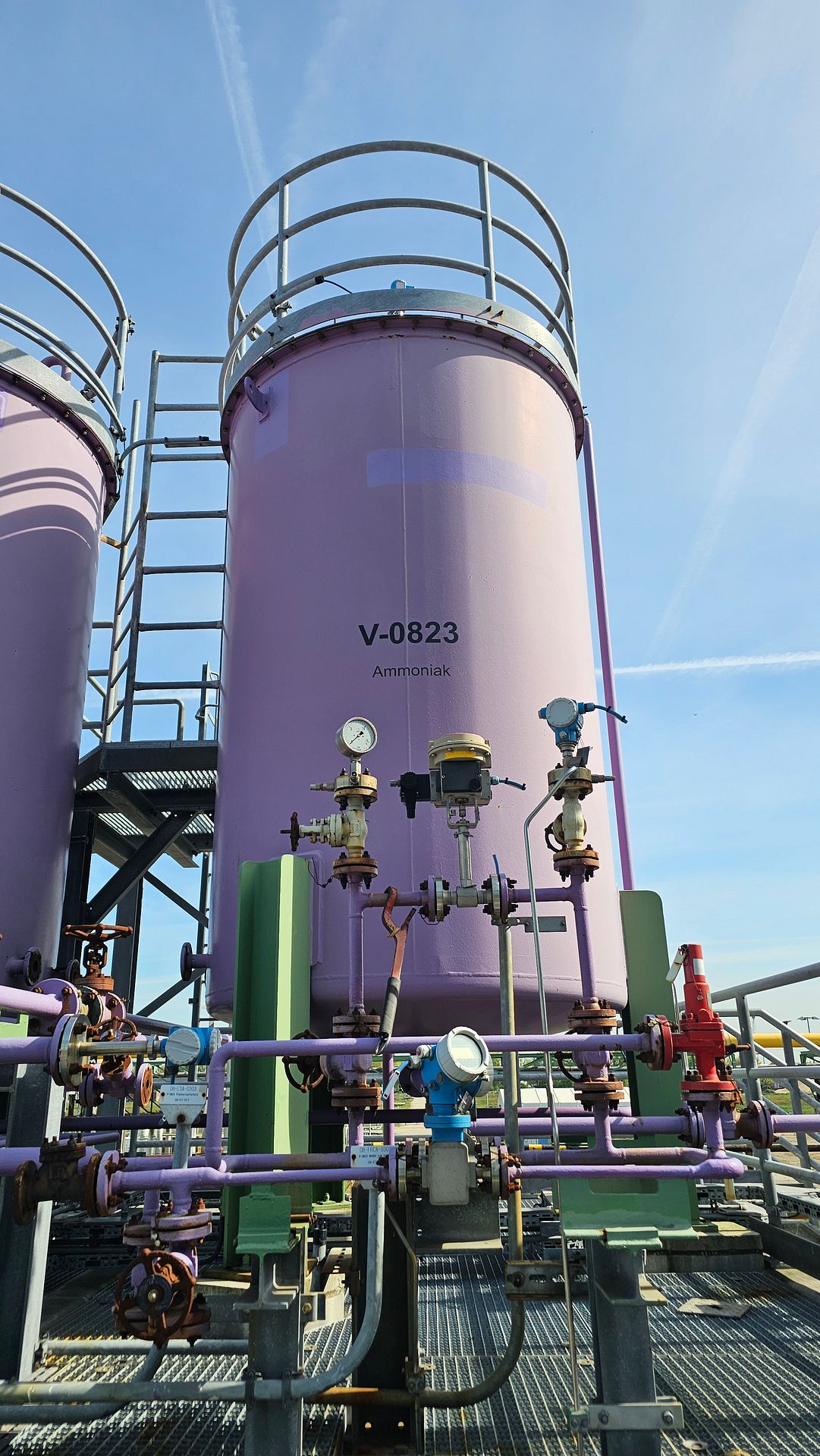

Service: Ammonia
Year of construction: 2007
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1, Pic2
Equipment: 9
Volume m³: 4.7
Height/Length mm: 3400
Diameter mm: 1300
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 4.2
Design Temperature Max. °C: 310
Service: HC Reflux
Year of construction: 1965
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1, Pic2
Equipment: 10
Volume m³: 0.415
Height/Length mm: 1685
Diameter mm: 600
Material of Construction: Carbon Steel/SS Overlay
Design Pressure Max. Bar: 4.5
Design Temperature Max. °C: 400
Service: HC reflux
Year of construction: 1984
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1, Pic2, Pic3
Equipment: 11
Volume m³: 16.8
Height/Length mm: 5000
Diameter mm: 2000
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 3.8
Design Temperature Max. °C: 310
Service: Hydrocarbons
Year of construction: 1965
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1, Pic2
Equipment: 12
Volume m³: 2
Height/Length mm: 3136
Diameter mm: 900
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 3.6
Design Temperature Max. °C: 343
Service: Hydrocarbons
Year of construction: 1993
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1, Pic2
Equipment: 13
Volume m³: 6.9
Height/Length mm: 4200
Diameter mm: 1400
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 8.3
Design Temperature Max. °C: 343
Service: Steam
Year of construction: 1965
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1
Equipment: 14
Volume m³: 0.39
Height/Length mm: 1900
Diameter mm: 600
Material of Construction: Carbon Steel/SS Overlay
Design Pressure Max. Bar: 1.8
Design Temperature Max. °C: 343
Service: Hydrocarbons
Year of construction: 1985
Design Code ANSI / DIN: DIN
Comment:
Equipment: 15
Volume m³: 2
Height/Length mm: 3324
Diameter mm: 1000
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 10
Design Temparature Max. °C: 250
Service: Fuel gas
Year of construction: 1970
Design Code ANSI / DIN: DIN
Comment:
Equipment: 16
Volume m³: 12.3
Height/Length mm: 8100
Diameter mm: 1500
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 22
Design Temperature Max. °C: 225
Service: Steam
Year of construction: 1962
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1
Equipment: 17
Volume m³: 68.5
Height/Length mm: 9000
Diameter mm: 2958
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 9.3
Design Temperature Max. °C: 343
Service: Boiler Feed Water
Year of construction: 1965
Design Code ANSI / DIN: DIN
Comment:
Equipment: 18
Volume m³: 1.08
Height/Length mm: 2000
Diameter mm: 800
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 6.5
Design Temperature Max. °C: 150
Service: Water
Year of construction: 1965
Design Code ANSI / DIN: DIN
Comment:
Equipment: 19
Volume m³: 17.5
Height/Length mm: 5845
Diameter mm: 2200
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 7
Design Temperature Max. °C: 200
Service: Flare Condensate
Year of construction: 2013
Design Code ANSI / DIN: DIN
Comment:
Equipment: 20
Volume m³: 26.85
Height/Length mm: 7350
Diameter mm: 2300
Material of Construction: Carbon Steel (HIC resistant)
Design Pressure Max. Bar: 3.2
Design Temperature Max. °C: 200
Service: Flare gas/slops
Year of construction: 2008
Design Code ANSI / DIN: DIN
Comment:
Equipment: 21
Volume m³: 1,7
Height/Length mm: 2000
Diameter mm: 1000
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 0,2
Design Temparature Max. °C: 49
Service: Bitumen condensate
Year of construction: 2019
Design Code ANSI / DIN: DIN
Comment:
Equipment: 22
Volume m³: 1,7
Height/Length mm: 2000
Diameter mm: 1000
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 3
Design Temparature Max. °C: 250
Service: Bitumen condensate
Year of construction: 2019
Design Code ANSI / DIN: DIN
Comment:
Equipment: 23
Volume m³: 7122
Height/Length mm: 2500
Diameter mm: 1800
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 3
Design Temparature Max. °C: 250
Service: Bitumen condensate
Year of construction: 2019
Design Code ANSI / DIN: DIN
Comment:
Picture: Pic1
Equipment: 24
Volume m³: 0,55
Height/Length mm: 1950
Diameter mm: 610
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 3
Design Temperature Max. °C: 250
Service: Bitumen condensate
Year of construction: 2019
Design Code ANSI / DIN: DIN
Comment:
Equipment: 25
Volume m³: 1,7
Height/Length mm: 2000
Diameter mm: 1000
Material of Construction: Carbon Steel
Design Pressure Max. Bar: 3
Design Temperature Max. °C: 250
Service: Bitumen condensate
Year of construction: 2019
Design Code ANSI / DIN: DIN
Comment:
