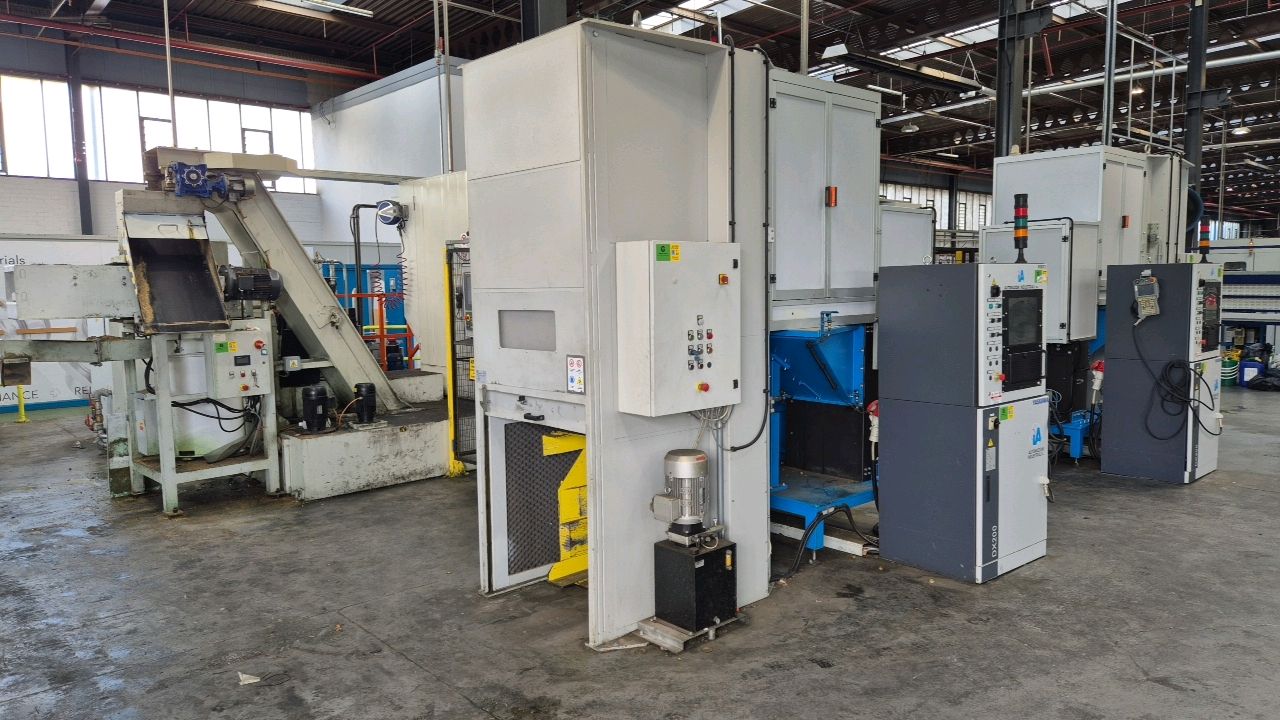

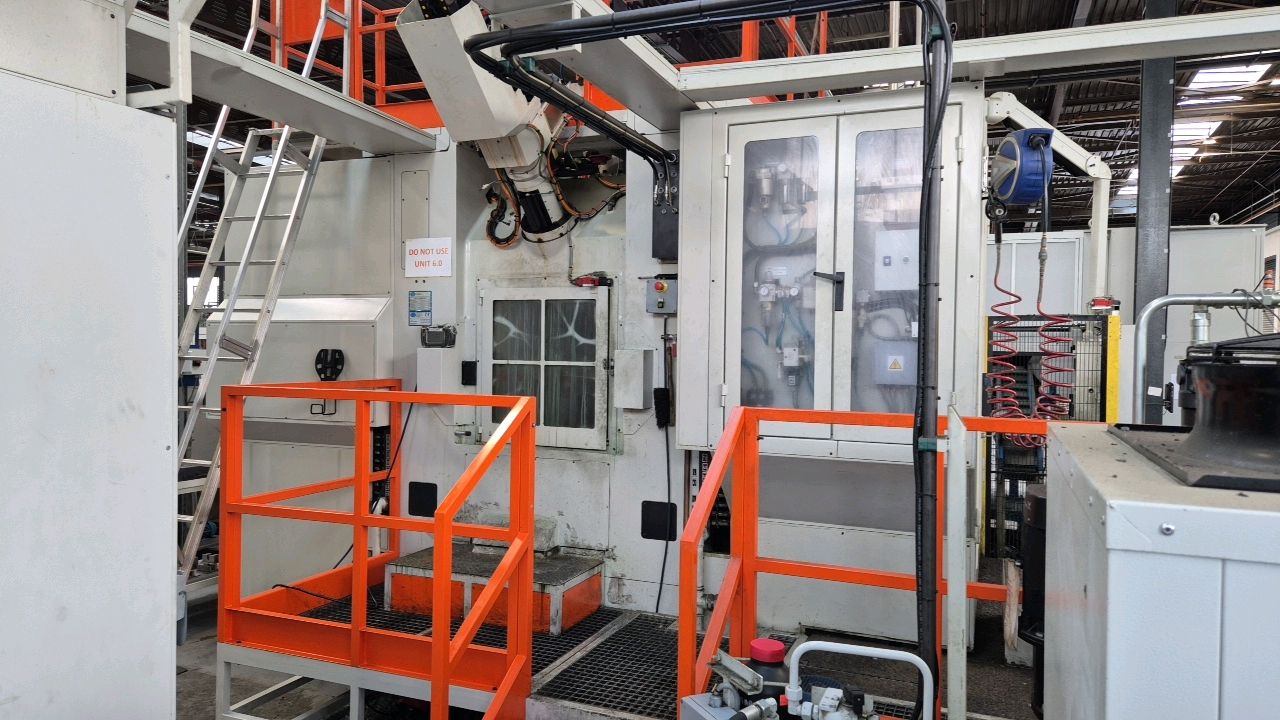

BTB TRO 8S 14U ISO 40 CNEL Transfer Machine (2017)

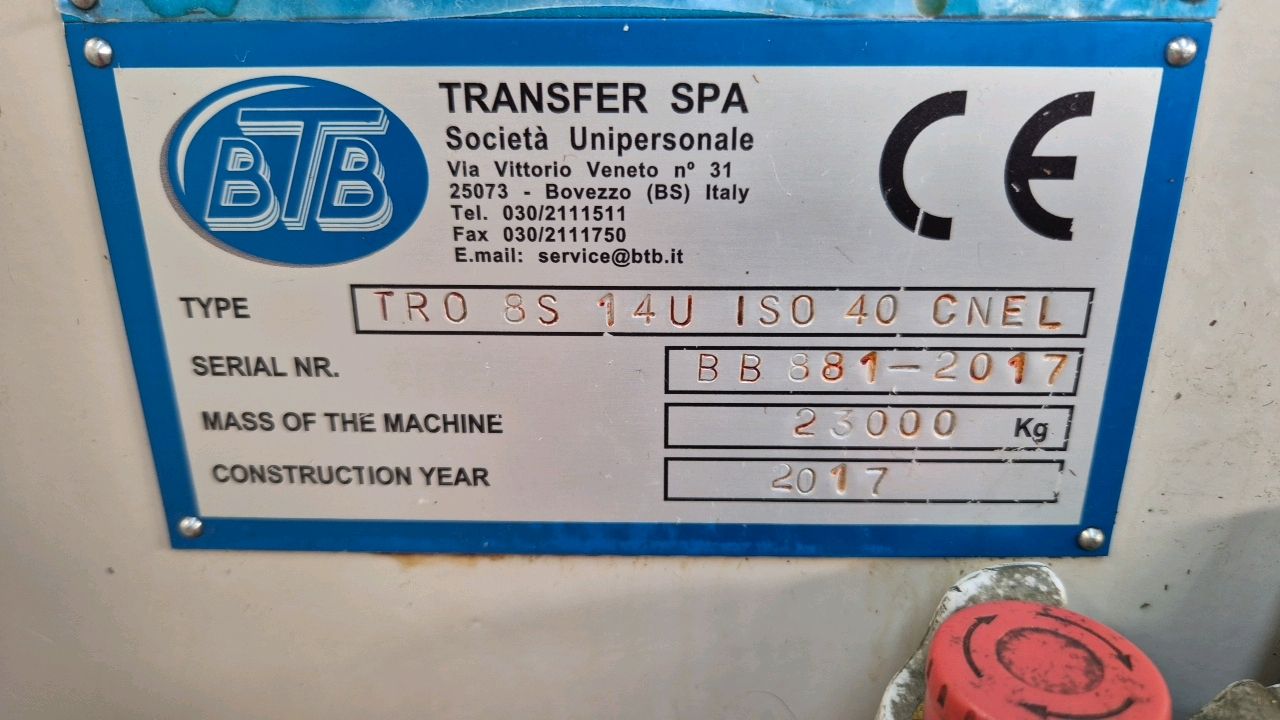

BTB Transfer, Model: TRO 8S 14U ISO 40 CNEL
Basic Information:- Manufacturer: BTB Transfer SPA, Italy

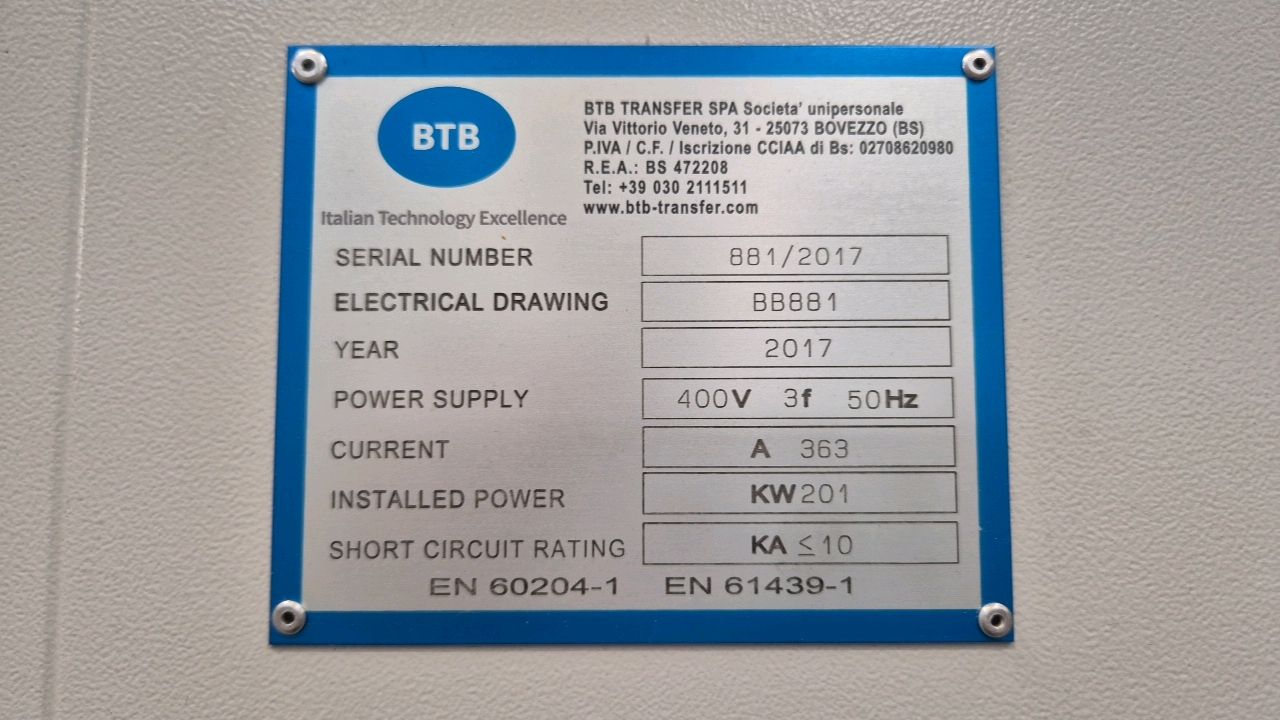

- Serial Number: BB 881-2017
- Year of Construction: 2017
- Mass: 23,000 kg (23 tonnes)

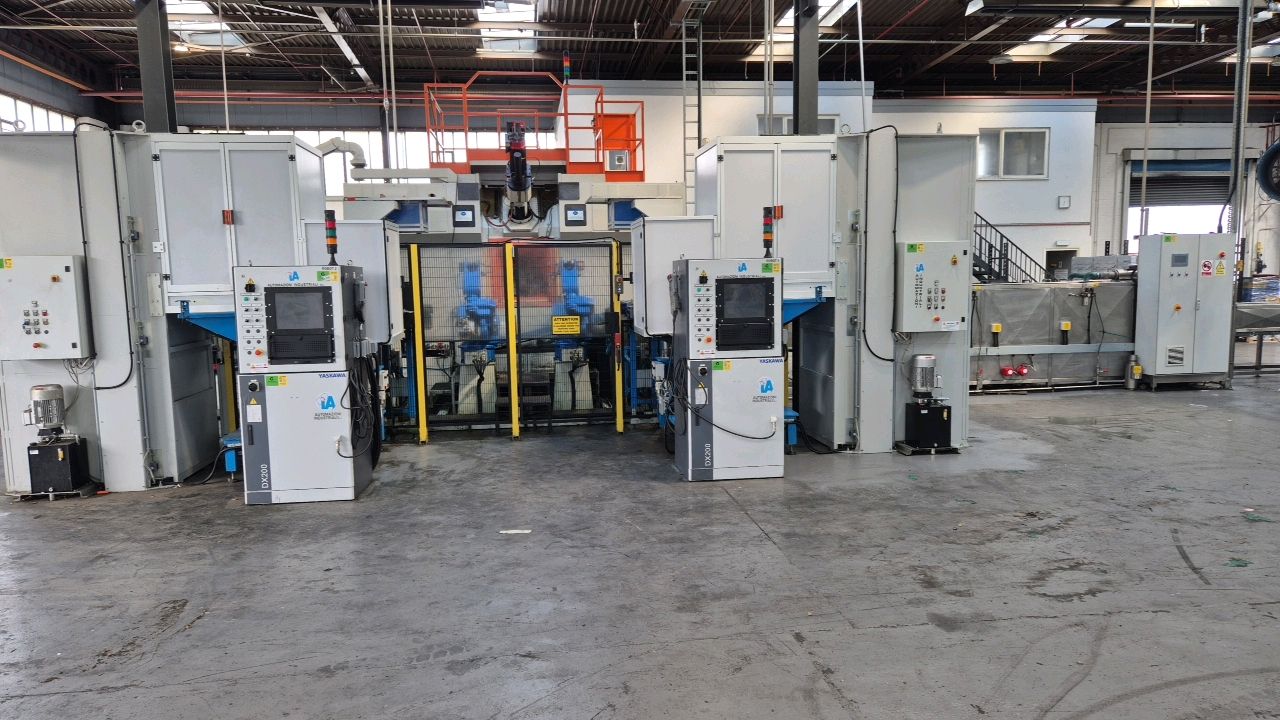

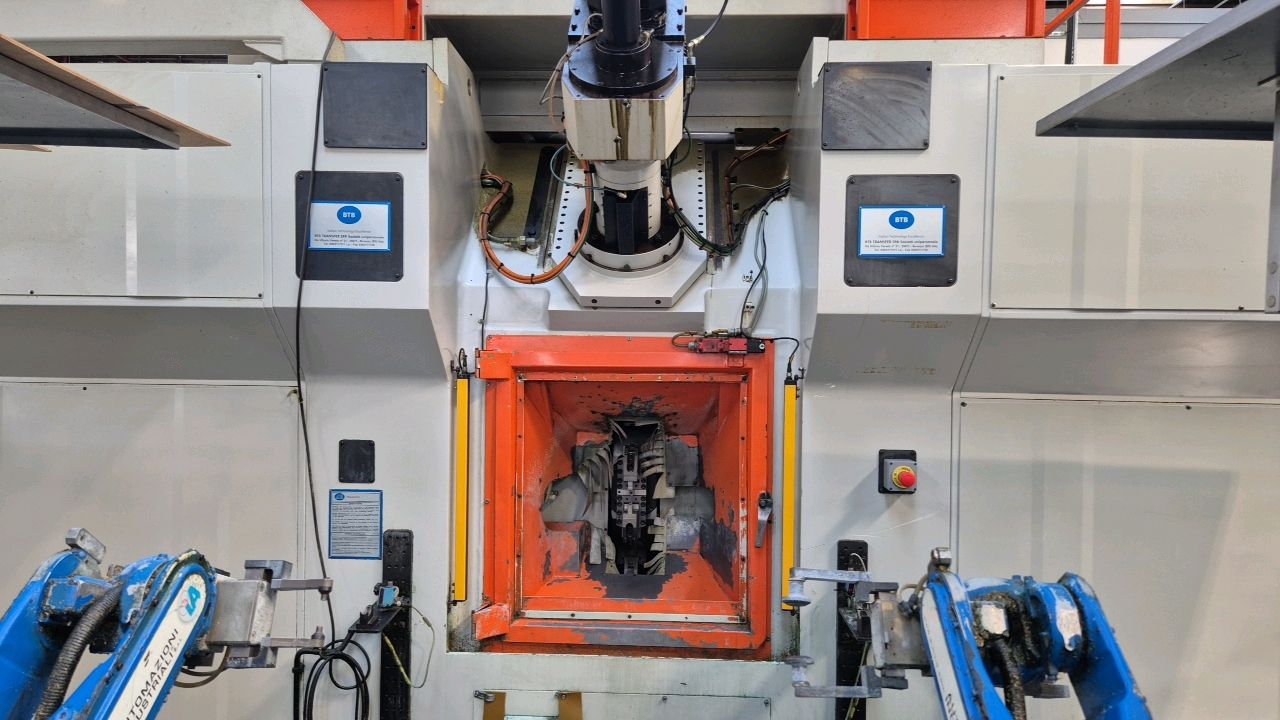

- A high-precision rotary transfer machine
- A specialized type of automated manufacturing equipment used for high-volume production.
- Multi-station automated production
- Complex part processing with multiple operations
Technical Specifications
- Stations: 8 machining stations
- Units: 14 machining units

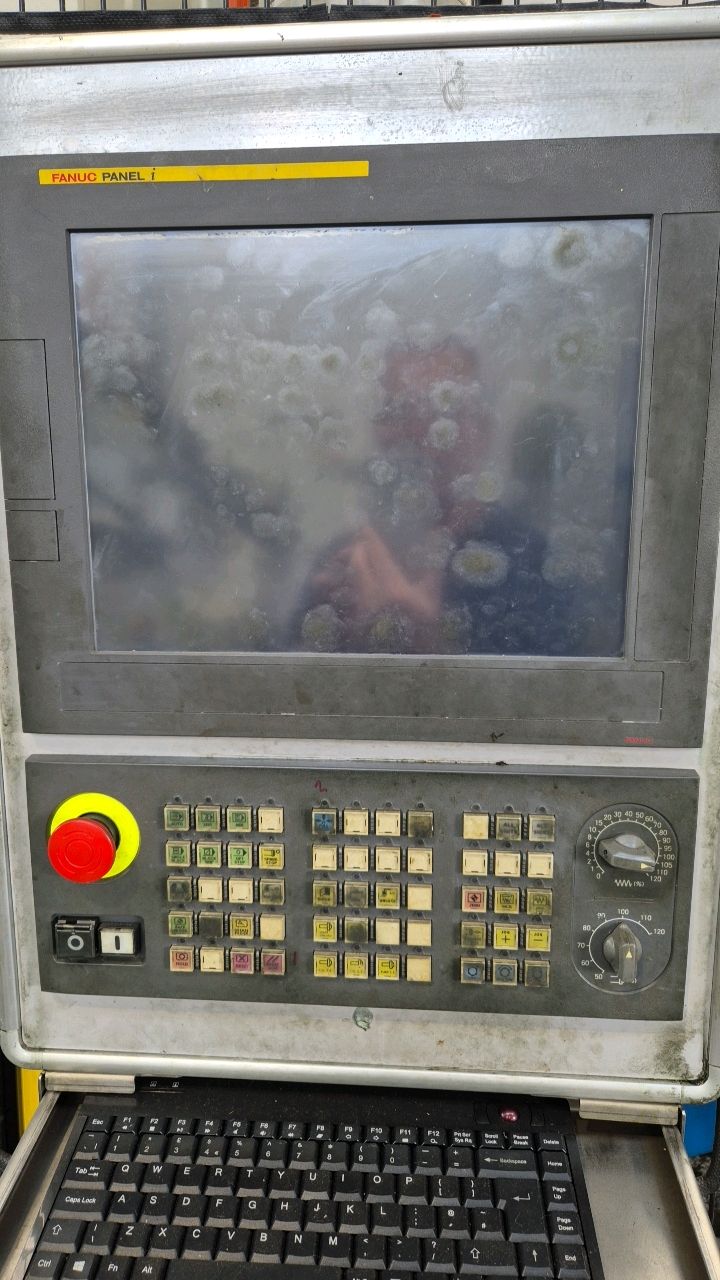

- Control System: CNC-controlled (likely Siemens or Fanuc)
- Tooling Interface: ISO standard, facilitating compatibility with various tools
- Machining Capabilities: Simultaneous multi-axis operations, including drilling, milling, tapping, and turning
- Workpiece Handling: Automated loading and unloading systems

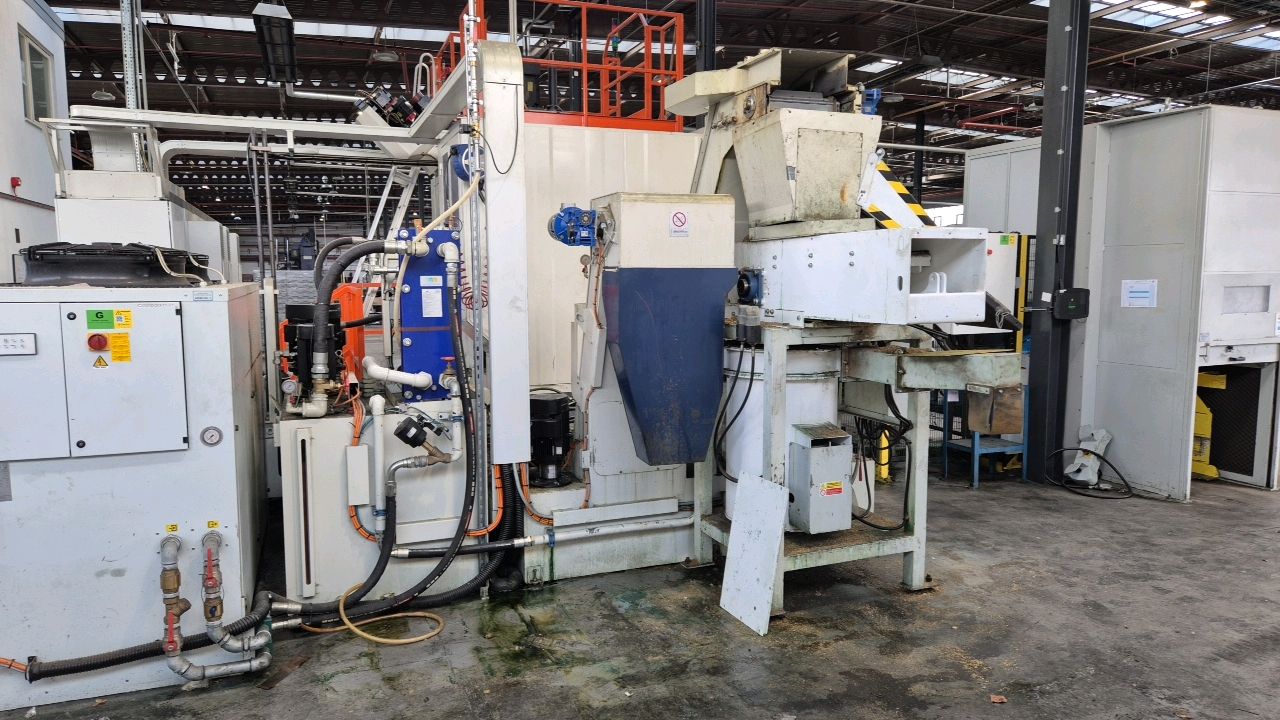

- Coolant System: Integrated high-pressure coolant delivery
- ISO 40 tool taper - a standardized spindle taper system
- CNEL: Indicates the machine meets specific European noise emission standards
- Precision: High repeatability and accuracy for tight tolerance components
- Efficiency: Designed for continuous operation with minimal downtime
- Flexibility: Capable of handling a variety of part geometries and sizes
- Maintenance: Equipped with diagnostic systems for predictive maintenance
Lifting/handling equipment:

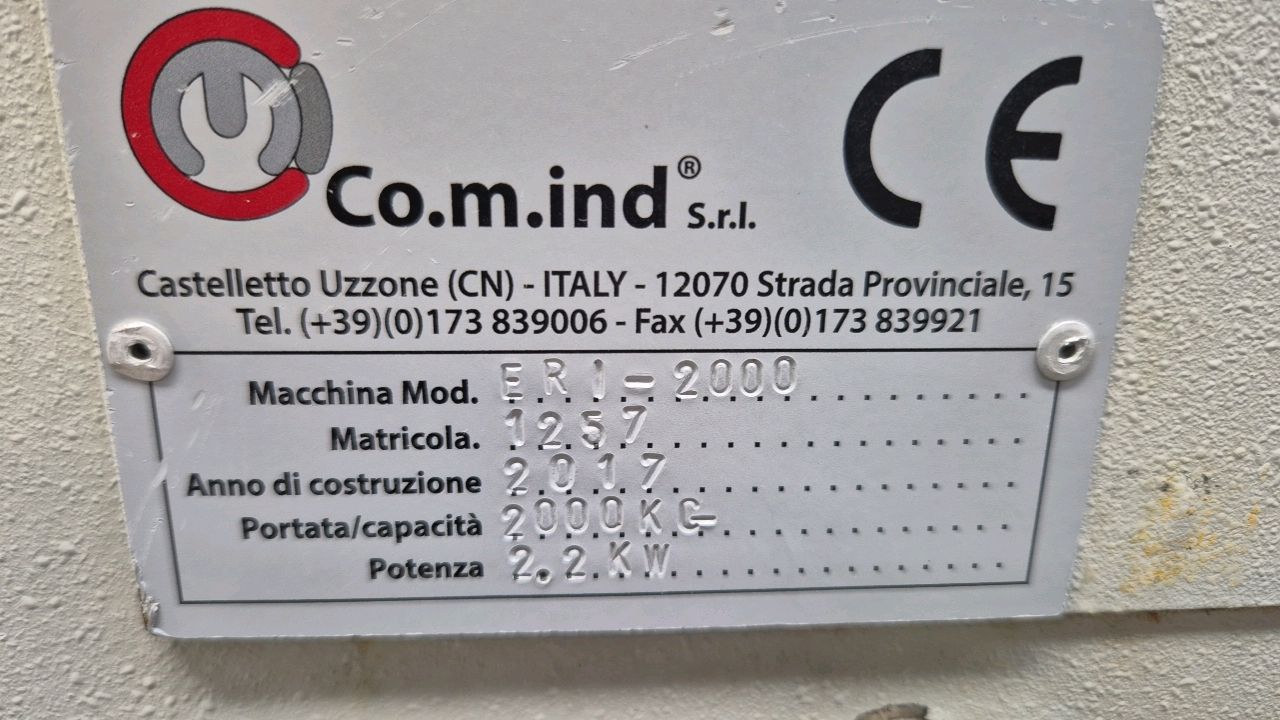

Castelletto Uzzone ERI-2000
- Model: ERI-2000
- Serial Number: 1257
- Year: 2017
- Power: 2.2 kW
- Capacity: 2000 kg (2 tonnes)

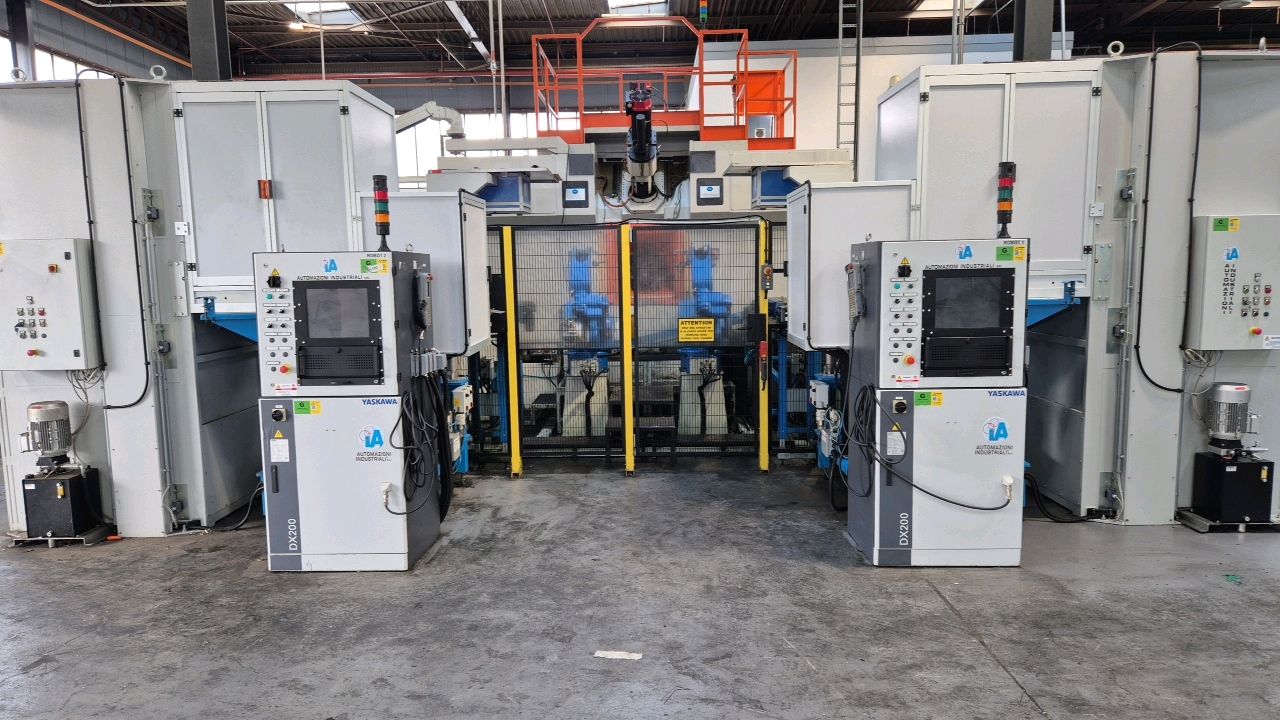

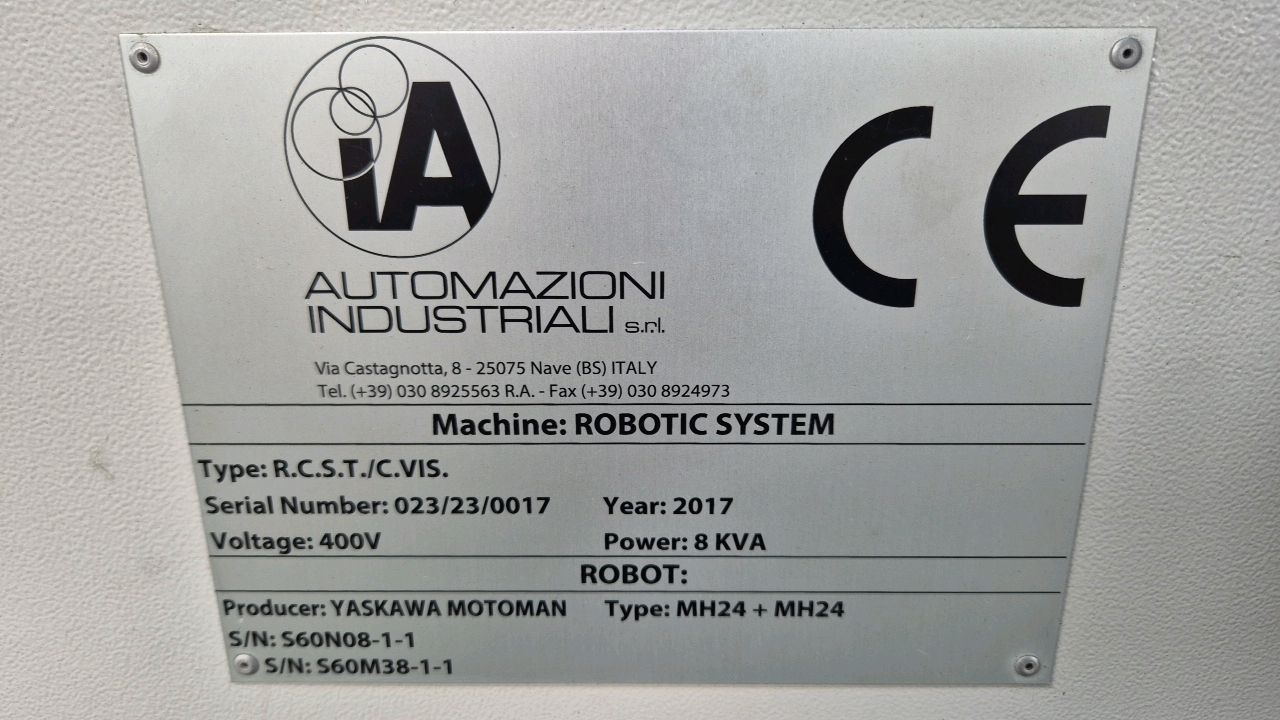

Autoazione Industriali, type: R.C.S.T./C.VIS.;
System Details:
- Manufacturer: Automazione Industriali (Italian automation company)
- Year: 2017
- Type: R.C.S.T./C.VIS. (likely Robot Control System with Computer Vision)

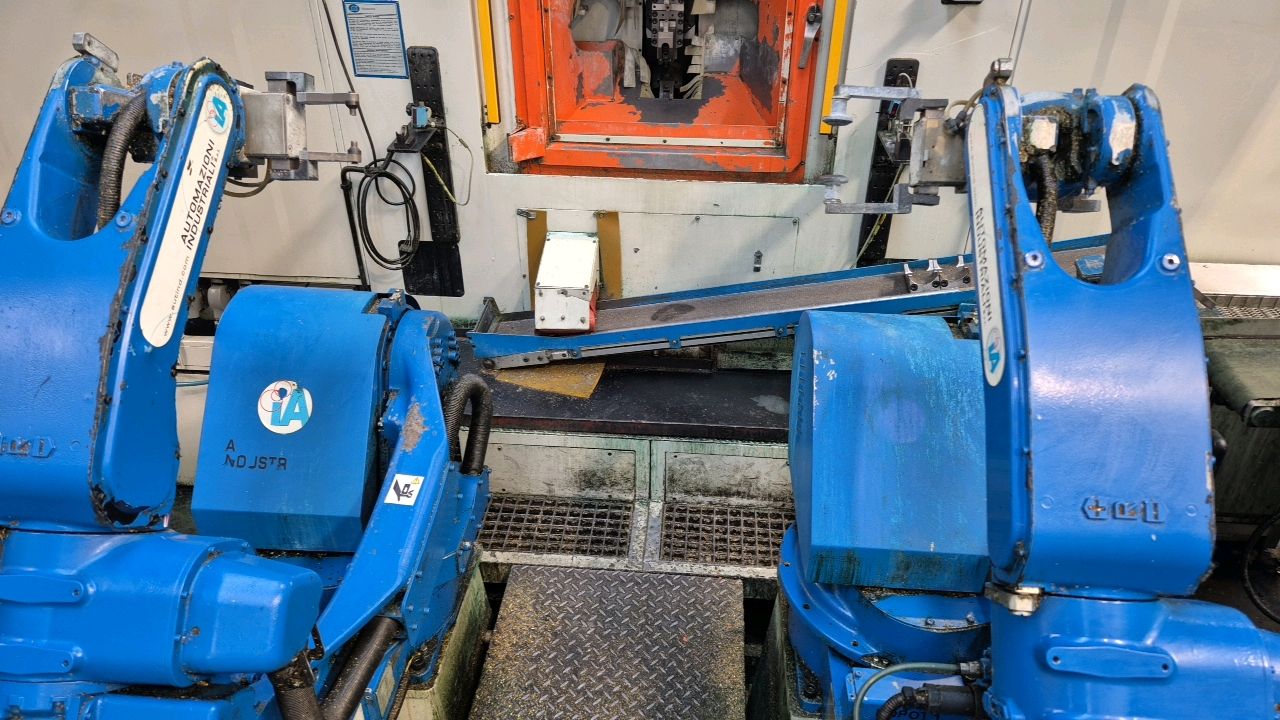

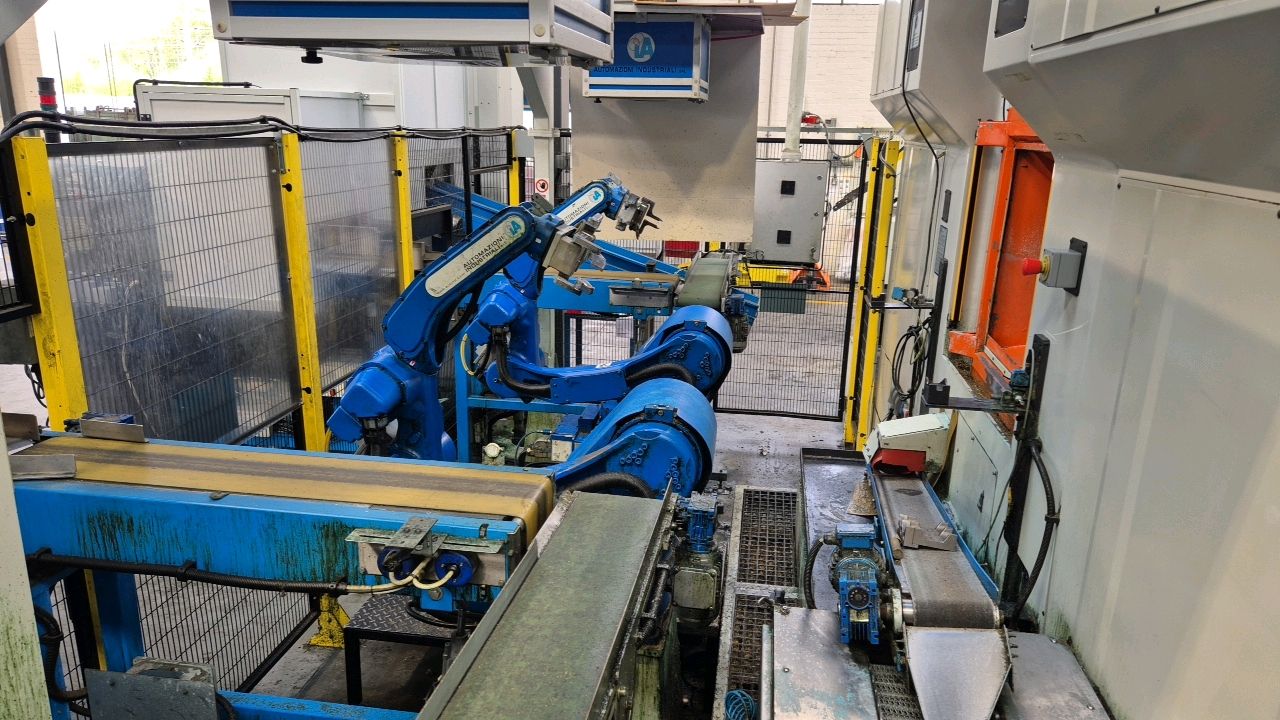

- Robots: Dual MH24 units from Yaskawa Motoman:
Yaskawa Motoman MH24 Specifications:
Key Performance Data:- Payload: 24 kg
- Reach: 1,717mm
- Repeatability: ±0.08mm
- Axes: 6-axis articulated arm
- Weight: Approximately 540 kg per robot

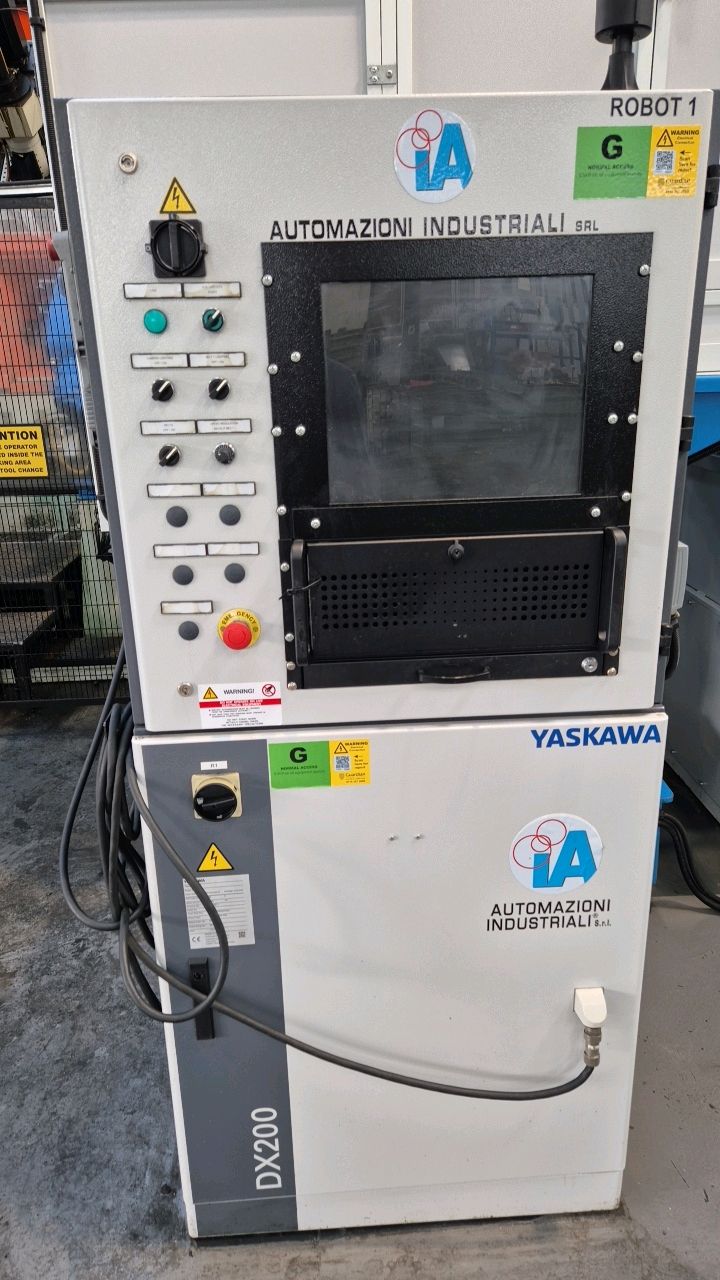

- Controller: DX200 or NX100 (depending on configuration)
- Maximum speed:
- J1 (S-axis): 170°/sec
- J2 (L-axis): 170°/sec
- J3 (U-axis): 175°/sec
- Working envelope: Spherical reach of 1,717mm
- Mounting: Floor, ceiling, or angle mounting options
- Protection rating: IP67 (wrist), IP54 (arm)
System Integration (R.C.S.T./C.VIS.):
- Computer Vision System - For part recognition and positioning
- Dual robot coordination - Synchronized operation capability
- Advanced control system - Integrated with vision feedback
