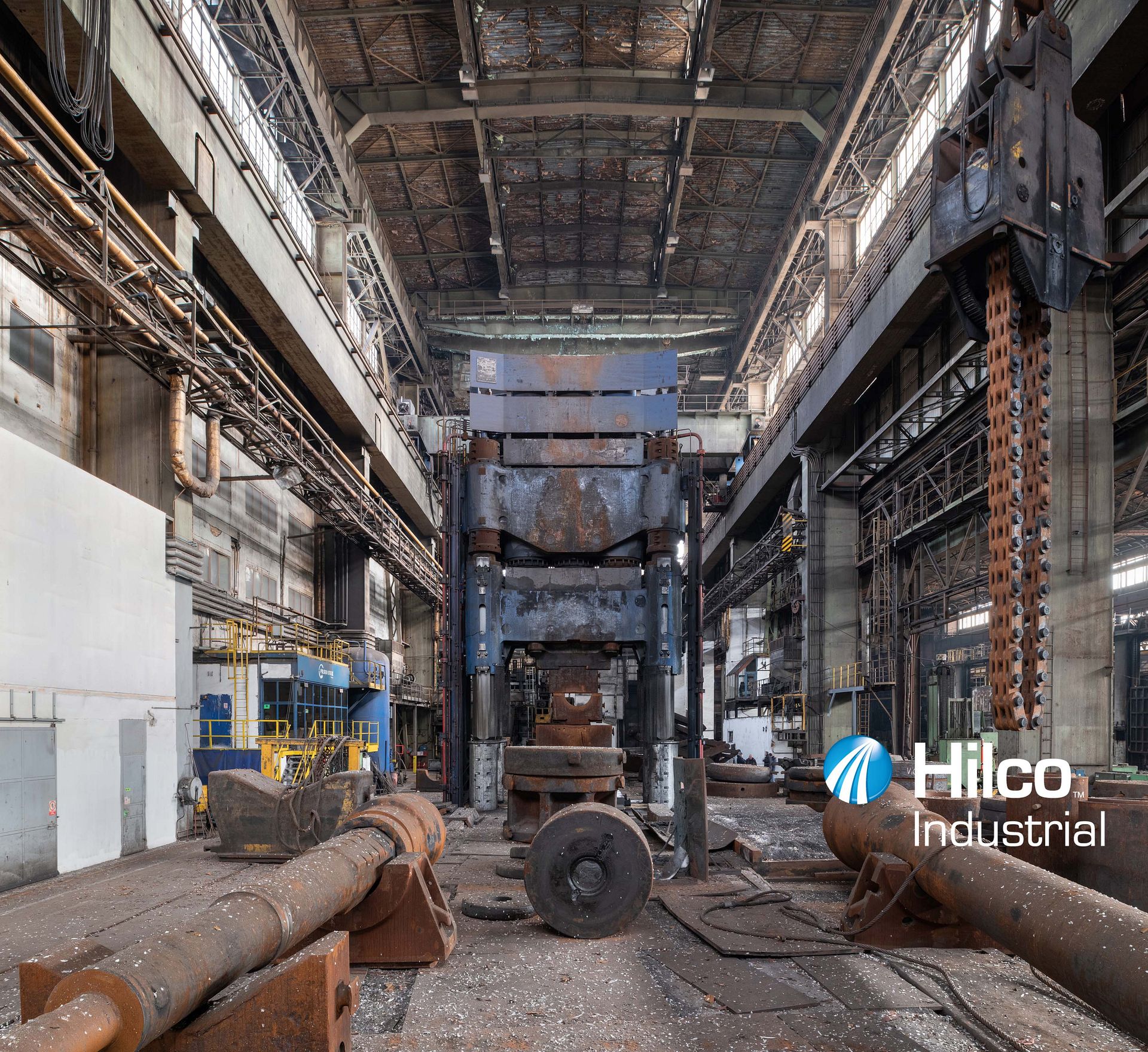

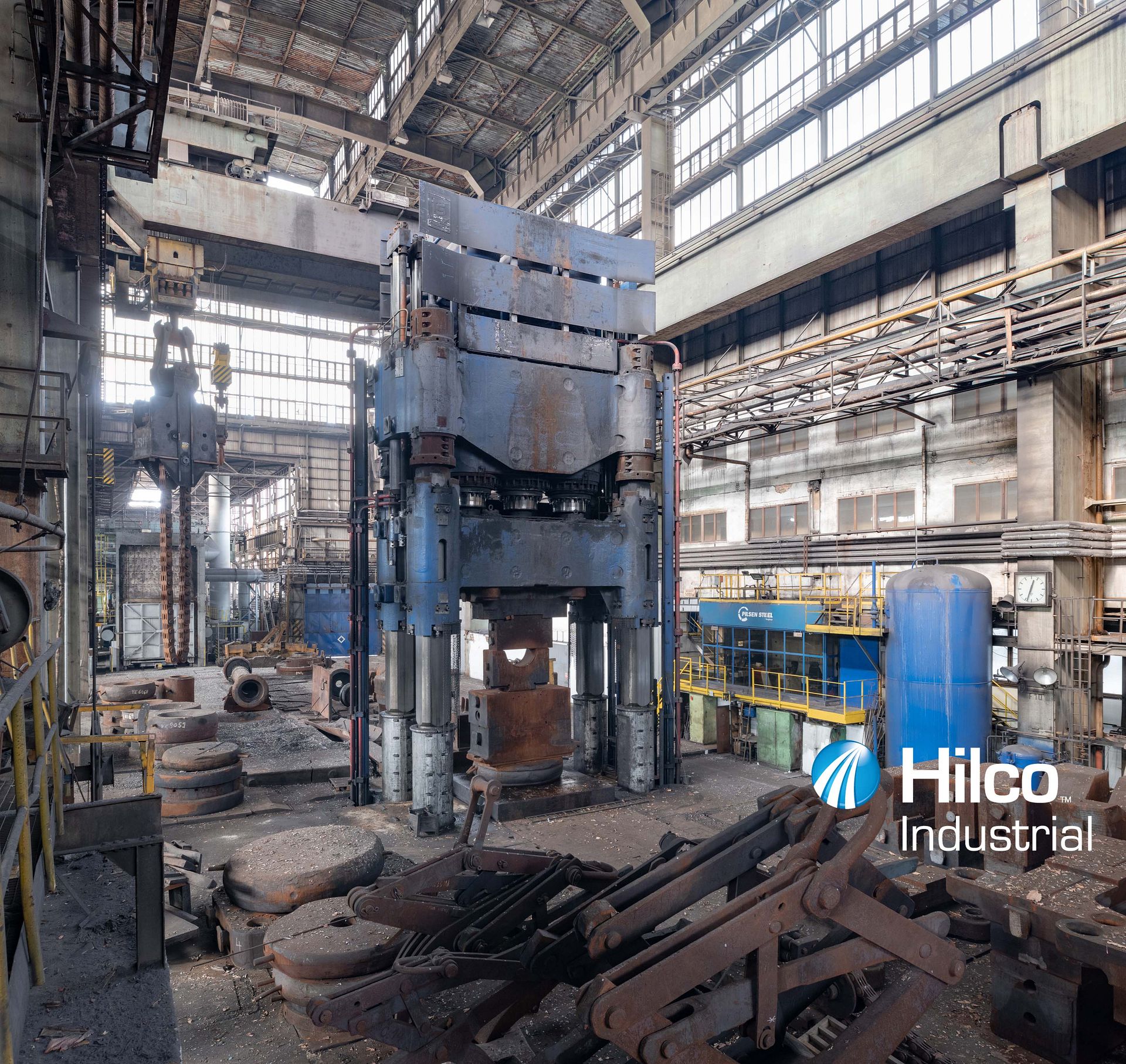

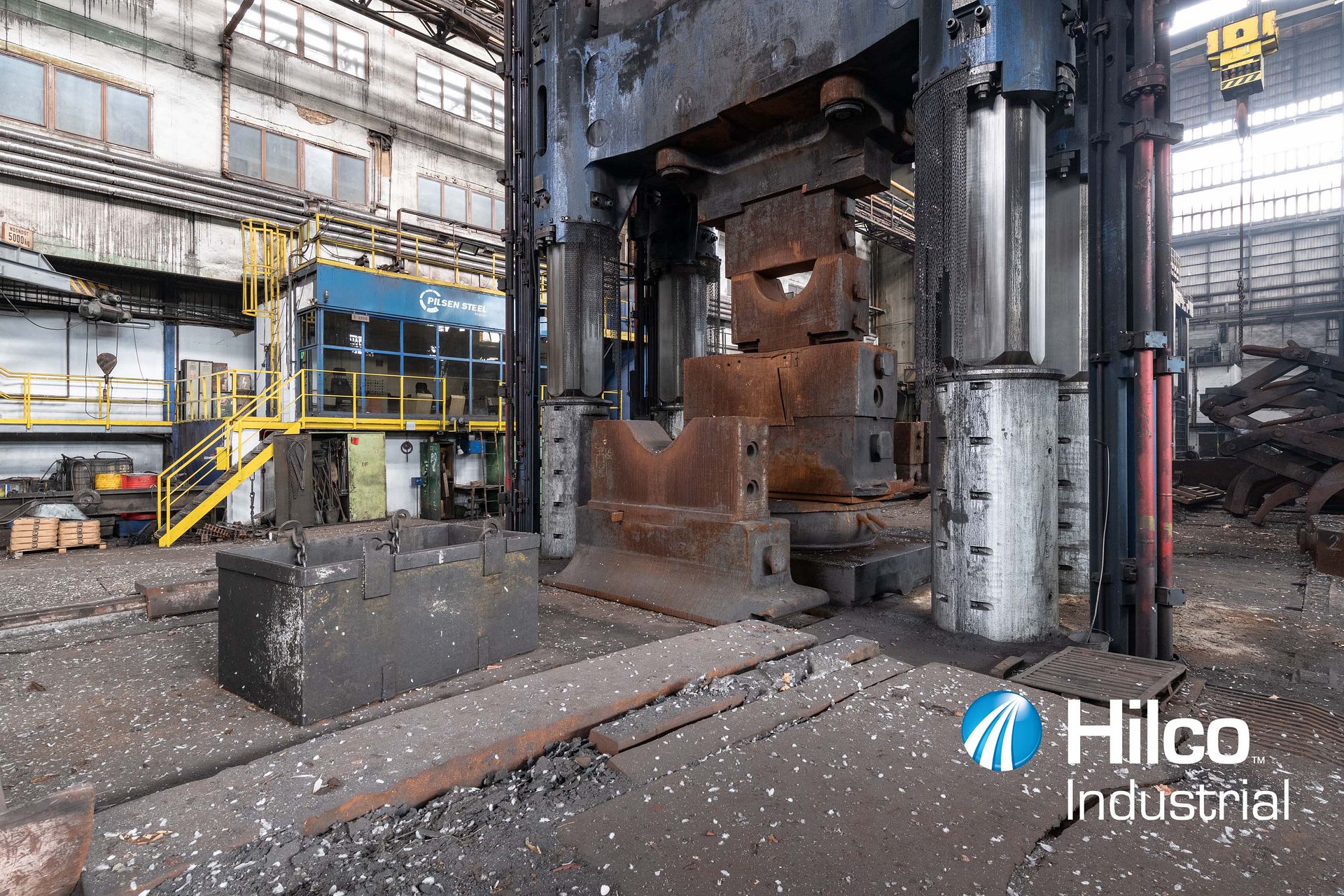

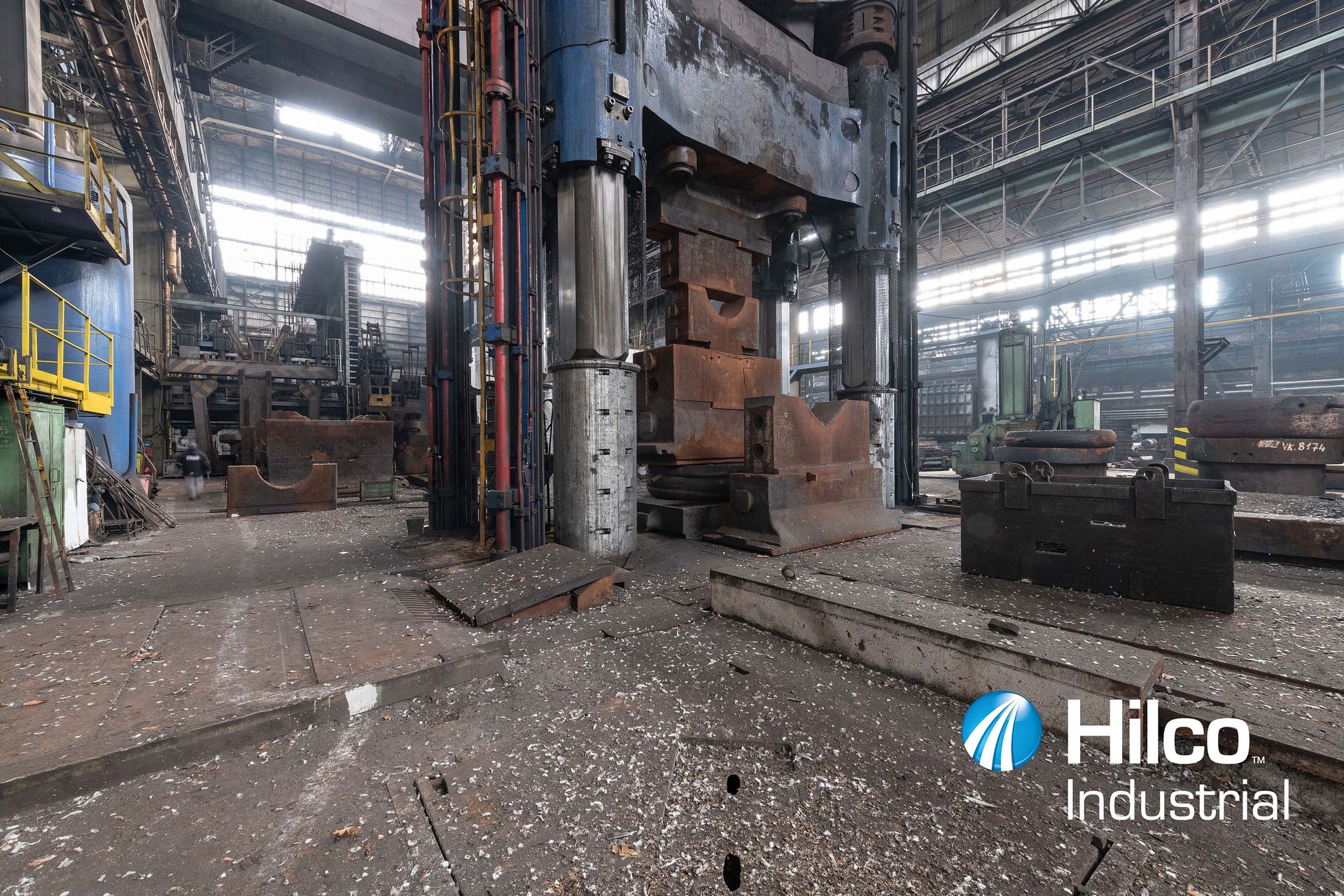

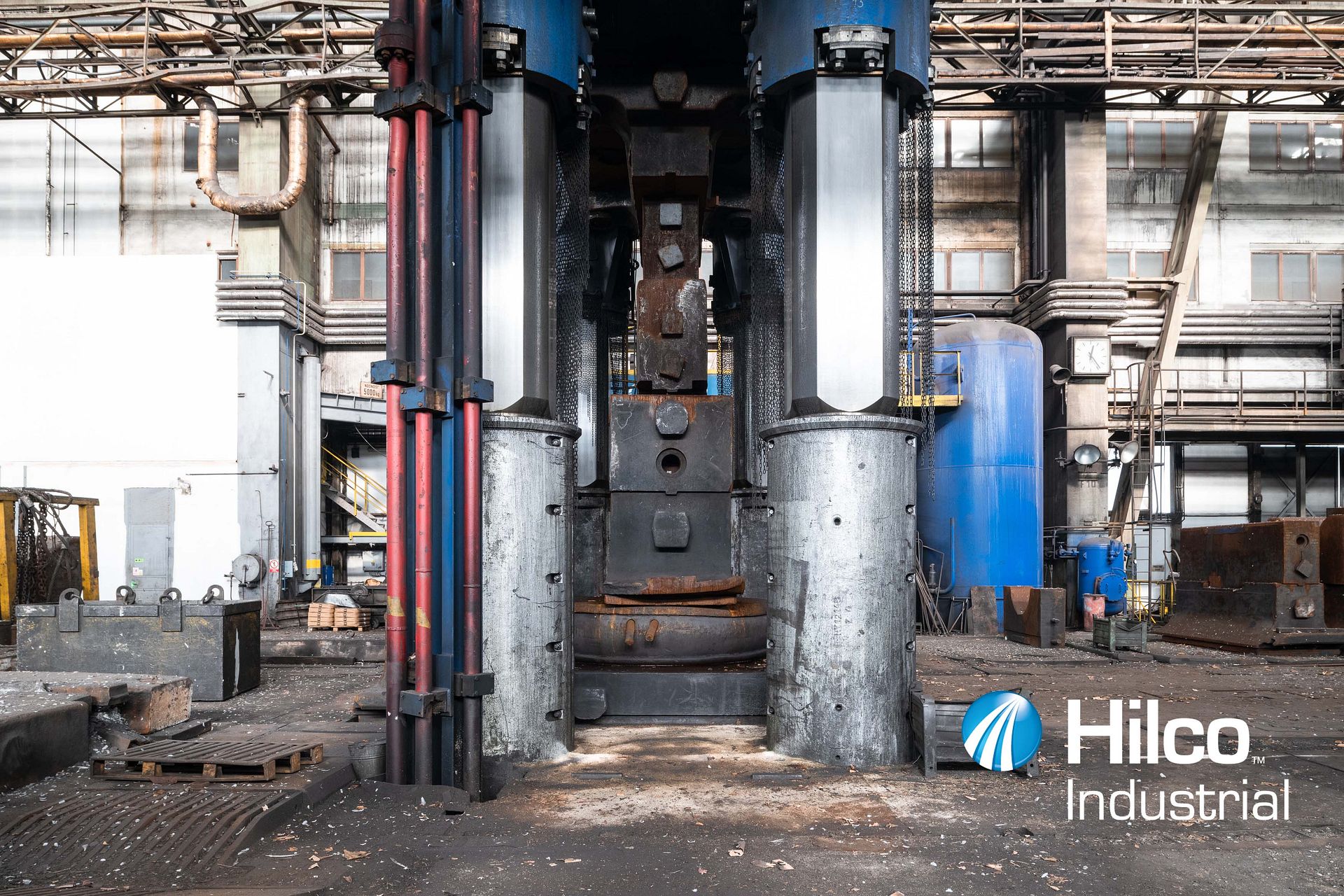

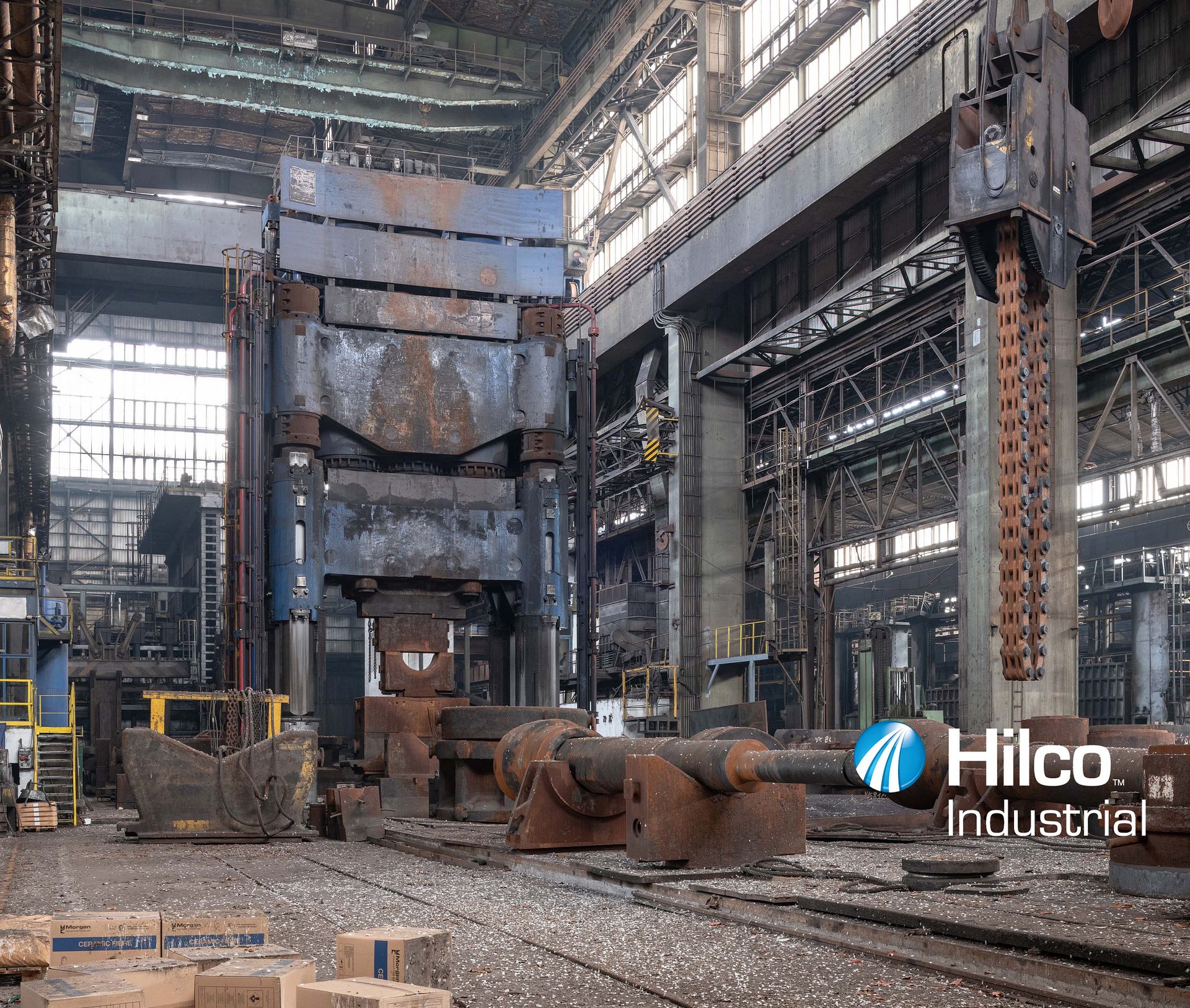

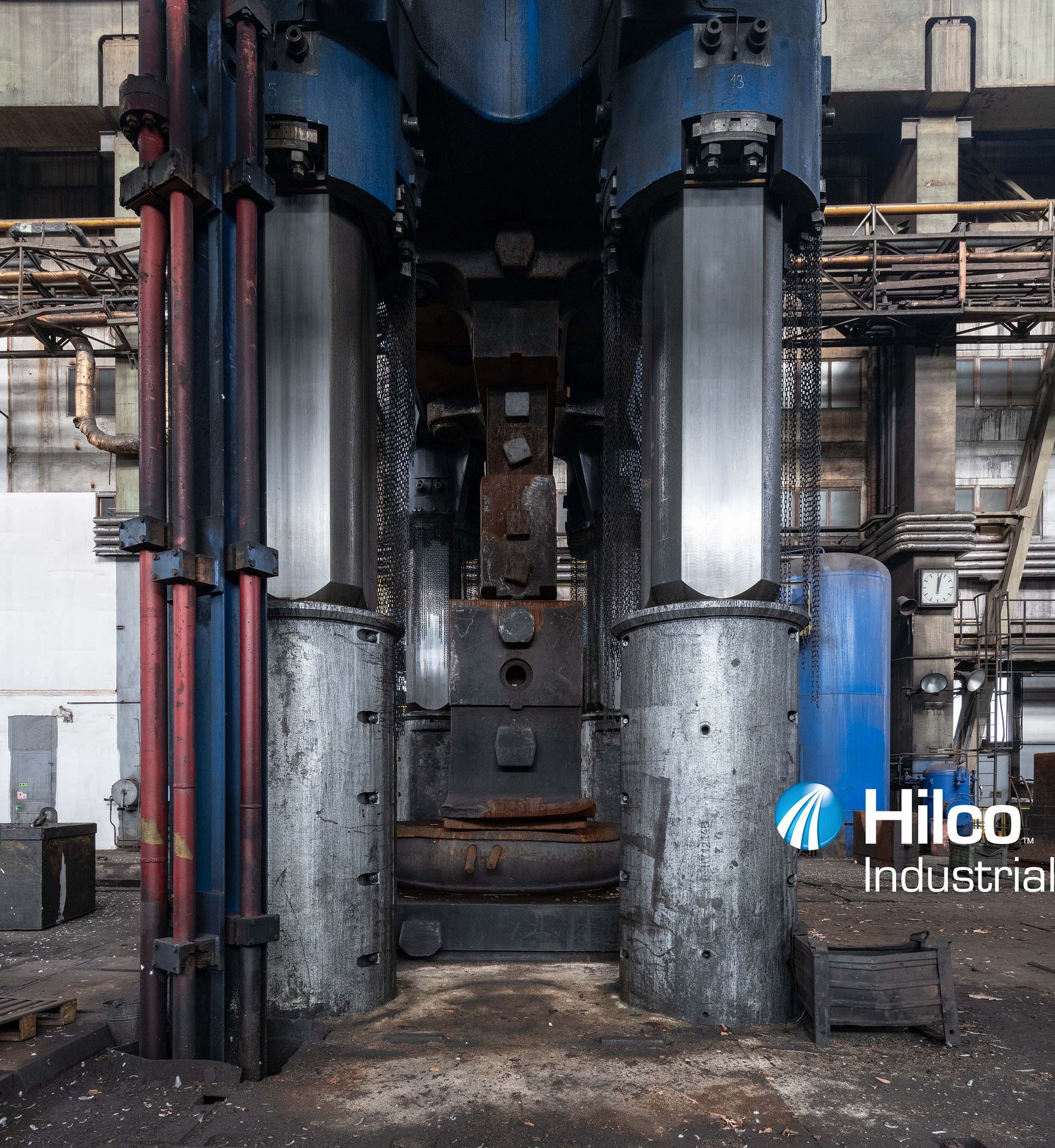

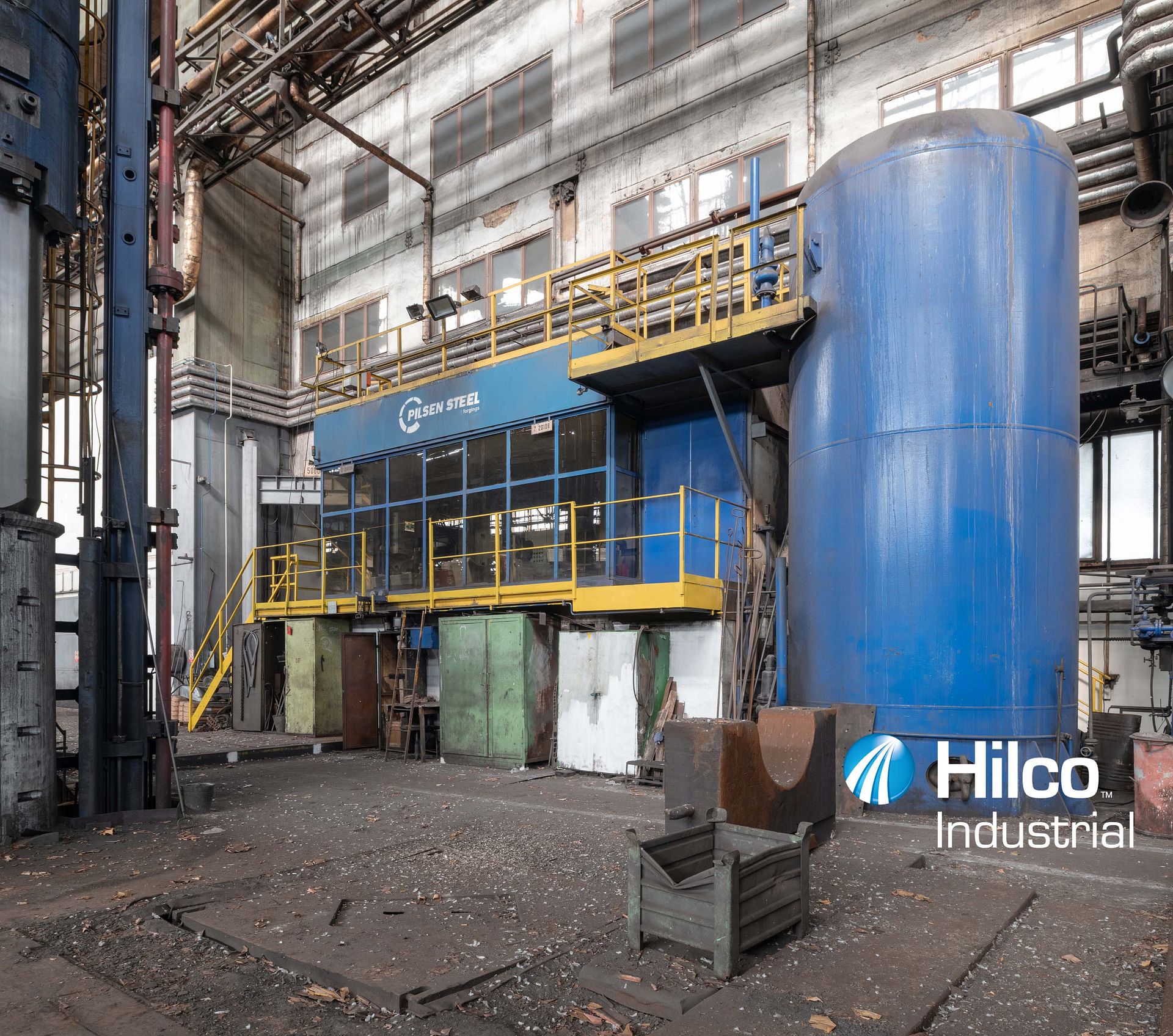

TS-PLZEN 12.000 Ton Open Die Forging Press (2010)
YOM: 2010
Hydraulics: Water Emulsion
Max. Power: 120 Mn
Nominal Power: 30/60/90Mn
Min./Max. Ingot Weight 25/200 Ton
Max. Forging Dimensions L x D 22.000 x 5.800 mm
Max. working pressure of water emulsion 43 Mpa
Nominal working pressure 32 Mpa
Working pressure of oil control 15 Mpa
Max. Stroke: 3.000 mm
Daylight: 4.500 + 2.500 mm Table length: (3 x 3000 mm) 9.000 mm
Table width: Table Height: 600 mm
Speed Forging: 100 mm/sec.
Speed Travel: 300 mm/sec.
Lifting time approach: 100-200 mm 6-8 mm/min.
Lifting time, inching: 15-25 mm 40-50 mm/min
Mass of moving parts: 405 Ton
Height of Press above base: 17.8 Meter
Weight of the Press: 3.020 Ton

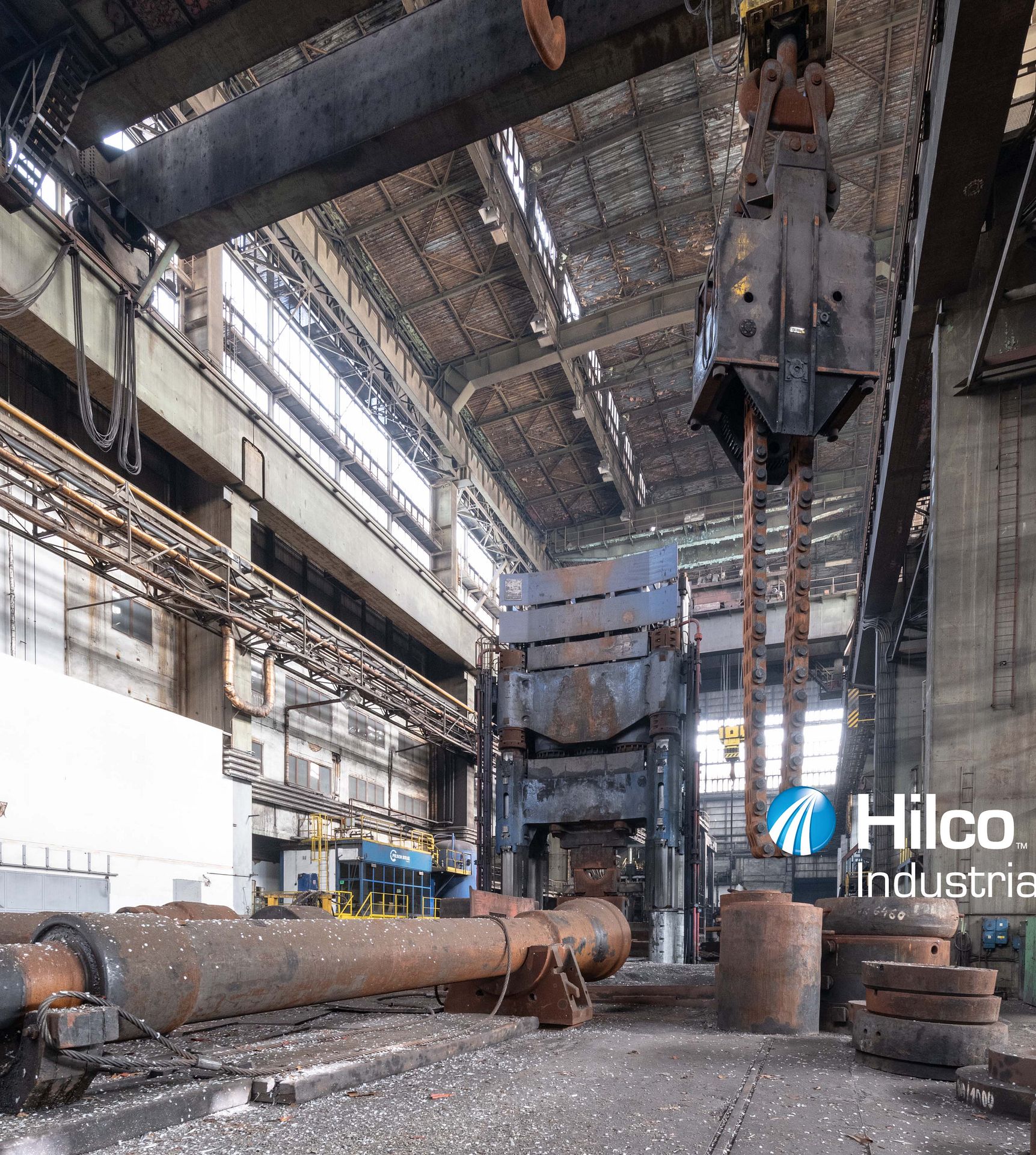

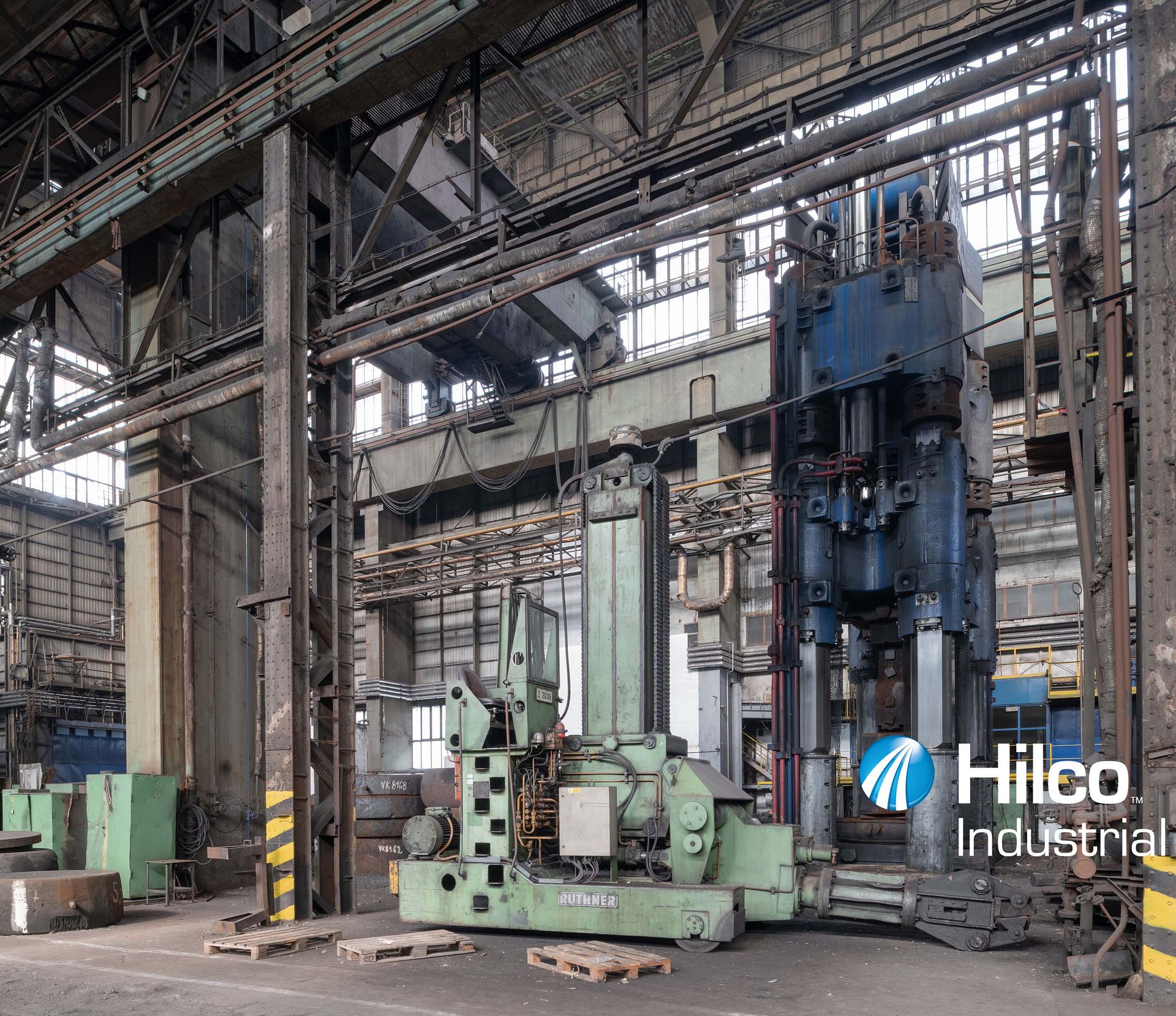

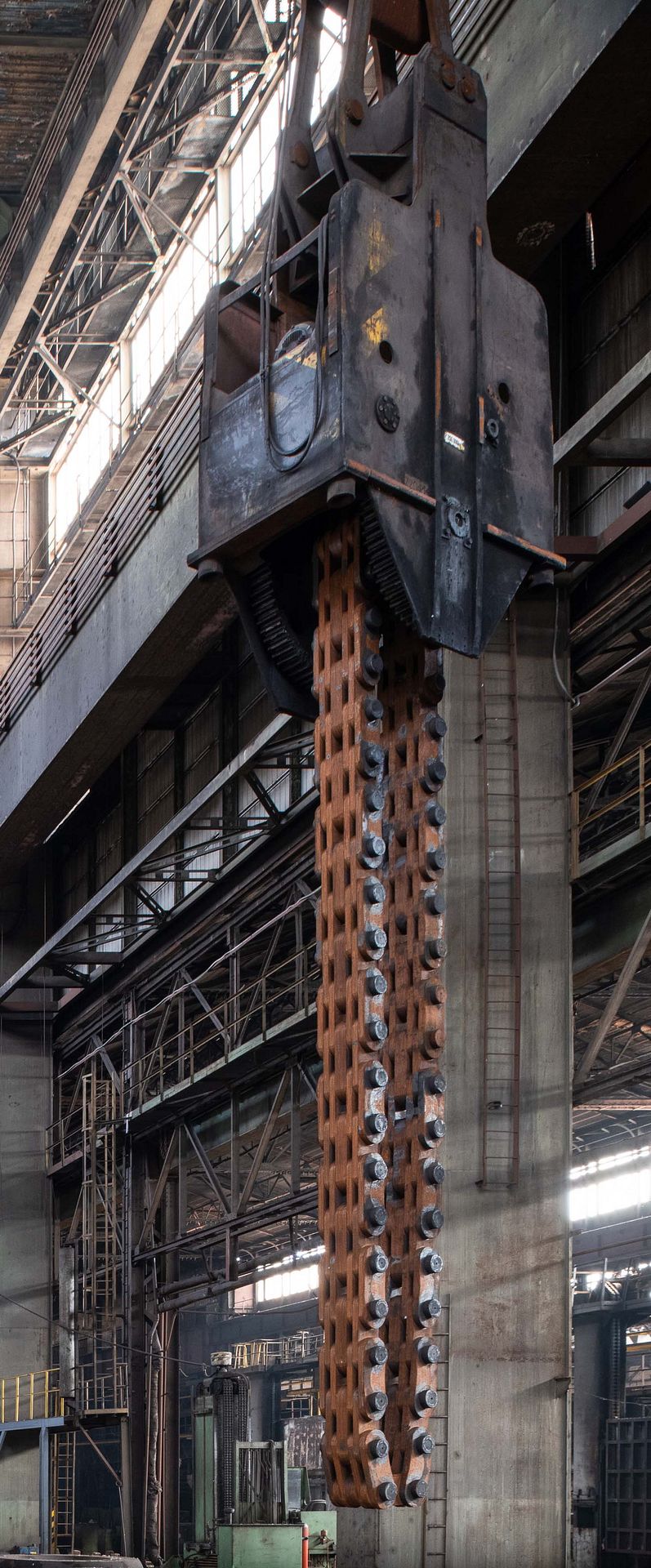

Mfg. “RUTHNER”• Powered Rotating Chain•
*Includes:

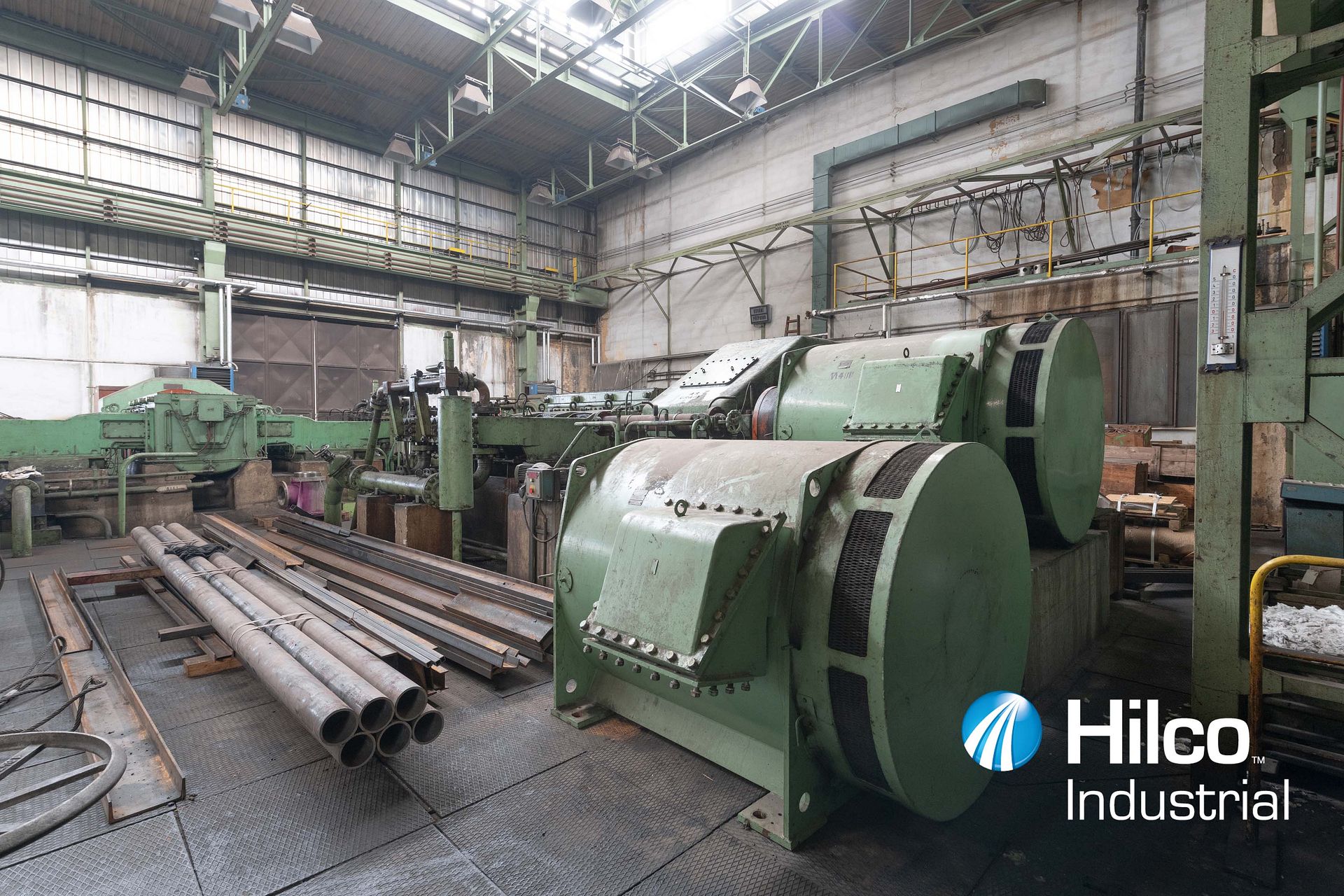

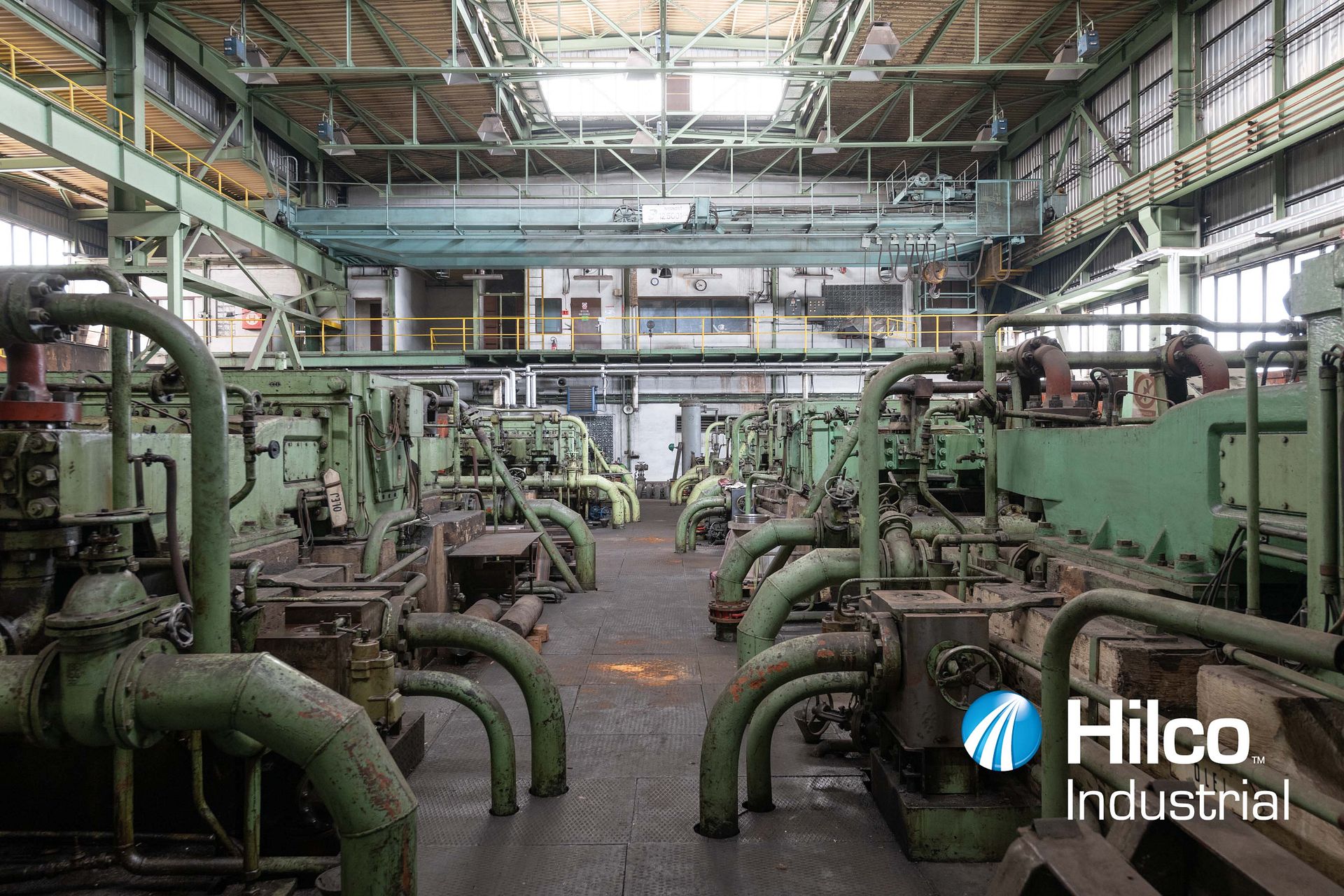

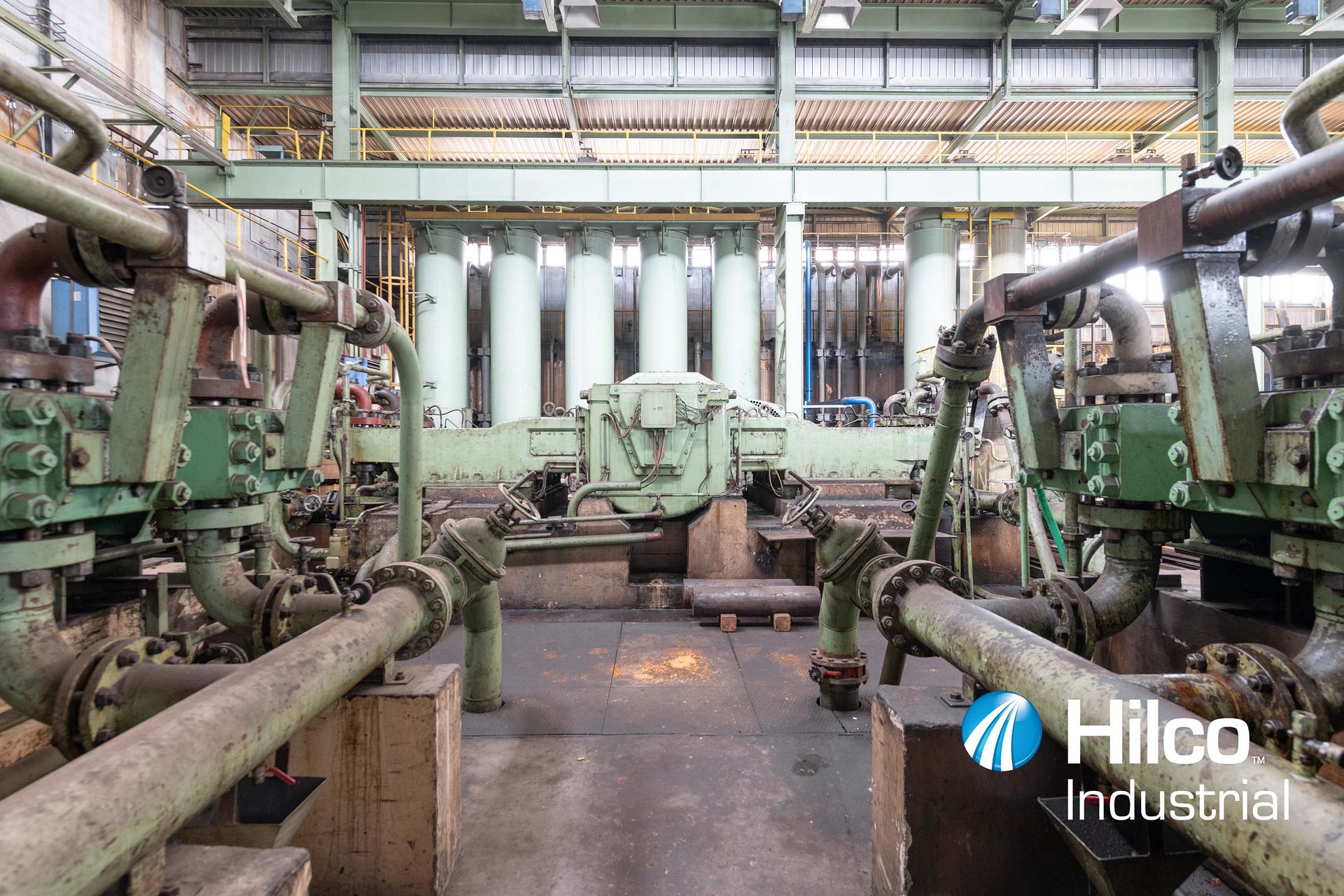

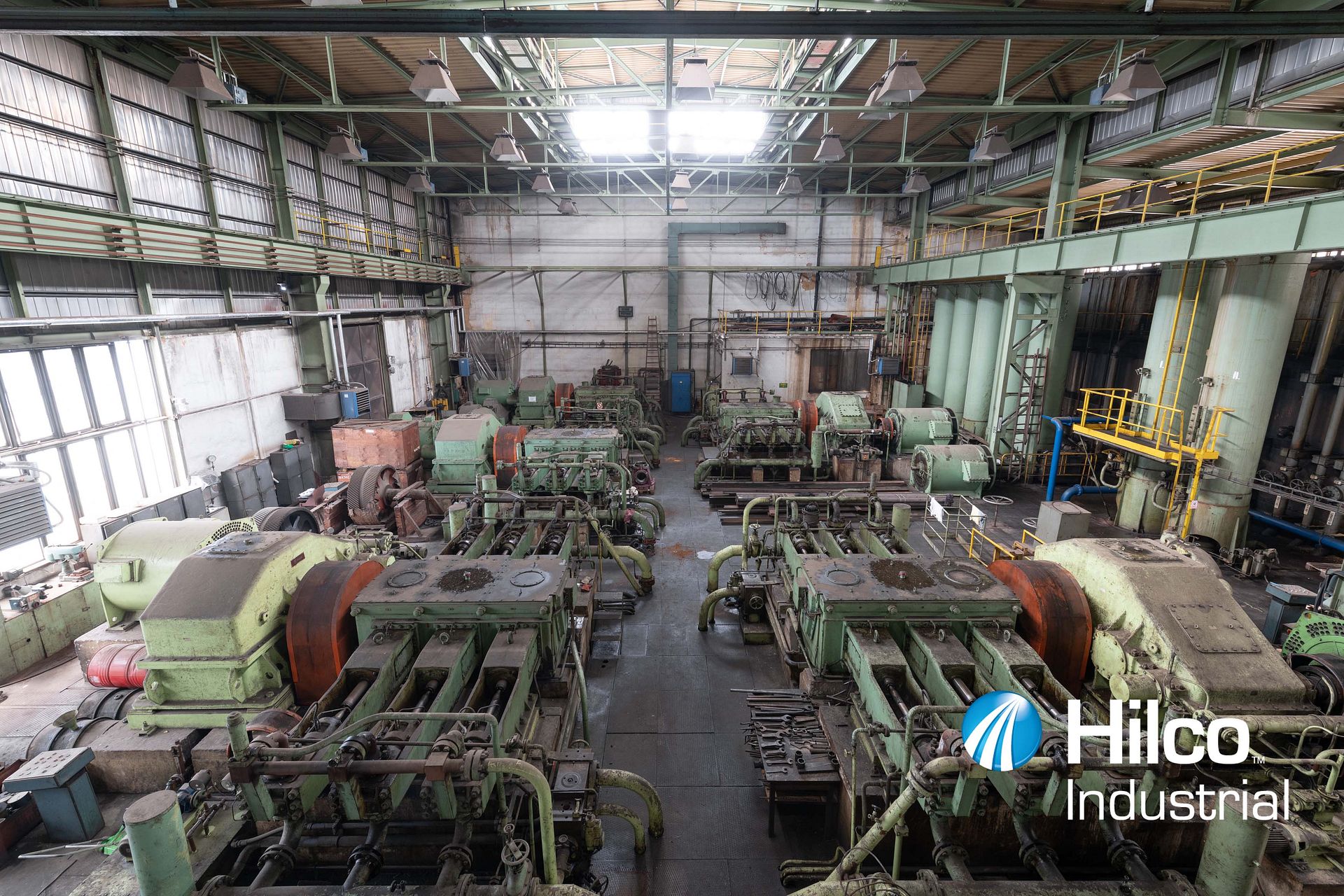

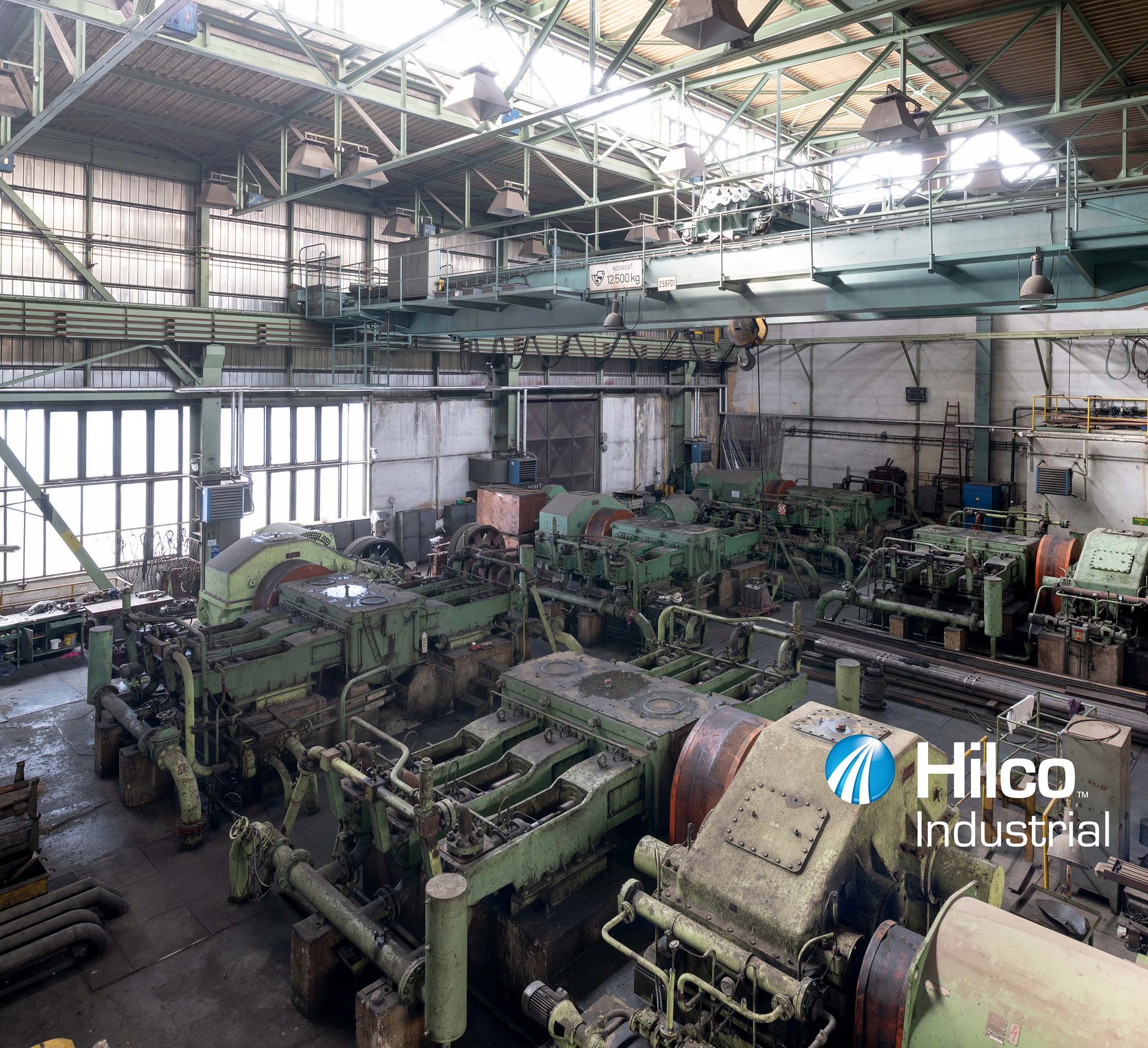

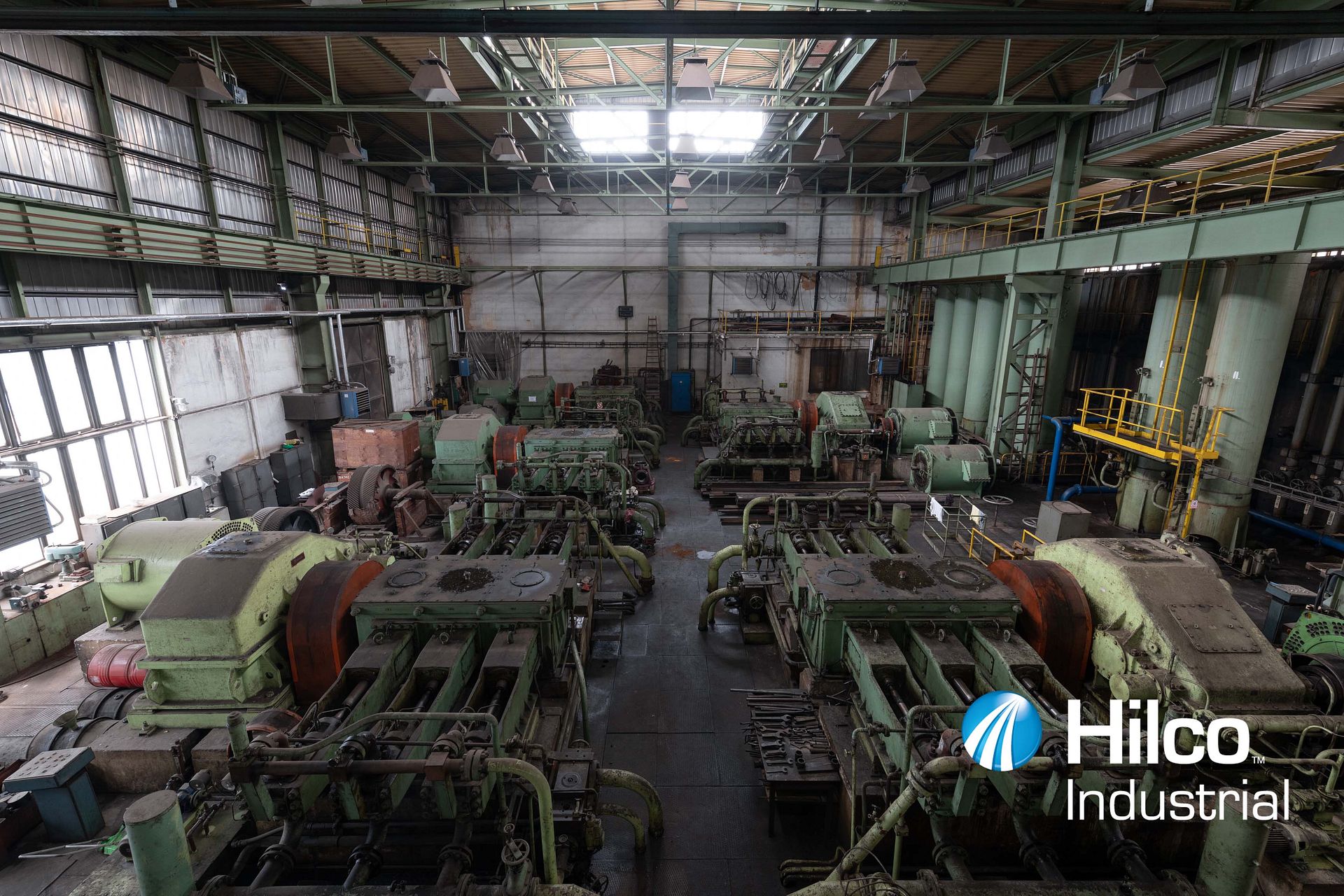

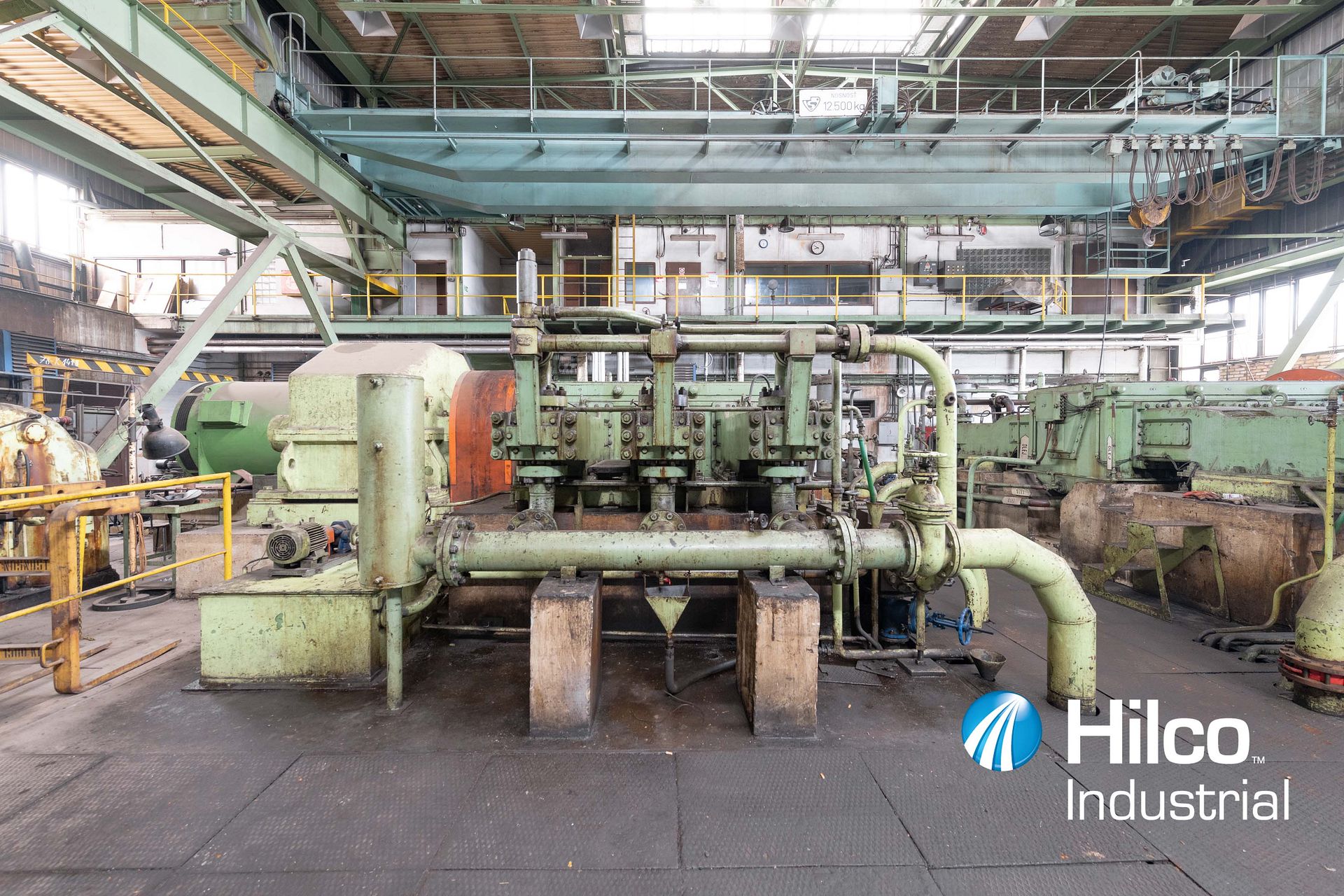

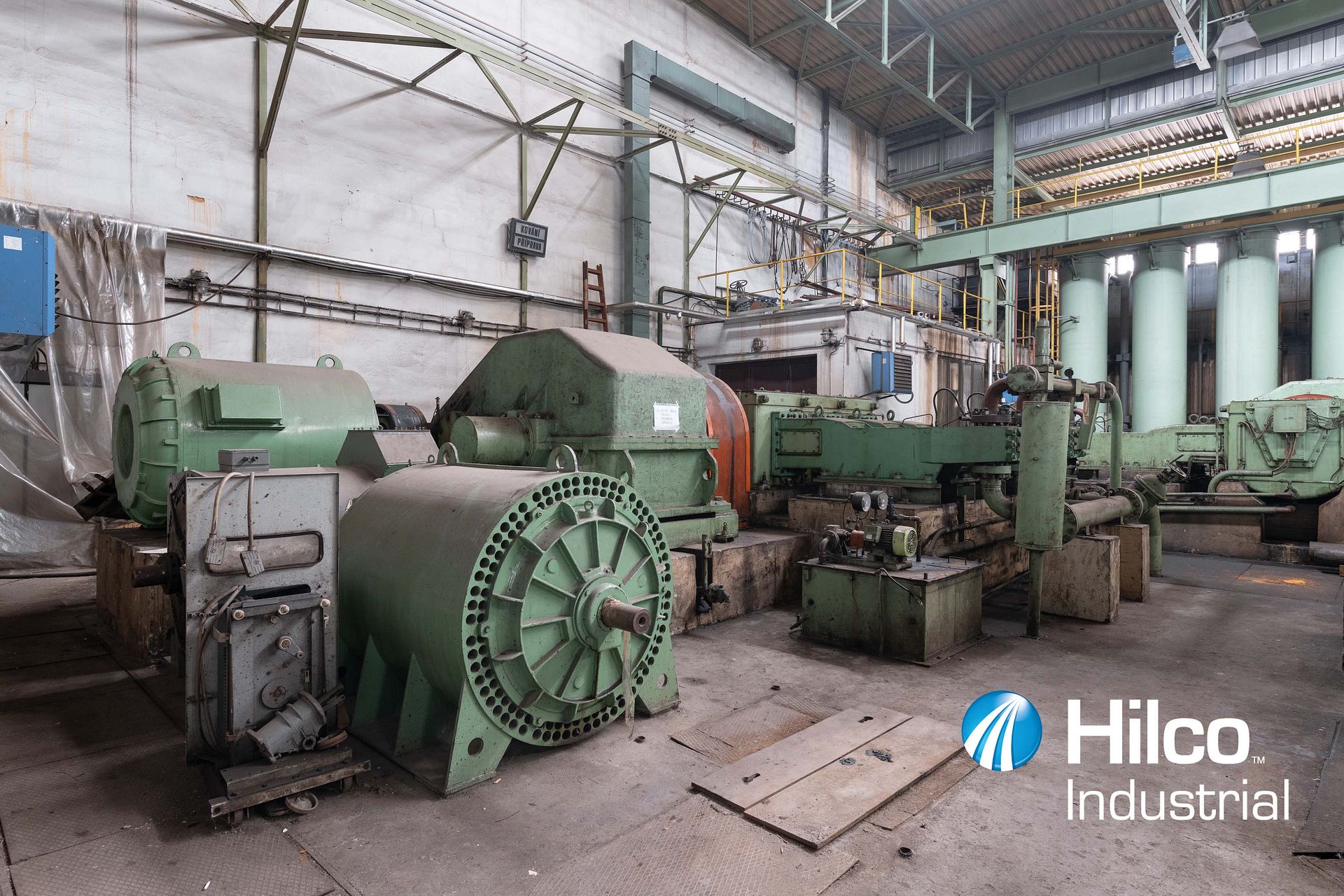

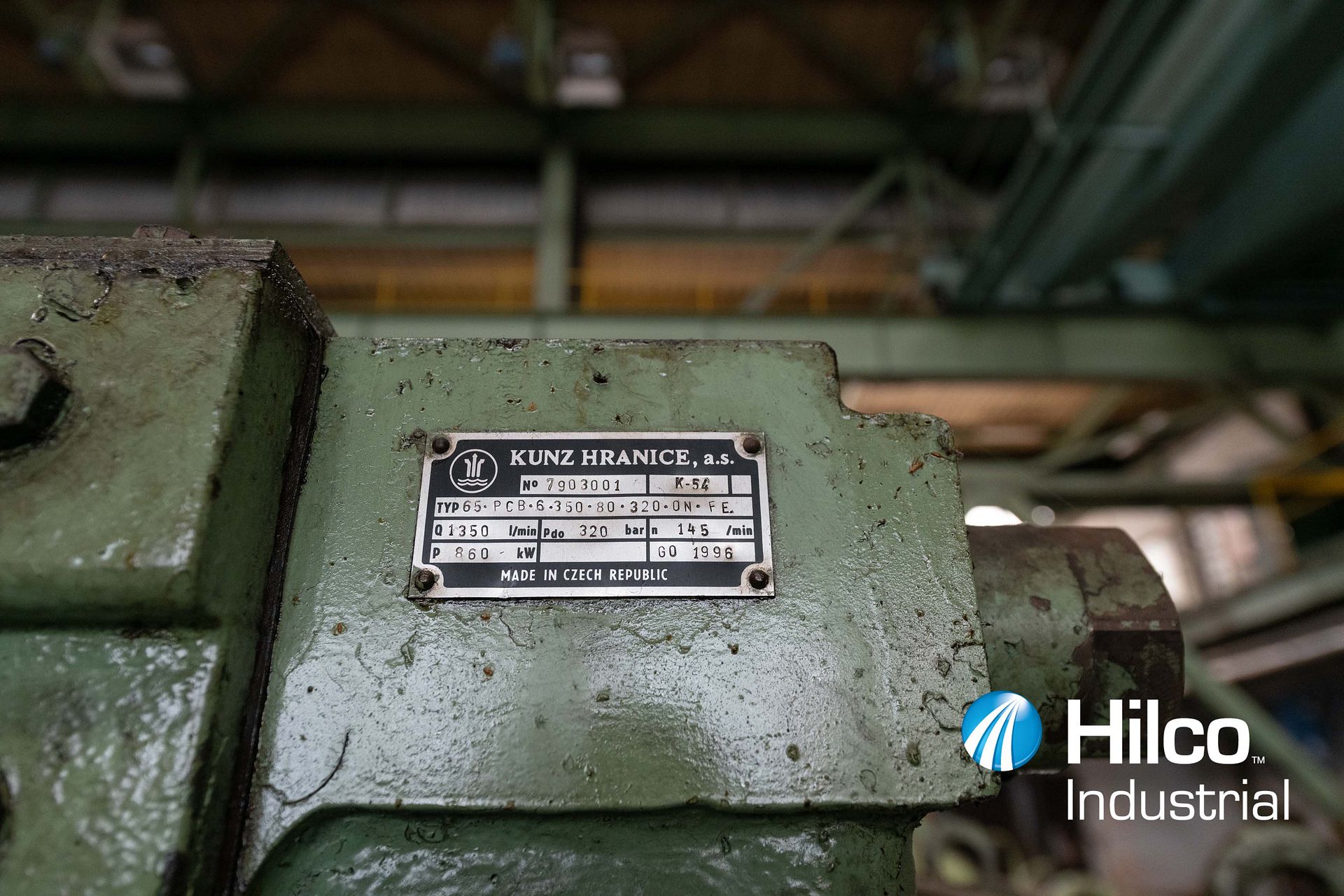

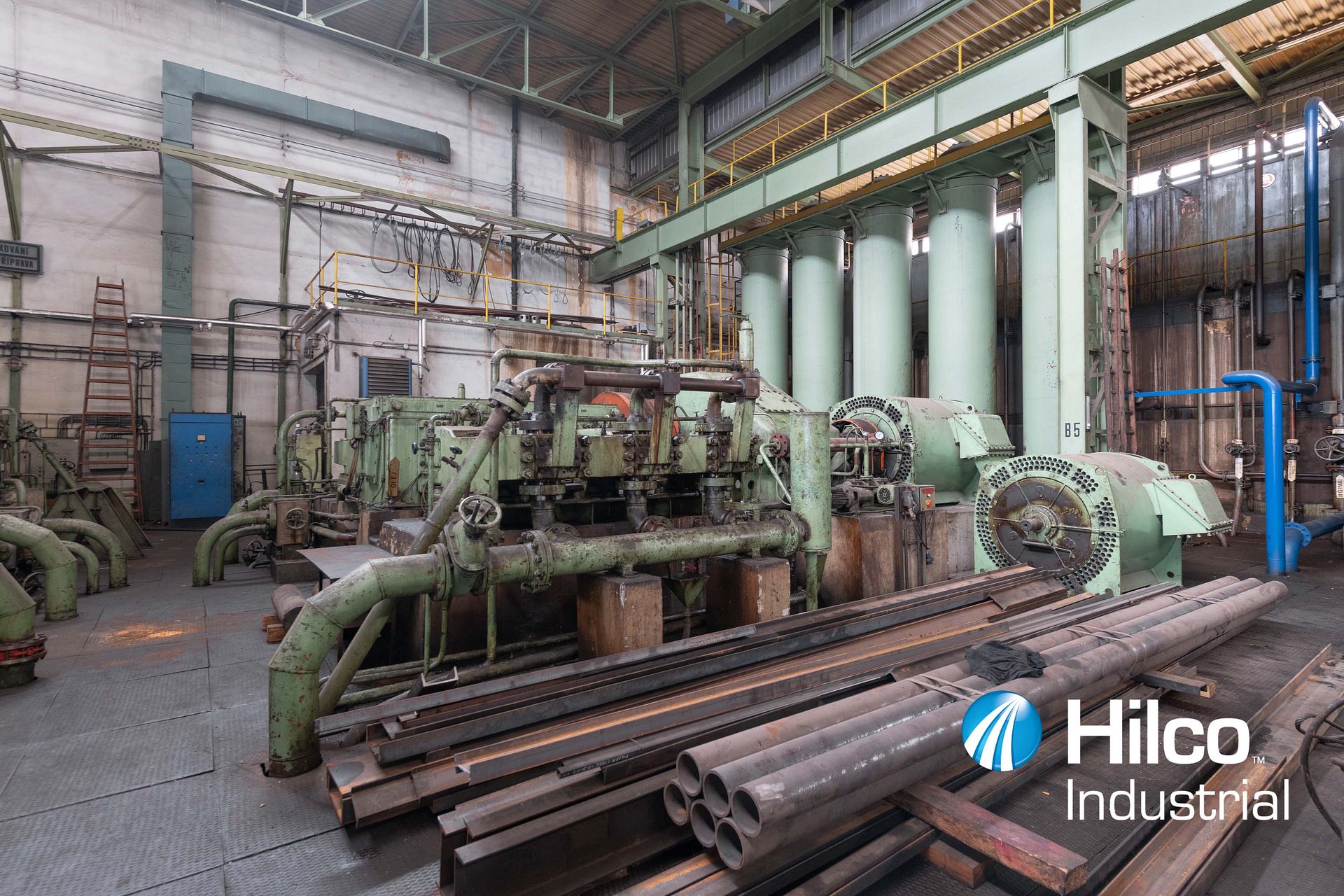

5 pumps (water drive), each with an 860 kW motor. In order to achieve the required pressure of 320 Bar, at least 2 of them in operation is necessary, i.e. at least a connection power of 1720 kW.
Multiplication (booster) to increase the capacity from 90 to 120 MN – connection power – 1037 kW (2 x 500 kW motor + 37)
***There is no manipulator included and no spare parts are available.
