Lot No. 2152

2004 Bühler B120 DS Cold Chamber Die Casting Cell (Complete Line)

Year: 2004

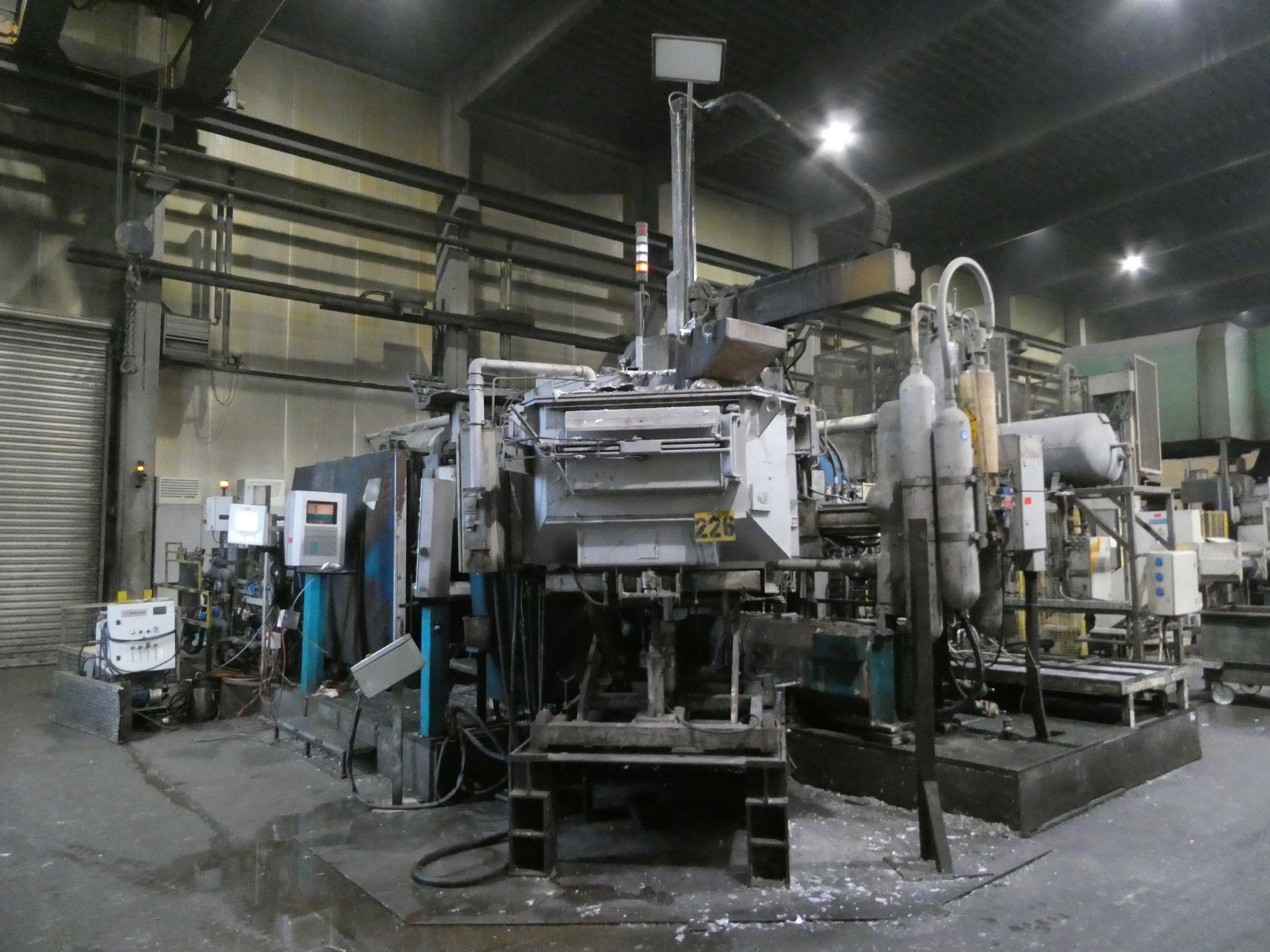

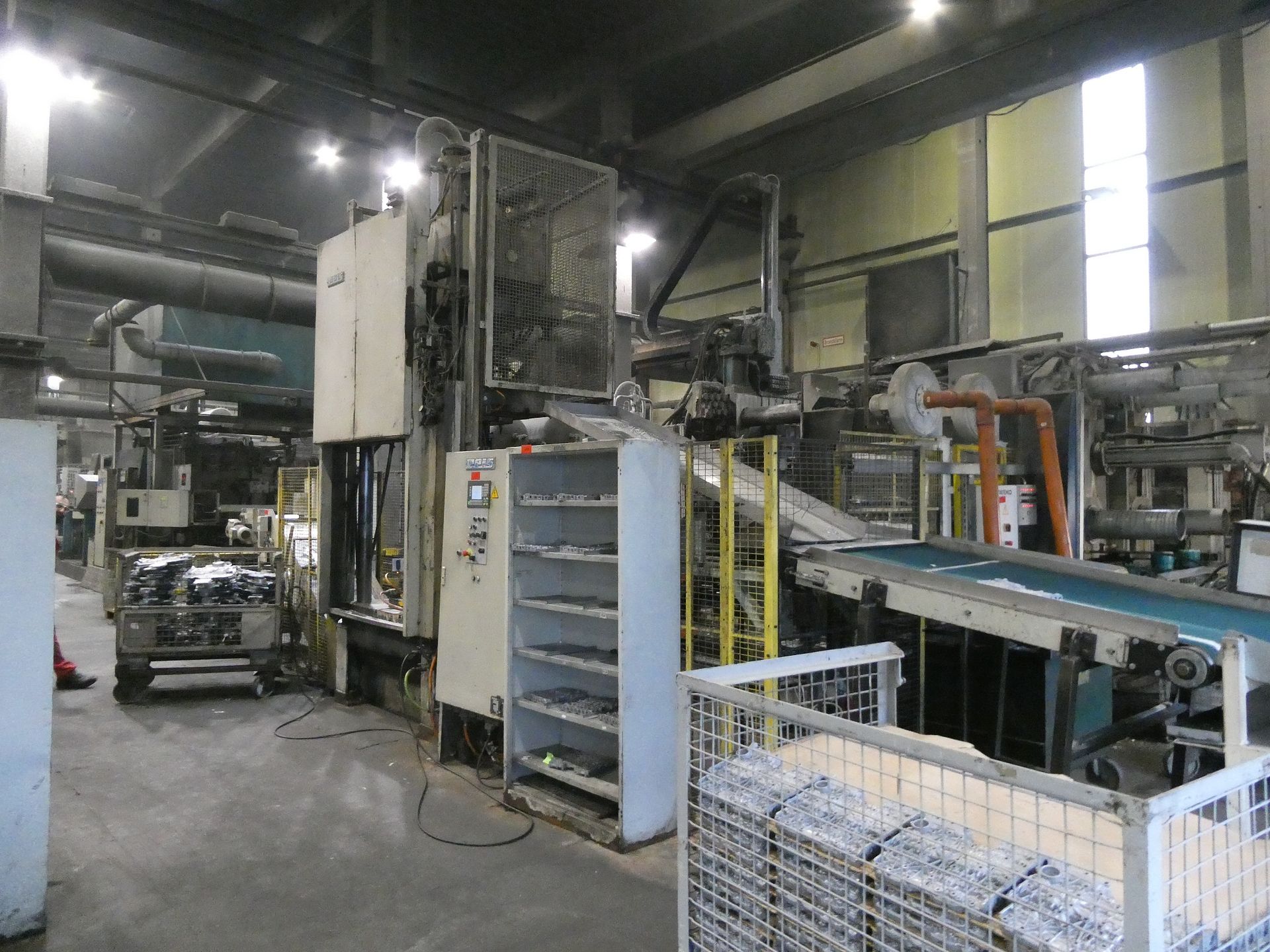

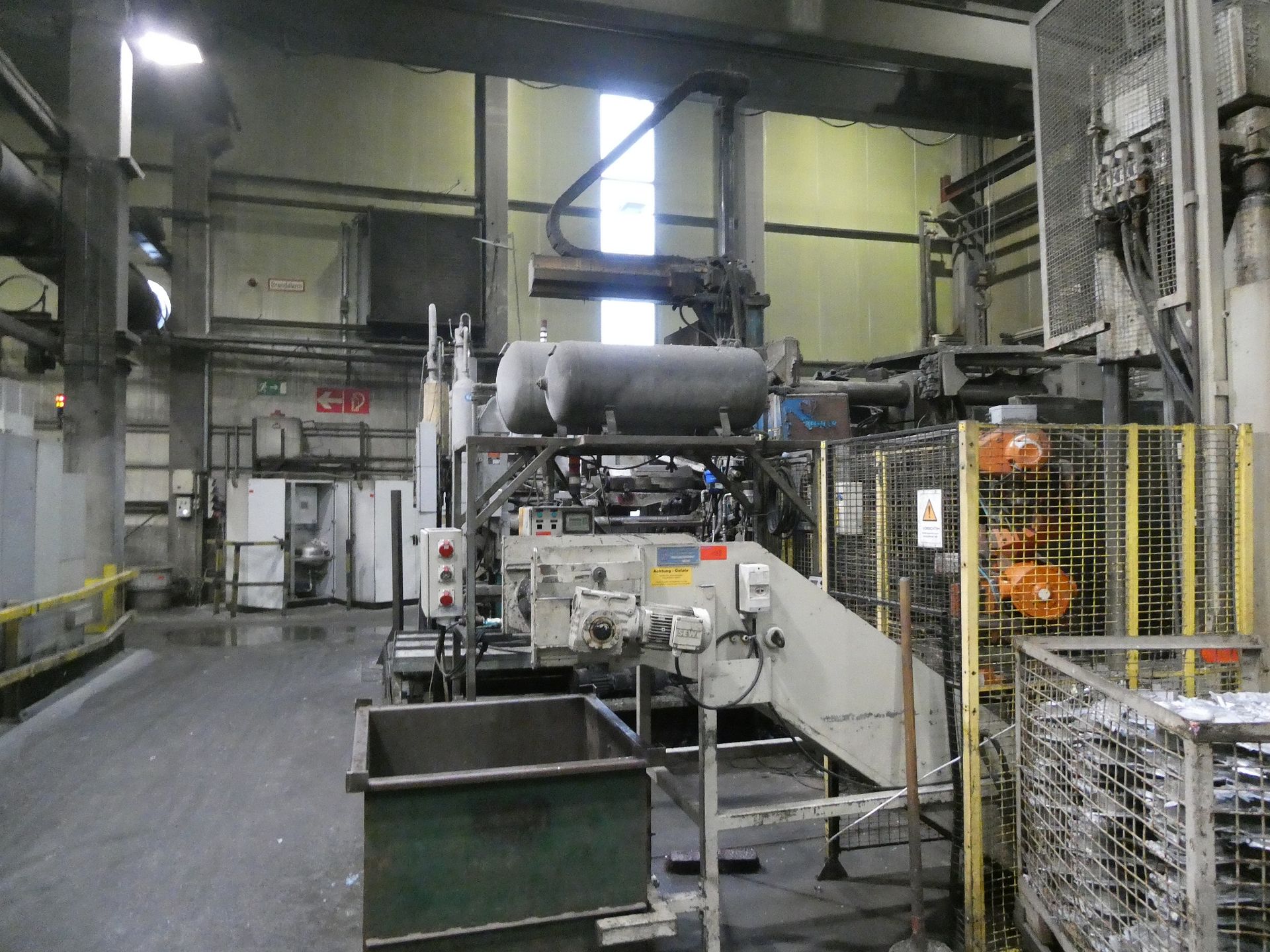

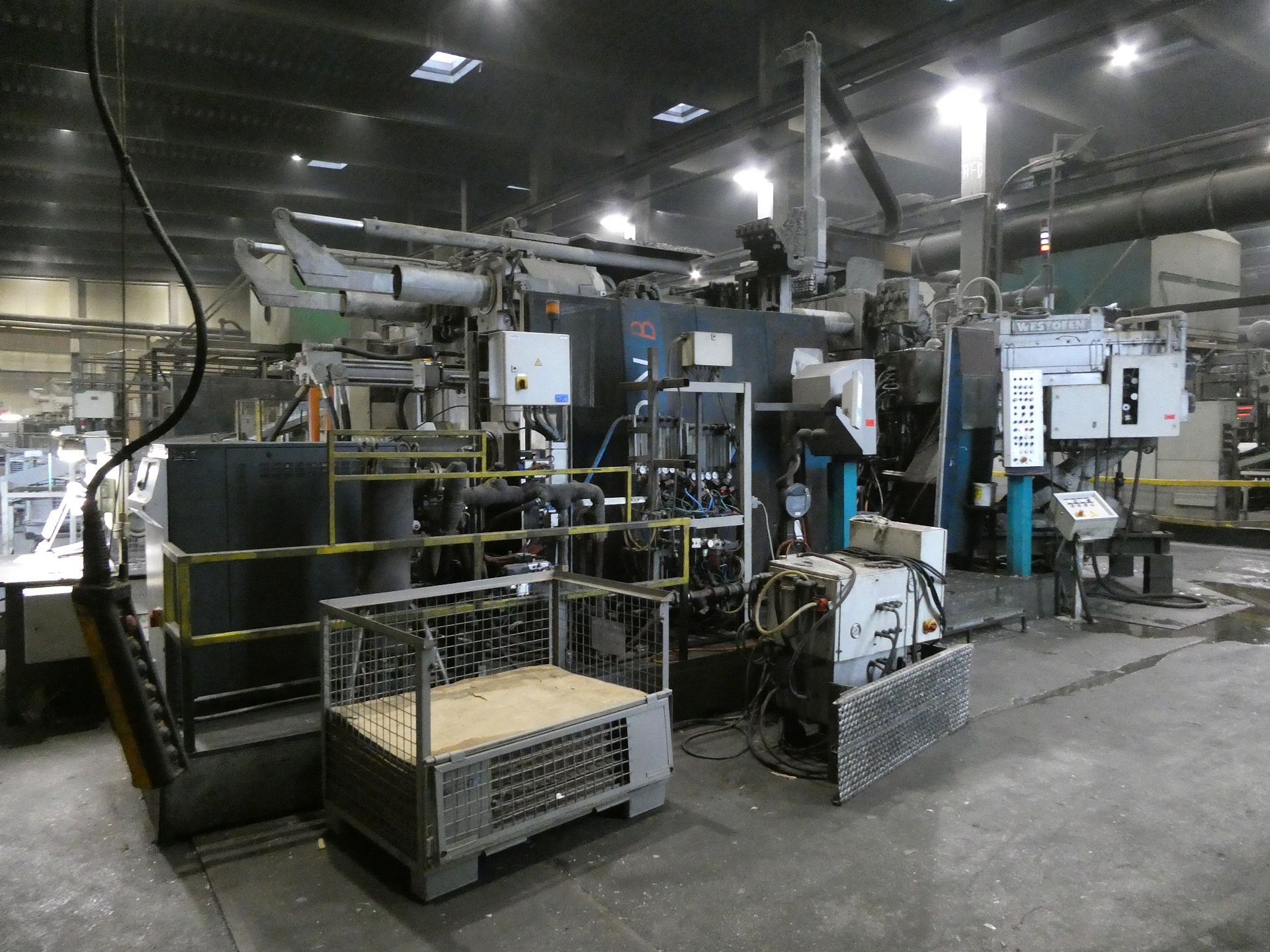

Die Casting Cell

Consisting of:

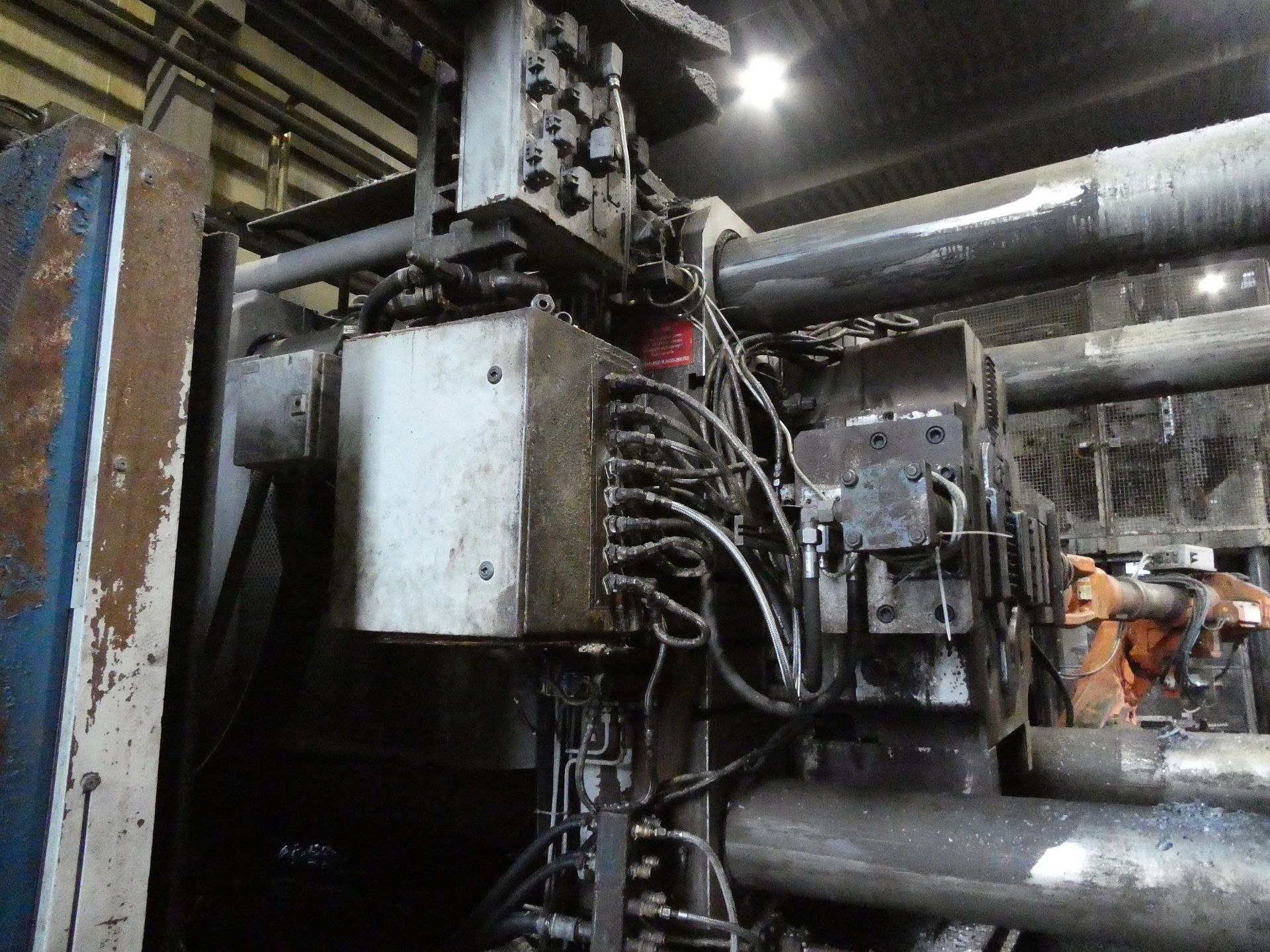

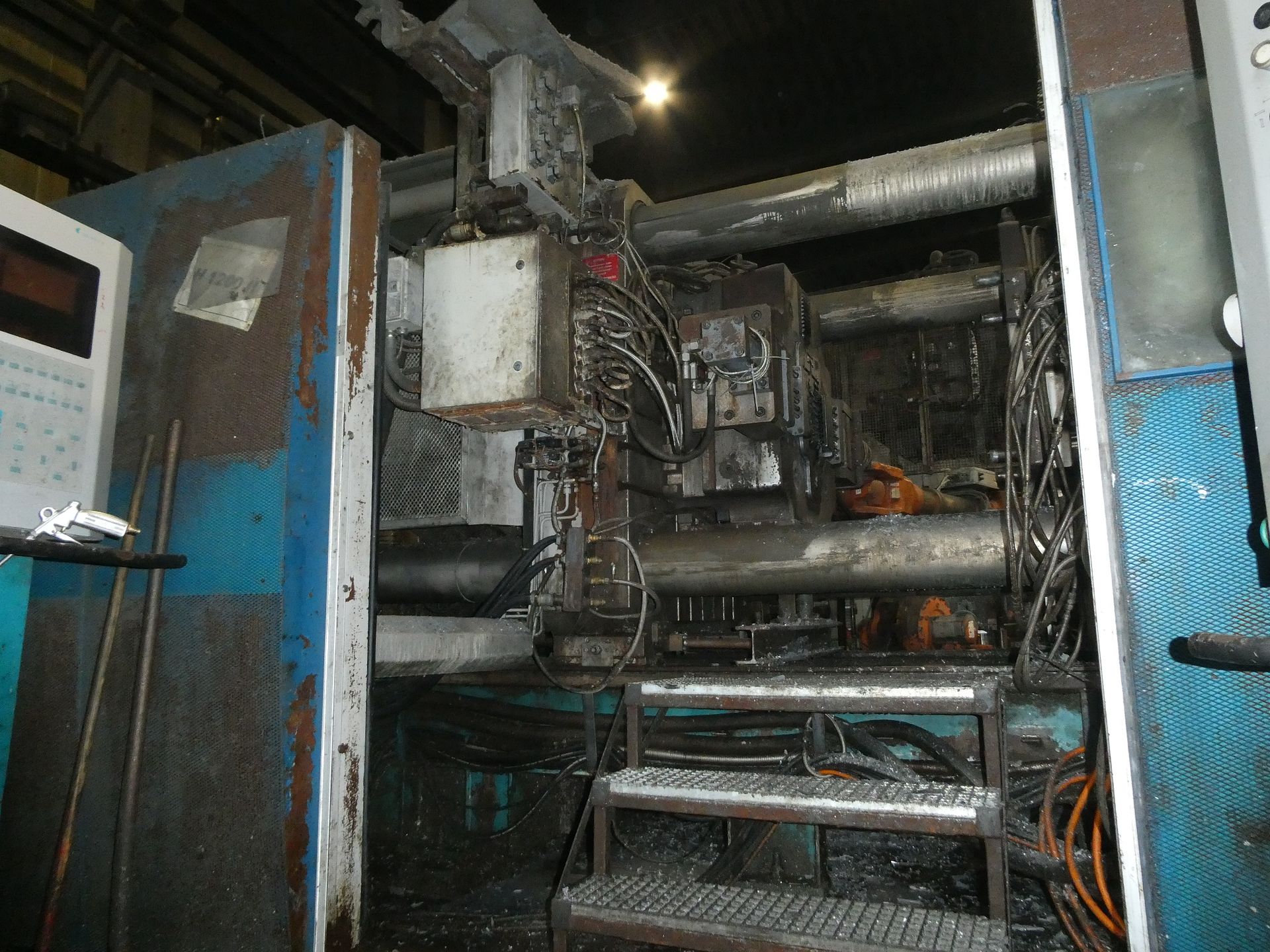

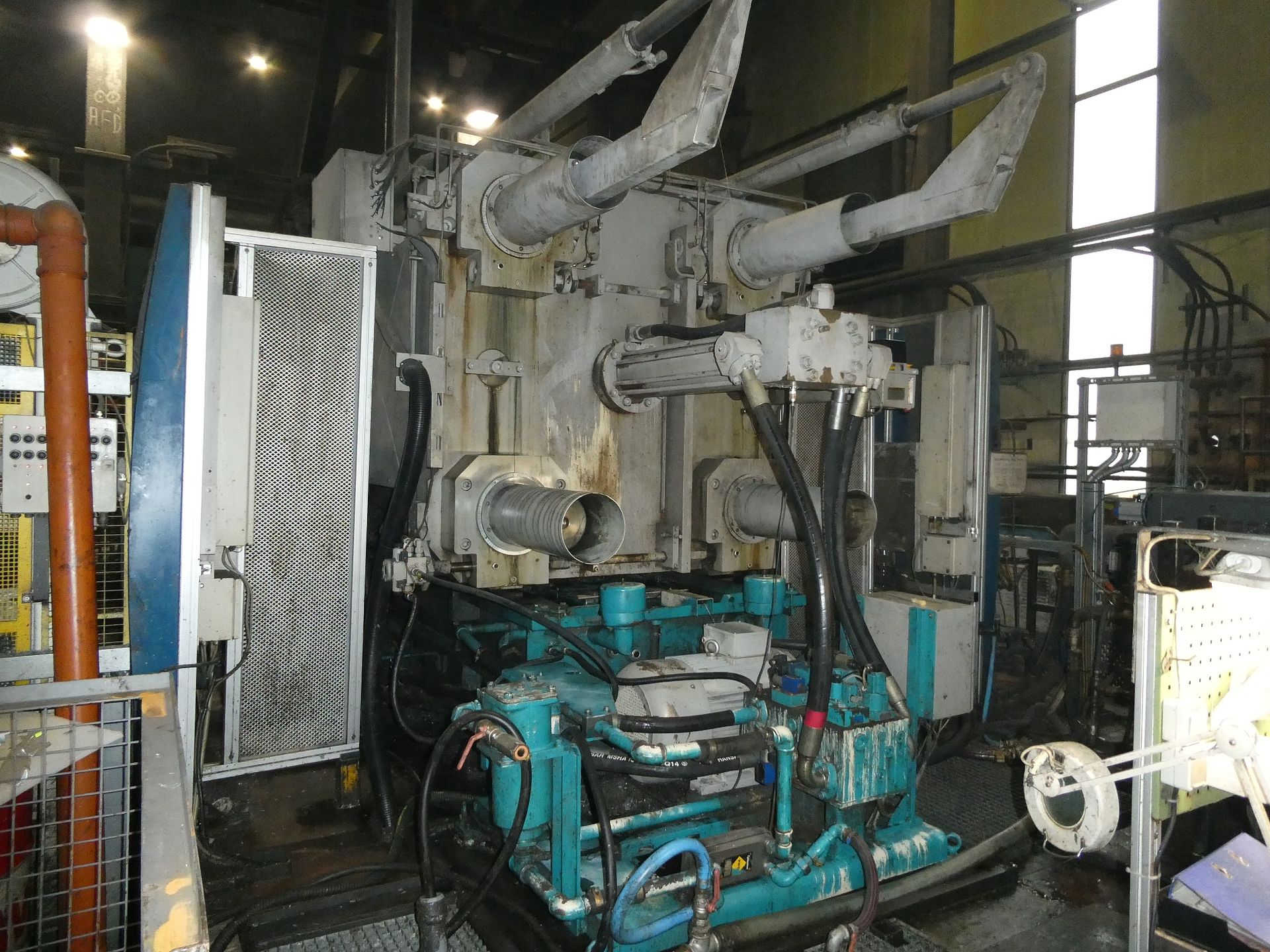

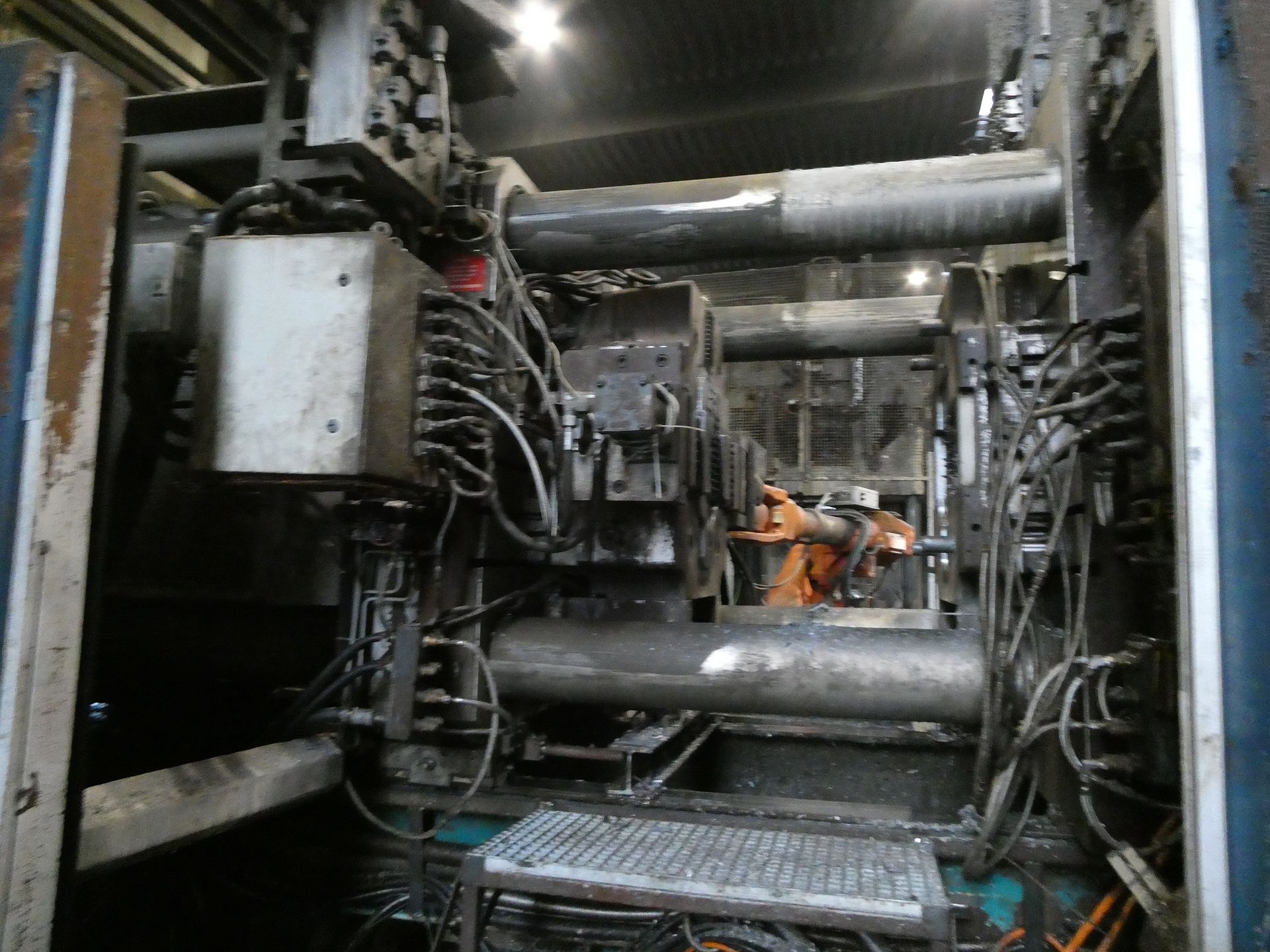

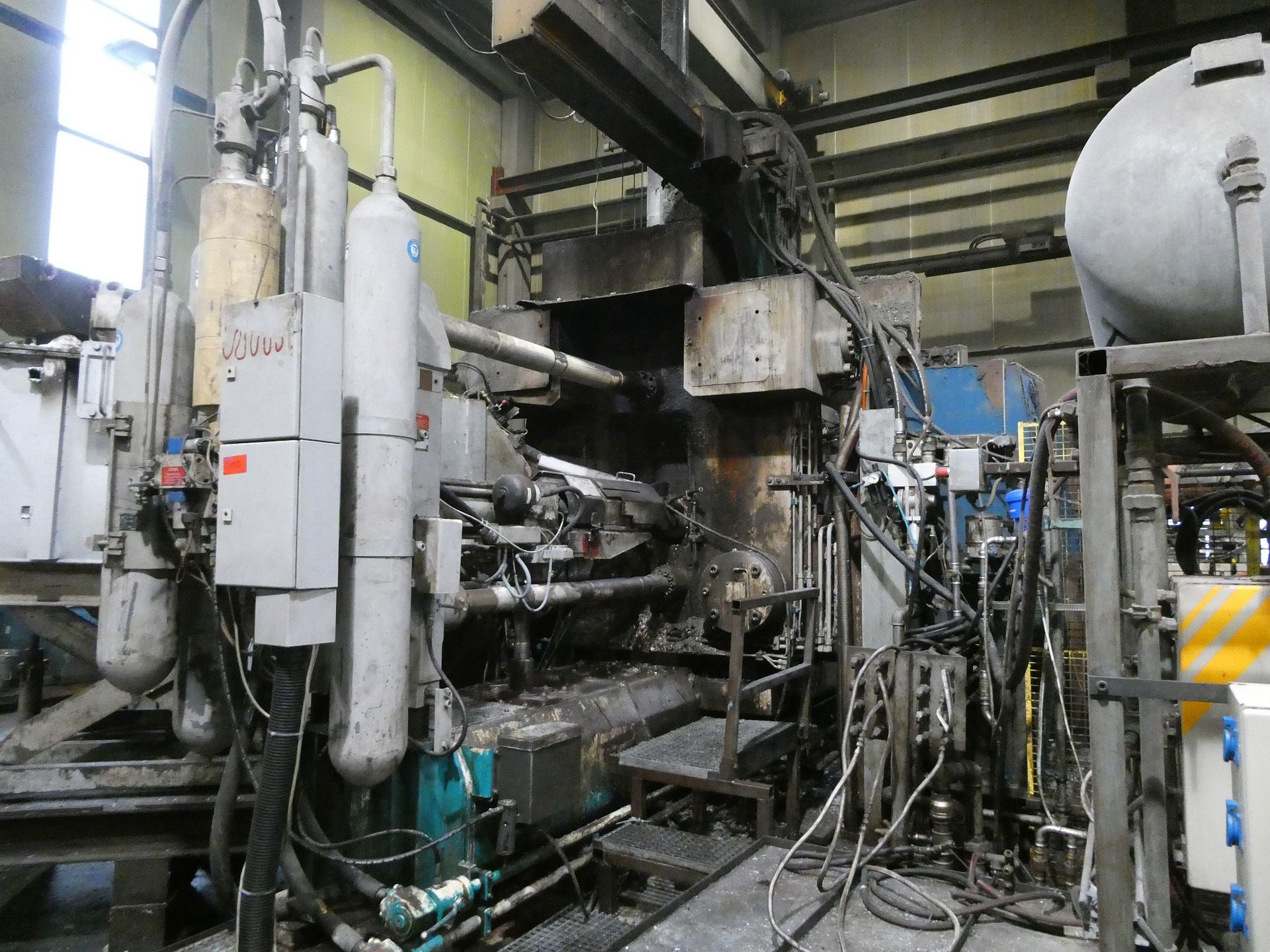

Bühler Cold Chamber Die Casting Machine
Type: Evolution B120 DS
Year of Manufacturing: 2004
Serial: 10380936

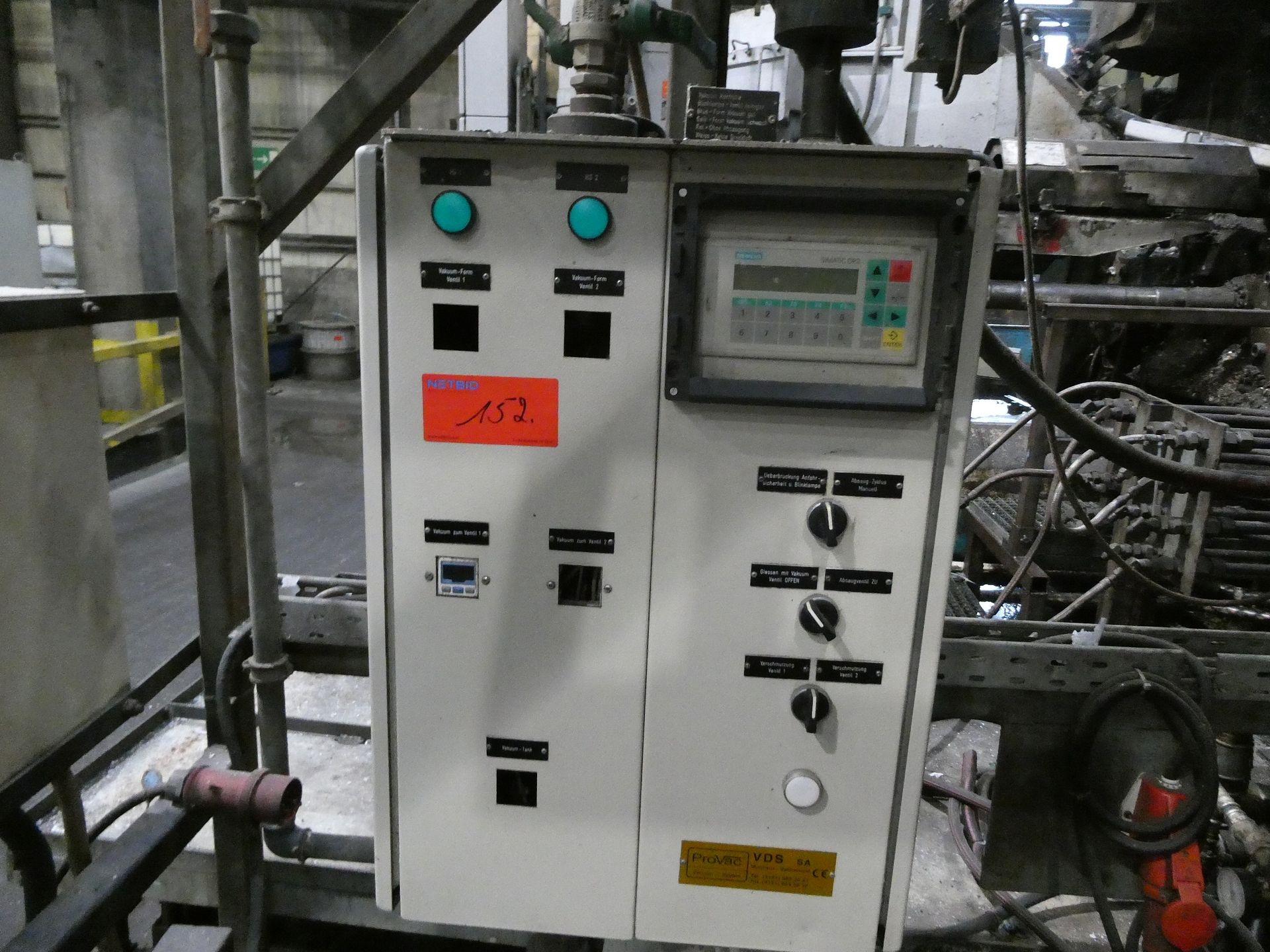

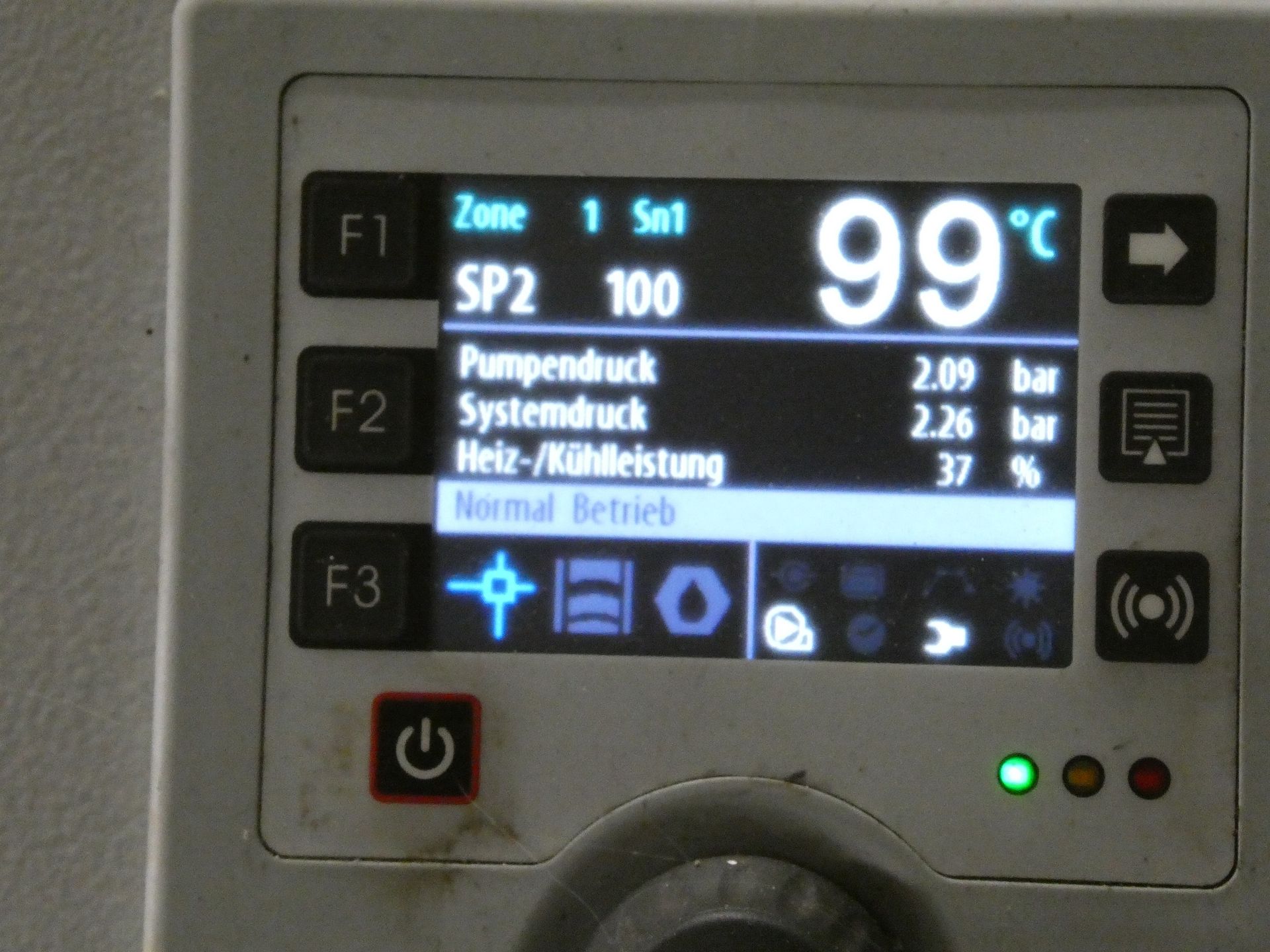

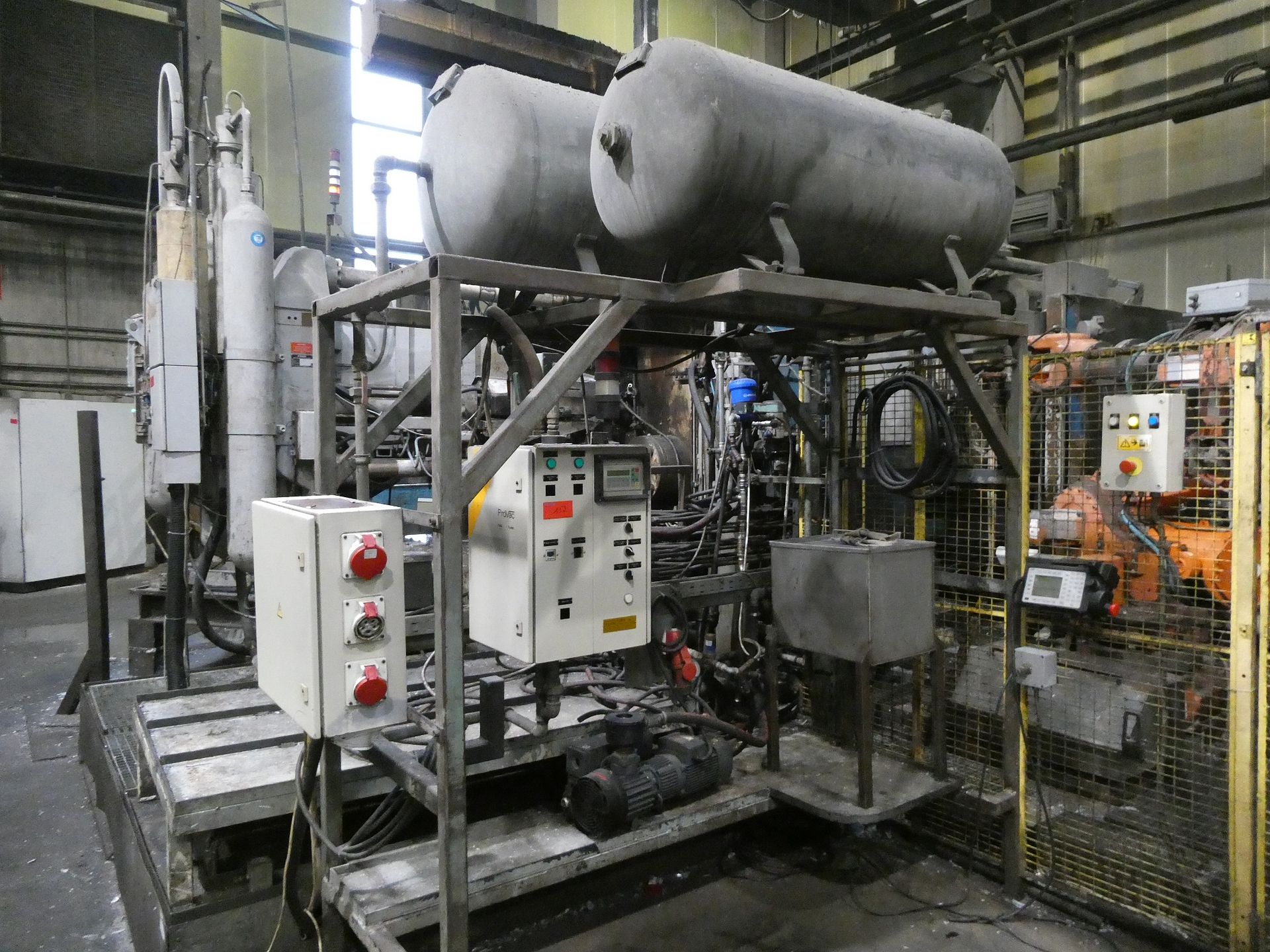

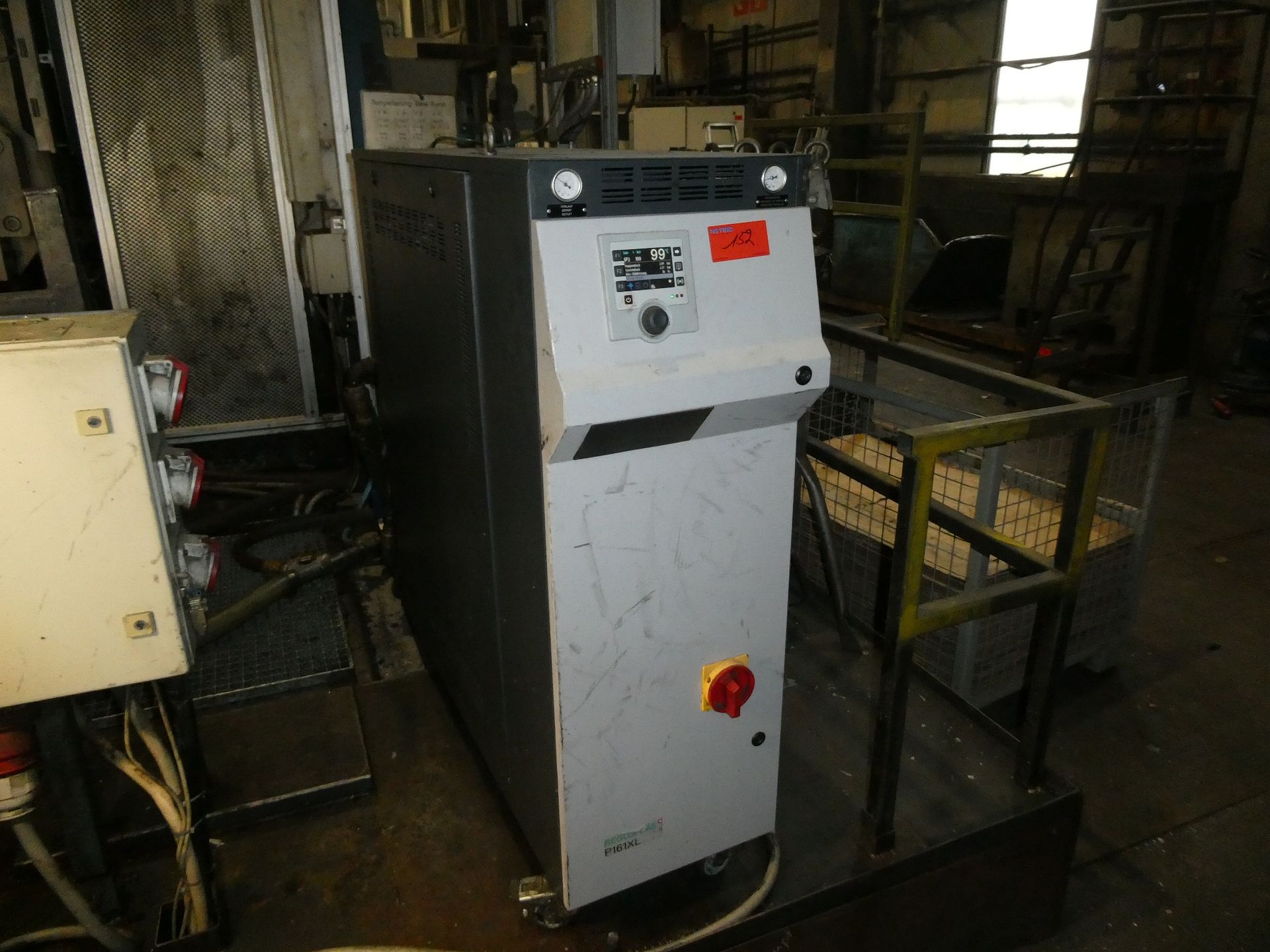

Description: Nominal clamping force 12,000 kN, weight 48,000 kg, stationary vacuum system, Fabr. VDS, Type Provac, Tool Temperature Control System, Fabr. Oni, type Rhythemper, operating hours. 299

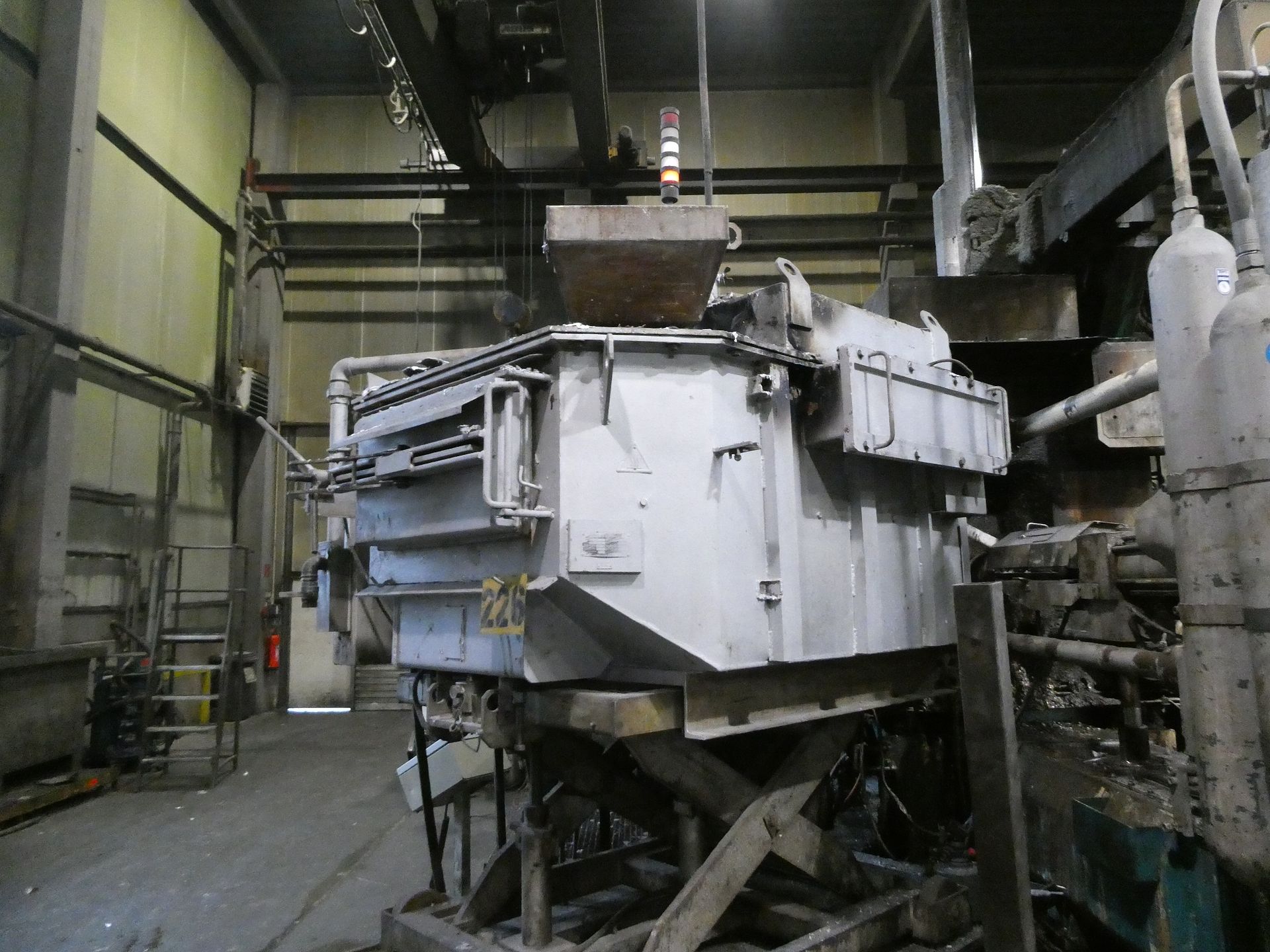

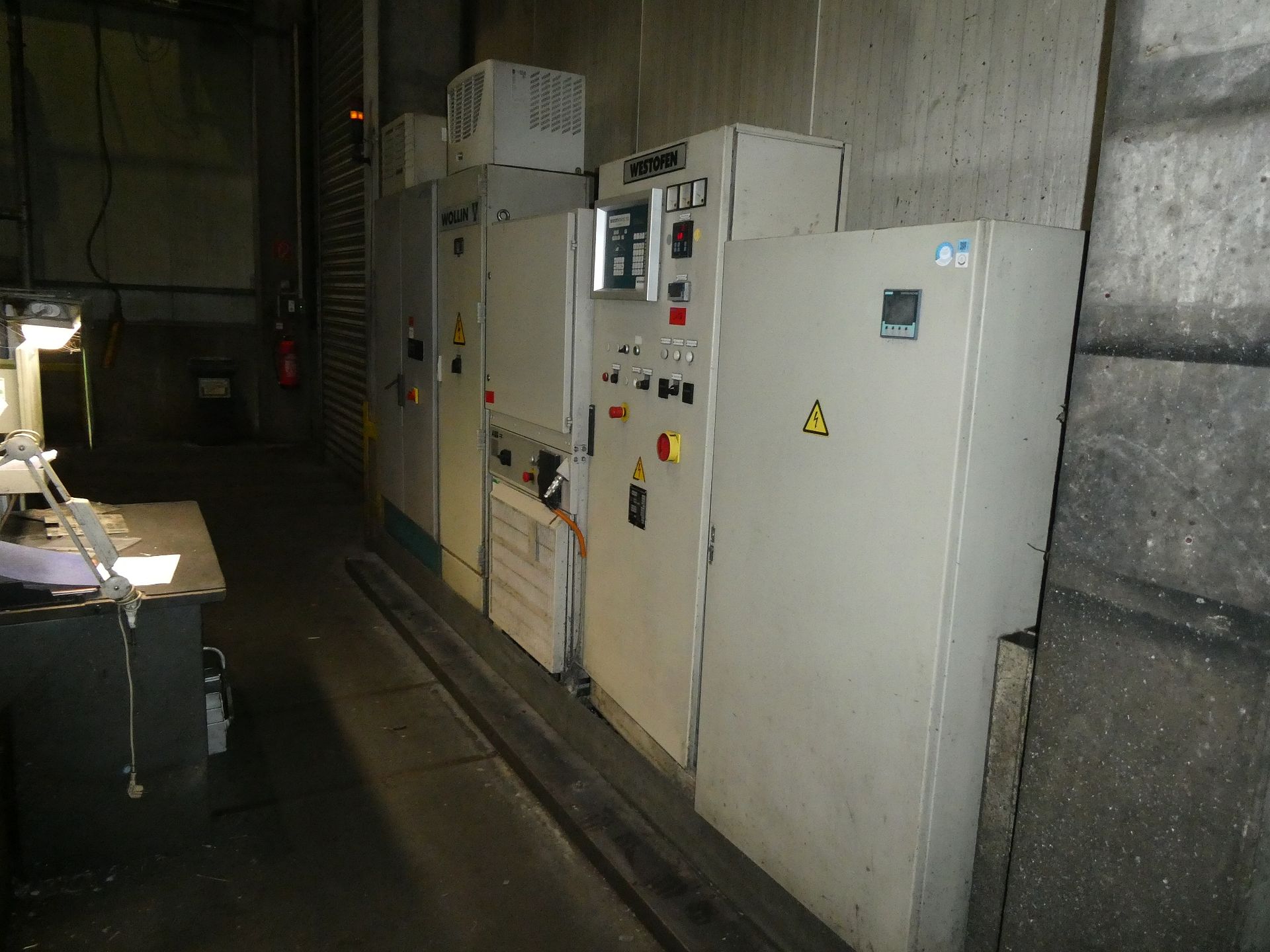

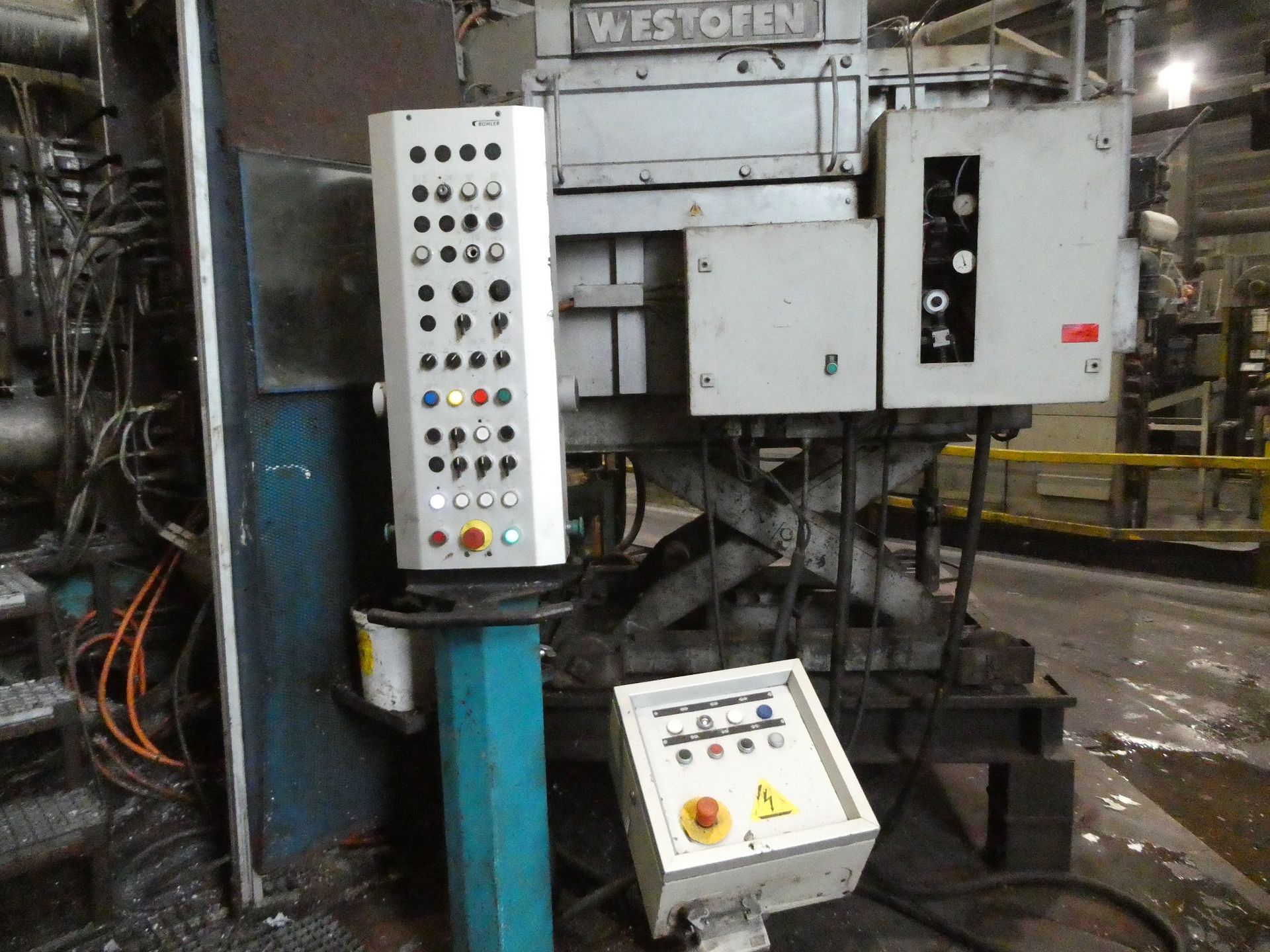

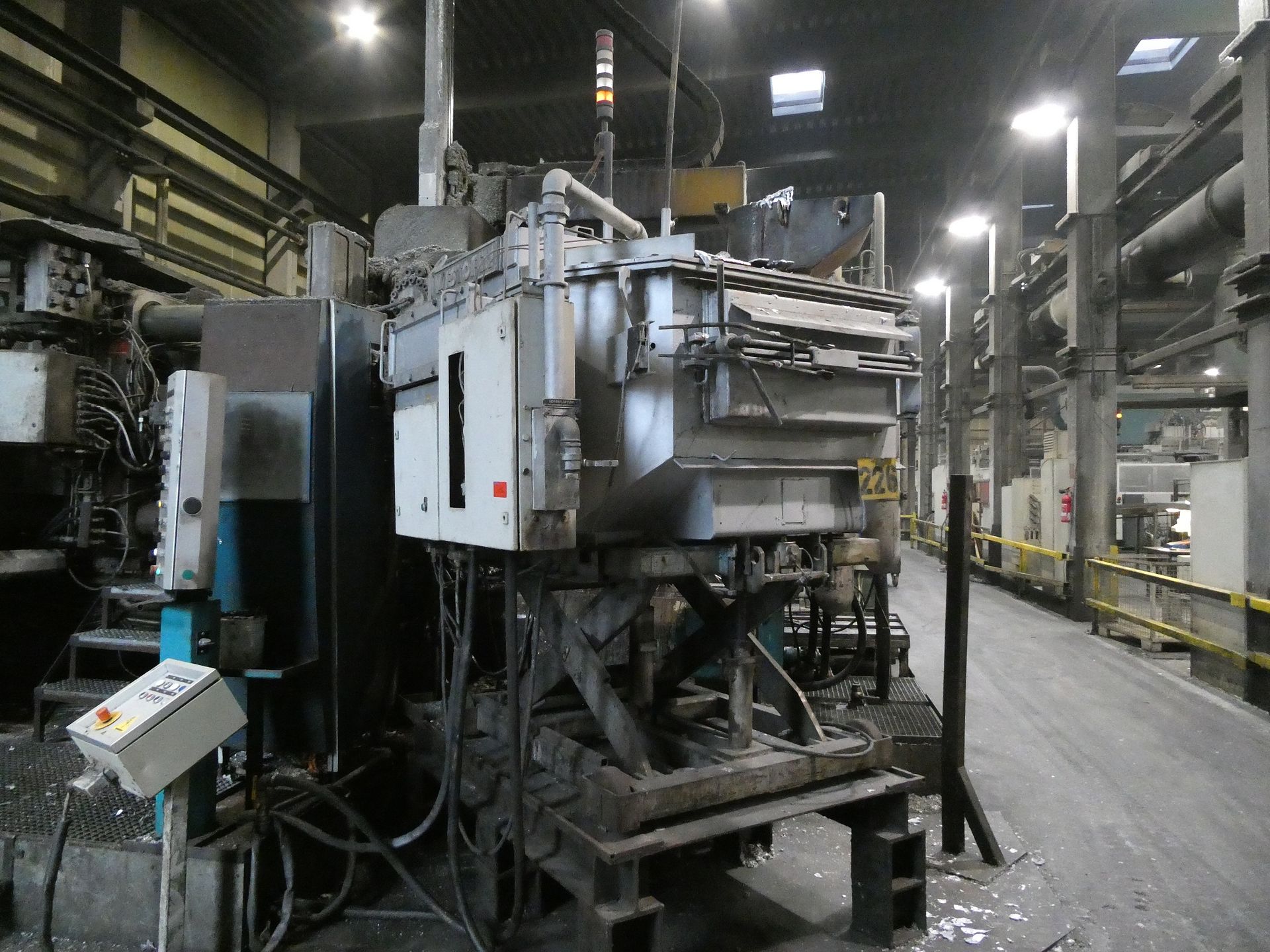

Striko Westofen Holding Furnace
Type: Westomat 65S
Serial: 4407
Description: Content: 560 cm³, Lifting Device, Control Cabinet, Fabr. Striko Westofen, Typ W90SLDG, SN 5515, Bj. 1998

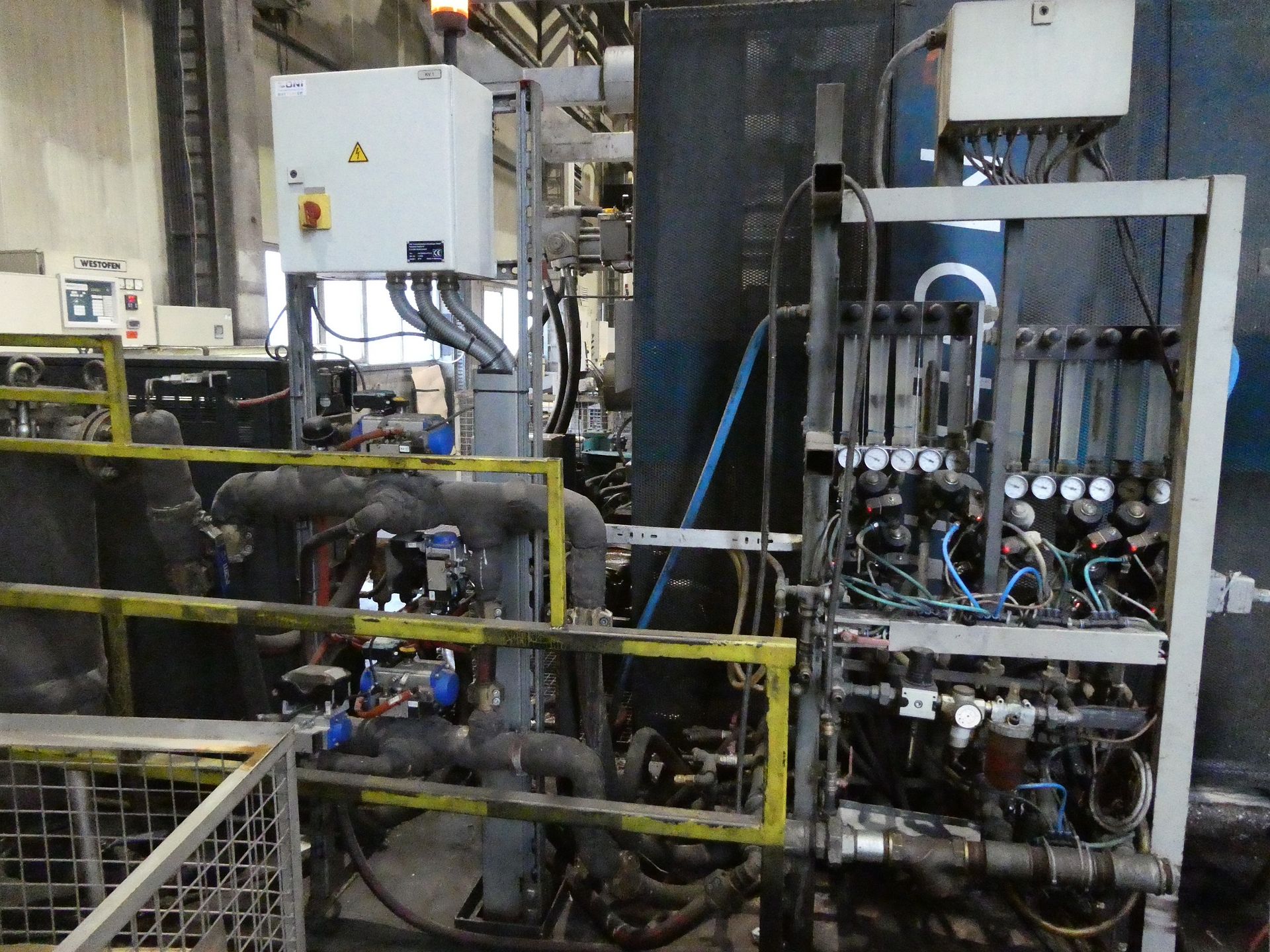

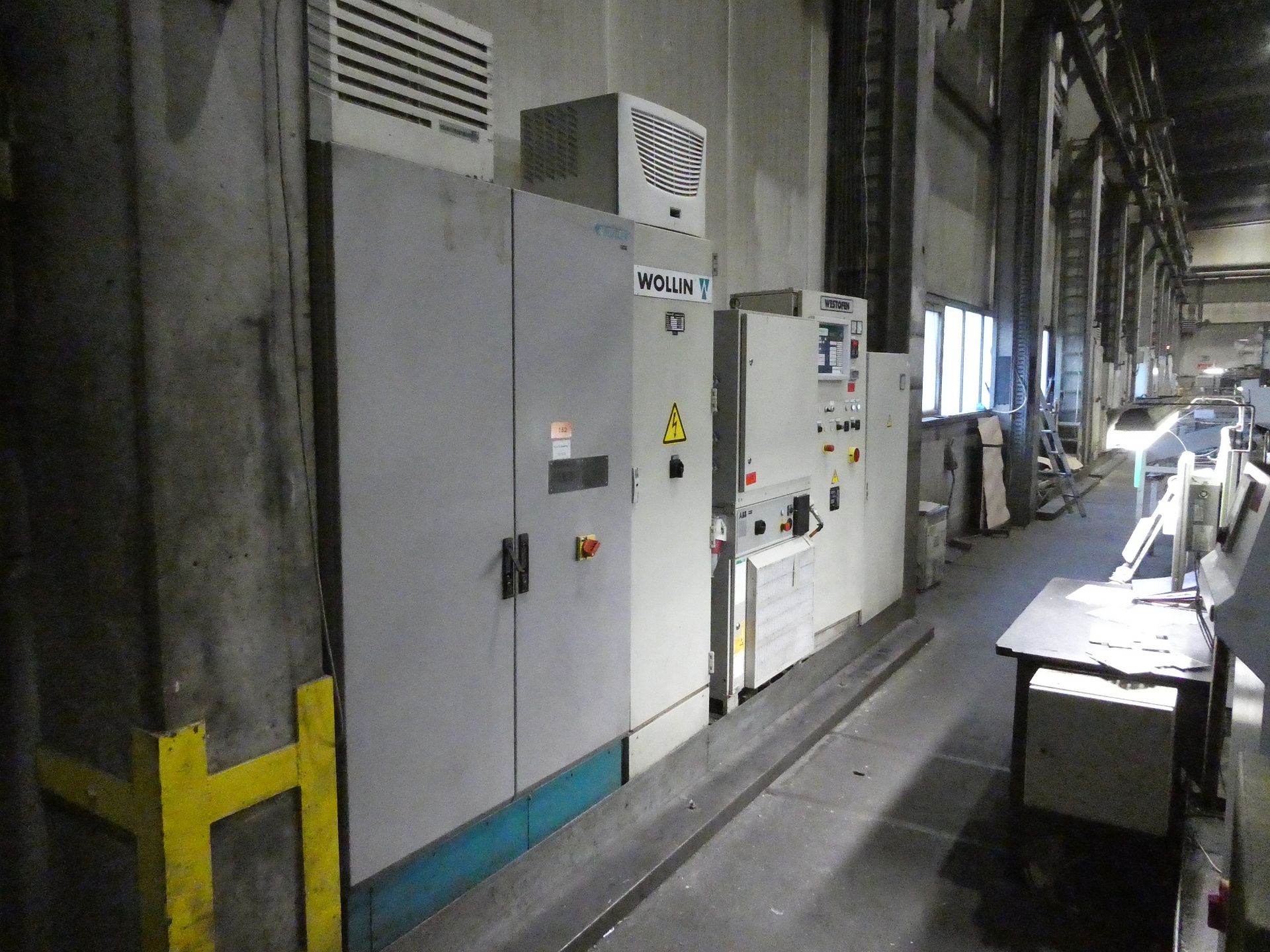

Wollin Release Agent Spray System
Type: PSM3
Year of Manufacturing: 2004
Serial: 3023
Description: Control, Fabr. Wollin, type PC2, power 14.7 kVA, best. from: Linear Robot, Dosing Control

Weko Cooling Cabinet
Type: Refrigerated Cabinet
Year of Manufacturing: 2022
Serial: 3623
Description: Power 1.1 kW, Air Volume 55 m³/h

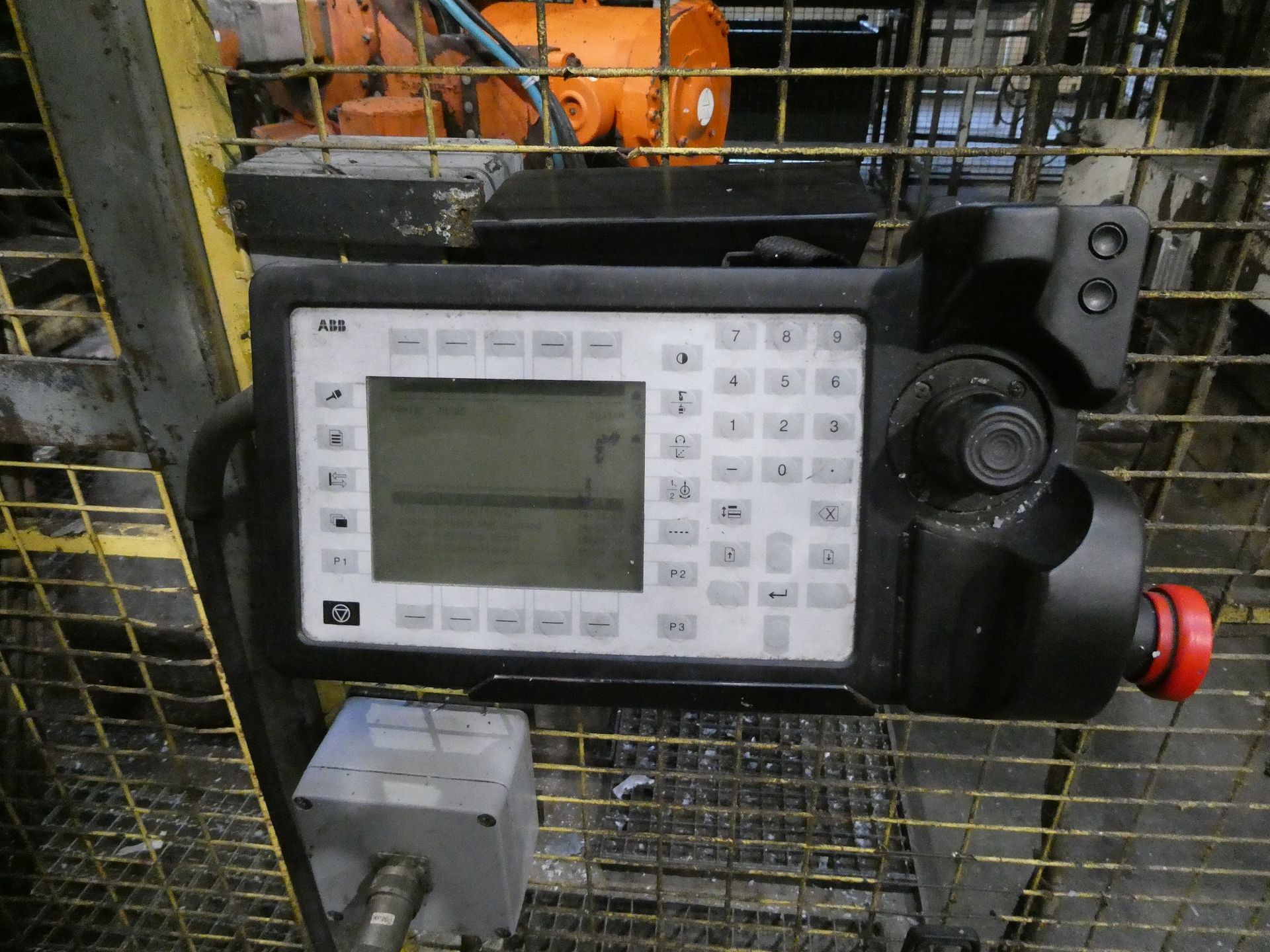

ABB 6-Axis Handling Robot
Type: 6600-M2000
Year of Manufacturing: 2004
Description: Control, Type S4C Plus, SN 66-28376

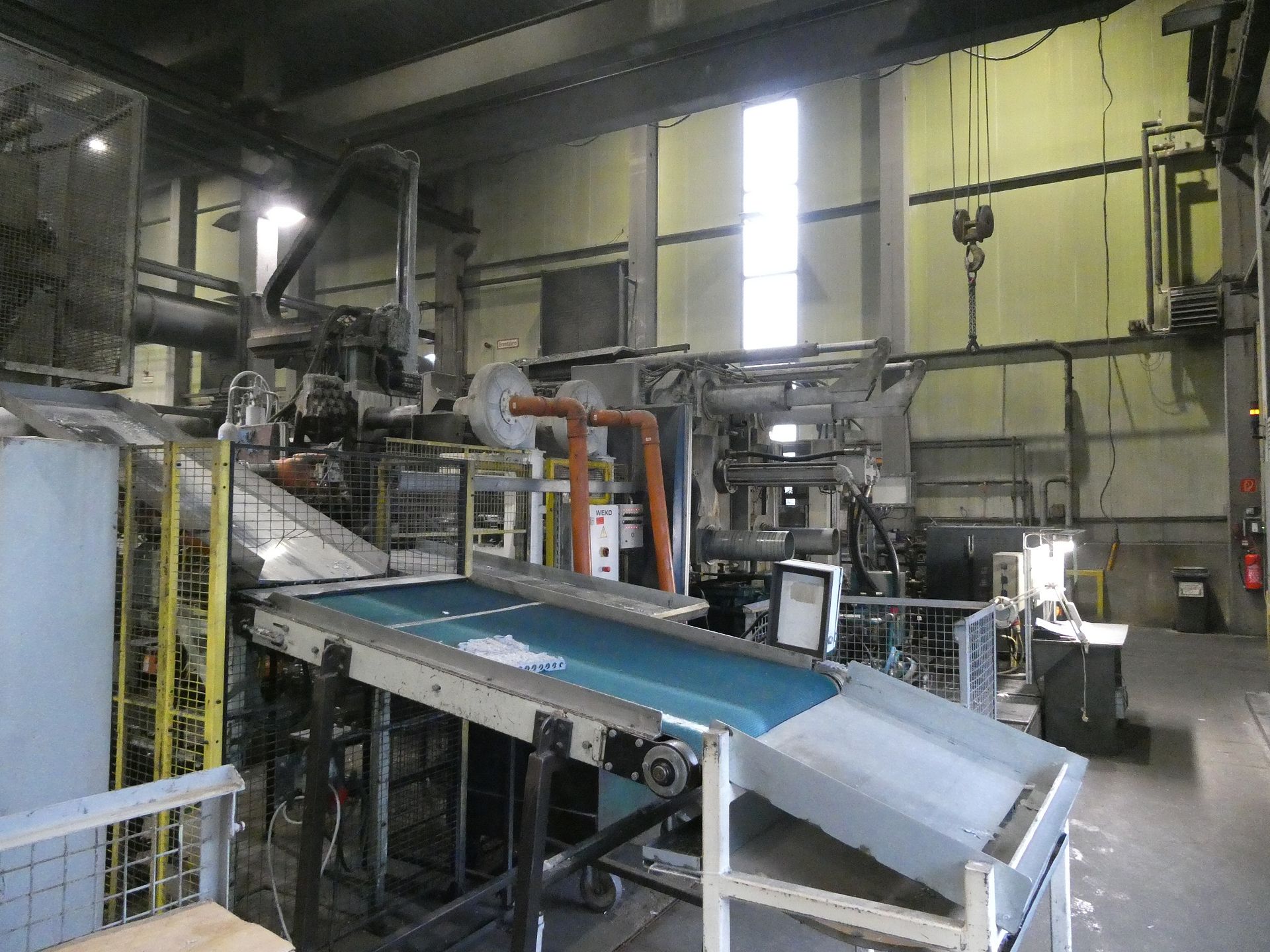

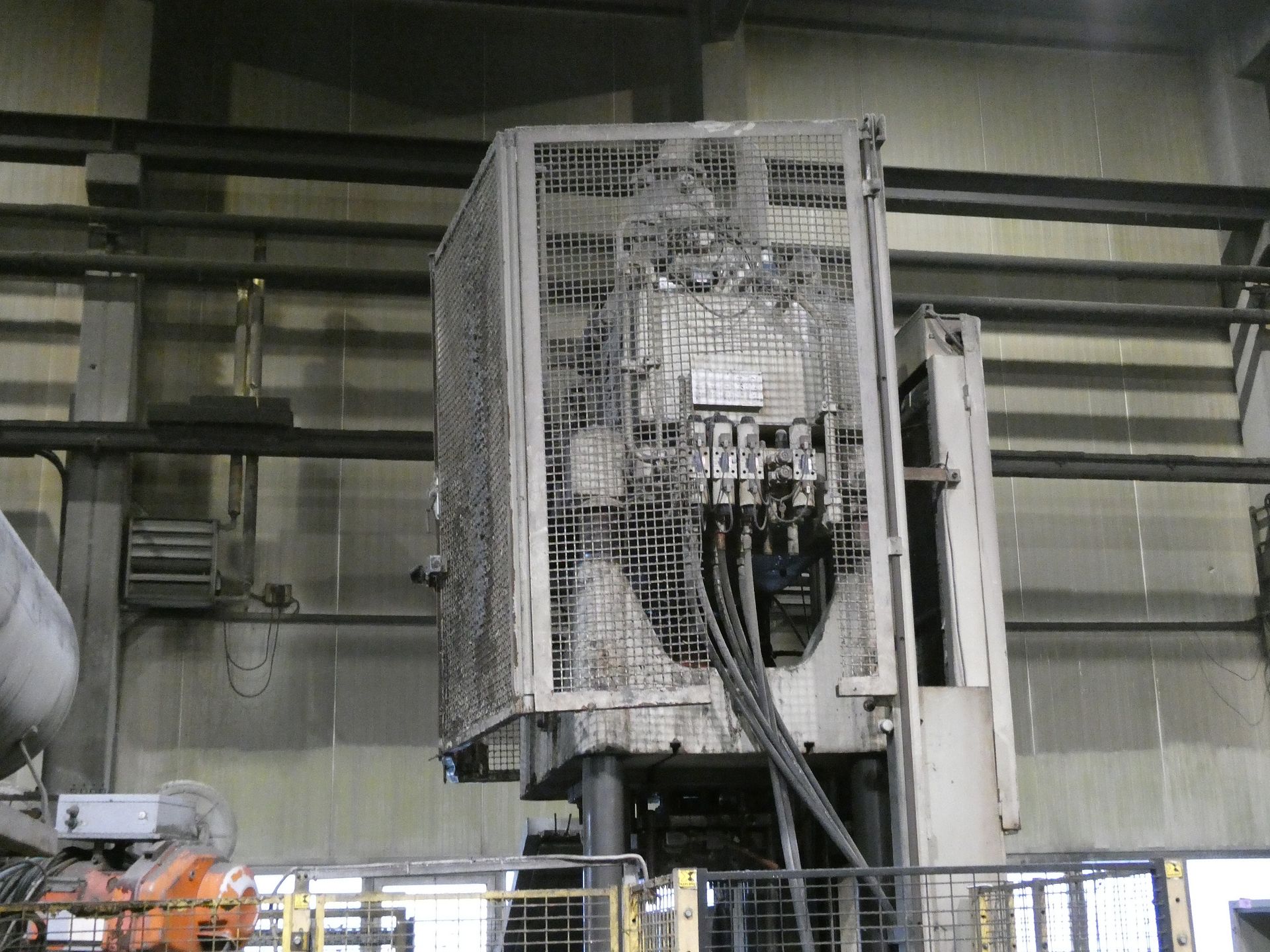

Rice Trimming Press
Type: SEP13-65 SD
Year of Manufacturing: 2004
Serial: 131028
Description: Nominal clamping force 650 kN, pressure min./max. 5/200 bar, power 28 kVA, weight 8,650 kg, protective fencing, safety devices, discharge conveyor belt, discharge chute
