STEIN HEURTEY Inert Atmosphere Spheroidizing Electric Heat Treatment Furnace incl. Auxiliaries
Lot No. 3030
STEIN HEURTEY Inert Atmosphere Spheroidizing Electric Heat Treatment Furnace incl. Auxiliaries

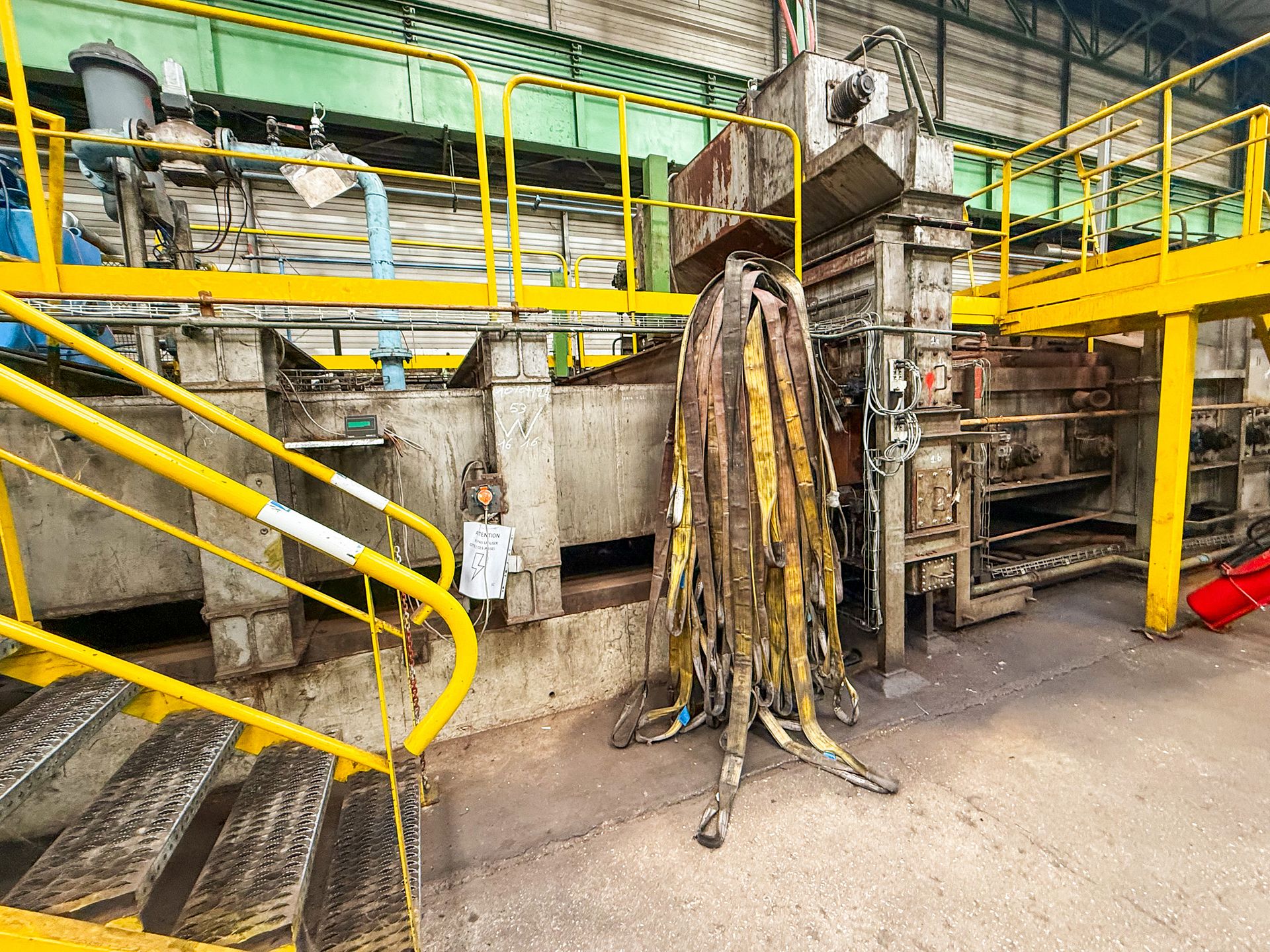

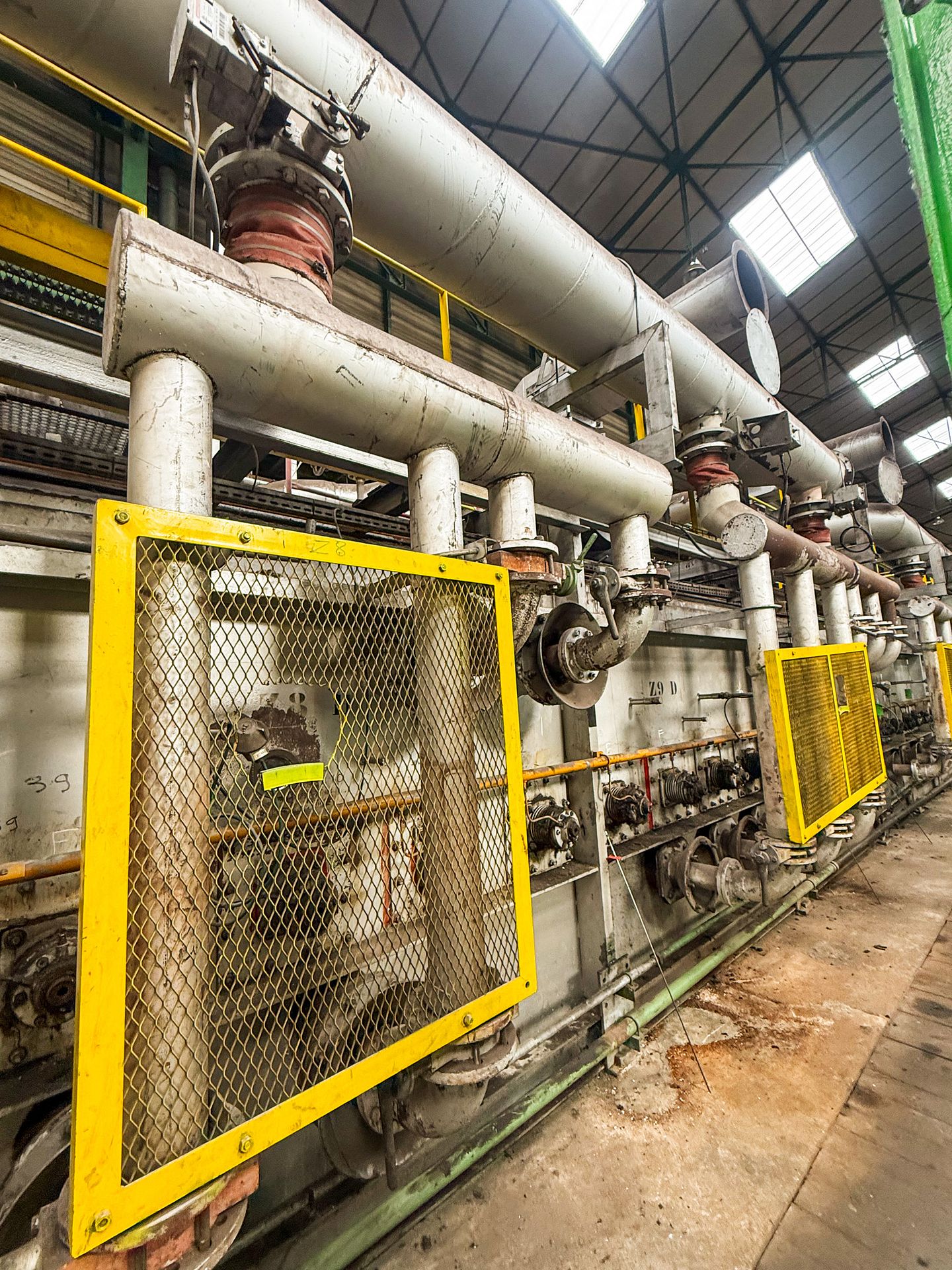

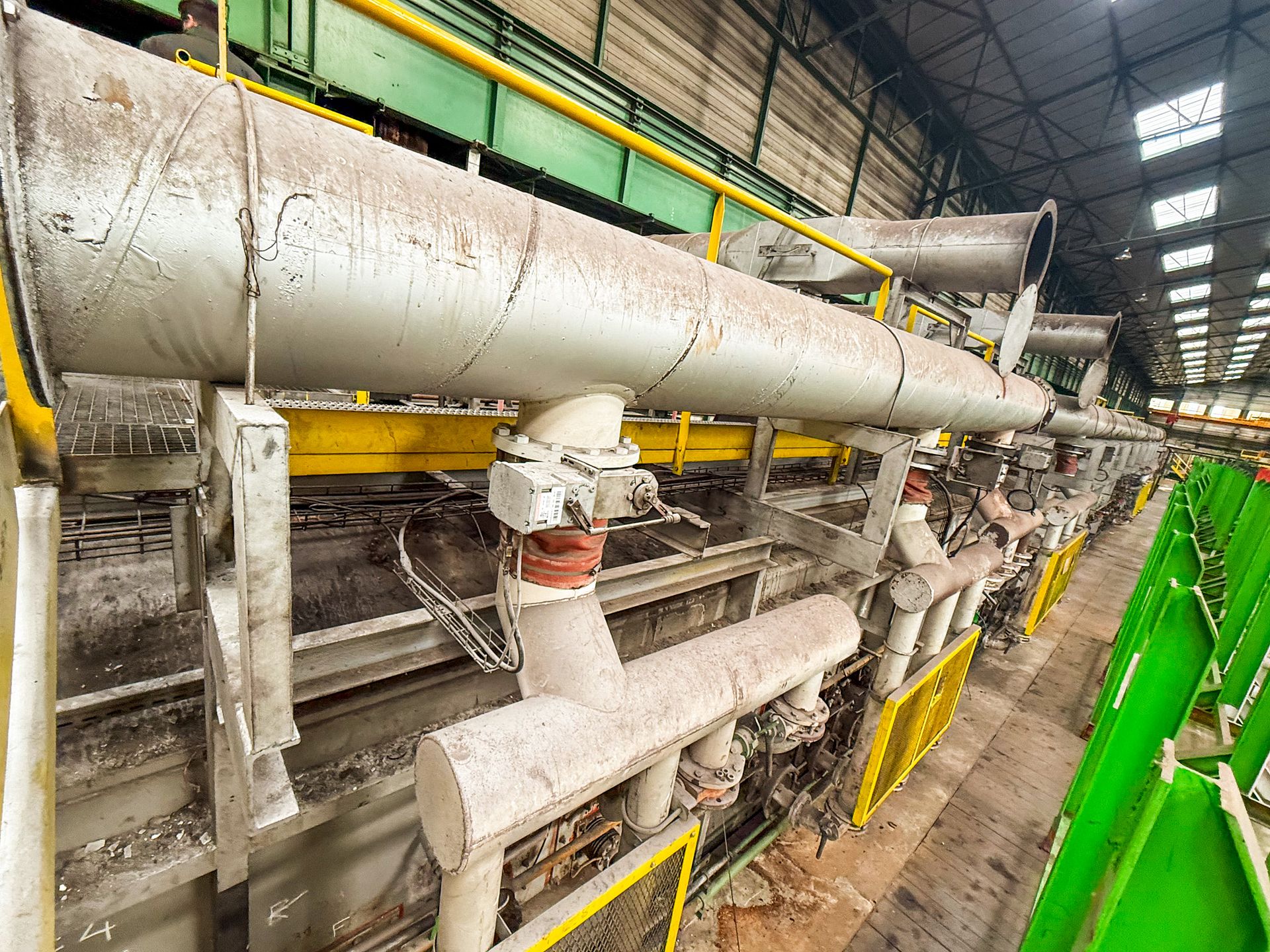

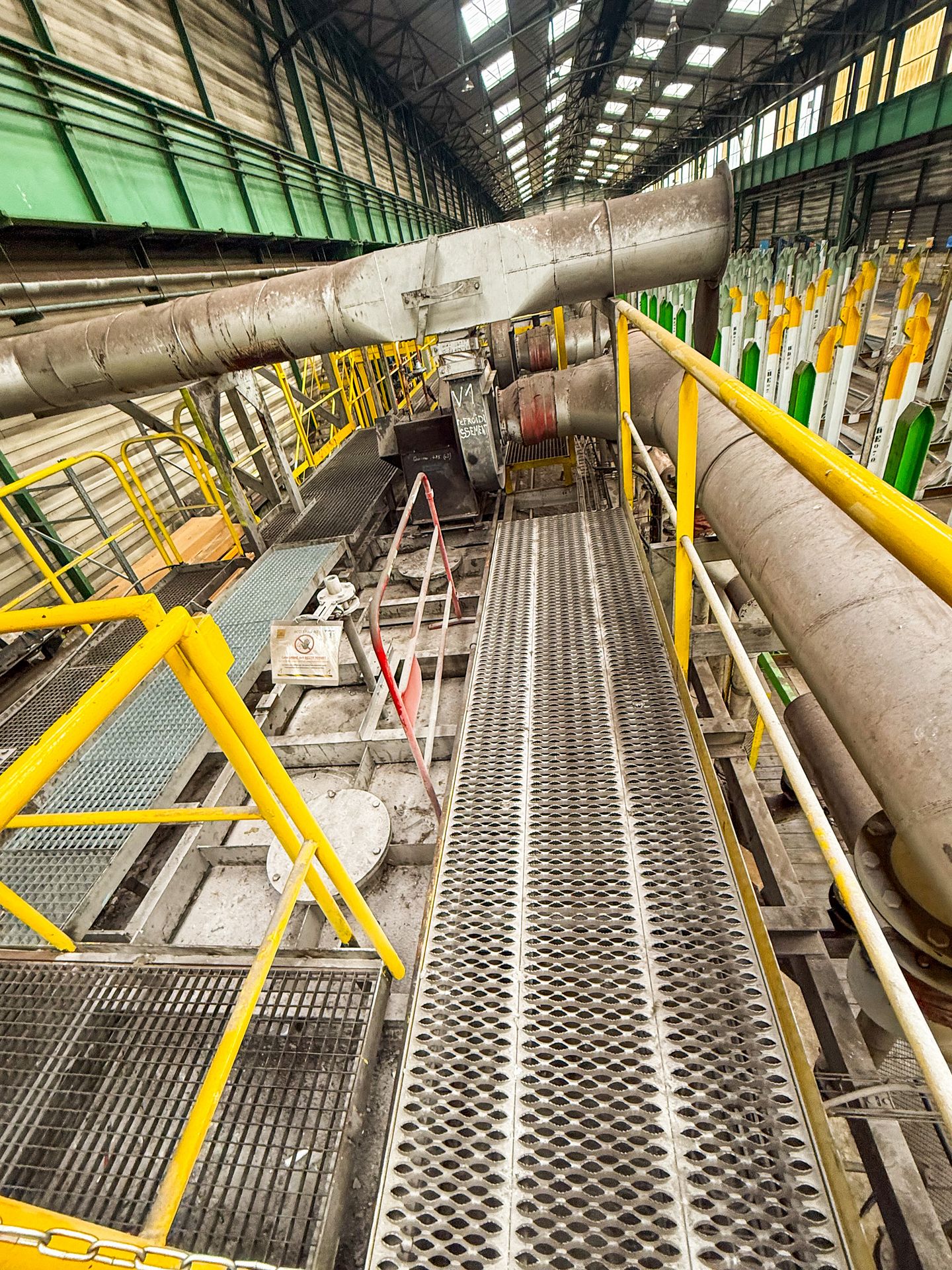

Spheroidizing Heat Treatment Furnace – STEIN HEURTEY (Electric, Inert Atmosphere)
Used for long isothermal annealing (about 23
hours cycle) under protective atmosphere to
increase formability before cold working
Tubes diameter: 48 to 300 mm
Tubes lenght: 4.5 to 12 meters
Length: ~170 m

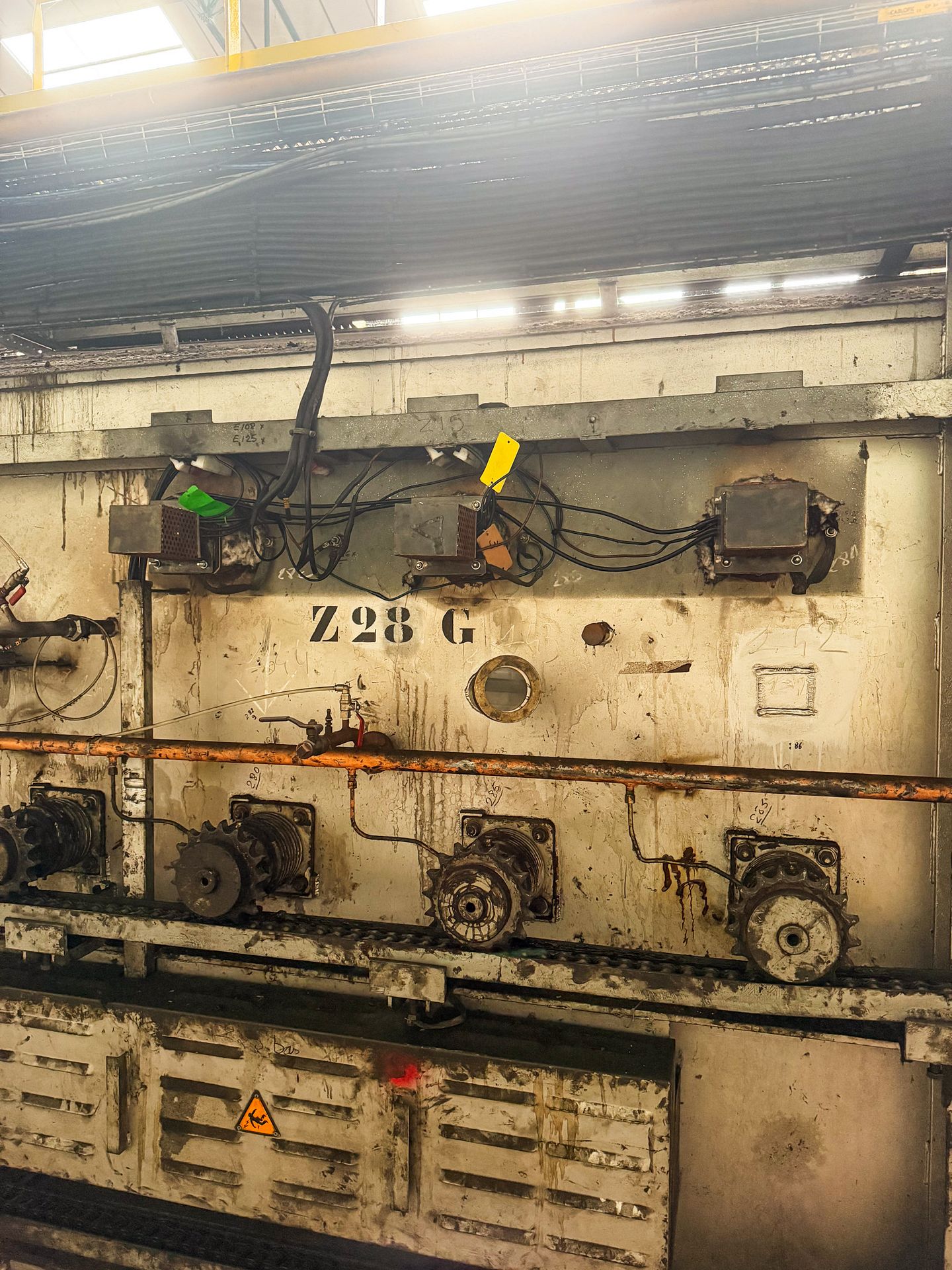

Heating zones: 28 zones total

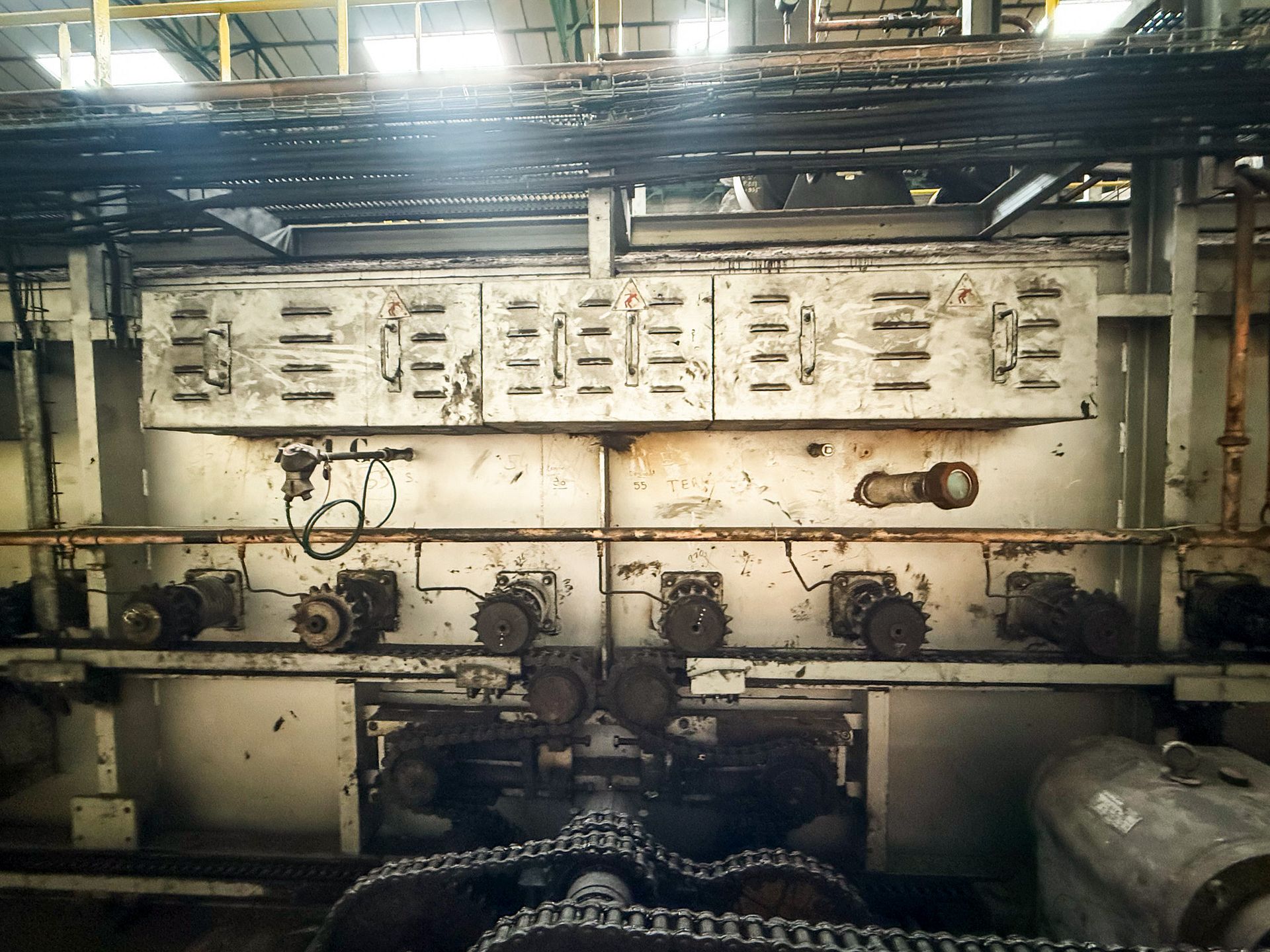

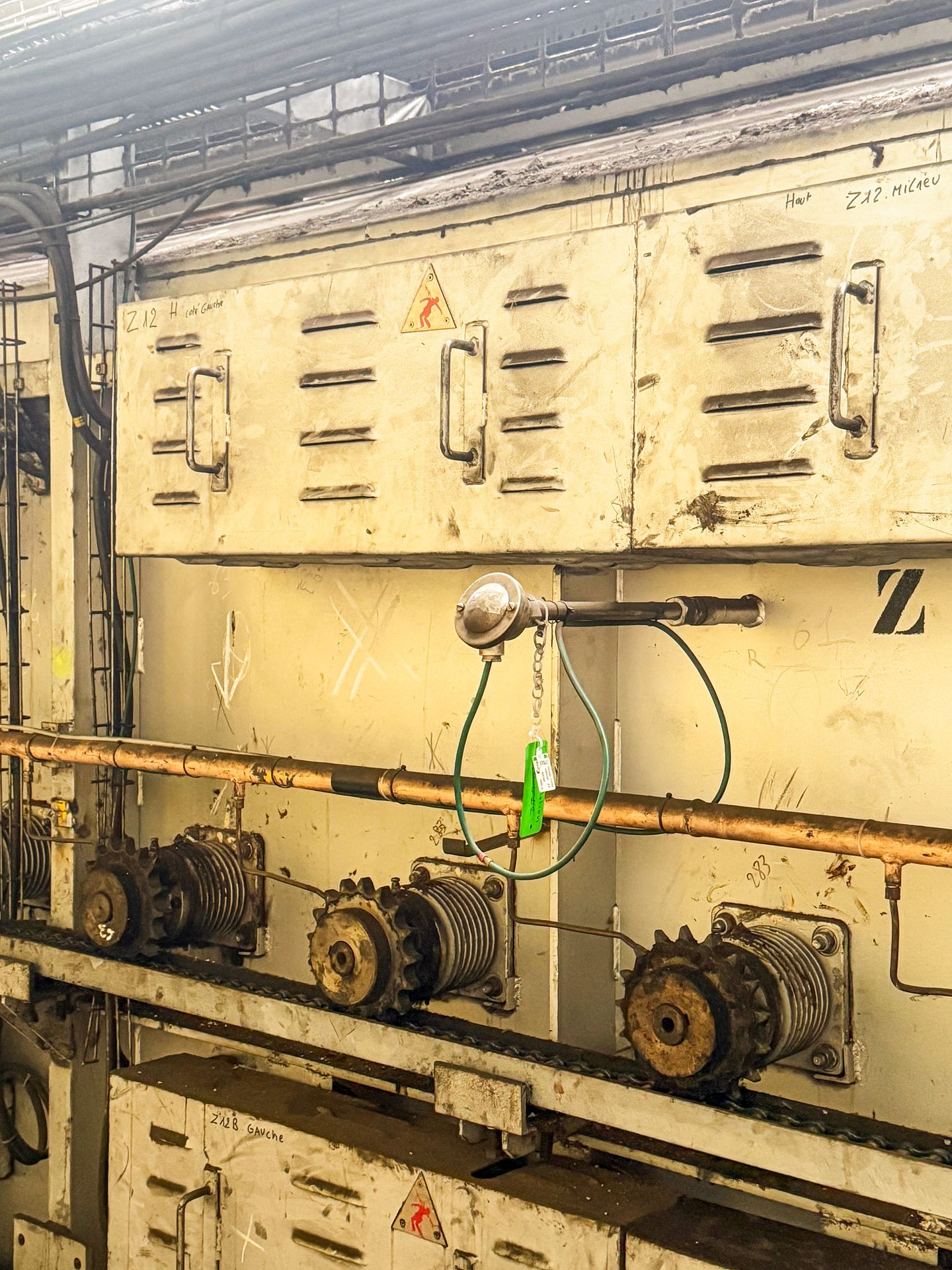

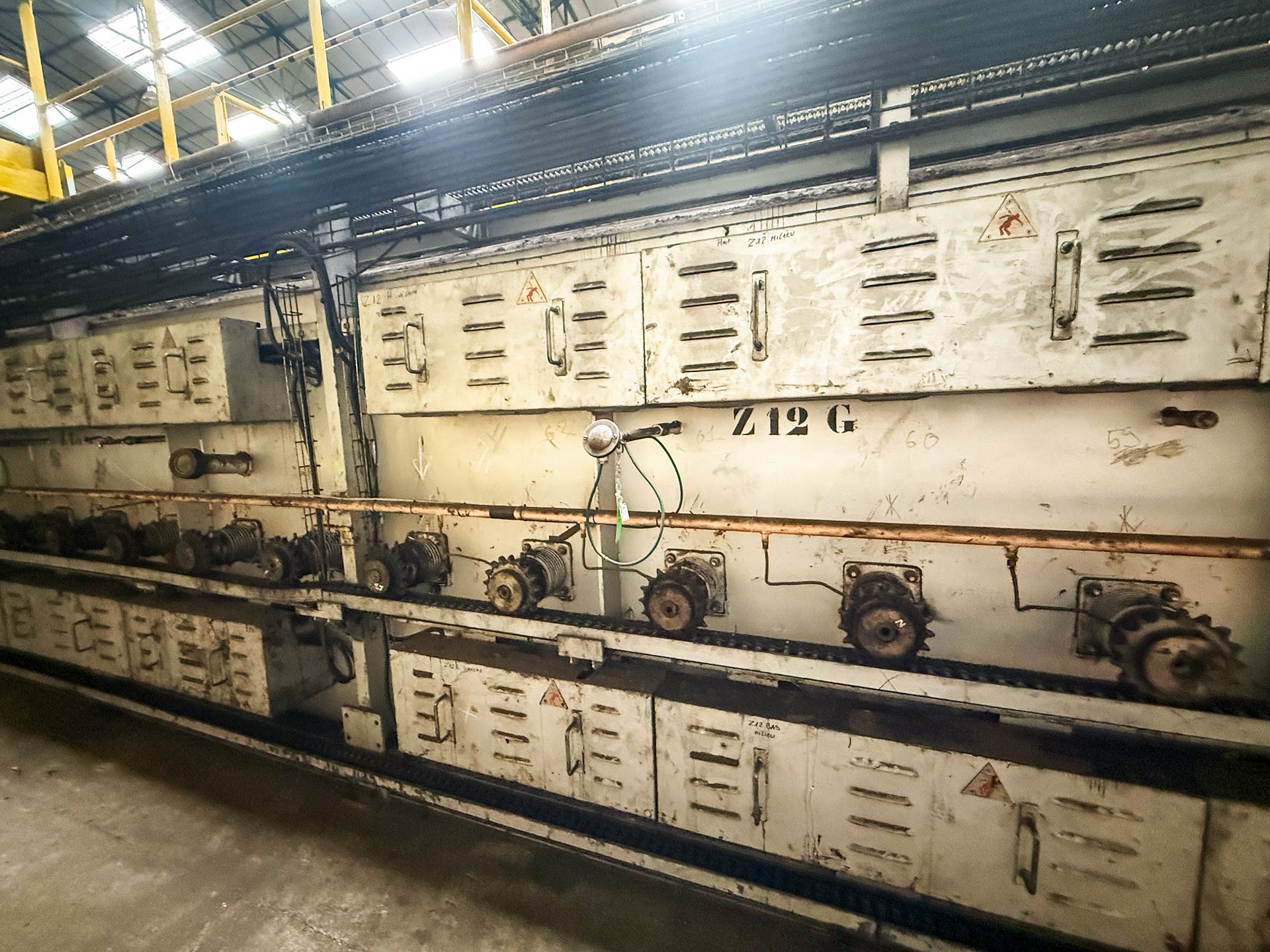

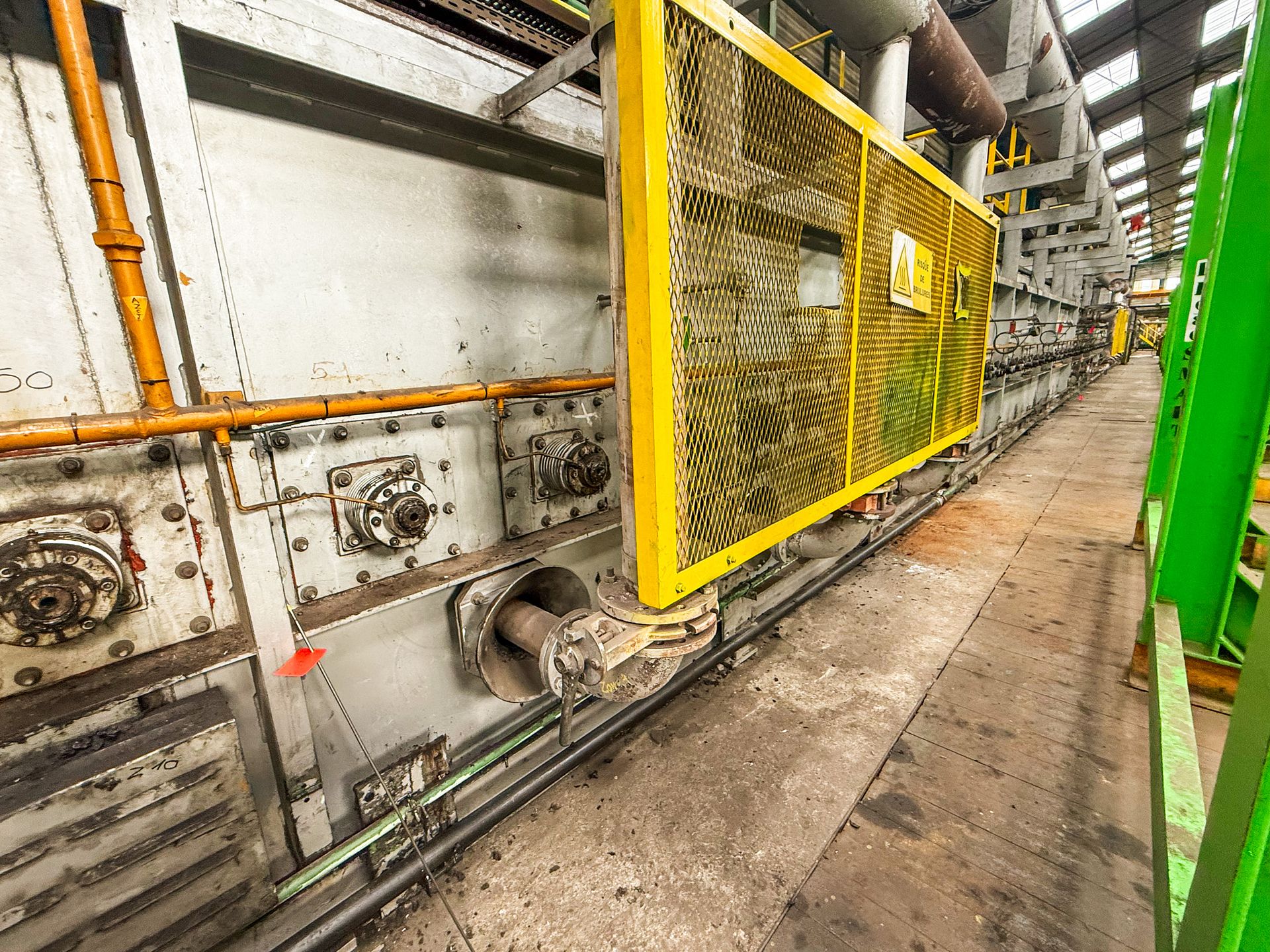

Roller hearth: ~150 rollers in heating zone for continuous tube conveyance
Cooling system: Water jacket tunnel at furnace exit for controlled cooling

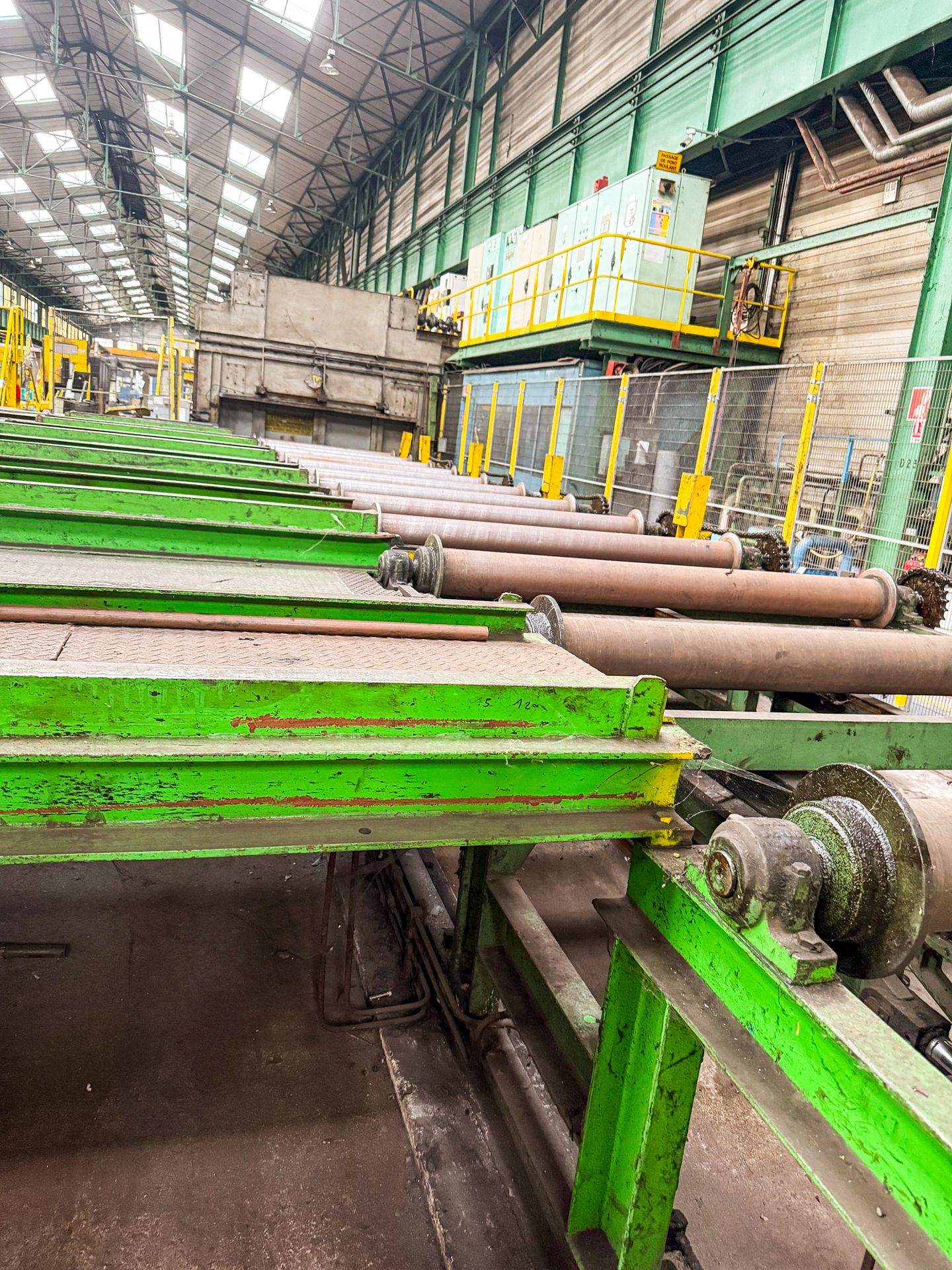

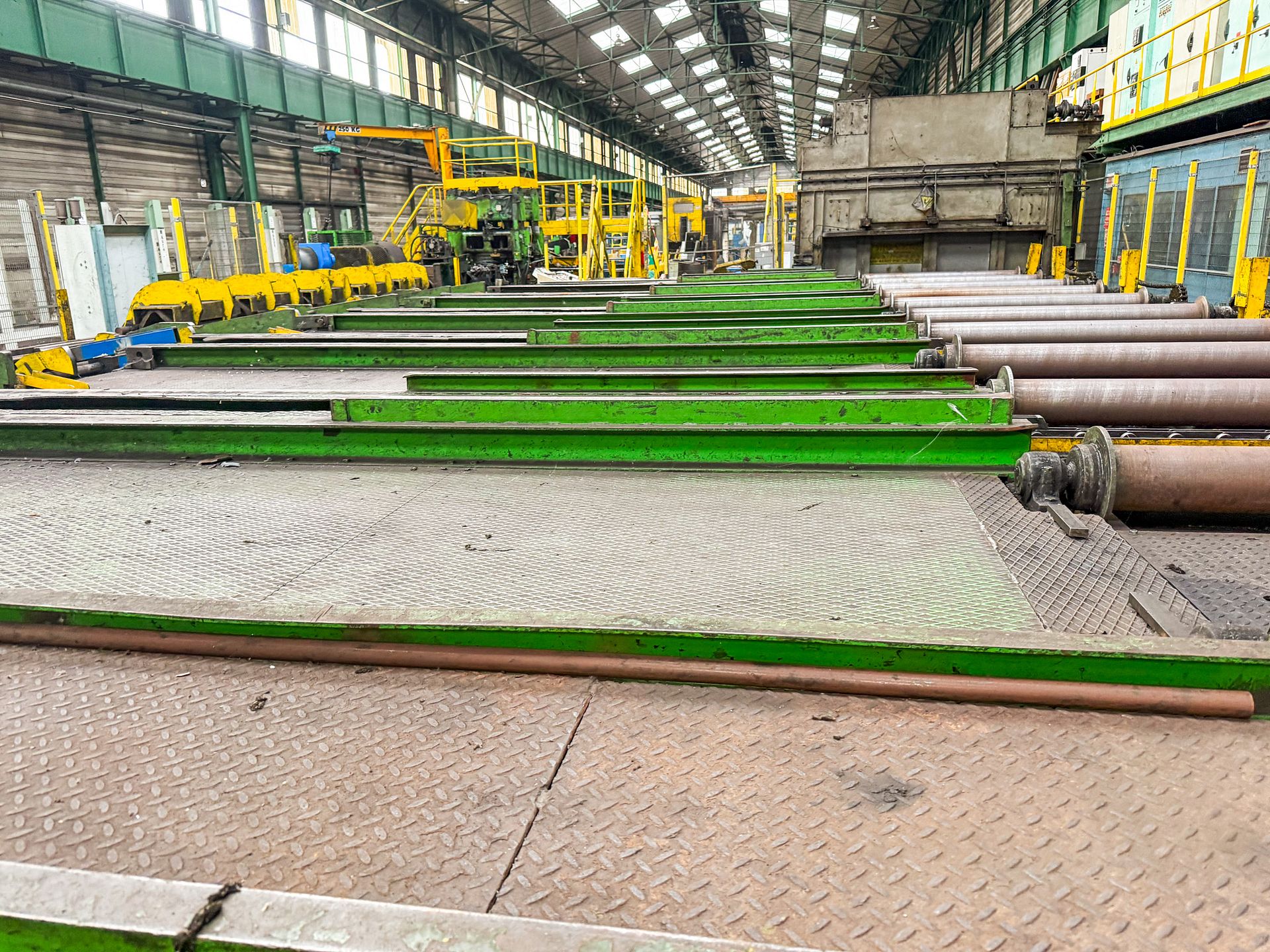

Output conveyors: Integrated discharge conveyors

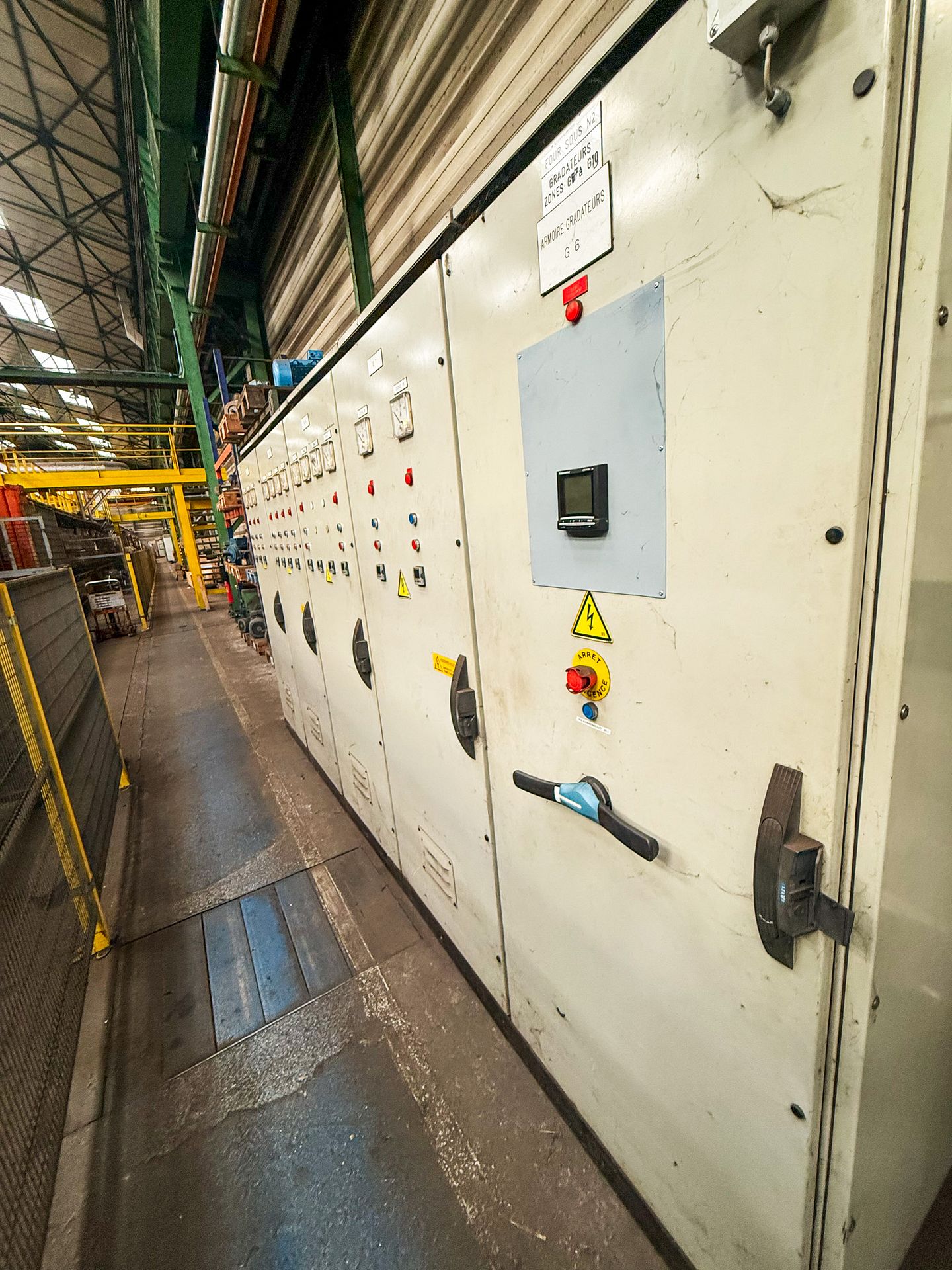

Power supply: Operates via 1,600 kVA transformer (see transformer list)

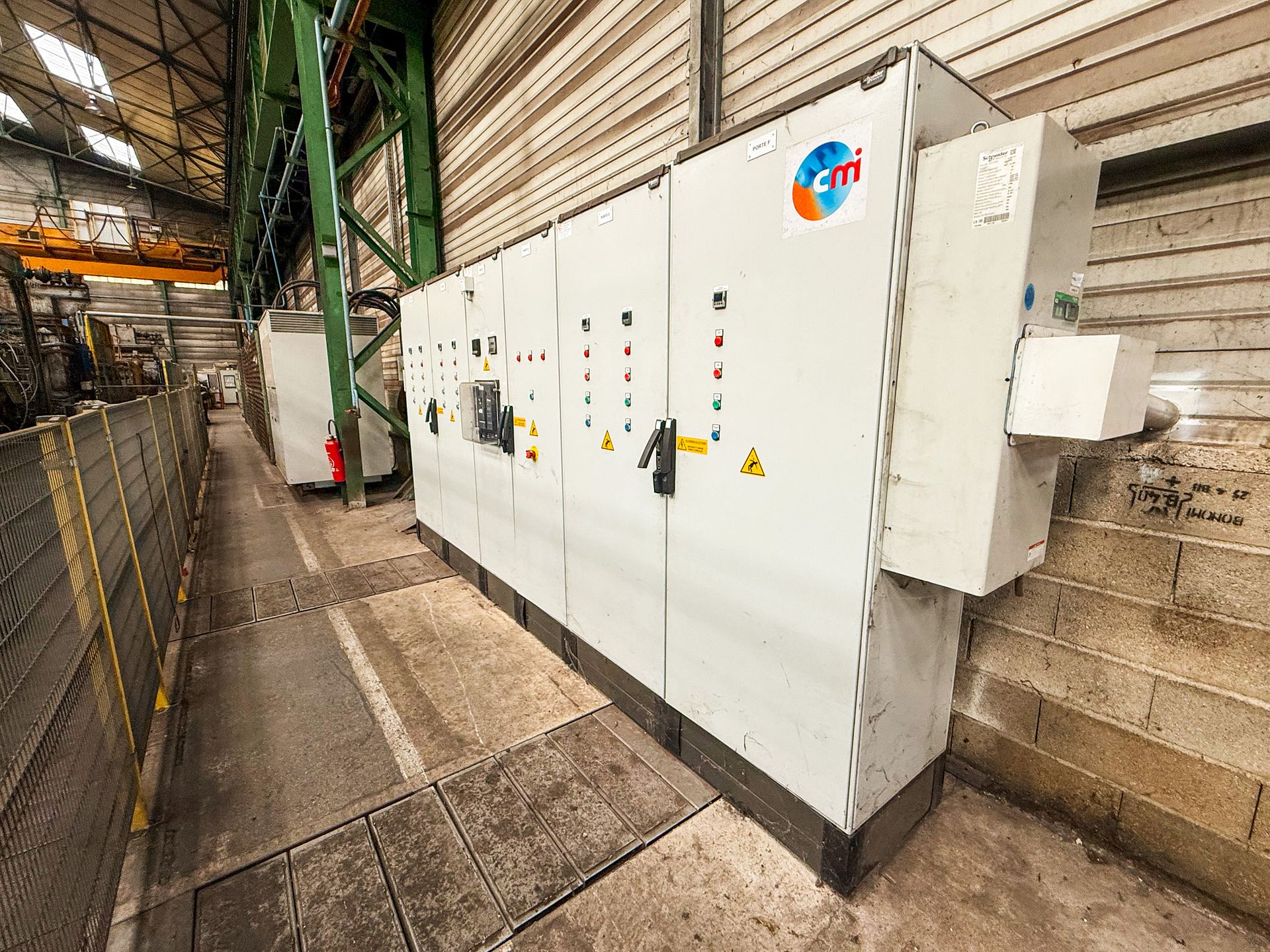

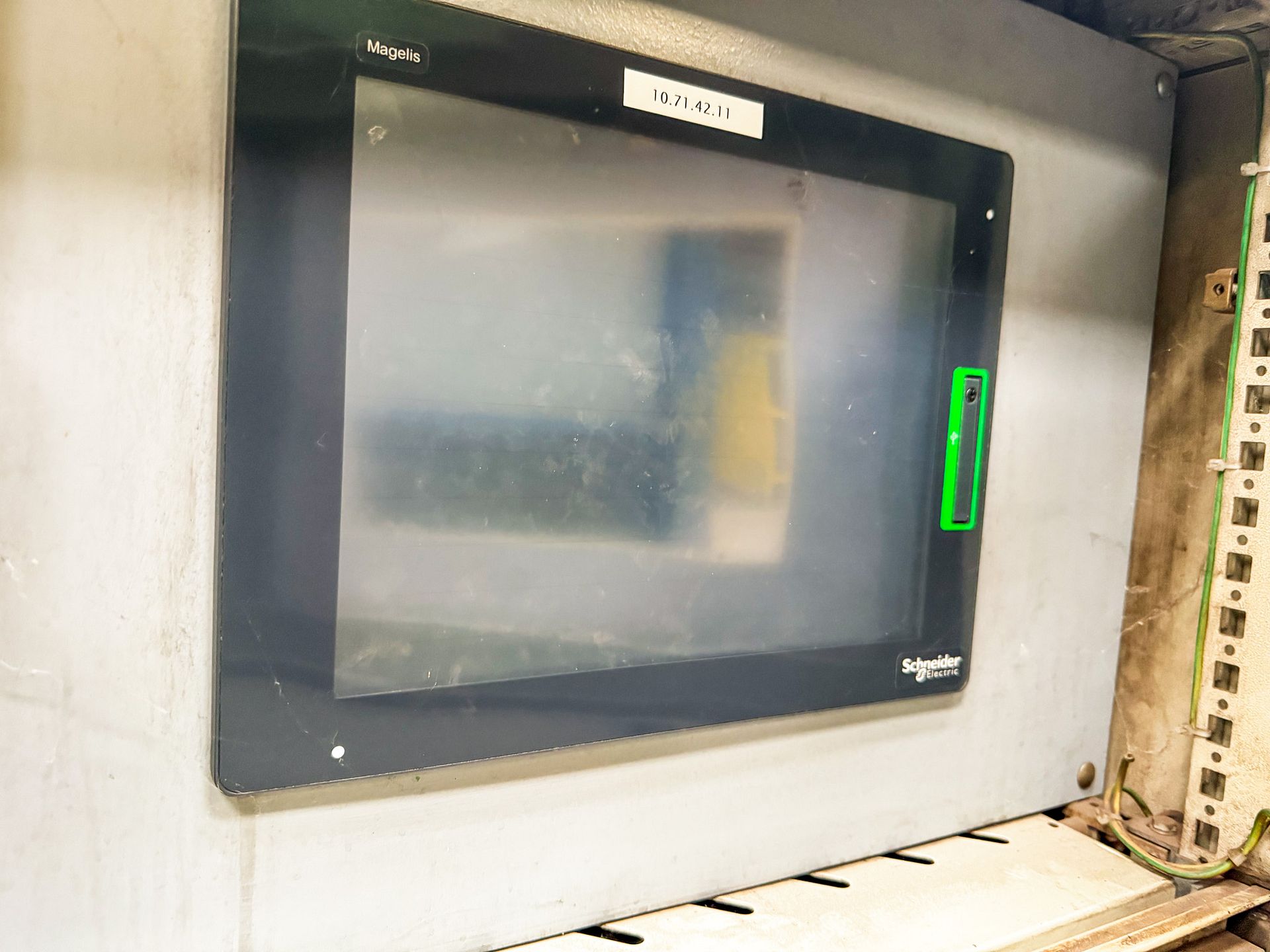

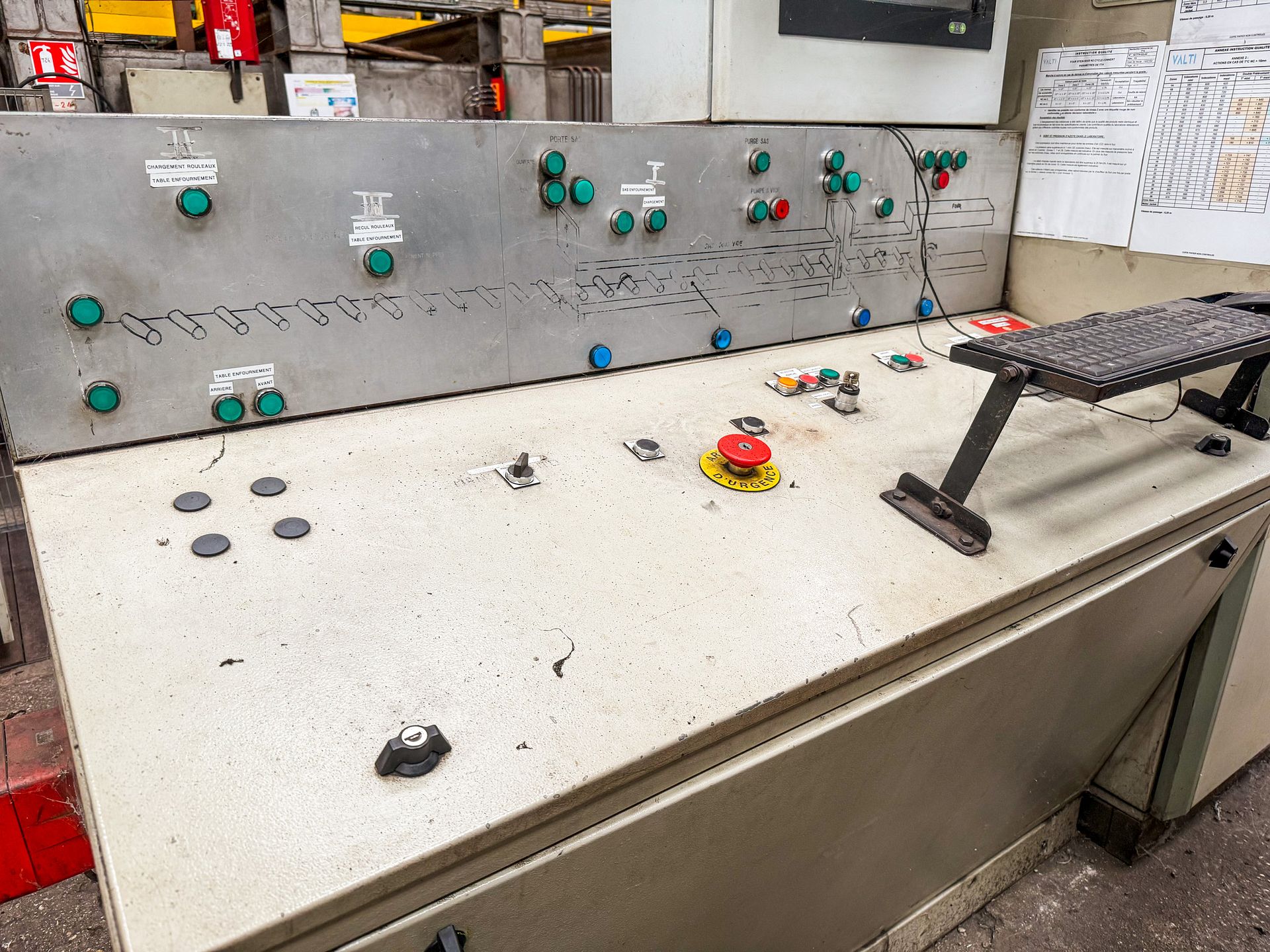

Control system: SCHNEIDER PLC automation

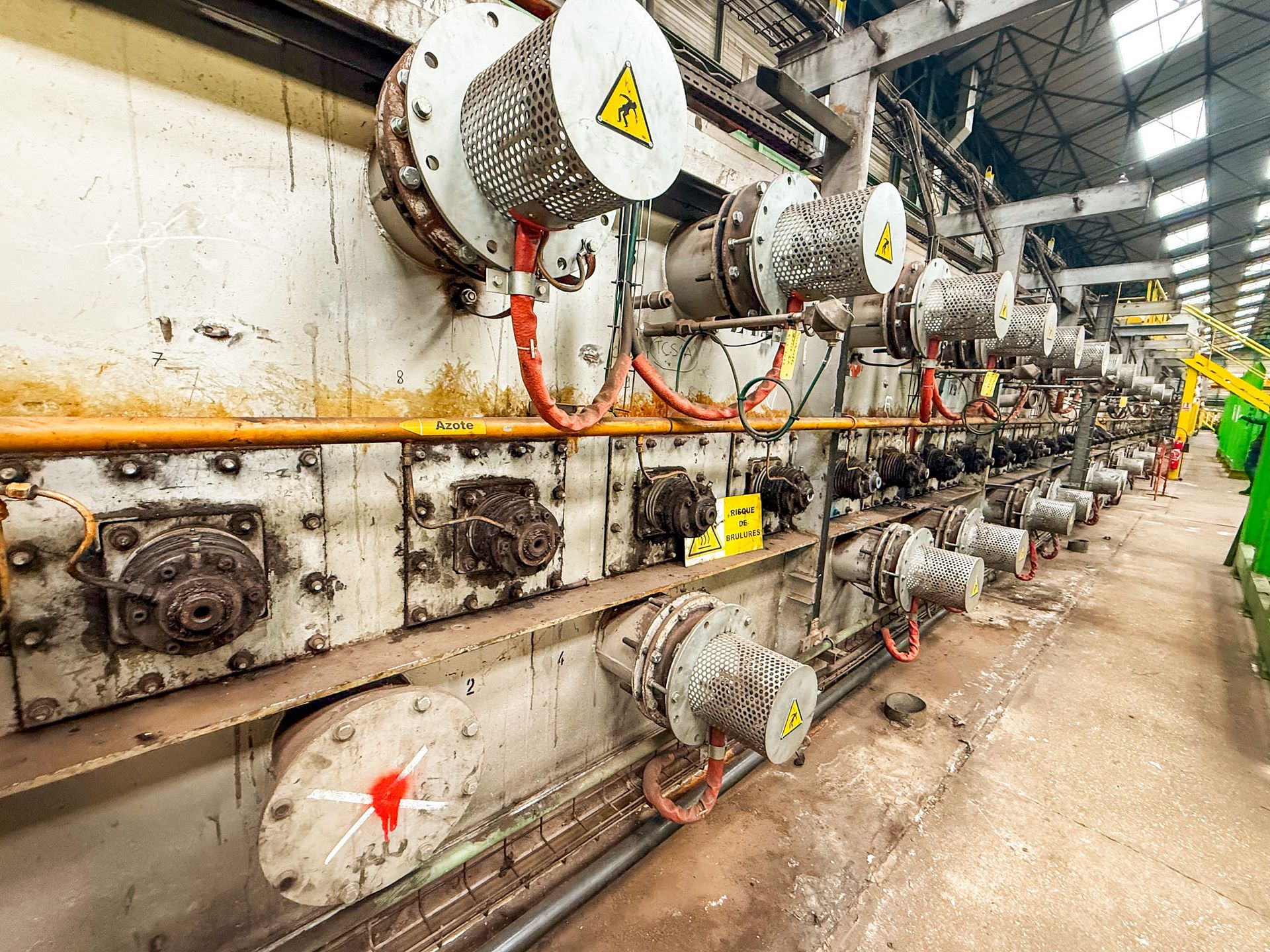

Heating elements: NiCr encapsulated resistances, arranged in two levels (top and bottom)

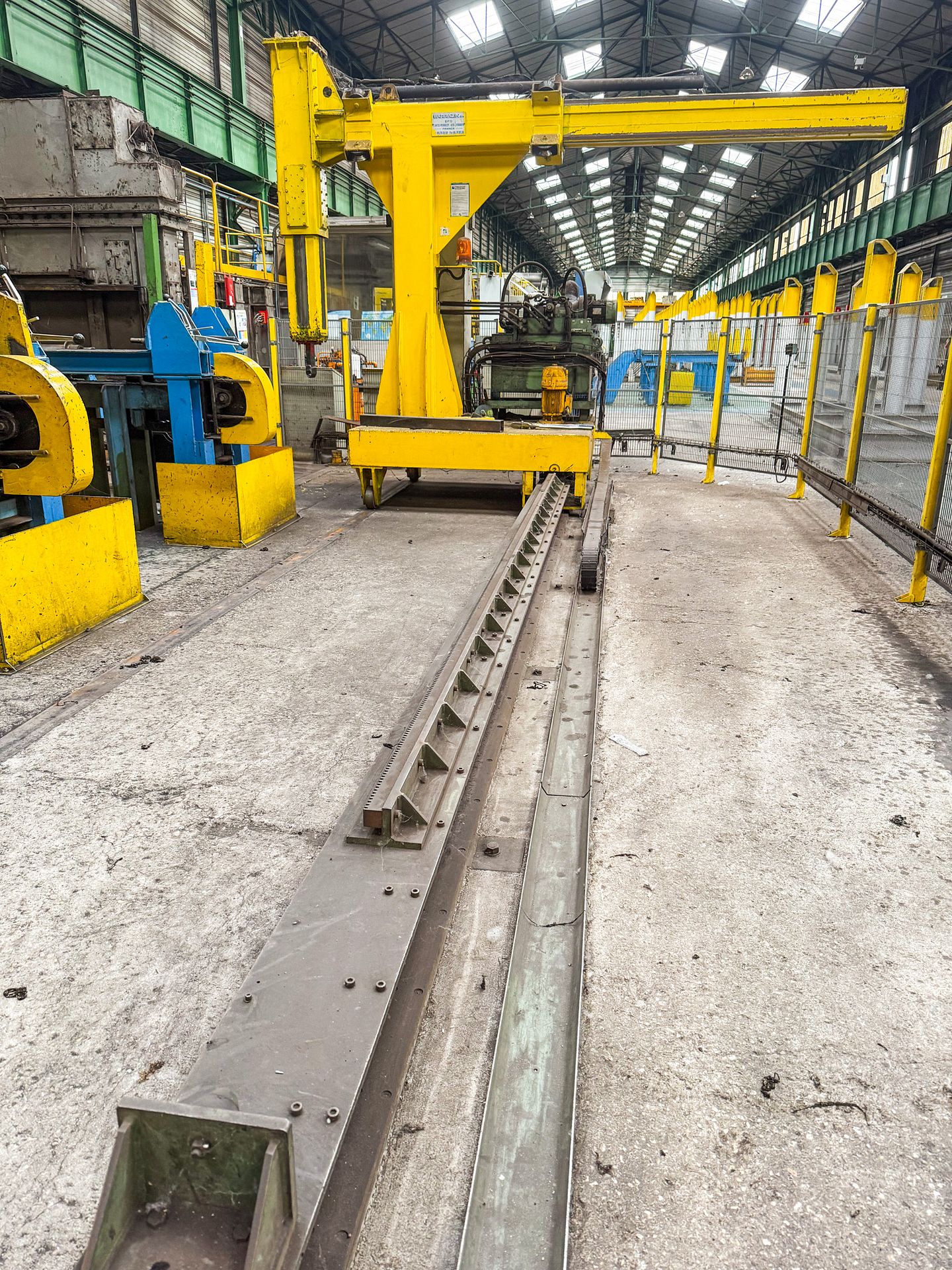

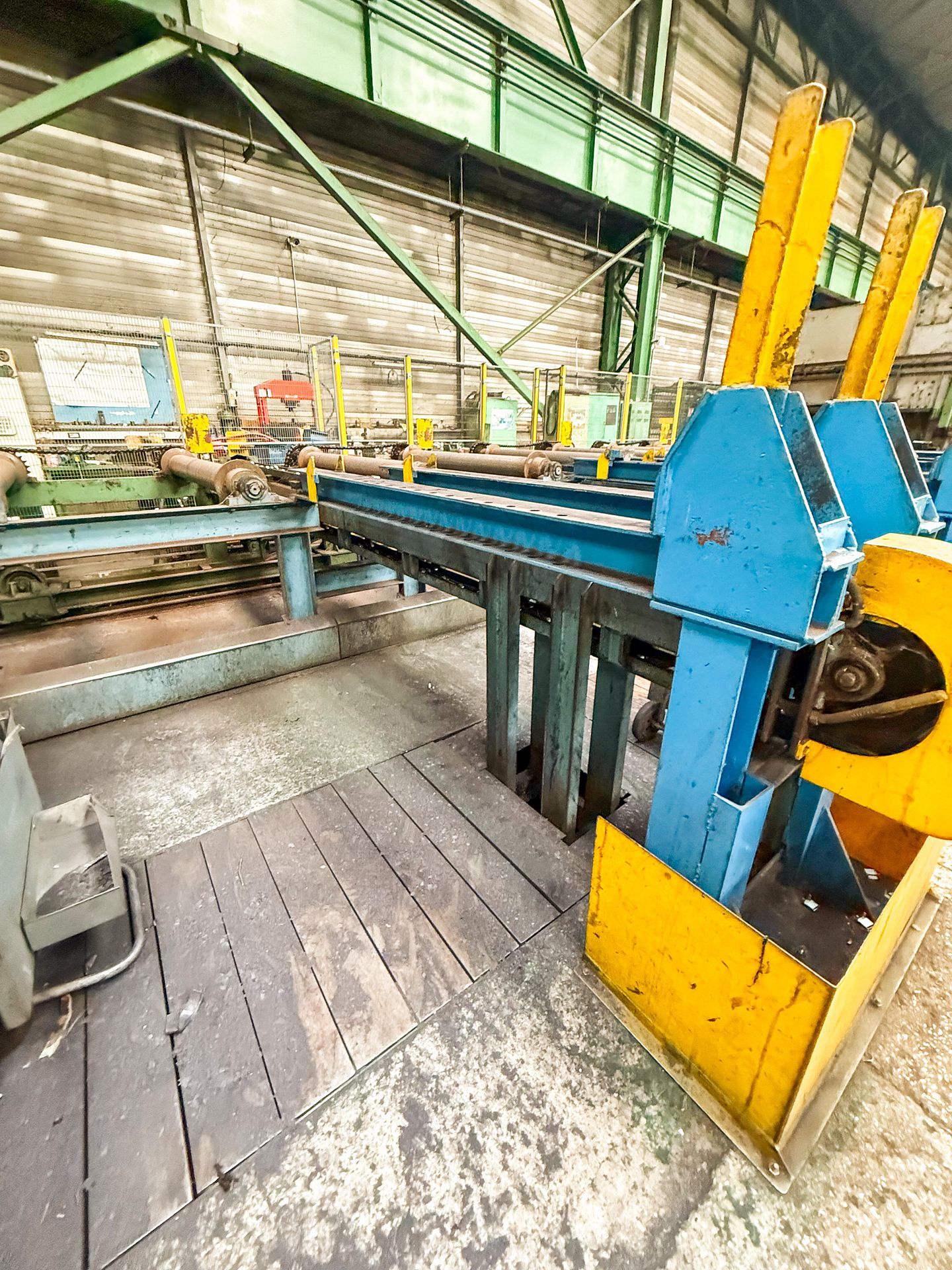

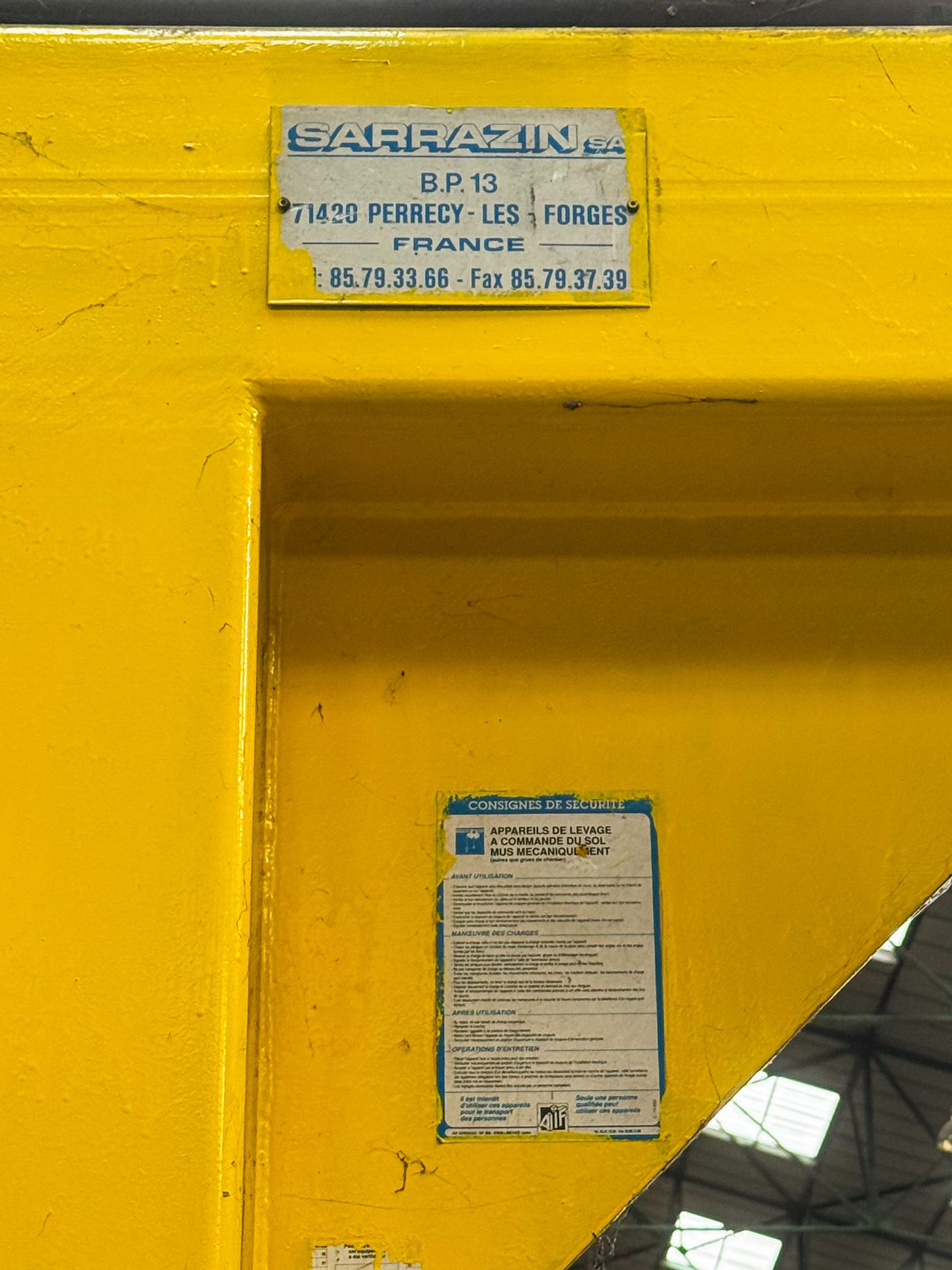

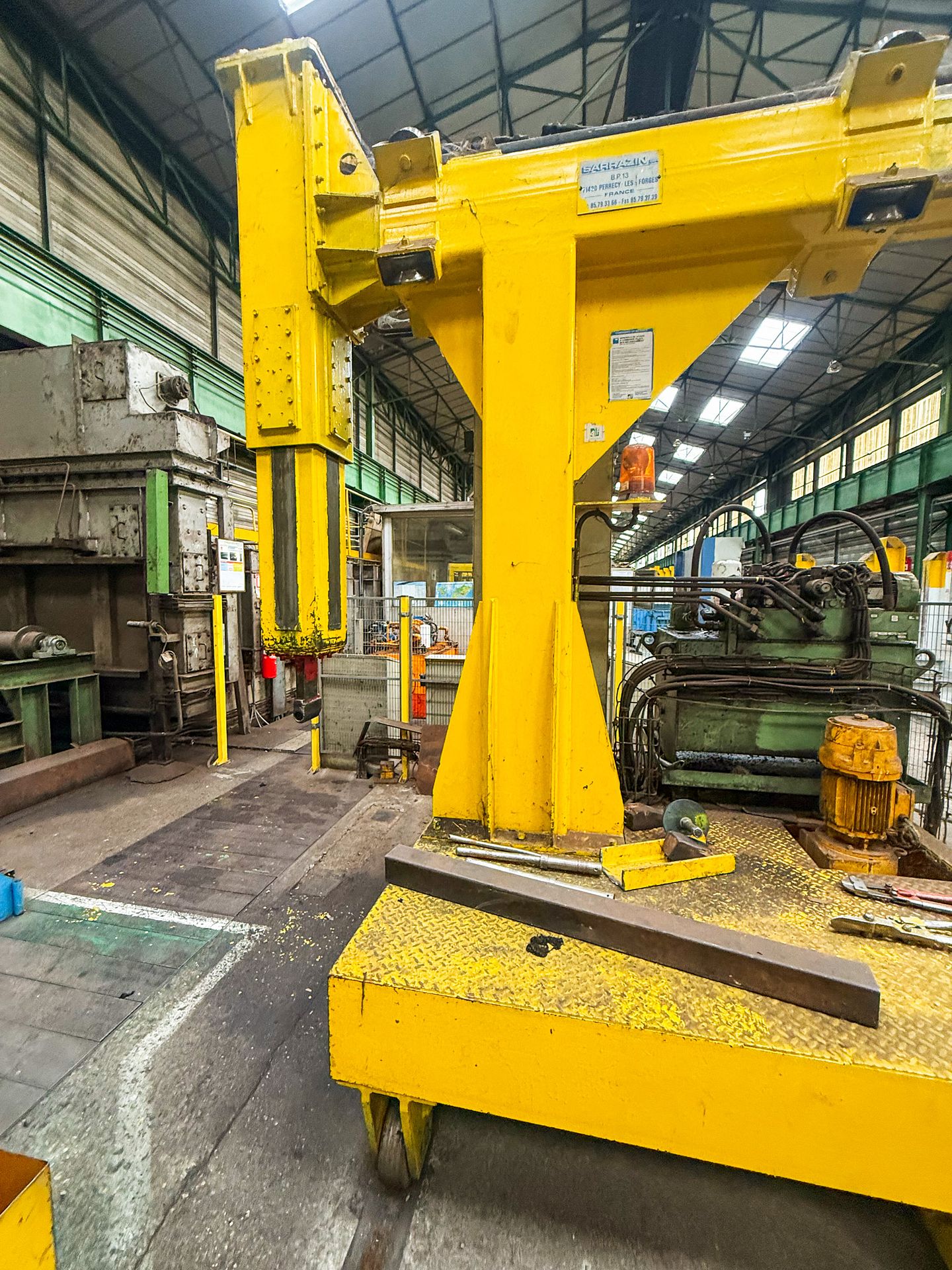

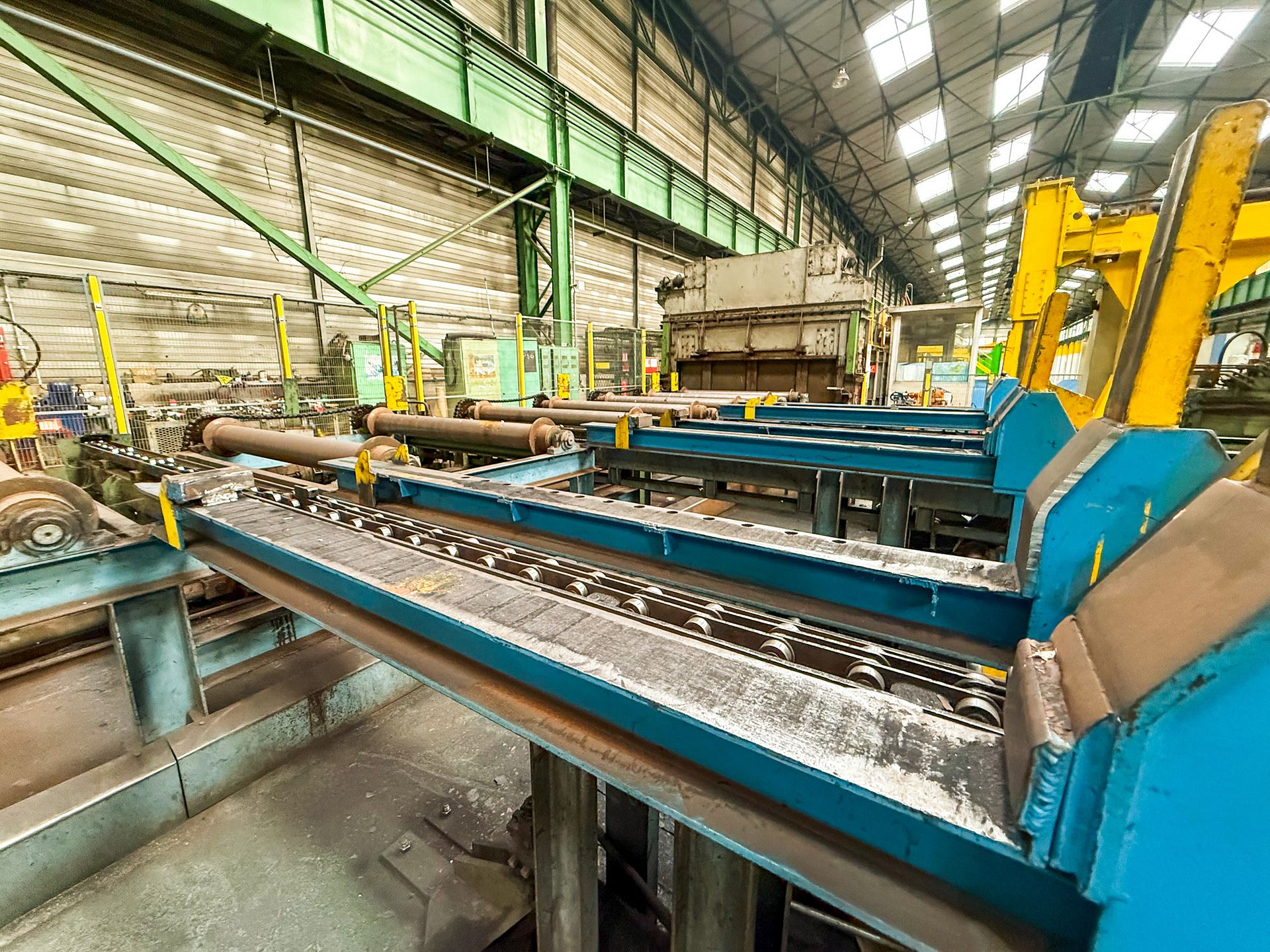

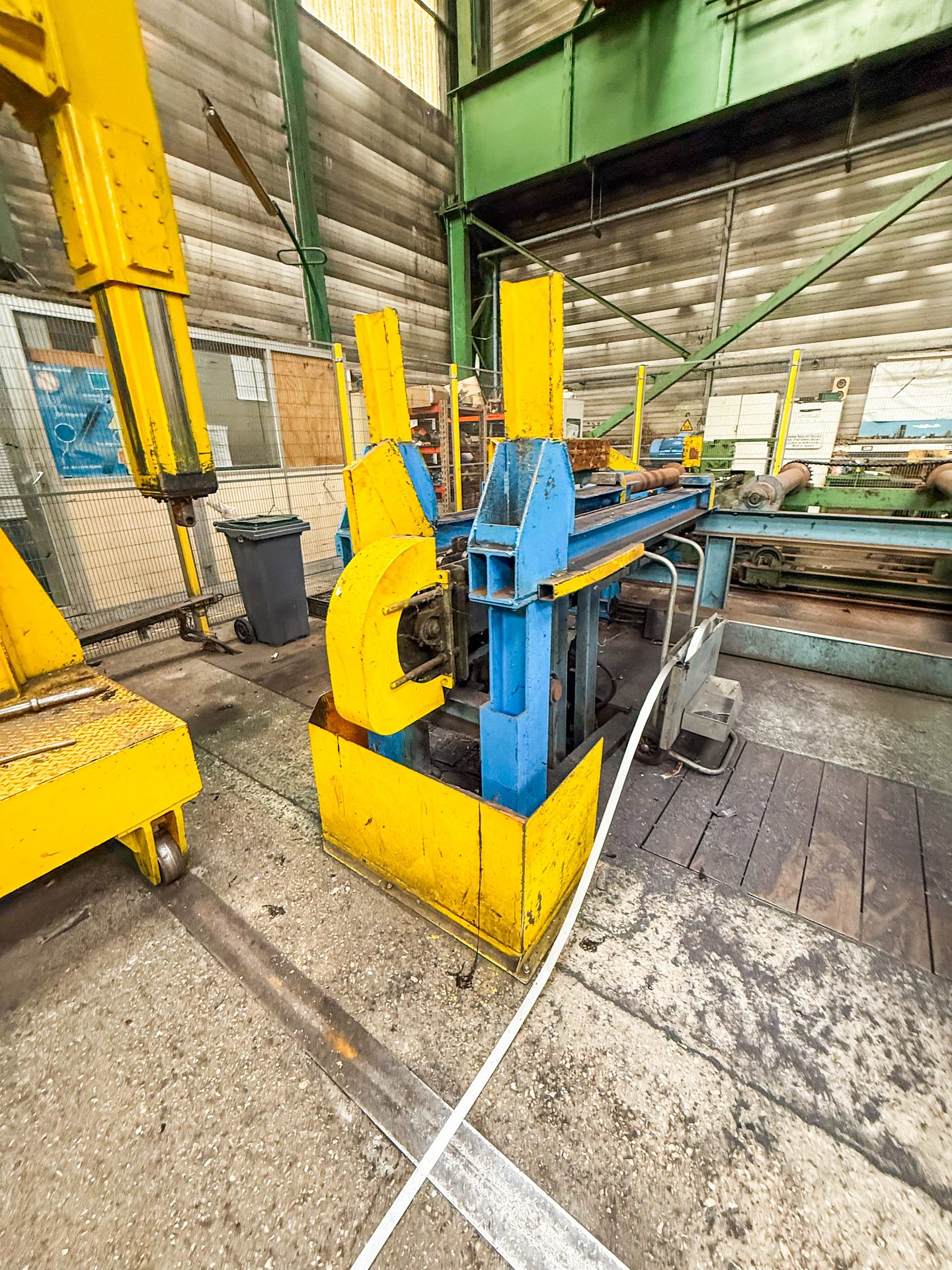

SARRAZIN tube handling system to prepare layers of tubes for charging into the furnace
Cooling Unit / Chiller – TRANE RTAD 125
Model: RTAD 125
Dimensions: L 4,490 × W 2,260 mm × H 2,190 mm
Weight: 3,470 kg (with accessories)
This lot is part of a combination lot: 30 Heat Treatment Lines
