Pilger Mill 4" 1/2, N°2

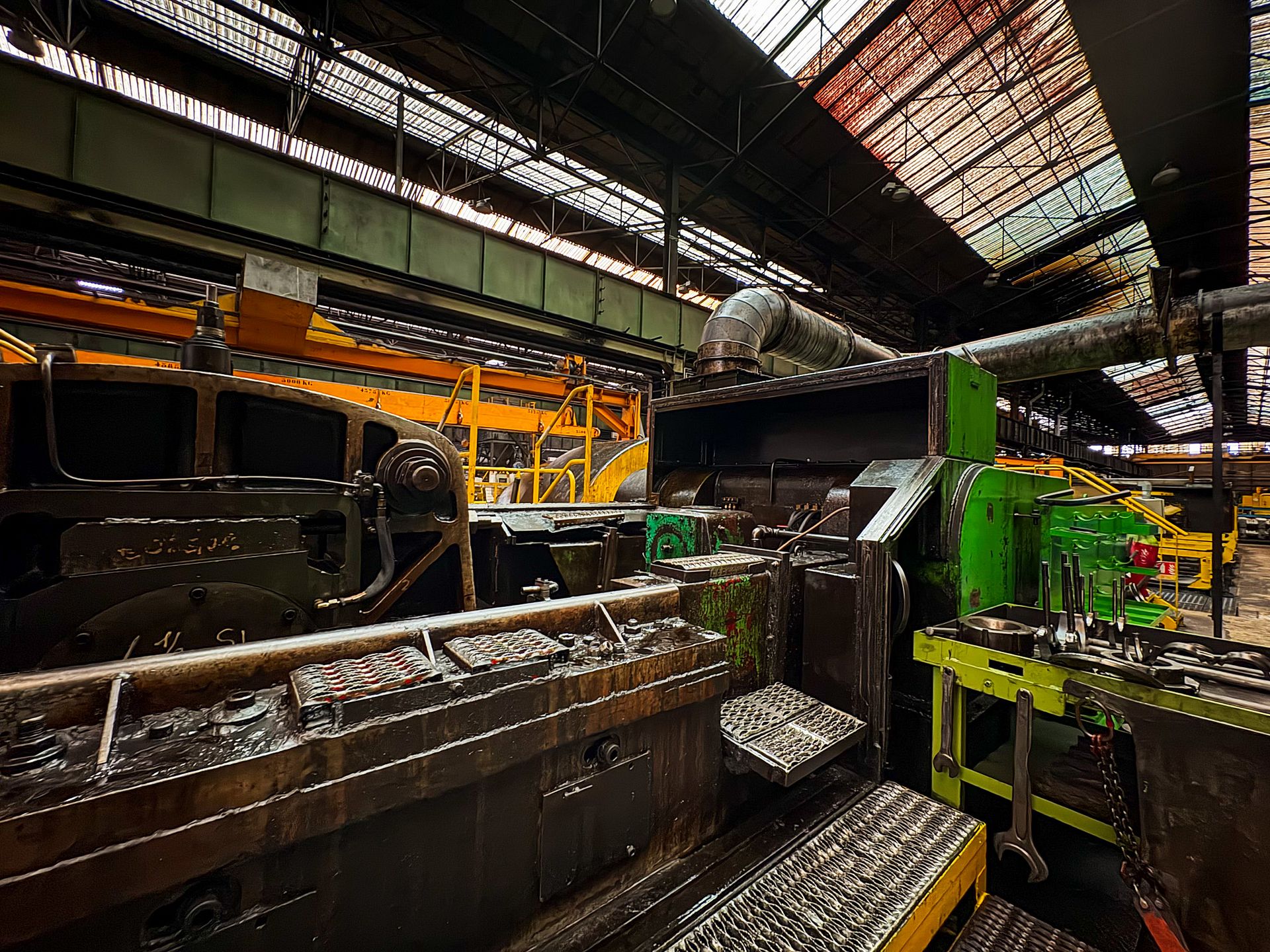

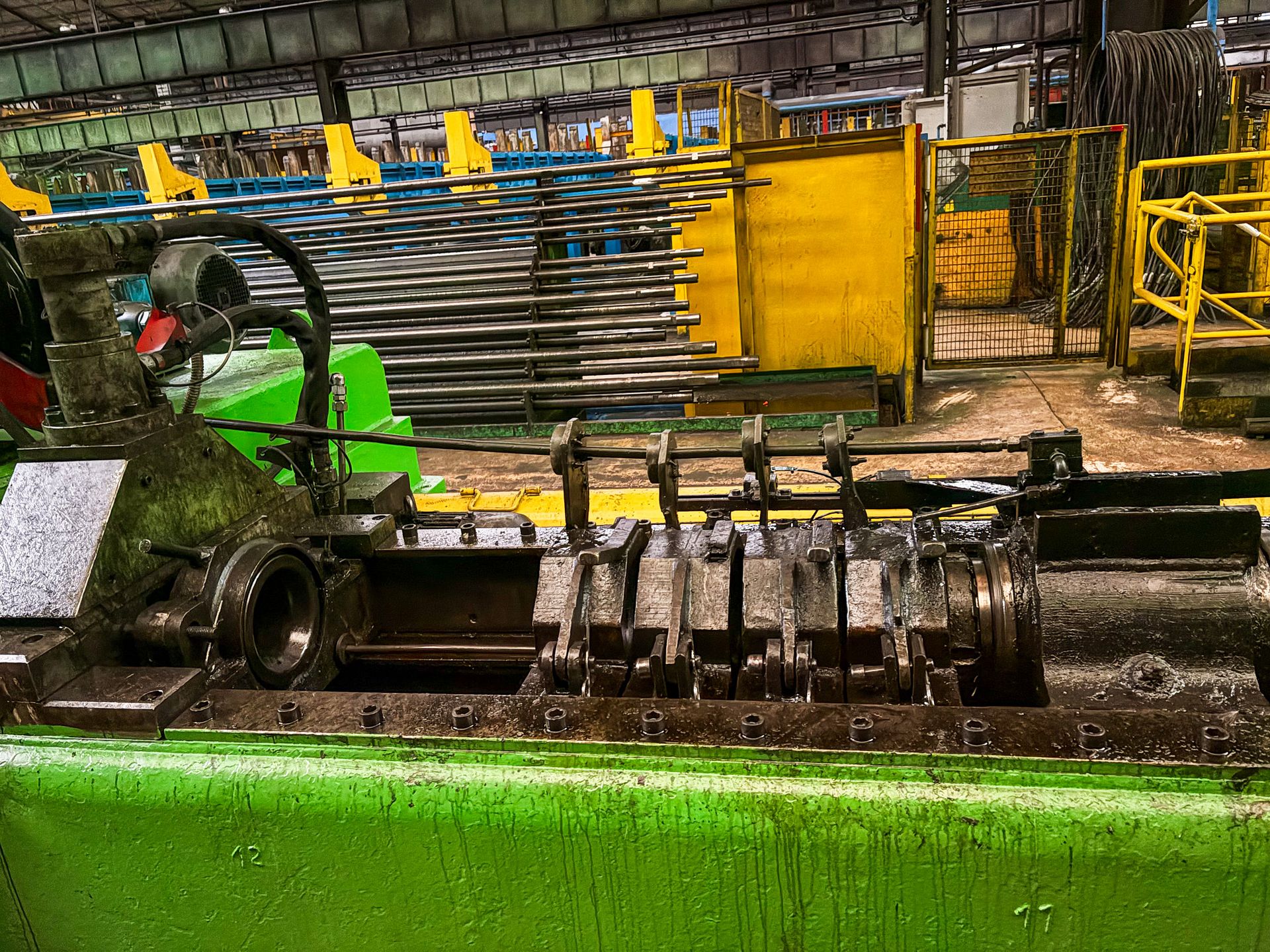

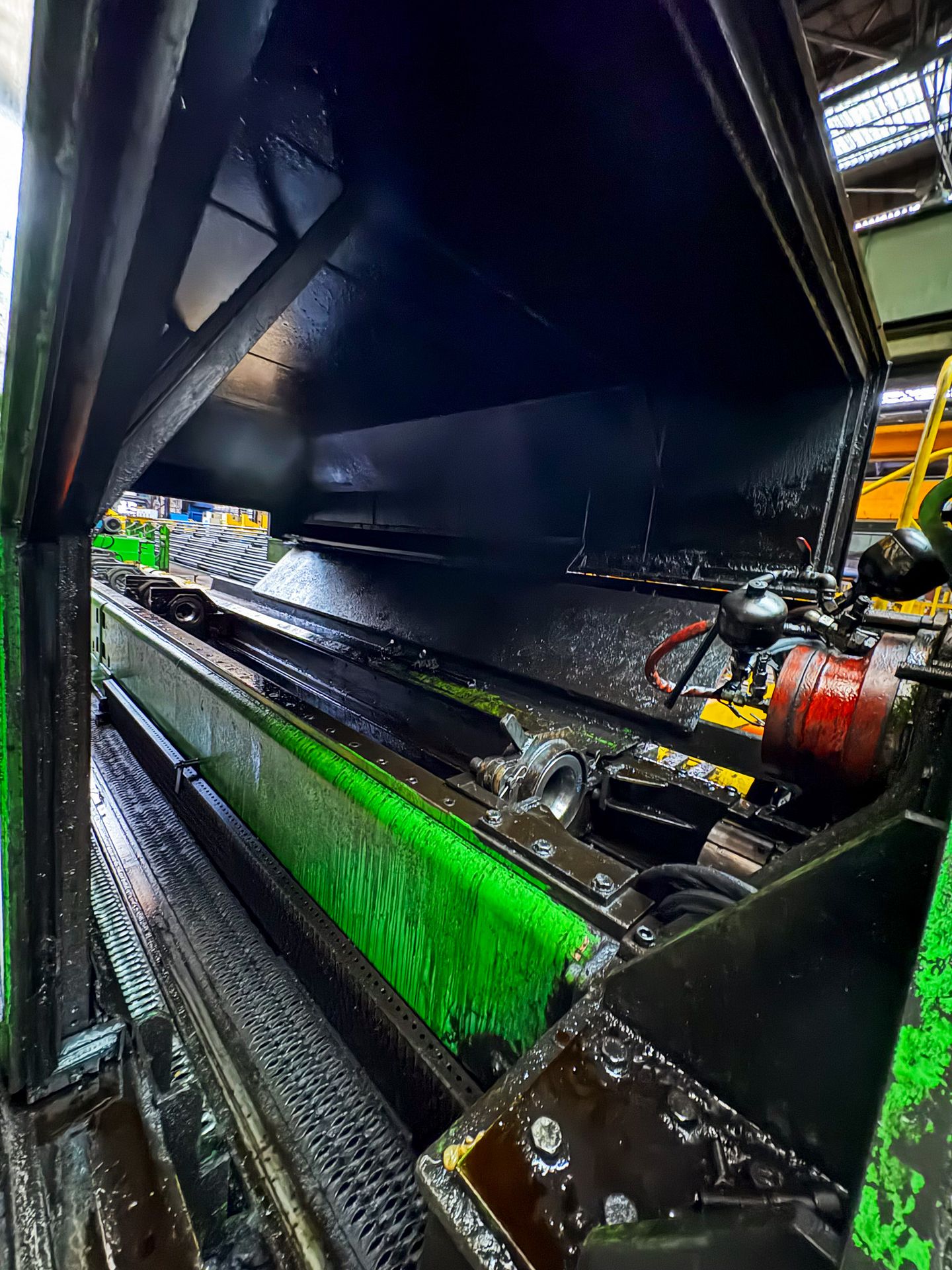

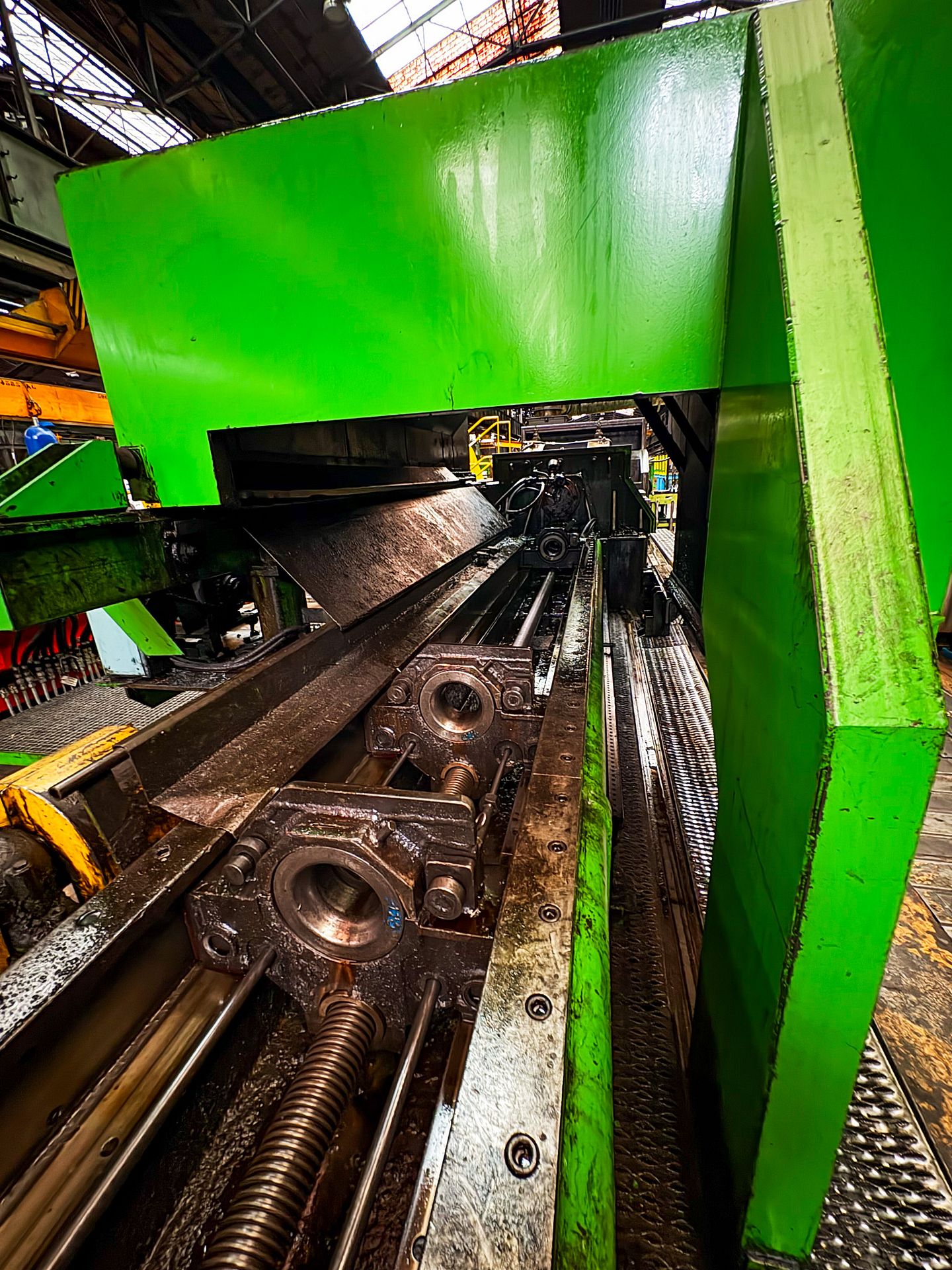

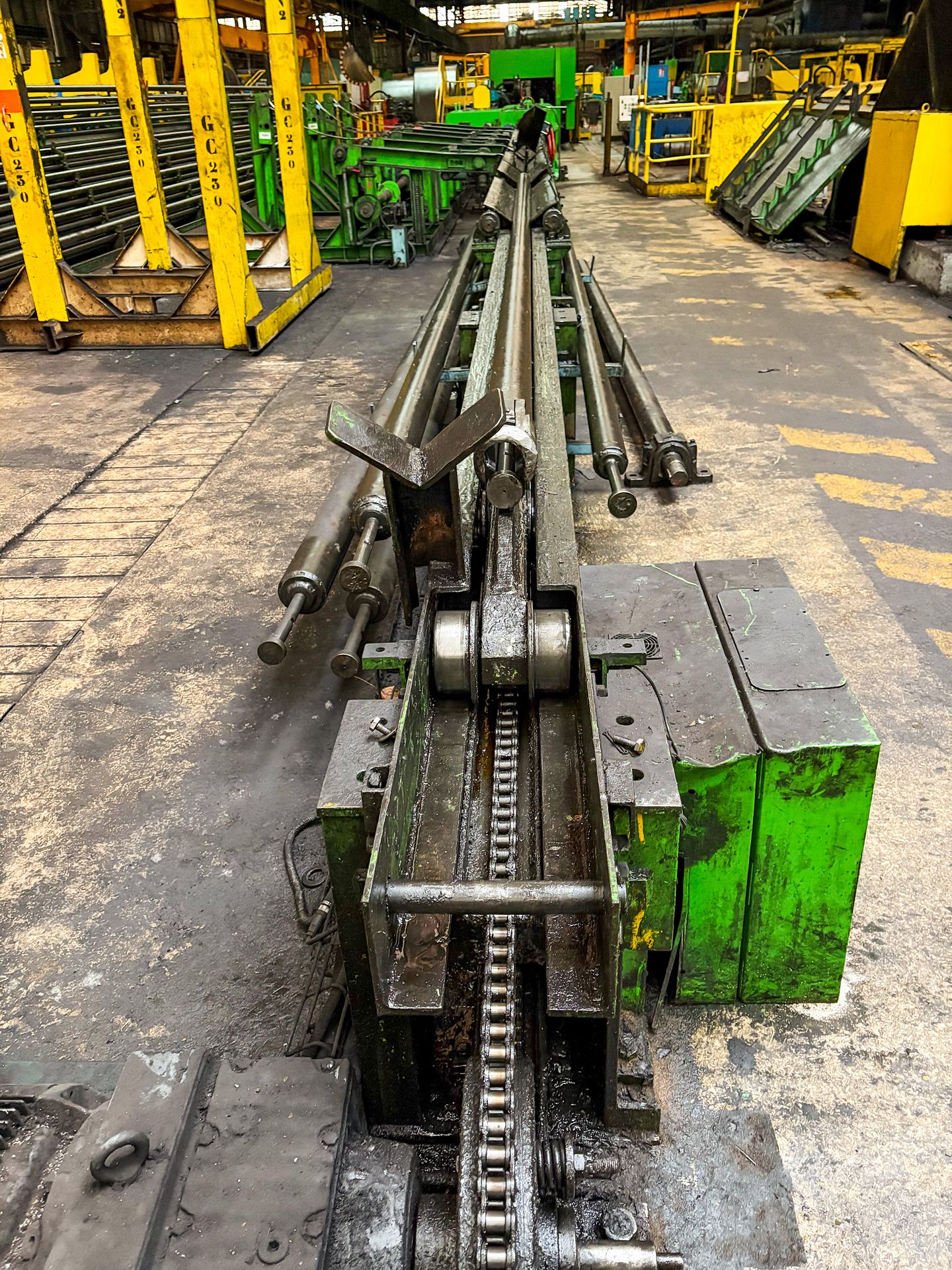

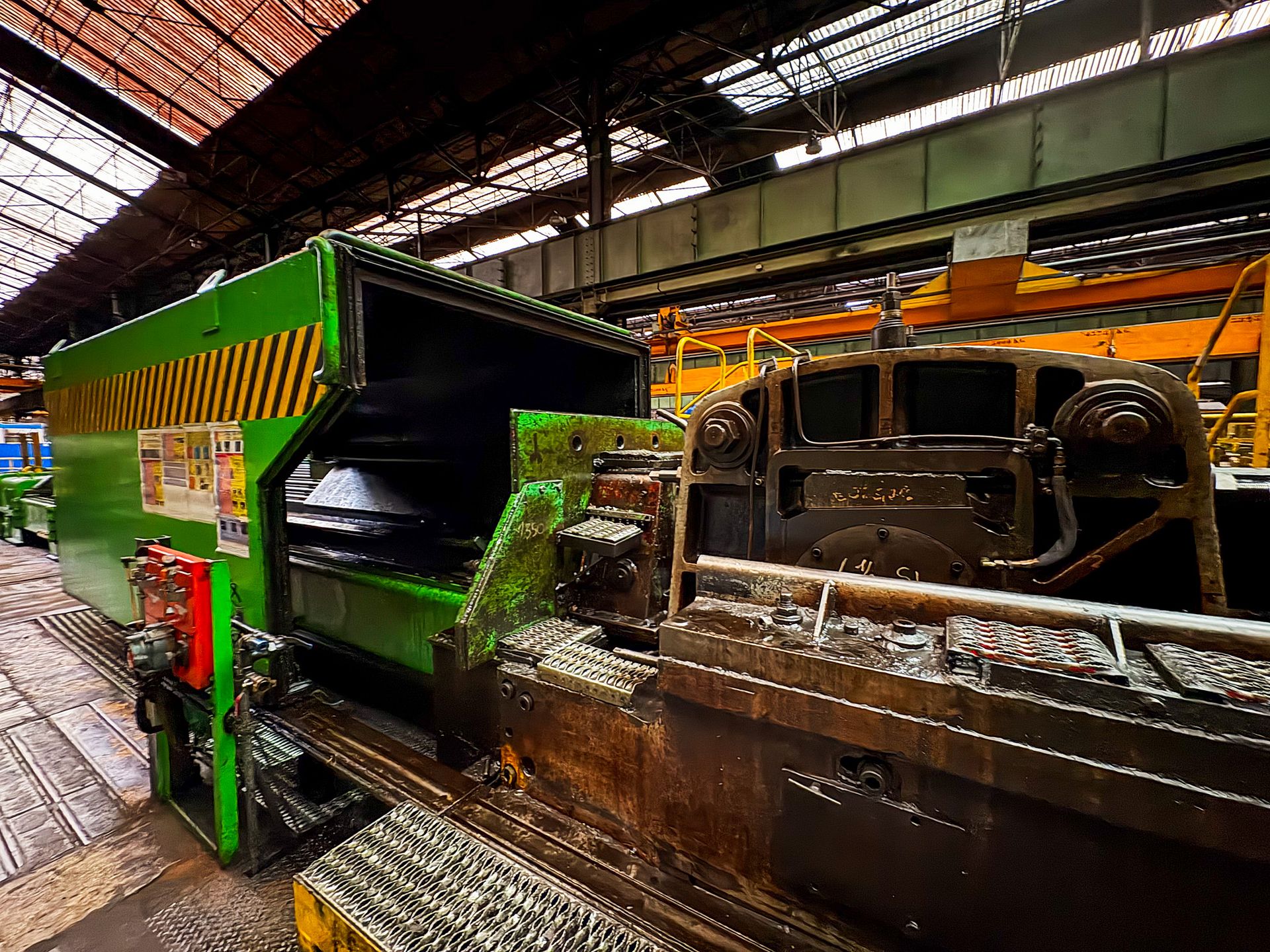

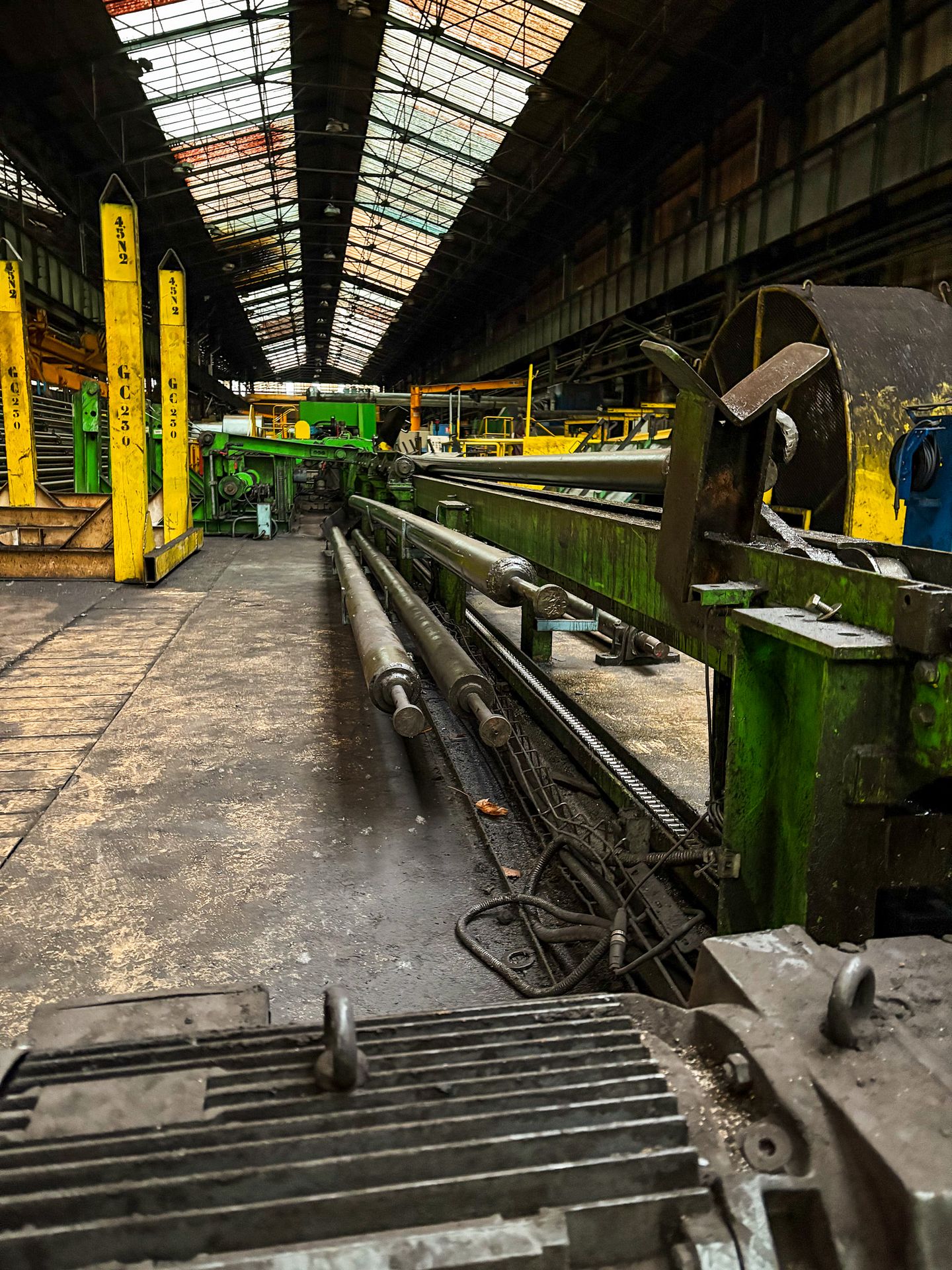

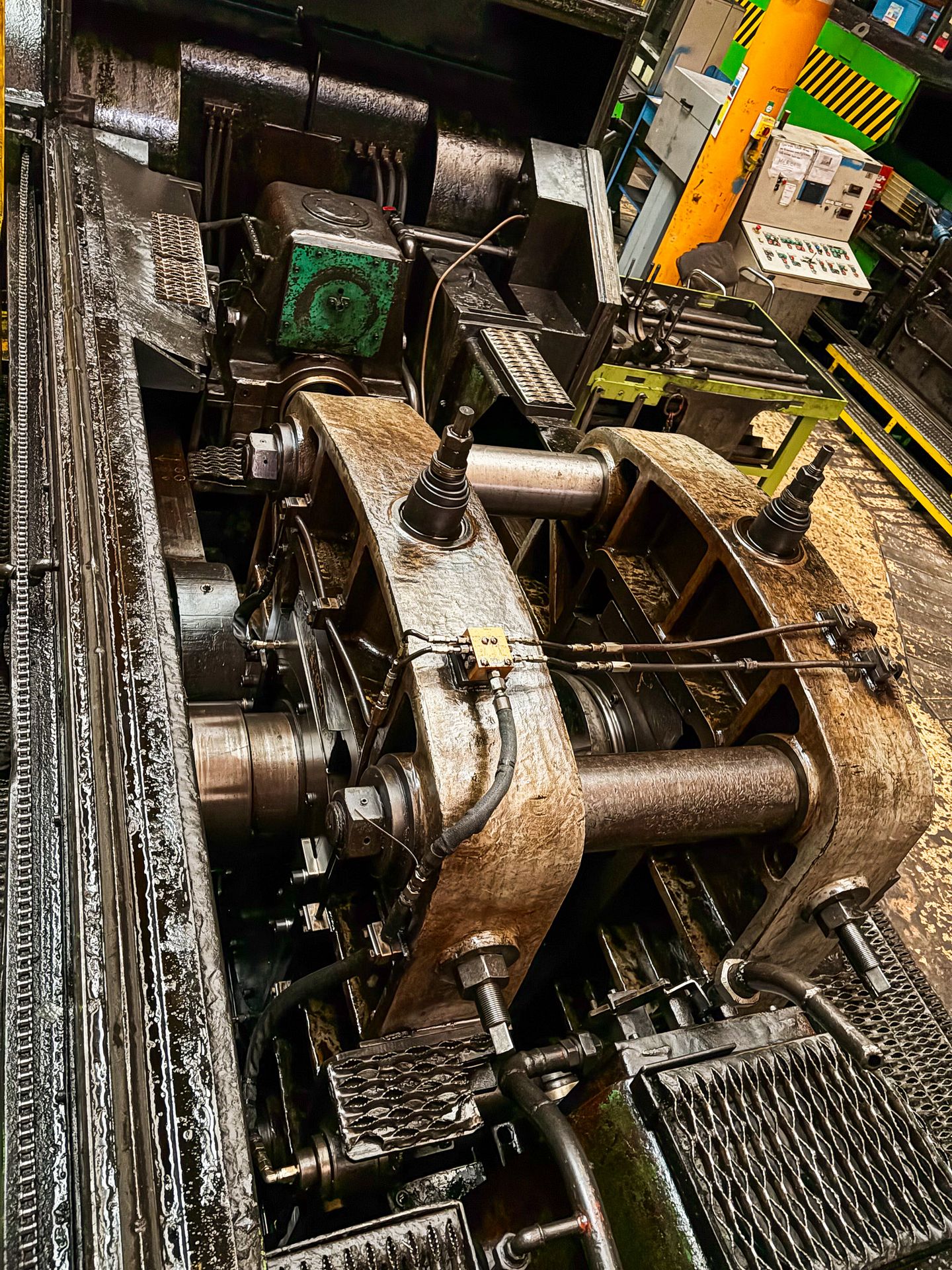

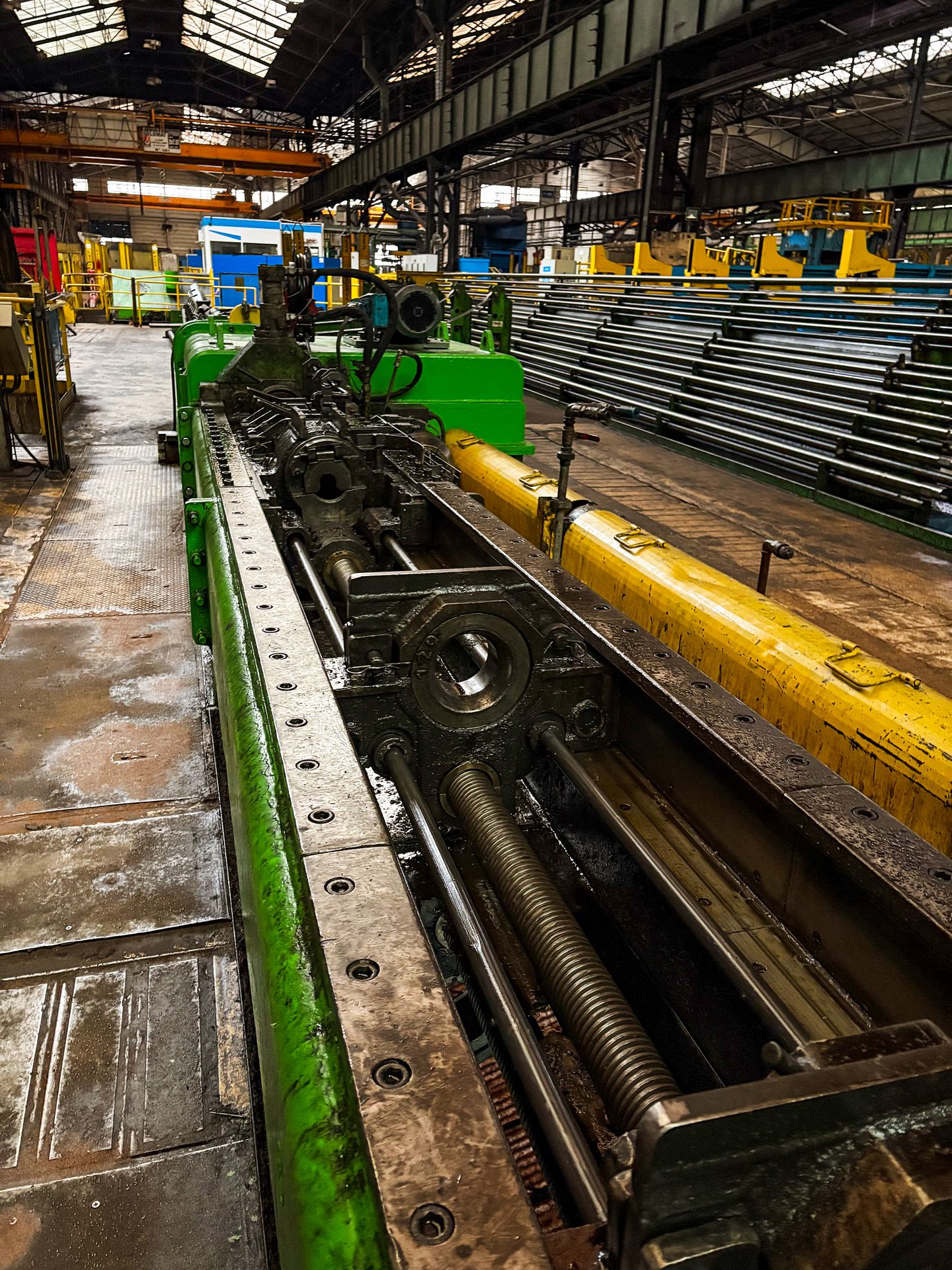

MANESMANN MEER Cold Pilger Mill, 4" 1/2, No.2 (2003)
Input diameter (hollow): 74–125 mm
Finished tube diameter: 50–102 mm
Motor: 349 kW
Max hollow bench length: 7000 mm
Max degreasing outlet length: 13500 mm
Rolling bar length: 14960 mm
Production rate: 100 tubes/hour (ref. plan 418)
Advance per stroke: 11 mm
Rotation: Double (reversible stroke)
Mandrel working length: 444 mm
Calibrating length: 185 mm
Theoretical center distance: 470.5 mm
Outer groove diameter: 468.5 mm
Groove clearance: 2 mm
Groove width: 220 mm
Flute average weight: 95 kg
Primitive diameter: 425 mm
Rolling cage race diameter: 804 mm
Centering circle diameter: 200 mm
Pinion module: 17
Number of pinion teeth: 25
Crankshaft/engine reduction ratio: 0.18
Constant (Ø × π / 360°): 3.7

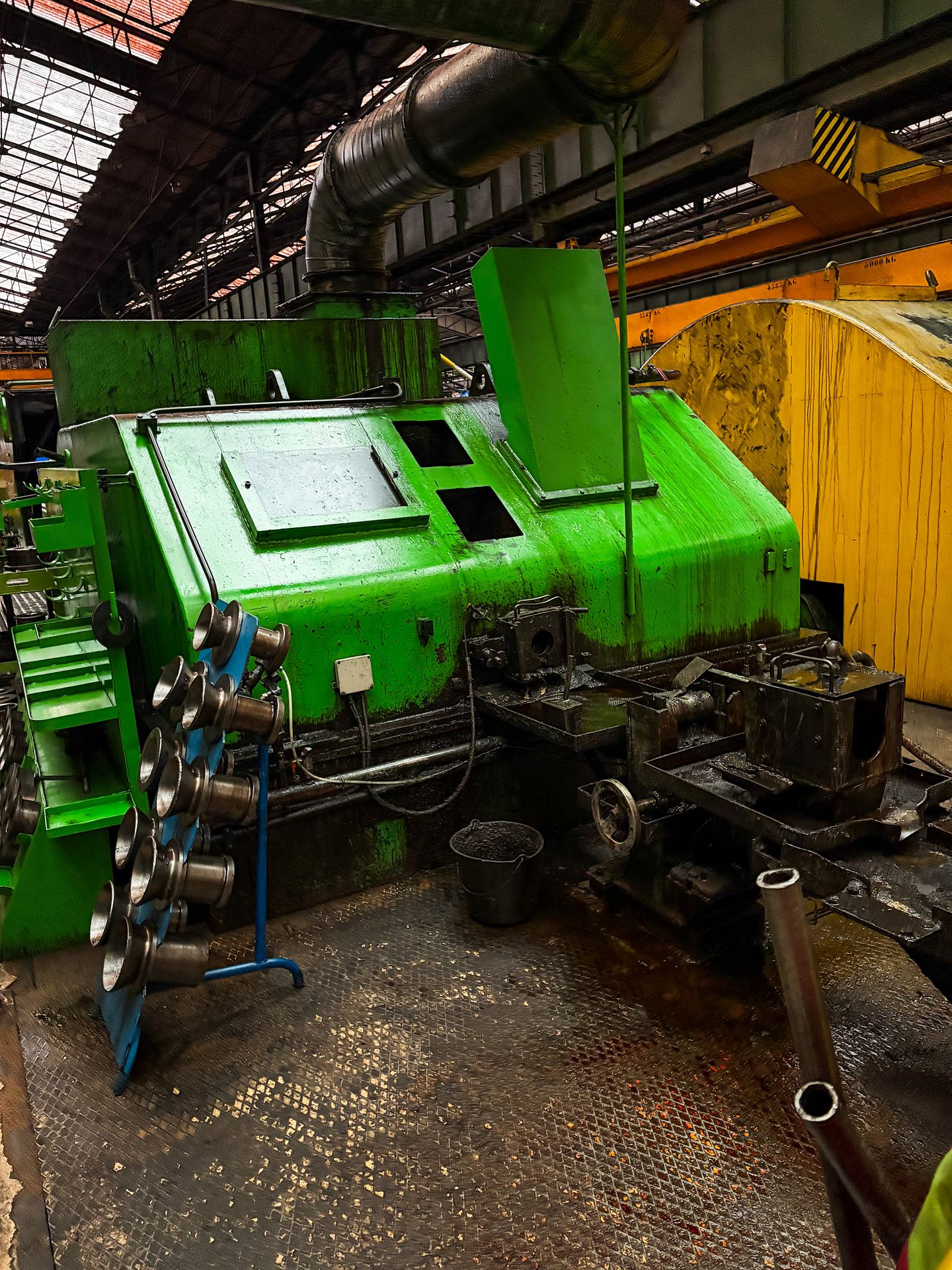

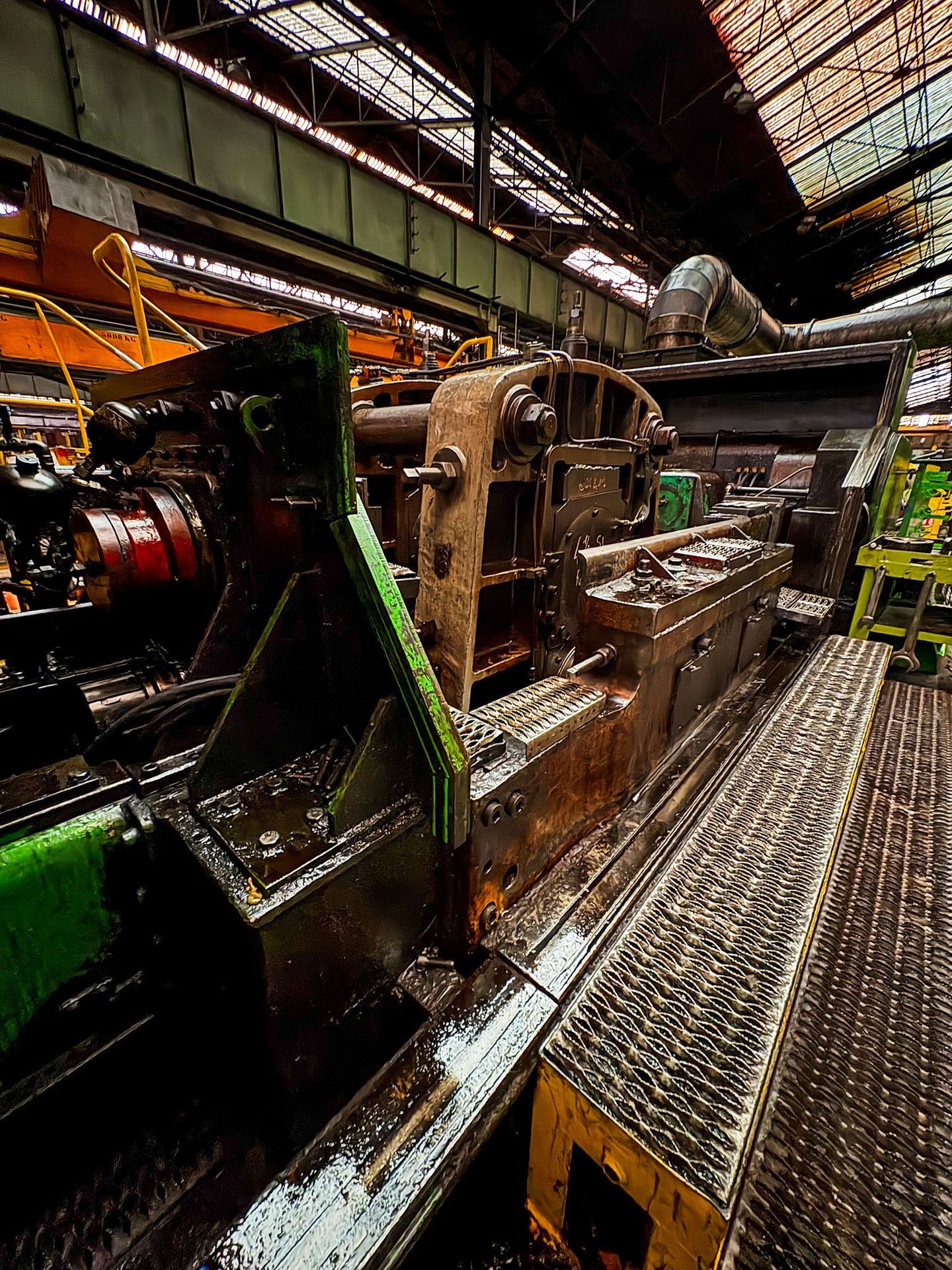

Pilger stands: 2 (one online, one offline)

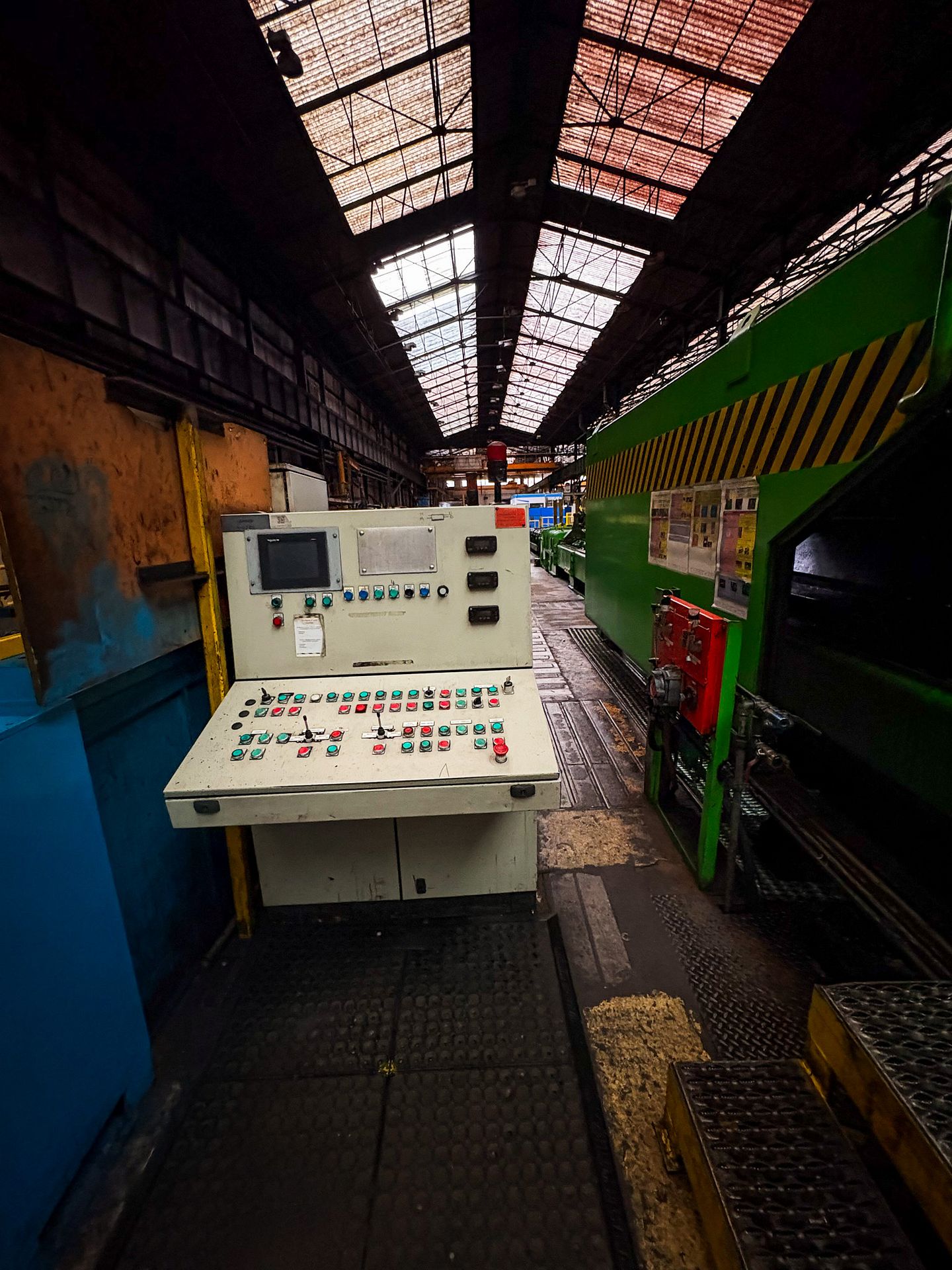

PLC: SCHNEIDER
This lot is part of a combination lot: 20 Cold Pilger Mills
