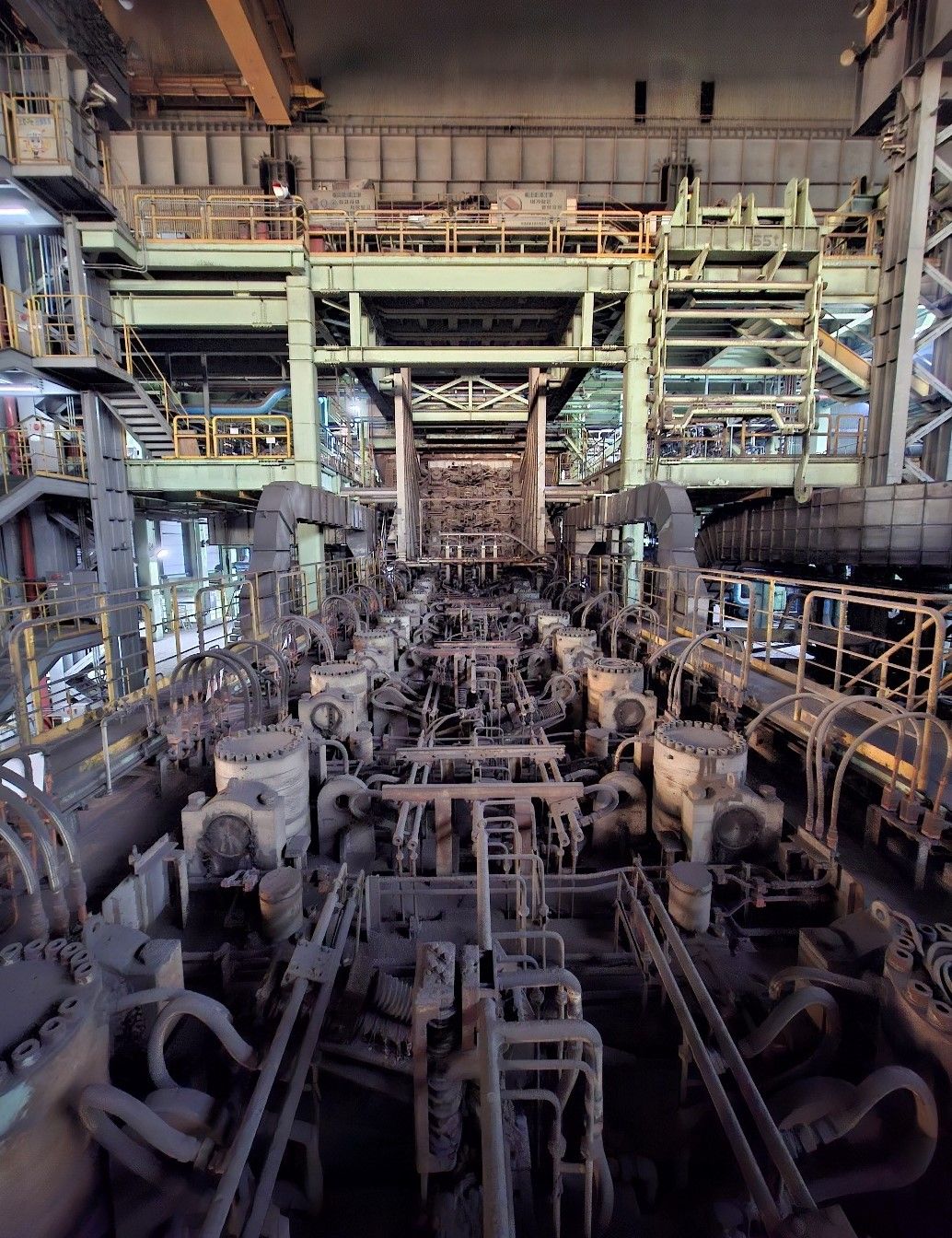

'SUMITOMO' Thick Slab Caster (1996/2006)
Make: SUMITOMO-TOSHIBA
Year of installation: 2006
Mothballed since: 2020
Equipment weight: approx. 3,500 tons (estimated)
Production capacity: 1,000,000 tons per year
Type: Vertical-bending
No. strands: 1 (single strand)
Slab width: 900 – 1,860 mm
Slab thickness: 210 mm
Casting radius: 8,000 mm
Cutting length: 37,790 mm
Casting speed: 0.5 – 2.0 mpm (operated at 2.3 mpm)

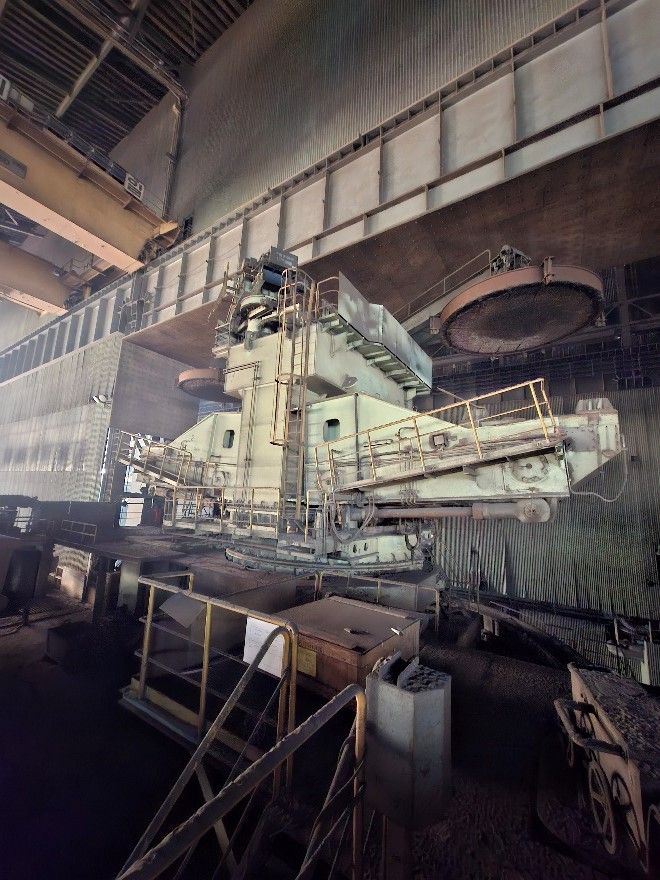

Ladle capacity: 150 tons
Tundish capacity: 32.3 tons
Flow control: Stopper (VESUVIUS)
Mould type: Copper plate (900 mm height)

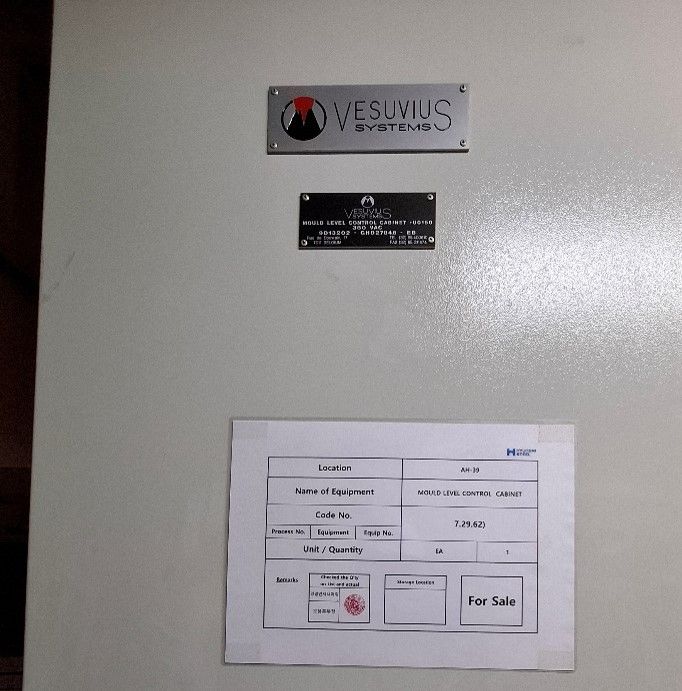

Mould level control: Eddy-current
Mould oscillation: AC motor
3 – 15 mm stroke; 50 – 250 cycle
No. Segments: 15
Cutting device: Torch cutting (GEGA)
4,500 – 12,000 mm range
LNG + Oxygen / Double torch
Deburring machine: Multi-knife
Marking machine: Al-WIRE (NEMTEC)

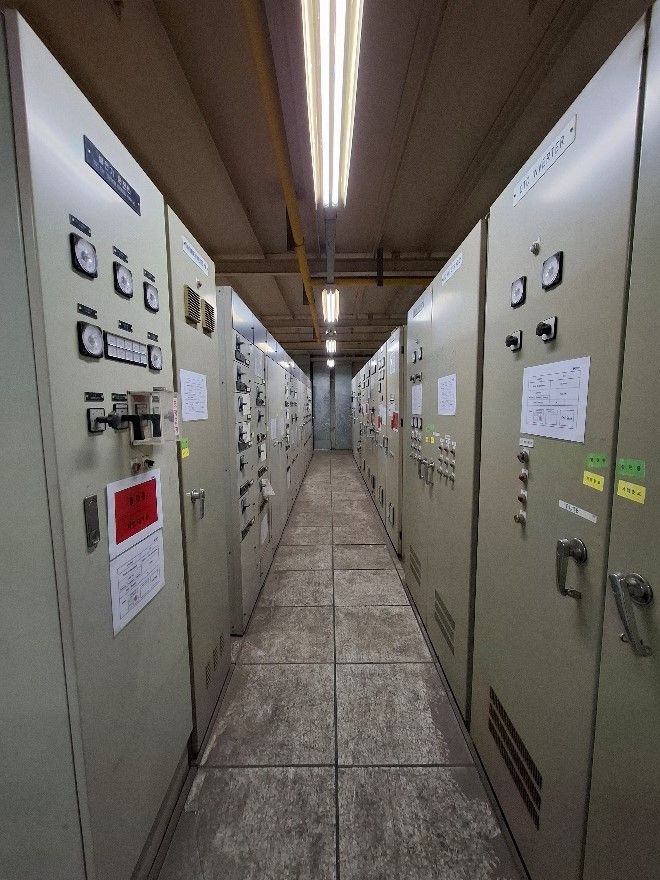

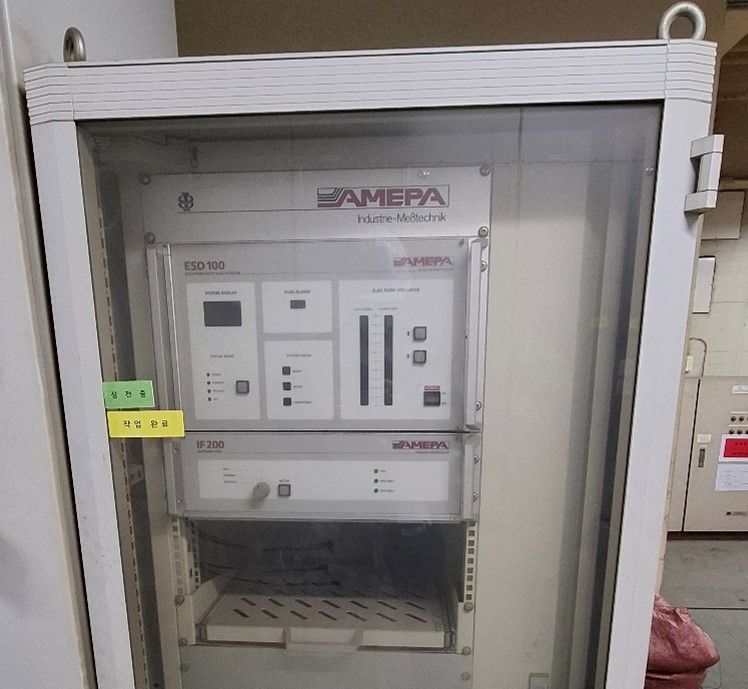

ELECTRICAL & AUTOMATION

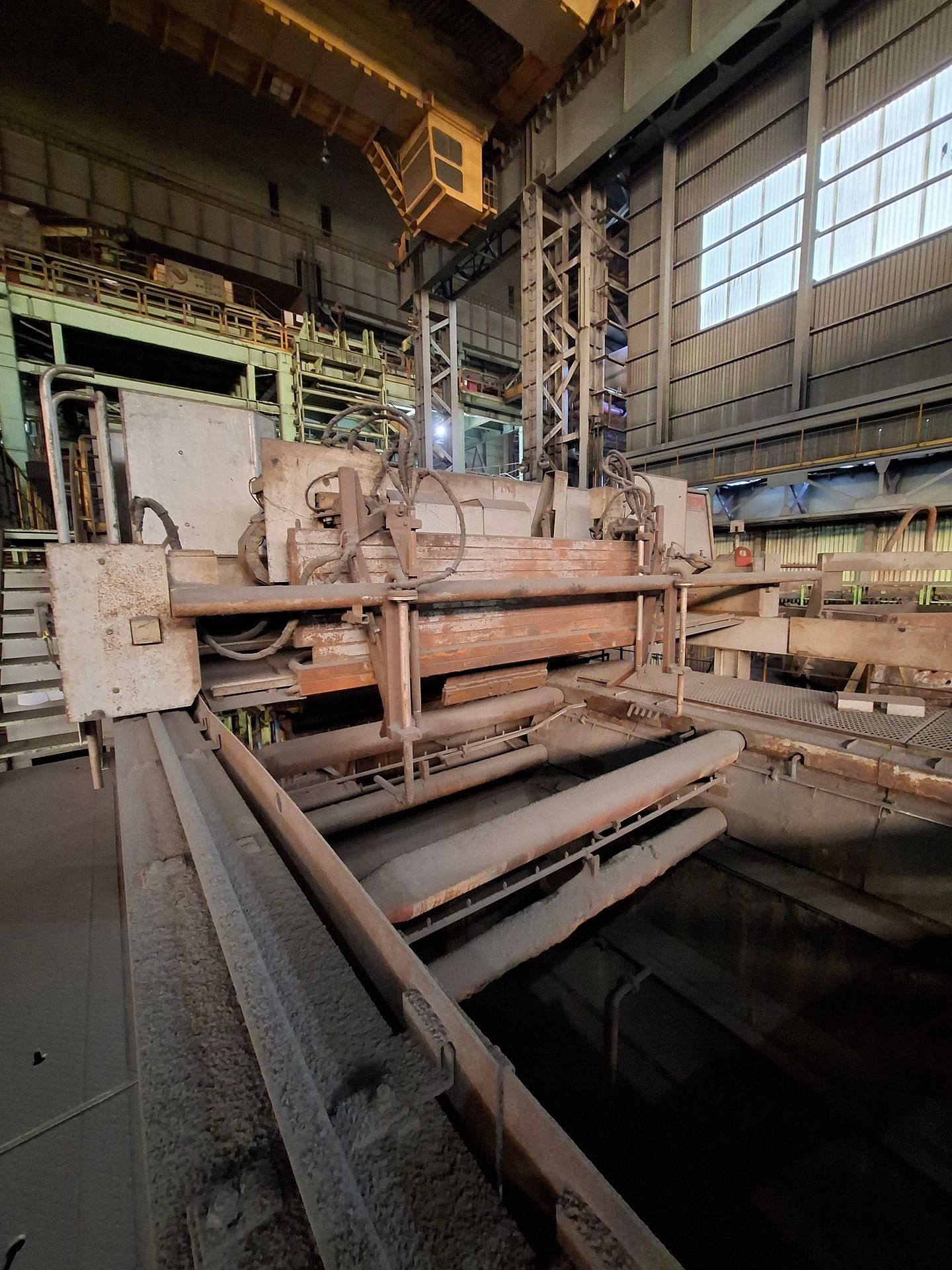

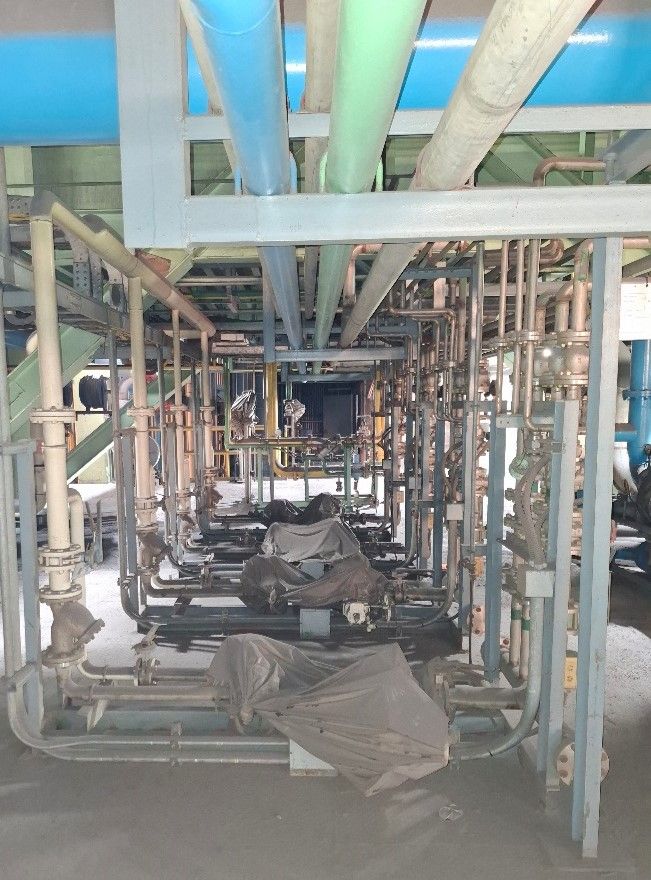

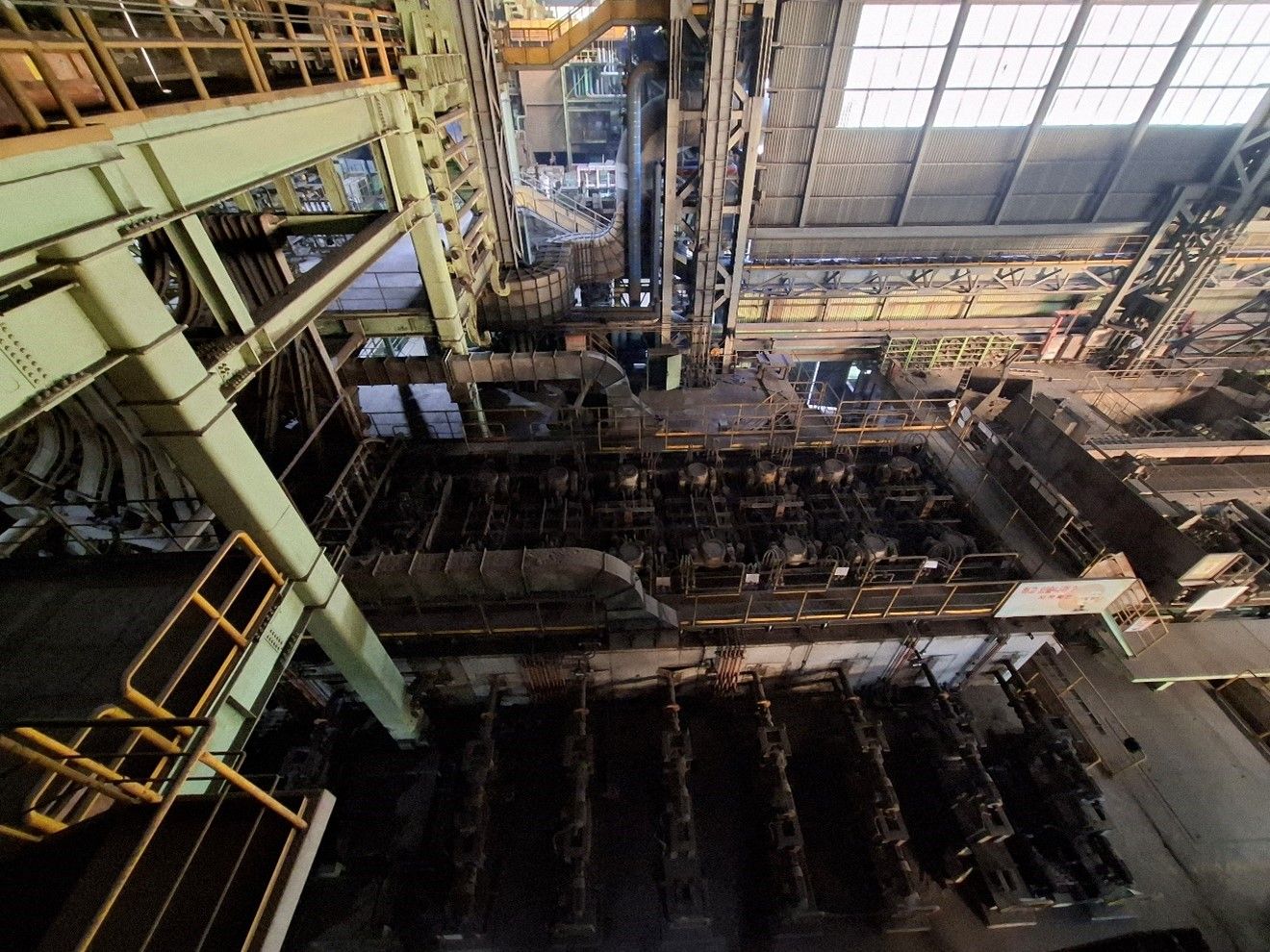

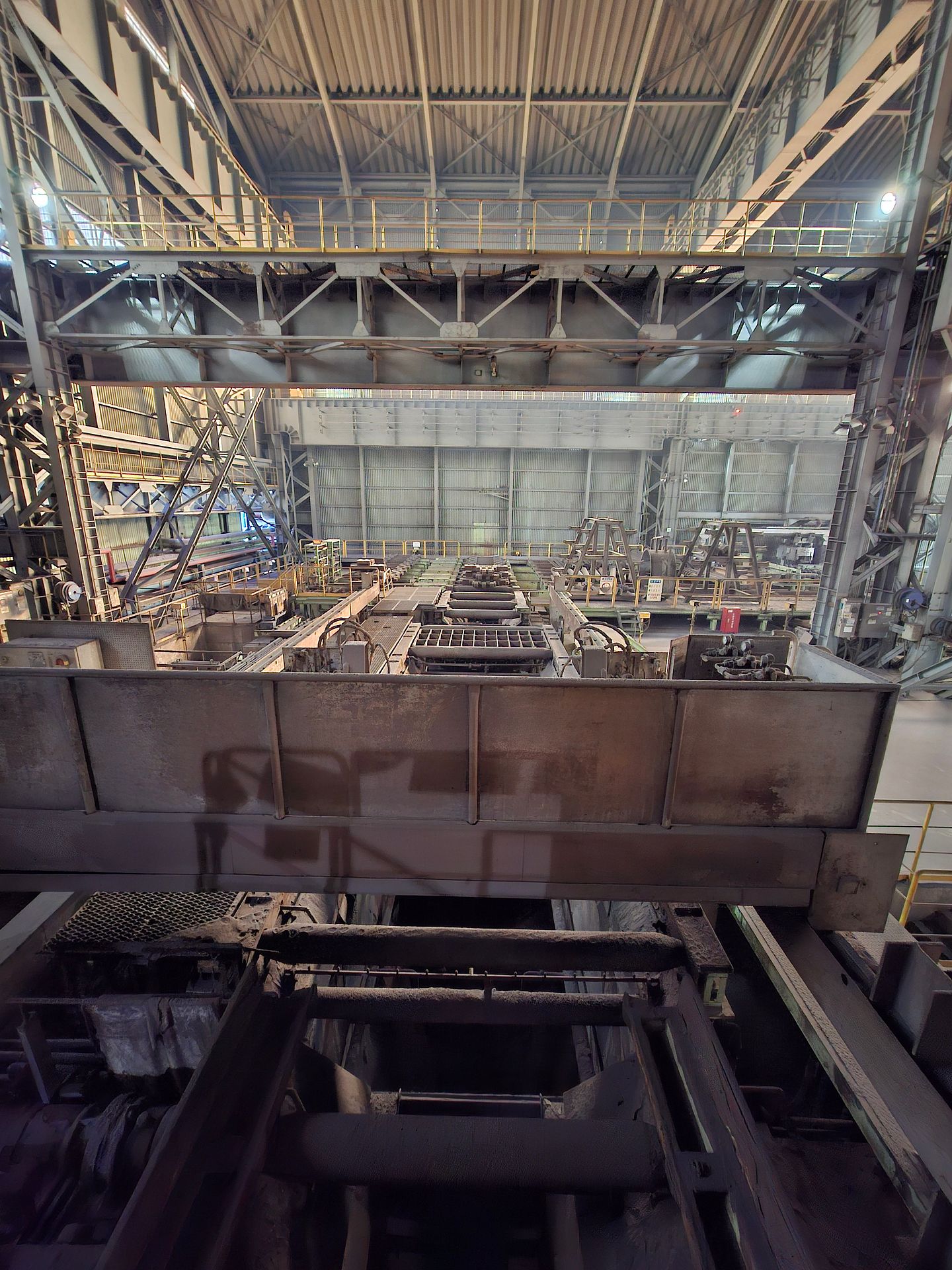

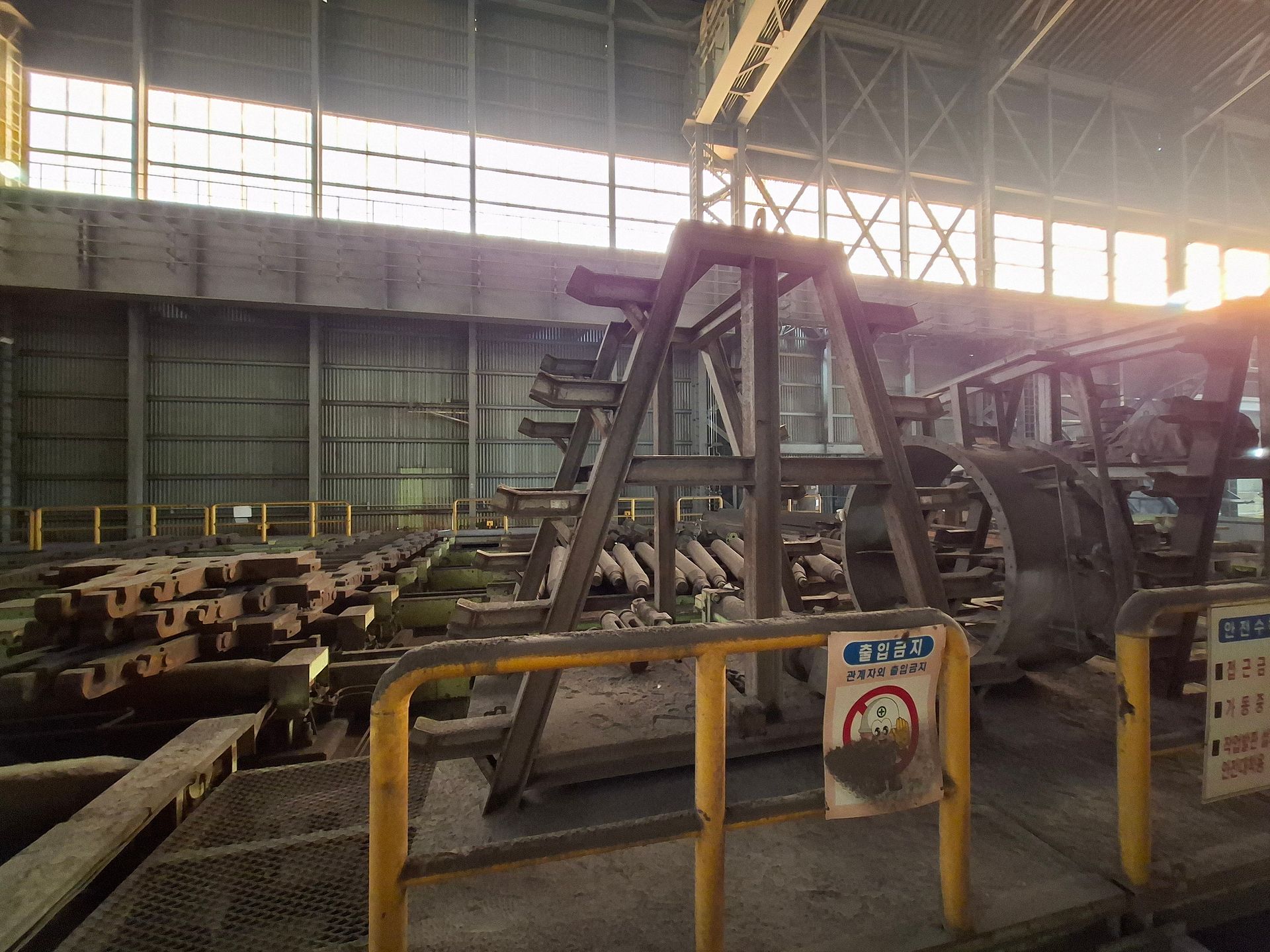

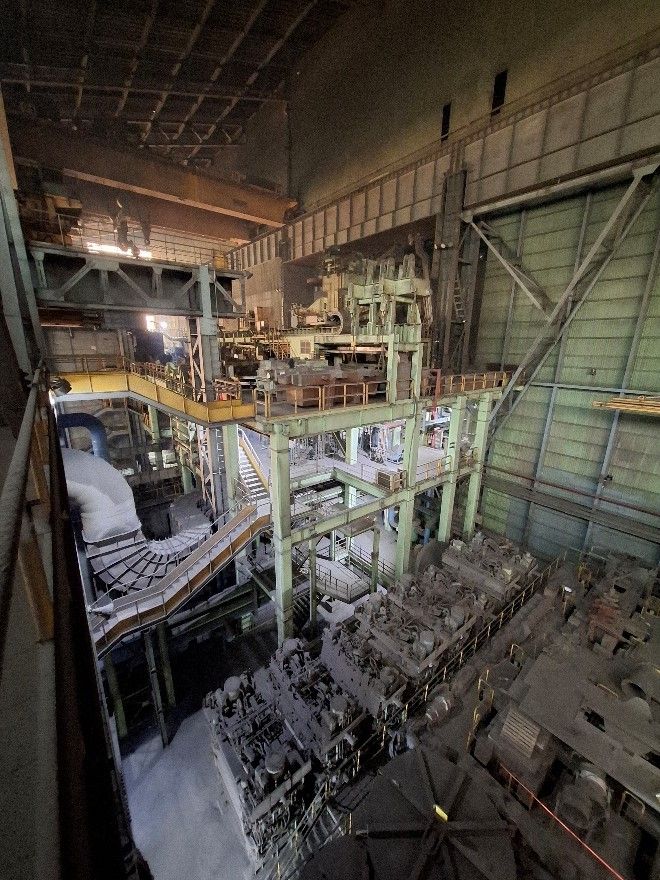

See photos.
This lot is part of a combination lot: 1 'NKK-SMS' Compact Strip Plant(Combination)
