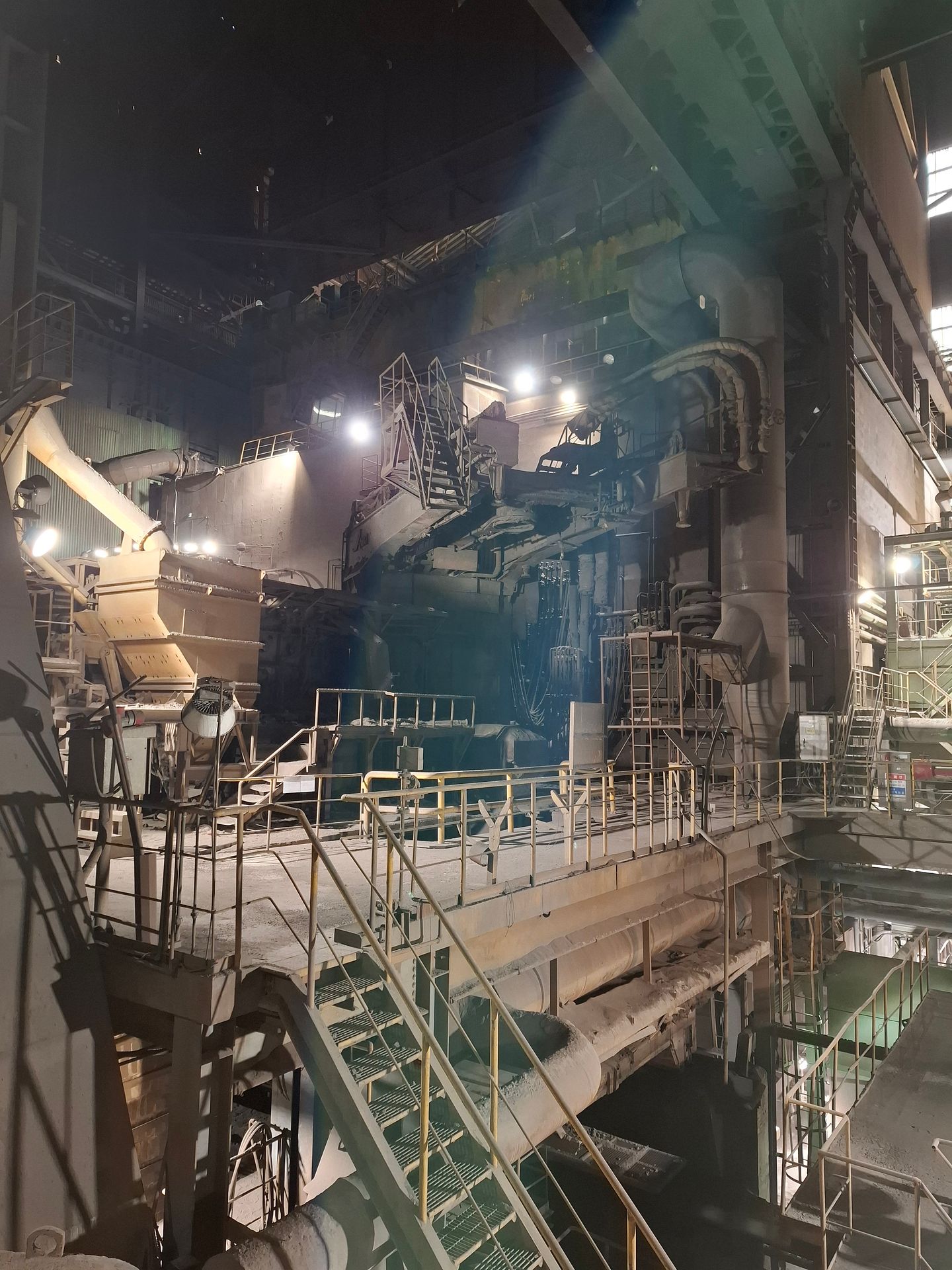

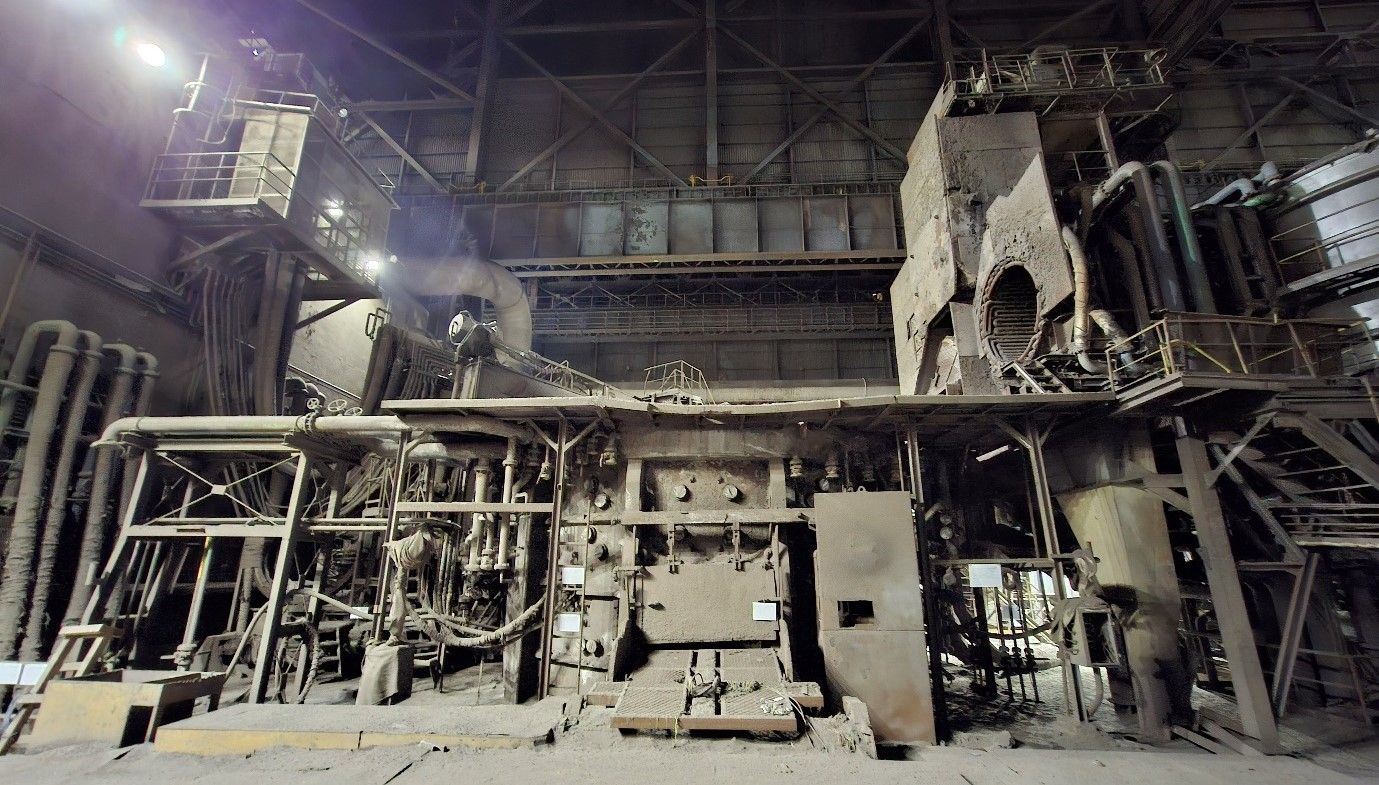

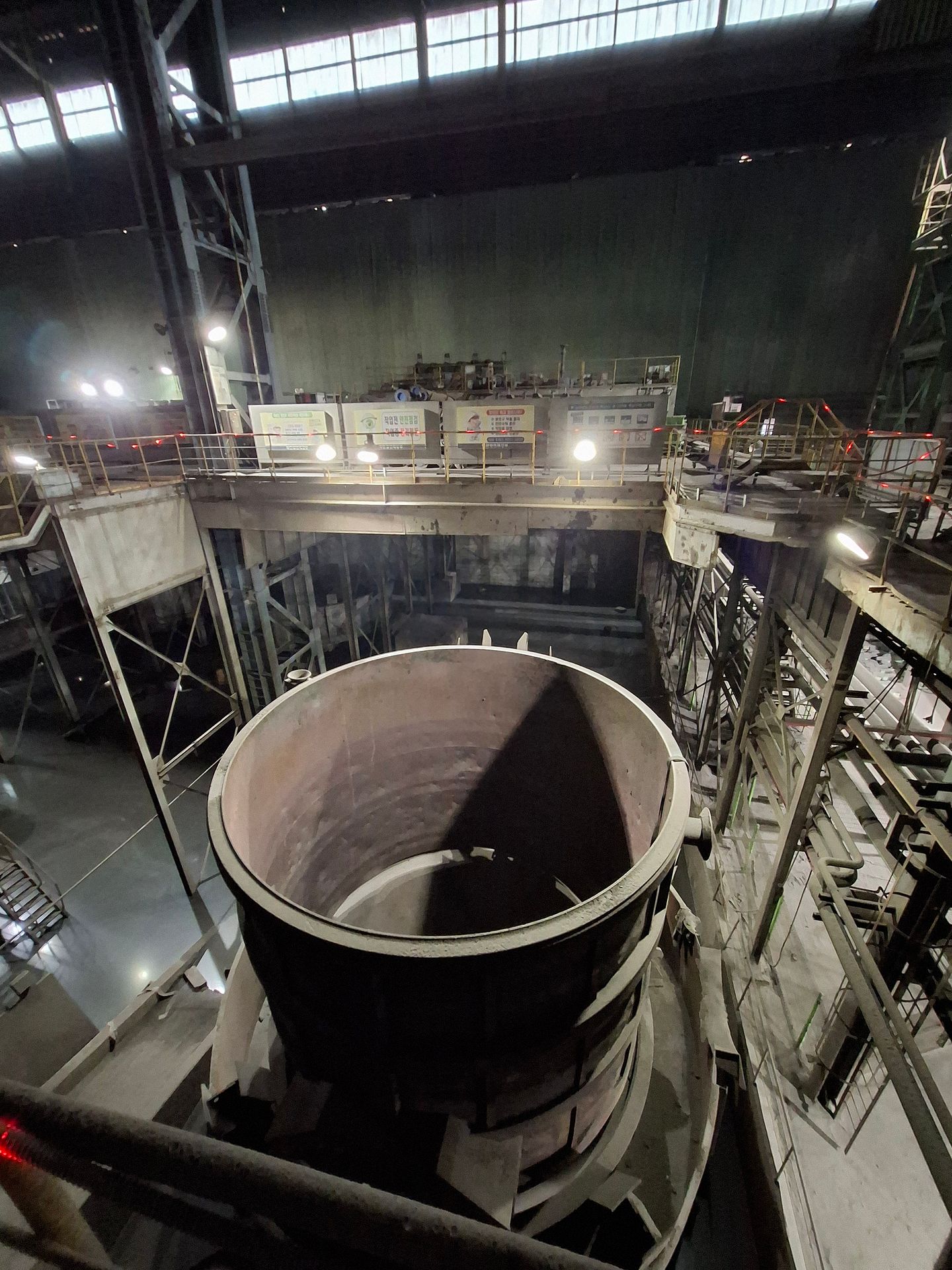

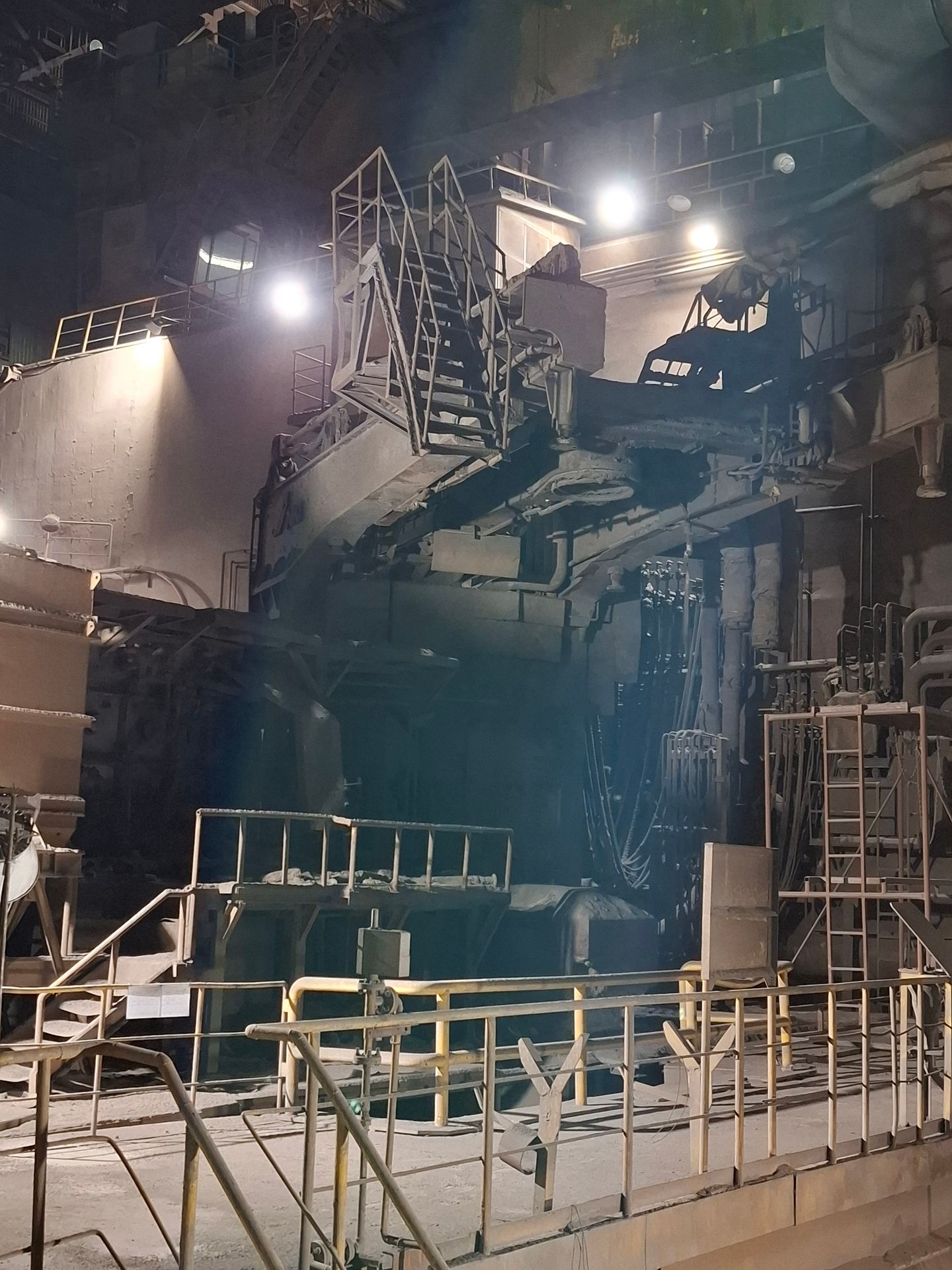

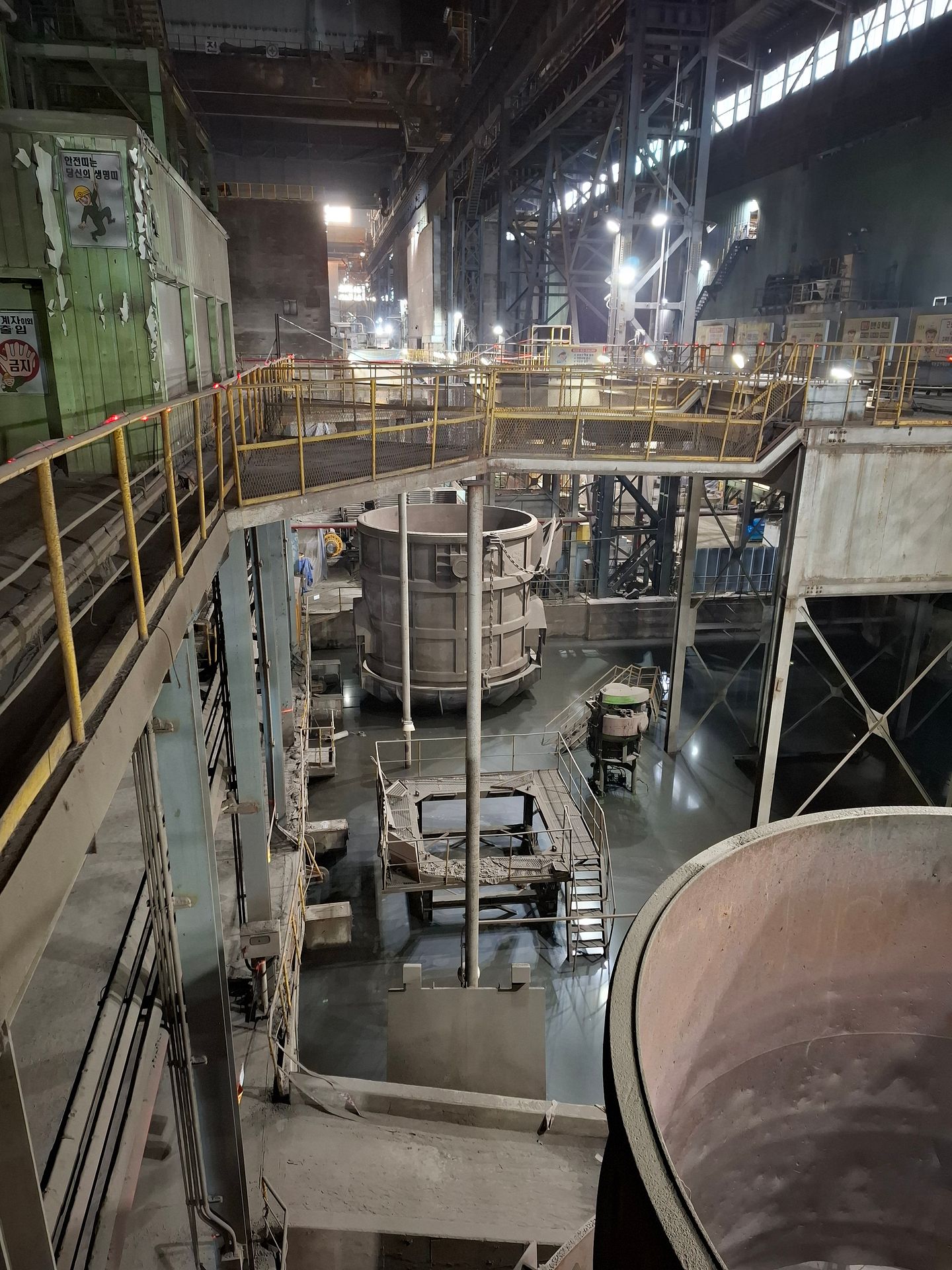

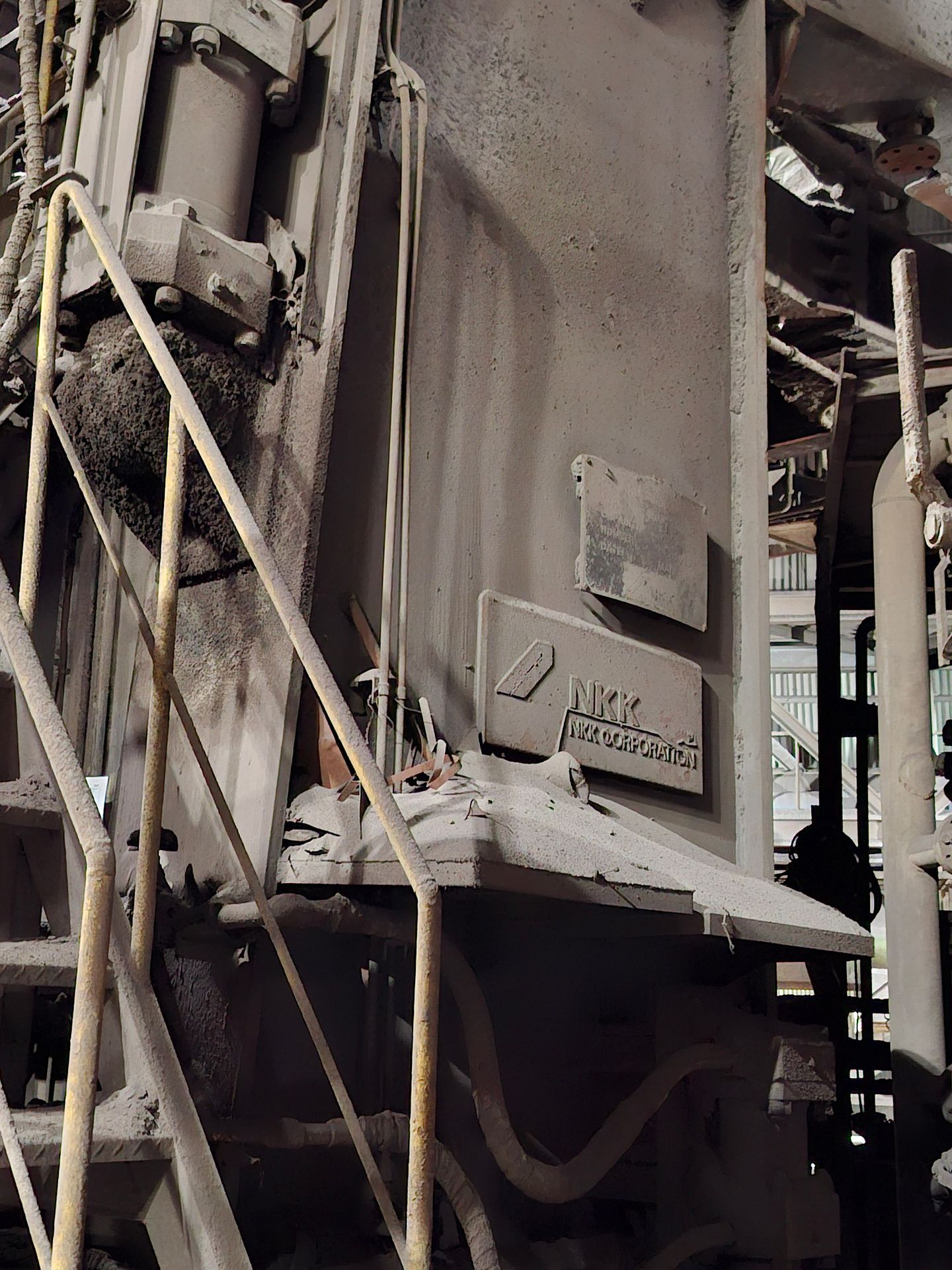

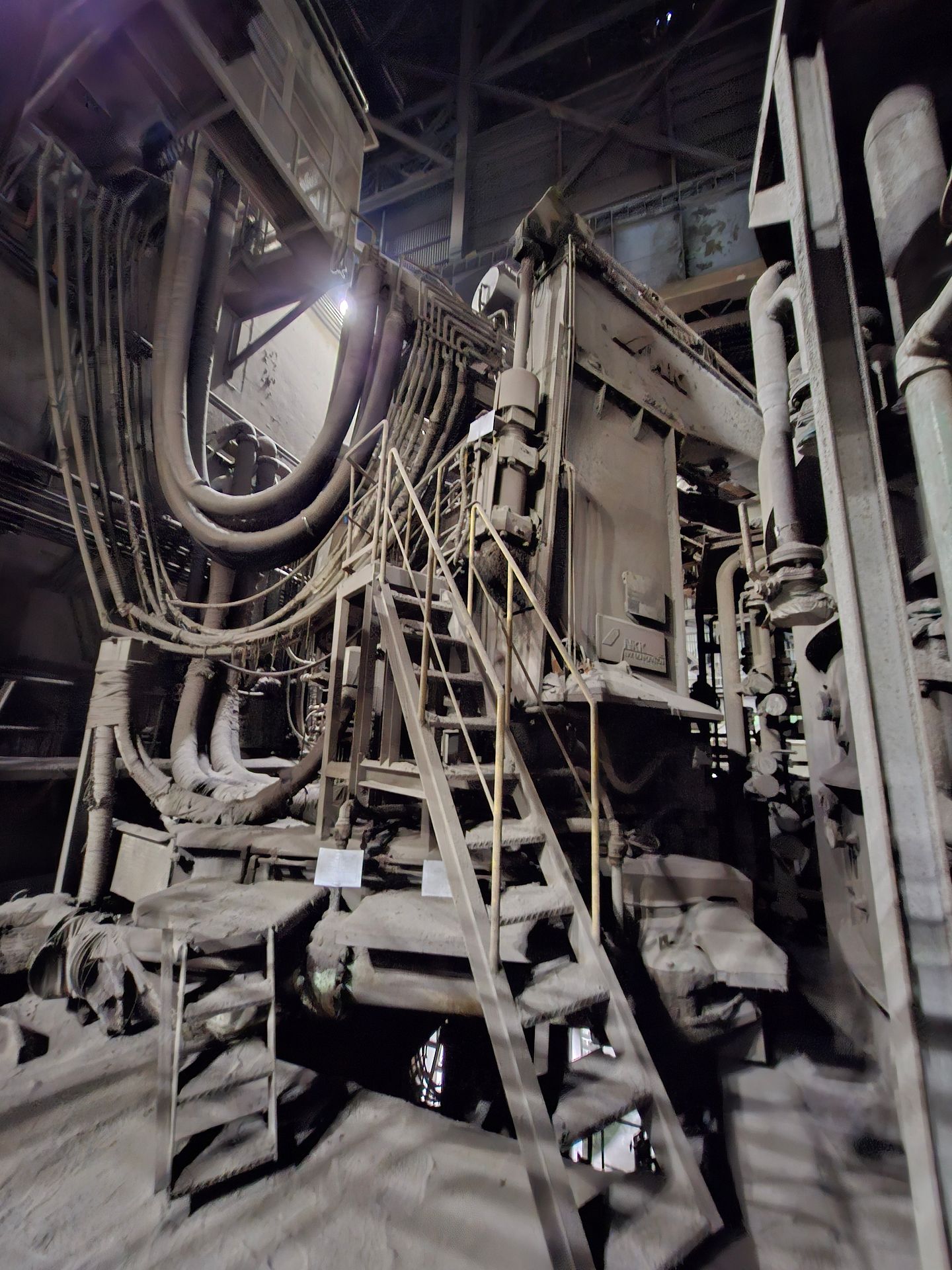

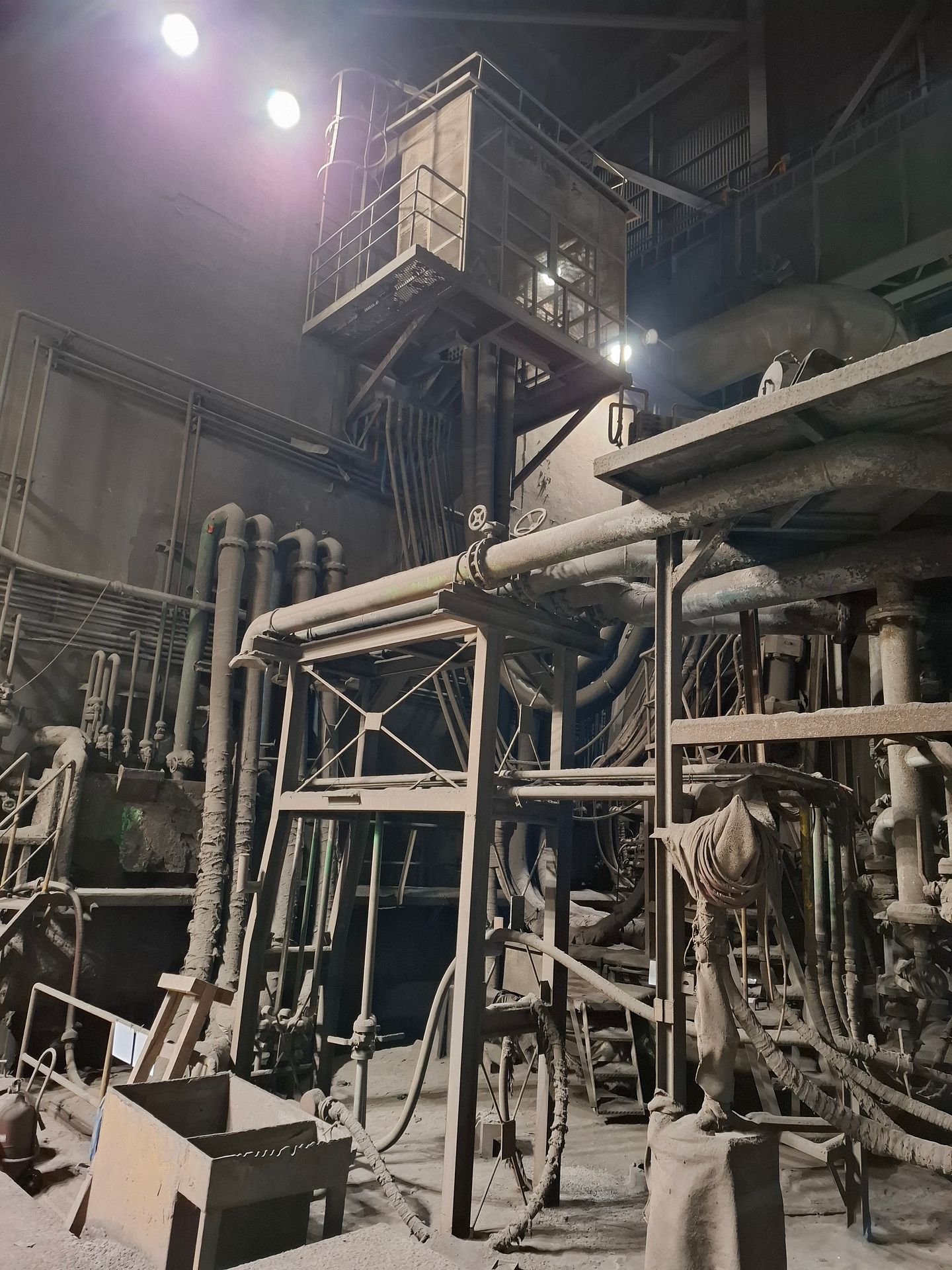

'NKK' Electric Arc Furnace (1995)
Type: DC / EBT
Year of manufacture: 1995
Mothballed since: 2011
Nominal Capacity: 150 tons
Scrap charging weight: 185 - 190 tons
No. of charging buckets: 2 buckets
Tap-to-tap time: 50 – 55 min
Hot heel: 50 tons
Shell inner diam.: 7,600 mm
Shell height: 6,050 mm
Sidewall burners: 7
Roof lifting mechanism: Hydraulic up/down/swing
Electrode arm lifting mechanism: Hydraulic up/down
Tilting mechanism: Hydraulic (angle 25˚/10˚)
EBT hole diam.: 180 mm

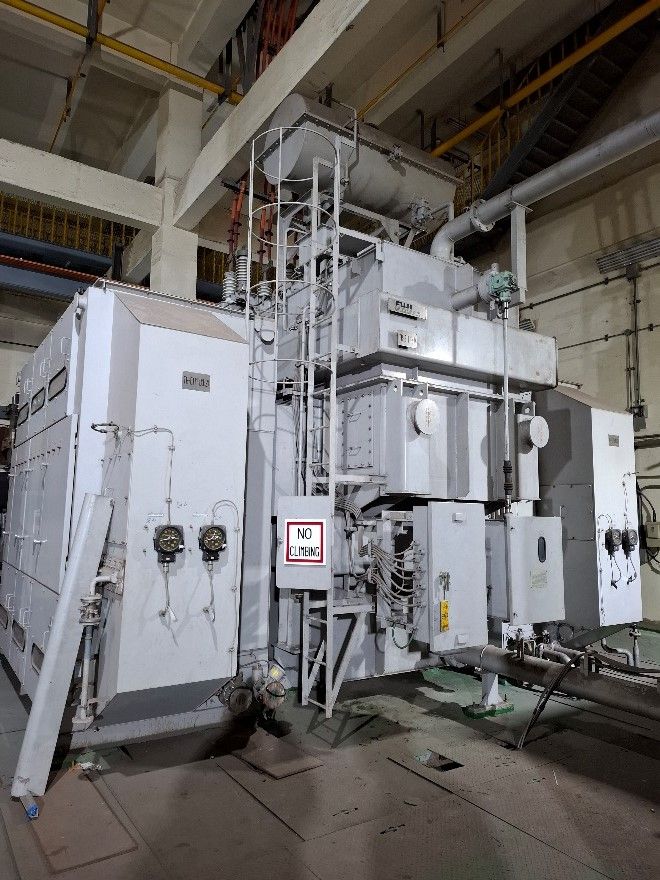

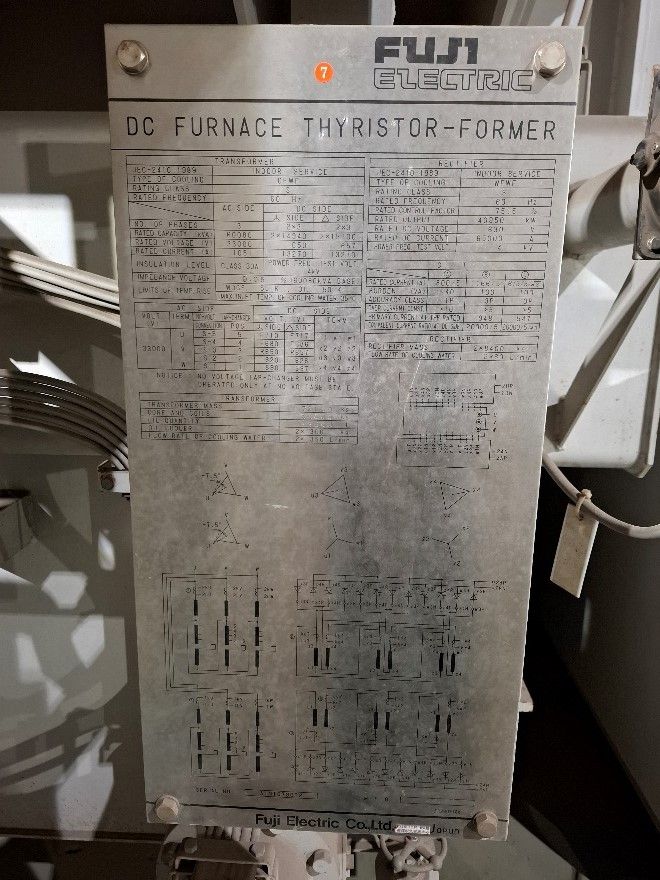

TRANSFORMER
Transformer make, year: FUJI ELECTRIC CO., LTD , JAPAN, 2009 (without rectifiers – specification available)
Transformer capacity: 120 MVA

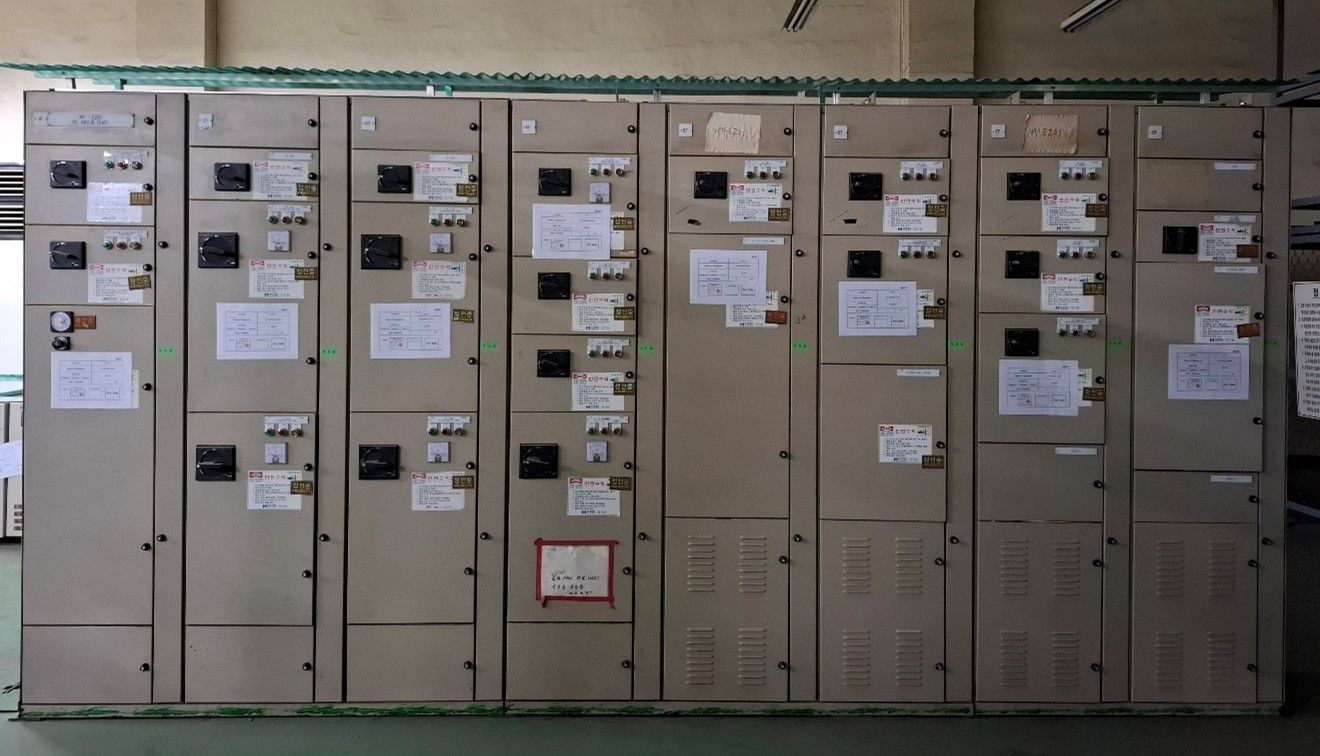

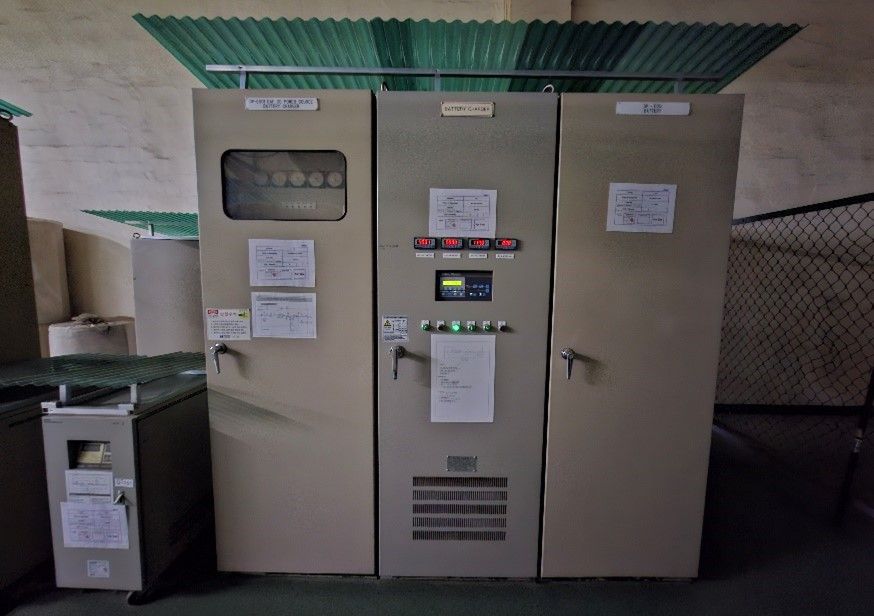

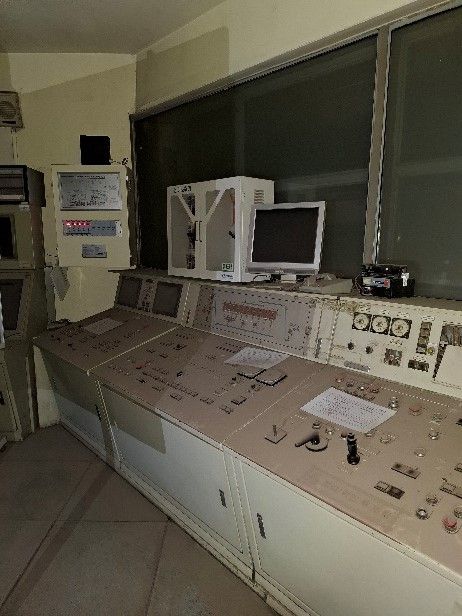

ELECTRICAL & AUTOMATION

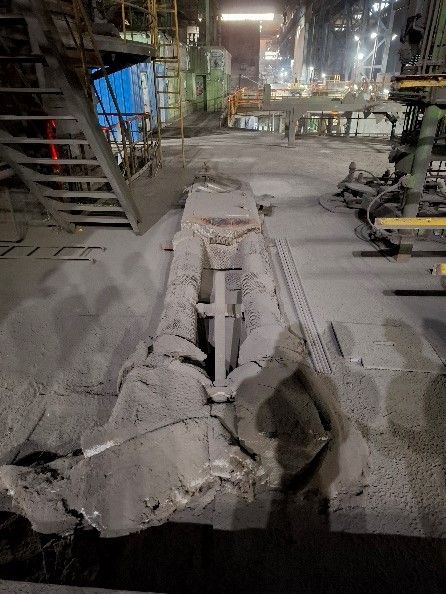

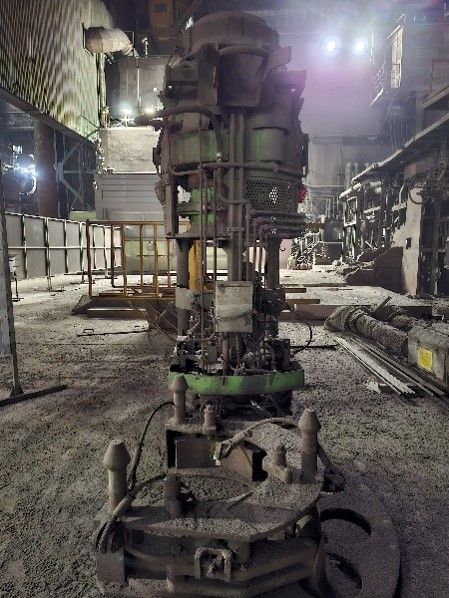

ACCESSORIES:

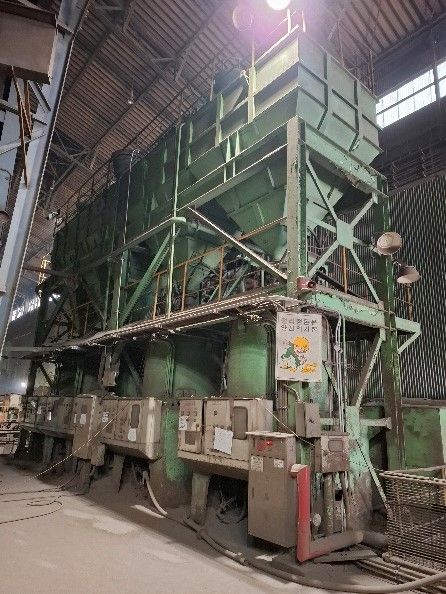

Accessories include aforementioned Scrap Buckets, Refractory Gunning Machine and Material and Carbon Handling System.
This lot is part of a combination lot: 1 'NKK-SMS' Compact Strip Plant(Combination)
